Product Family Overview

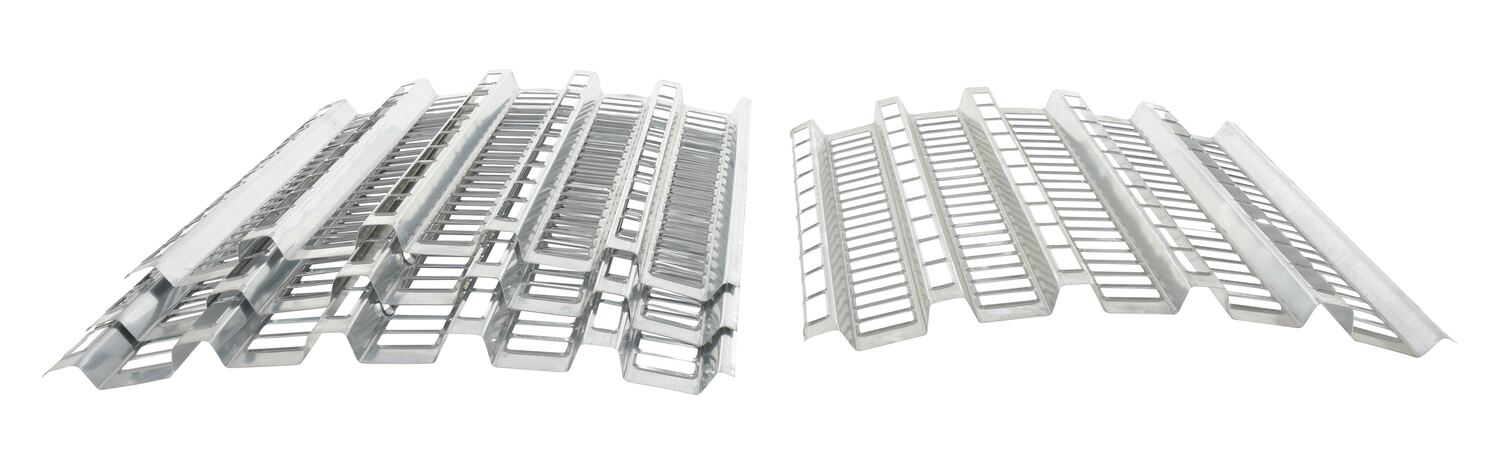

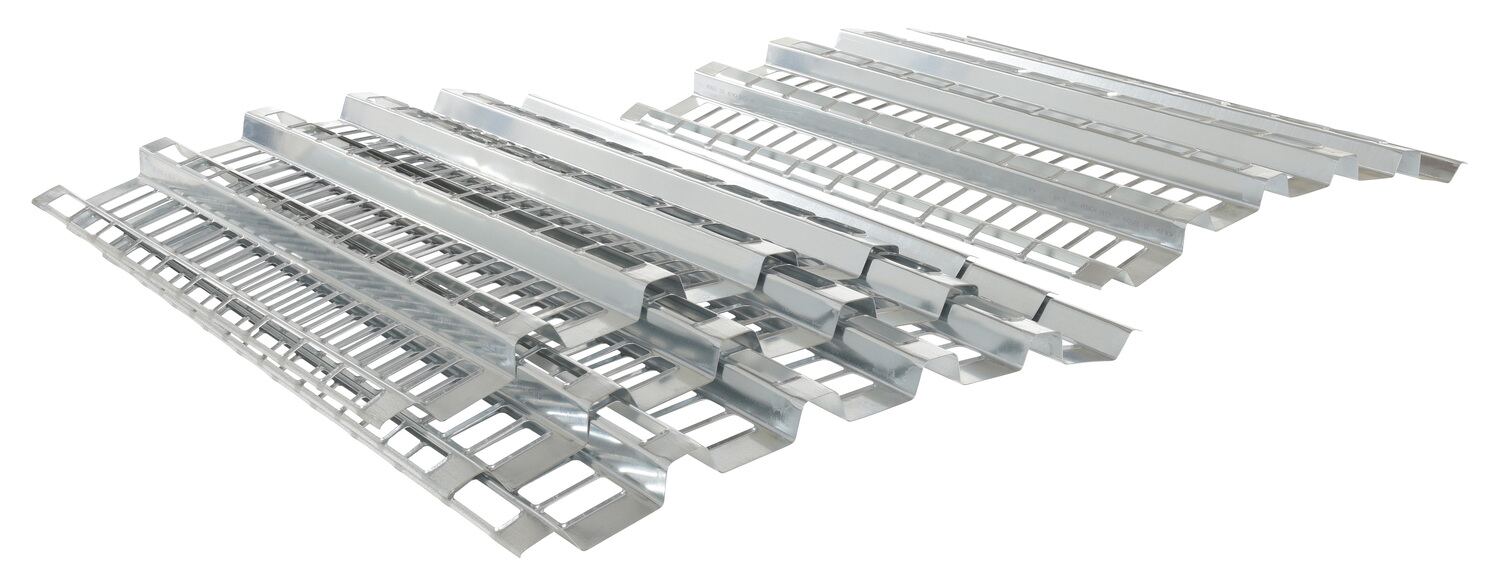

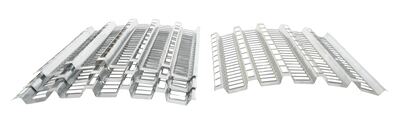

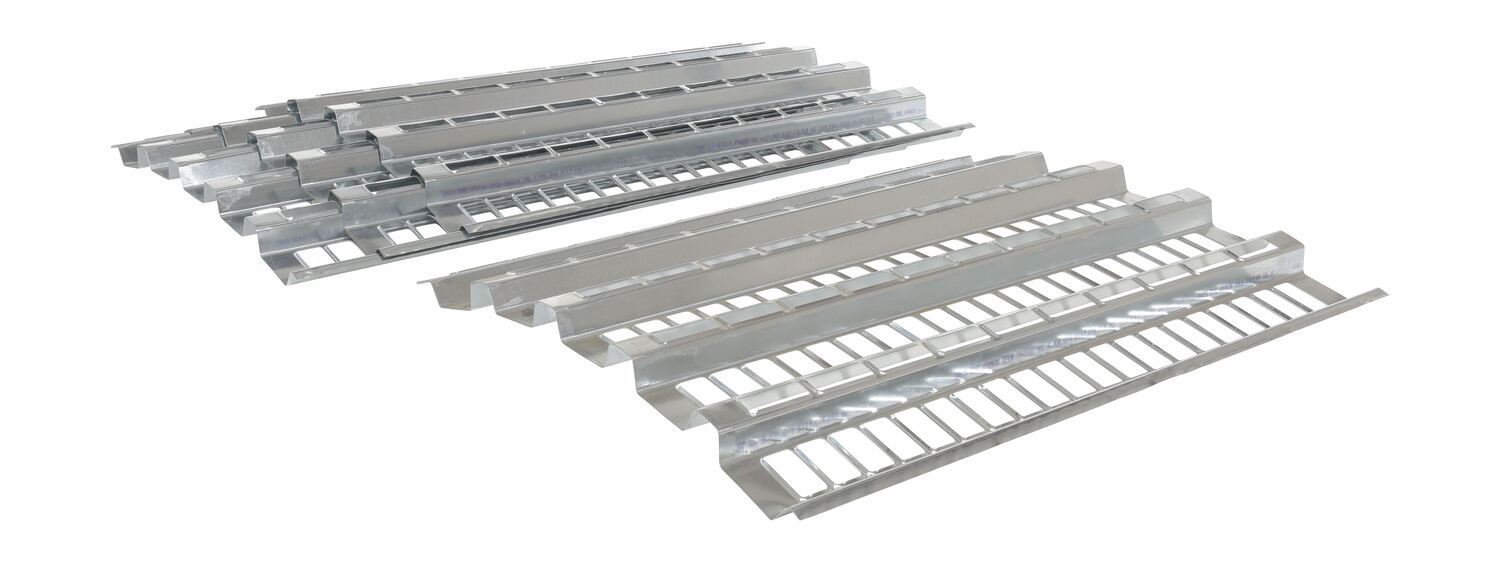

Open Area Rack Decking
SERIES: PCH

Ideal for storing furniture, carpet, record files or products that require a uniform support. Fire protection friendly with 50% open design. Designed for pallet rack beam with 42" deep racking. The bright galvanized finish makes the 22 gauge steel rack appear more industrial. Fits 1-1/2." beam offset. The top hats are 3-1/2" wide with top slotted holes 1-1/4" x 2-1/2" and the valleys are 2-1/2" wide with slotted holes 1" x 3". Custom sizes available, contact factory.

  • Ideal for storing furniture, carpet, record files or products that require a uniform support
  • 50% Open design becomes fire protection friendly
  • Designed for pallet rack beam with deep racking
  • Galvanized finish provides a longer life for pallet racking

Ideal for storing furniture, carpet, record files or products that require a uniform support. Fire protection friendly with 50% open design. Designed for pallet rack beam with 42" deep racking. The bright galvanized finish makes the 22 gauge steel rack appear more industrial. Fits 1-1/2." beam offset. The top hats are 3-1/2" wide with top slotted holes 1-1/4" x 2-1/2" and the valleys are 2-1/2" wide with slotted holes 1" x 3". Custom sizes available, contact factory.

  • Ideal for storing furniture, carpet, record files or products that require a uniform support
  • 50% Open design becomes fire protection friendly
  • Designed for pallet rack beam with deep racking
  • Galvanized finish provides a longer life for pallet racking

Additional Models In This Family

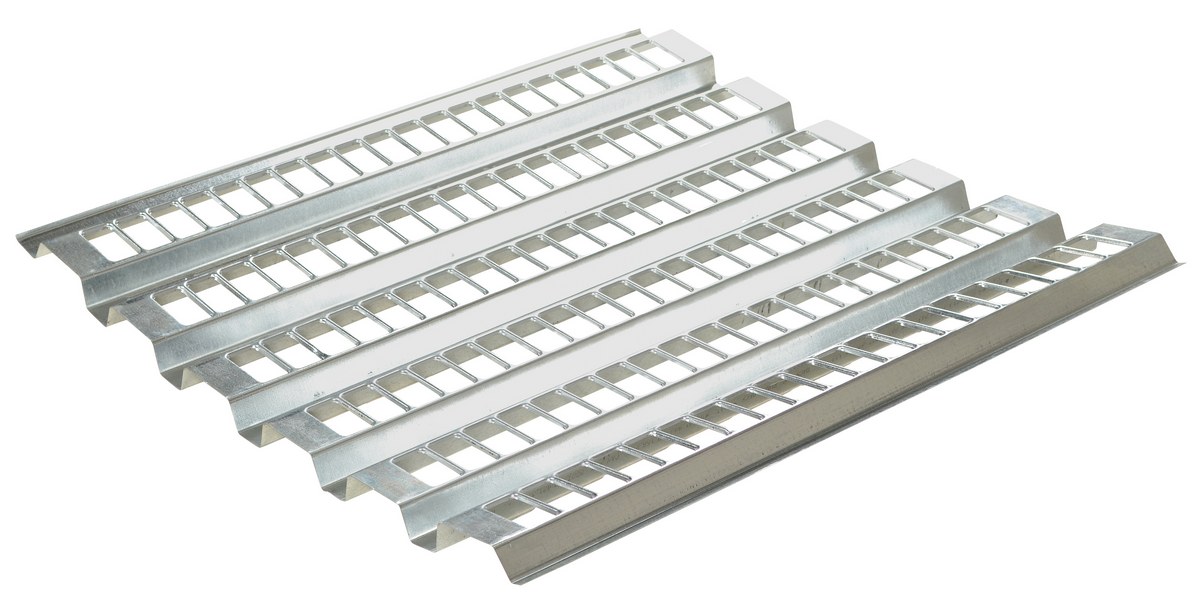

PCH-96

model PCH-96

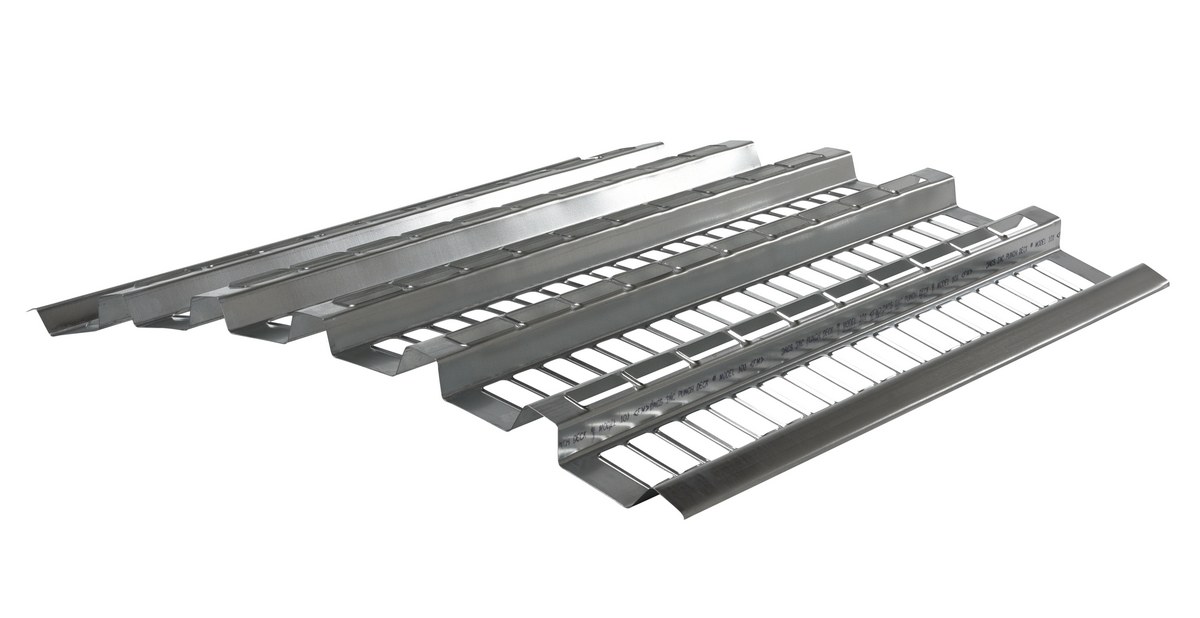

PCH-108

model PCH-108

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
PCH-108 PCH-10830 Days Limited WarrantyGalvanized Open-Area Pallet Rack Decking 38-1/2 In. x 108 In. x 1-1/2 In. 3780 Lb. CapacityUniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
72
PCH-120 PCH-12030 Days Limited WarrantyGalvanized Open-Area Pallet Rack Decking 38-1/2 In. x 120 In. x 1-1/2 In. 3780 Lb. CapacityUniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
82
PCH-96 PCH-9630 Days Limited WarrantyGalvanized Open-Area Pallet Rack Decking 38-1/2 In. x 96 In. x 1-1/2 In. 3780 Lb. CapacityUniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
62

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

PCH-108
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
Uniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42

PCH-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
Uniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42

PCH-96
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
Uniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42

Open Area Rack Decking PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


PCH-108

PCH-120

PCH-96

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Open Area Rack Decking




Ideal for storing furniture, carpet, record files or products that require a uniform support. Fire protection friendly with 50% open design. Designed for pallet rack beam with 42" deep racking. The bright galvanized finish makes the 22 gauge steel rack appear more industrial. Fits 1-1/2." beam offset. The top hats are 3-1/2" wide with top slotted holes 1-1/4" x 2-1/2" and the valleys are 2-1/2" wide with slotted holes 1" x 3". Custom sizes available, contact factory.

  • Ideal for storing furniture, carpet, record files or products that require a uniform support
  • 50% Open design becomes fire protection friendly
  • Designed for pallet rack beam with deep racking
  • Galvanized finish provides a longer life for pallet racking


Model # Description Attributes Net Wt.
(lbs)
PCH-108 PCH-108Galvanized Open-Area Pallet Rack Decking 38-1/2 In. x 108 In. x 1-1/2 In. 3780 Lb. CapacityUniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
72
PCH-120 PCH-120Galvanized Open-Area Pallet Rack Decking 38-1/2 In. x 120 In. x 1-1/2 In. 3780 Lb. CapacityUniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
82
PCH-96 PCH-96Galvanized Open-Area Pallet Rack Decking 38-1/2 In. x 96 In. x 1-1/2 In. 3780 Lb. CapacityUniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
62
