Product Family Overview

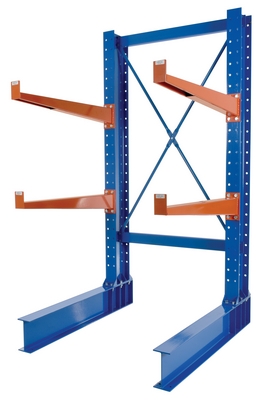

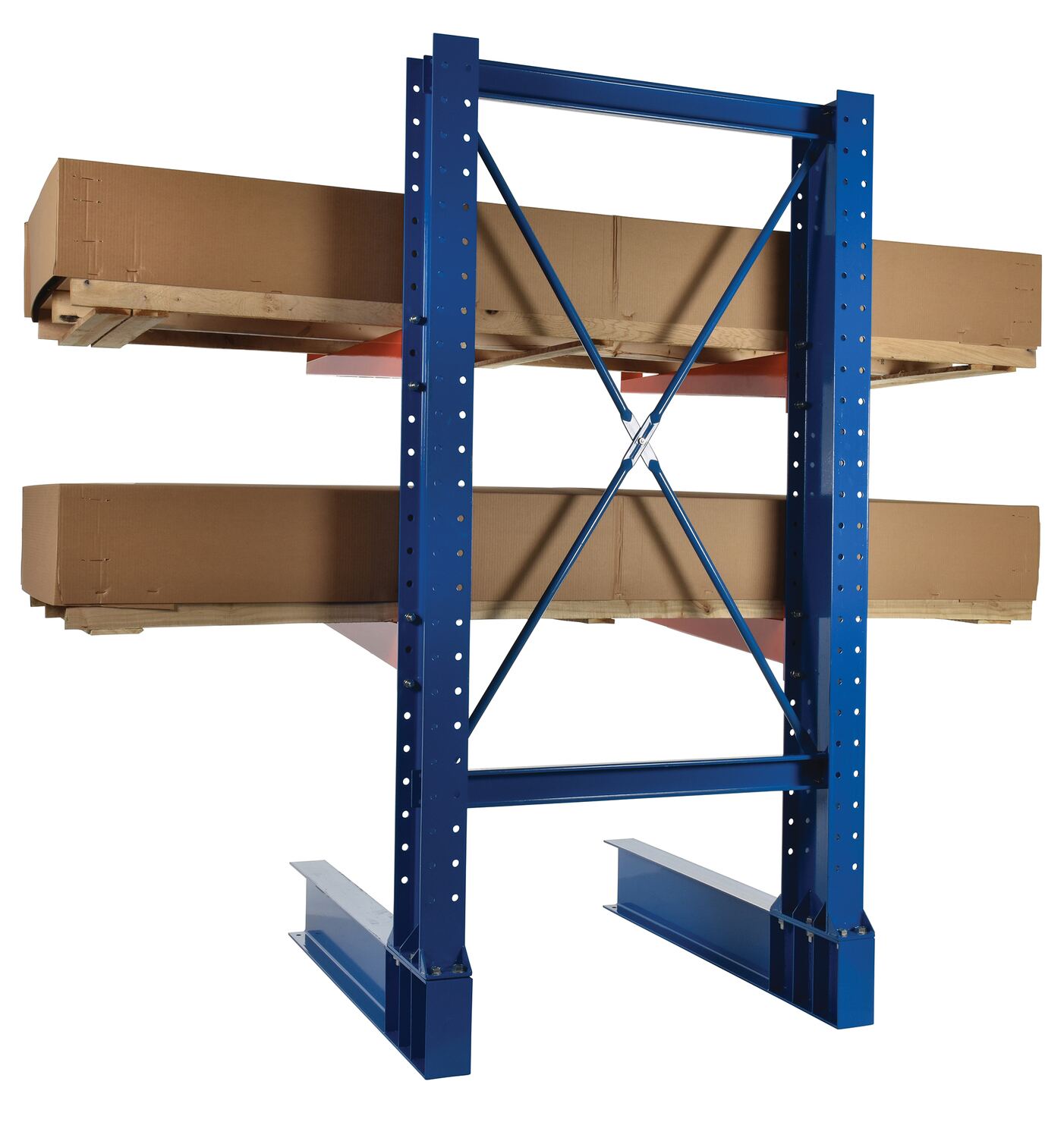

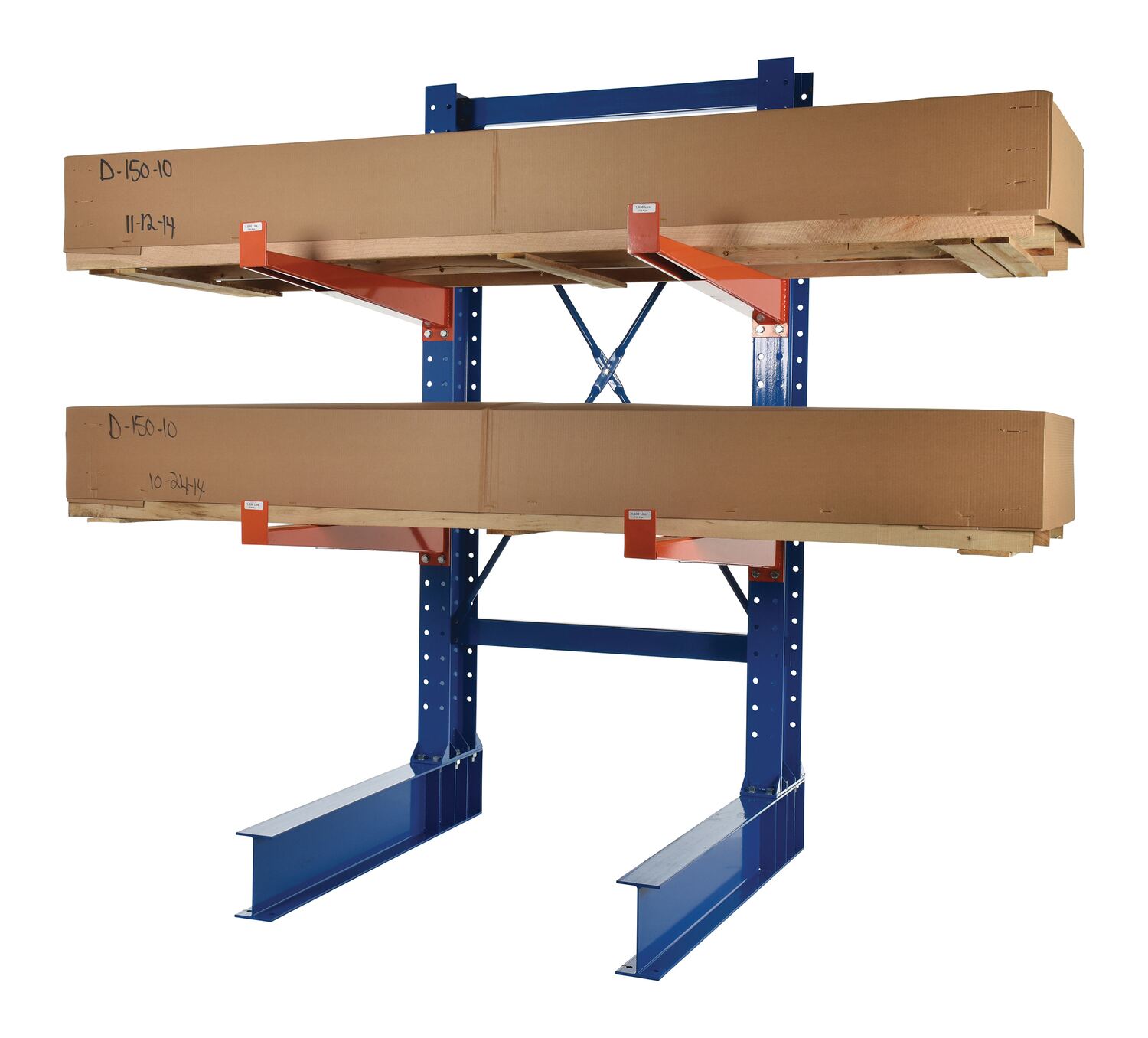

Heavy-Duty Cantilever Racking
SERIES: HU,HDU

Heavy-Duty Cantilever Racks are completely adjustable for application specific design flexibility. Long, unwelded stock is handled quickly and efficiently by forklift; instant accessibility to one piece or a full load. Arms are adjustable up and down the length of the upright. Pre-drilled holes on the uprights are spaced every 3-1/2" for bolt-on arm placement (hardware included). All arms feature lips to prevent product from falling off. Standard arms have a 3-1/8" lip. Heavy-duty and extra heavy-duty have a 3-1/4" lip. Uprights and arms are sold each, not in pairs. Custom rack systems can be designed for your special application. *Capacity listed is per upright.


Check Out Vestil's Other Cantilever Racking:


Standard-Duty Cantilever Racking

Medium-Duty Cantilever Racking

Cantilever Rack Kits

Heavy-Duty Cantilever Racks are completely adjustable for application specific design flexibility. Long, unwelded stock is handled quickly and efficiently by forklift; instant accessibility to one piece or a full load. Arms are adjustable up and down the length of the upright. Pre-drilled holes on the uprights are spaced every 3-1/2" for bolt-on arm placement (hardware included). All arms feature lips to prevent product from falling off. Standard arms have a 3-1/8" lip. Heavy-duty and extra heavy-duty have a 3-1/4" lip. Uprights and arms are sold each, not in pairs. Custom rack systems can be designed for your special application. *Capacity listed is per upright.


Check Out Vestil's Other Cantilever Racking:


Standard-Duty Cantilever Racking

Medium-Duty Cantilever Racking

Cantilever Rack Kits

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

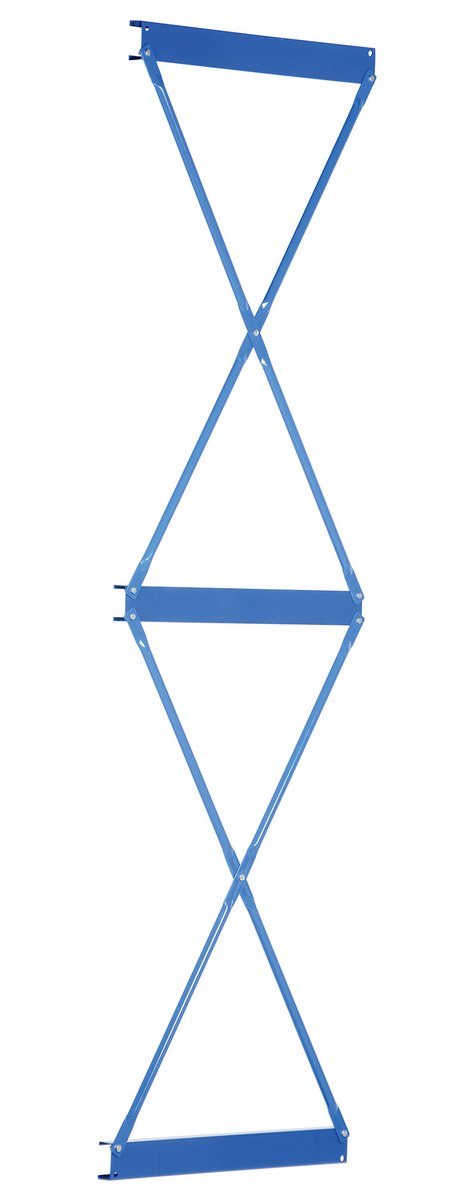

HB-C-14-3 HB-C-14-31 Year Limited WarrantySteel Heavy Duty Cantilever Brace Set 144 In. x 36 In. BlueComponent: Brace Set
Fits Upright (in.): 144 and 168
44
HB-C-14-4 HB-C-14-41 Year Limited WarrantySteel Heavy Duty Cantilever Brace Set 144 In. x 48 In. BlueComponent: Brace Set
Fits Upright (in.): 144 and 168
54
HB-C-14-5 HB-C-14-51 Year Limited WarrantySteel Heavy Duty Cantilever Brace Set 144 In. x 60 In. BlueComponent: Brace Set
Fits Upright (in.): 144 and 168
56
HB-C-14-6 HB-C-14-61 Year Limited WarrantySteel Heavy Duty Cantilever Brace Set 144 In. x 72 In. BlueComponent: Brace Set
Fits Upright (in.): 144 and 168
66

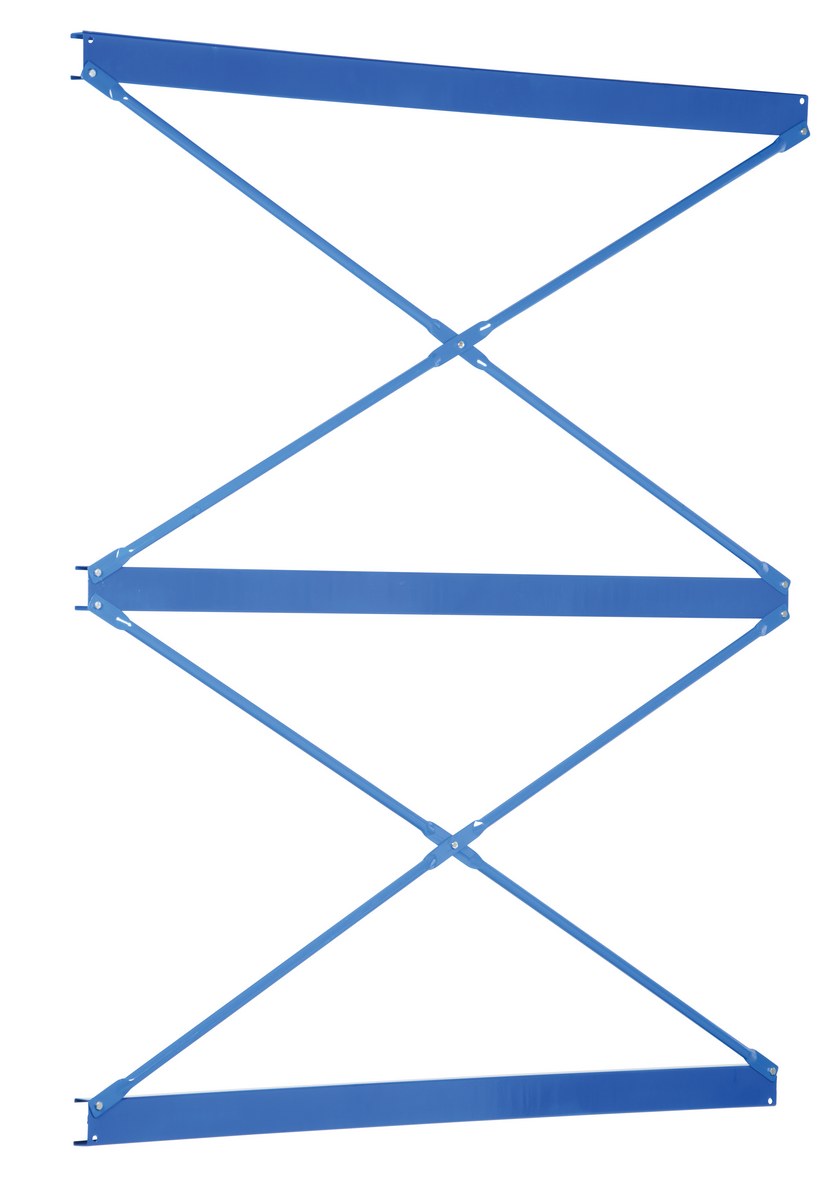

HB-C-14-7 HB-C-14-71 Year Limited WarrantySteel Heavy Duty Cantilever Brace Set 144 In. x 84 In. BlueComponent: Brace Set
Fits Upright (in.): 144 and 168
78

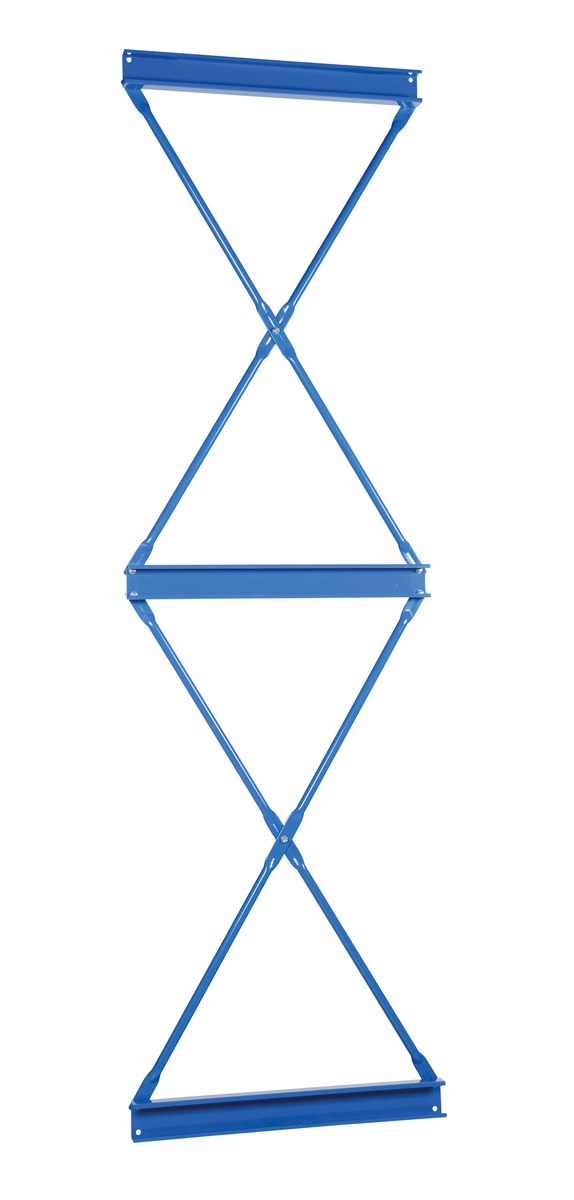

HB-C-14-8 HB-C-14-81 Year Limited WarrantySteel Heavy Duty Cantilever Brace Set 144 In. x 96 In. BlueComponent: Brace Set
Fits Upright (in.): 144 and 168
123
HB-C-8-3 HB-C-8-31 Year Limited WarrantySteel Heavy Duty Cantilever Brace Set 96 In. x 36 In. BlueComponent: Brace Set
Fits Upright (in.): 96 and 120
28

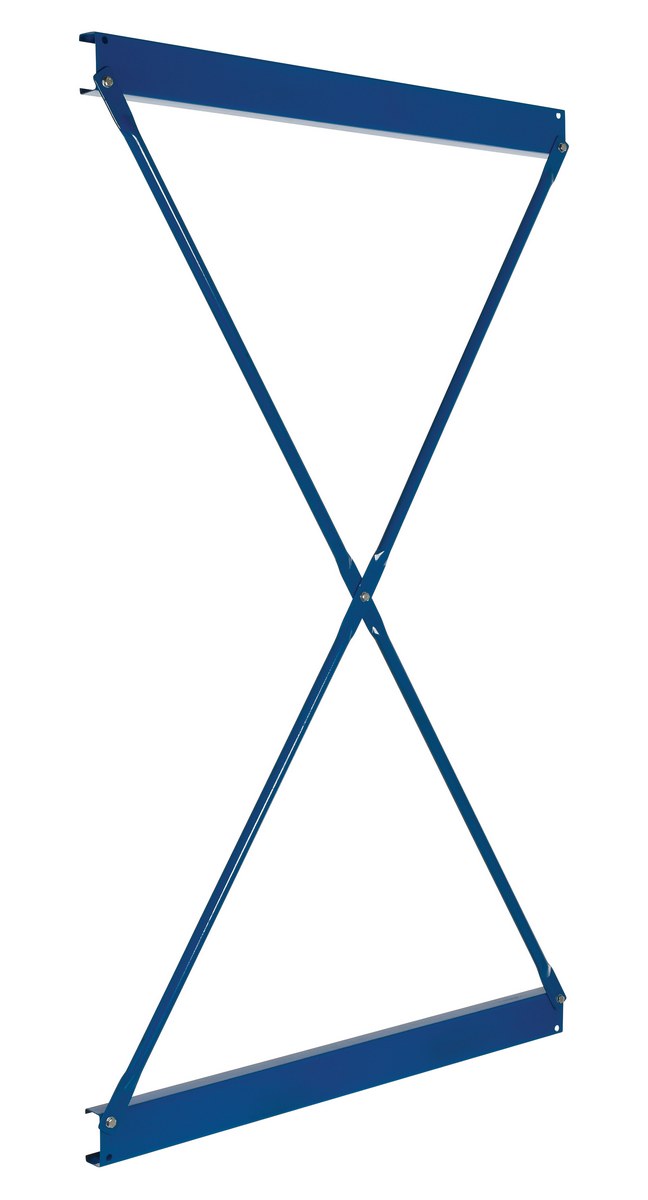

HB-C-8-4 HB-C-8-41 Year Limited WarrantySteel Heavy Duty Cantilever Brace Set 96 In. x 48 In. BlueComponent: Brace Set
Fits Upright (in.): 96 and 120
31
HB-C-8-5 HB-C-8-51 Year Limited WarrantySteel Heavy Duty Cantilever Brace Set 96 In. x 60 In. BlueComponent: Brace Set
Fits Upright (in.): 96 and 120
38
HB-C-8-6 HB-C-8-61 Year Limited WarrantySteel Heavy Duty Cantilever Brace Set 96 In. x 72 In. BlueComponent: Brace Set
Fits Upright (in.): 96 and 120
43
HB-C-8-7 HB-C-8-71 Year Limited WarrantySteel Heavy Duty Cantilever Brace Set 96 In. x 84 In. BlueComponent: Brace Set
Fits Upright (in.): 96 and 120
98
HB-C-8-8 HB-C-8-81 Year Limited WarrantySteel Heavy Duty Cantilever Brace Set 96 In. x 96 In. BlueComponent: Brace Set
Fits Upright (in.): 96 and 120
107
HDSA-C-36 HDSA-C-361 Year Limited WarrantySteel Heavy-Duty Cantilever Straight Arm 36 In. Length 2,175 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 2,175
Component: Heavy-Duty Arm
26

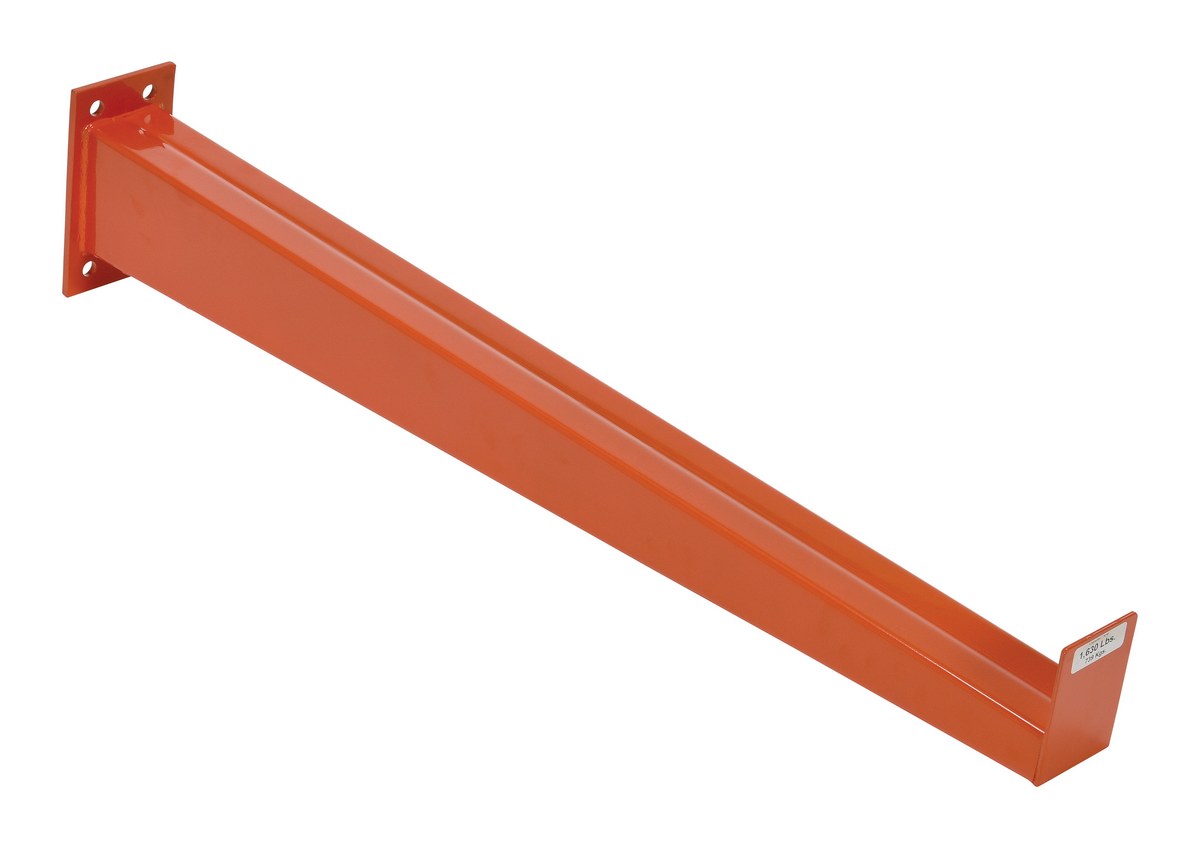

HDSA-C-42 HDSA-C-421 Year Limited WarrantySteel Heavy-Duty Cantilever Straight Arm 42 In. Length 1,865 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,865
Component: Heavy-Duty Arm
29
HDSA-C-48 HDSA-C-481 Year Limited WarrantySteel Heavy-Duty Cantilever Straight Arm 48 In. Length 1,630 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,630
Component: Heavy-Duty Arm
31

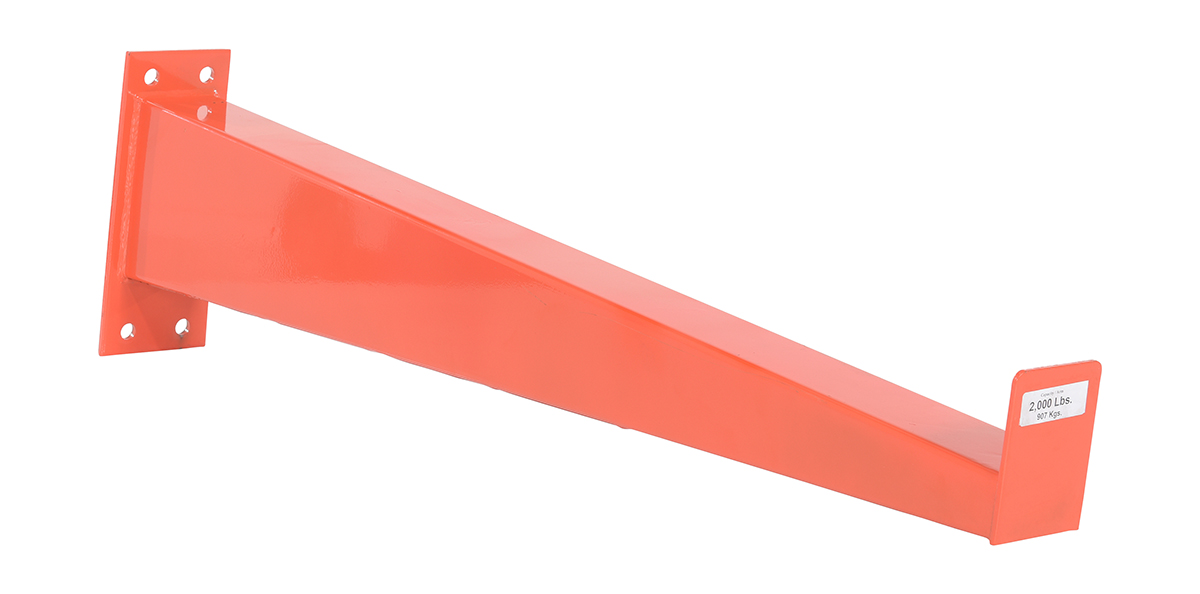

HDSA-C-48M HDSA-C-48M1 Year Limited WarrantySteel Heavy-Duty Cantilever Straight Arm 48 In. Length 2,000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 2,000
Component: Heavy-Duty Arm
33
HDU-C-10-18 HDU-C-10-181 Year Limited WarrantySteel Heavy Duty Double Cantilever Uprights 10 Ft. 49,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 49,200

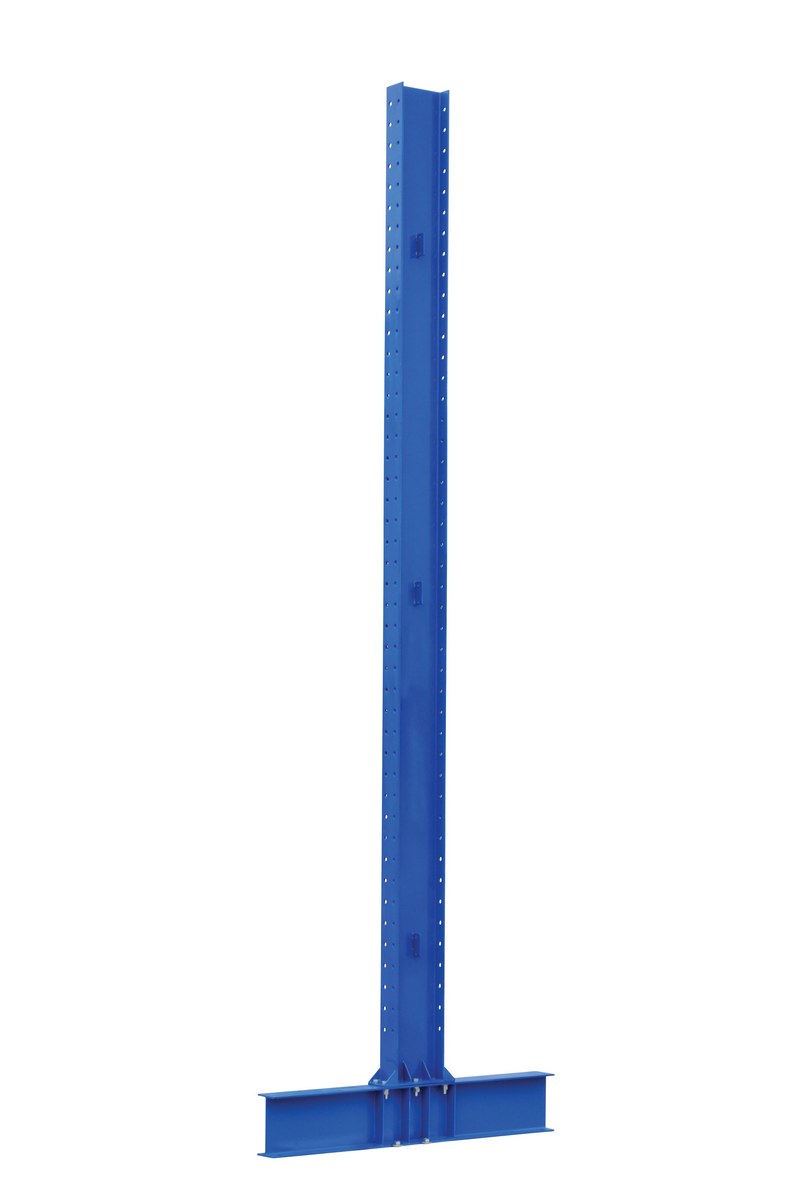

Component: Double-Sided Upright
336
HDU-C-10-24 HDU-C-10-241 Year Limited WarrantySteel Heavy Duty Double Cantilever Uprights 10 Ft. 42,600 Lb. Capacity BlueUniform Capacity per Upright (lb.): 42,600
Component: Double-Sided Upright
355
HDU-C-10-36 HDU-C-10-361 Year Limited WarrantySteel Heavy Duty Double Cantilever Uprights 10 Ft. 36,400 Lb. Capacity BlueUniform Capacity per Upright (lb.): 36,400 or 31,600
Component: Double-Sided Upright
391
HDU-C-10-48 HDU-C-10-481 Year Limited WarrantySteel Heavy Duty Double Sided Cantilever Uprights for 42 In. and 48 In. Arms 10 Ft. 28,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 28,200 or 25,200
Component: Double-Sided Upright
427

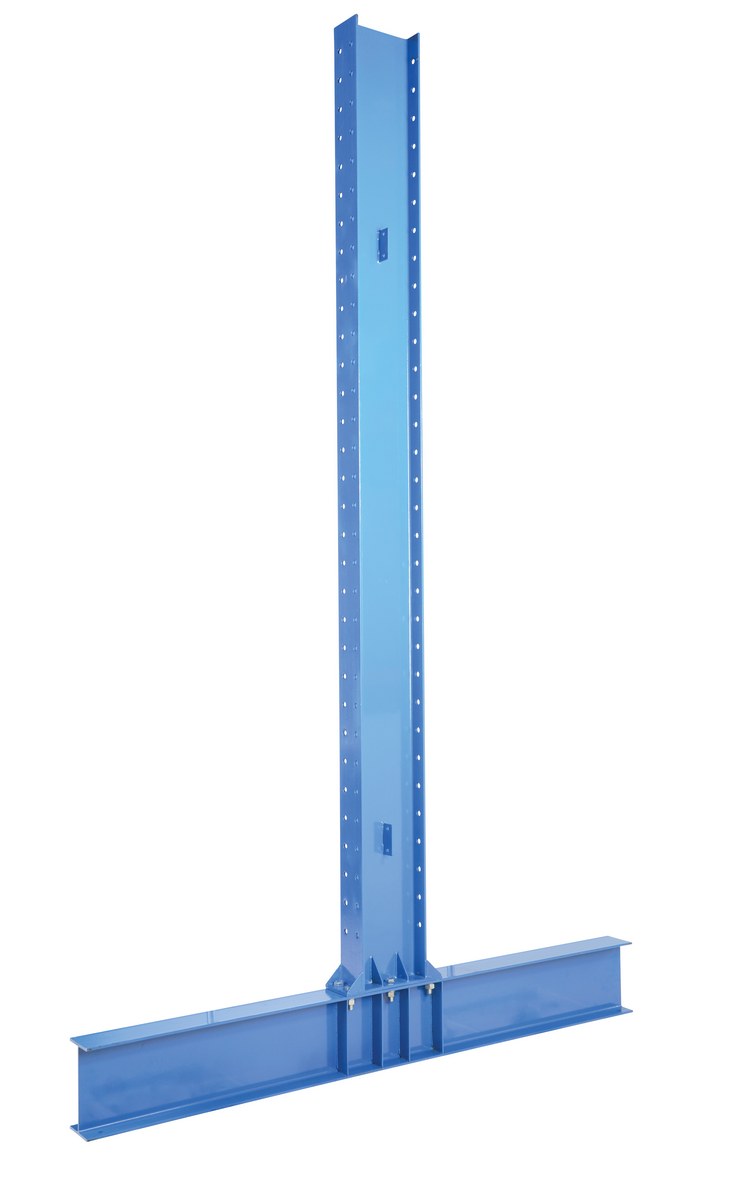

HDU-C-12-18 HDU-C-12-181 Year Limited WarrantySteel Heavy Duty Double Sided Cantilever Uprights for 18 In. Arms 12 Ft. 48,800 Lb. Capacity BlueUniform Capacity per Upright (lb.): 48,800
Component: Double-Sided Upright
374
HDU-C-12-24 HDU-C-12-241 Year Limited WarrantySteel Heavy Duty Double Sided Cantilever Uprights for 24 In. Arms 12 Ft. 41,800 Lb. Capacity BlueUniform Capacity per Upright (lb.): 41,800
Component: Double-Sided Upright
393
HDU-C-12-36 HDU-C-12-361 Year Limited WarrantySteel Heavy Duty Double Sided Cantilever Uprights for 30 and 36 In. Arms 12 Ft. 35,600 Lb. Capacity BlueUniform Capacity per Upright (lb.): 35,600 or 31,200
Component: Double-Sided Upright
429
HDU-C-12-48 HDU-C-12-481 Year Limited WarrantySteel Heavy Duty Double Sided Cantilever Uprights for 42 and 48 In. Arms 12 Ft. 27,800 Lb. Capacity BlueUniform Capacity per Upright (lb.): 27,800 or 25,000
Component: Double-Sided Upright
465

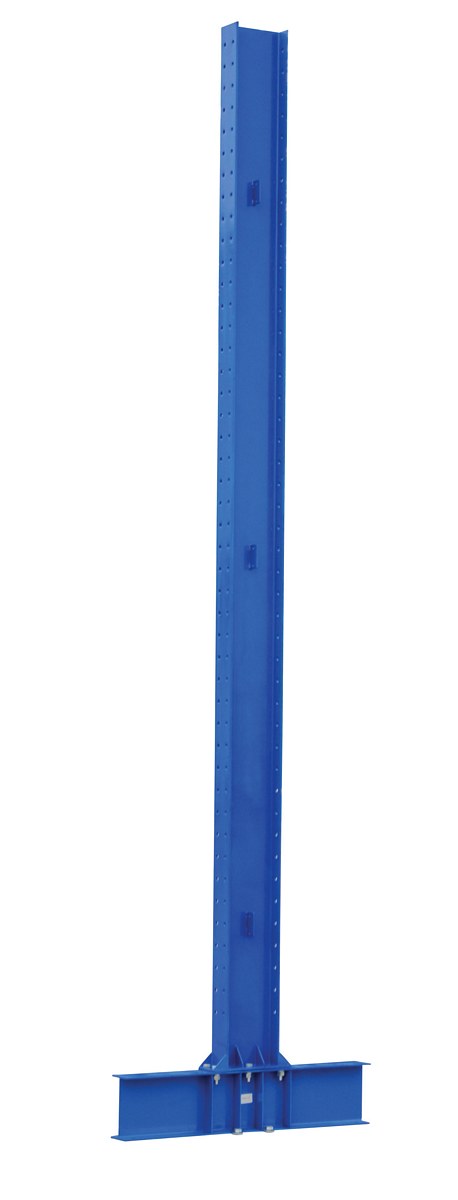

HDU-C-14-18 HDU-C-14-181 Year Limited WarrantySteel Heavy Duty Double Sided Cantilever Uprights for 18 In. Arms 14 Ft. 46,800 Lb. Capacity BlueUniform Capacity per Upright (lb.): 46,800
Component: Double-Sided Upright
413
HDU-C-14-24 HDU-C-14-241 Year Limited WarrantySteel Heavy Duty Double Sided Cantilever Uprights for 24 In. Arms 14 Ft. 40,400 Lb. Capacity BlueUniform Capacity per Upright (lb.): 40,400
Component: Double-Sided Upright
432
HDU-C-14-36 HDU-C-14-361 Year Limited WarrantySteel Heavy Duty Double Sided Cantilever Uprights for 30 In. and 36 In. Arms 14 Ft. 35,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 35,200 or 30,800
Component: Double-Sided Upright
467
HDU-C-14-48 HDU-C-14-481 Year Limited WarrantySteel Heavy Duty Double Sided Cantilever Uprights for 42 In. and 48 In. Arms 14 Ft. 27,400 Lb. Capacity BlueUniform Capacity per Upright (lb.): 27,400 or 24,800
Component: Double-Sided Upright
507

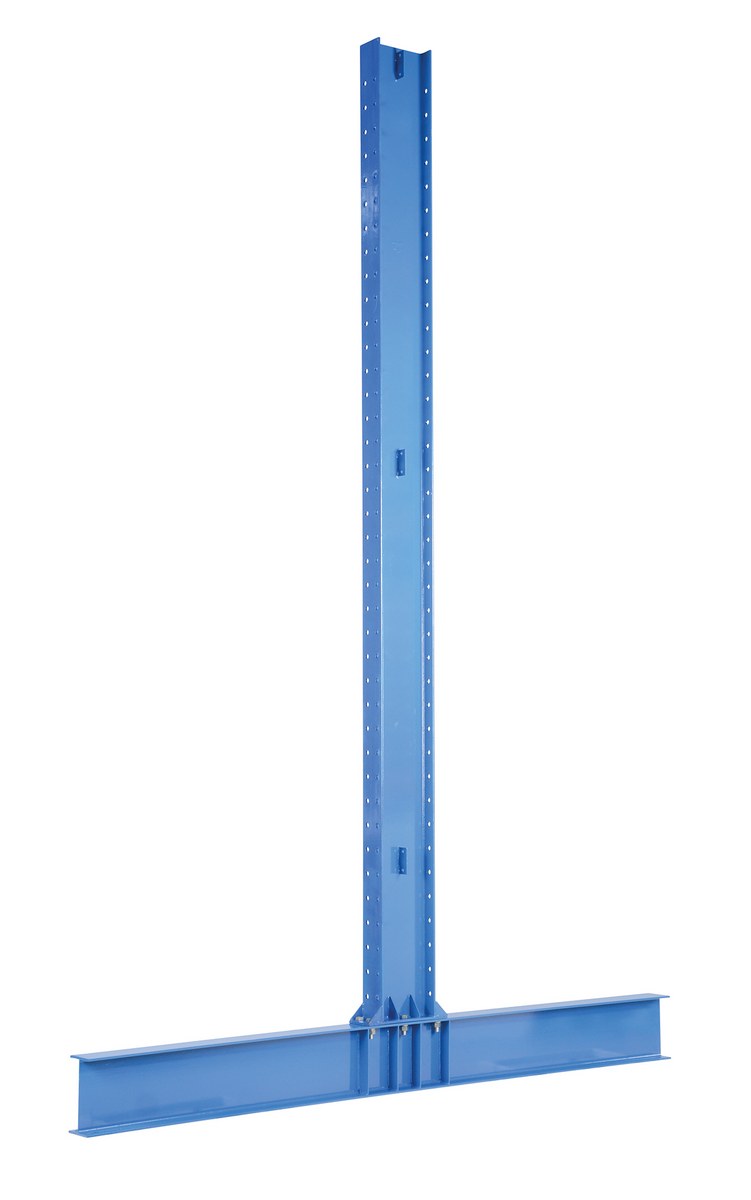

HDU-C-8-18 HDU-C-8-181 Year Limited WarrantySteel Heavy Duty Double Sided Cantilever Uprights for 18 In. Arms 8 Ft. 49,900 Lb. Capacity BlueUniform Capacity per Upright (lb.): 49,400
Component: Double-Sided Upright
288
HDU-C-8-24 HDU-C-8-241 Year Limited WarrantySteel Heavy Duty Double Sided Cantilever Uprights for 18 In. Arms 8 Ft. 43,000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 43,000
Component: Double-Sided Upright
307
HDU-C-8-36 HDU-C-8-361 Year Limited WarrantySteel Heavy Duty Double Sided Cantilever Uprights for 30 In. and 36 In. Arms 8 Ft. 36,600 Lb. Capacity BlueUniform Capacity per Upright (lb.): 36,600 or 32,000
Component: Double-Sided Upright
342
HDU-C-8-48 HDU-C-8-481 Year Limited WarrantySteel Heavy Duty Double Sided Cantilever Uprights for 42 In. and 48 In. Arms 8 Ft. 27,400 Lb. Capacity BlueUniform Capacity per Upright (lb.): 28,400 or 25,600
Component: Double-Sided Upright
378
HIA-C-18 HIA-C-181 Year Limited WarrantySteel Heavy Duty Cantilever Incline Arm 18 In. Length 2,500 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 2,500
Component: Incline Arm
16

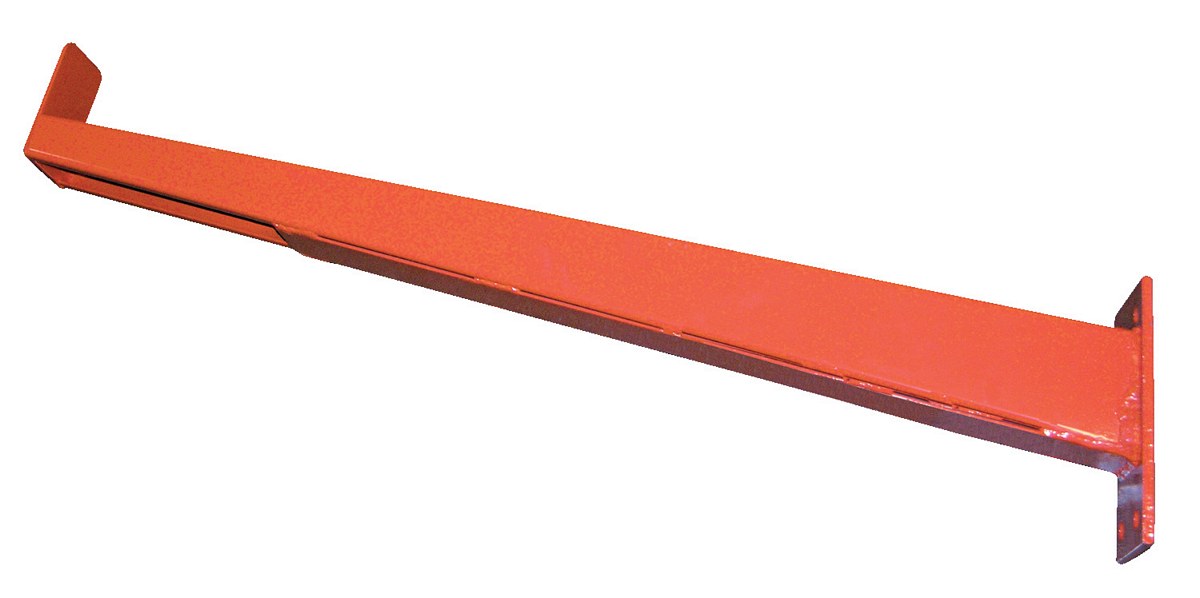

HIA-C-24 HIA-C-241 Year Limited WarrantySteel Heavy Duty Cantilever Incline Arm 24 In. Length 2,500 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 2,000
Component: Incline Arm
21
HIA-C-30 HIA-C-301 Year Limited WarrantySteel Heavy Duty Cantilever Incline Arm 30 In. Length 1,500 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,500
Component: Incline Arm
22
HIA-C-36 HIA-C-361 Year Limited WarrantySteel Heavy Duty Cantilever Incline Arm 36 In. Length 1,200 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,200
Component: Incline Arm
26
HIA-C-42 HIA-C-421 Year Limited WarrantySteel Heavy Duty Cantilever Incline Arm 42 In. Length 1,100 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,100
Component: Incline Arm
29
HIA-C-48 HIA-C-481 Year Limited WarrantySteel Heavy Duty Cantilever Incline Arm 48 In. Length 1,000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,000
Component: Incline Arm
32

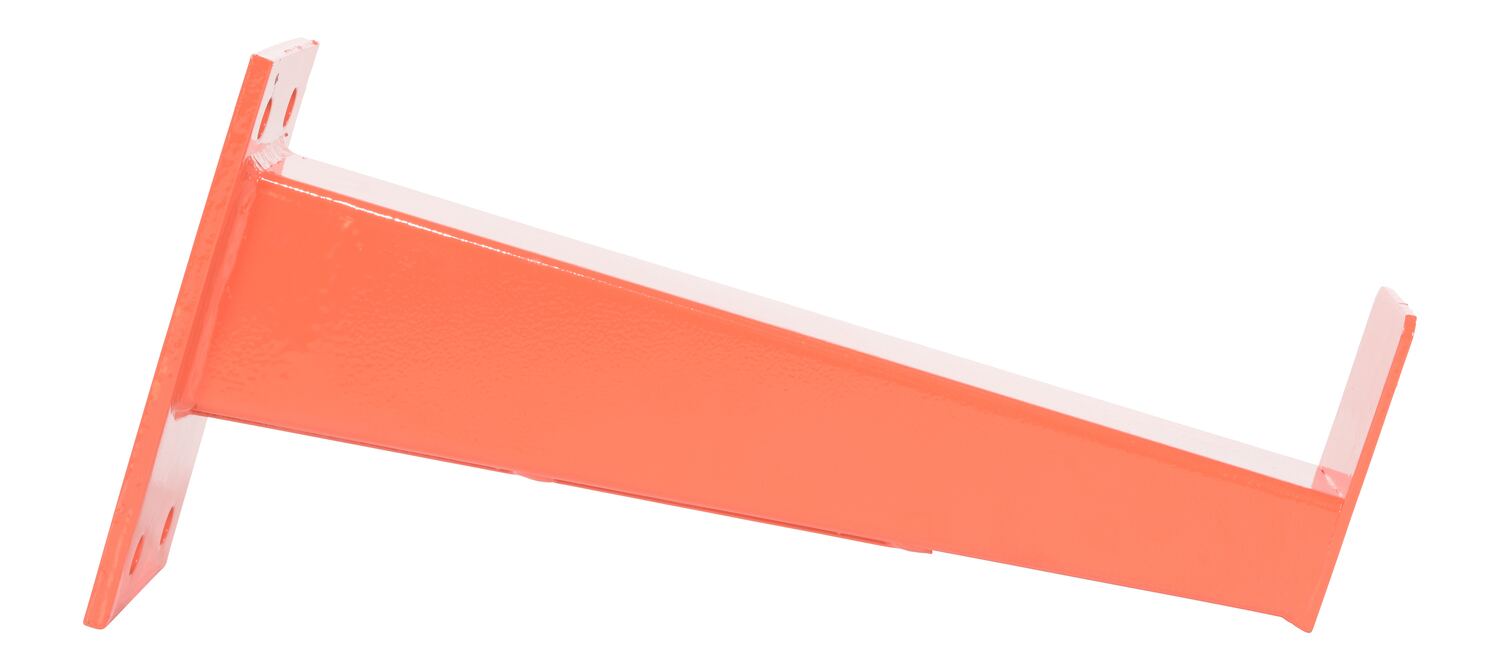

HSA-C-18 HSA-C-181 Year Limited WarrantySteel Heavy Duty Cantilever Straight Arm 18 In. 2,500 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 2,500
Component: Straight Arm
16
HSA-C-24 HSA-C-241 Year Limited WarrantySteel Heavy Duty Cantilever Straight Arm 24 In. 2,000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 2,000
Component: Straight Arm
21
HSA-C-30 HSA-C-301 Year Limited WarrantySteel Heavy Duty Cantilever Straight Arm 30 In. 1,500 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,500
Component: Straight Arm
22

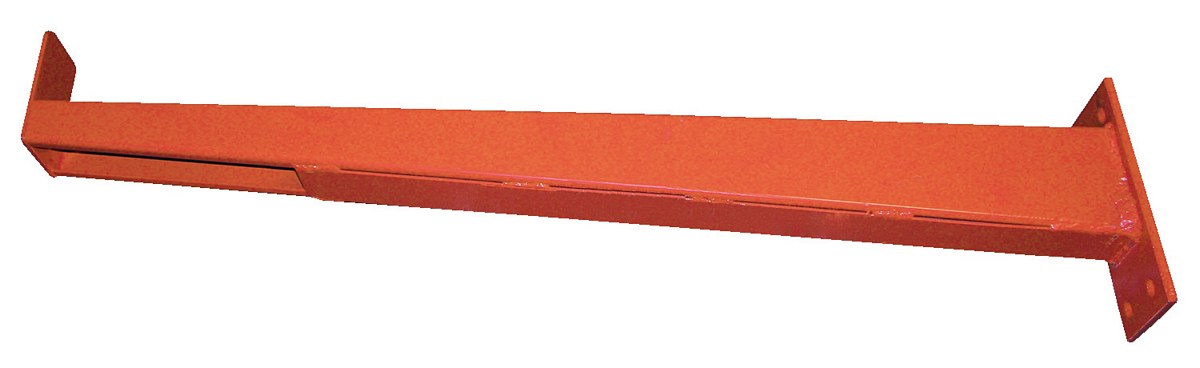

HSA-C-36 HSA-C-361 Year Limited WarrantySteel Heavy Duty Cantilever Straight Arm 36 In. 1,200 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,200
Component: Straight Arm
26
HSA-C-42 HSA-C-421 Year Limited WarrantySteel Heavy Duty Cantilever Straight Arm 42 In. 1,100 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,100
Component: Straight Arm
29
HSA-C-48 HSA-C-481 Year Limited WarrantySteel Heavy Duty Cantilever Straight Arm 48 In. 1,000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,000
Component: Straight Arm
32

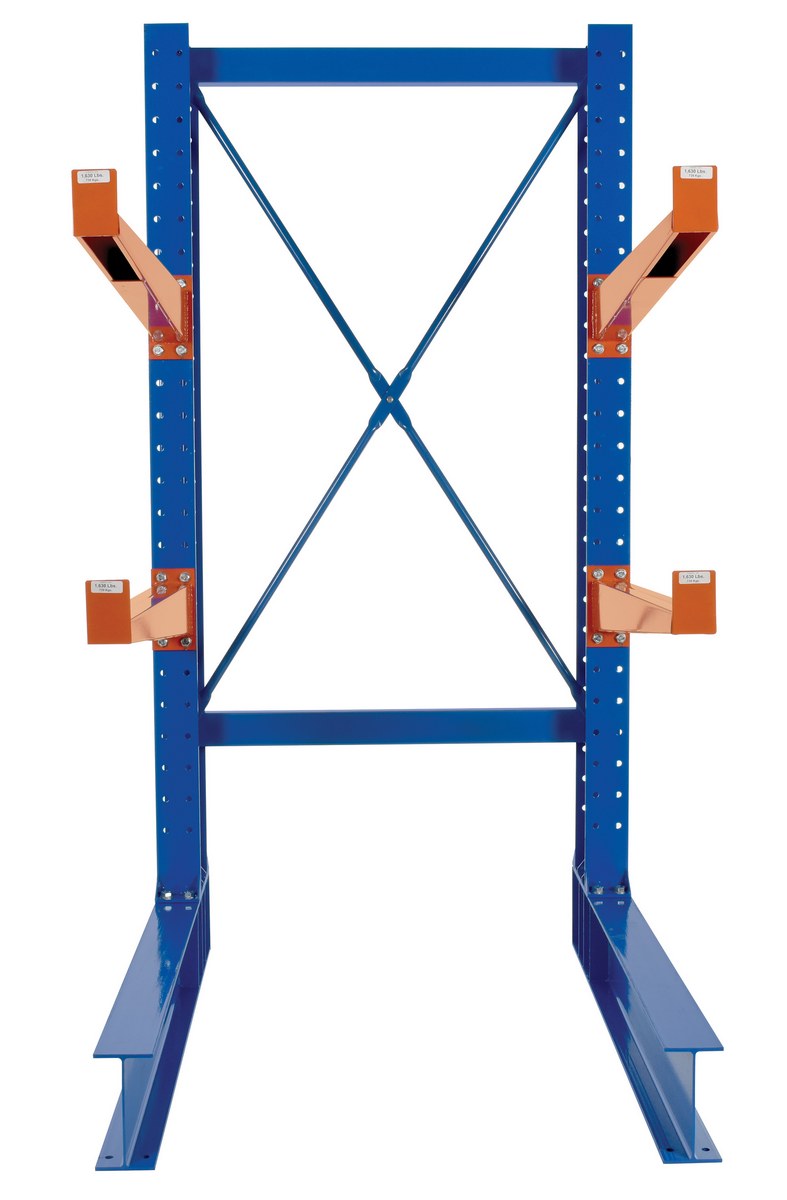

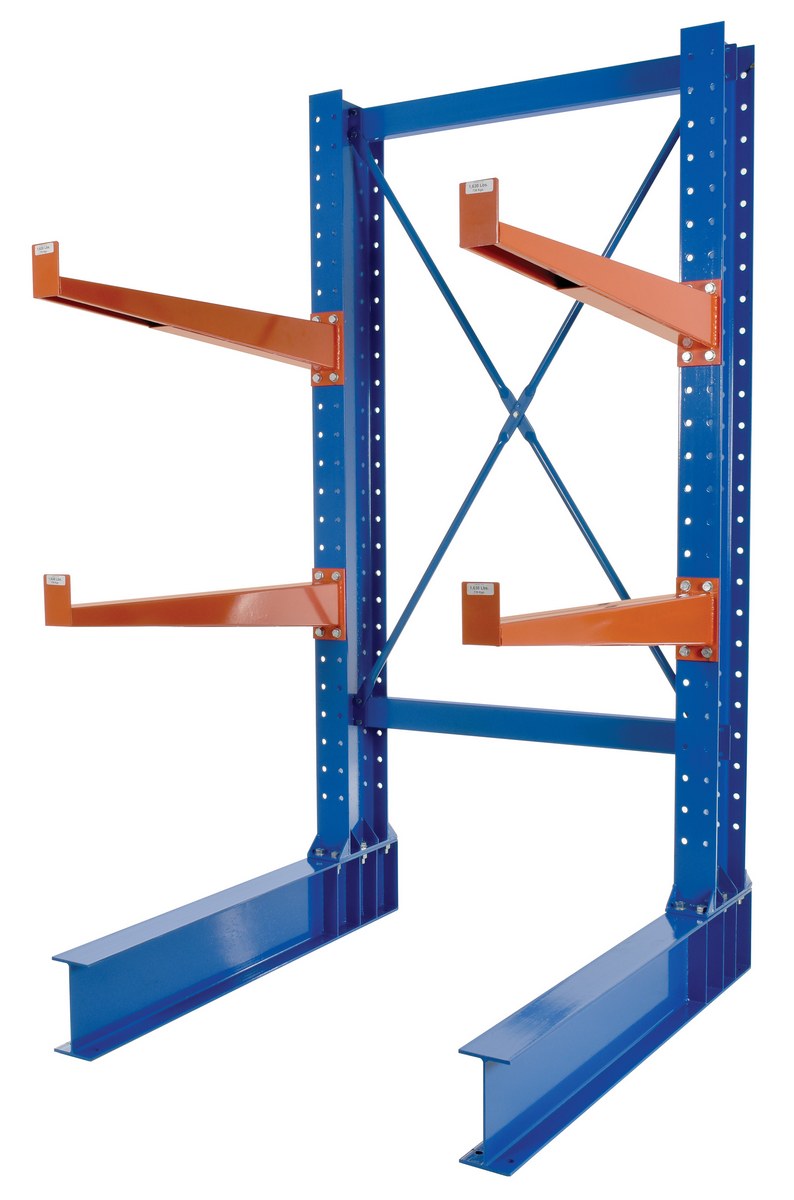

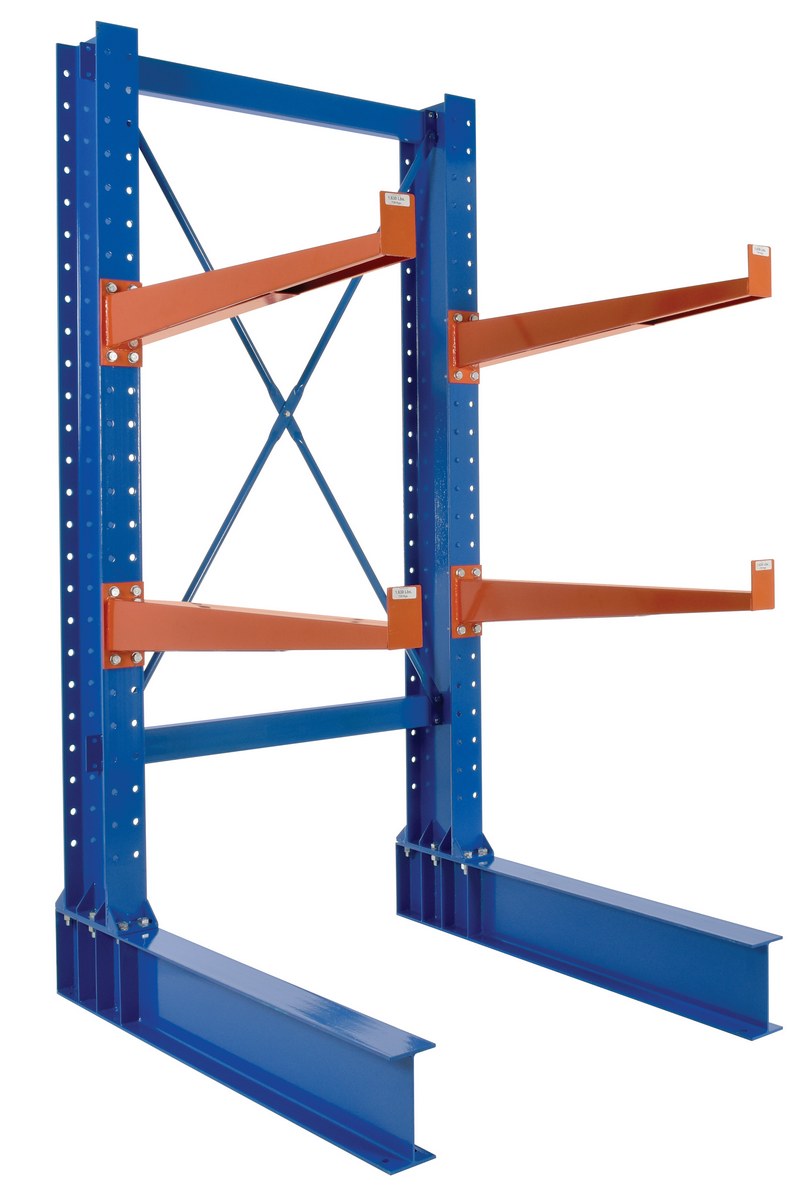

HU-C-10-18 HU-C-10-181 Year Limited WarrantySteel Single Sided Cantilever Upright with 18 In. Arms 10 Ft. 24,700 Lb. Capacity BlueUniform Upright Capacity (lb.): 24,700
Component: Single-Sided Upright
313
HU-C-10-24 HU-C-10-241 Year Limited WarrantySteel Single Sided Cantilever Upright with 24 In. Arms 10 Ft. 21,500 Lb. Capacity BlueUniform Upright Capacity (lb.): 21,500
Base Length (in.): 36-1/2
323
HU-C-10-36 HU-C-10-361 Year Limited WarrantySteel Single Sided Cantilever Upright with 30 In. and 36 In. Arms 10 Ft. 18,300 Lb. Capacity BlueUniform Upright Capacity 30"/36" Arm (lb.): 18,300 or 16,000
Base Length (in.): 48-1/2
340
HU-C-10-48 HU-C-10-481 Year Limited WarrantySteel Single Sided Cantilever Upright with 42 In. and 48 In. Arms 10 Ft. 14,200 Lb. Capacity BlueUniform Upright Capacity 42"/48" Arm(lb.): 14,200 or 12,800
Base Length (in.): 60-1/2
357

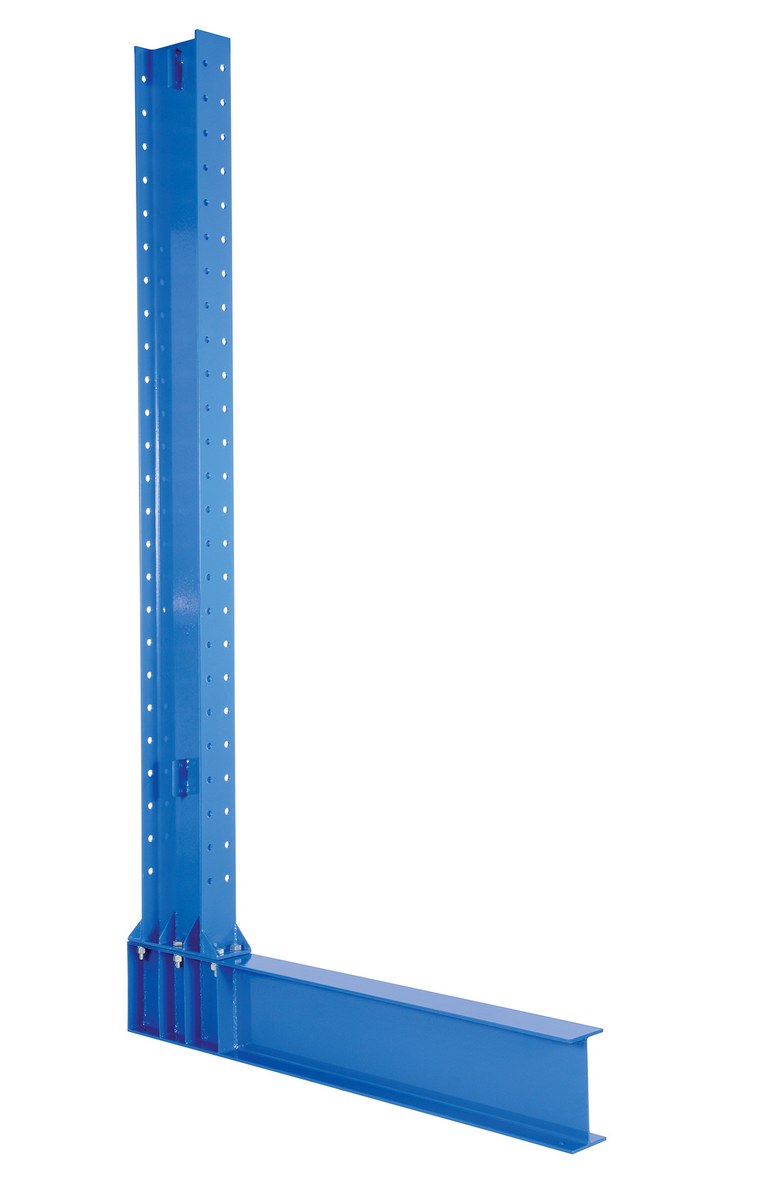

HU-C-12-18 HU-C-12-181 Year Limited WarrantySteel Single Sided Cantilever Upright with 18 In. Arms 12 Ft. 24,400 Lb. Capacity BlueUniform Upright Capacity (lb.): 24,400
Component: Single-Sided Upright
351
HU-C-12-24 HU-C-12-241 Year Limited WarrantySteel Single Sided Cantilever Upright with 24 In. Arms 12 Ft. 20,900 Lb. Capacity BlueUniform Upright Capacity (lb.): 20,900
Base Length (in.): 36-1/2
362
HU-C-12-36 HU-C-12-361 Year Limited WarrantySteel Single Sided Cantilever Upright with 30 In. and 36 In. Arms 12 Ft. 17,800 Lb. Capacity BlueUniform Upright Capacity 30"/36" Arm (lb.): 17,800 or 15,600
Base Length (in.): 48-1/2
378
HU-C-12-48 HU-C-12-481 Year Limited WarrantySteel Single Sided Cantilever Upright with 42 In. and 48 In. Arms 12 Ft. 13,900 Lb. Capacity BlueUniform Upright Capacity 42"/48" Arm(lb.): 13,900 or 12,500
Base Length (in.): 60-1/2
396
HU-C-14-18 HU-C-14-181 Year Limited WarrantySingle Sided Cantilever Upright with 18 In. Arms 14 Ft. 23,400 Lb. Capacity BlueUniform Upright Capacity (lb.): 23,400
Component: Single-Sided Upright
390
HU-C-14-24 HU-C-14-241 Year Limited WarrantySingle Sided Cantilever Upright with 24 In. Arms 14 Ft. 20,200 Lb. Capacity BlueUniform Upright Capacity (lb.): 20,200
Component: Single-Sided Upright
401
HU-C-14-36 HU-C-14-361 Year Limited WarrantySingle Sided Cantilever Upright with 30 In. and 36 In. Arms 14 Ft. 17,600 Lb. Capacity BlueUniform Upright Capacity 30"/36" Arm (lb.): 17,600 or 15,400
Component: Single-Sided Upright
417
HU-C-14-48 HU-C-14-481 Year Limited WarrantySingle Sided Cantilever Upright with 42 In. and 48 In. Arms 14 Ft. 13,700 Lb. Capacity BlueUniform Upright Capacity 42"/48" Arm(lb.): 13,700 or 12,400
Component: Single-Sided Upright
435
HU-C-8-18 HU-C-8-181 Year Limited WarrantySteel Heavy Duty Single Sided Cantilever Upright 18 In. Arms 8 Ft. 24,700 Lb. Capacity BlueUniform Upright Capacity (lb.): 24,700
Component: Single-Sided Upright
265
HU-C-8-24 HU-C-8-241 Year Limited WarrantySteel Heavy Duty Single Sided Cantilever Upright 24 In. Arms 8 Ft. 21,500 Lb. Capacity BlueUniform Upright Capacity (lb.): 21,500
Component: Single-Sided Upright
275
HU-C-8-36 HU-C-8-361 Year Limited WarrantySteel Heavy Duty Single Sided Cantilever Upright 30 In. and 36 In. Arms 8 Ft. 18,300-16,000 Lb. Capacity BlueUniform Upright Capacity 30"/36" Arm (lb.): 18,300 or 16,000
Component: Single-Sided Upright
292
HU-C-8-48 HU-C-8-481 Year Limited WarrantySteel Heavy Duty Single Sided Cantilever Upright with 42 In. and 48 In. Arms 8 Ft. 14,200-12,800 Lb. Capacity BlueUniform Upright Capacity 42"/48" Arm(lb.): 14,200 or 12,800
Component: Single-Sided Upright
310

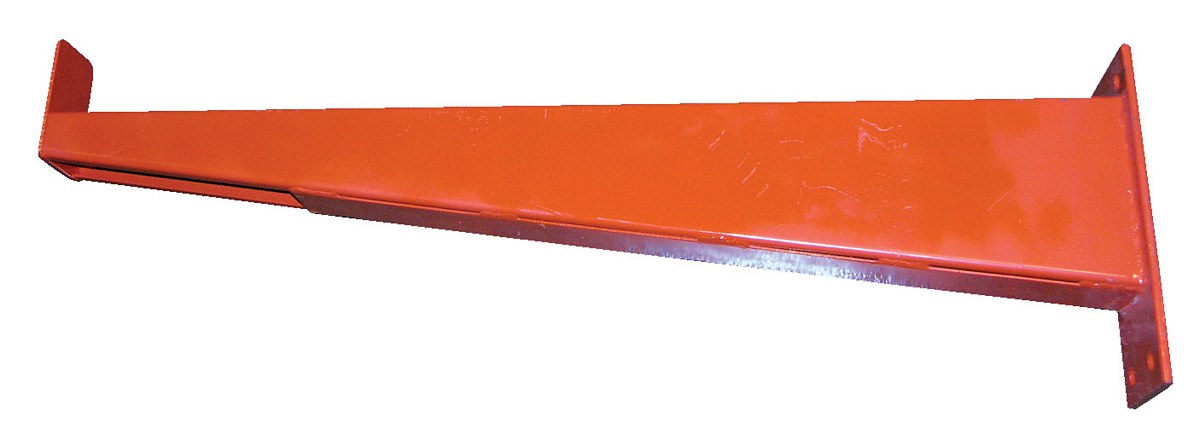

XHDSA-C-36 XHDSA-C-361 Year Limited WarrantySteel Extra Heavy Duty Cantilever Arm 36 In. Length 2,500 lb. Capacity OrangeUniform Capacity Per Arm (lb.): 3,400
Component: Extra Heavy-Duty Arm
30
XHDSA-C-42 XHDSA-C-421 Year Limited WarrantySteel Extra Heavy Duty Cantilever Arm 42 In. Length 2,500 lb. Capacity OrangeUniform Capacity Per Arm (lb.): 2,900
Component: Extra Heavy-Duty Arm
33
XHDSA-C-48 XHDSA-C-481 Year Limited WarrantySteel Extra Heavy Duty Cantilever Arm 48 In. Length 2,500 lb. Capacity OrangeUniform Capacity Per Arm (lb.): 2,500
Component: Extra Heavy-Duty Arm
36

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

HB-C-14-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (in.): 144 and 168
Component: Brace Set
Fits Upright (in.): 144 and 168

HB-C-14-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (in.): 144 and 168
Component: Brace Set
Fits Upright (in.): 144 and 168

HB-C-14-5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (in.): 144 and 168
Component: Brace Set
Fits Upright (in.): 144 and 168

HB-C-14-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (in.): 144 and 168
Component: Brace Set
Fits Upright (in.): 144 and 168

HB-C-14-7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (in.): 144 and 168
Component: Brace Set
Fits Upright (in.): 144 and 168

HB-C-14-8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (in.): 144 and 168
Component: Brace Set
Fits Upright (in.): 144 and 168

HB-C-8-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (in.): 96 and 120
Component: Brace Set
Fits Upright (in.): 96 and 120

HB-C-8-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (in.): 96 and 120
Component: Brace Set
Fits Upright (in.): 96 and 120

HB-C-8-5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (in.): 96 and 120
Component: Brace Set
Fits Upright (in.): 96 and 120

HB-C-8-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (in.): 96 and 120
Component: Brace Set
Fits Upright (in.): 96 and 120

HB-C-8-7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (in.): 96 and 120
Component: Brace Set
Fits Upright (in.): 96 and 120

HB-C-8-8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (in.): 96 and 120
Component: Brace Set
Fits Upright (in.): 96 and 120

HDSA-C-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 2,175
Component: Heavy-Duty Arm
Uniform Capacity Per Arm (lb.): 2,175
Component: Heavy-Duty Arm

HDSA-C-42
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 1,865
Component: Heavy-Duty Arm
Uniform Capacity Per Arm (lb.): 1,865
Component: Heavy-Duty Arm

HDSA-C-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 1,630
Component: Heavy-Duty Arm
Uniform Capacity Per Arm (lb.): 1,630
Component: Heavy-Duty Arm

HDSA-C-48M
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 2,000
Component: Heavy-Duty Arm
Uniform Capacity Per Arm (lb.): 2,000
Component: Heavy-Duty Arm

HDU-C-10-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 49,200
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 49,200
Component: Double-Sided Upright

HDU-C-10-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 42,600
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 42,600
Component: Double-Sided Upright

HDU-C-10-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 36,400 or 31,600
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 36,400 or 31,600
Component: Double-Sided Upright

HDU-C-10-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 28,200 or 25,200
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 28,200 or 25,200
Component: Double-Sided Upright

HDU-C-12-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 48,800
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 48,800
Component: Double-Sided Upright

HDU-C-12-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 41,800
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 41,800
Component: Double-Sided Upright

HDU-C-12-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 35,600 or 31,200
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 35,600 or 31,200
Component: Double-Sided Upright

HDU-C-12-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 27,800 or 25,000
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 27,800 or 25,000
Component: Double-Sided Upright

HDU-C-14-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 46,800
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 46,800
Component: Double-Sided Upright

HDU-C-14-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 40,400
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 40,400
Component: Double-Sided Upright

HDU-C-14-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 35,200 or 30,800
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 35,200 or 30,800
Component: Double-Sided Upright

HDU-C-14-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 27,400 or 24,800
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 27,400 or 24,800
Component: Double-Sided Upright

HDU-C-8-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 49,400
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 49,400
Component: Double-Sided Upright

HDU-C-8-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 43,000
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 43,000
Component: Double-Sided Upright

HDU-C-8-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 36,600 or 32,000
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 36,600 or 32,000
Component: Double-Sided Upright

HDU-C-8-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 28,400 or 25,600
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 28,400 or 25,600
Component: Double-Sided Upright

HIA-C-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 2,500
Component: Incline Arm
Uniform Capacity Per Arm (lb.): 2,500
Component: Incline Arm

HIA-C-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 2,000
Component: Incline Arm
Uniform Capacity Per Arm (lb.): 2,000
Component: Incline Arm

HIA-C-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 1,500
Component: Incline Arm
Uniform Capacity Per Arm (lb.): 1,500
Component: Incline Arm

HIA-C-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 1,200
Component: Incline Arm
Uniform Capacity Per Arm (lb.): 1,200
Component: Incline Arm

HIA-C-42
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 1,100
Component: Incline Arm
Uniform Capacity Per Arm (lb.): 1,100
Component: Incline Arm

HIA-C-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 1,000
Component: Incline Arm
Uniform Capacity Per Arm (lb.): 1,000
Component: Incline Arm

HSA-C-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 2,500
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 2,500
Component: Straight Arm

HSA-C-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 2,000
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 2,000
Component: Straight Arm

HSA-C-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 1,500
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 1,500
Component: Straight Arm

HSA-C-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 1,200
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 1,200
Component: Straight Arm

HSA-C-42
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 1,100
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 1,100
Component: Straight Arm

HSA-C-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 1,000
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 1,000
Component: Straight Arm

HU-C-10-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity (lb.): 24,700
Component: Single-Sided Upright
Uniform Upright Capacity (lb.): 24,700
Component: Single-Sided Upright

HU-C-10-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity (lb.): 21,500
Base Length (in.): 36-1/2
Uniform Upright Capacity (lb.): 21,500
Base Length (in.): 36-1/2

HU-C-10-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity 30"/36" Arm (lb.): 18,300 or 16,000
Base Length (in.): 48-1/2
Uniform Upright Capacity 30"/36" Arm (lb.): 18,300 or 16,000
Base Length (in.): 48-1/2

HU-C-10-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity 42"/48" Arm(lb.): 14,200 or 12,800
Base Length (in.): 60-1/2
Uniform Upright Capacity 42"/48" Arm(lb.): 14,200 or 12,800
Base Length (in.): 60-1/2

HU-C-12-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity (lb.): 24,400
Component: Single-Sided Upright
Uniform Upright Capacity (lb.): 24,400
Component: Single-Sided Upright

HU-C-12-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity (lb.): 20,900
Base Length (in.): 36-1/2
Uniform Upright Capacity (lb.): 20,900
Base Length (in.): 36-1/2

HU-C-12-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity 30"/36" Arm (lb.): 17,800 or 15,600
Base Length (in.): 48-1/2
Uniform Upright Capacity 30"/36" Arm (lb.): 17,800 or 15,600
Base Length (in.): 48-1/2

HU-C-12-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity 42"/48" Arm(lb.): 13,900 or 12,500
Base Length (in.): 60-1/2
Uniform Upright Capacity 42"/48" Arm(lb.): 13,900 or 12,500
Base Length (in.): 60-1/2

HU-C-14-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity (lb.): 23,400
Component: Single-Sided Upright
Uniform Upright Capacity (lb.): 23,400
Component: Single-Sided Upright

HU-C-14-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity (lb.): 20,200
Component: Single-Sided Upright
Uniform Upright Capacity (lb.): 20,200
Component: Single-Sided Upright

HU-C-14-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity 30"/36" Arm (lb.): 17,600 or 15,400
Component: Single-Sided Upright
Uniform Upright Capacity 30"/36" Arm (lb.): 17,600 or 15,400
Component: Single-Sided Upright

HU-C-14-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity 42"/48" Arm(lb.): 13,700 or 12,400
Component: Single-Sided Upright
Uniform Upright Capacity 42"/48" Arm(lb.): 13,700 or 12,400
Component: Single-Sided Upright

HU-C-8-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity (lb.): 24,700
Component: Single-Sided Upright
Uniform Upright Capacity (lb.): 24,700
Component: Single-Sided Upright

HU-C-8-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity (lb.): 21,500
Component: Single-Sided Upright
Uniform Upright Capacity (lb.): 21,500
Component: Single-Sided Upright

HU-C-8-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity 30"/36" Arm (lb.): 18,300 or 16,000
Component: Single-Sided Upright
Uniform Upright Capacity 30"/36" Arm (lb.): 18,300 or 16,000
Component: Single-Sided Upright

HU-C-8-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity 42"/48" Arm(lb.): 14,200 or 12,800
Component: Single-Sided Upright
Uniform Upright Capacity 42"/48" Arm(lb.): 14,200 or 12,800
Component: Single-Sided Upright

XHDSA-C-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 3,400
Component: Extra Heavy-Duty Arm
Uniform Capacity Per Arm (lb.): 3,400
Component: Extra Heavy-Duty Arm

XHDSA-C-42
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 2,900
Component: Extra Heavy-Duty Arm
Uniform Capacity Per Arm (lb.): 2,900
Component: Extra Heavy-Duty Arm

XHDSA-C-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 2,500
Component: Extra Heavy-Duty Arm
Uniform Capacity Per Arm (lb.): 2,500
Component: Extra Heavy-Duty Arm

Heavy-Duty Cantilever Racking PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


HB-C-14-3

HB-C-14-4

HB-C-14-5

HB-C-14-6

HB-C-14-7

HB-C-14-8

HB-C-8-3

HB-C-8-4

HB-C-8-5

HB-C-8-6

HB-C-8-7

HB-C-8-8

HDSA-C-36

HDSA-C-42

HDSA-C-48

HDSA-C-48M

HDU-C-10-18

HDU-C-10-24

HDU-C-10-36

HDU-C-10-48

HDU-C-12-18

HDU-C-12-24

HDU-C-12-36

HDU-C-12-48

HDU-C-14-18

HDU-C-14-24

HDU-C-14-36

HDU-C-14-48

HDU-C-8-18

HDU-C-8-24

HDU-C-8-36

HDU-C-8-48

HIA-C-18

HIA-C-24

HIA-C-30

HIA-C-36

HIA-C-42

HIA-C-48

HSA-C-18

HSA-C-24

HSA-C-30

HSA-C-36

HSA-C-42

HSA-C-48

HU-C-10-18

HU-C-10-24

HU-C-10-36

HU-C-10-48

HU-C-12-18

HU-C-12-24

HU-C-12-36

HU-C-12-48

HU-C-14-18

HU-C-14-24

HU-C-14-36

HU-C-14-48

HU-C-8-18

HU-C-8-24

HU-C-8-36

HU-C-8-48

XHDSA-C-36

XHDSA-C-42

XHDSA-C-48

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What type of paint is used on the racking? We'd like to use it outdoors

A: The powder used for the cantilever racking is not suitable for outdoor use.


Q: Is the hardware for the cantilever racking metric?

A: Yes, the hardware for the cantilever racking is metric.


Q: What is the lip height for HSA?

A: The lip height is 3-1/8" usable height.


Q: What is the lip height for XHDSA and HDSA?

A: The lip height is 3-1/8" usable height


Q: Can you store product on the base of the upright?

A: Yes, you can store product on the base of the upright.


Q: What is the length of the base for HU-C-8-36?

A: The base is 36"






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Heavy-Duty Cantilever Racking




Heavy-Duty Cantilever Racks are completely adjustable for application specific design flexibility. Long, unwelded stock is handled quickly and efficiently by forklift; instant accessibility to one piece or a full load. Arms are adjustable up and down the length of the upright. Pre-drilled holes on the uprights are spaced every 3-1/2" for bolt-on arm placement (hardware included). All arms feature lips to prevent product from falling off. Standard arms have a 3-1/8" lip. Heavy-duty and extra heavy-duty have a 3-1/4" lip. Uprights and arms are sold each, not in pairs. Custom rack systems can be designed for your special application. *Capacity listed is per upright.


Check Out Vestil's Other Cantilever Racking:


Standard-Duty Cantilever Racking

Medium-Duty Cantilever Racking

Cantilever Rack Kits


Model # Description Attributes Net Wt.
(lbs)
HB-C-14-3 HB-C-14-3Steel Heavy Duty Cantilever Brace Set 144 In. x 36 In. BlueComponent: Brace Set
Fits Upright (in.): 144 and 168
44
HB-C-14-4 HB-C-14-4Steel Heavy Duty Cantilever Brace Set 144 In. x 48 In. BlueComponent: Brace Set
Fits Upright (in.): 144 and 168
54
HB-C-14-5 HB-C-14-5Steel Heavy Duty Cantilever Brace Set 144 In. x 60 In. BlueComponent: Brace Set
Fits Upright (in.): 144 and 168
56
HB-C-14-6 HB-C-14-6Steel Heavy Duty Cantilever Brace Set 144 In. x 72 In. BlueComponent: Brace Set
Fits Upright (in.): 144 and 168
66
HB-C-14-7 HB-C-14-7Steel Heavy Duty Cantilever Brace Set 144 In. x 84 In. BlueComponent: Brace Set
Fits Upright (in.): 144 and 168
78
HB-C-14-8 HB-C-14-8Steel Heavy Duty Cantilever Brace Set 144 In. x 96 In. BlueComponent: Brace Set
Fits Upright (in.): 144 and 168
123
HB-C-8-3 HB-C-8-3Steel Heavy Duty Cantilever Brace Set 96 In. x 36 In. BlueComponent: Brace Set
Fits Upright (in.): 96 and 120
28
HB-C-8-4 HB-C-8-4Steel Heavy Duty Cantilever Brace Set 96 In. x 48 In. BlueComponent: Brace Set
Fits Upright (in.): 96 and 120
31
HB-C-8-5 HB-C-8-5Steel Heavy Duty Cantilever Brace Set 96 In. x 60 In. BlueComponent: Brace Set
Fits Upright (in.): 96 and 120
38
HB-C-8-6 HB-C-8-6Steel Heavy Duty Cantilever Brace Set 96 In. x 72 In. BlueComponent: Brace Set
Fits Upright (in.): 96 and 120
43
HB-C-8-7 HB-C-8-7Steel Heavy Duty Cantilever Brace Set 96 In. x 84 In. BlueComponent: Brace Set
Fits Upright (in.): 96 and 120
98
HB-C-8-8 HB-C-8-8Steel Heavy Duty Cantilever Brace Set 96 In. x 96 In. BlueComponent: Brace Set
Fits Upright (in.): 96 and 120
107
HDSA-C-36 HDSA-C-36Steel Heavy-Duty Cantilever Straight Arm 36 In. Length 2,175 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 2,175
Component: Heavy-Duty Arm
26
HDSA-C-42 HDSA-C-42Steel Heavy-Duty Cantilever Straight Arm 42 In. Length 1,865 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,865
Component: Heavy-Duty Arm
29
HDSA-C-48 HDSA-C-48Steel Heavy-Duty Cantilever Straight Arm 48 In. Length 1,630 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,630
Component: Heavy-Duty Arm
31
HDSA-C-48M HDSA-C-48MSteel Heavy-Duty Cantilever Straight Arm 48 In. Length 2,000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 2,000
Component: Heavy-Duty Arm
33
HDU-C-10-18 HDU-C-10-18Steel Heavy Duty Double Cantilever Uprights 10 Ft. 49,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 49,200
Component: Double-Sided Upright
336
HDU-C-10-24 HDU-C-10-24Steel Heavy Duty Double Cantilever Uprights 10 Ft. 42,600 Lb. Capacity BlueUniform Capacity per Upright (lb.): 42,600
Component: Double-Sided Upright
355
HDU-C-10-36 HDU-C-10-36Steel Heavy Duty Double Cantilever Uprights 10 Ft. 36,400 Lb. Capacity BlueUniform Capacity per Upright (lb.): 36,400 or 31,600
Component: Double-Sided Upright
391
HDU-C-10-48 HDU-C-10-48Steel Heavy Duty Double Sided Cantilever Uprights for 42 In. and 48 In. Arms 10 Ft. 28,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 28,200 or 25,200
Component: Double-Sided Upright
427
HDU-C-12-18 HDU-C-12-18Steel Heavy Duty Double Sided Cantilever Uprights for 18 In. Arms 12 Ft. 48,800 Lb. Capacity BlueUniform Capacity per Upright (lb.): 48,800
Component: Double-Sided Upright
374
HDU-C-12-24 HDU-C-12-24Steel Heavy Duty Double Sided Cantilever Uprights for 24 In. Arms 12 Ft. 41,800 Lb. Capacity BlueUniform Capacity per Upright (lb.): 41,800
Component: Double-Sided Upright
393
HDU-C-12-36 HDU-C-12-36Steel Heavy Duty Double Sided Cantilever Uprights for 30 and 36 In. Arms 12 Ft. 35,600 Lb. Capacity BlueUniform Capacity per Upright (lb.): 35,600 or 31,200
Component: Double-Sided Upright
429
HDU-C-12-48 HDU-C-12-48Steel Heavy Duty Double Sided Cantilever Uprights for 42 and 48 In. Arms 12 Ft. 27,800 Lb. Capacity BlueUniform Capacity per Upright (lb.): 27,800 or 25,000
Component: Double-Sided Upright
465
HDU-C-14-18 HDU-C-14-18Steel Heavy Duty Double Sided Cantilever Uprights for 18 In. Arms 14 Ft. 46,800 Lb. Capacity BlueUniform Capacity per Upright (lb.): 46,800
Component: Double-Sided Upright
413
HDU-C-14-24 HDU-C-14-24Steel Heavy Duty Double Sided Cantilever Uprights for 24 In. Arms 14 Ft. 40,400 Lb. Capacity BlueUniform Capacity per Upright (lb.): 40,400
Component: Double-Sided Upright
432
HDU-C-14-36 HDU-C-14-36Steel Heavy Duty Double Sided Cantilever Uprights for 30 In. and 36 In. Arms 14 Ft. 35,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 35,200 or 30,800
Component: Double-Sided Upright
467
HDU-C-14-48 HDU-C-14-48Steel Heavy Duty Double Sided Cantilever Uprights for 42 In. and 48 In. Arms 14 Ft. 27,400 Lb. Capacity BlueUniform Capacity per Upright (lb.): 27,400 or 24,800
Component: Double-Sided Upright
507
HDU-C-8-18 HDU-C-8-18Steel Heavy Duty Double Sided Cantilever Uprights for 18 In. Arms 8 Ft. 49,900 Lb. Capacity BlueUniform Capacity per Upright (lb.): 49,400
Component: Double-Sided Upright
288
HDU-C-8-24 HDU-C-8-24Steel Heavy Duty Double Sided Cantilever Uprights for 18 In. Arms 8 Ft. 43,000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 43,000
Component: Double-Sided Upright
307
HDU-C-8-36 HDU-C-8-36Steel Heavy Duty Double Sided Cantilever Uprights for 30 In. and 36 In. Arms 8 Ft. 36,600 Lb. Capacity BlueUniform Capacity per Upright (lb.): 36,600 or 32,000
Component: Double-Sided Upright
342
HDU-C-8-48 HDU-C-8-48Steel Heavy Duty Double Sided Cantilever Uprights for 42 In. and 48 In. Arms 8 Ft. 27,400 Lb. Capacity BlueUniform Capacity per Upright (lb.): 28,400 or 25,600
Component: Double-Sided Upright
378
HIA-C-18 HIA-C-18Steel Heavy Duty Cantilever Incline Arm 18 In. Length 2,500 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 2,500
Component: Incline Arm
16
HIA-C-24 HIA-C-24Steel Heavy Duty Cantilever Incline Arm 24 In. Length 2,500 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 2,000
Component: Incline Arm
21
HIA-C-30 HIA-C-30Steel Heavy Duty Cantilever Incline Arm 30 In. Length 1,500 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,500
Component: Incline Arm
22
HIA-C-36 HIA-C-36Steel Heavy Duty Cantilever Incline Arm 36 In. Length 1,200 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,200
Component: Incline Arm
26
HIA-C-42 HIA-C-42Steel Heavy Duty Cantilever Incline Arm 42 In. Length 1,100 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,100
Component: Incline Arm
29
HIA-C-48 HIA-C-48Steel Heavy Duty Cantilever Incline Arm 48 In. Length 1,000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,000
Component: Incline Arm
32
HSA-C-18 HSA-C-18Steel Heavy Duty Cantilever Straight Arm 18 In. 2,500 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 2,500
Component: Straight Arm
16
HSA-C-24 HSA-C-24Steel Heavy Duty Cantilever Straight Arm 24 In. 2,000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 2,000
Component: Straight Arm
21
HSA-C-30 HSA-C-30Steel Heavy Duty Cantilever Straight Arm 30 In. 1,500 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,500
Component: Straight Arm
22
HSA-C-36 HSA-C-36Steel Heavy Duty Cantilever Straight Arm 36 In. 1,200 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,200
Component: Straight Arm
26
HSA-C-42 HSA-C-42Steel Heavy Duty Cantilever Straight Arm 42 In. 1,100 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,100
Component: Straight Arm
29
HSA-C-48 HSA-C-48Steel Heavy Duty Cantilever Straight Arm 48 In. 1,000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,000
Component: Straight Arm
32
HU-C-10-18 HU-C-10-18Steel Single Sided Cantilever Upright with 18 In. Arms 10 Ft. 24,700 Lb. Capacity BlueUniform Upright Capacity (lb.): 24,700
Component: Single-Sided Upright
313
HU-C-10-24 HU-C-10-24Steel Single Sided Cantilever Upright with 24 In. Arms 10 Ft. 21,500 Lb. Capacity BlueUniform Upright Capacity (lb.): 21,500
Base Length (in.): 36-1/2
323
HU-C-10-36 HU-C-10-36Steel Single Sided Cantilever Upright with 30 In. and 36 In. Arms 10 Ft. 18,300 Lb. Capacity BlueUniform Upright Capacity 30"/36" Arm (lb.): 18,300 or 16,000
Base Length (in.): 48-1/2
340
HU-C-10-48 HU-C-10-48Steel Single Sided Cantilever Upright with 42 In. and 48 In. Arms 10 Ft. 14,200 Lb. Capacity BlueUniform Upright Capacity 42"/48" Arm(lb.): 14,200 or 12,800
Base Length (in.): 60-1/2
357
HU-C-12-18 HU-C-12-18Steel Single Sided Cantilever Upright with 18 In. Arms 12 Ft. 24,400 Lb. Capacity BlueUniform Upright Capacity (lb.): 24,400
Component: Single-Sided Upright
351
HU-C-12-24 HU-C-12-24Steel Single Sided Cantilever Upright with 24 In. Arms 12 Ft. 20,900 Lb. Capacity BlueUniform Upright Capacity (lb.): 20,900
Base Length (in.): 36-1/2
362
HU-C-12-36 HU-C-12-36Steel Single Sided Cantilever Upright with 30 In. and 36 In. Arms 12 Ft. 17,800 Lb. Capacity BlueUniform Upright Capacity 30"/36" Arm (lb.): 17,800 or 15,600
Base Length (in.): 48-1/2
378
HU-C-12-48 HU-C-12-48Steel Single Sided Cantilever Upright with 42 In. and 48 In. Arms 12 Ft. 13,900 Lb. Capacity BlueUniform Upright Capacity 42"/48" Arm(lb.): 13,900 or 12,500
Base Length (in.): 60-1/2
396
HU-C-14-18 HU-C-14-18Single Sided Cantilever Upright with 18 In. Arms 14 Ft. 23,400 Lb. Capacity BlueUniform Upright Capacity (lb.): 23,400
Component: Single-Sided Upright
390
HU-C-14-24 HU-C-14-24Single Sided Cantilever Upright with 24 In. Arms 14 Ft. 20,200 Lb. Capacity BlueUniform Upright Capacity (lb.): 20,200
Component: Single-Sided Upright
401
HU-C-14-36 HU-C-14-36Single Sided Cantilever Upright with 30 In. and 36 In. Arms 14 Ft. 17,600 Lb. Capacity BlueUniform Upright Capacity 30"/36" Arm (lb.): 17,600 or 15,400
Component: Single-Sided Upright
417
HU-C-14-48 HU-C-14-48Single Sided Cantilever Upright with 42 In. and 48 In. Arms 14 Ft. 13,700 Lb. Capacity BlueUniform Upright Capacity 42"/48" Arm(lb.): 13,700 or 12,400
Component: Single-Sided Upright
435
HU-C-8-18 HU-C-8-18Steel Heavy Duty Single Sided Cantilever Upright 18 In. Arms 8 Ft. 24,700 Lb. Capacity BlueUniform Upright Capacity (lb.): 24,700
Component: Single-Sided Upright
265
HU-C-8-24 HU-C-8-24Steel Heavy Duty Single Sided Cantilever Upright 24 In. Arms 8 Ft. 21,500 Lb. Capacity BlueUniform Upright Capacity (lb.): 21,500
Component: Single-Sided Upright
275
HU-C-8-36 HU-C-8-36Steel Heavy Duty Single Sided Cantilever Upright 30 In. and 36 In. Arms 8 Ft. 18,300-16,000 Lb. Capacity BlueUniform Upright Capacity 30"/36" Arm (lb.): 18,300 or 16,000
Component: Single-Sided Upright
292
HU-C-8-48 HU-C-8-48Steel Heavy Duty Single Sided Cantilever Upright with 42 In. and 48 In. Arms 8 Ft. 14,200-12,800 Lb. Capacity BlueUniform Upright Capacity 42"/48" Arm(lb.): 14,200 or 12,800
Component: Single-Sided Upright
310
XHDSA-C-36 XHDSA-C-36Steel Extra Heavy Duty Cantilever Arm 36 In. Length 2,500 lb. Capacity OrangeUniform Capacity Per Arm (lb.): 3,400
Component: Extra Heavy-Duty Arm
30
XHDSA-C-42 XHDSA-C-42Steel Extra Heavy Duty Cantilever Arm 42 In. Length 2,500 lb. Capacity OrangeUniform Capacity Per Arm (lb.): 2,900
Component: Extra Heavy-Duty Arm
33
XHDSA-C-48 XHDSA-C-48Steel Extra Heavy Duty Cantilever Arm 48 In. Length 2,500 lb. Capacity OrangeUniform Capacity Per Arm (lb.): 2,500
Component: Extra Heavy-Duty Arm
36


Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
