Product Family Overview

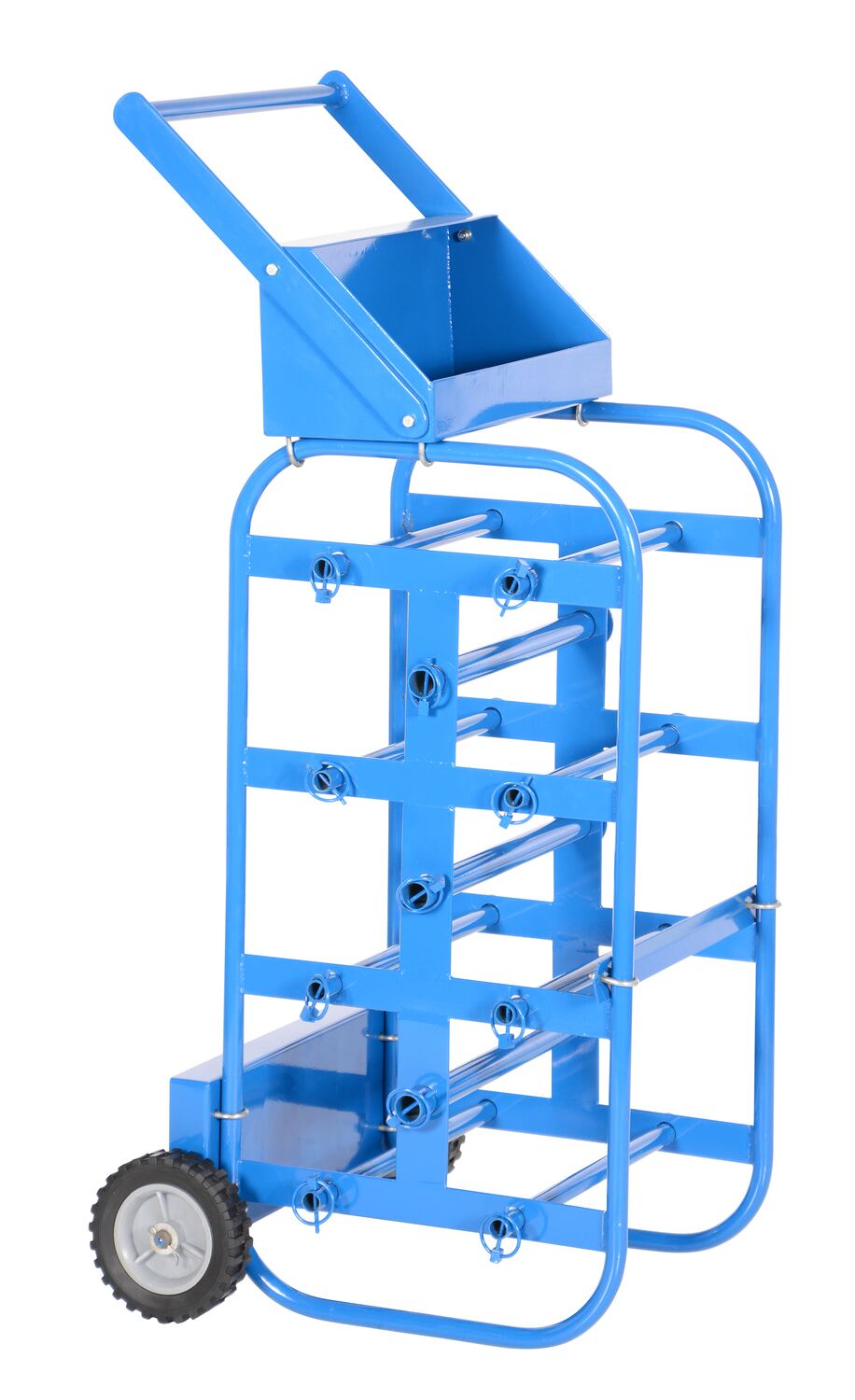

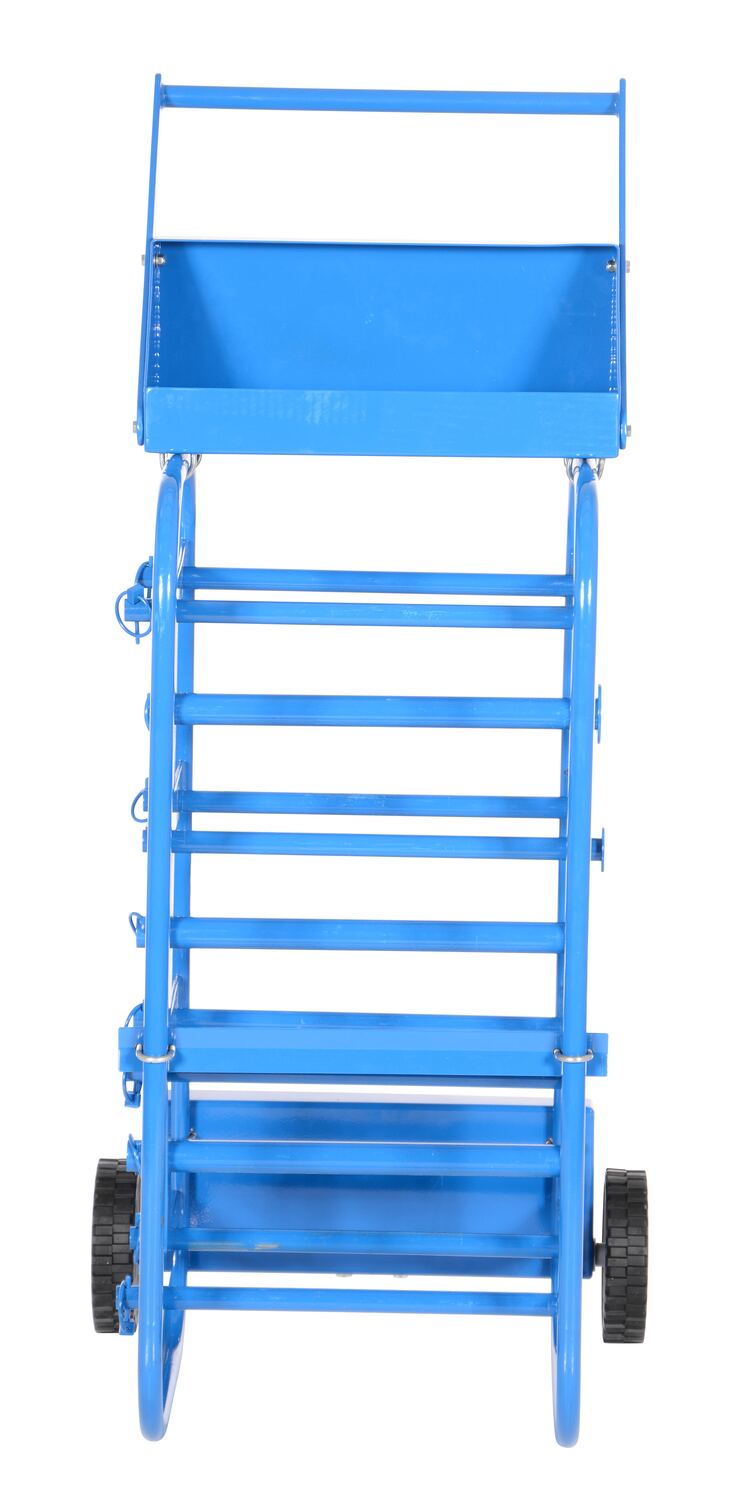

Economy Wire Reel Caddy
SERIES: WIRE

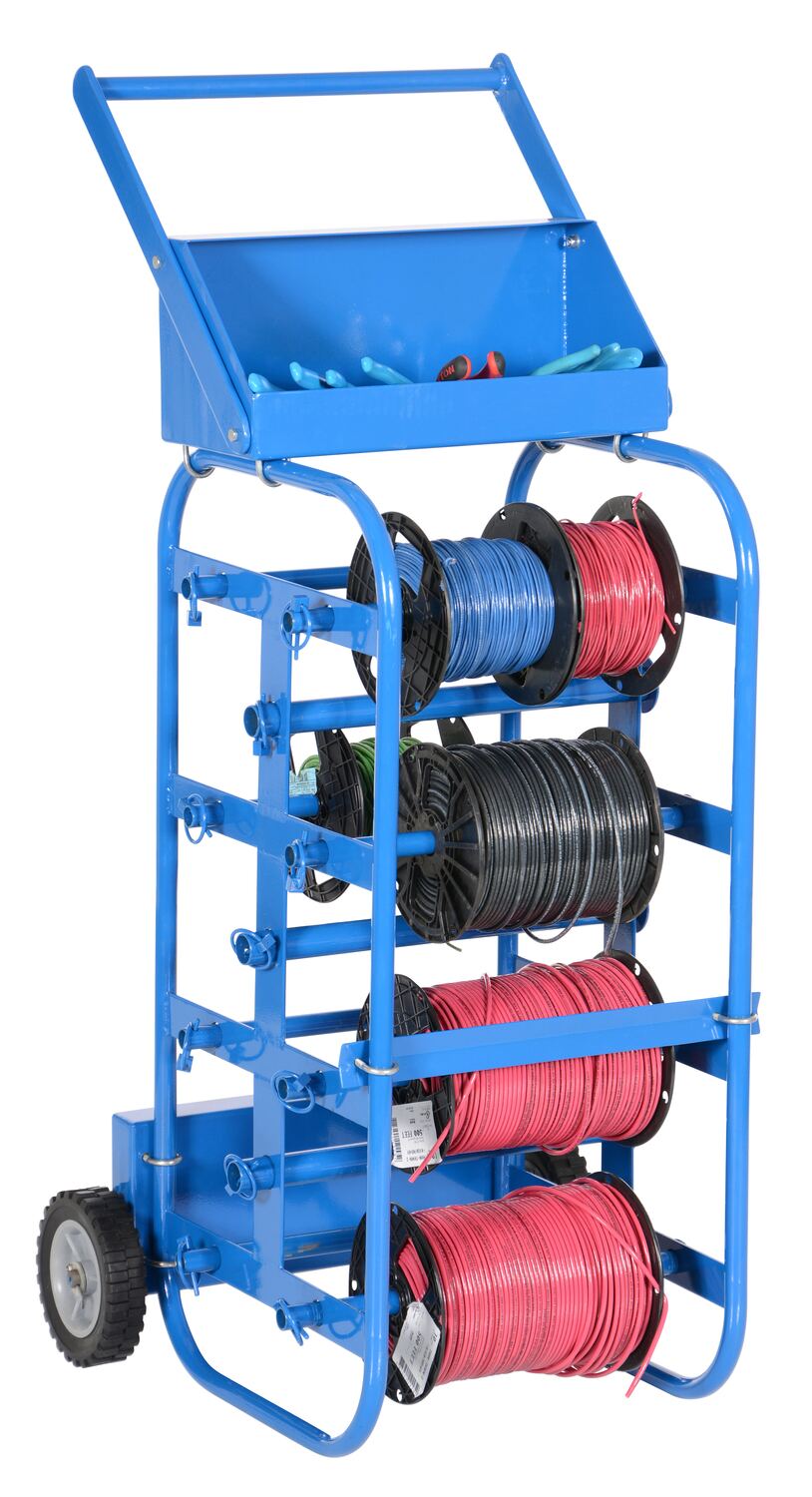

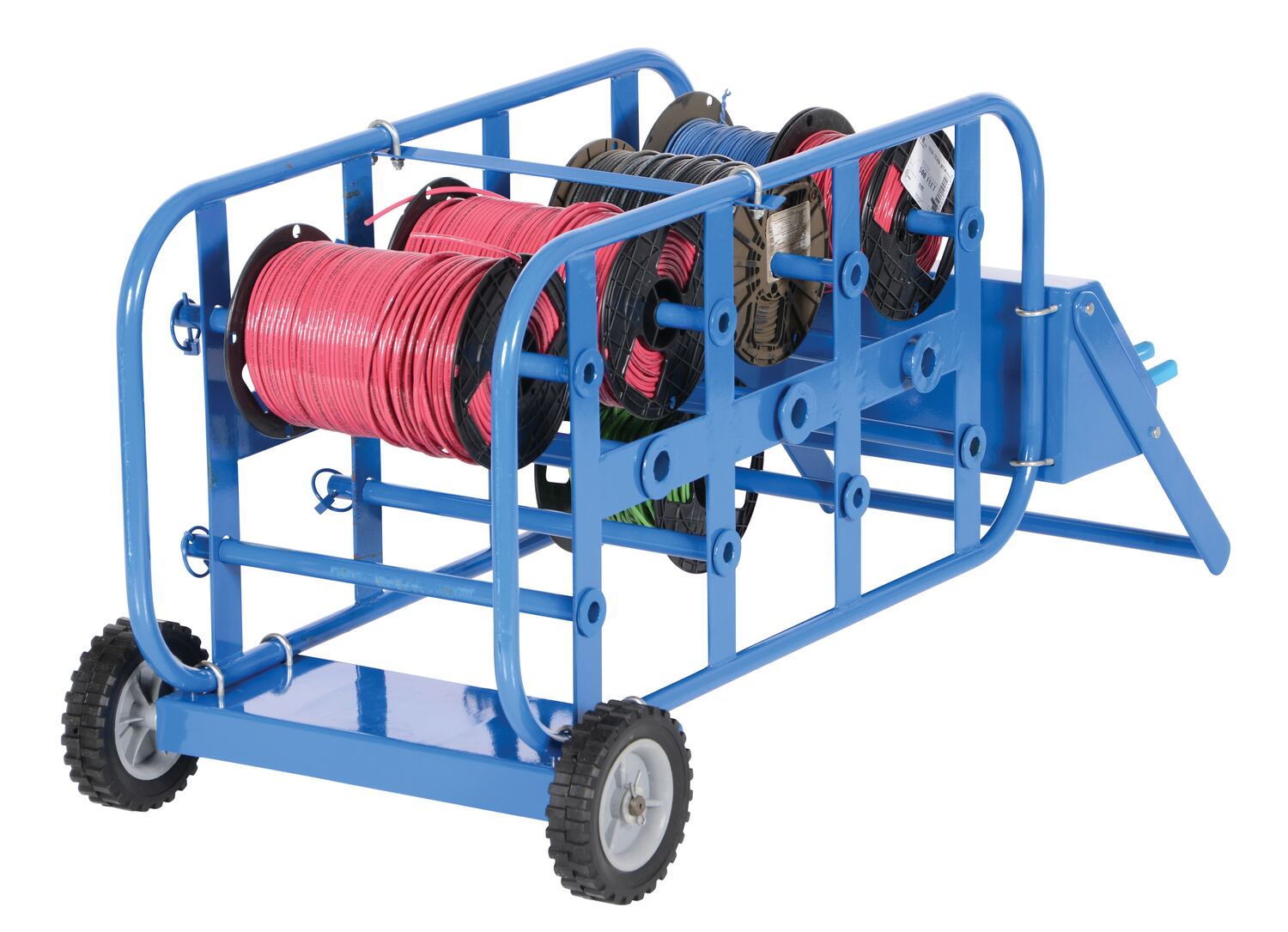

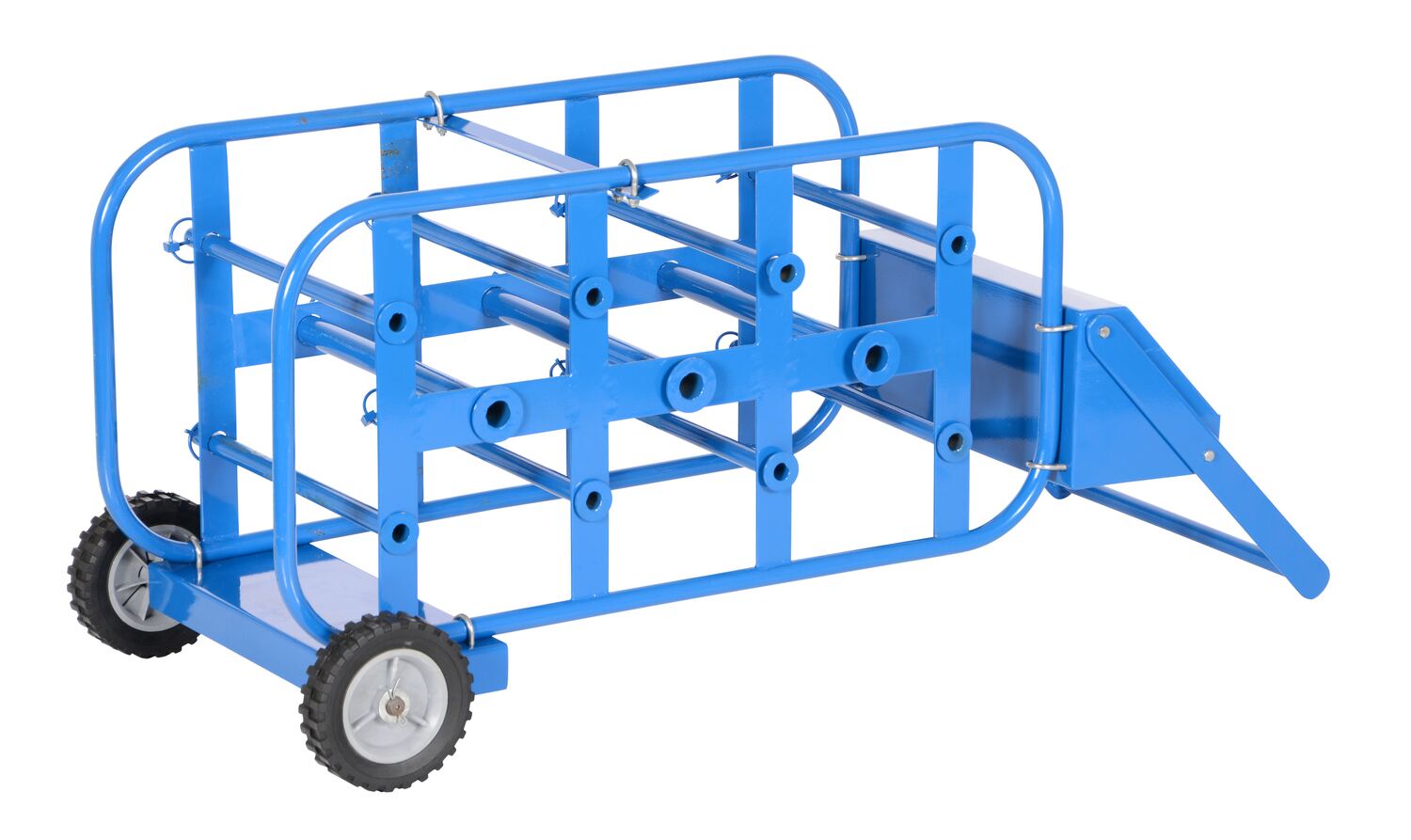

Move wire reels and dispense wire in vertical and horizontal position. Caddy includes eleven (11) spool bars for handling various size reels. Three (3) large 1-1/6" diameter axles handle 14" maximum reel diameter while the eight (8) smaller 3/4" diameter axles handle 7" maximum reel diameter. Storage tray on top for added versatility. Portable with 6" diameter semi-pneumatic wheels and 43-1/2" high handle. Total uniform capacity is 150 lbs. (90 lbs. on large spindles and 60 lbs. on small spindles). Steel construction with painted finish. Ships knockdown.

  • Unique design dispenses wire in vertical and horizontal position
  • Portable designed easily moves wire reels where you need them the most
  • Eleven spool bars handle various size reels
  • Storage tray in top for added versatility

Move wire reels and dispense wire in vertical and horizontal position. Caddy includes eleven (11) spool bars for handling various size reels. Three (3) large 1-1/6" diameter axles handle 14" maximum reel diameter while the eight (8) smaller 3/4" diameter axles handle 7" maximum reel diameter. Storage tray on top for added versatility. Portable with 6" diameter semi-pneumatic wheels and 43-1/2" high handle. Total uniform capacity is 150 lbs. (90 lbs. on large spindles and 60 lbs. on small spindles). Steel construction with painted finish. Ships knockdown.

  • Unique design dispenses wire in vertical and horizontal position
  • Portable designed easily moves wire reels where you need them the most
  • Eleven spool bars handle various size reels
  • Storage tray in top for added versatility

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
WIRE-D-E WIRE-D-E90 Days Limited WarrantySteel Economy Wire Reel Caddy 150 Lb. Capacity BlueLarge Axle Diameter (in.): 1-1/16
Large Maximum Reel Diameter (in.): 14
41

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

WIRE-D-E
Unit:
Size: W x L x H
Weight:
Limited Warranty
Large Axle Diameter (in.): 1-1/16
Large Maximum Reel Diameter (in.): 14
Large Axle Diameter (in.): 1-1/16
Large Maximum Reel Diameter (in.): 14

Economy Wire Reel Caddy PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


WIRE-D-E

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Economy Wire Reel Caddy




Move wire reels and dispense wire in vertical and horizontal position. Caddy includes eleven (11) spool bars for handling various size reels. Three (3) large 1-1/6" diameter axles handle 14" maximum reel diameter while the eight (8) smaller 3/4" diameter axles handle 7" maximum reel diameter. Storage tray on top for added versatility. Portable with 6" diameter semi-pneumatic wheels and 43-1/2" high handle. Total uniform capacity is 150 lbs. (90 lbs. on large spindles and 60 lbs. on small spindles). Steel construction with painted finish. Ships knockdown.

  • Unique design dispenses wire in vertical and horizontal position
  • Portable designed easily moves wire reels where you need them the most
  • Eleven spool bars handle various size reels
  • Storage tray in top for added versatility


Model # Description Attributes Net Wt.
(lbs)
WIRE-D-E WIRE-D-ESteel Economy Wire Reel Caddy 150 Lb. Capacity BlueLarge Axle Diameter (in.): 1-1/16
Large Maximum Reel Diameter (in.): 14
41
