Product Family Overview


Ground Lift Scissor Tables with Handrails
SERIES: EHLTG

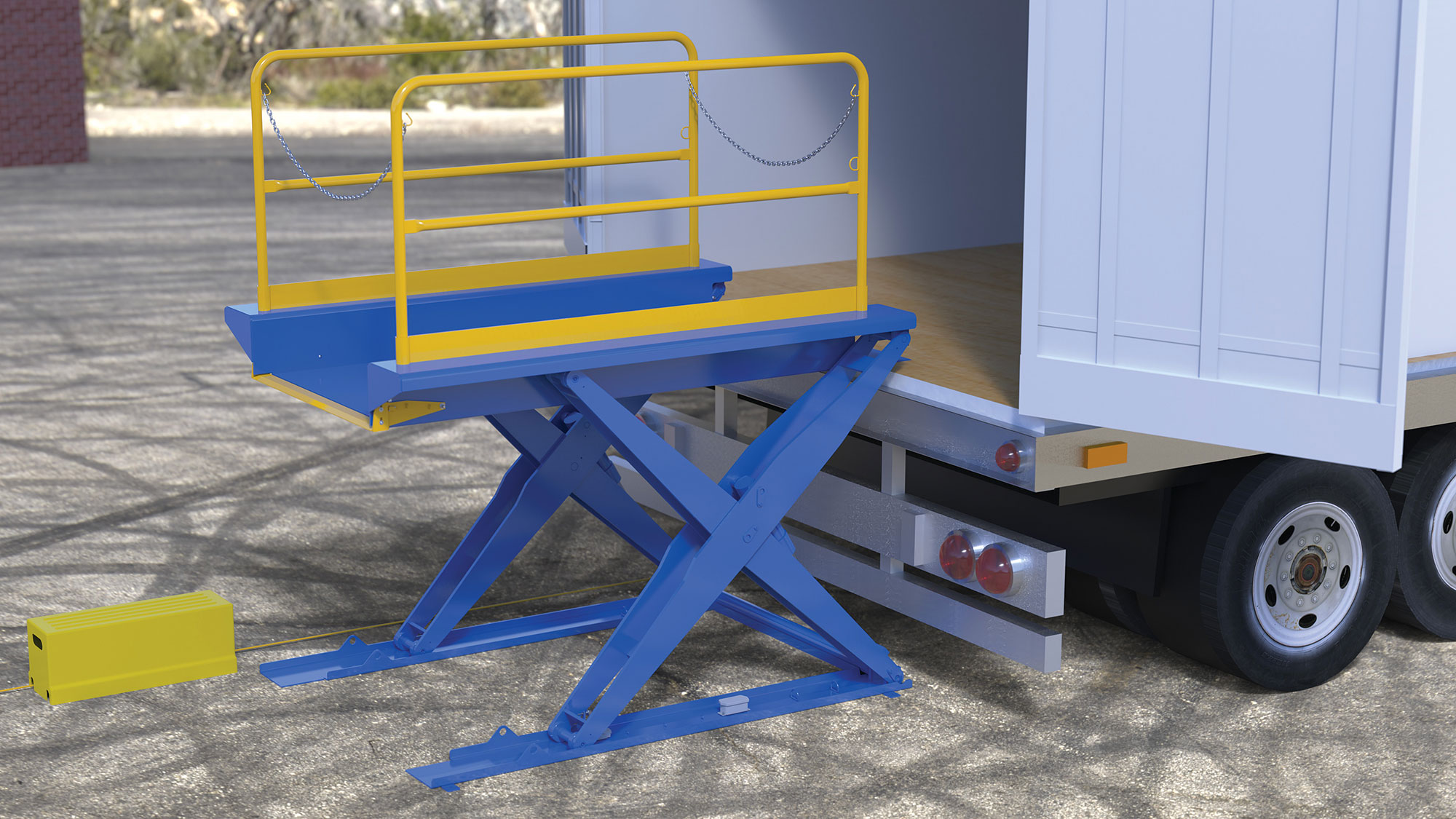

Great For Loading/Unloading Semi Trucks with a Pallet Truck!

The Ground Lift Scissor Table with Handrails is designed for use when fork trucks or other dock lifts are not available. The pallets can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. The safety features include: entry-side electric toe guard to protect pinch points during lowering of the table, velocity fuse to maintain platform height in the event of a hose or fitting failure, foot control, maintenance prop, and upper travel limit switch to stop table at maximum height reducing motor wear. The motor is totally enclosed standard with optional voltages available. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting is available.

  • Pallets can be loaded onto the platform and raised to a working height
  • Features toe guard to protect pinch points
  • Guardrails for stability and support
  • Remote power unit can be located up to eight feet away from the table

Check Out Our Standard Ground Lift Scissor Tables

Great For Loading/Unloading Semi Trucks with a Pallet Truck!

The Ground Lift Scissor Table with Handrails is designed for use when fork trucks or other dock lifts are not available. The pallets can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. The safety features include: entry-side electric toe guard to protect pinch points during lowering of the table, velocity fuse to maintain platform height in the event of a hose or fitting failure, foot control, maintenance prop, and upper travel limit switch to stop table at maximum height reducing motor wear. The motor is totally enclosed standard with optional voltages available. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting is available.

  • Pallets can be loaded onto the platform and raised to a working height
  • Features toe guard to protect pinch points
  • Guardrails for stability and support
  • Remote power unit can be located up to eight feet away from the table

Check Out Our Standard Ground Lift Scissor Tables

Additional Models In This Family

EHLTG-5284-3-54

model EHLTG-5284-3-54

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

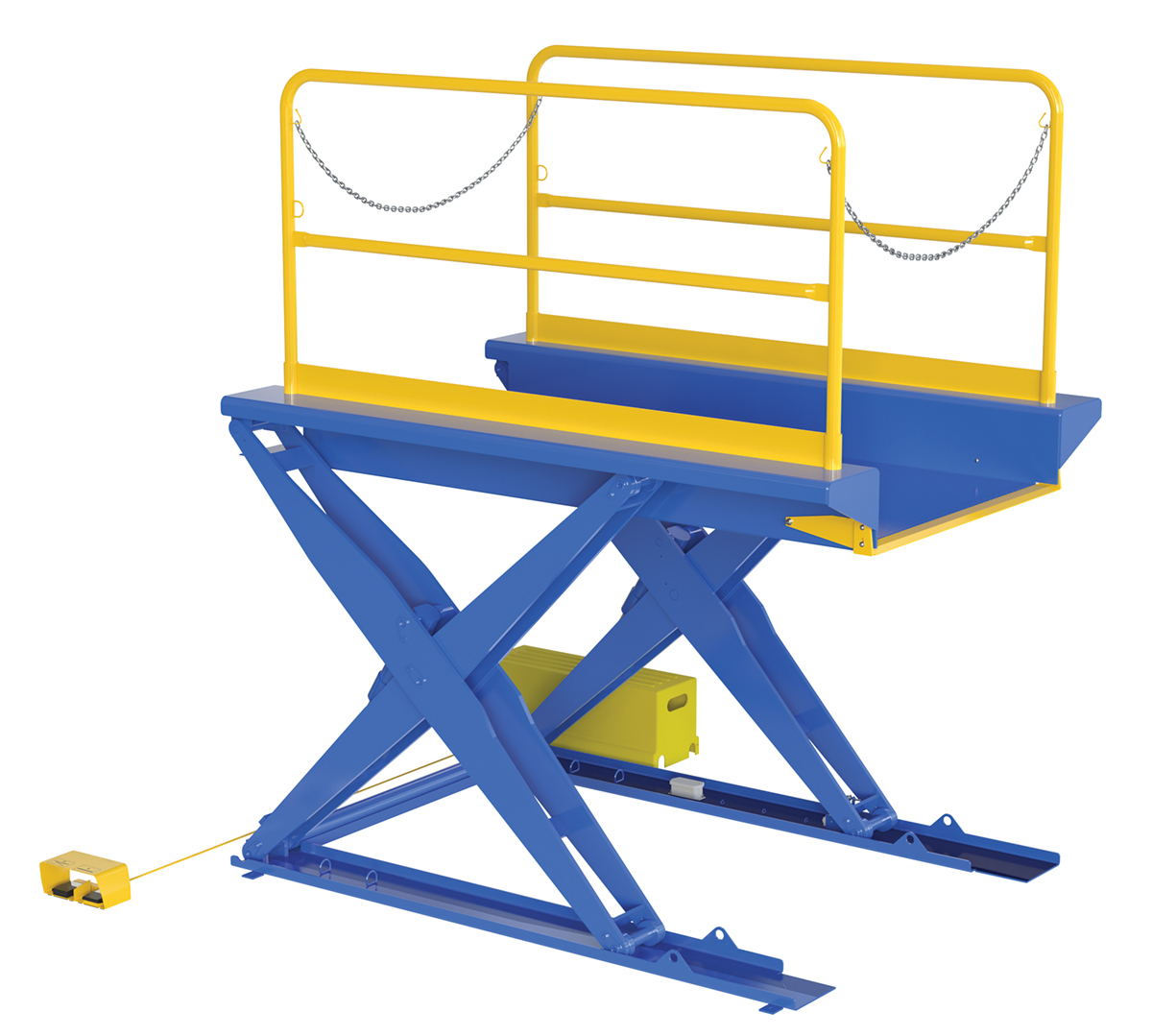

EHLTG-4484-3-54
EHLTG-4484-3-541 Year Limited WarrantySteel Ground Lift Scissor Table 44 In. x 84 In. 3000 Lb. Capacity BluePower Source: Electric - Corded
Maximum Height (in): 54
2835

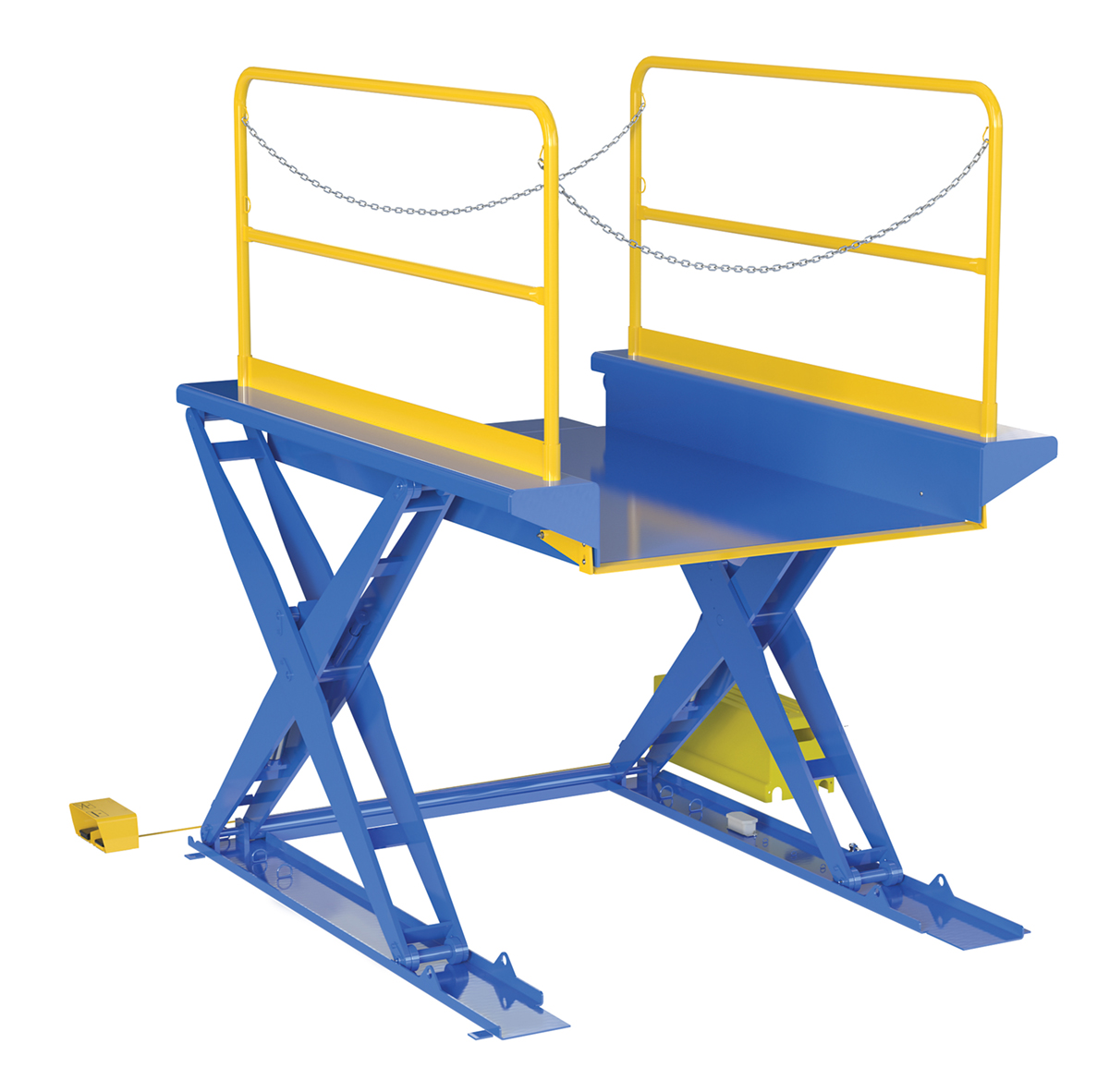

EHLTG-5284-3-54
EHLTG-5284-3-541 Year Limited WarrantySteel Ground Lift Scissor Table 52 In. x 84 In. 3000 Lb. Capacity BluePower Source: Electric - Corded
Maximum Height (in): 54
3044

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

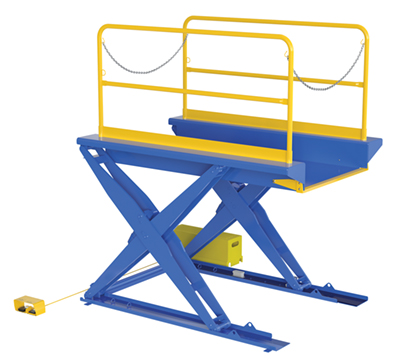

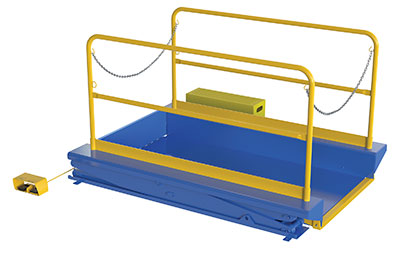

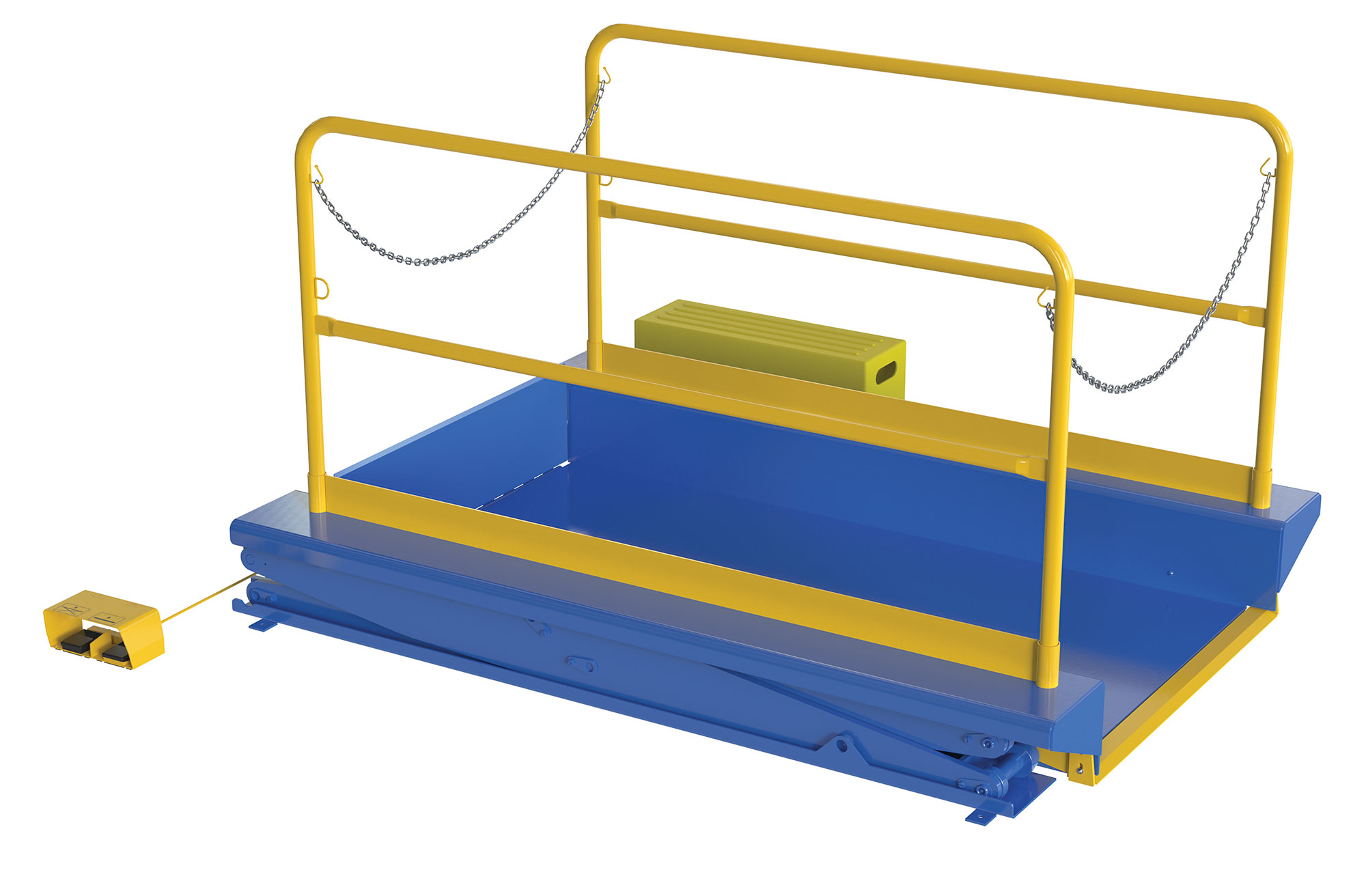

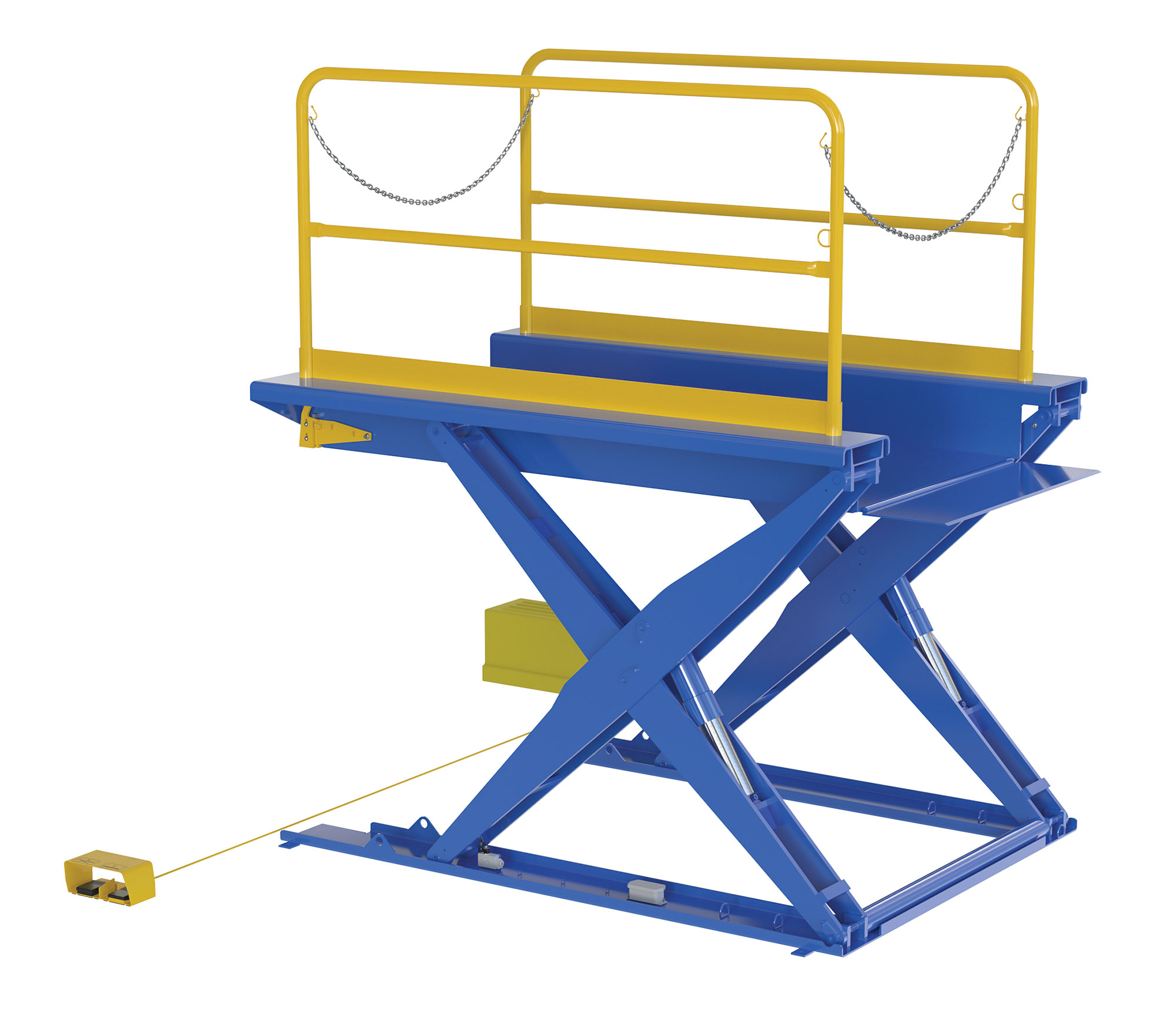

EHLTG-4484-3-54
Unit:
Size: W x L x H
Weight:
Limited Warranty
Power Source: Electric - Corded
Maximum Height (in): 54
Power Source: Electric - Corded
Maximum Height (in): 54

EHLTG-5284-3-54
Unit:
Size: W x L x H
Weight:
Limited Warranty
Power Source: Electric - Corded
Maximum Height (in): 54
Power Source: Electric - Corded
Maximum Height (in): 54
For More Details of the Option Click the Red Model Button
Model Description WT (lbs.)
HH2PB-8-FC2 Hand Held Pendant Control (foot control Standard) 2
EHLTG-44-SB Steel Rollover Bridge For 44"W Decks (12" Long) / 3,000 lbs. capacity 36
EHLTG-52-SB Steel Rollover Bridge For 52"W Decks (12" Long) /3,000 lbs. capacity 42
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Ground Lift Scissor Tables with Handrails PDF's will open in a new window when clicked.

Manuals


Survey Sheets


Approval Drawings

Testing Certificates


EHLTG-4484-3-54

EHLTG-5284-3-54

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What is the standard voltage and phase? Can the voltage and phase be changed?

A: The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Ground Lift Scissor Tables wit...




Great For Loading/Unloading Semi Trucks with a Pallet Truck!

The Ground Lift Scissor Table with Handrails is designed for use when fork trucks or other dock lifts are not available. The pallets can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. The safety features include: entry-side electric toe guard to protect pinch points during lowering of the table, velocity fuse to maintain platform height in the event of a hose or fitting failure, foot control, maintenance prop, and upper travel limit switch to stop table at maximum height reducing motor wear. The motor is totally enclosed standard with optional voltages available. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting is available.

  • Pallets can be loaded onto the platform and raised to a working height
  • Features toe guard to protect pinch points
  • Guardrails for stability and support
  • Remote power unit can be located up to eight feet away from the table

Check Out Our Standard Ground Lift Scissor Tables



Model # Description Attributes Net Wt.
(lbs)
EHLTG-4484-3-54 EHLTG-4484-3-54Steel Ground Lift Scissor Table 44 In. x 84 In. 3000 Lb. Capacity BluePower Source: Electric - Corded
Maximum Height (in): 54
2835
EHLTG-5284-3-54 EHLTG-5284-3-54Steel Ground Lift Scissor Table 52 In. x 84 In. 3000 Lb. Capacity BluePower Source: Electric - Corded
Maximum Height (in): 54
3044

Options


Model Description WT (lbs.)
HH2PB-8-FC2 Hand Held Pendant Control (foot control Standard) 2
EHLTG-44-SB Steel Rollover Bridge For 44"W Decks (12" Long) / 3,000 lbs. capacity 36
EHLTG-52-SB Steel Rollover Bridge For 52"W Decks (12" Long) /3,000 lbs. capacity 42
