Product Family Overview


Fixed Steel Gantry Cranes with V-Groove Casters
SERIES: FHS-VG

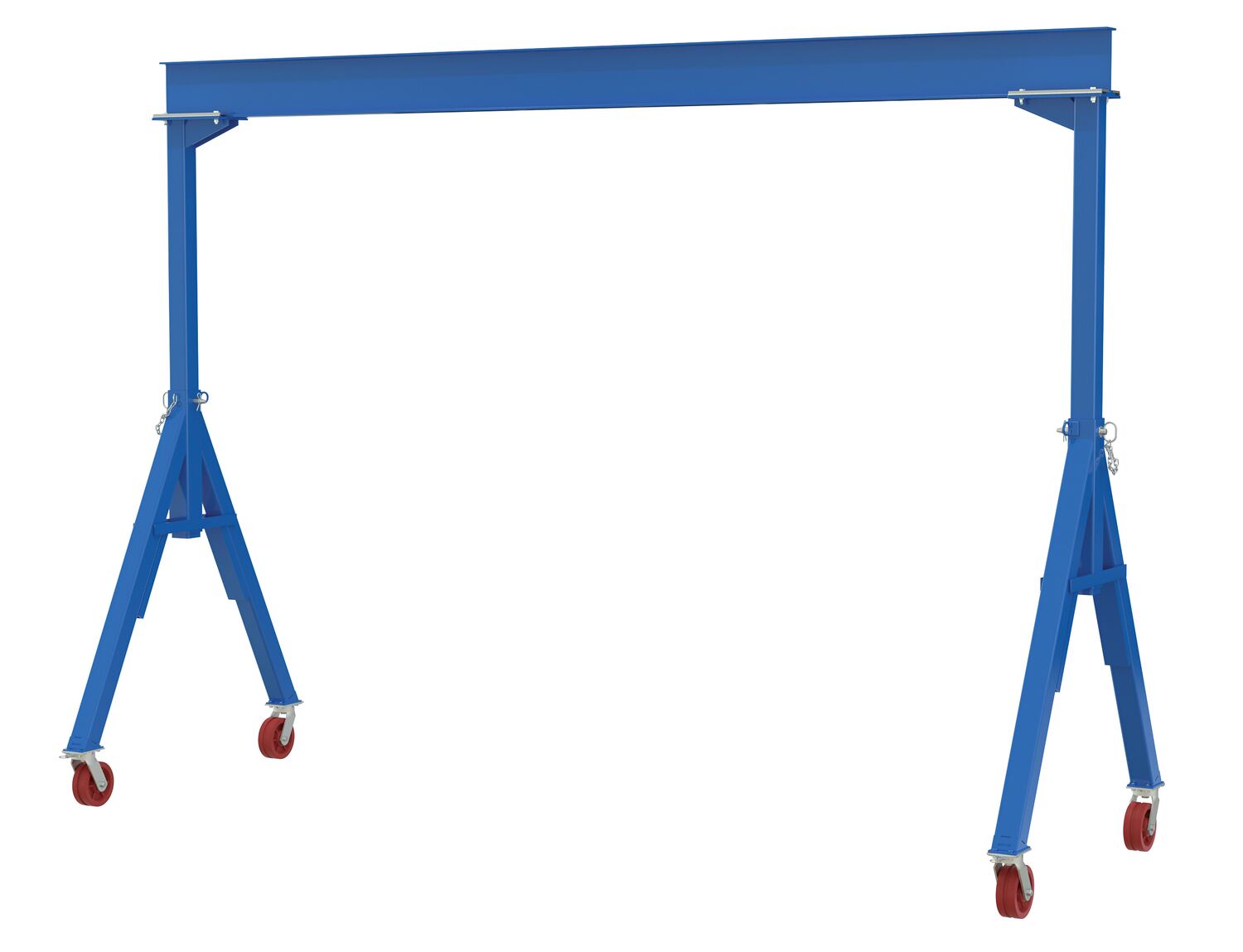

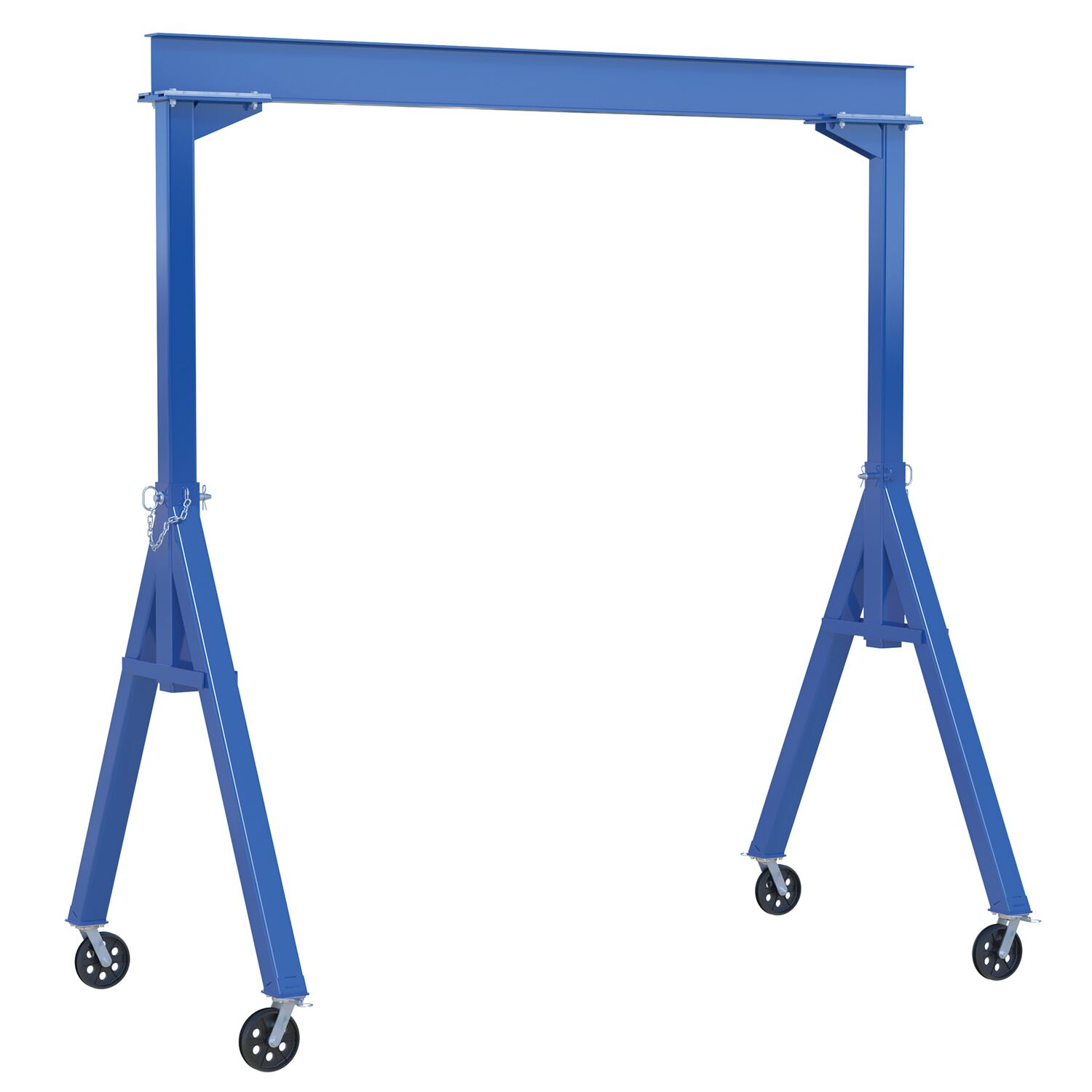

The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.Do not move units while loaded unless using V-Groove Caster and Track Option. Hoists & Trollies can be ordered seperately.

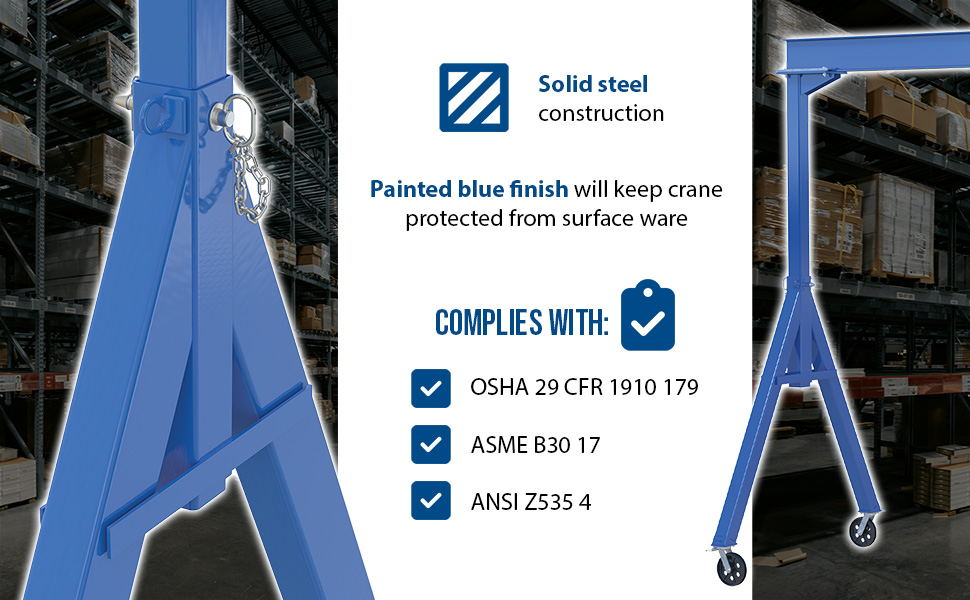

  • Sleek painted finish
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable OSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option

The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.Do not move units while loaded unless using V-Groove Caster and Track Option. Hoists & Trollies can be ordered seperately.

  • Sleek painted finish
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable OSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

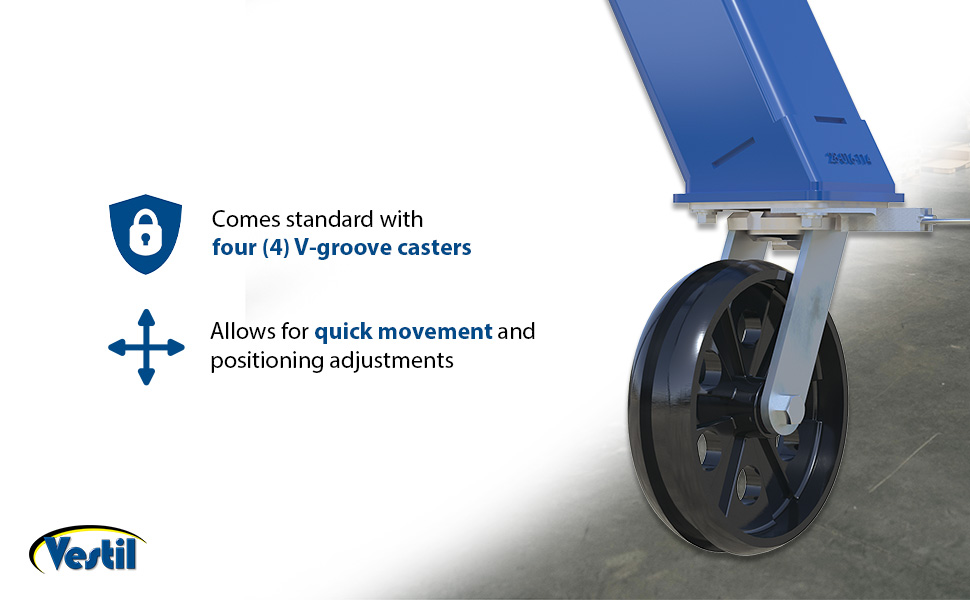

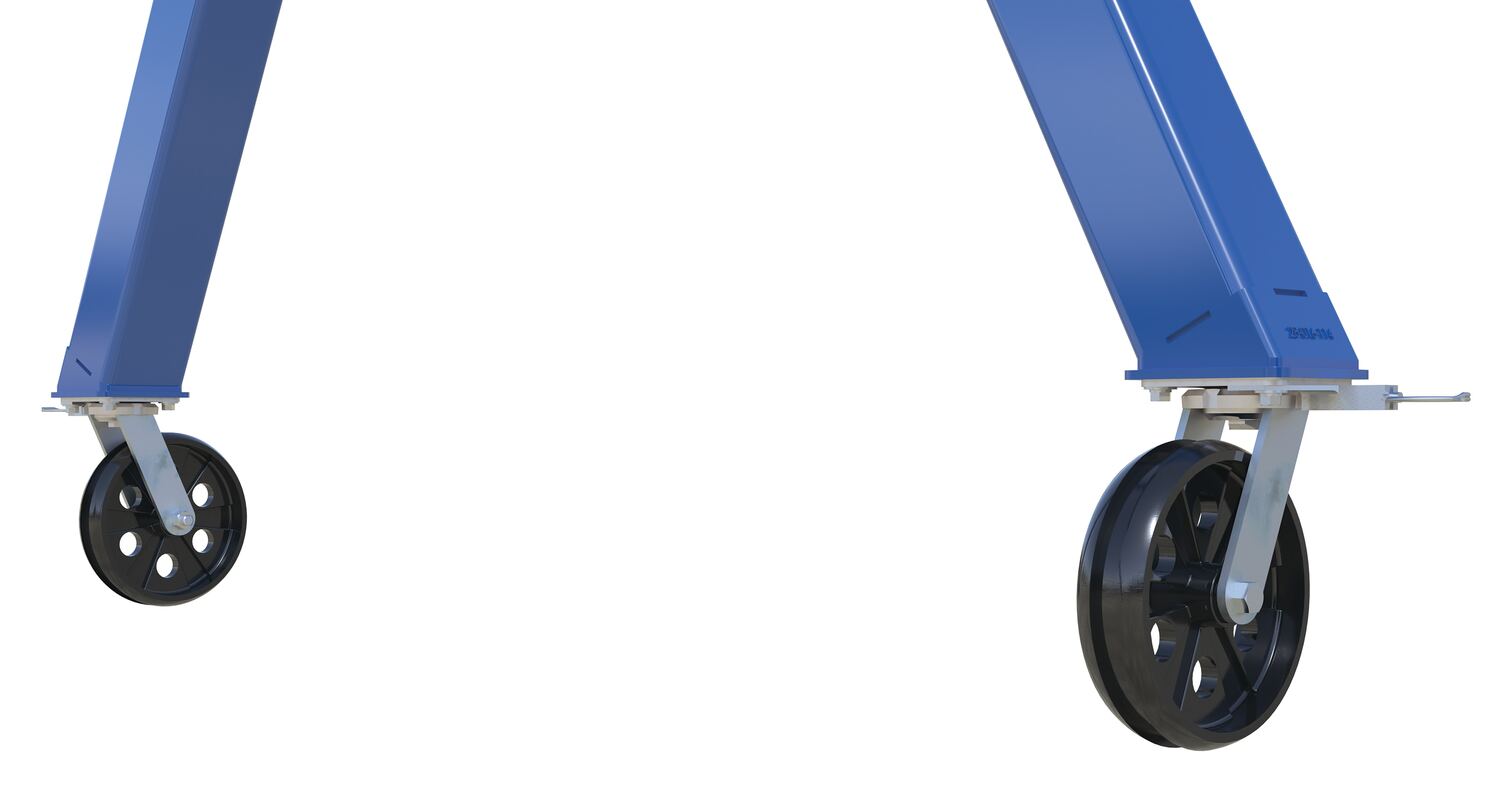

FHS-2-10-VG FHS-2-10-VG1 Year Limited WarrantySteel Fixed Gantry Crane with V-Groove Cast Iron Casters 10 Ft. 2000 Lb. Capacity BlueUniform Capacity (lbs.): 2000
Casters Swivel (Qty): 4
2783
FHS-2-15-VG FHS-2-15-VG1 Year Limited WarrantySteel Fixed Gantry Crane with V-Groove Cast Iron Casters 15 Ft. 2000 Lb. Capacity BlueUniform Capacity (lbs.): 2000
Casters Swivel (Qty): 4
2862
FHS-2-20-VG FHS-2-20-VG1 Year Limited WarrantySteel Fixed Gantry Crane with V-Groove Cast Iron Casters 20 Ft. 2000 Lb. Capacity BlueUniform Capacity (lbs.): 2000
Casters Swivel (Qty): 4
21044
FHS-4-10-VG FHS-4-10-VG1 Year Limited WarrantySteel Fixed Gantry Crane with V-Groove Cast Iron Casters 10 Ft. 4000 Lb. Capacity BlueUniform Capacity (lbs.): 4000
Casters Swivel (Qty): 4
2828
FHS-4-15-VG FHS-4-15-VG1 Year Limited WarrantySteel Fixed Gantry Crane with V-Groove Cast Iron Casters 15 Ft. 4000 Lb. Capacity BlueUniform Capacity (lbs.): 4000
Casters Swivel (Qty): 4
2895
FHS-4-20-VG FHS-4-20-VG1 Year Limited WarrantySteel Fixed Gantry Crane with V-Groove Cast Iron Casters 20 Ft. 4000 Lb. Capacity BlueUniform Capacity (lbs.): 4000
Casters Swivel (Qty): 4
21017
FHS-6-10-VG FHS-6-10-VG1 Year Limited WarrantySteel Fixed Gantry Crane with V-Groove Cast Iron Casters 10 Ft. 6000 Lb. Capacity BlueUniform Capacity (lbs.): 6000
Casters Swivel (Qty): 4
2841
FHS-6-15-VG FHS-6-15-VG1 Year Limited WarrantySteel Fixed Gantry Crane with V-Groove Cast Iron Casters 15 Ft. 6000 Lb. Capacity BlueUniform Capacity (lbs.): 6000
Casters Swivel (Qty): 4
2941
FHS-6-20-VG FHS-6-20-VG1 Year Limited WarrantySteel Fixed Gantry Crane with V-Groove Cast Iron Casters 20 Ft. 6000 Lb. Capacity BlueUniform Capacity (lbs.): 6000
Casters Swivel (Qty): 4
21348
FHS-8-10-VG FHS-8-10-VG1 Year Limited WarrantySteel Fixed Gantry Crane with V-Groove Cast Iron Casters 10 Ft. 8000 Lb. Capacity BlueUniform Capacity (lbs.): 8000
Casters Swivel (Qty): 4
2896
FHS-8-15-VG FHS-8-15-VG1 Year Limited WarrantySteel Fixed Gantry Crane with V-Groove Cast Iron Casters 15 Ft. 8000 Lb. Capacity BlueUniform Capacity (lbs.): 8000
Casters Swivel (Qty): 4
2996
FHS-8-20-VG FHS-8-20-VG1 Year Limited WarrantySteel Fixed Gantry Crane with V-Groove Cast Iron Casters 20 Ft. 8000 Lb. Capacity BlueUniform Capacity (lbs.): 8000
Casters Swivel (Qty): 4
21357

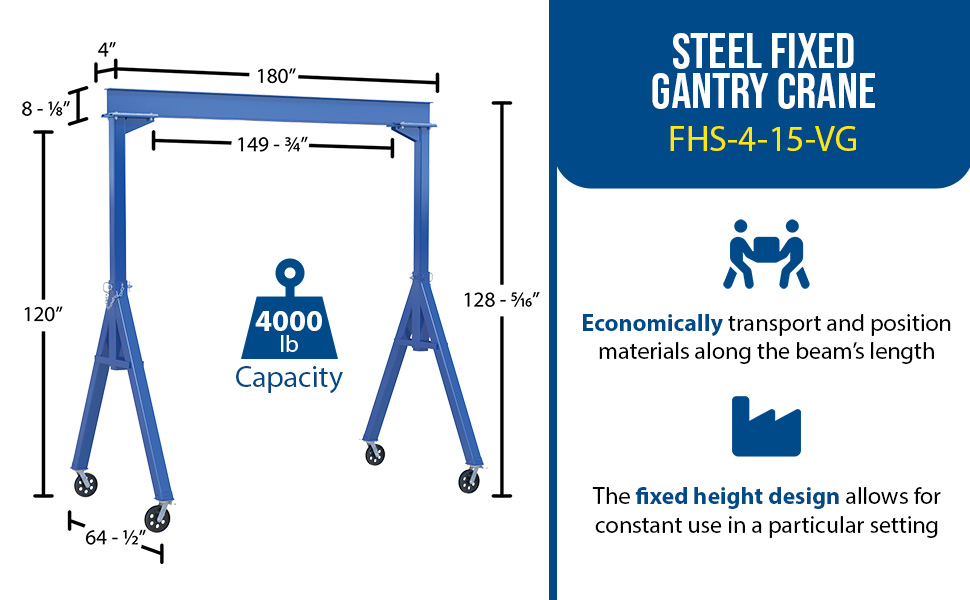

* Usable Distance Between uprights is overall I-Beam Length minus 18" -- Usable Trolley Travel length is overall I-Beam Length minus 23-3/4"

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

FHS-2-10-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2000
Casters Swivel (Qty): 4
Uniform Capacity (lbs.): 2000
Casters Swivel (Qty): 4

FHS-2-15-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2000
Casters Swivel (Qty): 4
Uniform Capacity (lbs.): 2000
Casters Swivel (Qty): 4

FHS-2-20-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2000
Casters Swivel (Qty): 4
Uniform Capacity (lbs.): 2000
Casters Swivel (Qty): 4

FHS-4-10-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4000
Casters Swivel (Qty): 4
Uniform Capacity (lbs.): 4000
Casters Swivel (Qty): 4

FHS-4-15-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4000
Casters Swivel (Qty): 4
Uniform Capacity (lbs.): 4000
Casters Swivel (Qty): 4

FHS-4-20-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4000
Casters Swivel (Qty): 4
Uniform Capacity (lbs.): 4000
Casters Swivel (Qty): 4

FHS-6-10-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 6000
Casters Swivel (Qty): 4
Uniform Capacity (lbs.): 6000
Casters Swivel (Qty): 4

FHS-6-15-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 6000
Casters Swivel (Qty): 4
Uniform Capacity (lbs.): 6000
Casters Swivel (Qty): 4

FHS-6-20-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 6000
Casters Swivel (Qty): 4
Uniform Capacity (lbs.): 6000
Casters Swivel (Qty): 4

FHS-8-10-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 8000
Casters Swivel (Qty): 4
Uniform Capacity (lbs.): 8000
Casters Swivel (Qty): 4

FHS-8-15-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 8000
Casters Swivel (Qty): 4
Uniform Capacity (lbs.): 8000
Casters Swivel (Qty): 4

FHS-8-20-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 8000
Casters Swivel (Qty): 4
Uniform Capacity (lbs.): 8000
Casters Swivel (Qty): 4
For More Details of the Option Click the Red Model Button
Model Image PDFs Description
GPTD-2 icon_approvaldrawings.jpg GANTRY CRANE POWER TRACTION 2K TO 4K
GPTD-4 icon_approvaldrawings.jpg GANTRY CRANE POWER TRACTION 6K TO 8K
V-TRACK icon_approvaldrawings.jpg GANTRY CRANE-V-GROOVE TRACK 120 IN
FHS-STLO icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (factory installed) Not compatible with 10,000 lbs. units
FHS-STLO-RF icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (field installed) Not compatible with 10,000 lbs. units
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Fixed Steel Gantry Cranes with V-Groove Casters PDF's will open in a new window when clicked.

Manuals


Survey Sheets


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


FHS-2-10-VG

FHS-2-15-VG

FHS-2-20-VG

FHS-4-10-VG

FHS-4-15-VG

FHS-4-20-VG

FHS-6-10-VG

FHS-6-15-VG

FHS-6-20-VG

FHS-8-10-VG

FHS-8-15-VG

FHS-8-20-VG

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Fixed Steel Gantry Cranes with...




The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.Do not move units while loaded unless using V-Groove Caster and Track Option. Hoists & Trollies can be ordered seperately.

  • Sleek painted finish
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable OSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option



Model # Description Attributes Net Wt.
(lbs)
FHS-2-10-VG FHS-2-10-VGSteel Fixed Gantry Crane with V-Groove Cast Iron Casters 10 Ft. 2000 Lb. Capacity BlueUniform Capacity (lbs.): 2000
Casters Swivel (Qty): 4
624
FHS-2-15-VG FHS-2-15-VGSteel Fixed Gantry Crane with V-Groove Cast Iron Casters 15 Ft. 2000 Lb. Capacity BlueUniform Capacity (lbs.): 2000
Casters Swivel (Qty): 4
624
FHS-2-20-VG FHS-2-20-VGSteel Fixed Gantry Crane with V-Groove Cast Iron Casters 20 Ft. 2000 Lb. Capacity BlueUniform Capacity (lbs.): 2000
Casters Swivel (Qty): 4
624
FHS-4-10-VG FHS-4-10-VGSteel Fixed Gantry Crane with V-Groove Cast Iron Casters 10 Ft. 4000 Lb. Capacity BlueUniform Capacity (lbs.): 4000
Casters Swivel (Qty): 4
637
FHS-4-15-VG FHS-4-15-VGSteel Fixed Gantry Crane with V-Groove Cast Iron Casters 15 Ft. 4000 Lb. Capacity BlueUniform Capacity (lbs.): 4000
Casters Swivel (Qty): 4
637
FHS-4-20-VG FHS-4-20-VGSteel Fixed Gantry Crane with V-Groove Cast Iron Casters 20 Ft. 4000 Lb. Capacity BlueUniform Capacity (lbs.): 4000
Casters Swivel (Qty): 4
637
FHS-6-10-VG FHS-6-10-VGSteel Fixed Gantry Crane with V-Groove Cast Iron Casters 10 Ft. 6000 Lb. Capacity BlueUniform Capacity (lbs.): 6000
Casters Swivel (Qty): 4
650
FHS-6-15-VG FHS-6-15-VGSteel Fixed Gantry Crane with V-Groove Cast Iron Casters 15 Ft. 6000 Lb. Capacity BlueUniform Capacity (lbs.): 6000
Casters Swivel (Qty): 4
650
FHS-6-20-VG FHS-6-20-VGSteel Fixed Gantry Crane with V-Groove Cast Iron Casters 20 Ft. 6000 Lb. Capacity BlueUniform Capacity (lbs.): 6000
Casters Swivel (Qty): 4
650
FHS-8-10-VG FHS-8-10-VGSteel Fixed Gantry Crane with V-Groove Cast Iron Casters 10 Ft. 8000 Lb. Capacity BlueUniform Capacity (lbs.): 8000
Casters Swivel (Qty): 4
705
FHS-8-15-VG FHS-8-15-VGSteel Fixed Gantry Crane with V-Groove Cast Iron Casters 15 Ft. 8000 Lb. Capacity BlueUniform Capacity (lbs.): 8000
Casters Swivel (Qty): 4
705
FHS-8-20-VG FHS-8-20-VGSteel Fixed Gantry Crane with V-Groove Cast Iron Casters 20 Ft. 8000 Lb. Capacity BlueUniform Capacity (lbs.): 8000
Casters Swivel (Qty): 4
705

Options


Model Image PDFs Description
GPTD-2 icon_approvaldrawings.jpg GANTRY CRANE POWER TRACTION 2K TO 4K
GPTD-4 icon_approvaldrawings.jpg GANTRY CRANE POWER TRACTION 6K TO 8K
V-TRACK icon_approvaldrawings.jpg GANTRY CRANE-V-GROOVE TRACK 120 IN
FHS-STLO icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (factory installed) Not compatible with 10,000 lbs. units
FHS-STLO-RF icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (field installed) Not compatible with 10,000 lbs. units
