Product Family Overview


Narrow Mast Stackers with Powered Lift
SERIES: SLNM

Narrow Mast Semi-Electric Stackers with Powered Lift will raise and lower loads quickly and easily. Material push operation stackers are made using high quality material and parts. All models are easily maneuverable using the standard steering handle. SLNM stackers are highly efficient and durable. Semi-electric stackers use one 12V battery. Integral battery charger and battery level gauge.

  • Narrow mast stacker is ideal for shipping and manufacturing facilities
  • Stacker is an efficient solution to loading and unloading in closely confined areas
  • Push-button design lifts and controls speed adjustments for ideal operation and optimal results
  • Includes nylon wheels for excellent maneuverability

Narrow Mast Semi-Electric Stackers with Powered Lift will raise and lower loads quickly and easily. Material push operation stackers are made using high quality material and parts. All models are easily maneuverable using the standard steering handle. SLNM stackers are highly efficient and durable. Semi-electric stackers use one 12V battery. Integral battery charger and battery level gauge.

  • Narrow mast stacker is ideal for shipping and manufacturing facilities
  • Stacker is an efficient solution to loading and unloading in closely confined areas
  • Push-button design lifts and controls speed adjustments for ideal operation and optimal results
  • Includes nylon wheels for excellent maneuverability

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
SLNM-118-AA SLNM-118-AA1 Year Limited WarrantySteel Narrow Mast Stacker DC Powered 118 In. Raised Height Adjustable Forks and Support Legs 1,500 Lb. Capacity YellowUniform Capacity 0 in to 63 in Raised Height (lb.): 1,500
Uniform Capacity 63 in to 118 in Raised Height (lb.): 1,000
912

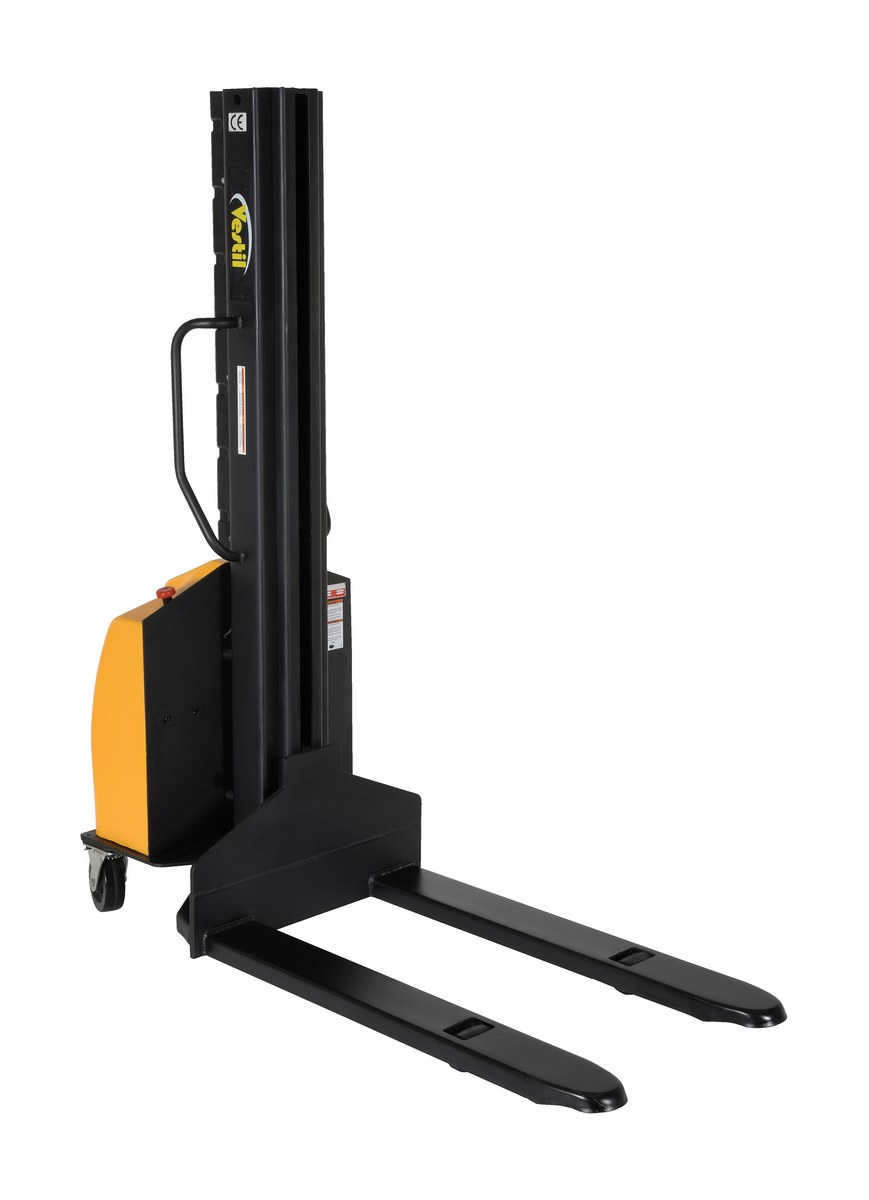

SLNM-118-FF
SLNM-118-FF1 Year Limited WarrantySteel Narrow Mast Stacker DC Powered 118 In. Raised Height Fixed Forks 45 In. Fork Width 1,500 Lb. Capacity YellowUniform Capacity 0 in to 63 in Raised Height (lb.): 1,500
Uniform Capacity 63 in to 118 in Raised Height (lb.): 1,000
712

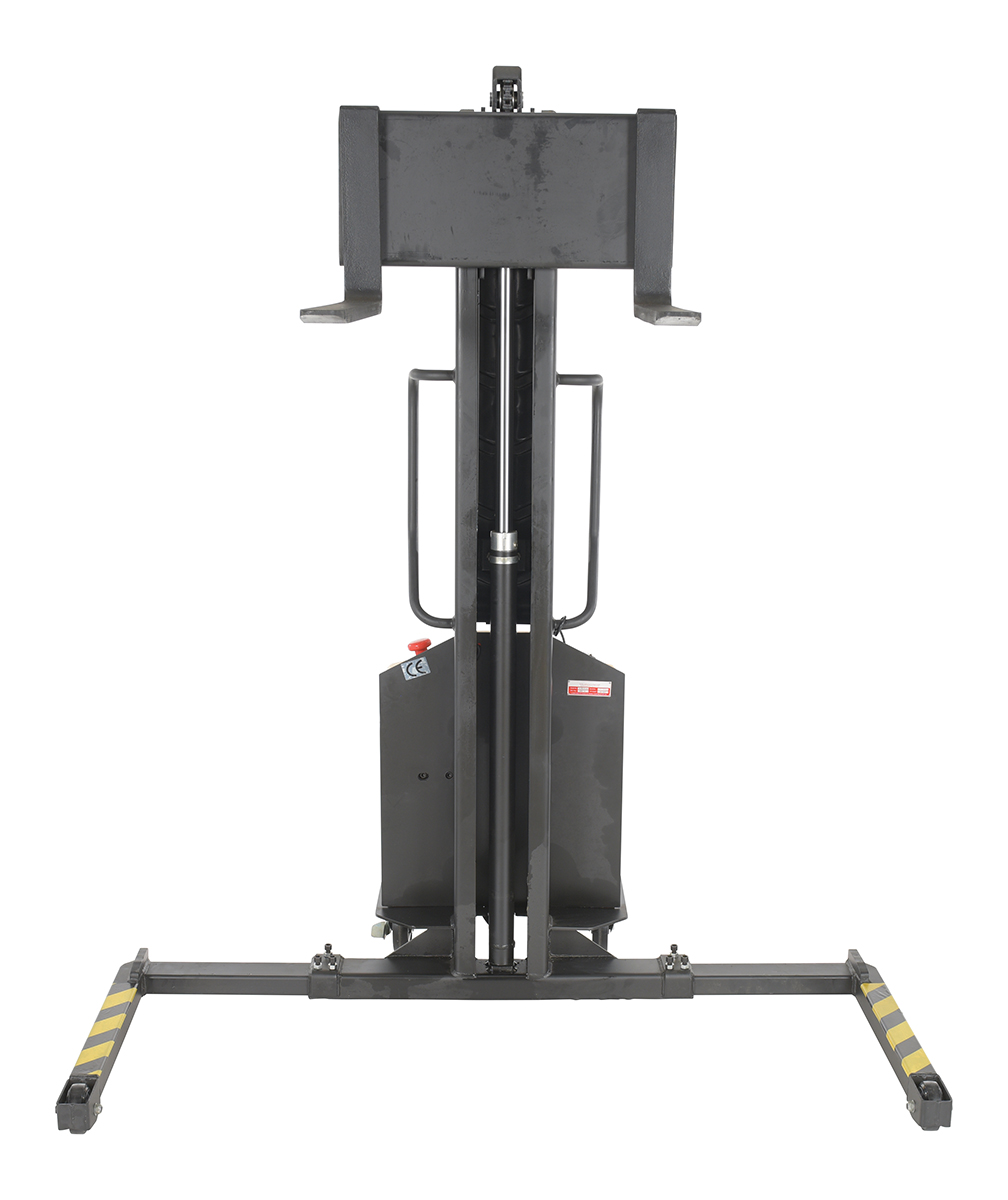

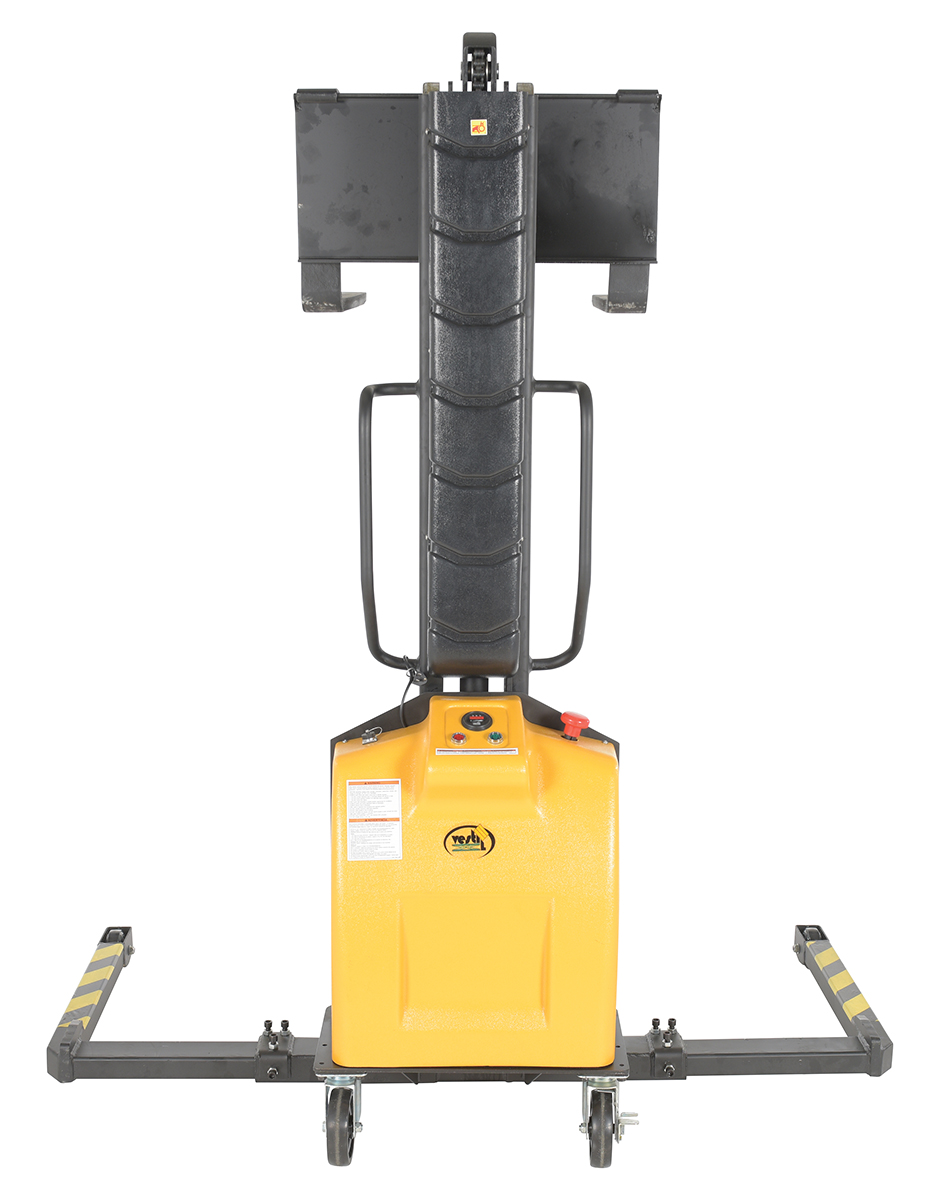

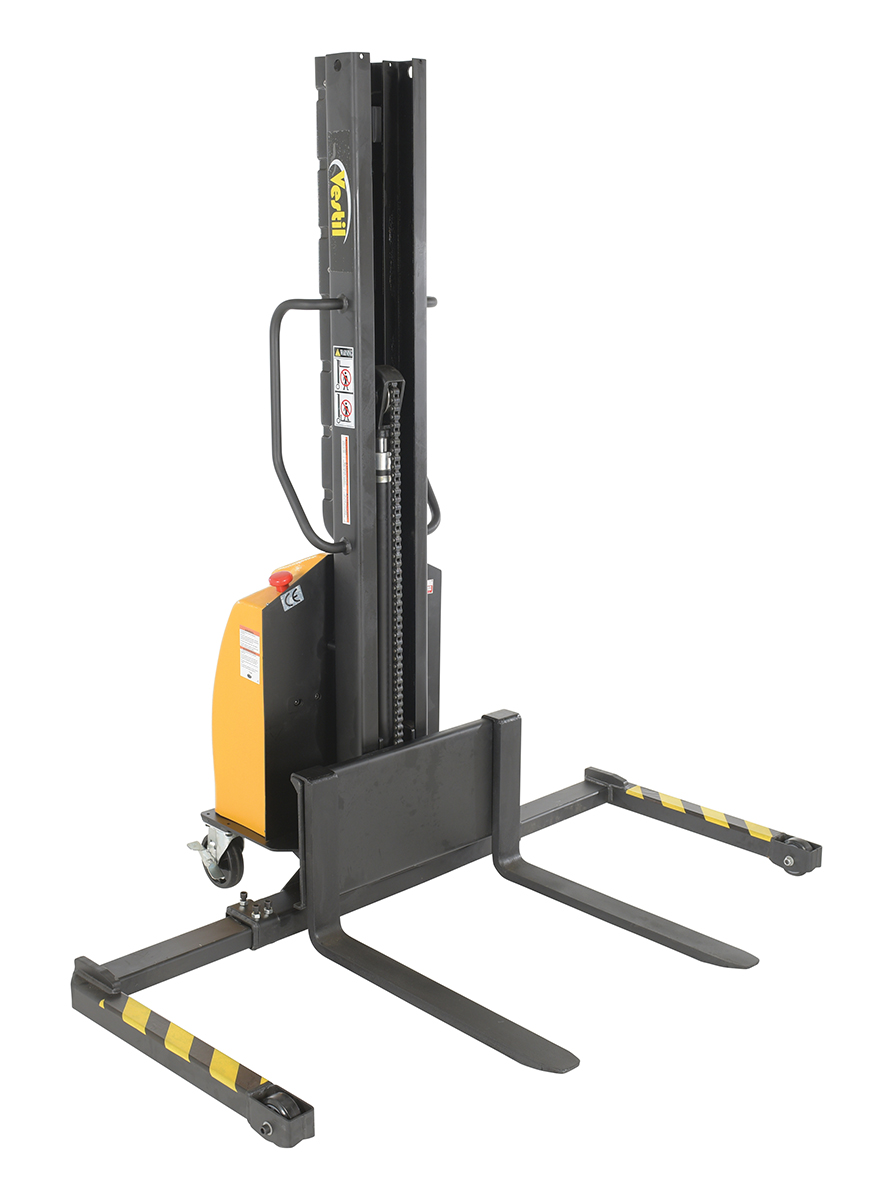

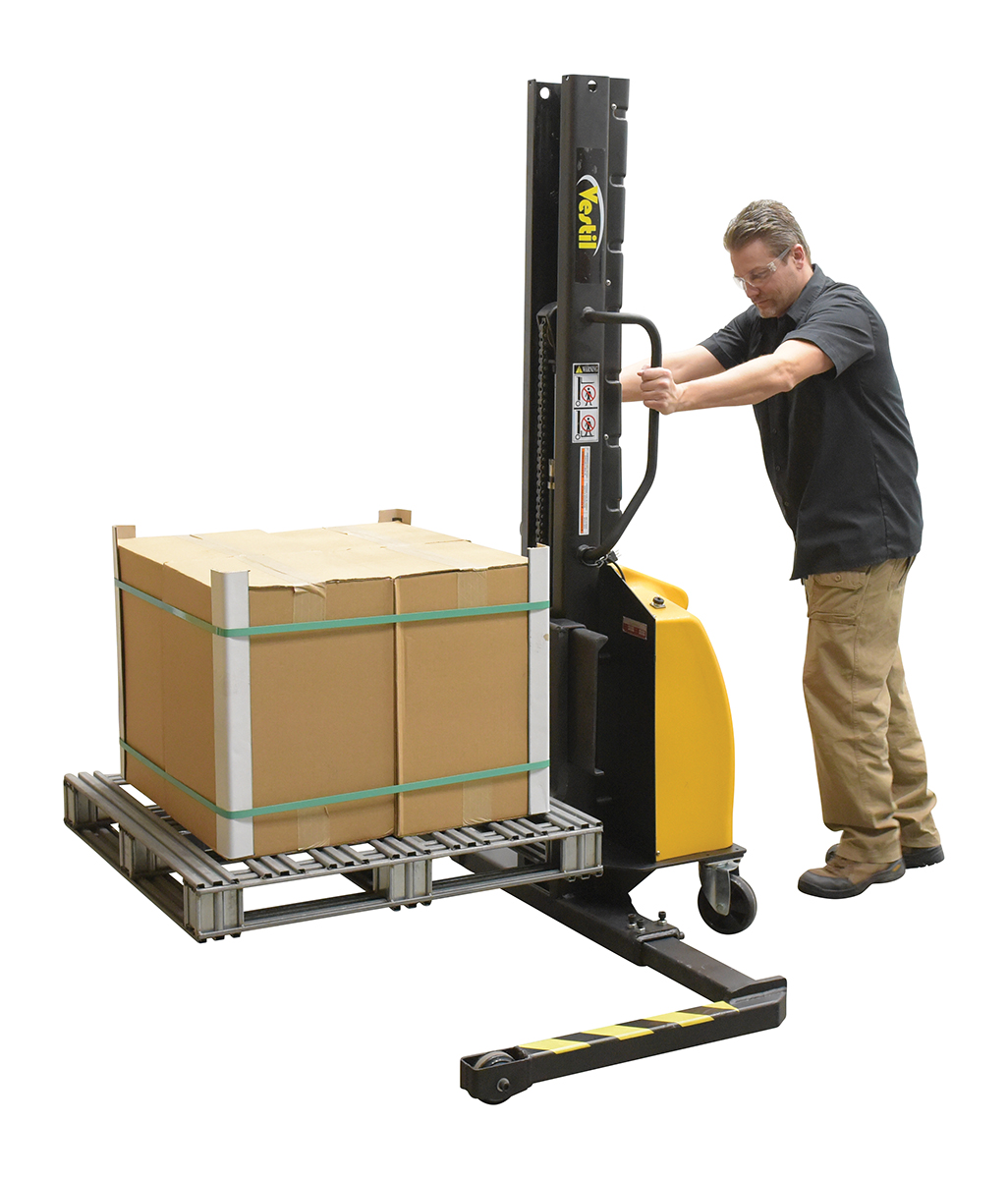

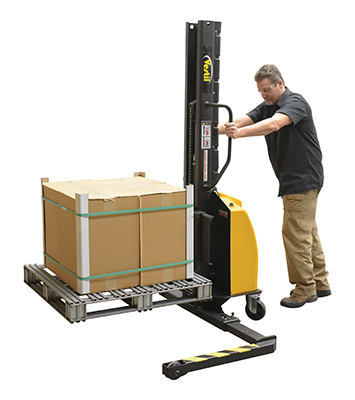

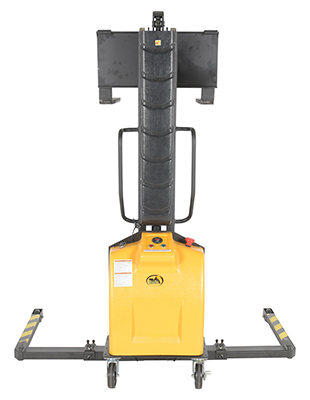

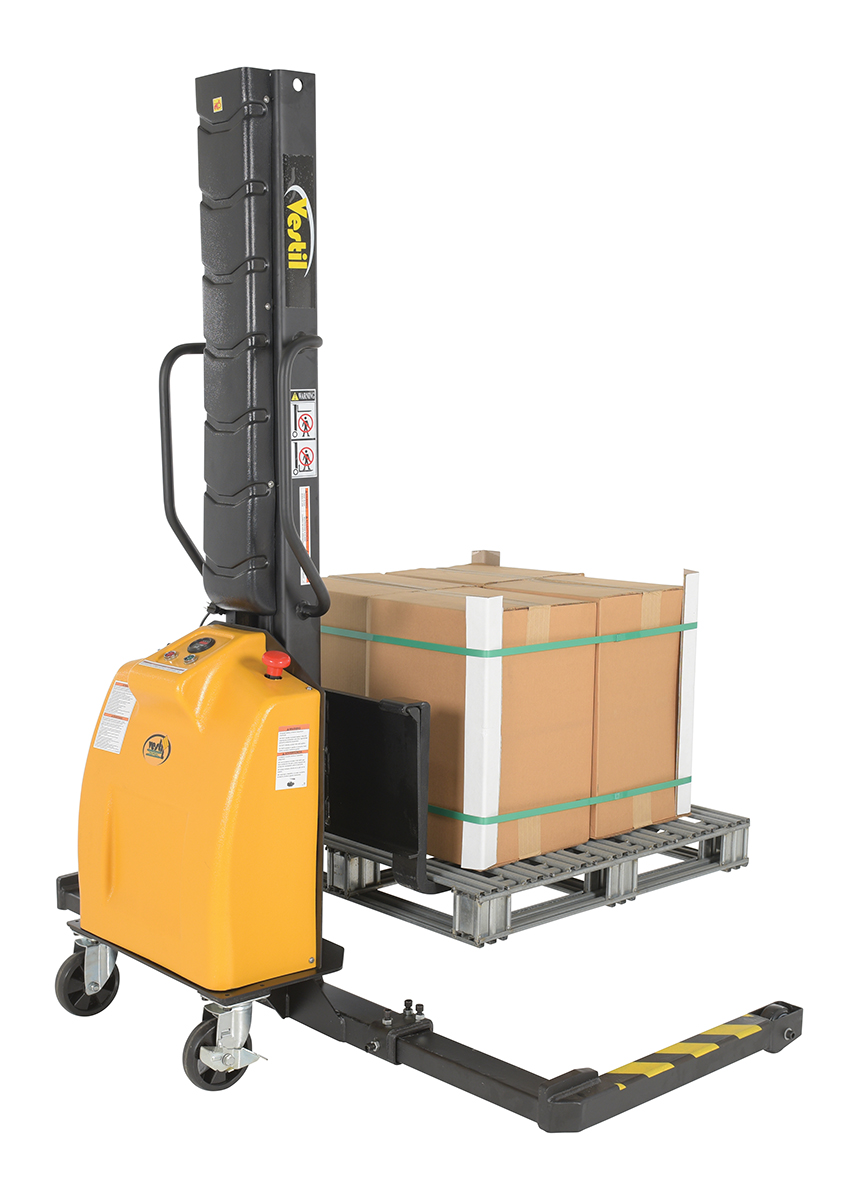

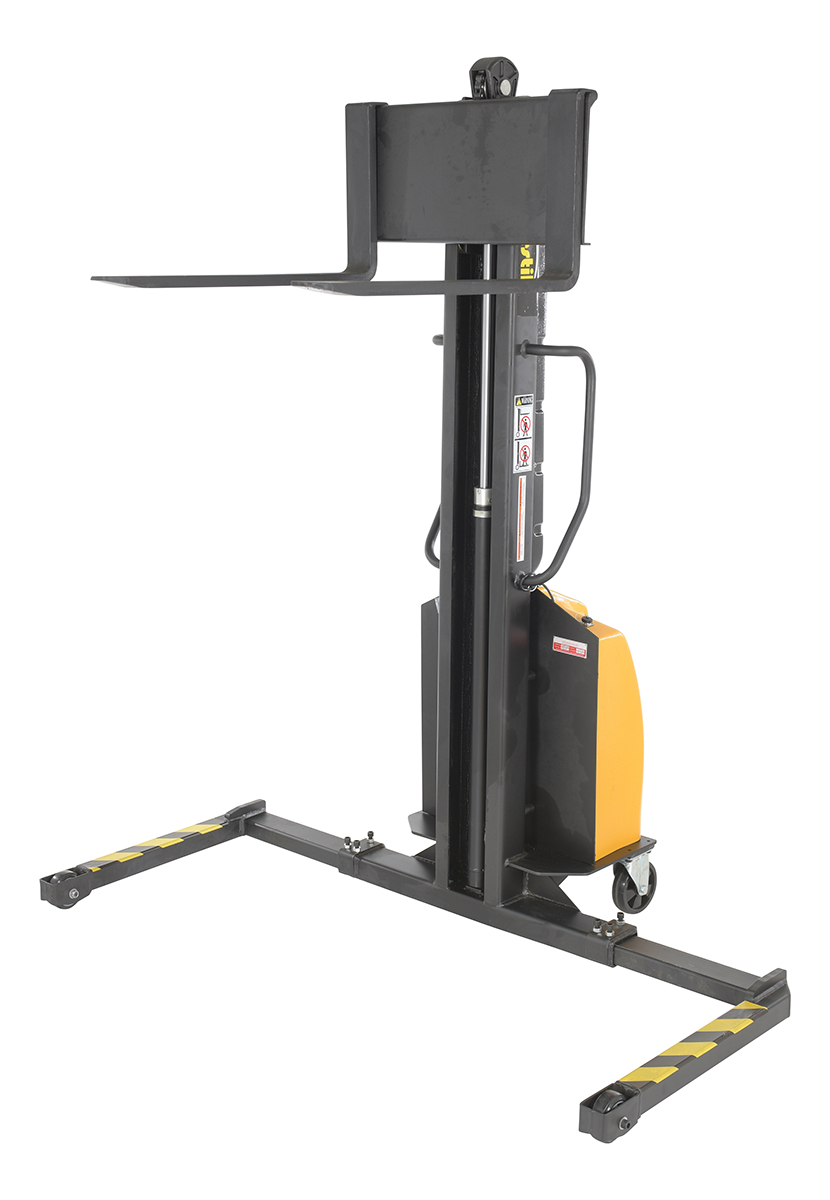

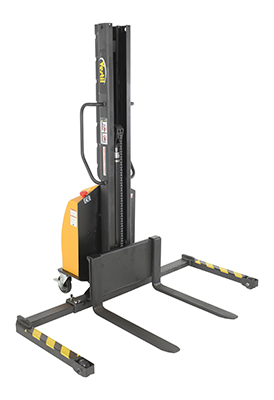

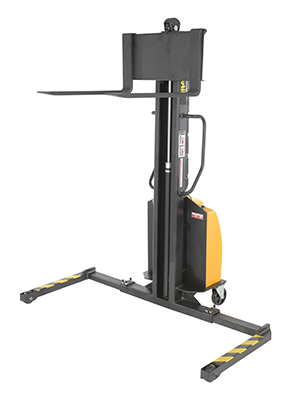

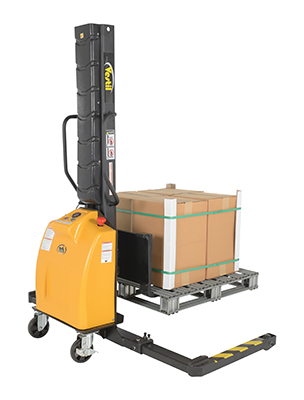

SLNM-63-AA SLNM-63-AA1 Year Limited WarrantySteel Narrow Mast Stacker DC Powered 63 In. Raised Height Adjustable Forks and Support Legs 1,000 Lb. Capacity YellowUniform Capacity (lb.): 1,000
Lowered Height (in.): 2
580
SLNM-63-FF

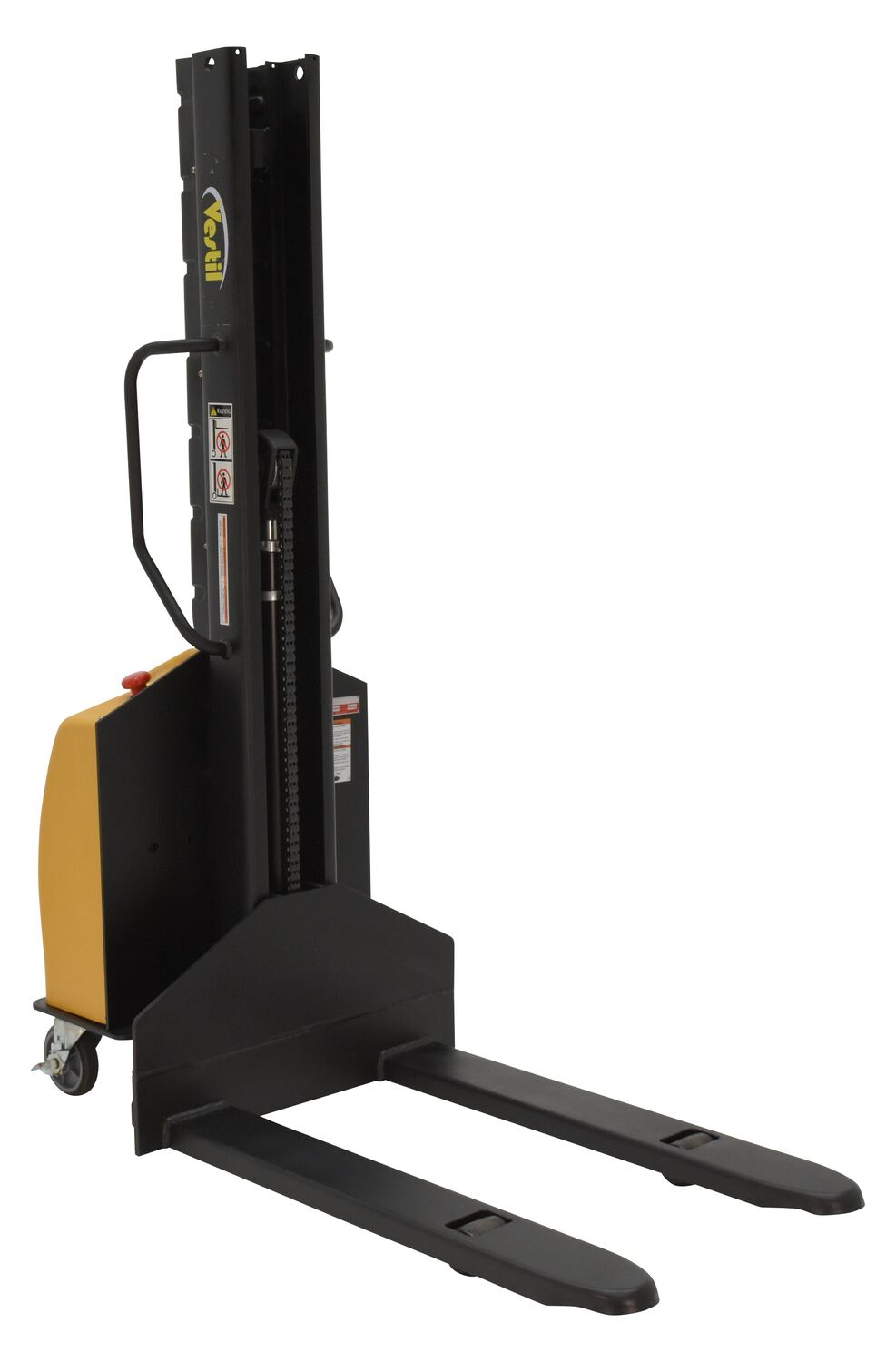

SLNM-63-FF1 Year Limited WarrantySteel Narrow Mast Stacker DC Powered 63 In. Raised Height Fixed Forks 30 In. Fork Width 1,000 Lb. Capacity YellowUniform Capacity (lb.): 1,000
Lowered Height (in.): 3-1/4
444

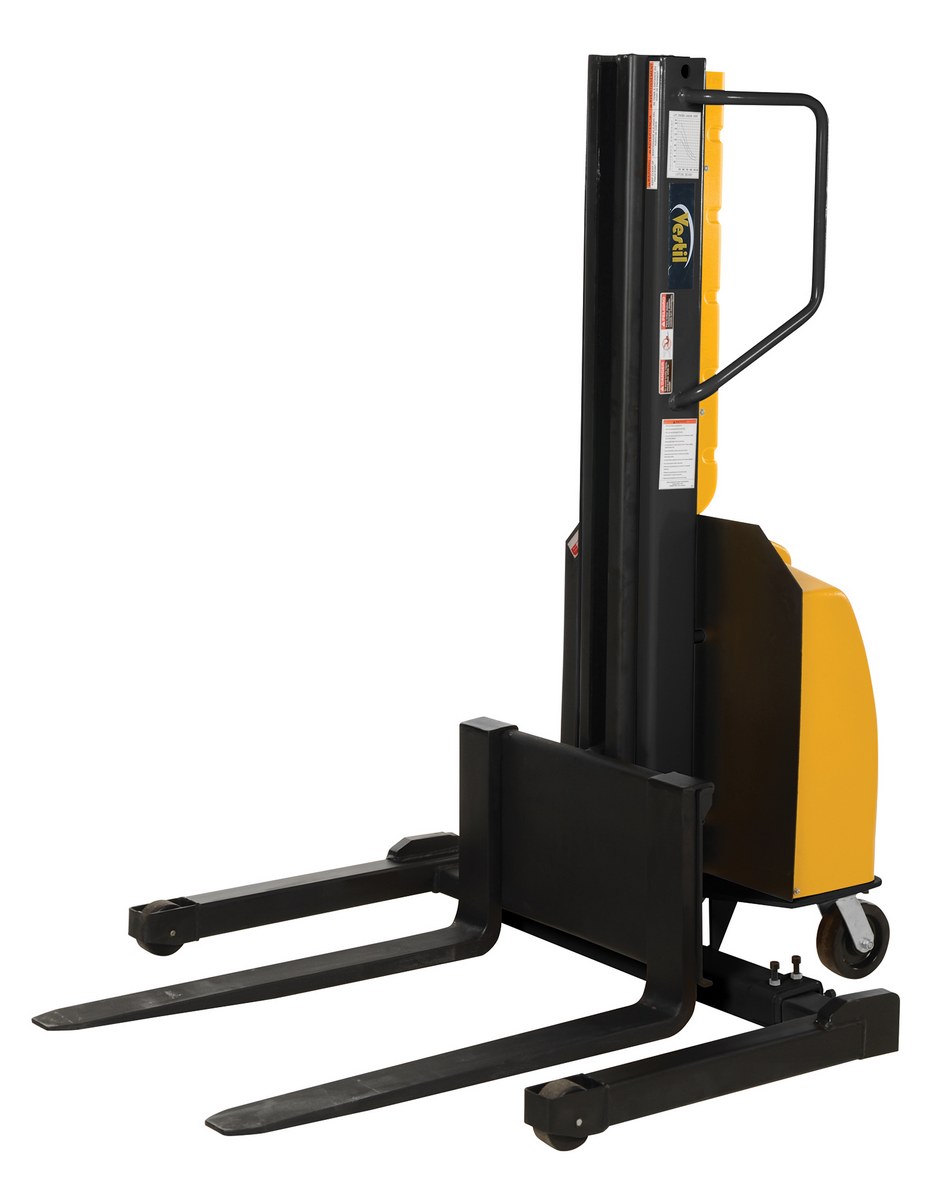

SLNM-98-AA SLNM-98-AA1 Year Limited WarrantySteel Narrow Mast Stacker DC Powered 98 In. Raised Height Adjustable Forks and Support Legs 1,500 Lb. Capacity YellowUniform Capacity 0 in to 63 in Raised Height (lb.): 1,500
Uniform Capacity 63 in to 98 in Raised Height (lb.): 1,000
798

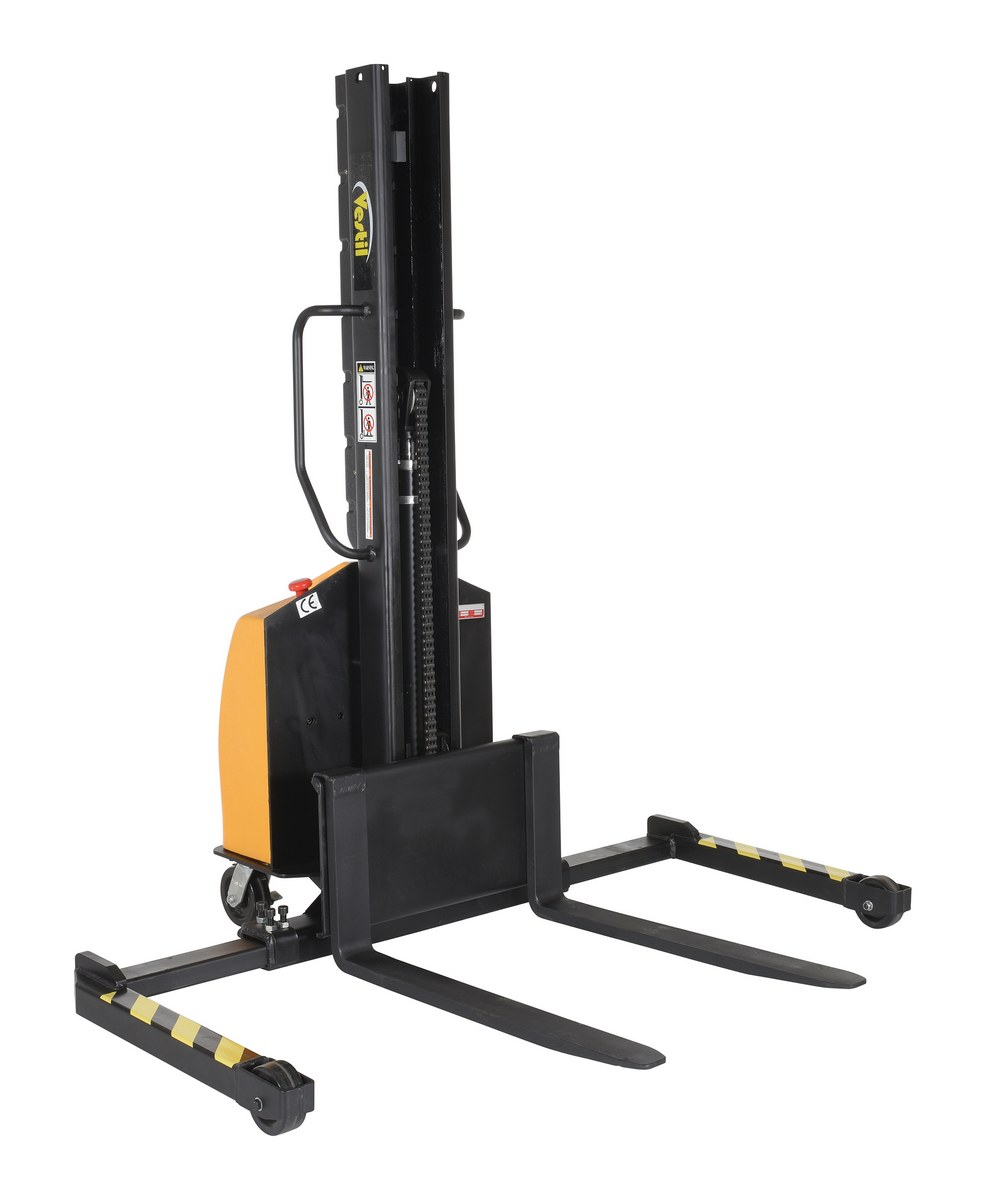

SLNM15-63-AA SLNM15-63-AA1 Year Limited WarrantySteel Narrow Mast Stacker DC Powered 63 In. Raised Height Adjustable Forks and Support Legs 1,500 Lb. Capacity YellowUniform Capacity (lb.): 1,500
Lowered Height (in.): 2
686

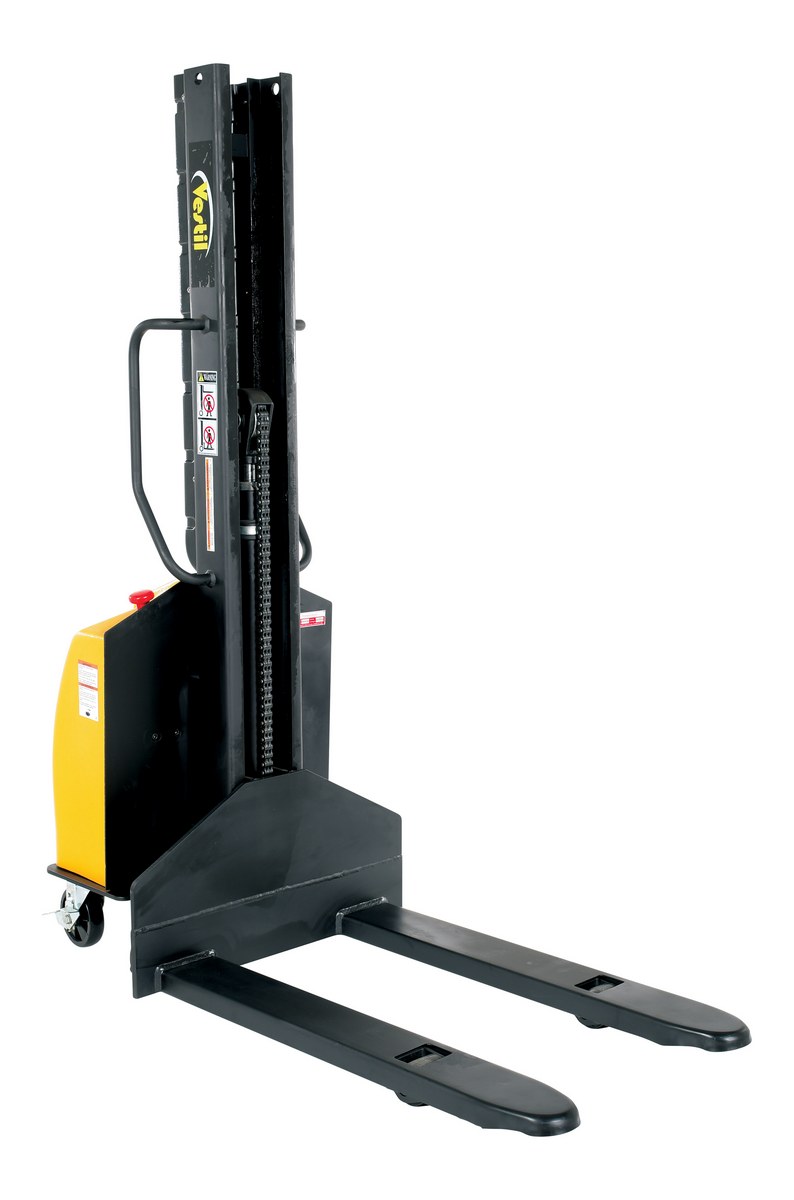

SLNM15-63-FF
SLNM15-63-FF1 Year Limited WarrantySteel Narrow Mast Stacker DC Powered 63 In. Raised Height Fixed Forks 36 In. Fork Width 1,500 Lb. Capacity YellowUniform Capacity (lb.): 1,500
Lowered Height (in.): 3-1/4
622

* Uniform Capacity at specific raised height

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

SLNM-118-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0 in to 63 in Raised Height (lb.): 1,500
Uniform Capacity 63 in to 118 in Raised Height (lb.): 1,000
Uniform Capacity 0 in to 63 in Raised Height (lb.): 1,500
Uniform Capacity 63 in to 118 in Raised Height (lb.): 1,000

SLNM-118-FF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0 in to 63 in Raised Height (lb.): 1,500
Uniform Capacity 63 in to 118 in Raised Height (lb.): 1,000
Uniform Capacity 0 in to 63 in Raised Height (lb.): 1,500
Uniform Capacity 63 in to 118 in Raised Height (lb.): 1,000

SLNM-63-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Lowered Height (in.): 2
Uniform Capacity (lb.): 1,000
Lowered Height (in.): 2

SLNM-63-FF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Lowered Height (in.): 3-1/4
Uniform Capacity (lb.): 1,000
Lowered Height (in.): 3-1/4

SLNM-98-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0 in to 63 in Raised Height (lb.): 1,500
Uniform Capacity 63 in to 98 in Raised Height (lb.): 1,000
Uniform Capacity 0 in to 63 in Raised Height (lb.): 1,500
Uniform Capacity 63 in to 98 in Raised Height (lb.): 1,000

SLNM15-63-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Lowered Height (in.): 2
Uniform Capacity (lb.): 1,500
Lowered Height (in.): 2

SLNM15-63-FF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Lowered Height (in.): 3-1/4
Uniform Capacity (lb.): 1,500
Lowered Height (in.): 3-1/4
For More Details of the Option Click the Red Model Button

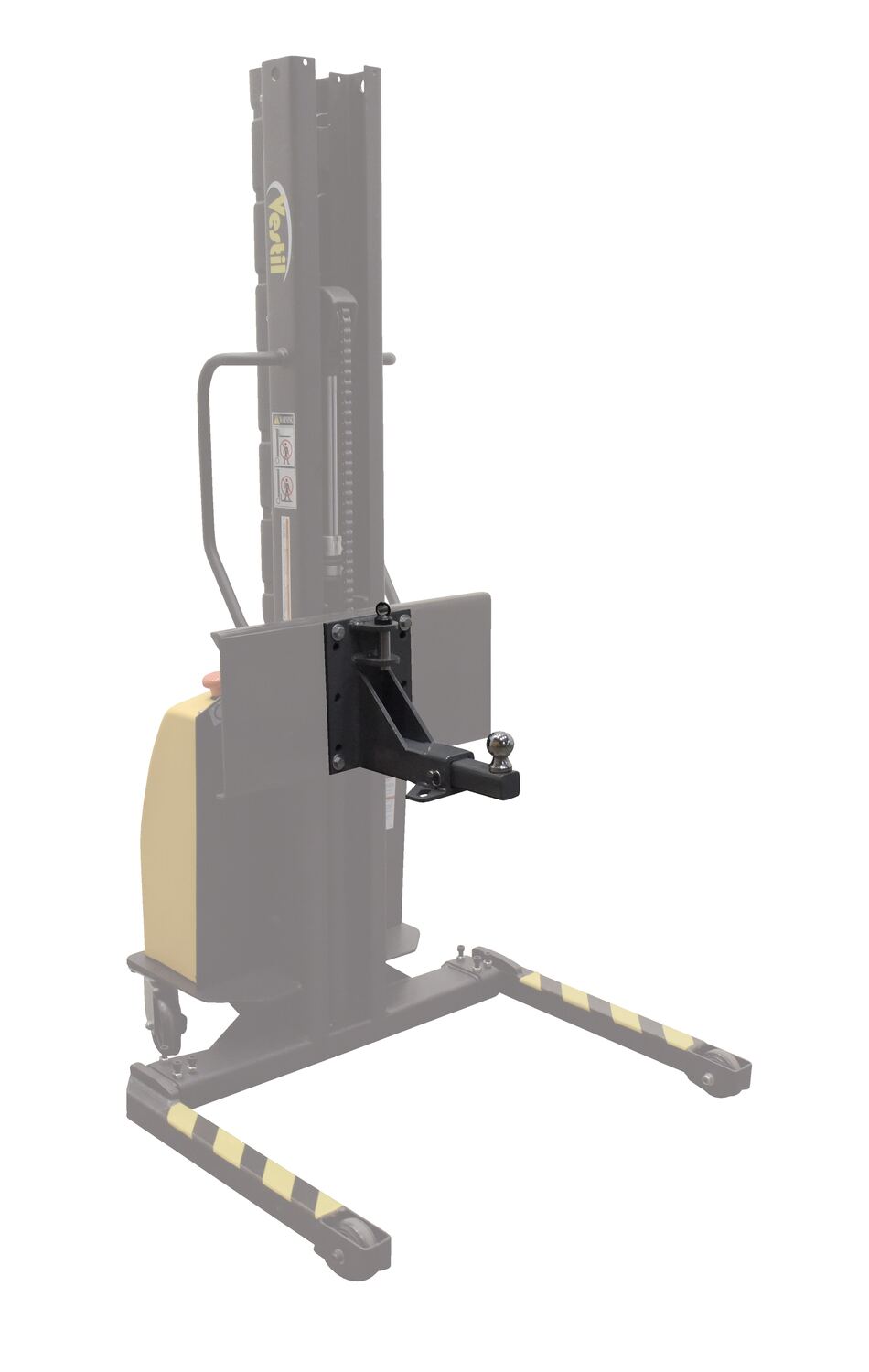

SLNM-AA-BAH SLNM-AA-BAH90 Days Limited WarrantySteel Single Ball Hitch Attachment For Narrow Mast Stacker Models Black-
37

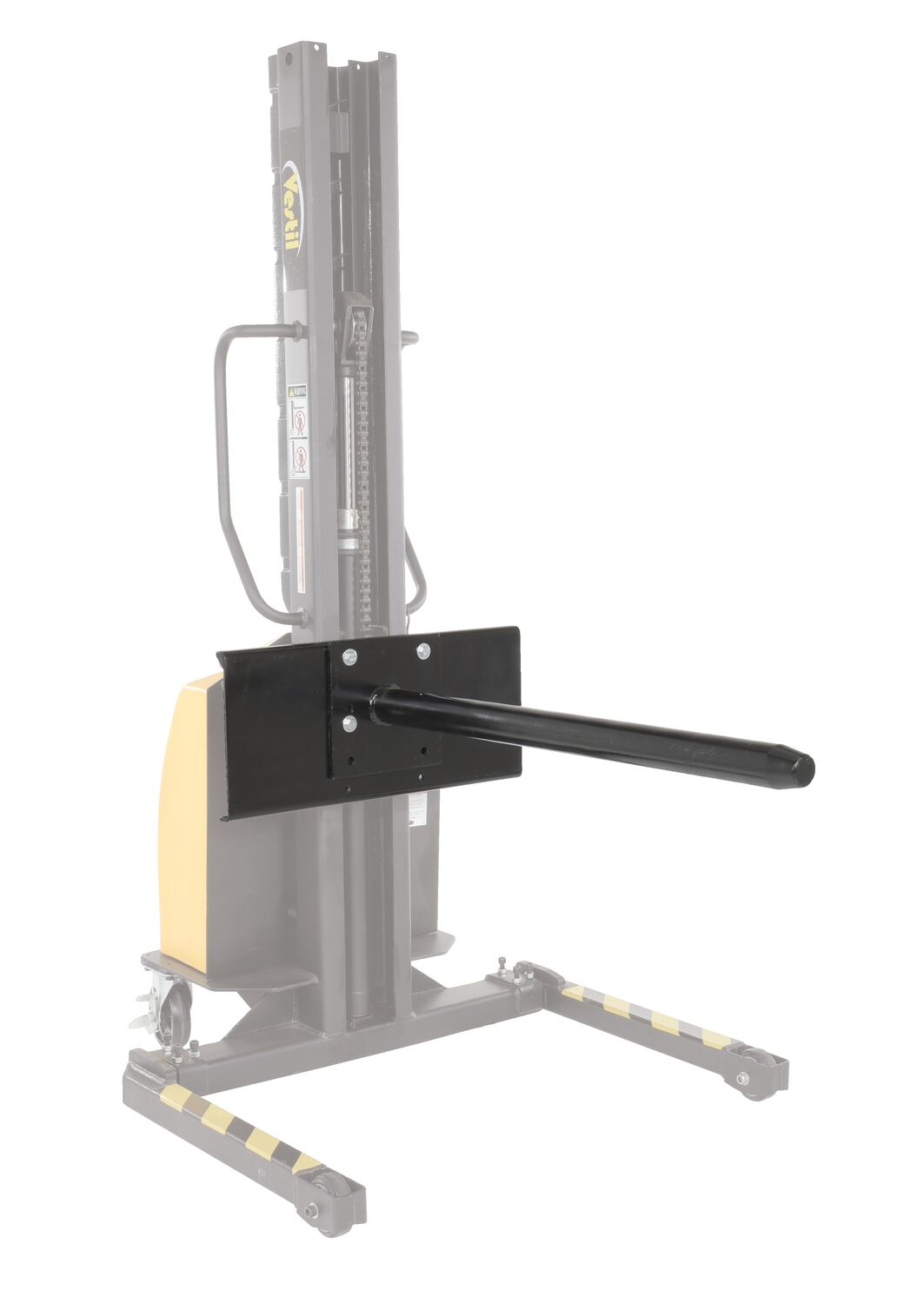

SLNM-AA-PRP SLNM-AA-PRP90 Days Limited WarrantySteel Pole Attachment For Narrow Mast Stacker Models Black-
35

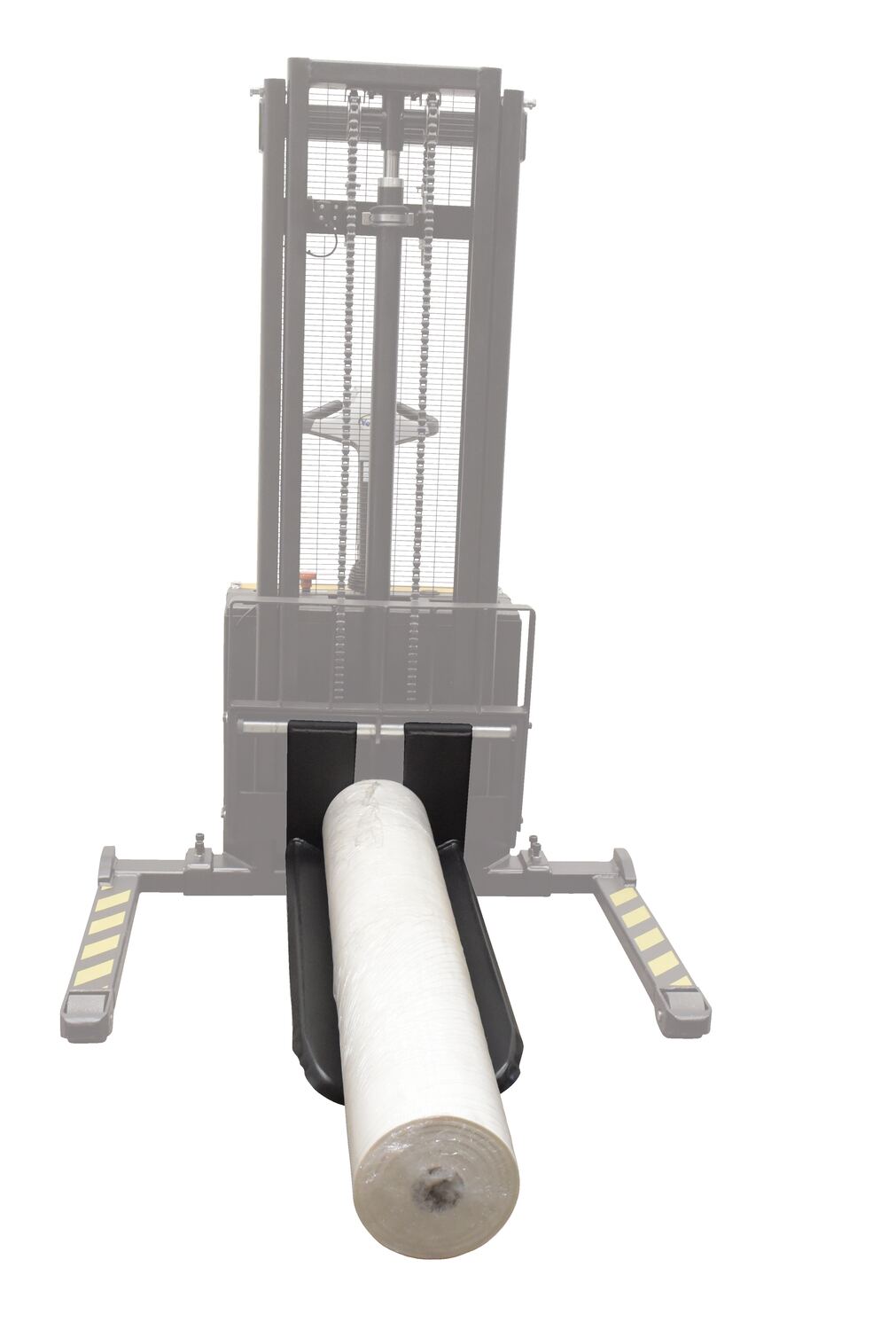

SLNM-AA-RFK SLNM-AA-RFK90 Days Limited WarrantySteel Roll Fork Attachment For Narrow Mast Stacker Models BlackForklift Carriage Class: Class III
Heal Thickness (in): 2
111

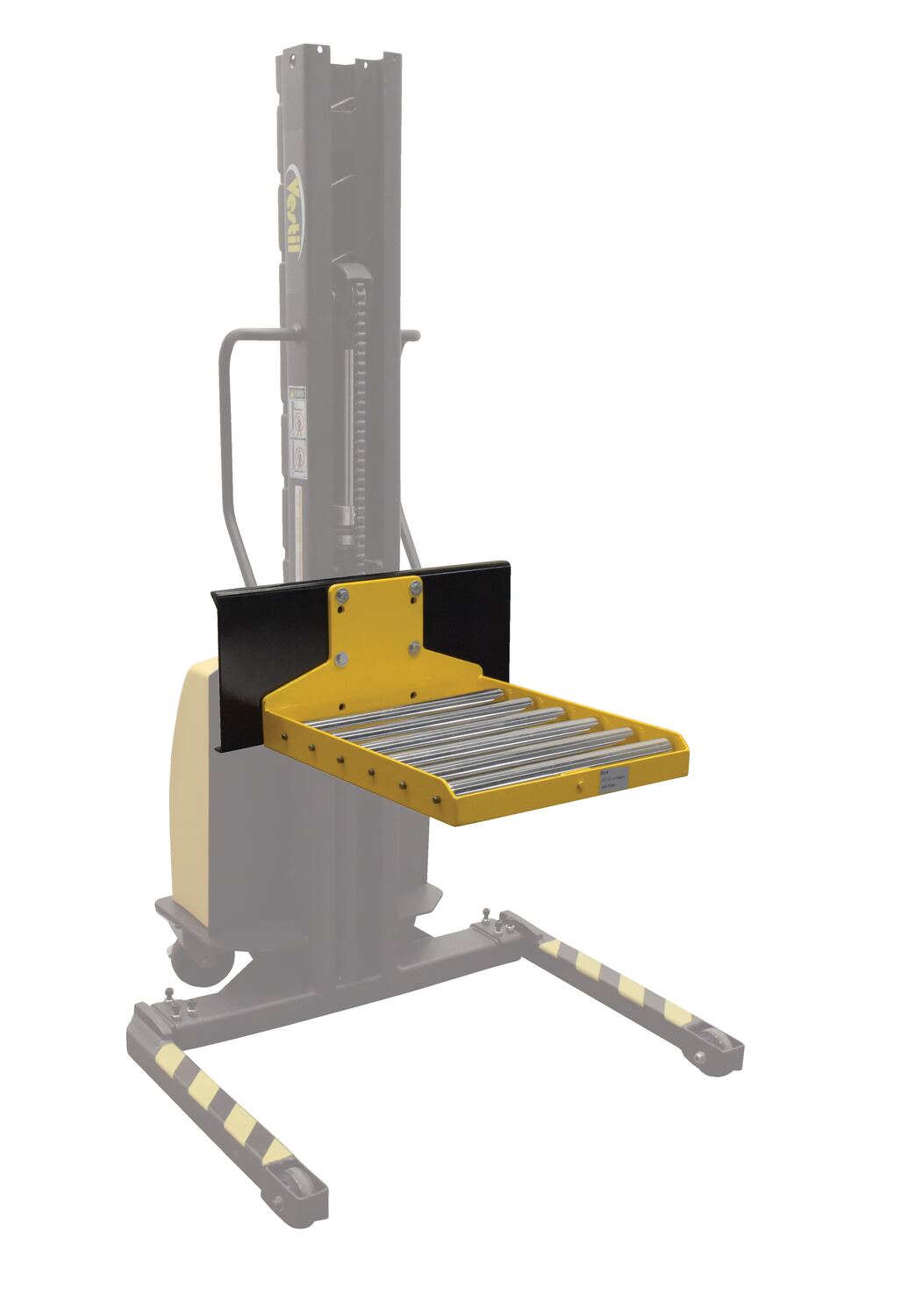

SLNM-AA-RP SLNM-AA-RP90 Days Limited WarrantySteel Roller Platform For Narrow Mast Stacker Models Yellow-
57

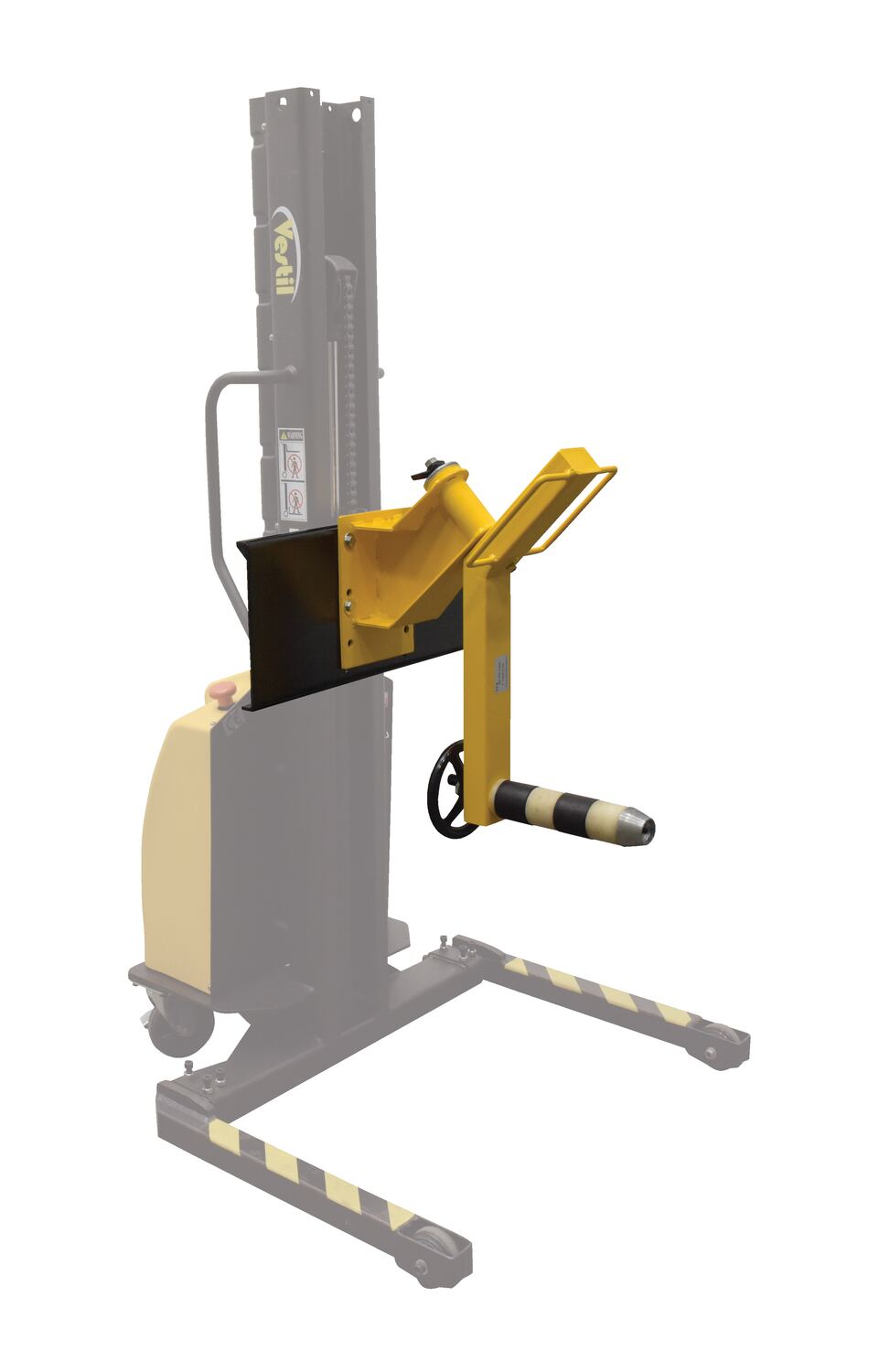

SLNM-AA-RR SLNM-AA-RR90 Days Limited WarrantySteel Reel Rotator Attachment For Narrow Mast Stacker Models Yellow-
55

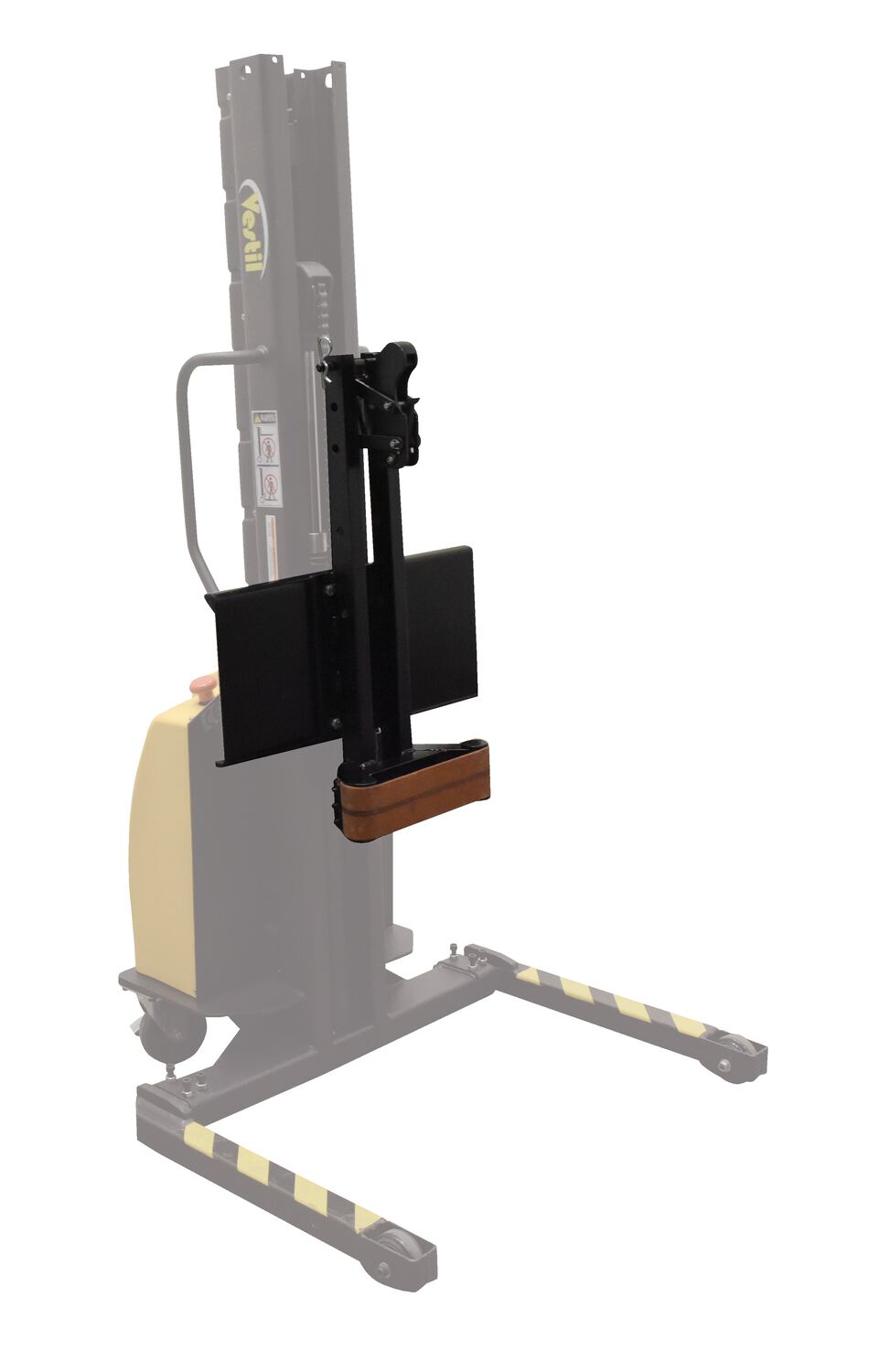

SLNM-AA-SDG SLNM-AA-SDG90 Days Limited WarrantySteel Single Drum Gripper Attachment For Narrow Mast Stacker Models Black-
101
Optional Battery Upgrade (must be purchased with new unit)
Model Image Description Wt (lbs.)
AGM-UPG-SL AGM Battery Upgrade (1x 12V) 80
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Narrow Mast Stackers with Powered Lift PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


SLNM-118-AA

SLNM-118-FF

SLNM-63-AA

SLNM-63-FF

SLNM-98-AA

SLNM-AA-BAH

SLNM-AA-PRP

SLNM-AA-RFK

SLNM-AA-RP

SLNM-AA-RR

SLNM-AA-SDG

SLNM15-63-AA

SLNM15-63-FF

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SLNM-118-AA
Hydraulic Oil SDS Sheet for: SLNM-118-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SLNM-118-FF
Hydraulic Oil SDS Sheet for: SLNM-118-FF
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SLNM15-63-AA
Hydraulic Oil SDS Sheet for: SLNM15-63-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SLNM15-63-FF
Hydraulic Oil SDS Sheet for: SLNM15-63-FF
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SLNM-63-AA
Hydraulic Oil SDS Sheet for: SLNM-63-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SLNM-63-FF
Hydraulic Oil SDS Sheet for: SLNM-63-FF
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SLNM-98-AA
Hydraulic Oil SDS Sheet for: SLNM-98-AA

Other PDF's


Directory Links Of Available PDF's For All Products


Q: The outside diameter of the adjustable legs is 54 1/8". What is the minimum width?

A: Minimum width of the adjustable legs is 43".


Q: What degree of incline will the SLNM-63-AA allow?

A: 0 degree incline.
