Product Family Overview

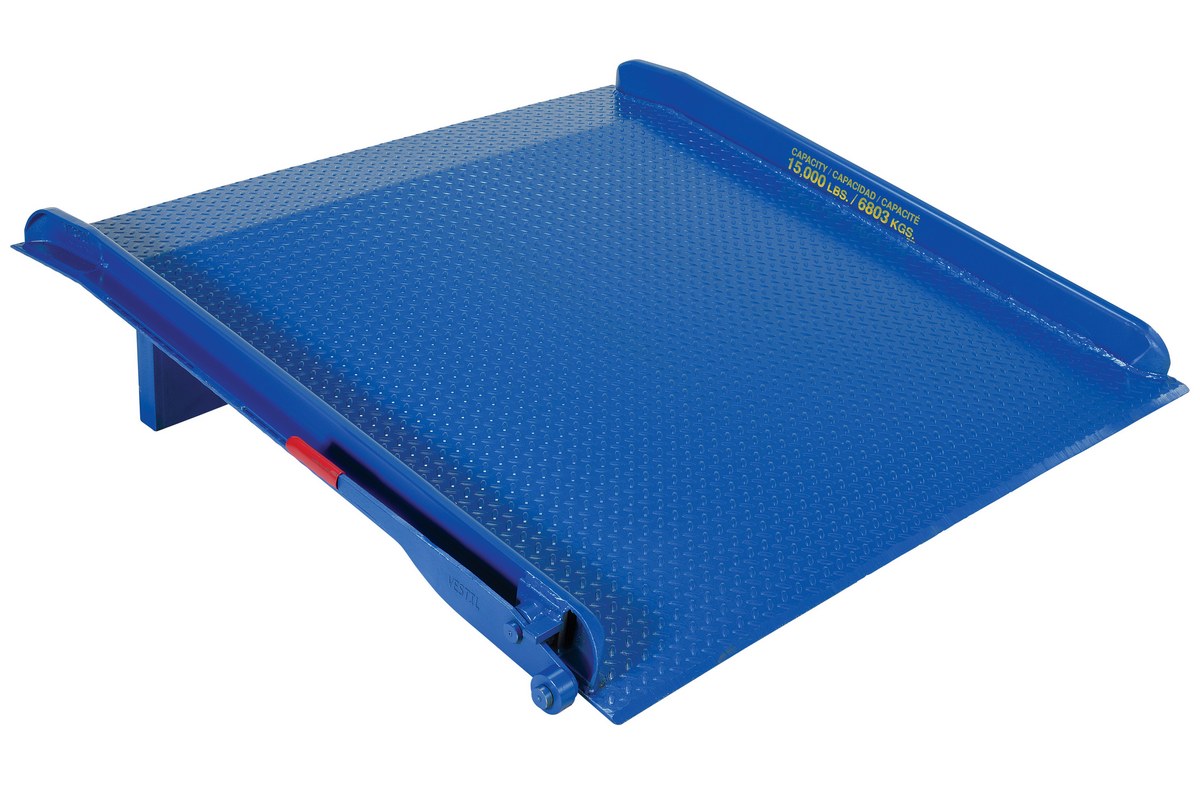

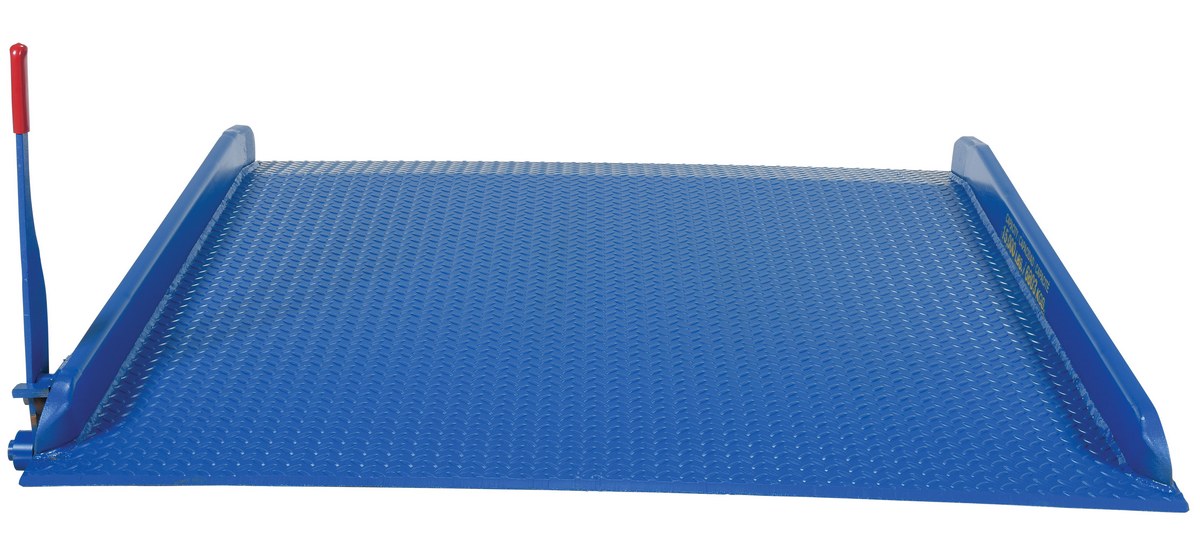

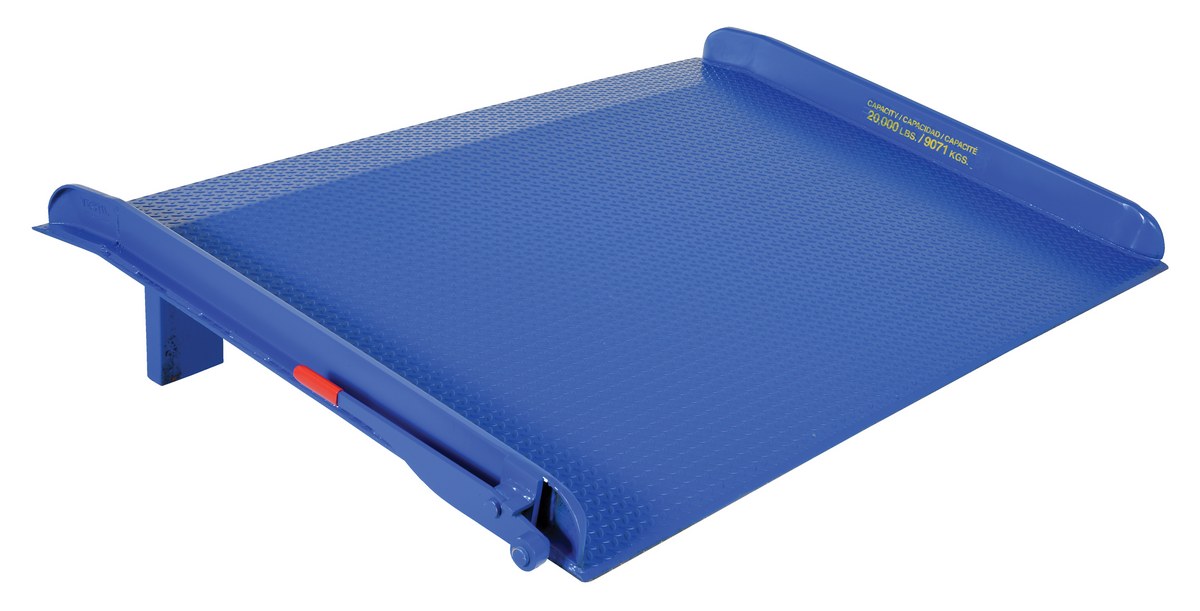

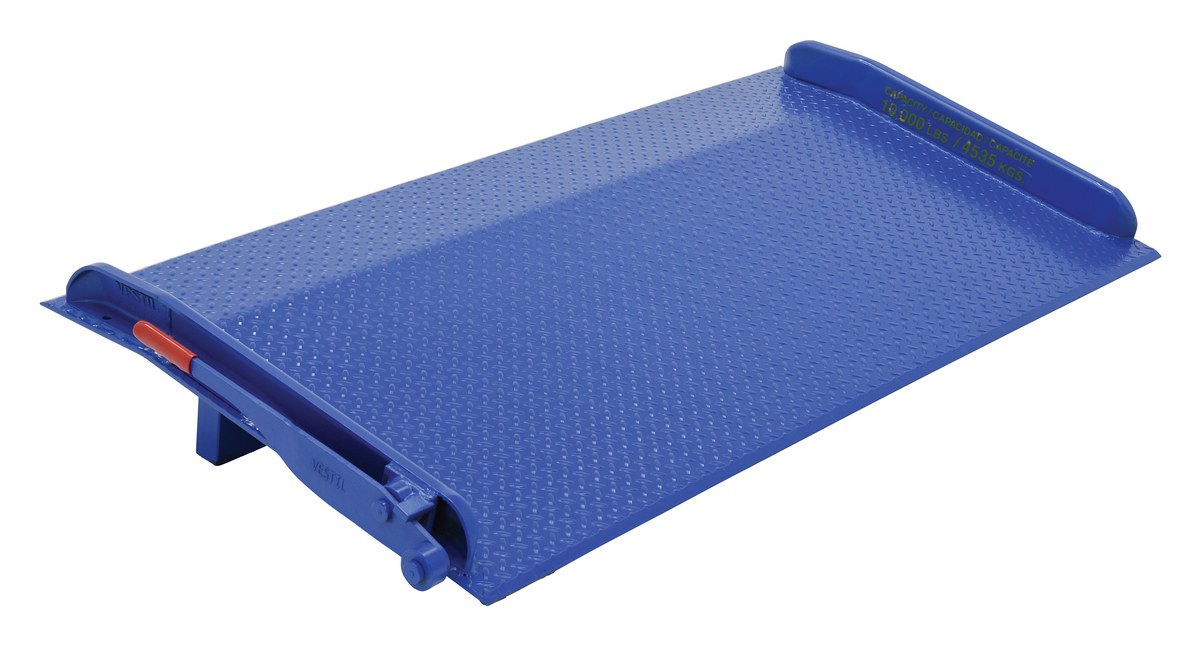

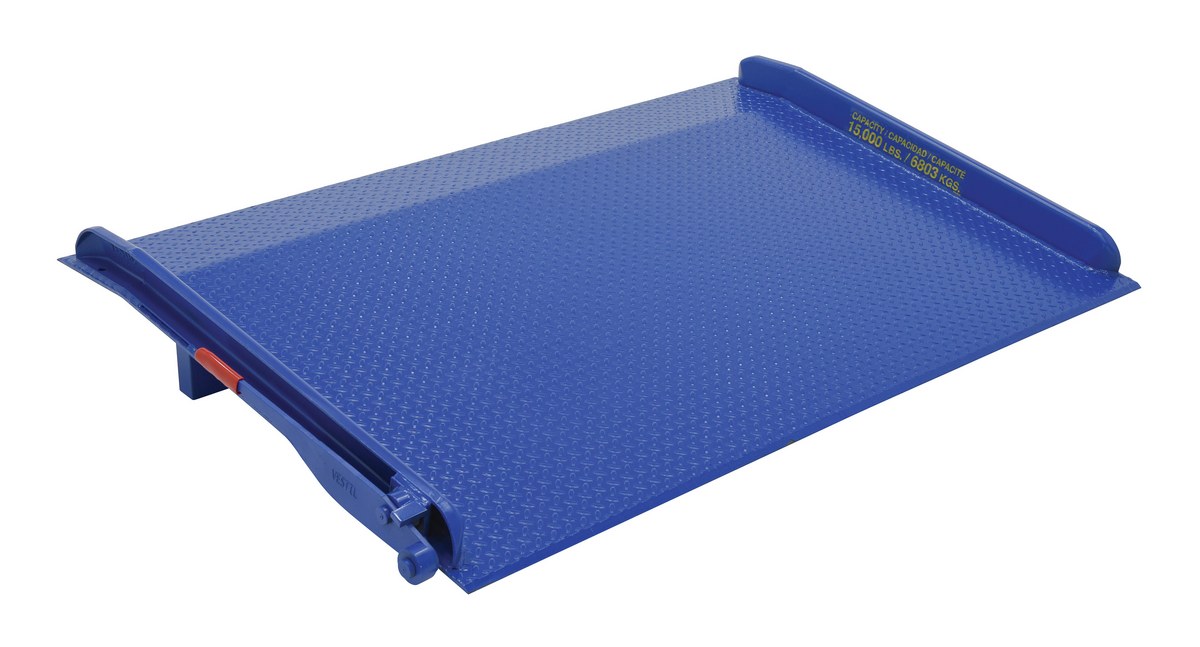

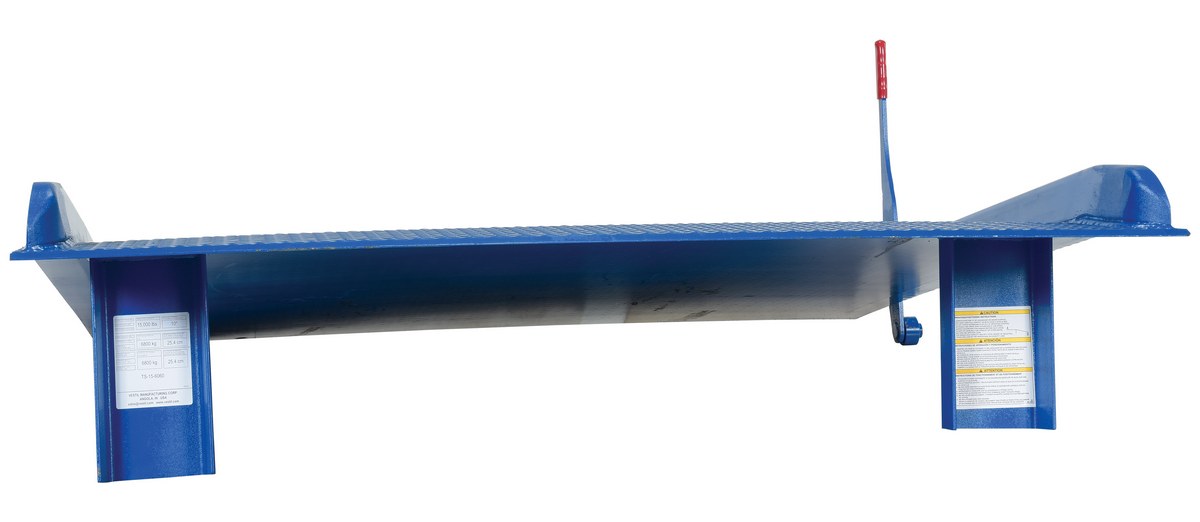

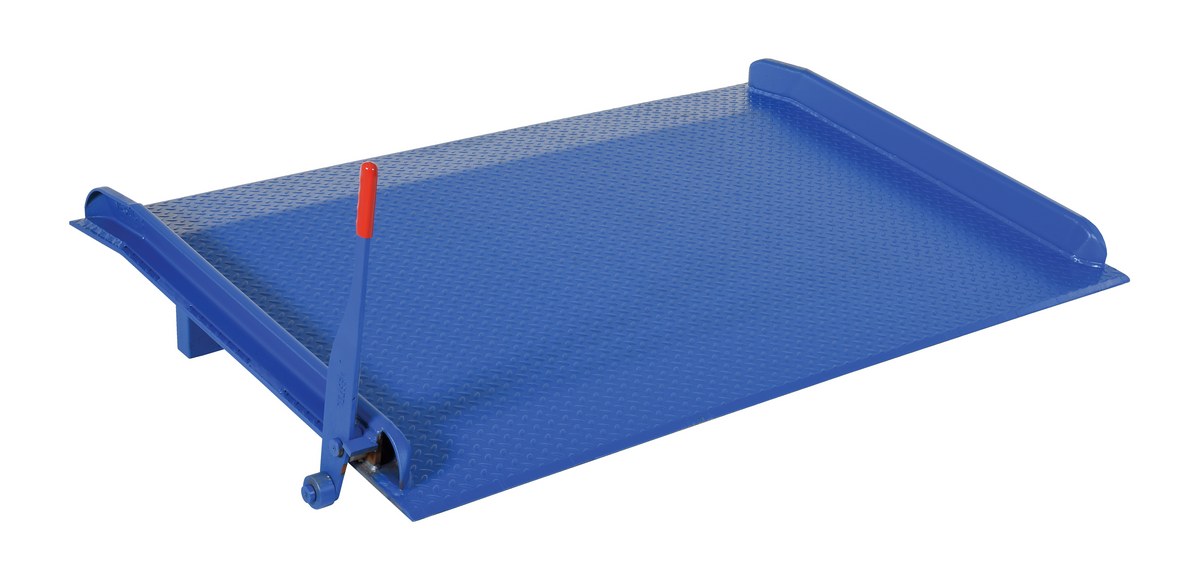

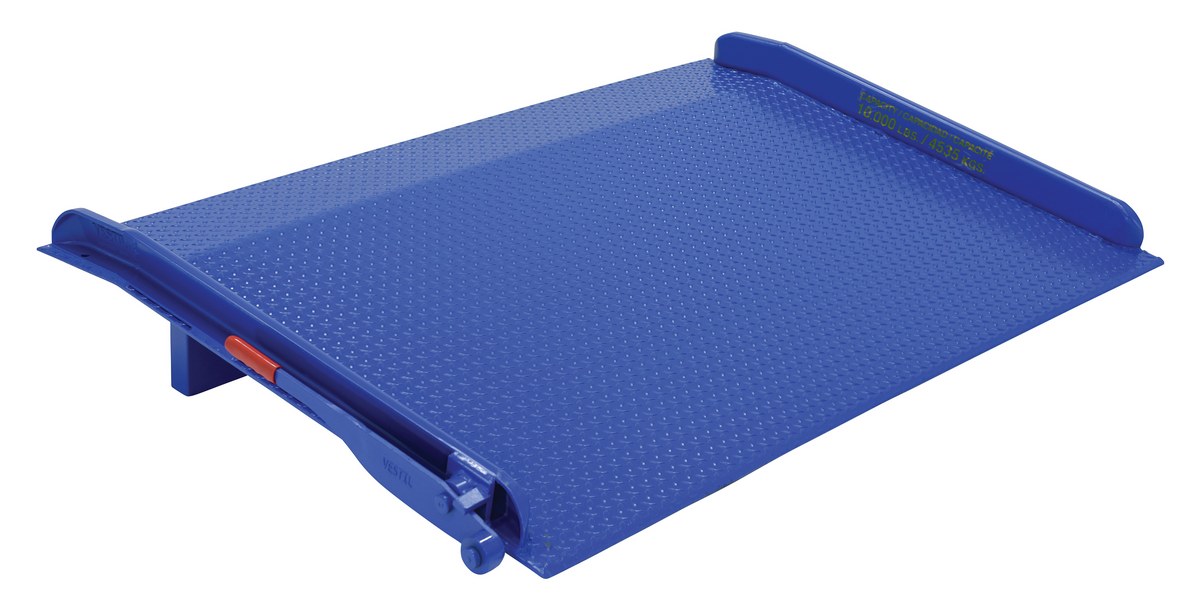

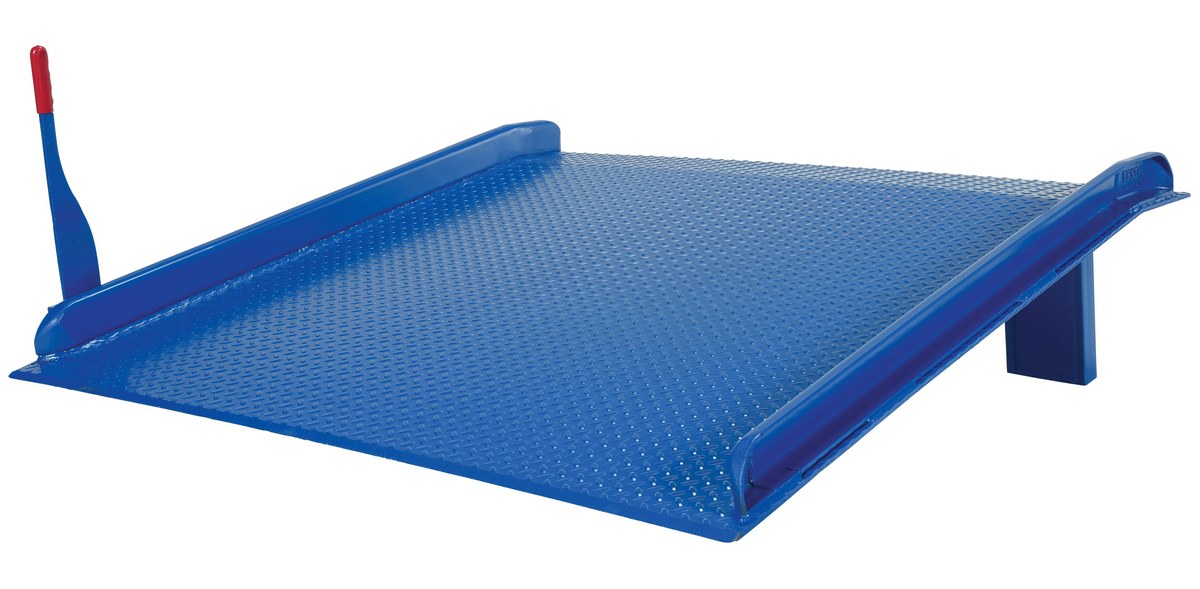

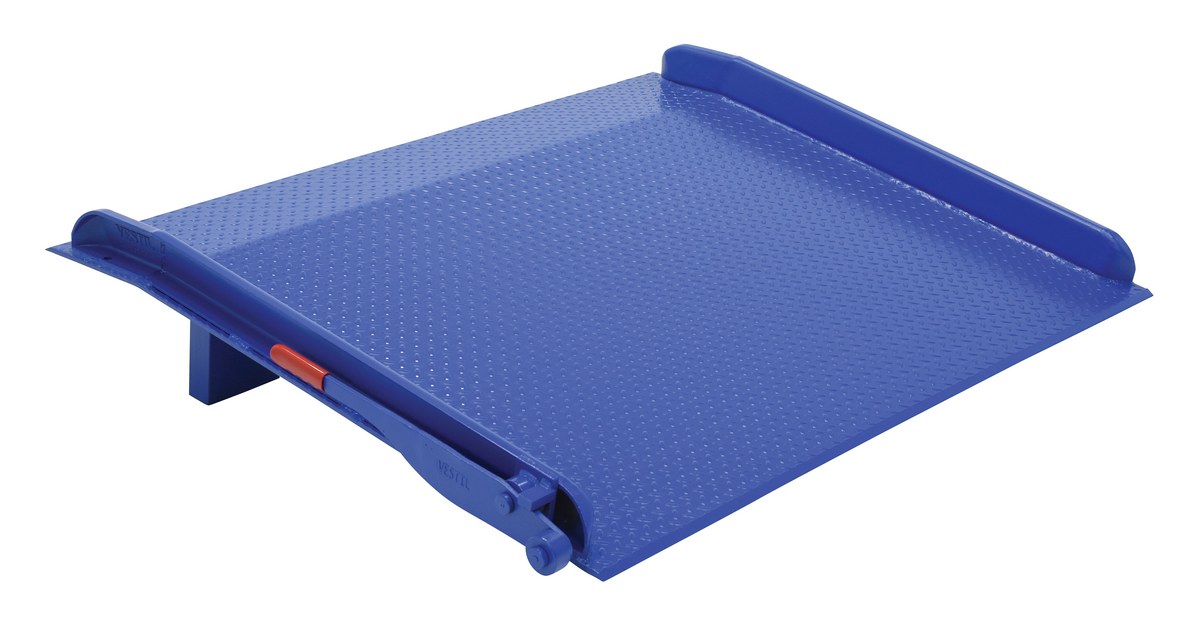

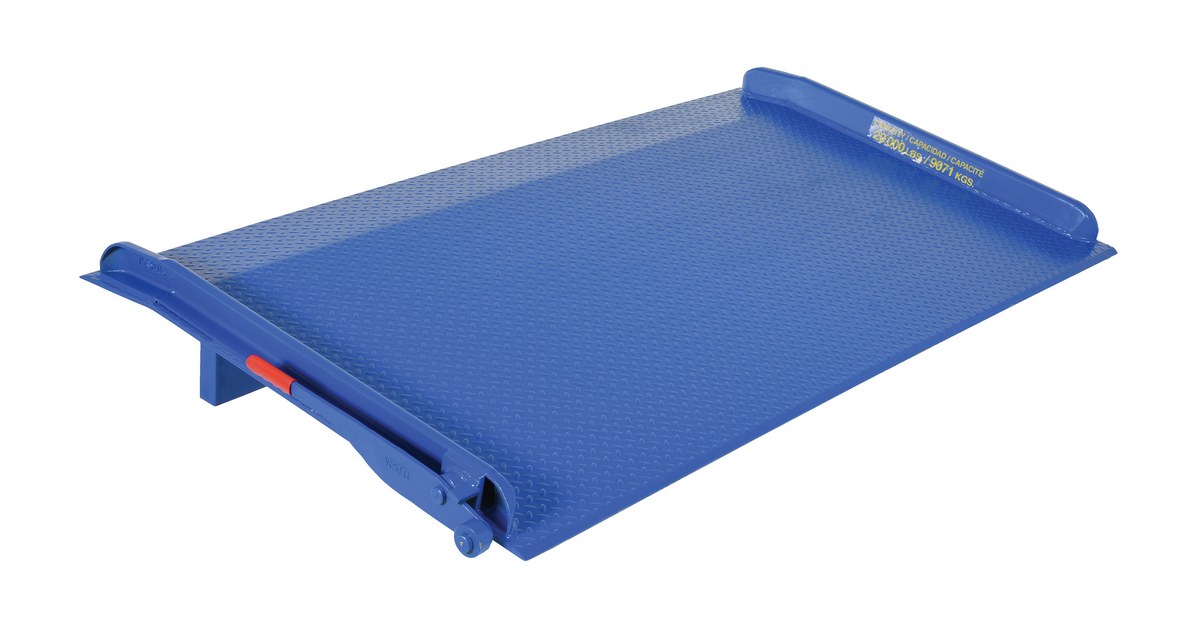

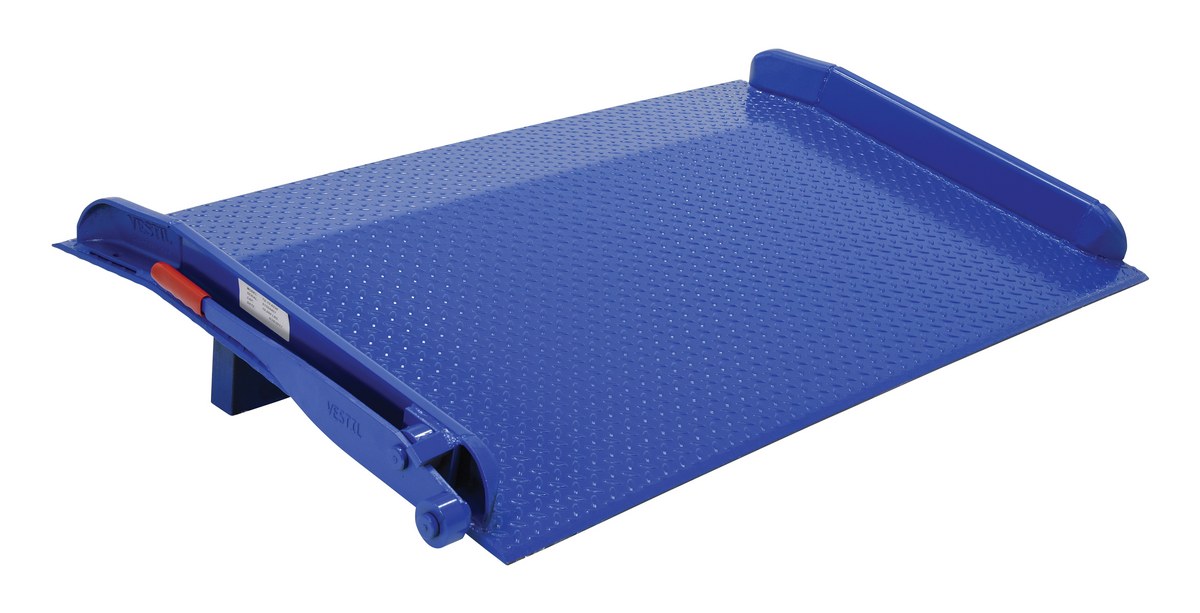

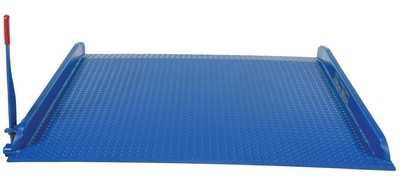

Steel Truck Dockboards
SERIES: TS

Steel Truck Dockboards are constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by fork trucks when not in use. Legs are located 12" from the edge of the dockboard. The bend is 11 degrees and 9" from beveled edge. Standard with Lever Lift for quick portability with fork truck. Manufactured in compliance with OSHA. Optional accessories: lifting chains, span locks, span pins/holes, and removable pickup loops.

  • Manufactured from high-strength steel tread plate for maximum durability
  • Heavy-duty steel curbs are welded in place for maximum strength

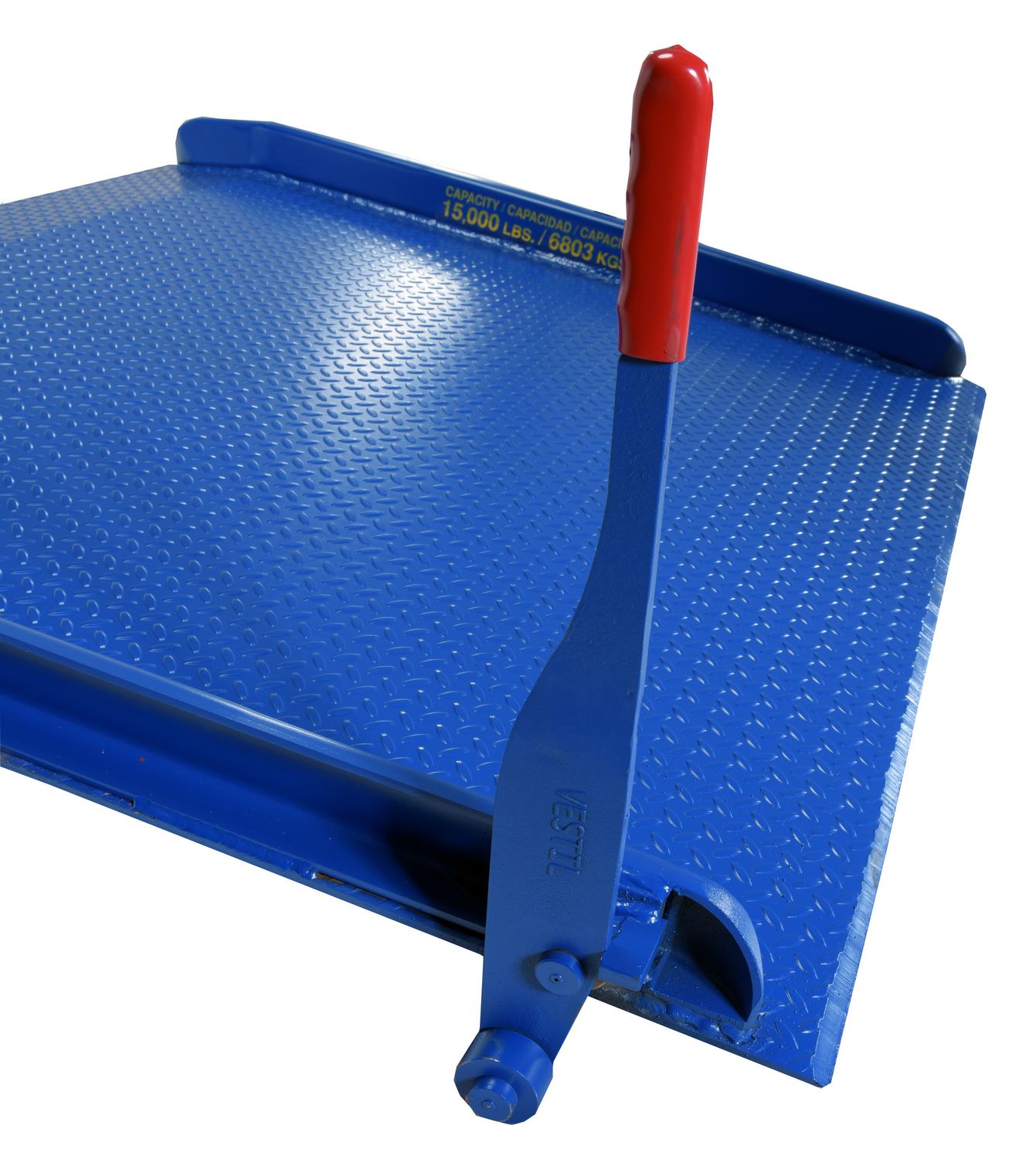

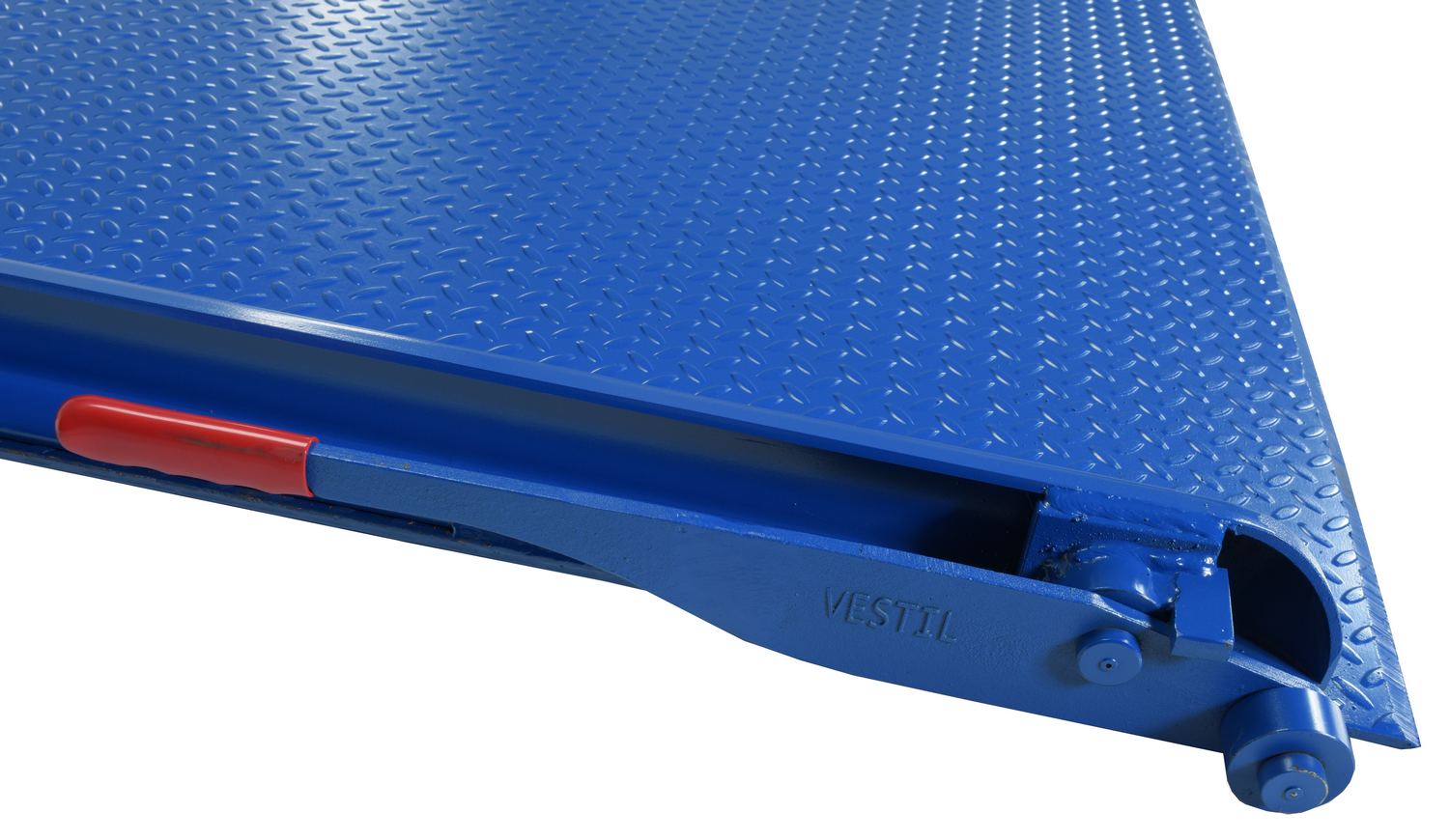

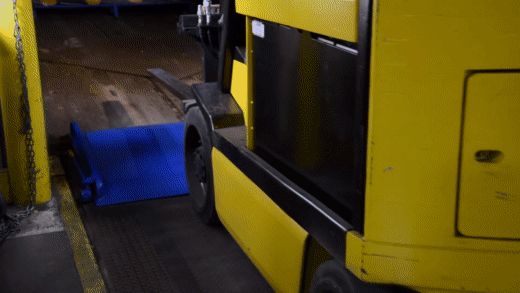

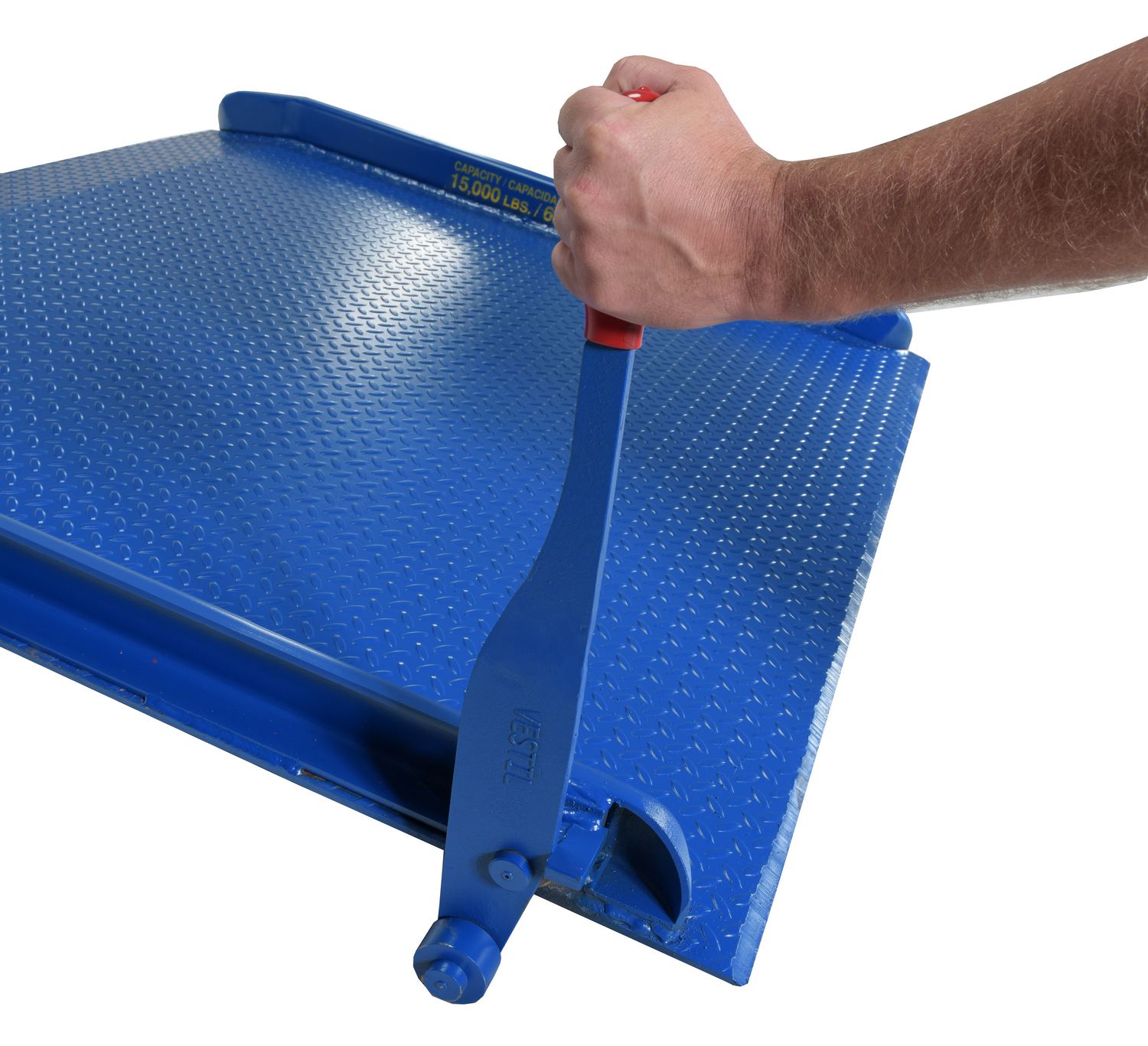

  • Includes patented lever lift for easy fork truck positioning
  • Smooth transition provided by beveled entrance and exit

Steel Truck Dockboards are constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by fork trucks when not in use. Legs are located 12" from the edge of the dockboard. The bend is 11 degrees and 9" from beveled edge. Standard with Lever Lift for quick portability with fork truck. Manufactured in compliance with OSHA. Optional accessories: lifting chains, span locks, span pins/holes, and removable pickup loops.

  • Manufactured from high-strength steel tread plate for maximum durability
  • Heavy-duty steel curbs are welded in place for maximum strength
  • Includes patented lever lift for easy fork truck positioning
  • Smooth transition provided by beveled entrance and exit

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
TS-10-6030 TS-10-603090 Days Limited WarrantySteel Truck Dock Board 60 In. x 30 In. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 4
256
TS-10-6036 TS-10-603690 Days Limited WarrantySteel Truck Dock Board 60 In. x 36 In. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 5
263
TS-10-6048 TS-10-604890 Days Limited WarrantySteel Truck Dock Board 60 In. x 48 In. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 7
388
TS-10-6060 TS-10-606090 Days Limited WarrantySteel Truck Dock Board 60 In. x 60 In. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 10
457
TS-10-6072 TS-10-607290 Days Limited WarrantySteel Truck Dock Board 60 In. x 72 In. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 12
535
TS-10-7236 TS-10-723690 Days Limited WarrantySteel Truck Dock Board 72 In. x 36 In. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 5
300
TS-10-7248 TS-10-724890 Days Limited WarrantySteel Truck Dock Board 72 In. x 48 In. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 7
391
TS-10-7260 TS-10-726090 Days Limited WarrantySteel Truck Dock Board 72 In. x 60 In. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 10
563
TS-10-7272 TS-10-727290 Days Limited WarrantySteel Truck Dock Board 72 In. x 72 In. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 12
721
TS-15-6030 TS-15-603090 Days Limited WarrantySteel Truck Dock Board 60 In. x 30 In. 15,000 Lb. Capacity BlueUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 4
276
TS-15-6036 TS-15-603690 Days Limited WarrantySteel Truck Dock Board 60 In. x 36 In. 15,000 Lb. Capacity BlueUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 5
295
TS-15-6048 TS-15-604890 Days Limited WarrantySteel Truck Dock Board 60 In. x 48 In. 15,000 Lb. Capacity BlueUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 7
390
TS-15-6060 TS-15-606090 Days Limited WarrantySteel Truck Dock Board 60 In. x 60 In. 15,000 Lb. Capacity BlueUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 10
458
TS-15-6072 TS-15-607290 Days Limited WarrantySteel Truck Dock Board 60 In. x 72 In. 15,000 Lb. Capacity BlueUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 12
601
TS-15-7236 TS-15-723690 Days Limited WarrantySteel Truck Dock Board 72 In. x 36 In. 15,000 Lb. Capacity BlueUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 5
347
TS-15-7248 TS-15-724890 Days Limited WarrantySteel Truck Dock Board 72 In. x 48 In. 15,000 Lb. Capacity BlueUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 7
443
TS-15-7260 TS-15-726090 Days Limited WarrantySteel Truck Dock Board 72 In. x 60 In. 15,000 Lb. Capacity BlueUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 10
581
TS-15-7272 TS-15-727290 Days Limited WarrantySteel Truck Dock Board 72 In. x 72 In. 15,000 Lb. Capacity BlueUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 12
668
TS-20-6036 TS-20-603690 Days Limited WarrantySteel Truck Dock Board 60 In. x 36 In. 20,000 Lb. Capacity BlueUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 5
303
TS-20-6048 TS-20-604890 Days Limited WarrantySteel Truck Dock Board 60 In. x 48 In. 20,000 Lb. Capacity BlueUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 7
433
TS-20-6060 TS-20-606090 Days Limited WarrantySteel Truck Dock Board 60 In. x 60 In. 20,000 Lb. Capacity BlueUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 10
582
TS-20-6072 TS-20-607290 Days Limited WarrantySteel Truck Dock Board 60 In. x 72 In. 20,000 Lb. Capacity BlueUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 12
791
TS-20-7236 TS-20-723690 Days Limited WarrantySteel Truck Dock Board 72 In. x 36 In. 20,000 Lb. Capacity BlueUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 5
390
TS-20-7248 TS-20-724890 Days Limited WarrantySteel Truck Dock Board 72 In. x 48 In. 20,000 Lb. Capacity BlueUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 7
512
TS-20-7260 TS-20-726090 Days Limited WarrantySteel Truck Dock Board 72 In. x 60 In. 20,000 Lb. Capacity BlueUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 10
655
TS-20-7272 TS-20-727290 Days Limited WarrantySteel Truck Dock Board 72 In. x 72 In. 20,000 Lb. Capacity BlueUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 12
919
TS-20-8448 TS-20-844890 Days Limited WarrantySteel Truck Dock Board 84 In. x 48 In. 20,000 Lb. Capacity BlueUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 7
556
TS-20-8460 TS-20-846090 Days Limited WarrantySteel Truck Dock Board 84 In. x 60 In. 20,000 Lb. Capacity BlueUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 10
742
TS-25-6036 TS-25-603690 Days Limited WarrantySteel Truck Dock Board 60 In. x 36 In. 25,000 Lb. Capacity BlueUniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 5
447
TS-25-6048 TS-25-604890 Days Limited WarrantySteel Truck Dock Board 60 In. x 48 In. 25,000 Lb. Capacity BlueUniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 7
562
TS-25-6060 TS-25-606090 Days Limited WarrantySteel Truck Dock Board 60 In. x 60 In. 25,000 Lb. Capacity BlueUniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 10
695
TS-25-6072 TS-25-607290 Days Limited WarrantySteel Truck Dock Board 60 In. x 72 In. 25,000 Lb. Capacity BlueUniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 12
791
TS-25-7236 TS-25-723690 Days Limited WarrantySteel Truck Dock Board 72 In. x 36 In. 25,000 Lb. Capacity BlueUniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 5
437
TS-25-7248 TS-25-724890 Days Limited WarrantySteel Truck Dock Board 72 In. x 48 In. 25,000 Lb. Capacity BlueUniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 7
651
TS-25-7260 TS-25-726090 Days Limited WarrantySteel Truck Dock Board 72 In. x 60 In. 25,000 Lb. Capacity BlueUniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 10
807
TS-25-7272 TS-25-727290 Days Limited WarrantySteel Truck Dock Board 72 In. x 72 In. 25,000 Lb. Capacity BlueUniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 12
859
TS-25-8448 TS-25-844890 Days Limited WarrantySteel Truck Dock Board 84 In. x 48 In. 25,000 Lb. Capacity BlueUniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 7
741

* Custom Sizes Available As Special Order

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

TS-10-6030
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 4
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 4

TS-10-6036
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 5
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 5

TS-10-6048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 7
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 7

TS-10-6060
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 10
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 10

TS-10-6072
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 12
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 12

TS-10-7236
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 5
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 5

TS-10-7248
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 7
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 7

TS-10-7260
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 10
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 10

TS-10-7272
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 12
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 12

TS-15-6030
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 4
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 4

TS-15-6036
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 5
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 5

TS-15-6048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 7
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 7

TS-15-6060
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 10
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 10

TS-15-6072
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 12
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 12

TS-15-7236
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 5
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 5

TS-15-7248
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 7
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 7

TS-15-7260
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 10
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 10

TS-15-7272
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 12
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 12

TS-20-6036
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 5
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 5

TS-20-6048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 7
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 7

TS-20-6060
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 10
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 10

TS-20-6072
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 12
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 12

TS-20-7236
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 5
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 5

TS-20-7248
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 7
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 7

TS-20-7260
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 10
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 10

TS-20-7272
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 12
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 12

TS-20-8448
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 7
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 7

TS-20-8460
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 10
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 10

TS-25-6036
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 5
Uniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 5

TS-25-6048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 7
Uniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 7

TS-25-6060
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 10
Uniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 10

TS-25-6072
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 12
Uniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 12

TS-25-7236
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 5
Uniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 5

TS-25-7248
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 7
Uniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 7

TS-25-7260
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 10
Uniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 10

TS-25-7272
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 12
Uniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 12

TS-25-8448
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 7
Uniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 7
For More Details of the Option Click the Red Model Button
ATC-12 30 Days Limited WarrantyFactory Installed Steel Dock Board Anti-Theft Chain 12 Ft. SilverChain Link Shape: Round
Link Thickness: 8 mm
20
HDL-STL 90 Days Limited WarrantyHandle Kit For Steel Dock Board ModelsAttachment Method:
2
HOLE-STL 90 Days Limited WarrantyFactory Installed Extra Span Holes For Steel Dock BoardsAttachment Method: Bolt On
Additional Contents: Factory Installed/Fabricated
LC48-66-STL LC48-66-STL30 Days Limited WarrantyLifting Chains 66 In. Width 725Lb. Capacity For Steel Dock Boards SilverCapacity (lb.): 725
Overall Width(in.): 4-3/4
8

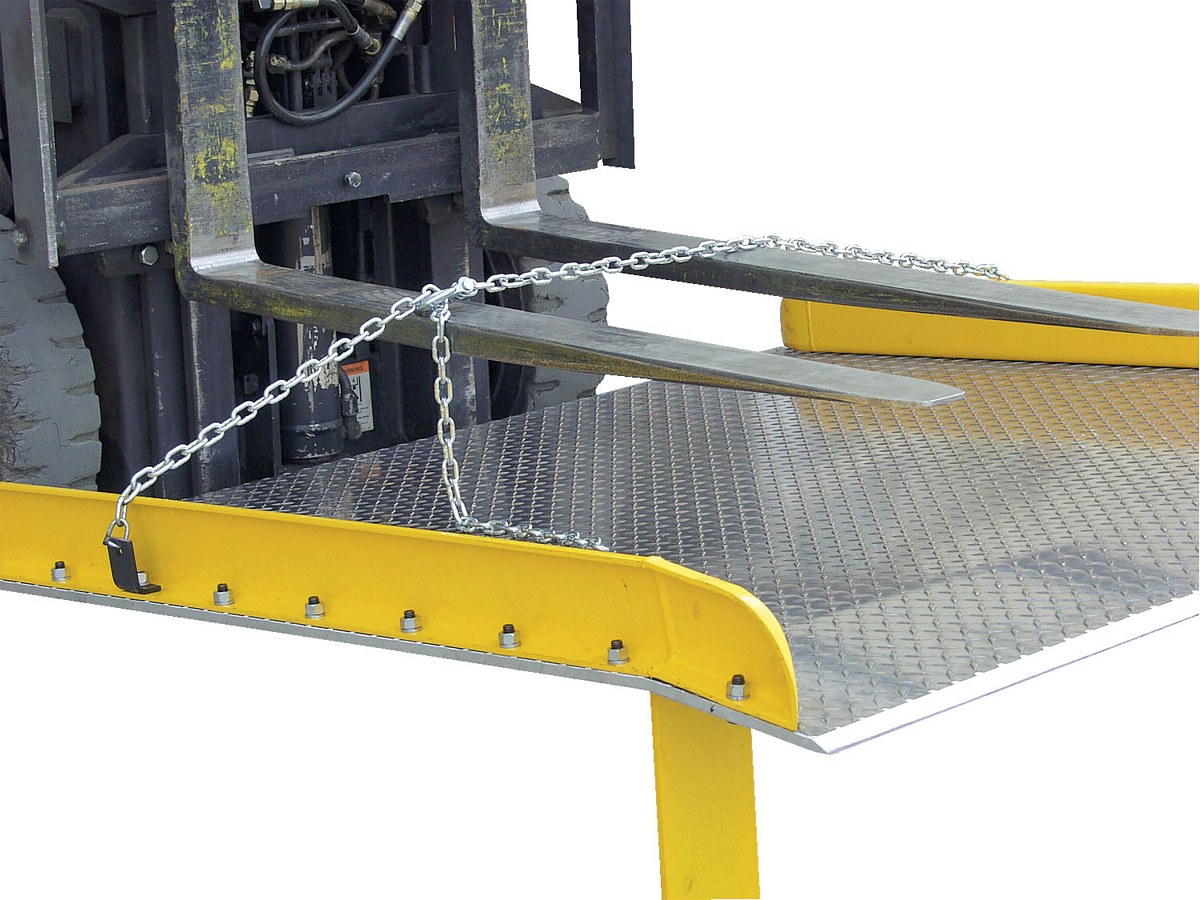

LC72-84-STL LC72-84-STL30 Days Limited WarrantyLifting Chains 84 In. Width 725 Lb. Capacity For Steel Dock Boards SilverCapacity (lb.): 725
Overall Width (in.): 4-3/4
9
PIN-STL 30 Days Limited WarrantyFactory Installed Extra Span Pins For Steel Dock BoardsAttachment Method: Bolt On
Additional Contents: Factory Installed/Fabricated
12
RPL-STL 30 Days Limited WarrantyFactory Installed Removable Pickup Loops For Steel Dock BoardsUsable Loop Width/Height Each (in.): 7-1/2 x 2-1/2
S2B-STL 30 Days Limited WarrantyFactory Installed Second Bend Location For Steel Dock PlatesBrand / Model Compatibility: TS Models
Additional Contents: Factory Installed
SBL-STL 90 Days Limited WarrantyFactory Installed Special Bend Location For Steel Dock PlatesBrand / Model Compatibility: TS Models
Additional Contents: Factory Installed

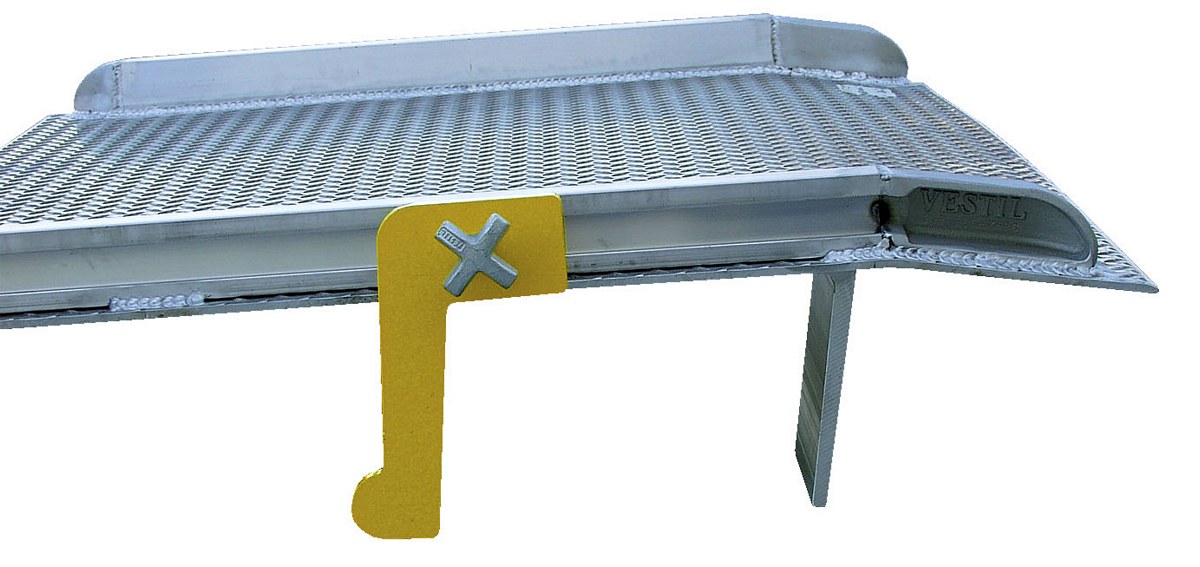

SSL-STL SSL-STL90 Days Limited WarrantyFactory Installed Sliding Span Locks For Steel Dock BoardsAttachment Method: Bolt On
Additional Contents: Factory Installed
5
Model Image PDF Description
SP-STL Compliance Certificate Span Pins & Holes (4)
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Steel Truck Dockboards PDF's will open in a new window when clicked.

Manuals


Survey Sheets


Approval Drawings

Testing Certificates


ATC-12

RPL-STL

TS-10-6030

TS-10-6036

TS-10-6048

TS-10-6060

TS-10-6072

TS-10-7236

TS-10-7248

TS-10-7260

TS-10-7272

TS-15-6030

TS-15-6036

TS-15-6048

TS-15-6060

TS-15-6072

TS-15-7236

TS-15-7248

TS-15-7260

TS-15-7272

TS-20-6036

TS-20-6048

TS-20-6060

TS-20-6072

TS-20-7236

TS-20-7248

TS-20-7260

TS-20-7272

TS-20-8448

TS-20-8460

TS-25-6036

TS-25-6048

TS-25-6060

TS-25-6072

TS-25-7236

TS-25-7248

TS-25-7260

TS-25-7272

TS-25-8448

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Steel Truck Dockboards




Steel Truck Dockboards are constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by fork trucks when not in use. Legs are located 12" from the edge of the dockboard. The bend is 11 degrees and 9" from beveled edge. Standard with Lever Lift for quick portability with fork truck. Manufactured in compliance with OSHA. Optional accessories: lifting chains, span locks, span pins/holes, and removable pickup loops.

  • Manufactured from high-strength steel tread plate for maximum durability
  • Heavy-duty steel curbs are welded in place for maximum strength
  • Includes patented lever lift for easy fork truck positioning
  • Smooth transition provided by beveled entrance and exit


Model # Description Attributes Net Wt.
(lbs)
TS-10-6030 TS-10-6030Steel Truck Dock Board 60 In. x 30 In. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 4
256
TS-10-6036 TS-10-6036Steel Truck Dock Board 60 In. x 36 In. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 5
263
TS-10-6048 TS-10-6048Steel Truck Dock Board 60 In. x 48 In. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 7
388
TS-10-6060 TS-10-6060Steel Truck Dock Board 60 In. x 60 In. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 10
457
TS-10-6072 TS-10-6072Steel Truck Dock Board 60 In. x 72 In. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 12
535
TS-10-7236 TS-10-7236Steel Truck Dock Board 72 In. x 36 In. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 5
300
TS-10-7248 TS-10-7248Steel Truck Dock Board 72 In. x 48 In. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 7
391
TS-10-7260 TS-10-7260Steel Truck Dock Board 72 In. x 60 In. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 10
563
TS-10-7272 TS-10-7272Steel Truck Dock Board 72 In. x 72 In. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 12
721
TS-15-6030 TS-15-6030Steel Truck Dock Board 60 In. x 30 In. 15,000 Lb. Capacity BlueUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 4
276
TS-15-6036 TS-15-6036Steel Truck Dock Board 60 In. x 36 In. 15,000 Lb. Capacity BlueUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 5
295
TS-15-6048 TS-15-6048Steel Truck Dock Board 60 In. x 48 In. 15,000 Lb. Capacity BlueUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 7
390
TS-15-6060 TS-15-6060Steel Truck Dock Board 60 In. x 60 In. 15,000 Lb. Capacity BlueUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 10
458
TS-15-6072 TS-15-6072Steel Truck Dock Board 60 In. x 72 In. 15,000 Lb. Capacity BlueUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 12
601
TS-15-7236 TS-15-7236Steel Truck Dock Board 72 In. x 36 In. 15,000 Lb. Capacity BlueUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 5
347
TS-15-7248 TS-15-7248Steel Truck Dock Board 72 In. x 48 In. 15,000 Lb. Capacity BlueUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 7
443
TS-15-7260 TS-15-7260Steel Truck Dock Board 72 In. x 60 In. 15,000 Lb. Capacity BlueUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 10
581
TS-15-7272 TS-15-7272Steel Truck Dock Board 72 In. x 72 In. 15,000 Lb. Capacity BlueUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 12
668
TS-20-6036 TS-20-6036Steel Truck Dock Board 60 In. x 36 In. 20,000 Lb. Capacity BlueUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 5
303
TS-20-6048 TS-20-6048Steel Truck Dock Board 60 In. x 48 In. 20,000 Lb. Capacity BlueUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 7
433
TS-20-6060 TS-20-6060Steel Truck Dock Board 60 In. x 60 In. 20,000 Lb. Capacity BlueUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 10
582
TS-20-6072 TS-20-6072Steel Truck Dock Board 60 In. x 72 In. 20,000 Lb. Capacity BlueUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 12
791
TS-20-7236 TS-20-7236Steel Truck Dock Board 72 In. x 36 In. 20,000 Lb. Capacity BlueUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 5
390
TS-20-7248 TS-20-7248Steel Truck Dock Board 72 In. x 48 In. 20,000 Lb. Capacity BlueUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 7
512
TS-20-7260 TS-20-7260Steel Truck Dock Board 72 In. x 60 In. 20,000 Lb. Capacity BlueUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 10
655
TS-20-7272 TS-20-7272Steel Truck Dock Board 72 In. x 72 In. 20,000 Lb. Capacity BlueUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 12
919
TS-20-8448 TS-20-8448Steel Truck Dock Board 84 In. x 48 In. 20,000 Lb. Capacity BlueUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 7
556
TS-20-8460 TS-20-8460Steel Truck Dock Board 84 In. x 60 In. 20,000 Lb. Capacity BlueUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 10
742
TS-25-6036 TS-25-6036Steel Truck Dock Board 60 In. x 36 In. 25,000 Lb. Capacity BlueUniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 5
447
TS-25-6048 TS-25-6048Steel Truck Dock Board 60 In. x 48 In. 25,000 Lb. Capacity BlueUniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 7
562
TS-25-6060 TS-25-6060Steel Truck Dock Board 60 In. x 60 In. 25,000 Lb. Capacity BlueUniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 10
695
TS-25-6072 TS-25-6072Steel Truck Dock Board 60 In. x 72 In. 25,000 Lb. Capacity BlueUniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 12
791
TS-25-7236 TS-25-7236Steel Truck Dock Board 72 In. x 36 In. 25,000 Lb. Capacity BlueUniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 5
437
TS-25-7248 TS-25-7248Steel Truck Dock Board 72 In. x 48 In. 25,000 Lb. Capacity BlueUniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 7
651
TS-25-7260 TS-25-7260Steel Truck Dock Board 72 In. x 60 In. 25,000 Lb. Capacity BlueUniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 10
807
TS-25-7272 TS-25-7272Steel Truck Dock Board 72 In. x 72 In. 25,000 Lb. Capacity BlueUniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 12
859
TS-25-8448 TS-25-8448Steel Truck Dock Board 84 In. x 48 In. 25,000 Lb. Capacity BlueUniform Capacity (lb.): 25000
Height Difference at 11 degree/19 percent (in.): 7
741

Options


Model Image PDF Description
SP-STL Compliance Certificate Span Pins & Holes (4)

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
