Product Family Overview

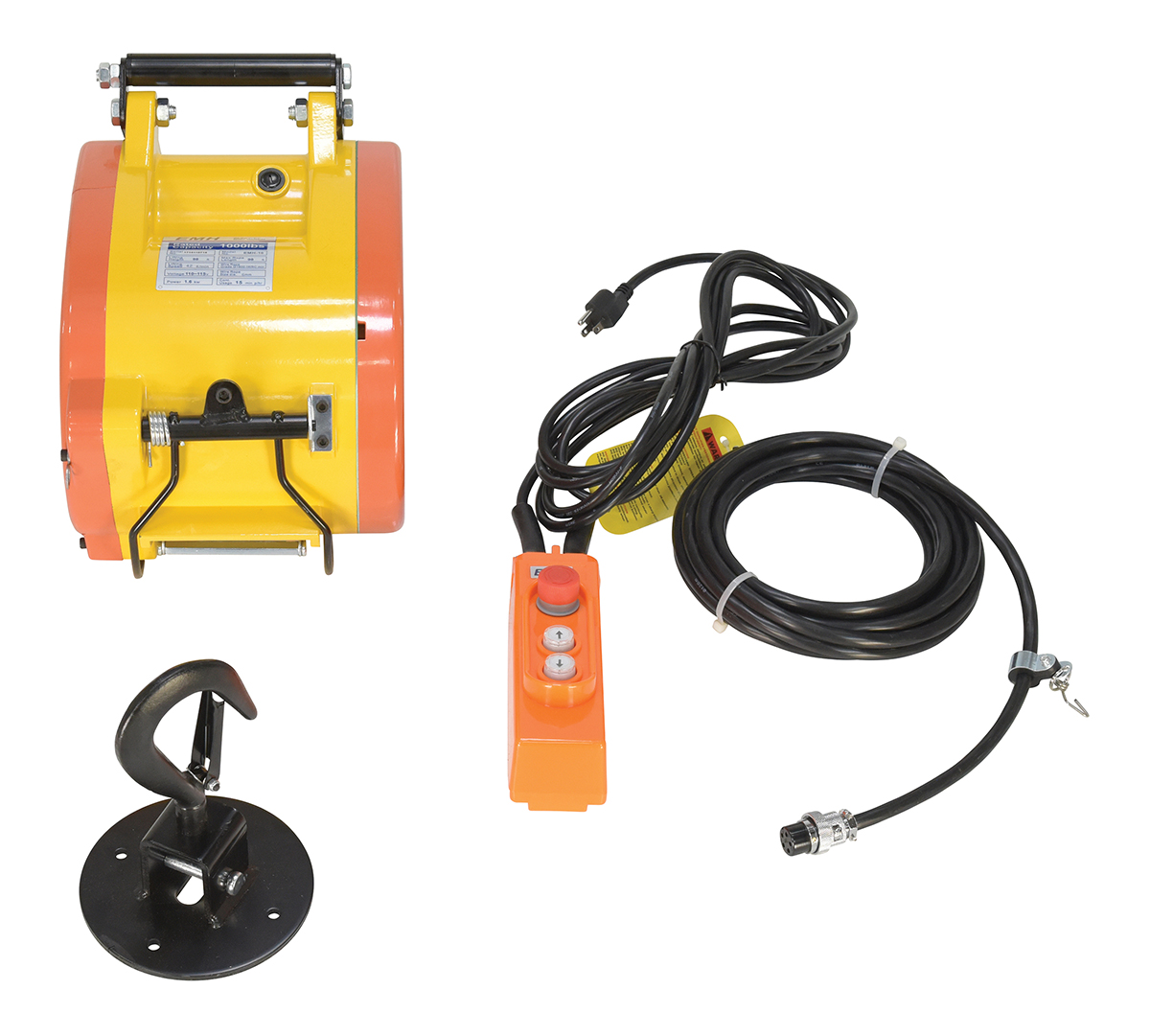

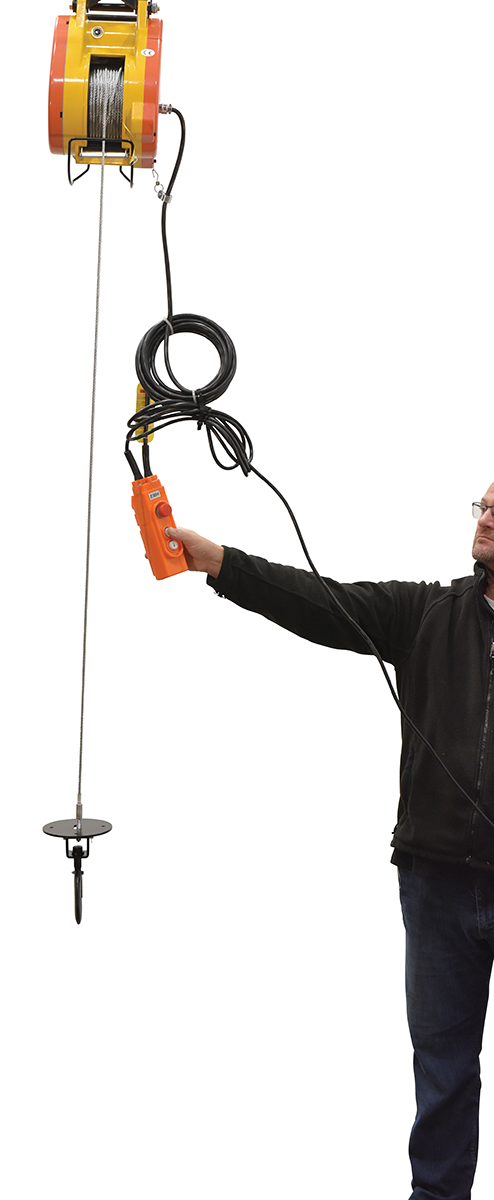

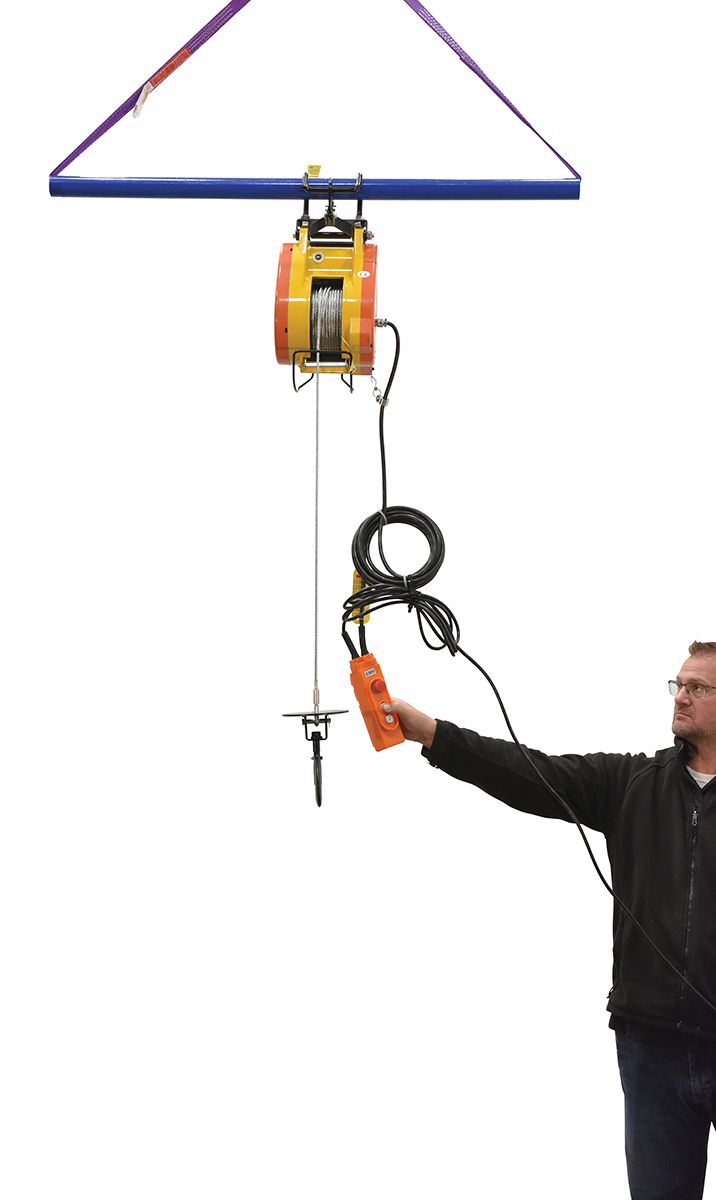

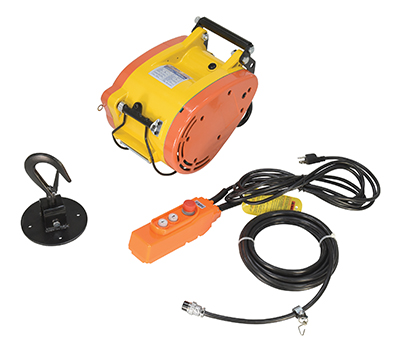

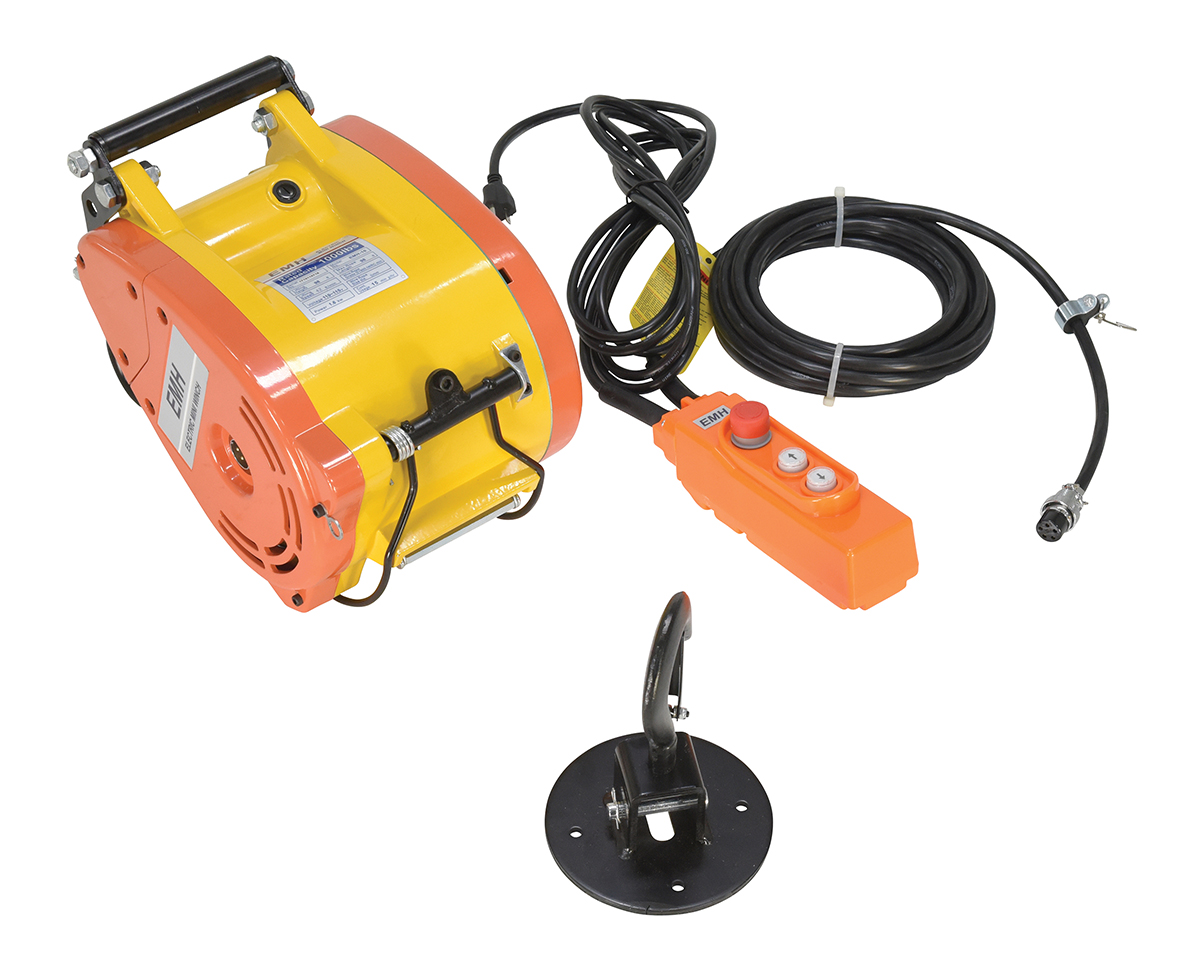

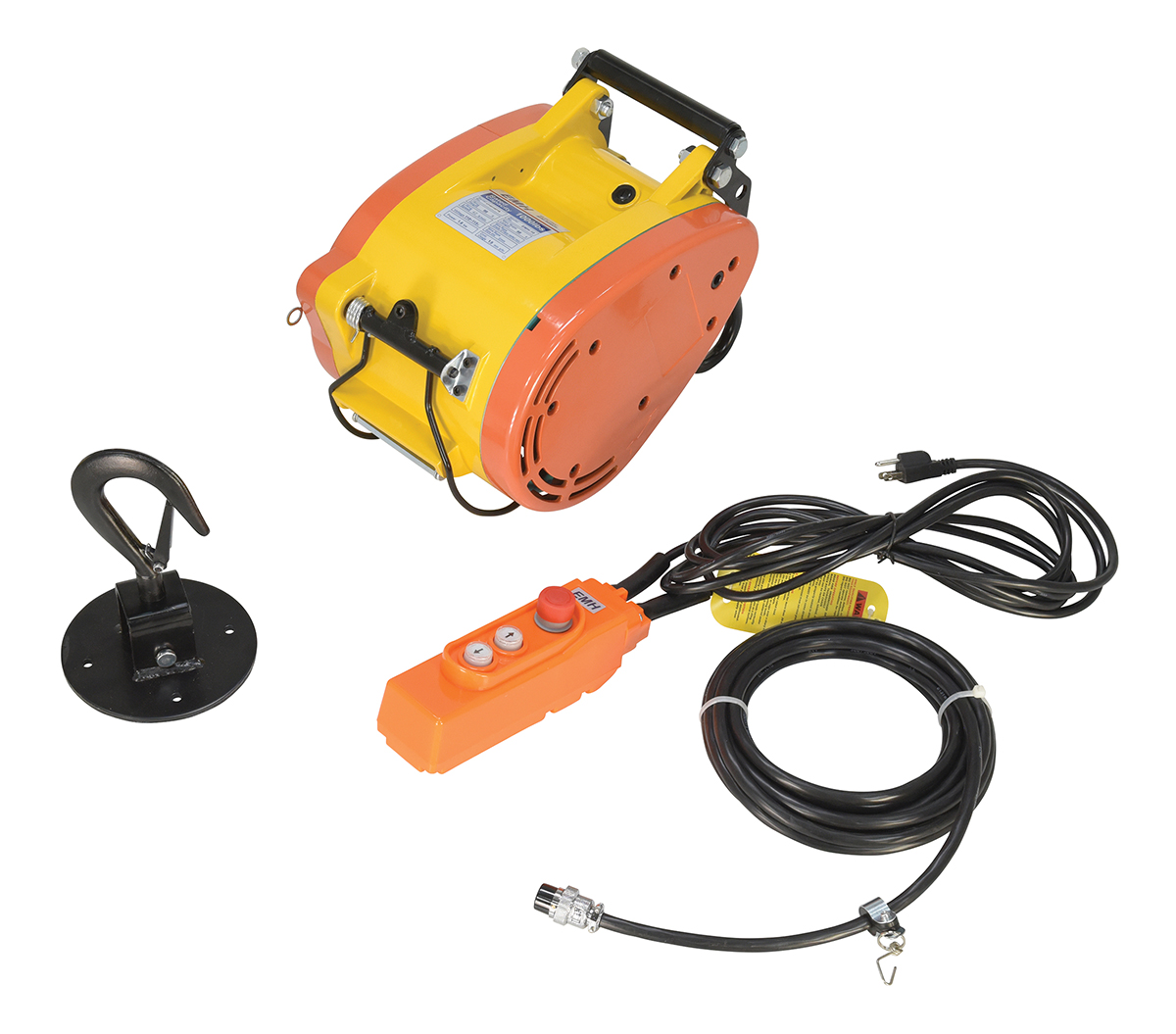

Electric Mini Hanging Cable Hoists
SERIES: EMH

Lightweight and compact design ideal for a wide range of applications for construction sites, rigging, warehouse, storage area, confined spaces and plumbing. Easily mounts to most scaffolding and beams (secured with latch hook). Robust design, strong steel construction and durable powder coated finish. Dual braking systems provides instant and safe braking. Built in raise/lower limit switch prevents excessive winding. 360 degree swivel hook with safety latch. Thermal overload on the motor for added safety. Quick disconnect power and hand control cord. Low noise and smooth operation. Cable length is 90 feet.

  • Simple hanging hook for quick use
  • Large capacity for variety of products
  • Quickly attached to hanging structure
  • Brightly colored for visibility and safety

Lightweight and compact design ideal for a wide range of applications for construction sites, rigging, warehouse, storage area, confined spaces and plumbing. Easily mounts to most scaffolding and beams (secured with latch hook). Robust design, strong steel construction and durable powder coated finish. Dual braking systems provides instant and safe braking. Built in raise/lower limit switch prevents excessive winding. 360 degree swivel hook with safety latch. Thermal overload on the motor for added safety. Quick disconnect power and hand control cord. Low noise and smooth operation. Cable length is 90 feet.

  • Simple hanging hook for quick use
  • Large capacity for variety of products
  • Quickly attached to hanging structure
  • Brightly colored for visibility and safety

Additional Models In This Family

EMH-3

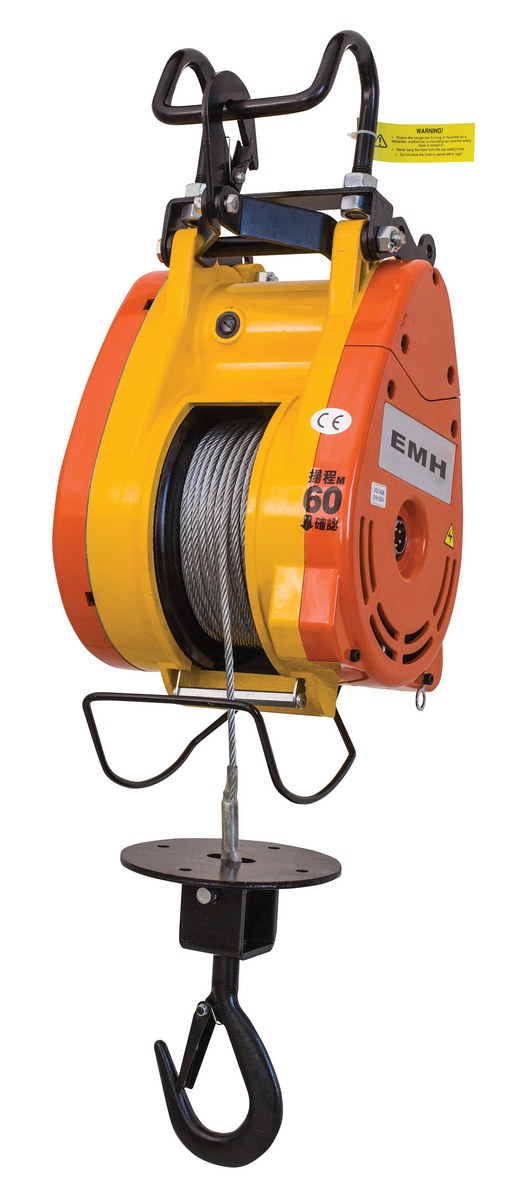

model EMH-3

EMH-5

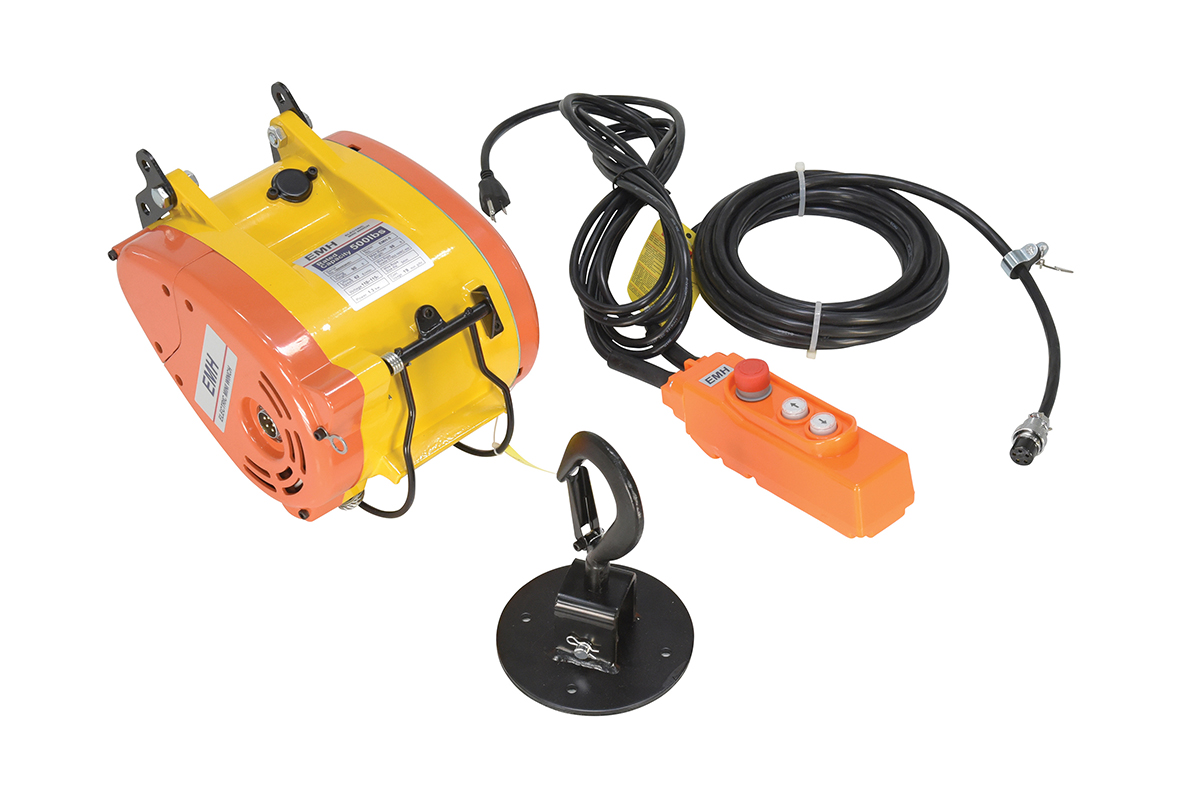

model EMH-5

EMH-7

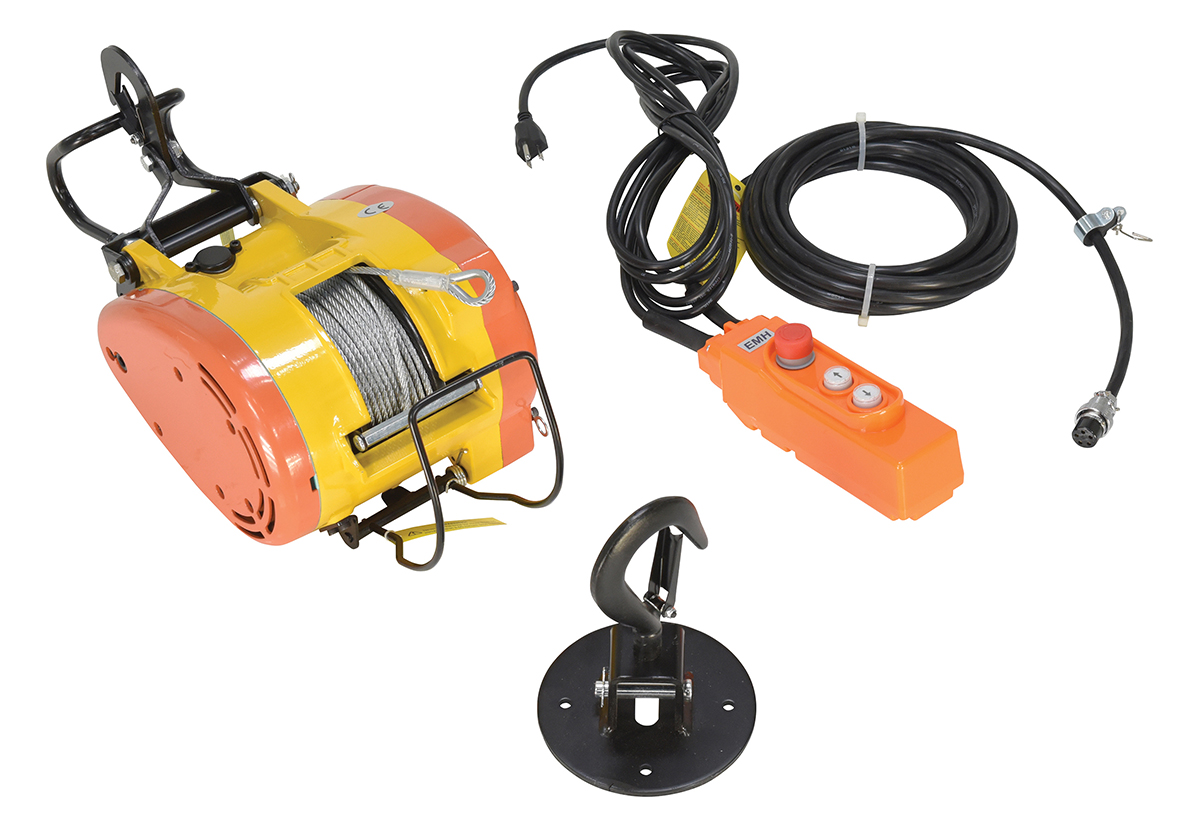

model EMH-7

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
EMH-10 EMH-1090 Days Limited WarrantySteel Electric Mini Hanging Cable Hoist 1000 Lb. Capacity OrangeUniform Capacity (lb.): 1000
Cable Size (in.): 1/4
64
EMH-3 EMH-390 Days Limited WarrantySteel Electric Mini Hanging Cable Hoist 300 Lb. Capacity OrangeUniform Capacity (lb.): 300
Cable Size (in.): 3/16
52
EMH-5 EMH-590 Days Limited WarrantySteel Electric Mini Hanging Cable Hoist 500 Lb. Capacity OrangeUniform Capacity (lb.): 500
Cable Size (in.): 3/16
64
EMH-7 EMH-790 Days Limited WarrantySteel Electric Mini Hanging Cable Hoist 700 Lb. Capacity OrangeUniform Capacity (lb.): 700
Cable Size (in.): 3/16
68

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

EMH-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Cable Size (in.): 1/4
Uniform Capacity (lb.): 1000
Cable Size (in.): 1/4

EMH-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 300
Cable Size (in.): 3/16
Uniform Capacity (lb.): 300
Cable Size (in.): 3/16

EMH-5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Cable Size (in.): 3/16
Uniform Capacity (lb.): 500
Cable Size (in.): 3/16

EMH-7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 700
Cable Size (in.): 3/16
Uniform Capacity (lb.): 700
Cable Size (in.): 3/16

Electric Mini Hanging Cable Hoists PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


EMH-10

EMH-3

EMH-5

EMH-7

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What is the length of the cable on the EMH-3?

A: The length of the cable on the EMH-3 is 90 ft.


Q: What is the length of the pendant/hand control of model EMH-5?

A: There are two cords to the pendant. One is 265" and the other is 185".


Q: How long can this hoist continuously run, with 400 - 500 lbs. load on it, and how much time must the hoist be "off" to allow for motor/ contacts cool down?

A: Continuous usage of the hoist would be 15 minutes. Rest time between usage would be 45 minutes.
