Product Family Overview


Mezzanine Ladders (face mounted/retractable)
SERIES: LAD-FM

The Mezzanine Ladders are used for infrequent usage to access mezzanines. They are ratcheted into climbing angle and back into stored position. The wheels roll on the ground when ratcheted and the handrails mechanically rise into climb position when ladder locks into position. Quickly extend and retract the ladder. The mezzanine ladder allows for quick installation with mounting bracket provided for bolt-on installation or welded installation. Steps are 24-1/4" wide. Collapsed distance from wall is approximately 15-1/2" for all models. Customer must provide their mezzanine height at time of purchase. Baked in Powder coat blue finish for added toughness. Meets or exceeds all OSHA requirements. Ships knockdown, some assembly required. Survey sheet available for mezzanine heights of 60" to 120".

The Powered Mezzanine Ladders are used for infrequent usage to access mezzanines. They are quickly powered into climbing angle and back into stored position. The wheels roll on the ground when ratcheted and the handrails mechanically rise into climb position when ladder locks into position. Quickly extend and retract the ladder with the hand held pendant. The mezzanine ladder allows for quick installation. The unit keeps a small distance from wall for compact storage. Customer must provide their mezzanine height at time of purchase. Baked in Powder coat blue finish for added toughness.

  • Great for condensed work areas
  • Treaded step design for sure footing
  • Attached casters provide simple maneuvering
  • Collapsible handrail

The Mezzanine Ladders are used for infrequent usage to access mezzanines. They are ratcheted into climbing angle and back into stored position. The wheels roll on the ground when ratcheted and the handrails mechanically rise into climb position when ladder locks into position. Quickly extend and retract the ladder. The mezzanine ladder allows for quick installation with mounting bracket provided for bolt-on installation or welded installation. Steps are 24-1/4" wide. Collapsed distance from wall is approximately 15-1/2" for all models. Customer must provide their mezzanine height at time of purchase. Baked in Powder coat blue finish for added toughness. Meets or exceeds all OSHA requirements. Ships knockdown, some assembly required. Survey sheet available for mezzanine heights of 60" to 120".

The Powered Mezzanine Ladders are used for infrequent usage to access mezzanines. They are quickly powered into climbing angle and back into stored position. The wheels roll on the ground when ratcheted and the handrails mechanically rise into climb position when ladder locks into position. Quickly extend and retract the ladder with the hand held pendant. The mezzanine ladder allows for quick installation. The unit keeps a small distance from wall for compact storage. Customer must provide their mezzanine height at time of purchase. Baked in Powder coat blue finish for added toughness.

  • Great for condensed work areas
  • Treaded step design for sure footing
  • Attached casters provide simple maneuvering
  • Collapsible handrail

Additional Models In This Family

LAD-FM-96

model LAD-FM-96

LAD-FM-120-PSO

model LAD-FM-120-PSO

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

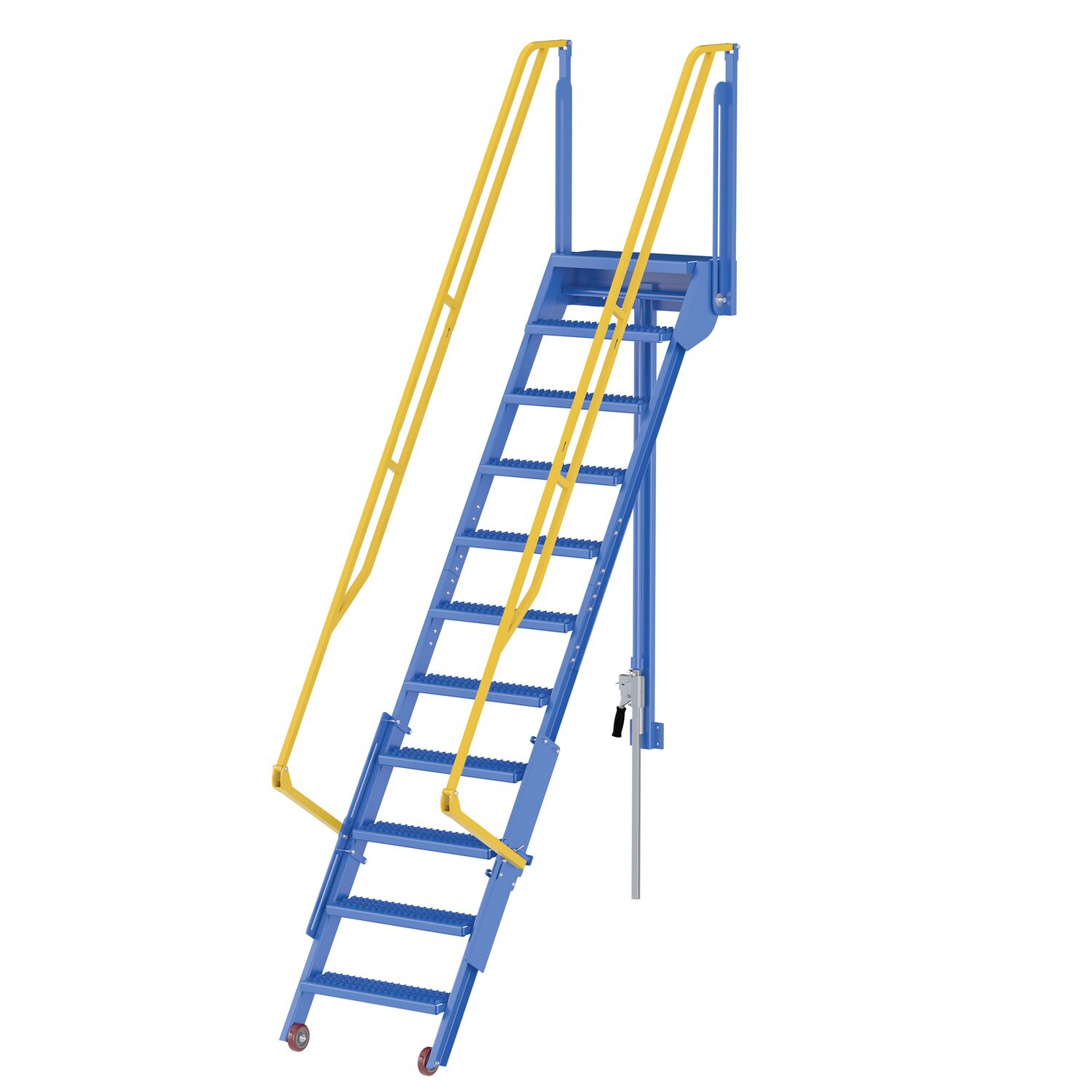

LAD-FM-108
LAD-FM-1081 Year Limited WarrantySteel Folding Mezzanine Ladder 108 In. Mezzanine Height 24-1/4 In. Step Width 350 Lb. Capacity BlueUniform Capacity (lb.): 350
Incline Angle (degree): 58
375

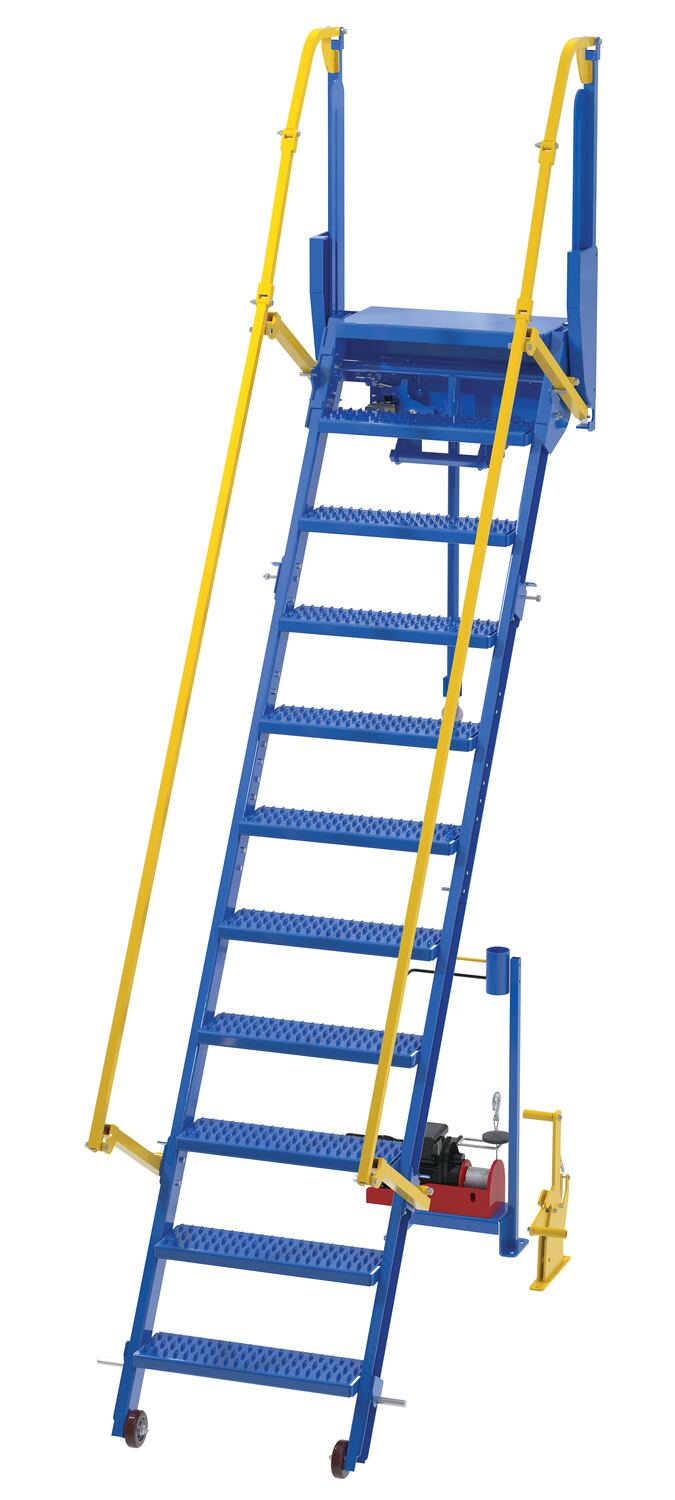

LAD-FM-108-PSO
LAD-FM-108-PSO1 Year Limited WarrantySteel Folding Mezzanine Ladder with 115V Power Storage 108 In. Mezzanine Height 23-5/8 In. Step Width 350 Lb. Capacity BlueBase Length (in): 75.25
Base Width (in): 32.25
485

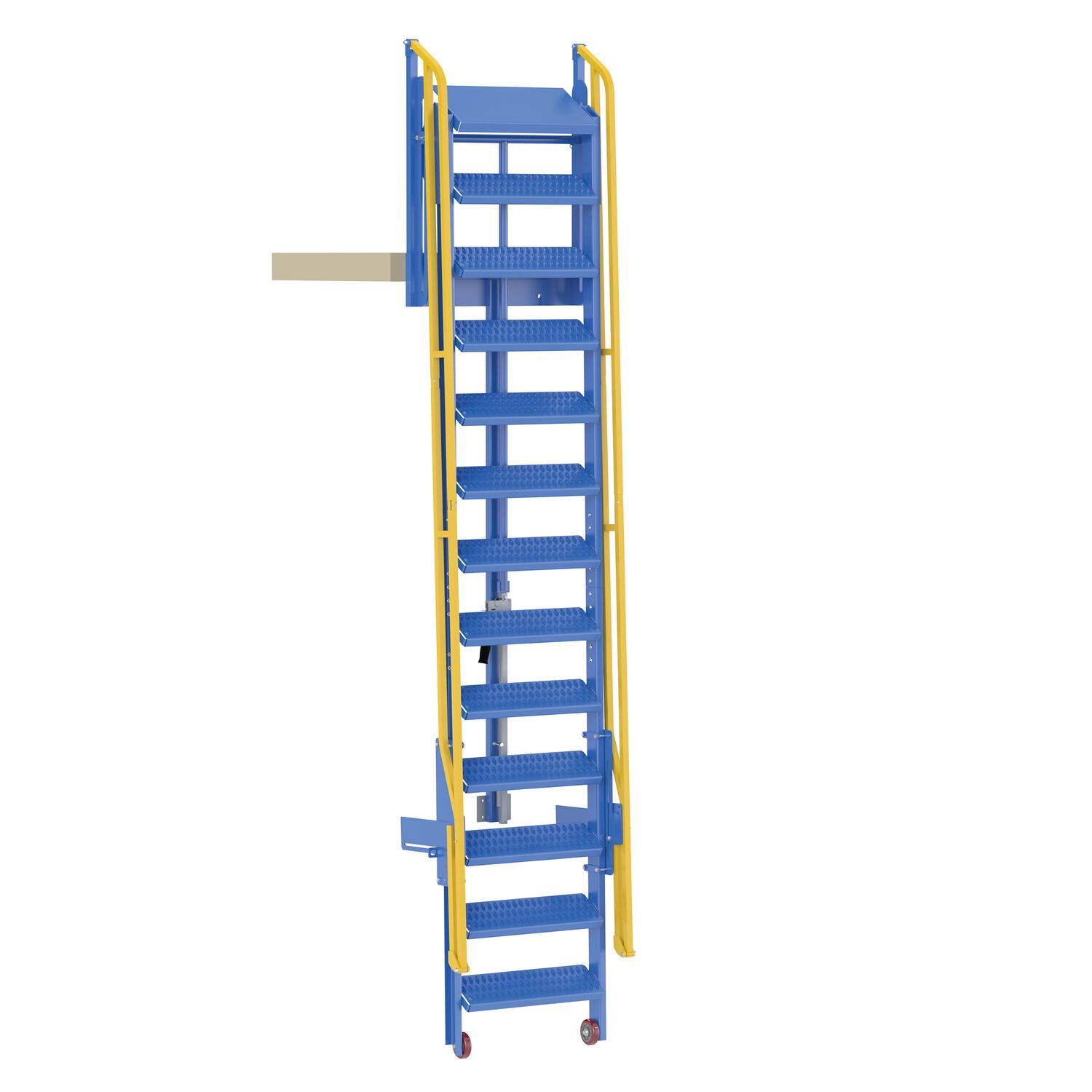

LAD-FM-120
LAD-FM-1201 Year Limited WarrantySteel Folding Mezzanine Ladder 120 In. Mezzanine Height 24-1/4 In. Step Width 350 Lb. Capacity BlueUniform Capacity (lb.): 350
Incline Angle (degree): 58
410

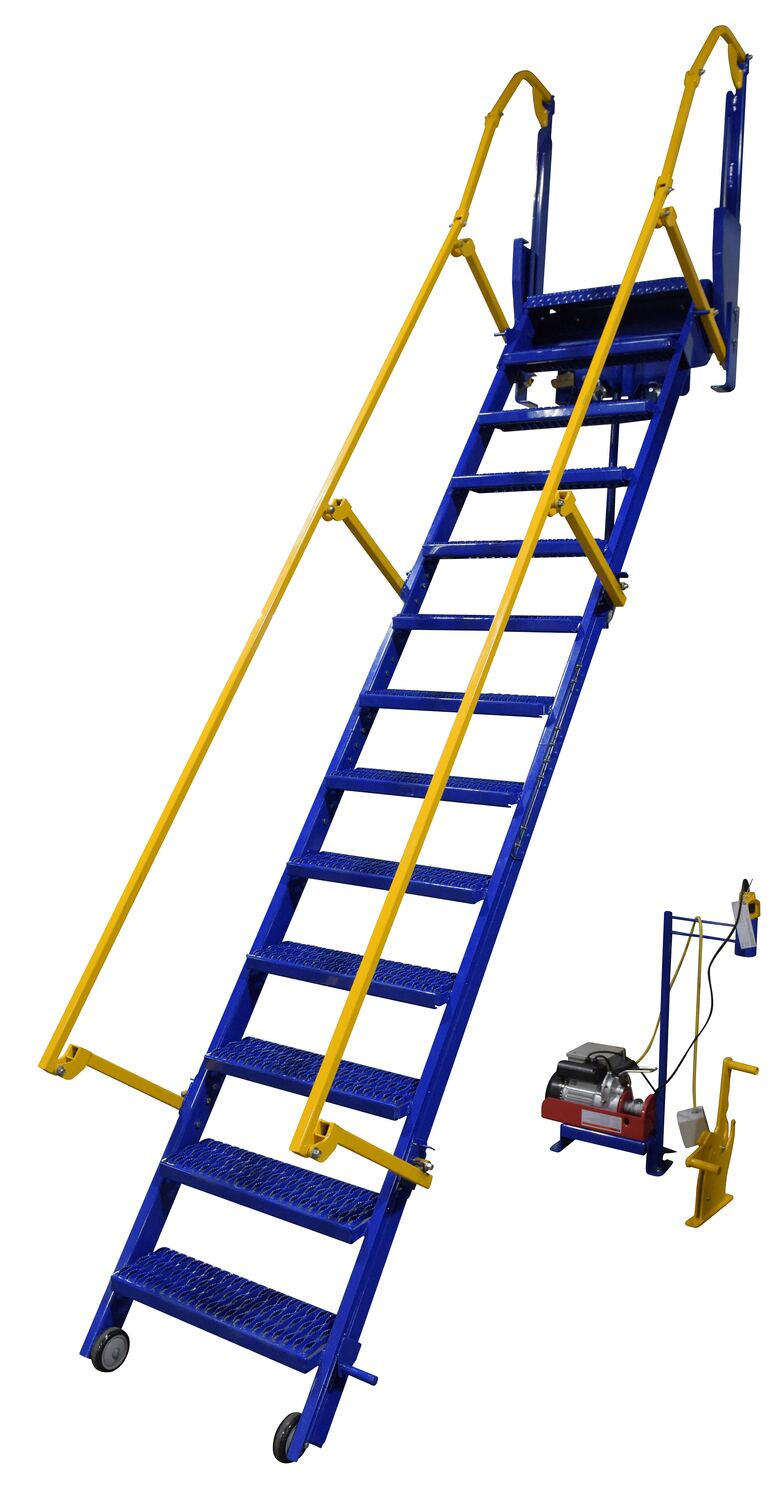

LAD-FM-120-PSO
LAD-FM-120-PSO1 Year Limited WarrantySteel Folding Mezzanine Ladder with 115V Power Storage 120 In. Mezzanine Height 23-5/8 In. Step Width 350 Lb. Capacity BlueBase Length (in): 82.75
Base Width (in): 32.25
514

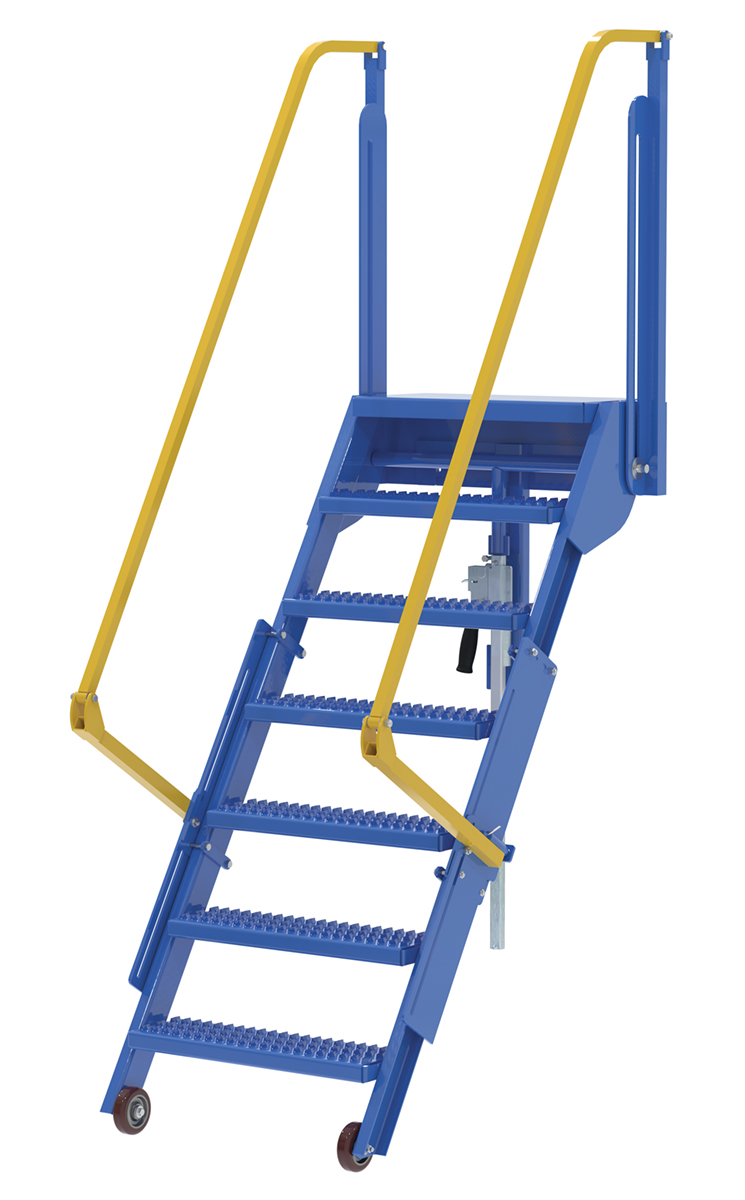

LAD-FM-60
LAD-FM-601 Year Limited WarrantySteel Folding Mezzanine Ladder 60 In. Mezzanine Height 24-1/4 In. Step Width 350 Lb. Capacity BlueUniform Capacity (lb.): 350
Incline Angle (degree): 58
274

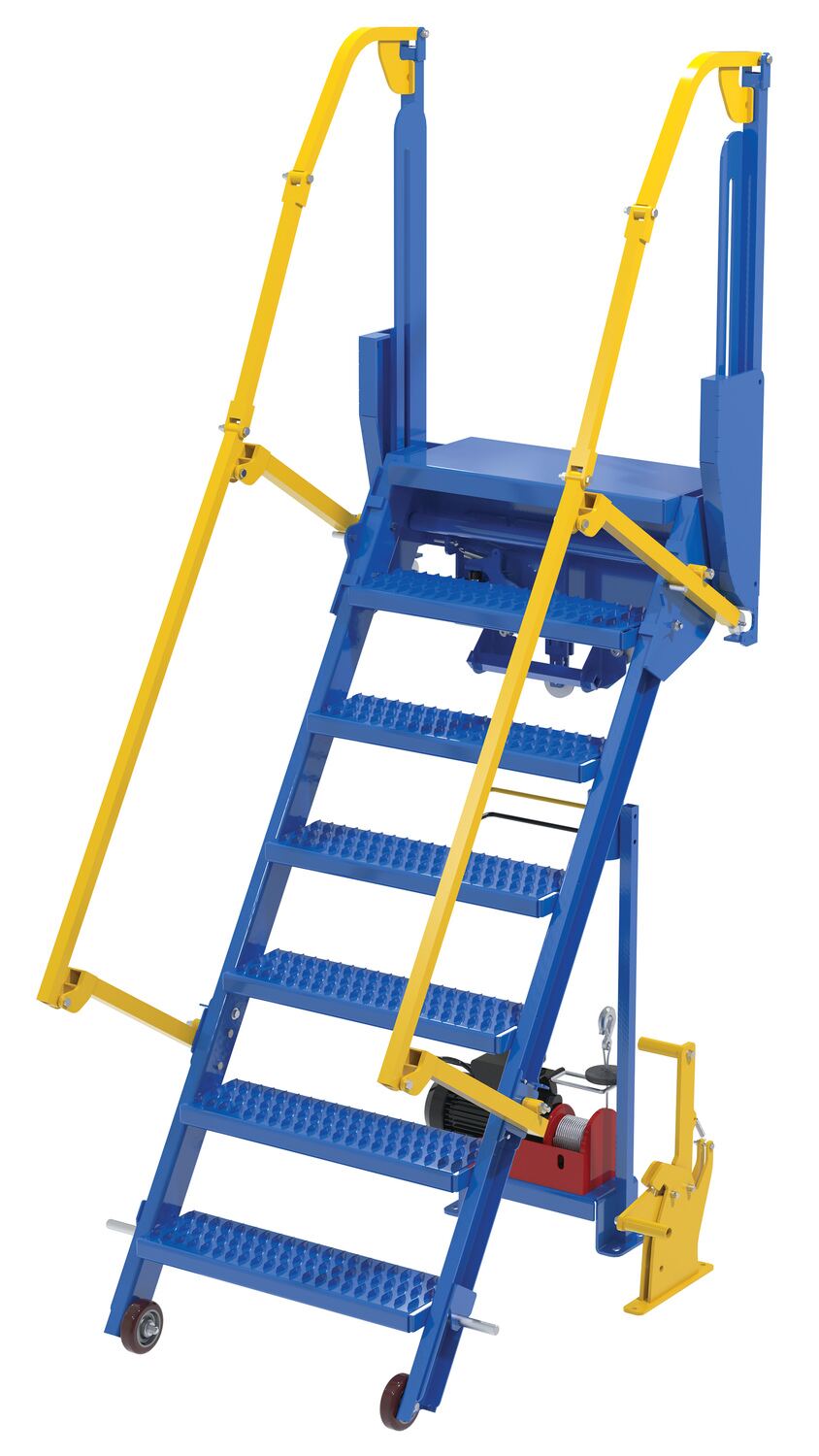

LAD-FM-60-PSO
LAD-FM-60-PSO1 Year Limited WarrantySteel Folding Mezzanine Ladder with 115V Power Storage 60 In. Mezzanine Height 23-5/8 In. Step Width 350 Lb. Capacity BlueBase Length (in: 46.0625
Base Width (in): 32.25
374

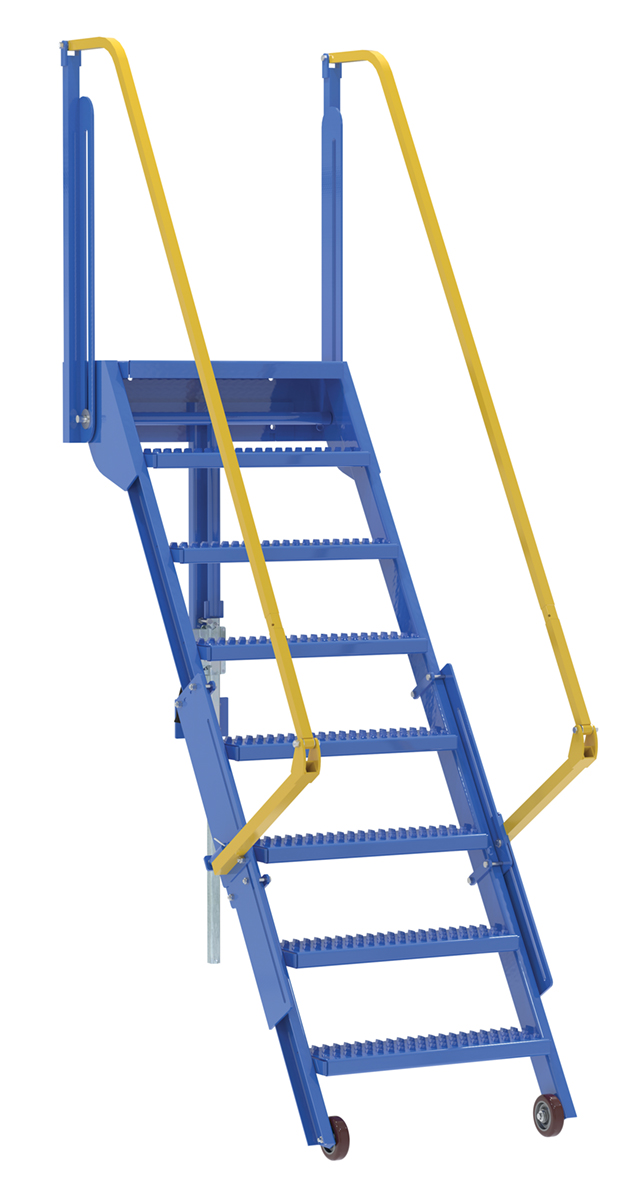

LAD-FM-72
LAD-FM-721 Year Limited WarrantySteel Folding Mezzanine Ladder 72 In. Mezzanine Height 24-1/4 In. Step Width 350 Lb. Capacity BlueUniform Capacity (lb.): 350
Incline Angle (degree): 58
282

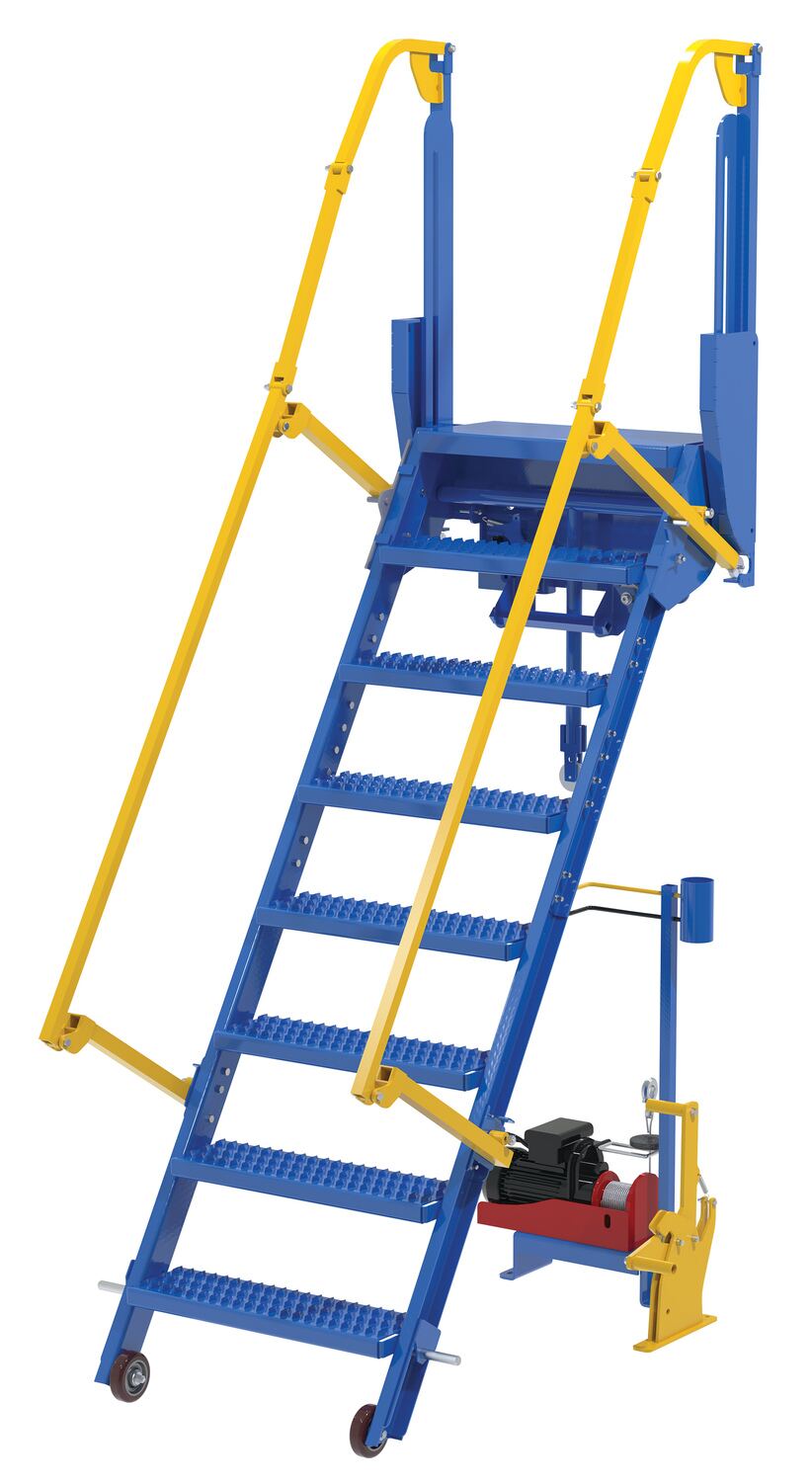

LAD-FM-72-PSO
LAD-FM-72-PSO1 Year Limited WarrantySteel Folding Mezzanine Ladder with 115V Power Storage 72 In. Mezzanine Height 23-5/8 In. Step Width 350 Lb. Capacity BlueBase Length (in): 53.25
Base Width (in): 32.25
398

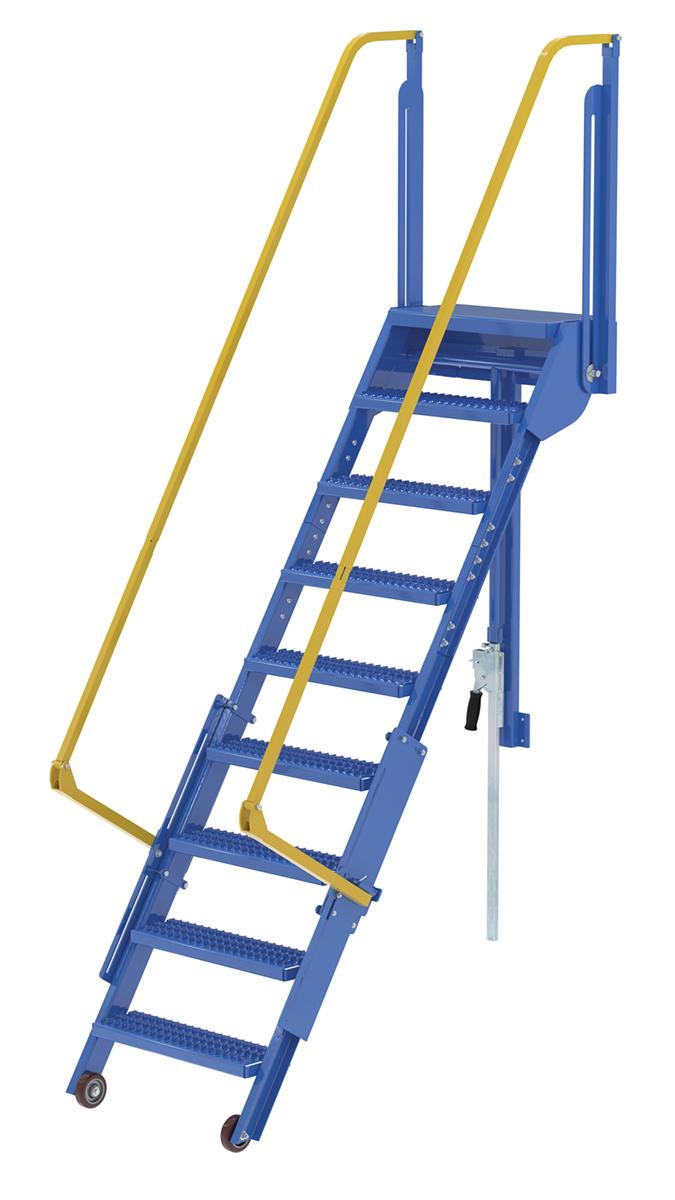

LAD-FM-84
LAD-FM-841 Year Limited WarrantySteel Folding Mezzanine Ladder 84 In. Mezzanine Height 24-1/4 In. Step Width 350 Lb. Capacity BlueUniform Capacity (lb.): 350
Incline Angle (degree): 58
360

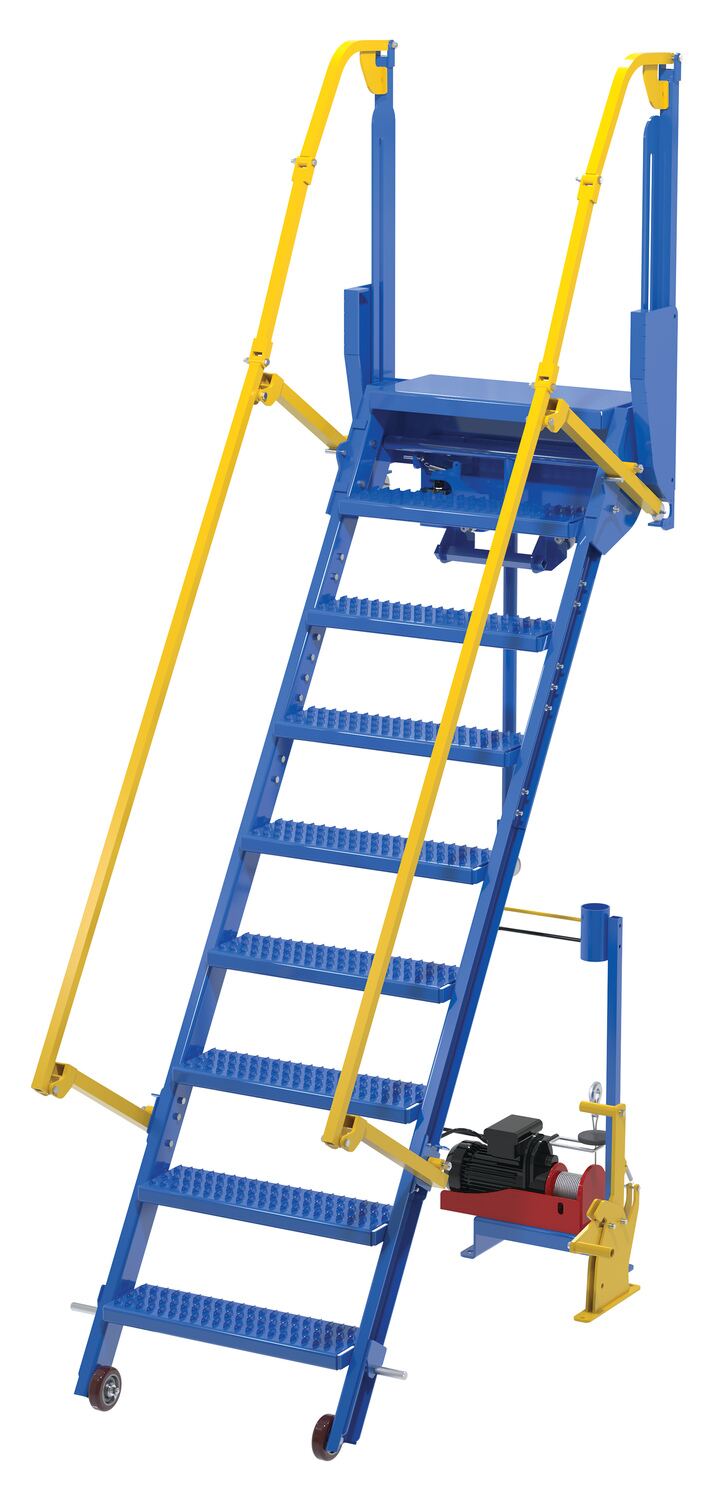

LAD-FM-84-PSO
LAD-FM-84-PSO1 Year Limited WarrantySteel Folding Mezzanine Ladder with 115V Power Storage 84 In. Mezzanine Height 23-5/8 In. Step Width 350 Lb. Capacity BlueBase Length (in): 60.25
Base Width (in): 32.25
434

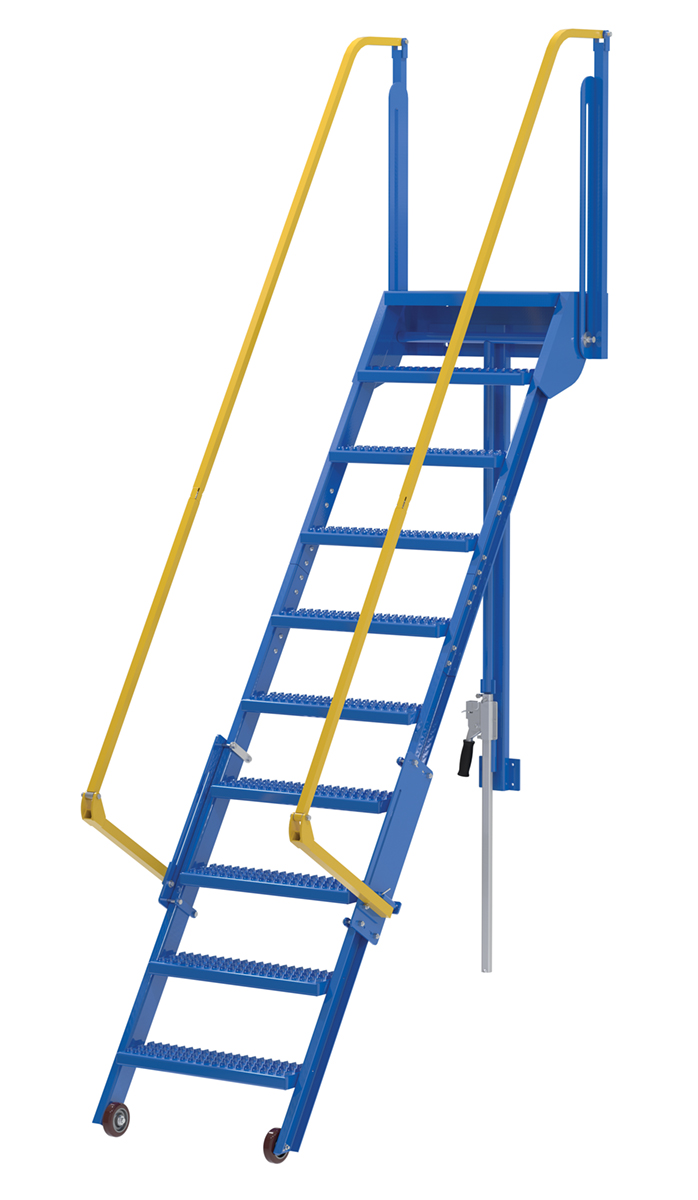

LAD-FM-96
LAD-FM-961 Year Limited WarrantySteel Folding Mezzanine Ladder 96 In. Mezzanine Height 24-1/4 In. Step Width 350 Lb. Capacity BlueUniform Capacity (lb.): 350
Incline Angle (degree): 58
365

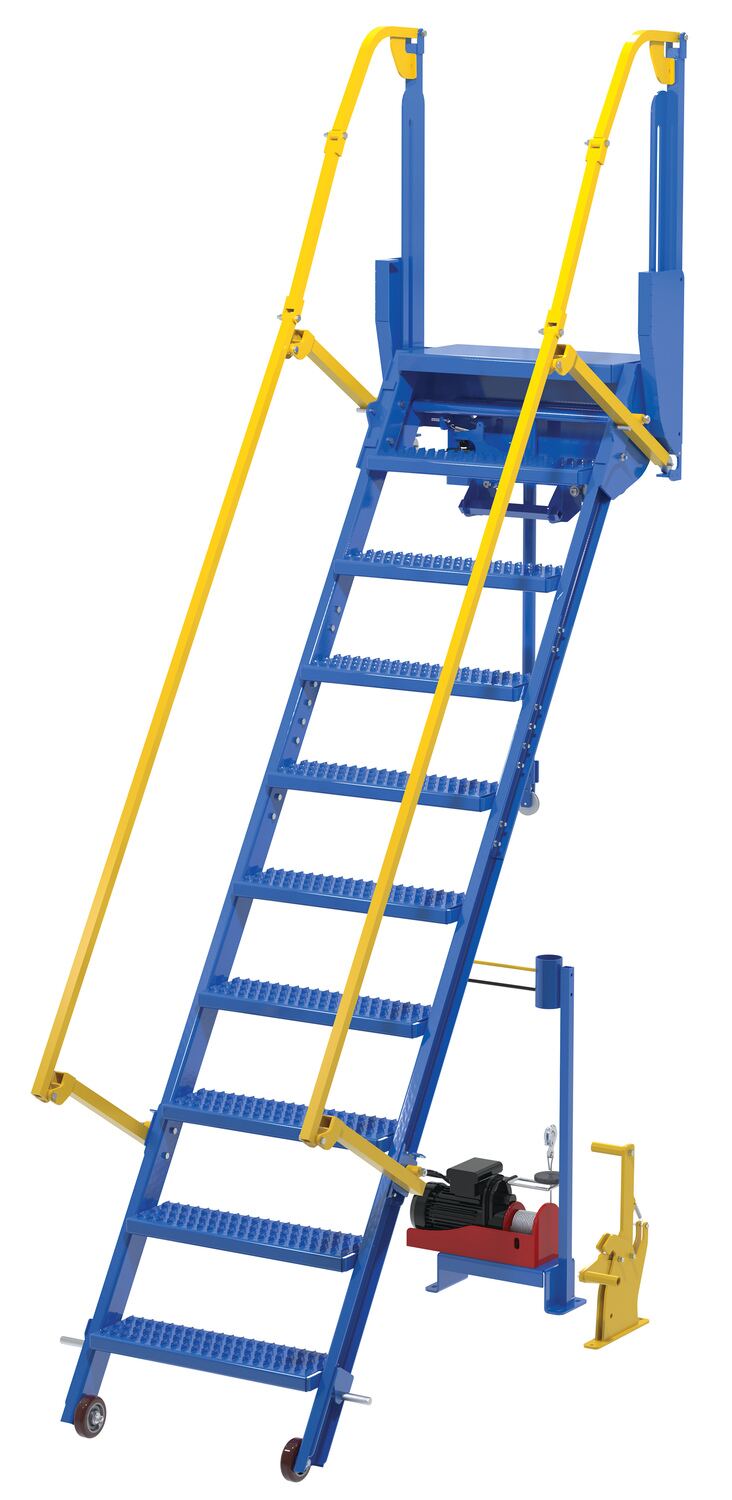

LAD-FM-96-PSO
LAD-FM-96-PSO1 Year Limited WarrantySteel Folding Mezzanine Ladder with 115V Power Storage 96 In. Mezzanine Height 23-5/8 In. Step Width 350 Lb. Capacity BlueBase Length (in): 67.75
Base Width (in): 32.25
465

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

LAD-FM-108
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Incline Angle (degree): 58
Uniform Capacity (lb.): 350
Incline Angle (degree): 58

LAD-FM-108-PSO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Base Length (in): 75.25
Base Width (in): 32.25
Base Length (in): 75.25
Base Width (in): 32.25

LAD-FM-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Incline Angle (degree): 58
Uniform Capacity (lb.): 350
Incline Angle (degree): 58

LAD-FM-120-PSO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Base Length (in): 82.75
Base Width (in): 32.25
Base Length (in): 82.75
Base Width (in): 32.25

LAD-FM-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Incline Angle (degree): 58
Uniform Capacity (lb.): 350
Incline Angle (degree): 58

LAD-FM-60-PSO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Base Length (in: 46.0625
Base Width (in): 32.25
Base Length (in: 46.0625
Base Width (in): 32.25

LAD-FM-72
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Incline Angle (degree): 58
Uniform Capacity (lb.): 350
Incline Angle (degree): 58

LAD-FM-72-PSO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Base Length (in): 53.25
Base Width (in): 32.25
Base Length (in): 53.25
Base Width (in): 32.25

LAD-FM-84
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Incline Angle (degree): 58
Uniform Capacity (lb.): 350
Incline Angle (degree): 58

LAD-FM-84-PSO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Base Length (in): 60.25
Base Width (in): 32.25
Base Length (in): 60.25
Base Width (in): 32.25

LAD-FM-96
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Incline Angle (degree): 58
Uniform Capacity (lb.): 350
Incline Angle (degree): 58

LAD-FM-96-PSO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Base Length (in): 67.75
Base Width (in): 32.25
Base Length (in): 67.75
Base Width (in): 32.25

Mezzanine Ladders (face mounted/retractable) PDF's will open in a new window when clicked.

Manuals


Survey Sheets


Approval Drawings

Testing Certificates


LAD-FM-108

LAD-FM-108-PSO

LAD-FM-120

LAD-FM-120-PSO

LAD-FM-60

LAD-FM-60-PSO

LAD-FM-72

LAD-FM-72-PSO

LAD-FM-84

LAD-FM-84-PSO

LAD-FM-96

LAD-FM-96-PSO

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products


Q: What material are the wheels on the ladder made of and what diameter?

A: The 4 x 1-1/4" wheels are poly on poly.


Q: Can the LAD-FM series be converted in the field to a powered LAD-FM-PSO?

A: No, you cannot purchase or retrofit the LAD-FM series to be powered.
