Product Family Overview


Multi-Purpose Drum Trucks/Cradles
SERIES: RDBT

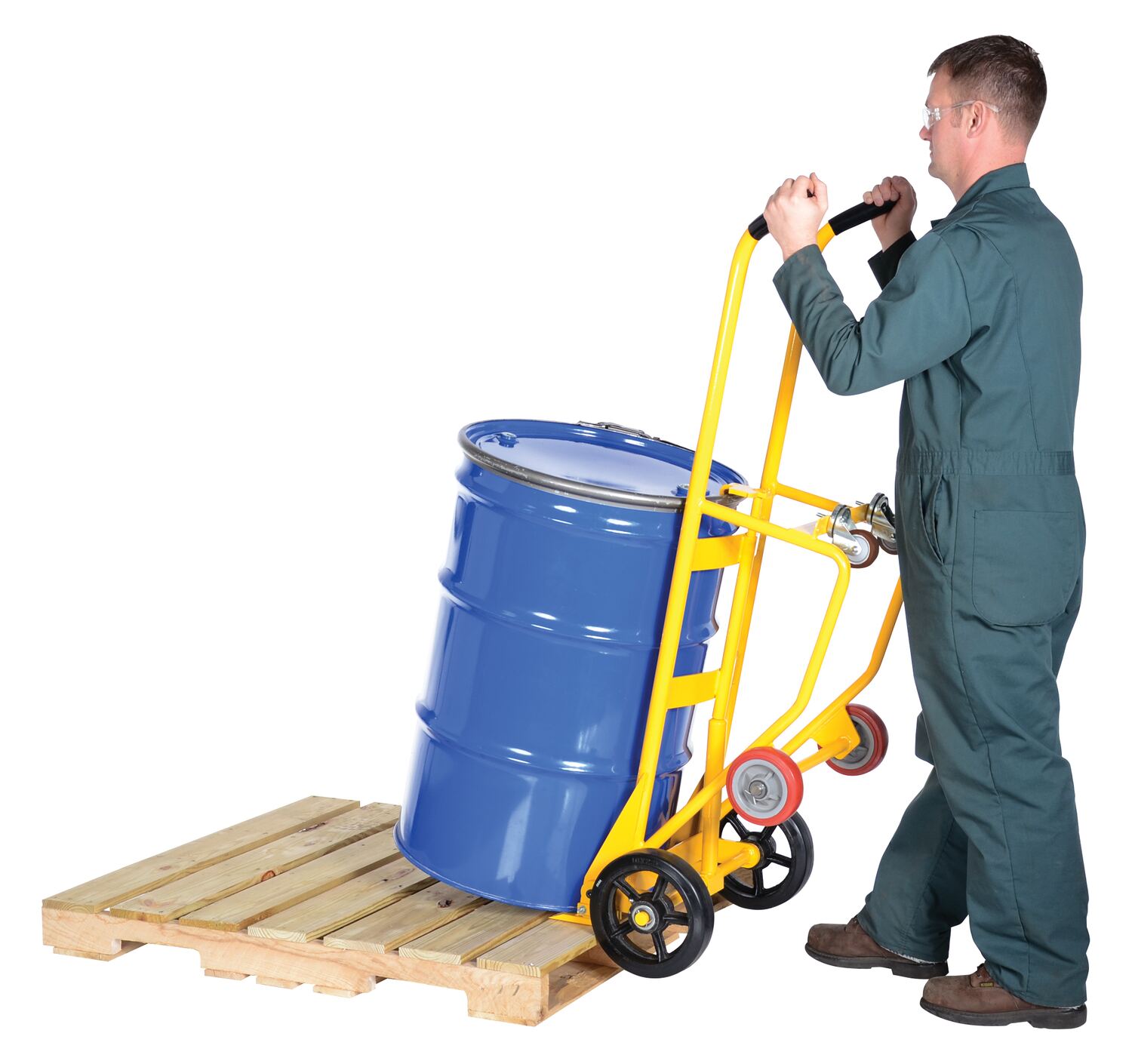

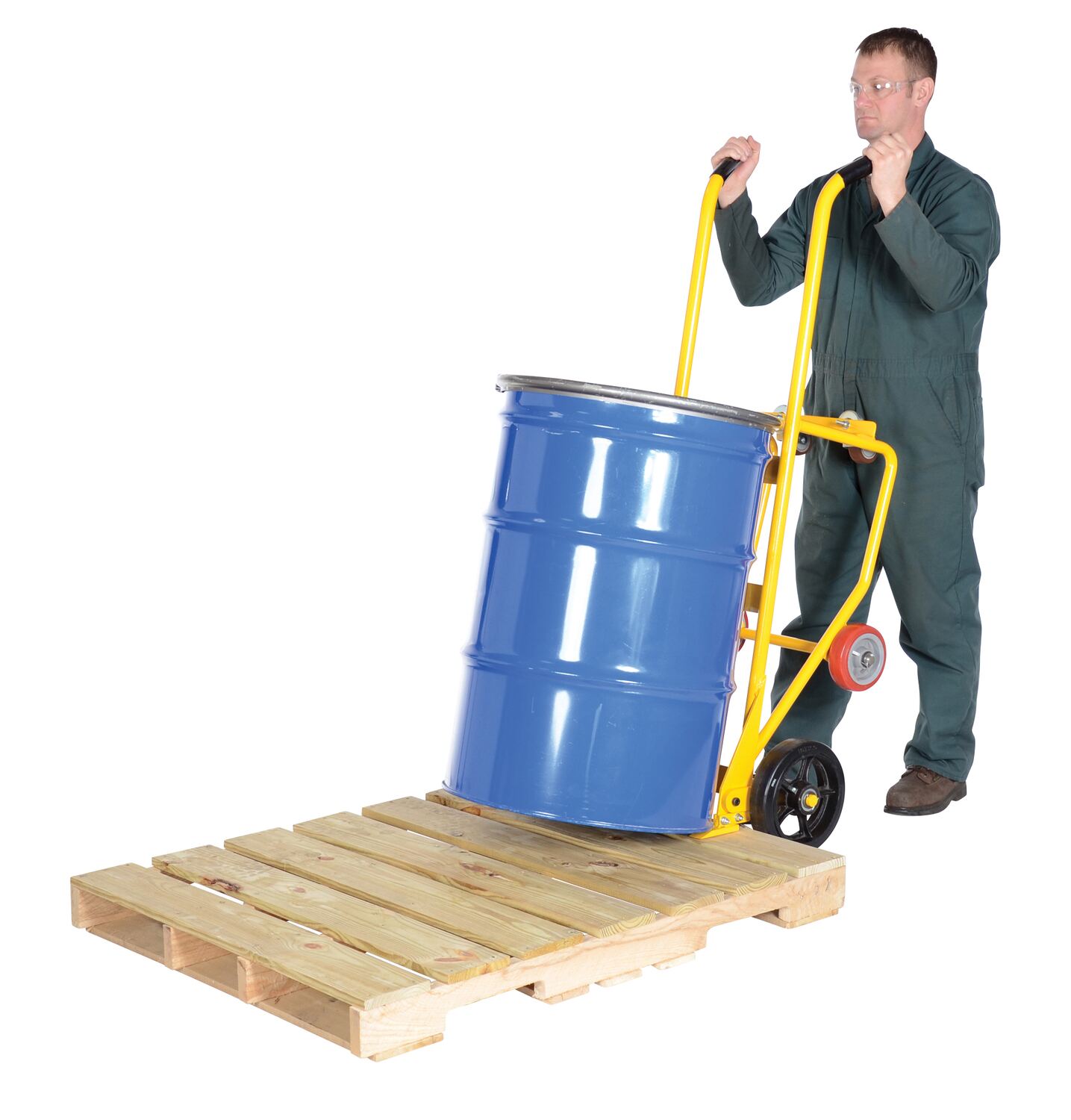

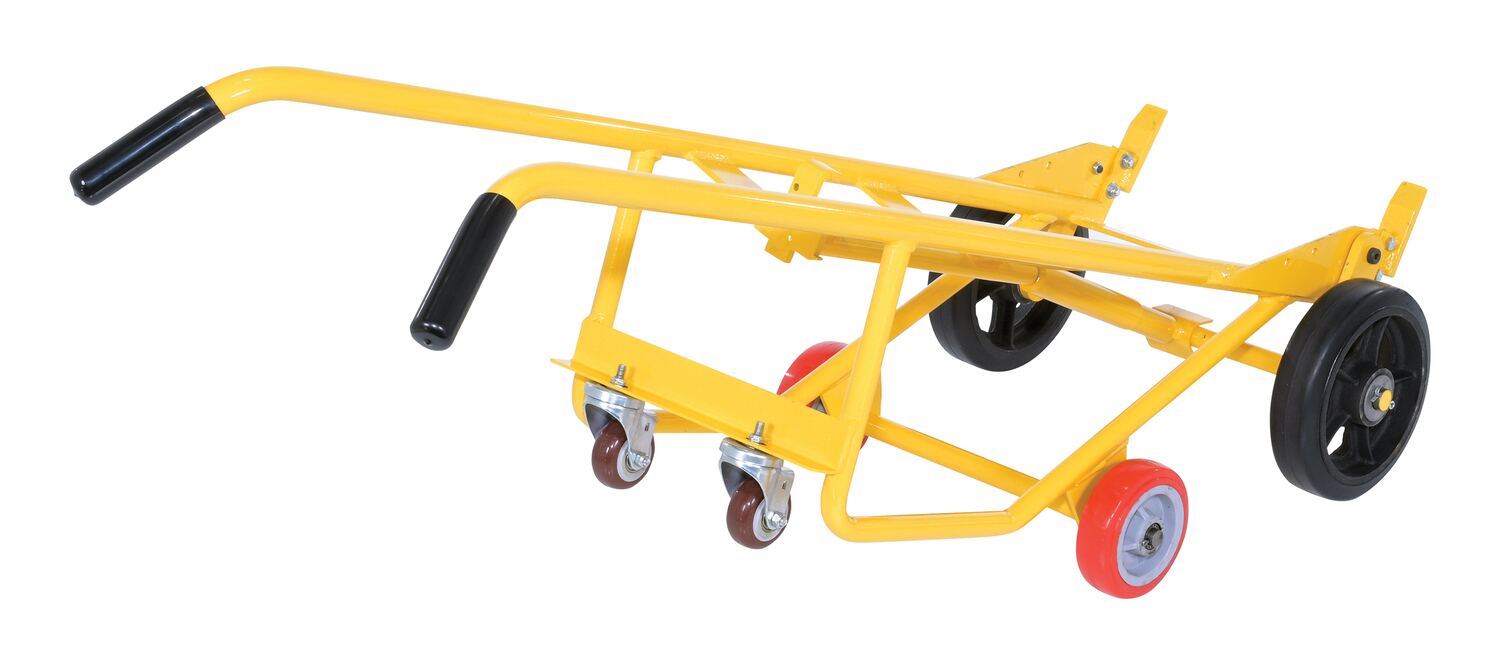

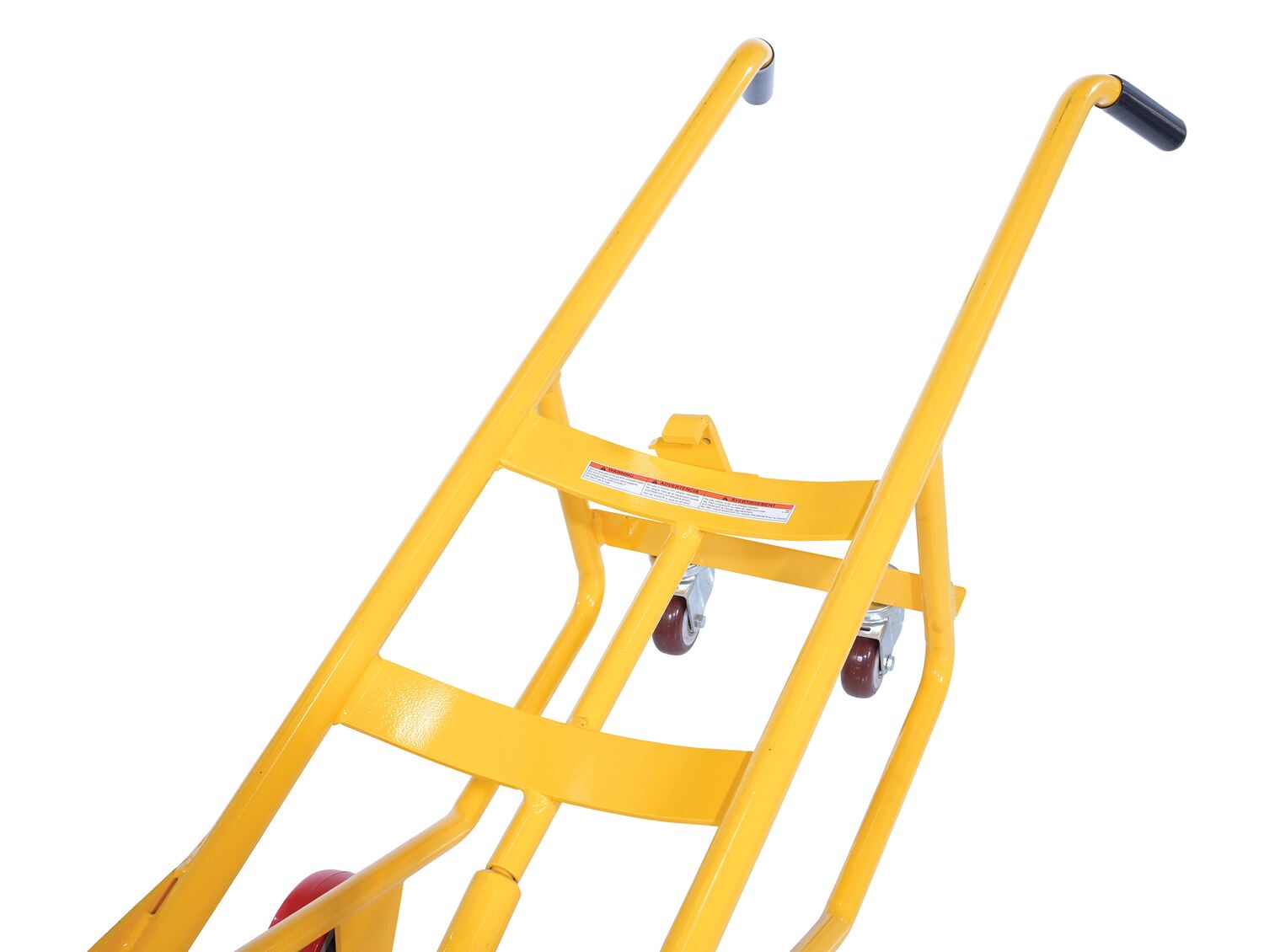

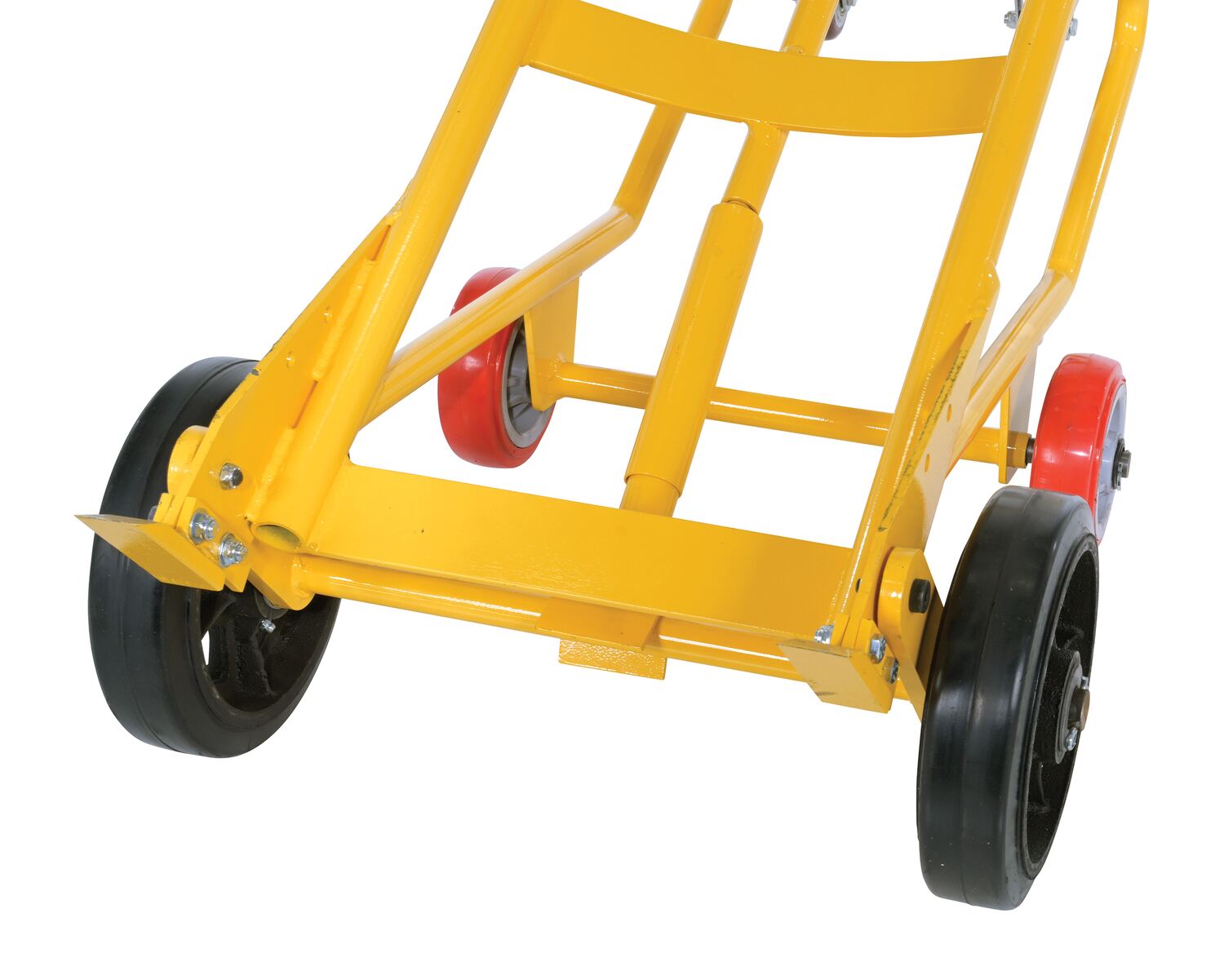

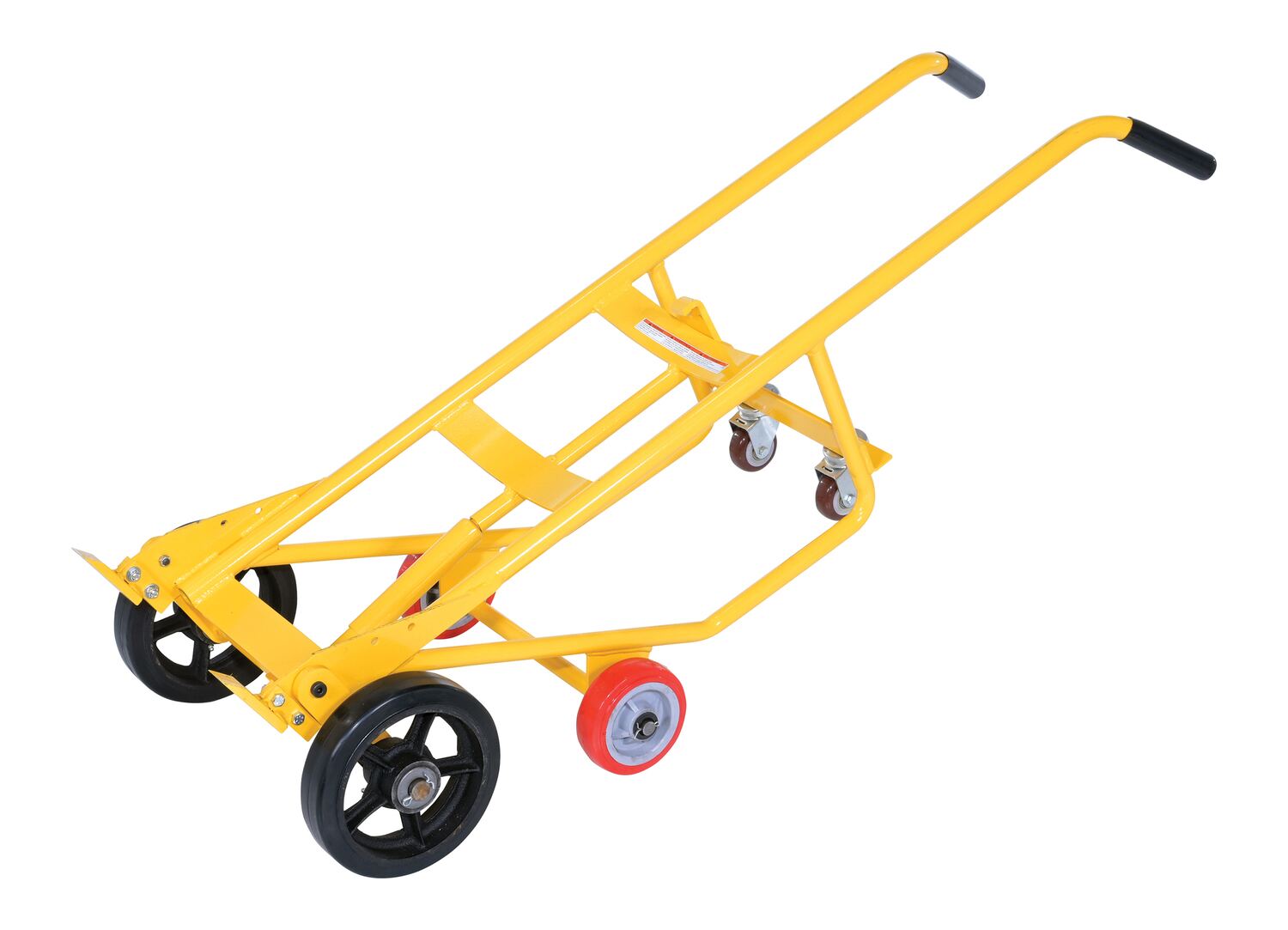

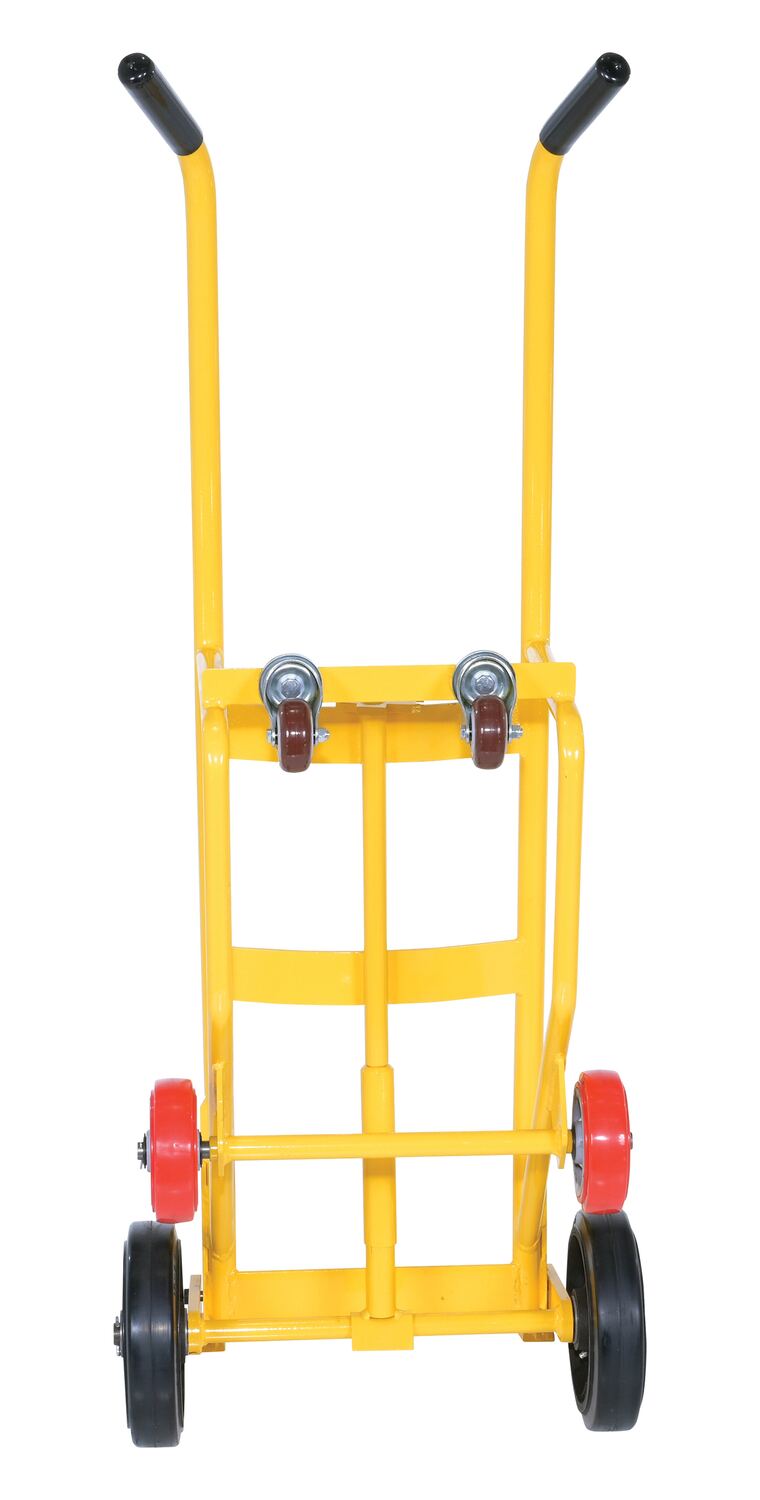

One of the most versatile drum trucks in the industry. This innovative product allows the operator to easily tip back the truck in order to transport drums ergonomically on four wheels. Unit doubles as a drum cradle for storage and dispensing all in one. Top angle is 3 degrees when used as a Drum Cradle. This unique design also allows the operator to place drums and retrieve off of a pallet. Accommodates 55-gallon steel, plastic, or fiber drums. Rolls smoothly on a variety of (2) 10" x 2-1/2" wheel types (see table below), (2) 6" x 2" poly-on-poly wheels, and (2) 3" x 1-1/4" poly-on-poly swivel casters. Standard with a wheeled undercarriage that positions the drum horizontally for drainage or storage. The drain height is 12-13/16" high in the cradle position. An integral self-storing bung wrench is standard. This attractive feature not only opens numerous drums, but helps to keep the drum snug on the truck. A yellow baked in powder coat finish for added toughness. Optional drip pan available.

  • Extended height handle for better posture

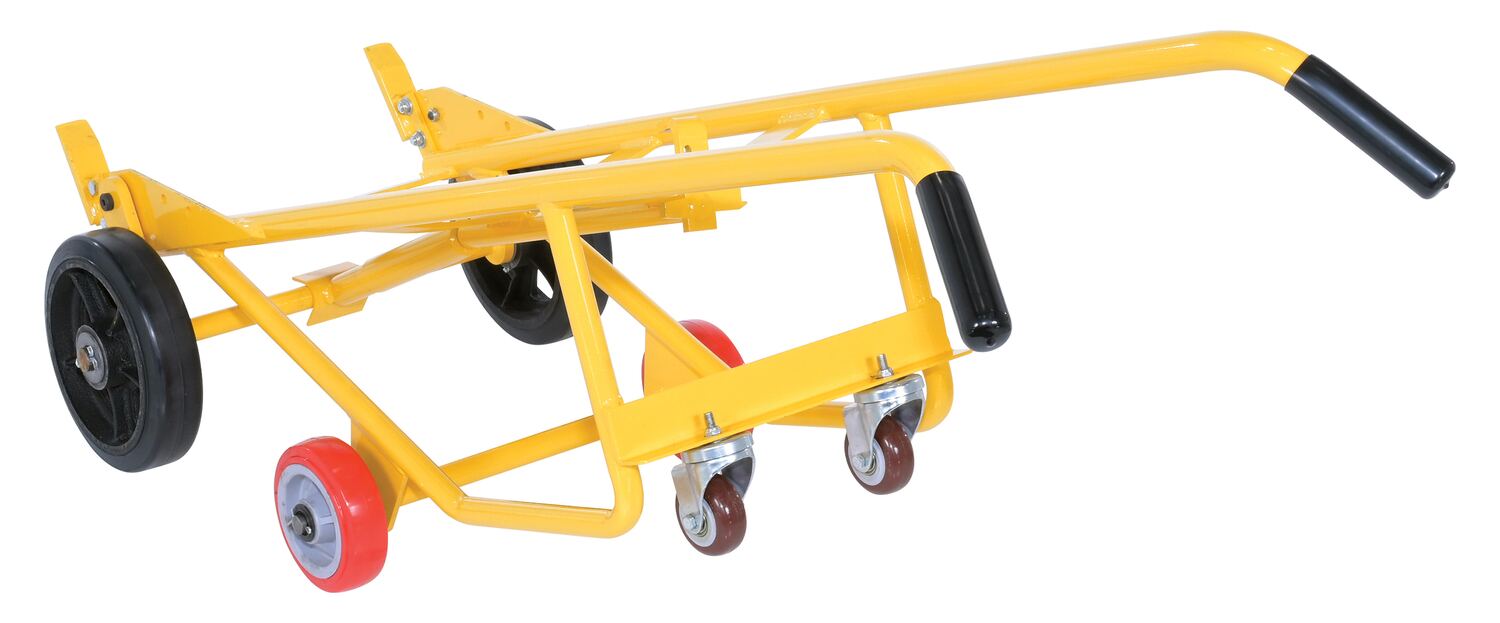

  • Rolling casters when in horizontal position
  • Extended foot and top security points
  • Ability to transfer a variety of drum materials

One of the most versatile drum trucks in the industry. This innovative product allows the operator to easily tip back the truck in order to transport drums ergonomically on four wheels. Unit doubles as a drum cradle for storage and dispensing all in one. Top angle is 3 degrees when used as a Drum Cradle. This unique design also allows the operator to place drums and retrieve off of a pallet. Accommodates 55-gallon steel, plastic, or fiber drums. Rolls smoothly on a variety of (2) 10" x 2-1/2" wheel types (see table below), (2) 6" x 2" poly-on-poly wheels, and (2) 3" x 1-1/4" poly-on-poly swivel casters. Standard with a wheeled undercarriage that positions the drum horizontally for drainage or storage. The drain height is 12-13/16" high in the cradle position. An integral self-storing bung wrench is standard. This attractive feature not only opens numerous drums, but helps to keep the drum snug on the truck. A yellow baked in powder coat finish for added toughness. Optional drip pan available.

  • Extended height handle for better posture
  • Rolling casters when in horizontal position
  • Extended foot and top security points
  • Ability to transfer a variety of drum materials

Additional Models In This Family

RDBT-PO

model RDBT-PO

RDBT-SS

model RDBT-SS

RDBT-PAN

model RDBT-PAN

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

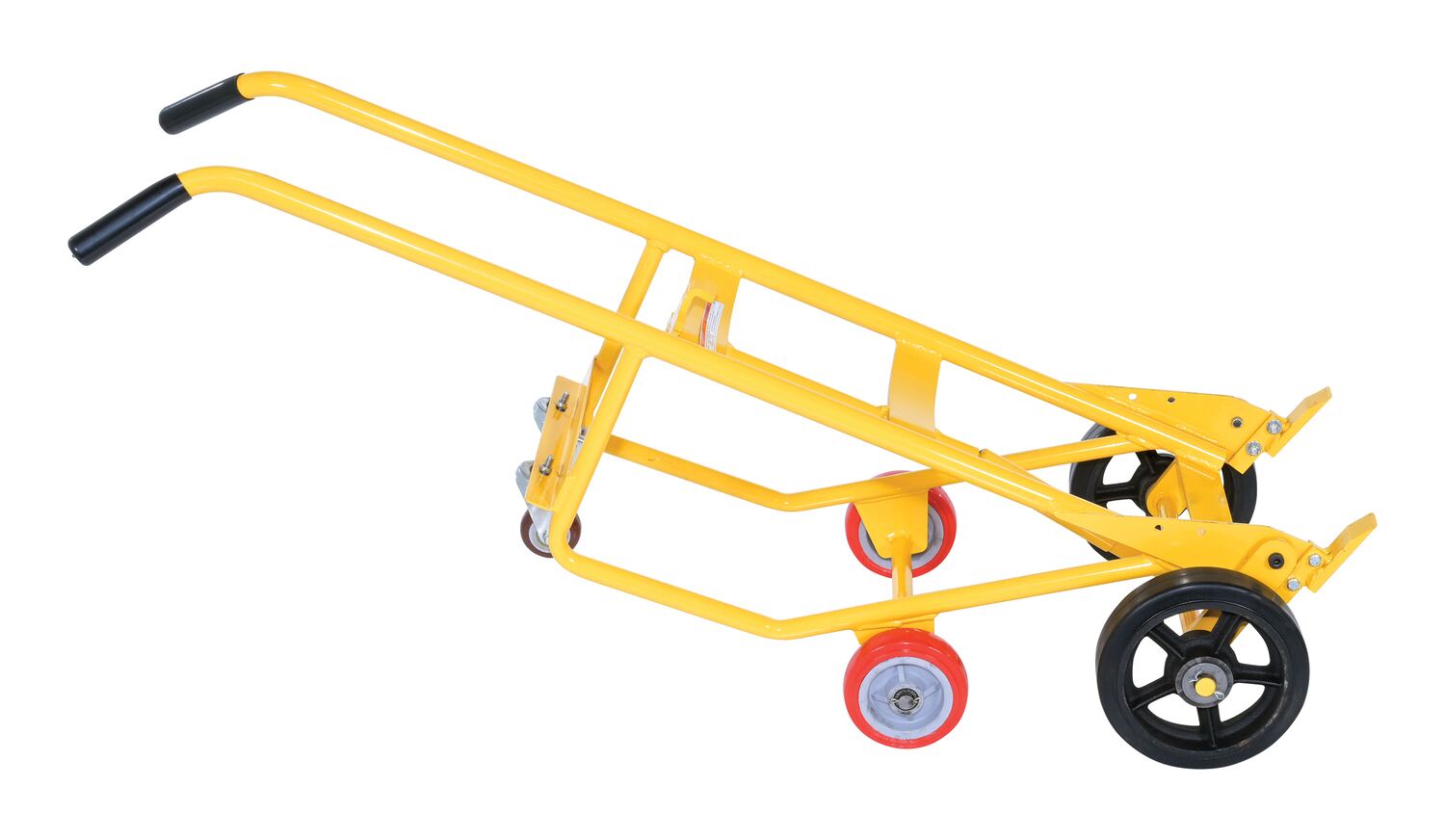

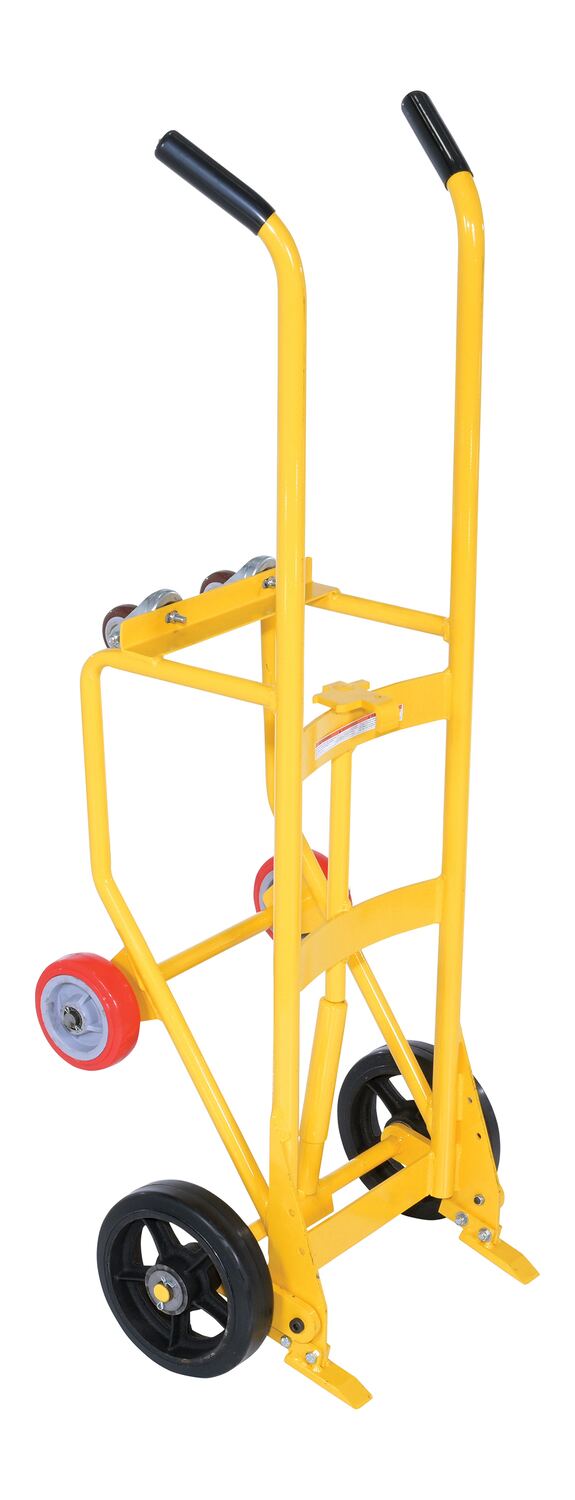

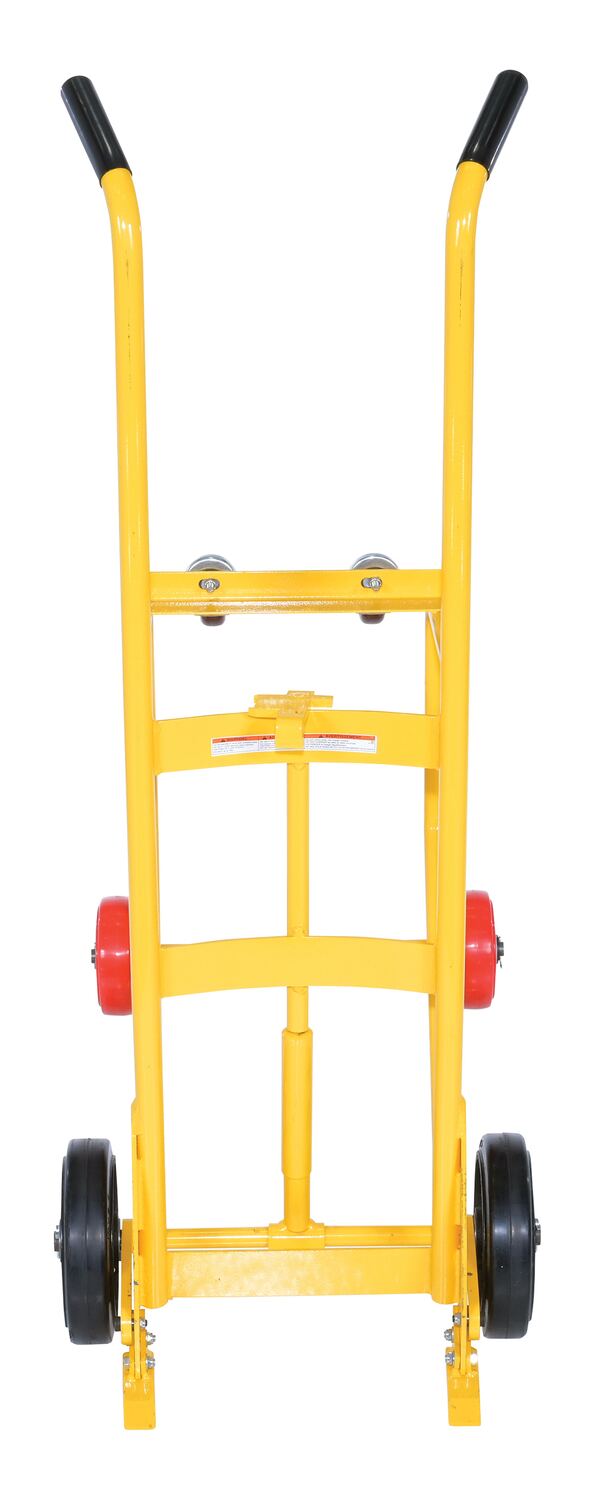

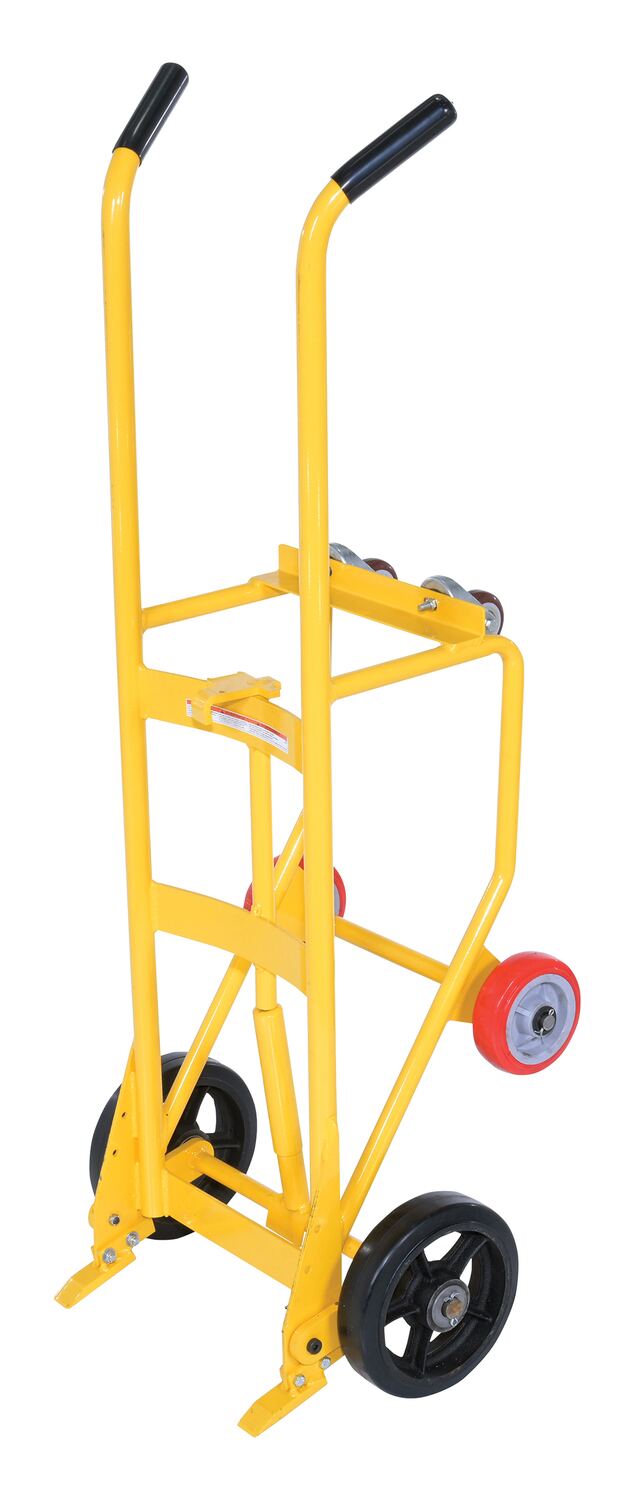

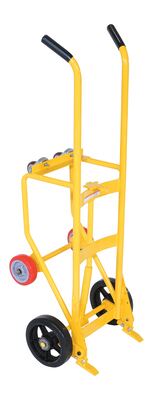

RDBT-MR RDBT-MR90 Days Limited WarrantySteel Drum Truck Cradle With Mold On Rubber Wheel 20-1/16 In. x 23-11/16 In. x 60-5/8 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1,000

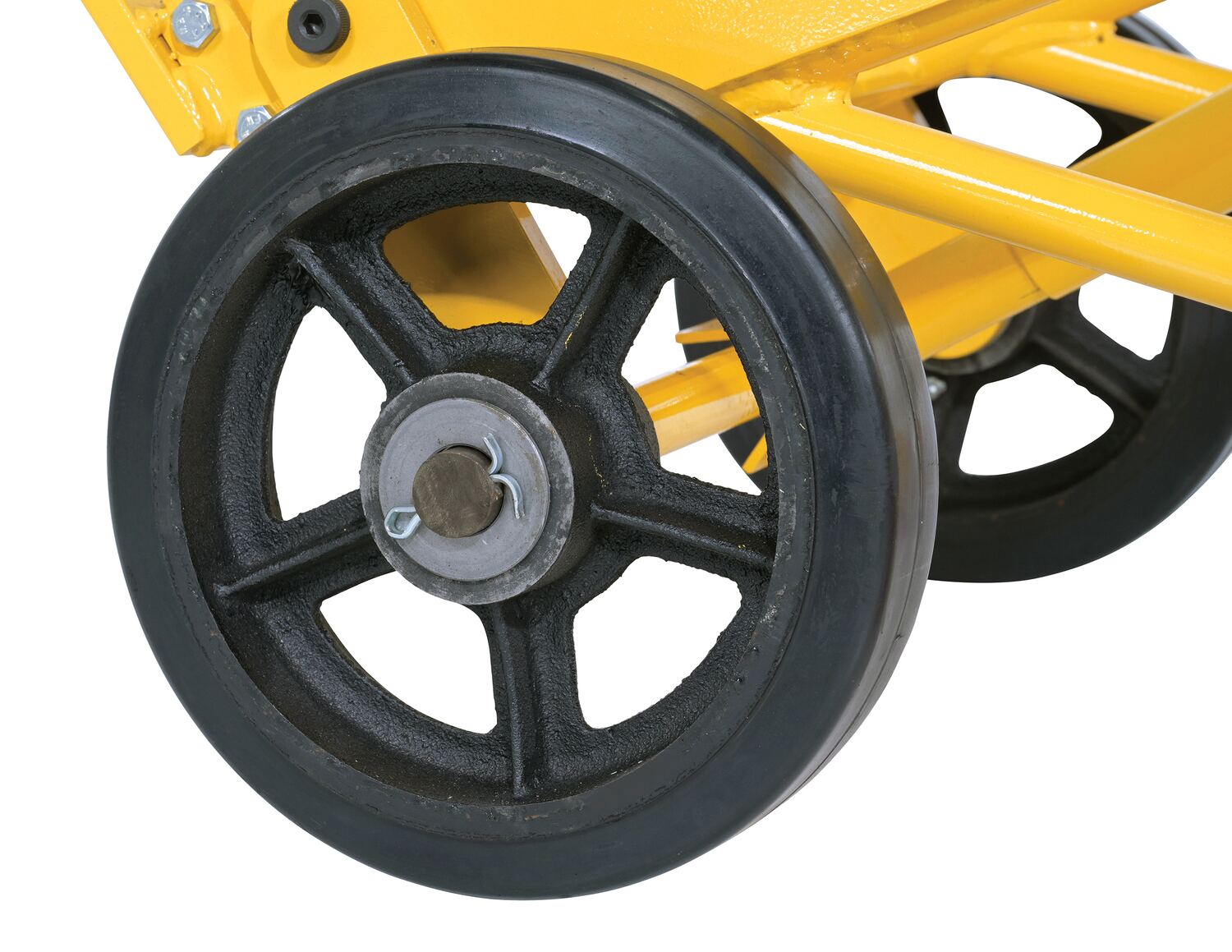

Mold-on-Rubber Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2
124

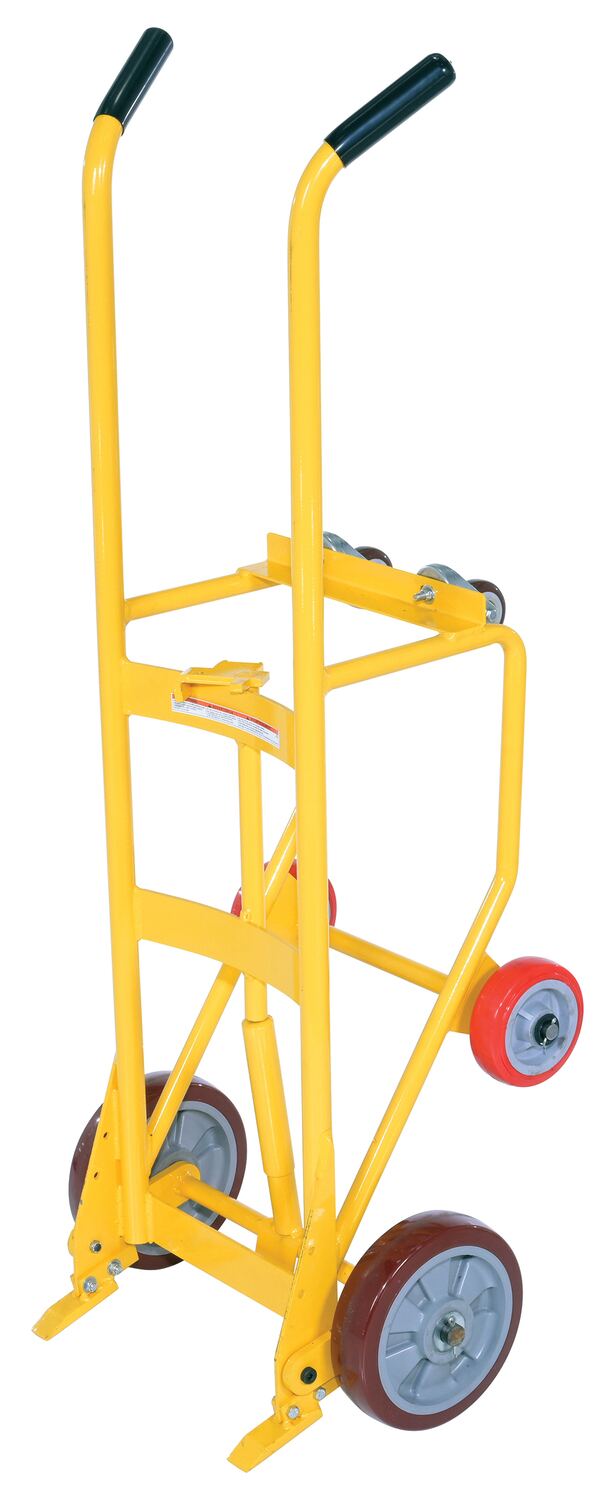

RDBT-PO RDBT-PO90 Days Limited WarrantySteel Drum Truck Cradle With Poly On Poly 20-1/16 In. x 23-11/16 In. x 60-5/8 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1,000
Poly on Poly: (2) 10 x 2-1/2
124

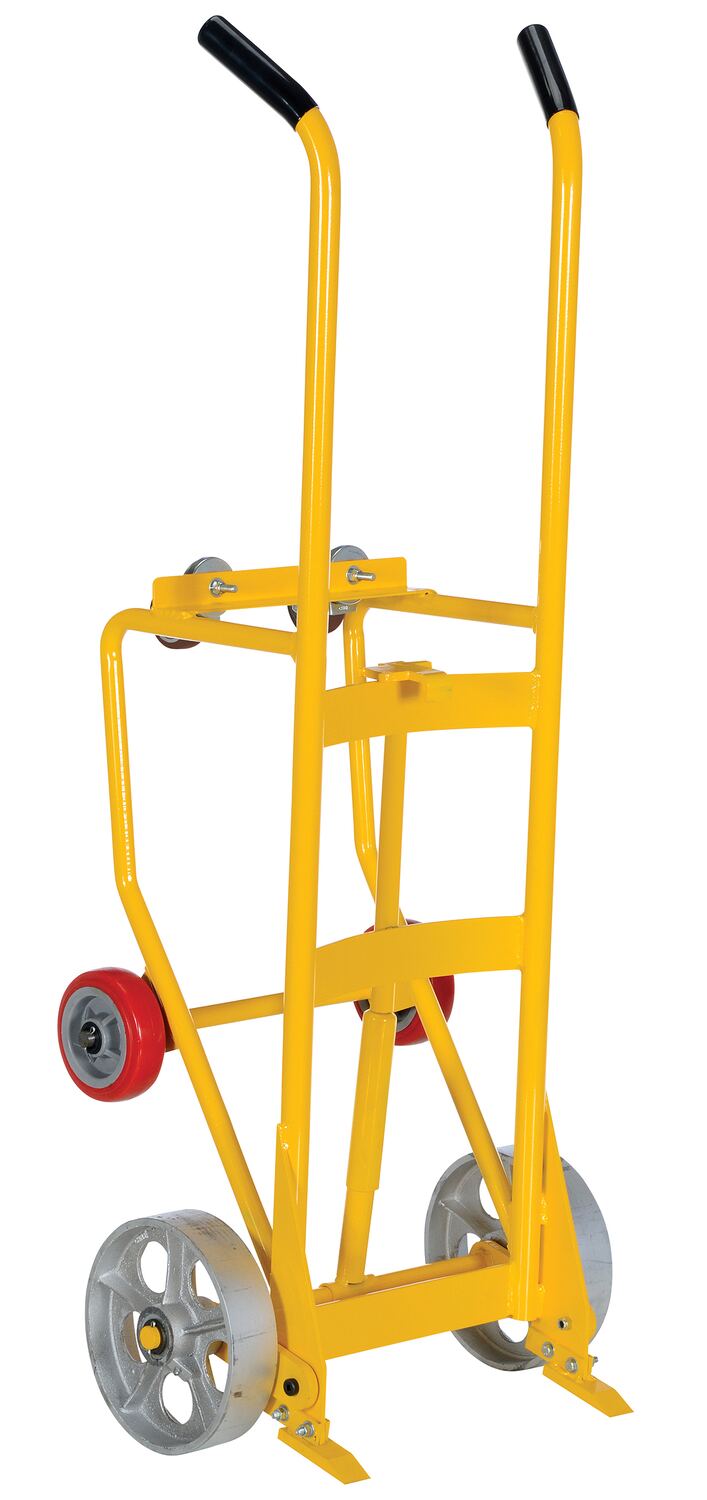

RDBT-SS RDBT-SS90 Days Limited WarrantySteel Drum Truck Cradle With Semi-Steel Wheels 20-1/16 In. x 23-11/16 In. x 60-5/8 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1,000
Semi-Steel Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2
134

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

RDBT-MR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Mold-on-Rubber Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2
Uniform Capacity (lb.): 1,000
Mold-on-Rubber Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2

RDBT-PO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Poly on Poly: (2) 10 x 2-1/2
Uniform Capacity (lb.): 1,000
Poly on Poly: (2) 10 x 2-1/2

RDBT-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Semi-Steel Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2
Uniform Capacity (lb.): 1,000
Semi-Steel Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2
For More Details of the Option Click the Red Model Button

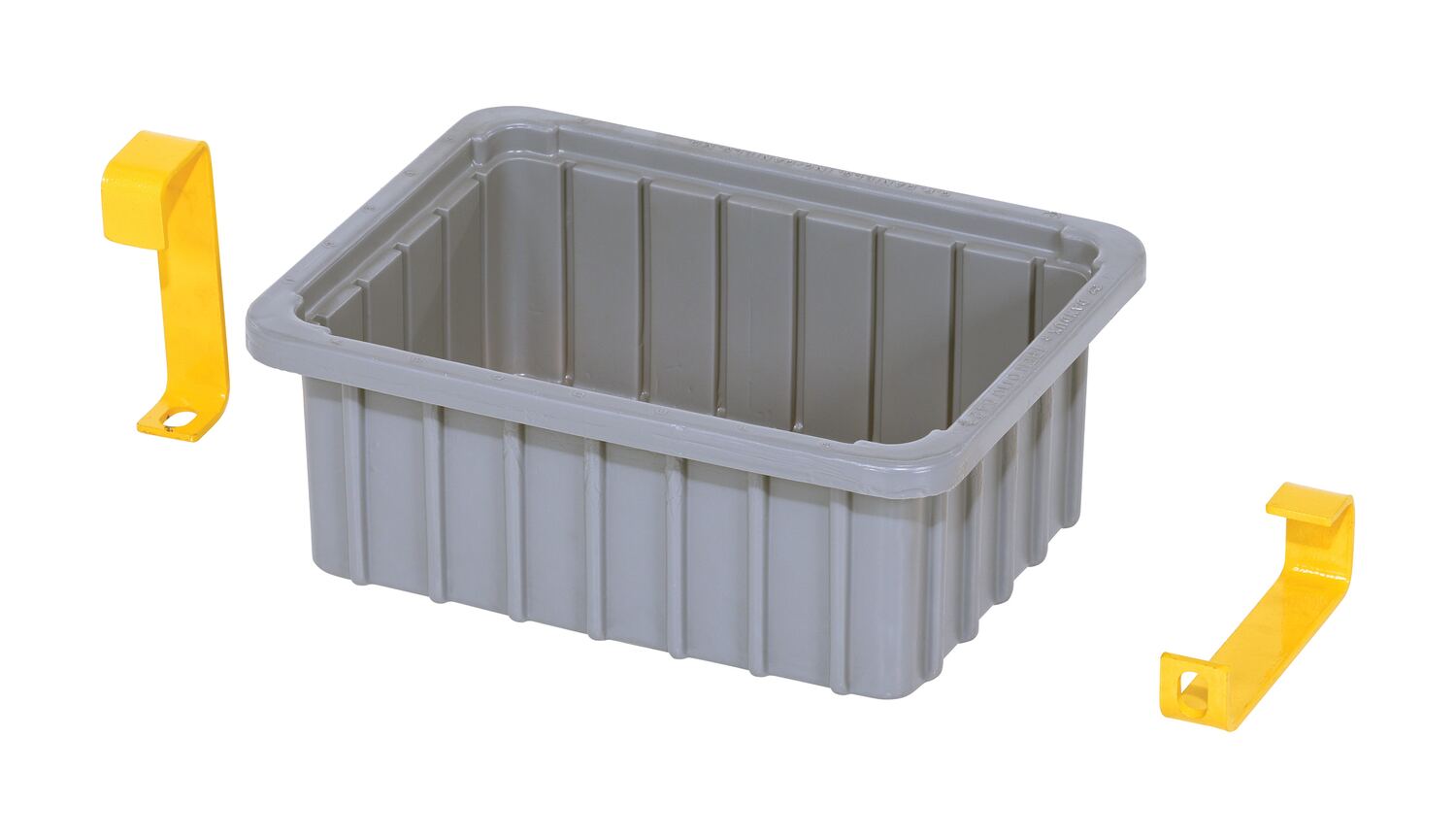

RDBT-PAN RDBT-PAN30 Days Limited WarrantyPlastic Drip Pan With Brackets For Multi-Purpose Drum Truck/Cradle GrayUniform Capacity (gal.): 1
Inside Length (in.): 6-1/2
3

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Multi-Purpose Drum Trucks/Cradles PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


RDBT-MR

RDBT-PAN

RDBT-PO

RDBT-SS

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Multi-Purpose Drum Trucks/Cradles




One of the most versatile drum trucks in the industry. This innovative product allows the operator to easily tip back the truck in order to transport drums ergonomically on four wheels. Unit doubles as a drum cradle for storage and dispensing all in one. Top angle is 3 degrees when used as a Drum Cradle. This unique design also allows the operator to place drums and retrieve off of a pallet. Accommodates 55-gallon steel, plastic, or fiber drums. Rolls smoothly on a variety of (2) 10" x 2-1/2" wheel types (see table below), (2) 6" x 2" poly-on-poly wheels, and (2) 3" x 1-1/4" poly-on-poly swivel casters. Standard with a wheeled undercarriage that positions the drum horizontally for drainage or storage. The drain height is 12-13/16" high in the cradle position. An integral self-storing bung wrench is standard. This attractive feature not only opens numerous drums, but helps to keep the drum snug on the truck. A yellow baked in powder coat finish for added toughness. Optional drip pan available.

  • Extended height handle for better posture
  • Rolling casters when in horizontal position
  • Extended foot and top security points
  • Ability to transfer a variety of drum materials


Model # Description Attributes Net Wt.
(lbs)
RDBT-MR RDBT-MRSteel Drum Truck Cradle With Mold On Rubber Wheel 20-1/16 In. x 23-11/16 In. x 60-5/8 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1,000
Mold-on-Rubber Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2
124
RDBT-PO RDBT-POSteel Drum Truck Cradle With Poly On Poly 20-1/16 In. x 23-11/16 In. x 60-5/8 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1,000
Poly on Poly: (2) 10 x 2-1/2
124
RDBT-SS RDBT-SSSteel Drum Truck Cradle With Semi-Steel Wheels 20-1/16 In. x 23-11/16 In. x 60-5/8 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1,000
Semi-Steel Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2
134

Options


.
