Model Details

EHLTTS-3654-2-48

EHLTTS-3654-2-48

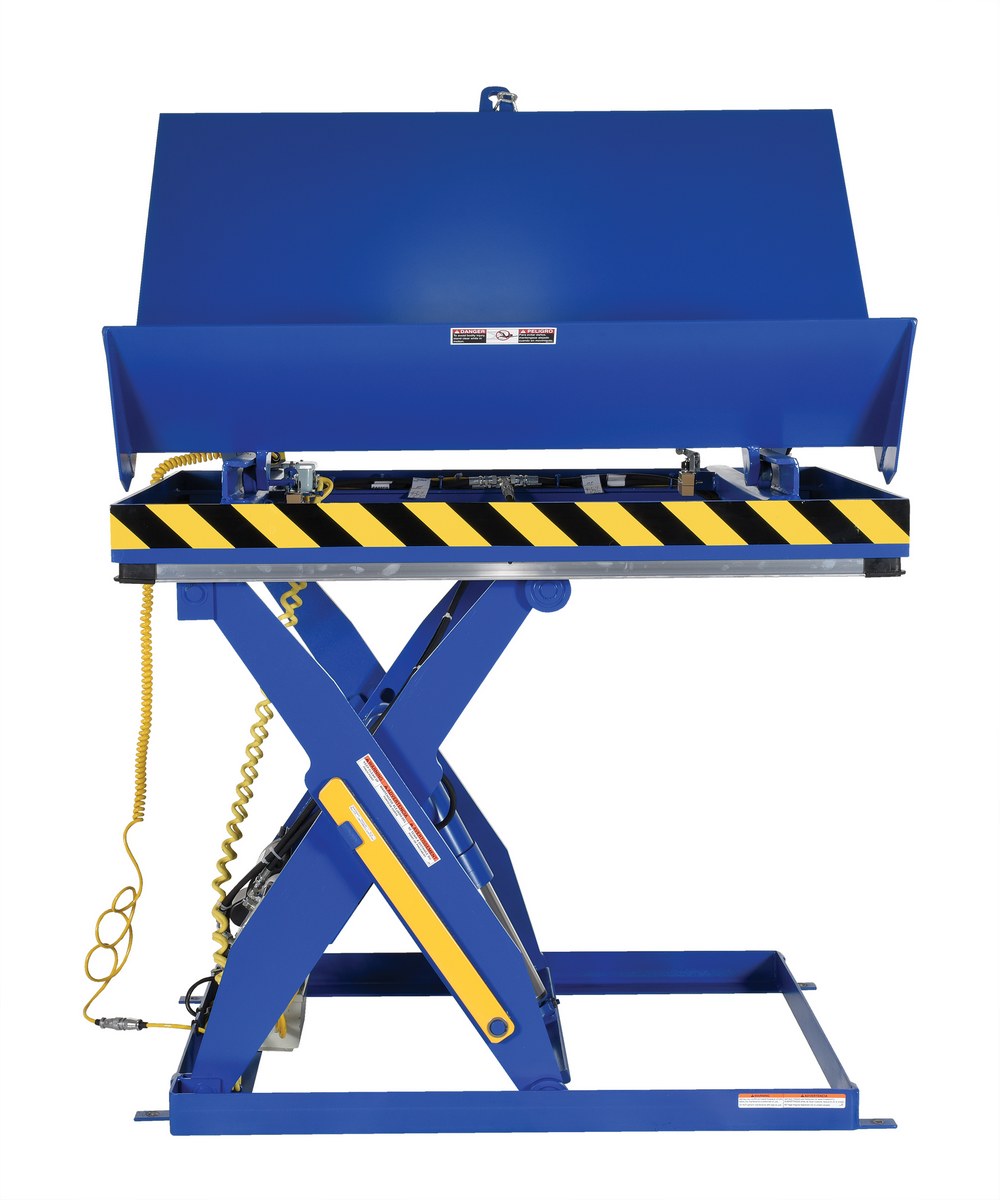

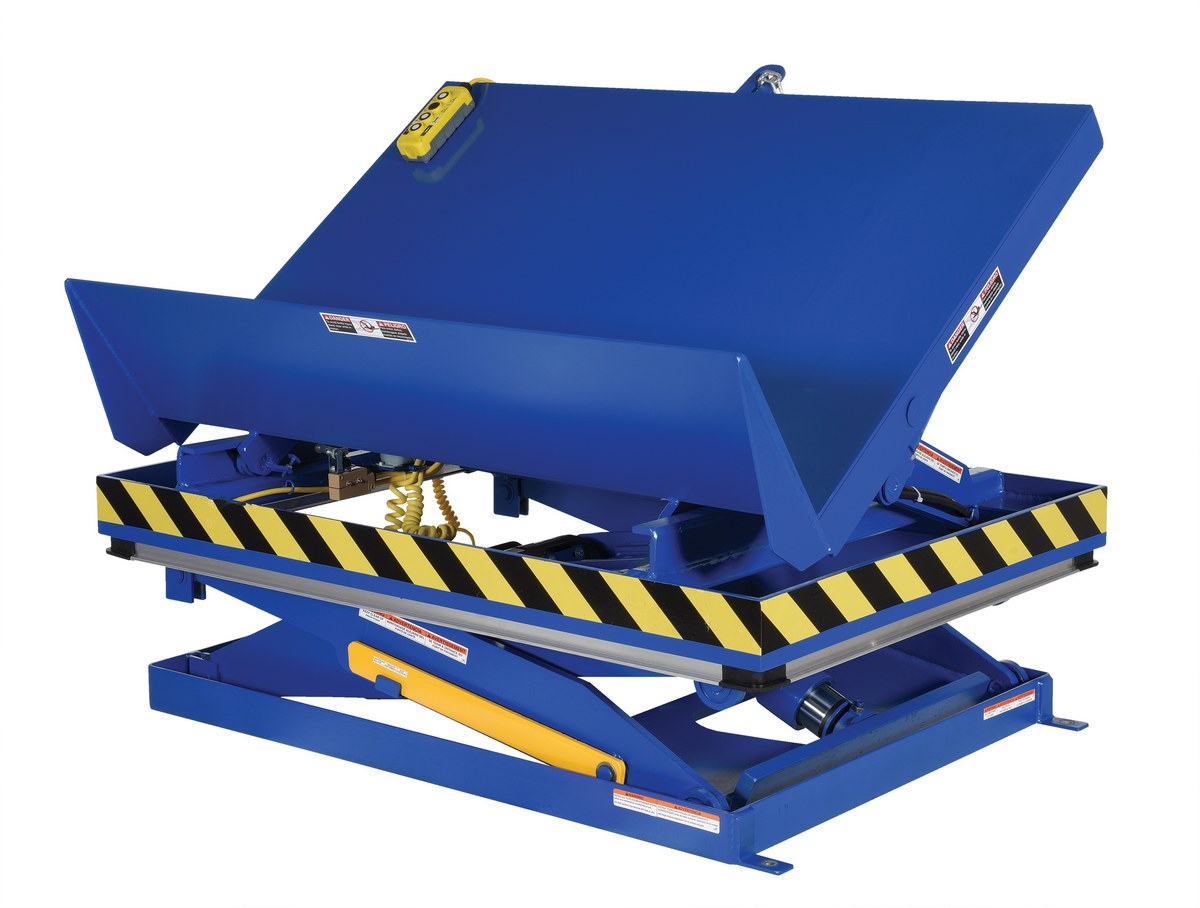

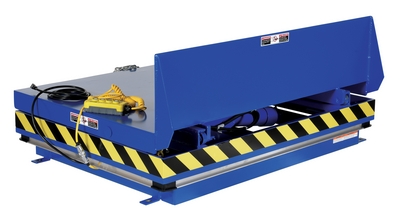

Steel Lift and Side Link Tilt Scissor Table 36 In. x 54 In. 2000 Lb. Capacity Blue

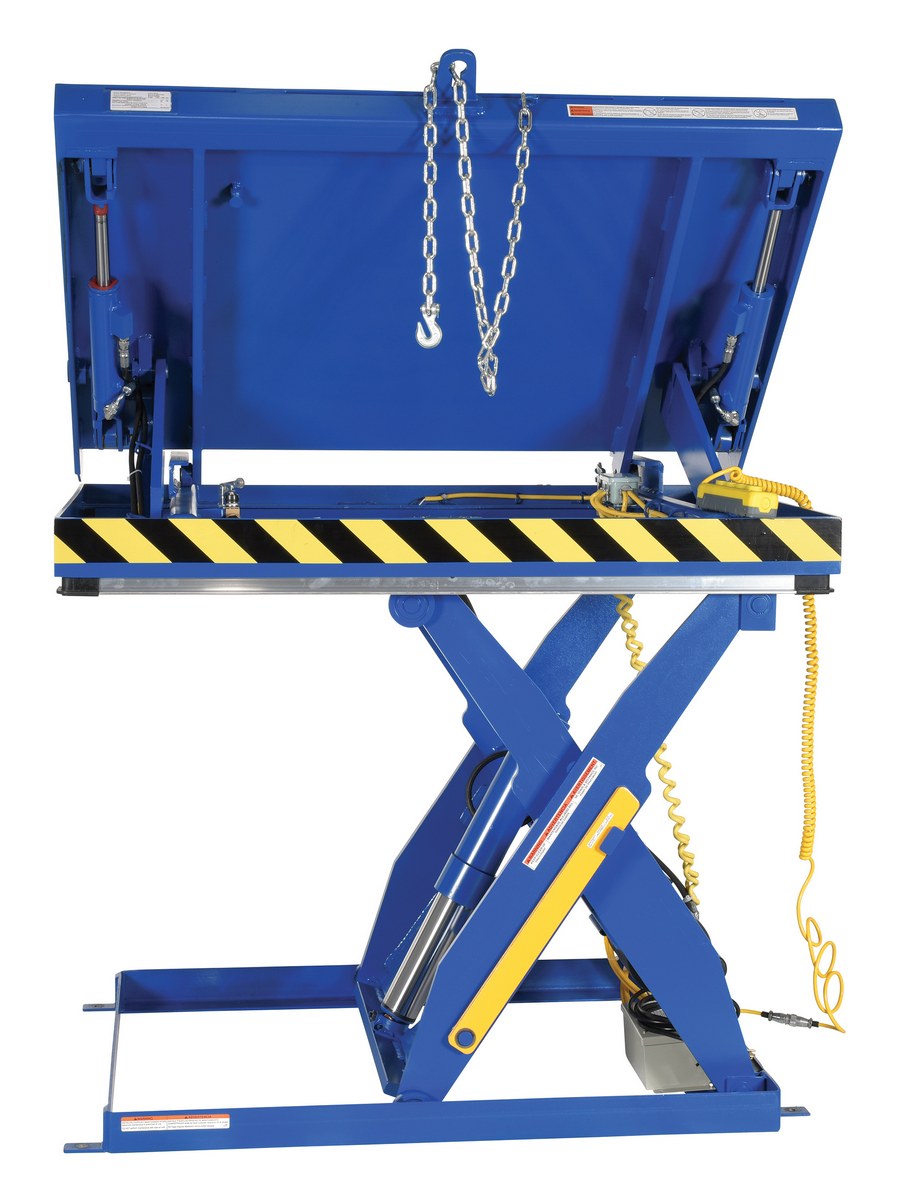

The lift and tilt scissor lift performs both lifting and tilting operations. There is a restraining chain and lip to keep the load in place during tilting. Safety features include an electric toe guard to protect workers from pinch points during lowering of the table, velocity fuses to hold platform position in the event of a hose or fitting failure, four (4) push-button hand pendent control, upper limit switch to stop travel at maximum height and reduce motor wear, and maintenance prop. The end tilt is standard with a side tilt available. There is optional accordion skirting available for both the lifting and tilting portions of the table.

  • Lift & tilt scissor lift includes a restraining chain and lip to keep load in place
  • Features an electric toe guard to protect workers during lowering
  • Velocity fuses hold platform position in the case of a hose or fitting failure
  • Hand pendant control includes a switch to stop travel at maximum height
Total Ship Wt.(lbs.): 1238 (only 1 package) Size: 38.25"W x 54"L x 23.8125"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 2000 Lowered Height (in.): 12 Raised Height (in.): 48
Platform Width (in.): 36-1/4 Platform Length (in.): 54 Deck Lip Height (in.): 12
Coil Cord Length (in.): 96 End Tilt (degrees): 45 Overall Width (in.): 38-1/4
Overall Length (in.): 54 Maximum Height (in.): 76-9/16 Safety Stop Lift Deck Toe Guard Meets OSHA: 1910.212
Motor Voltage: 460 Motor Phase: 3 Control: Hand

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHLTTS-3654-2-48


EHLTTS-3654-2-48

Steel Lift and Side Link Tilt Scissor Table 36 In. x 54 In. 2000 Lb. Capacity Blue

The lift and tilt scissor lift performs both lifting and tilting operations. There is a restraining chain and lip to keep the load in place during tilting. Safety features include an electric toe guard to protect workers from pinch points during lowering of the table, velocity fuses to hold platform position in the event of a hose or fitting failure, four (4) push-button hand pendent control, upper limit switch to stop travel at maximum height and reduce motor wear, and maintenance prop. The end tilt is standard with a side tilt available. There is optional accordion skirting available for both the lifting and tilting portions of the table.

  • Lift & tilt scissor lift includes a restraining chain and lip to keep load in place
  • Features an electric toe guard to protect workers during lowering
  • Velocity fuses hold platform position in the case of a hose or fitting failure
  • Hand pendant control includes a switch to stop travel at maximum height
Dimensions: 38.25"W x 54"L x 23.8125"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215086509 GTIN: 00691215086509
Warranty: -- Shipping Weight: 1238 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 2000 Lowered Height (in.): 12 Raised Height (in.): 48
Platform Width (in.): 36-1/4 Platform Length (in.): 54 Deck Lip Height (in.): 12
Coil Cord Length (in.): 96 End Tilt (degrees): 45 Overall Width (in.): 38-1/4
Overall Length (in.): 54 Maximum Height (in.): 76-9/16 Safety Stop Lift Deck Toe Guard Meets OSHA: 1910.212
Motor Voltage: 460 Motor Phase: 3 Control: Hand
