Product Family Overview

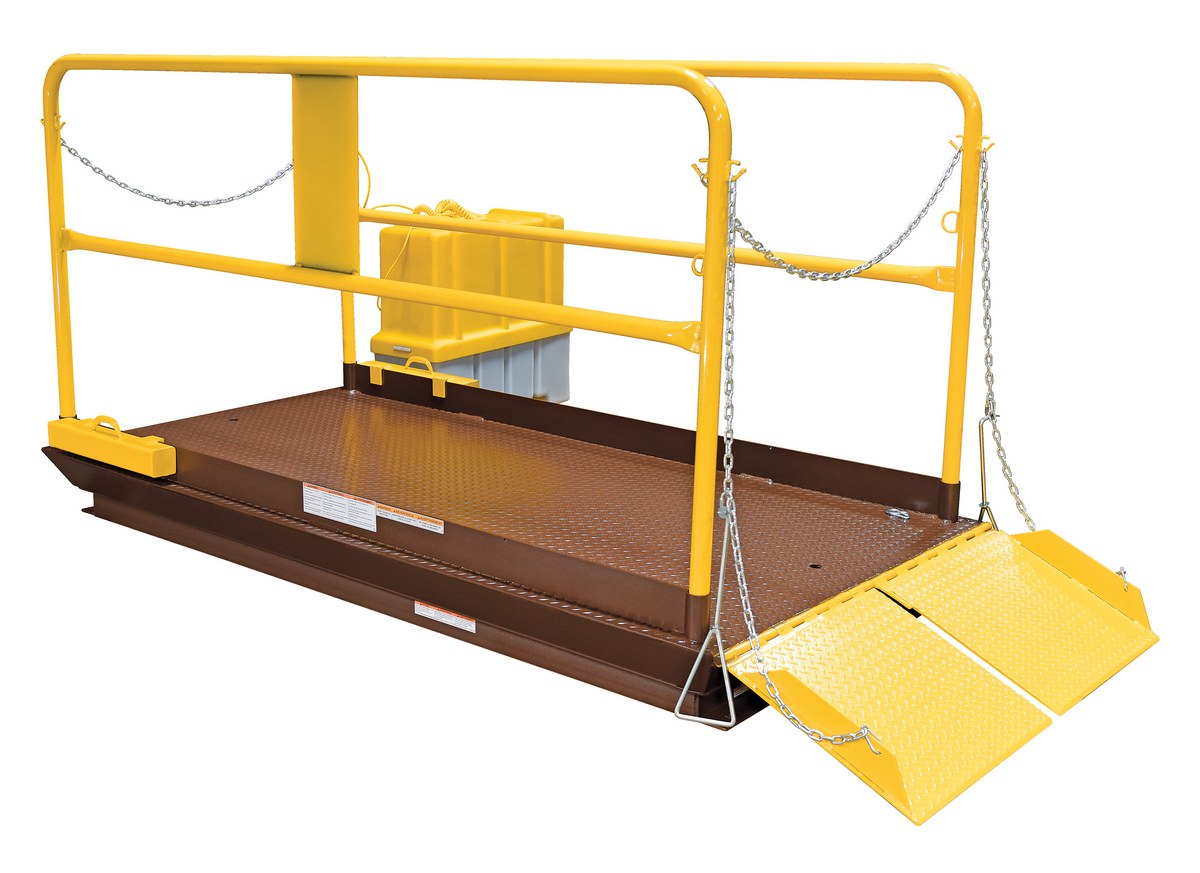

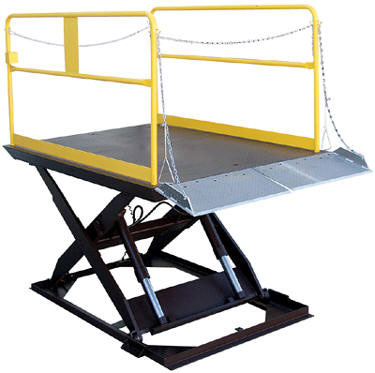

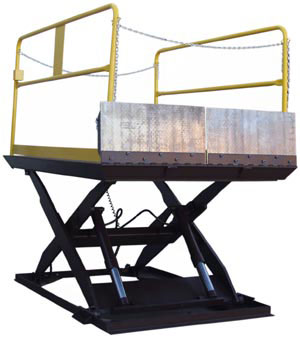

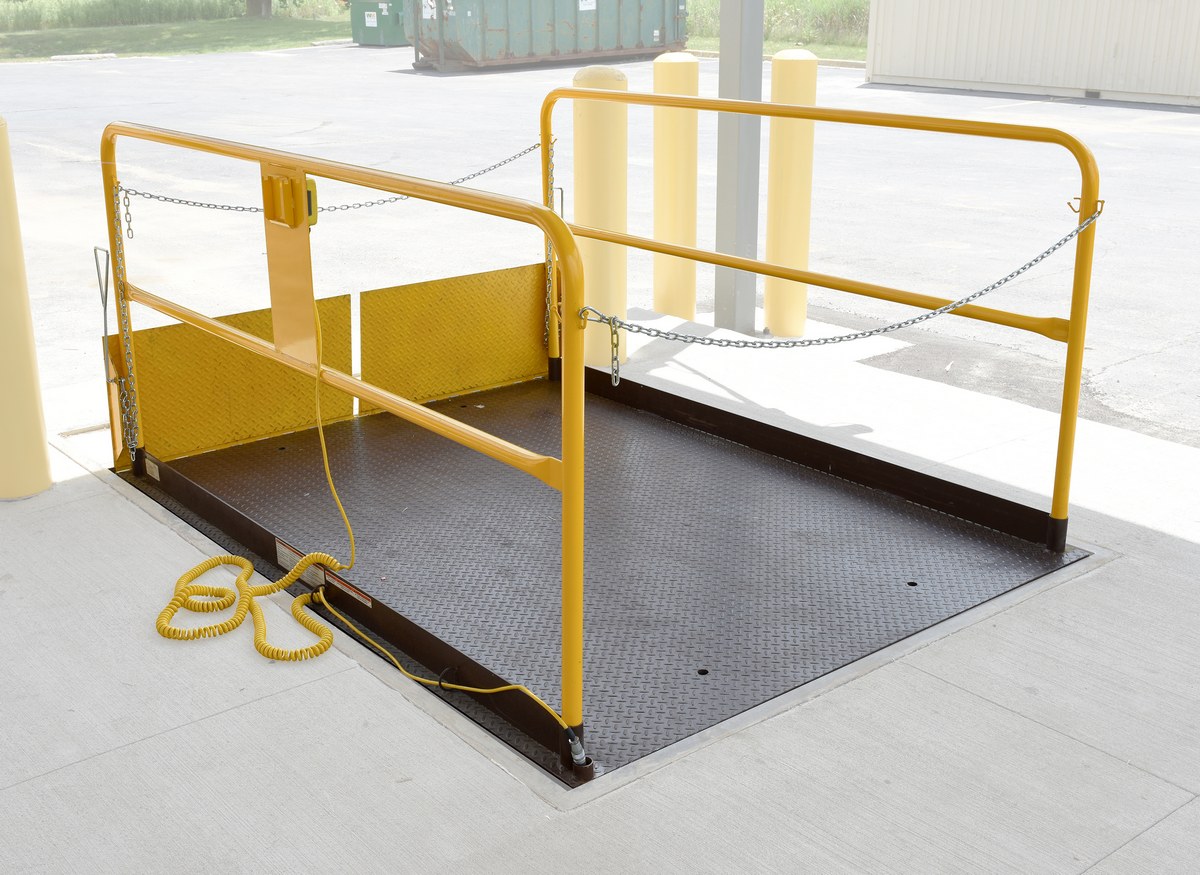

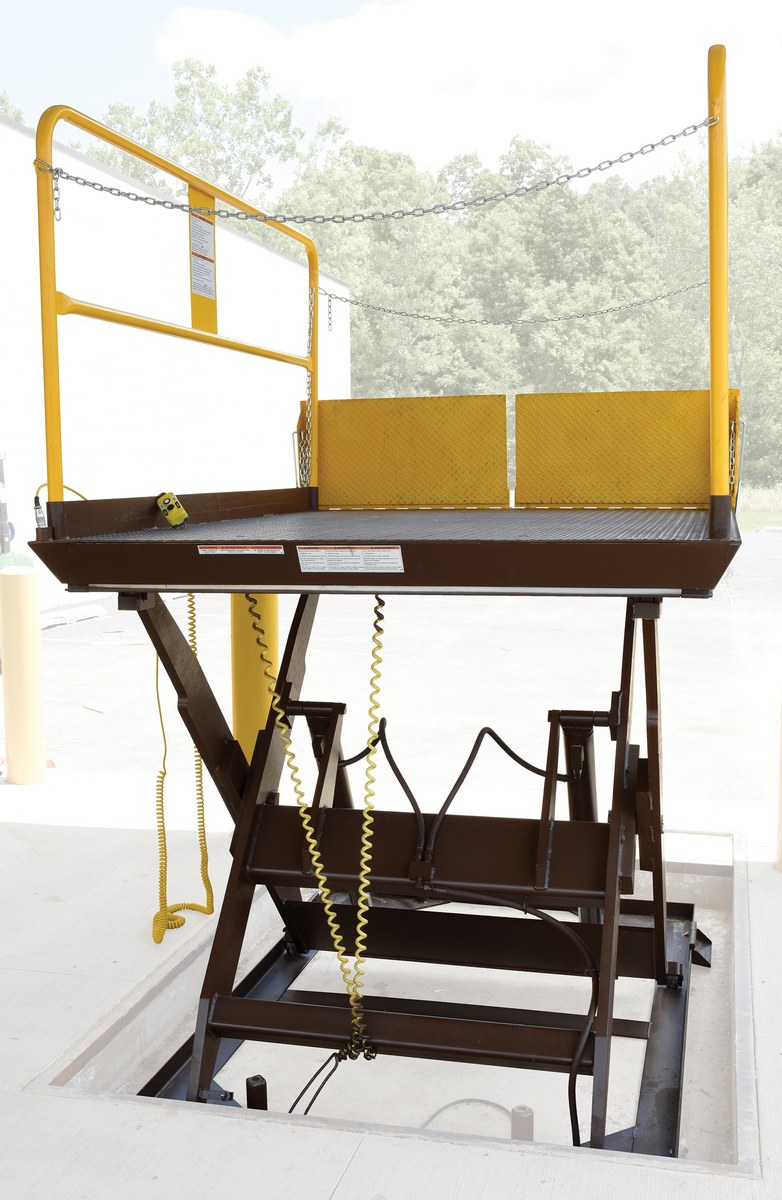

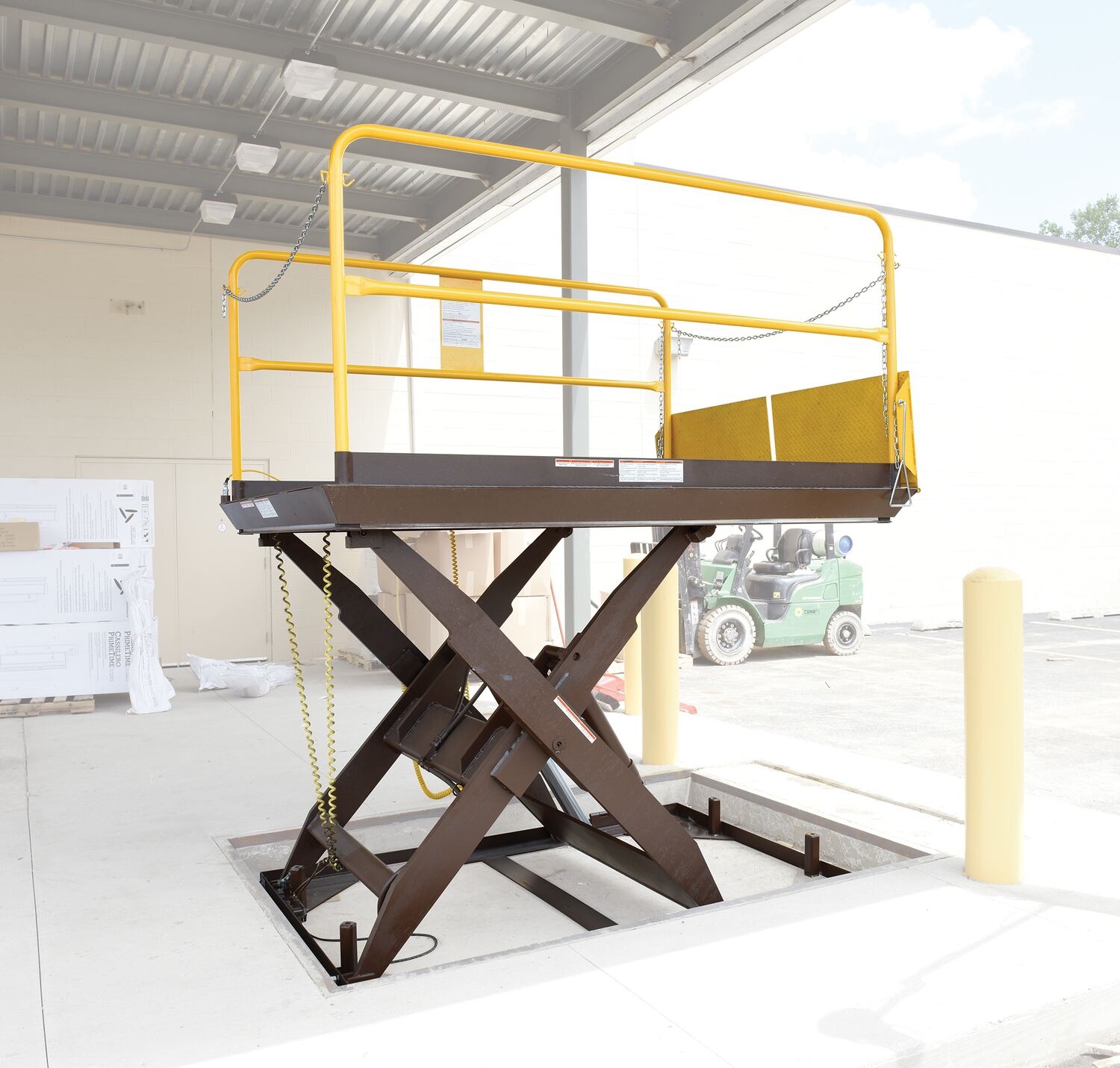

Premium Truck Scissor Dock Lifts
SERIES: WL-100

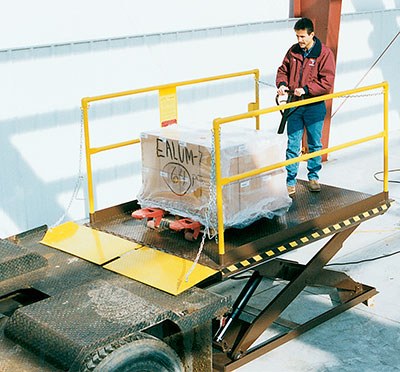

Save time and reduce man-hours where there are no docks with a Truck Scissor Dock Lift. Engineered and designed for maximum safety and efficiency. The diamond plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature safety velocity fuse if line breaks. It comes complete with upper travel limit switch and overload relief valve. The push-button control is on a 20 foot long coil cord. Pre-wired control box includes magnetic starter and overload relay. High visibility safety yellow removable handrails with fixed toe boards are standard. Includes beveled toe-guards and electric toe-guards around perimeter of platform. Standard external 6.5 HP 460V, 3-phase, 60 Hz motor can be located up to 8 feet away from lift (weighs 300 pounds)

Safety Features

The electric toe-guard is a patented feature essential to the safety of personnel. The guard is made from L-shaped aluminum extrusion and hangs below the entire perimeter of the deck. If the Scissor Dock is being lowered while an object such as a person’s hand or foot is in its path, the guard will be triggered and electrically stop the table from lowering. Once the object is removed, the table will once again be operable; there is no need to reset the unit. Without toe-guard provisions, scissor tables do not meet OSHA or ANSI standards and are extremely dangerous to operate.

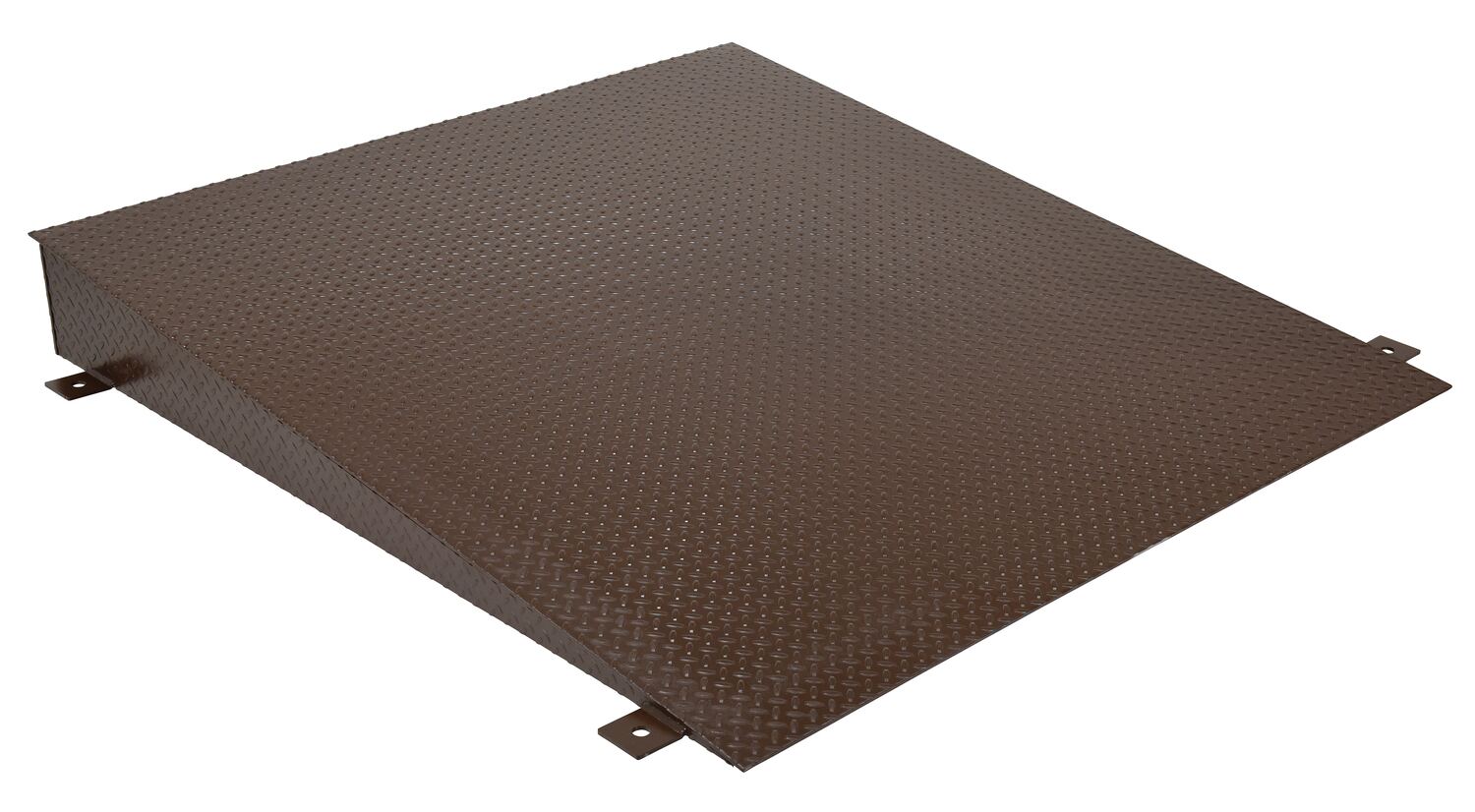

Try Our Low-Profile Ground Scissor Lift

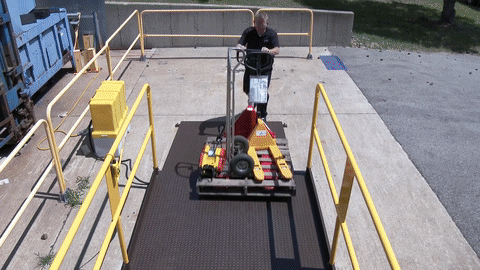

To Unload Semi Trailers Using A Pallet Jack

  • Unique design services semi-trailers when loading dock is unavailable

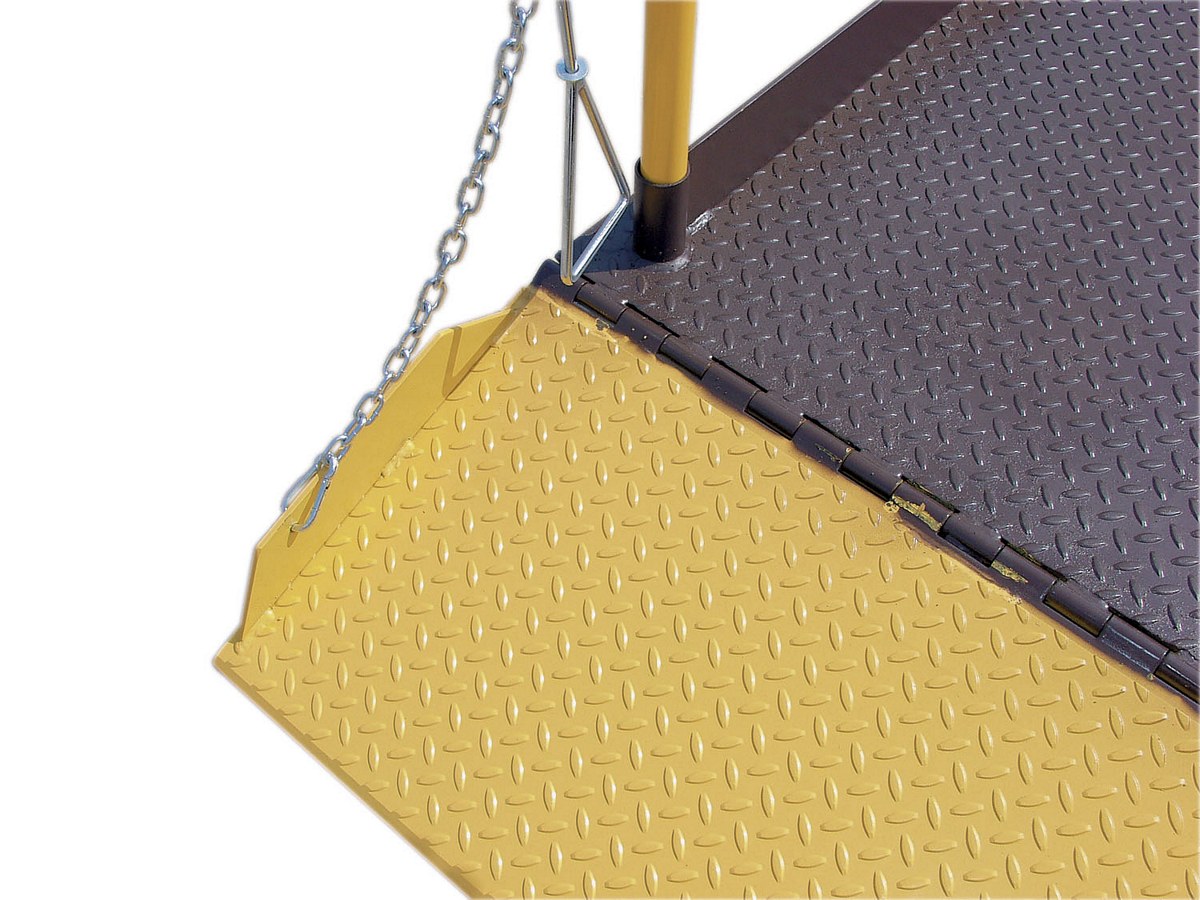

  • Tread plate surface provides a safe non-slip grip
  • Safety velocity fuses protect the hydraulic cylinders
  • Upper travel limit switch cuts power to unit when max raised height is reached

Save time and reduce man-hours where there are no docks with a Truck Scissor Dock Lift. Engineered and designed for maximum safety and efficiency. The diamond plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature safety velocity fuse if line breaks. It comes complete with upper travel limit switch and overload relief valve. The push-button control is on a 20 foot long coil cord. Pre-wired control box includes magnetic starter and overload relay. High visibility safety yellow removable handrails with fixed toe boards are standard. Includes beveled toe-guards and electric toe-guards around perimeter of platform. Standard external 6.5 HP 460V, 3-phase, 60 Hz motor can be located up to 8 feet away from lift (weighs 300 pounds)

Safety Features

The electric toe-guard is a patented feature essential to the safety of personnel. The guard is made from L-shaped aluminum extrusion and hangs below the entire perimeter of the deck. If the Scissor Dock is being lowered while an object such as a person’s hand or foot is in its path, the guard will be triggered and electrically stop the table from lowering. Once the object is removed, the table will once again be operable; there is no need to reset the unit. Without toe-guard provisions, scissor tables do not meet OSHA or ANSI standards and are extremely dangerous to operate.

Try Our Low-Profile Ground Scissor Lift
To Unload Semi Trailers Using A Pallet Jack

  • Unique design services semi-trailers when loading dock is unavailable
  • Tread plate surface provides a safe non-slip grip
  • Safety velocity fuses protect the hydraulic cylinders
  • Upper travel limit switch cuts power to unit when max raised height is reached

Additional Models In This Family

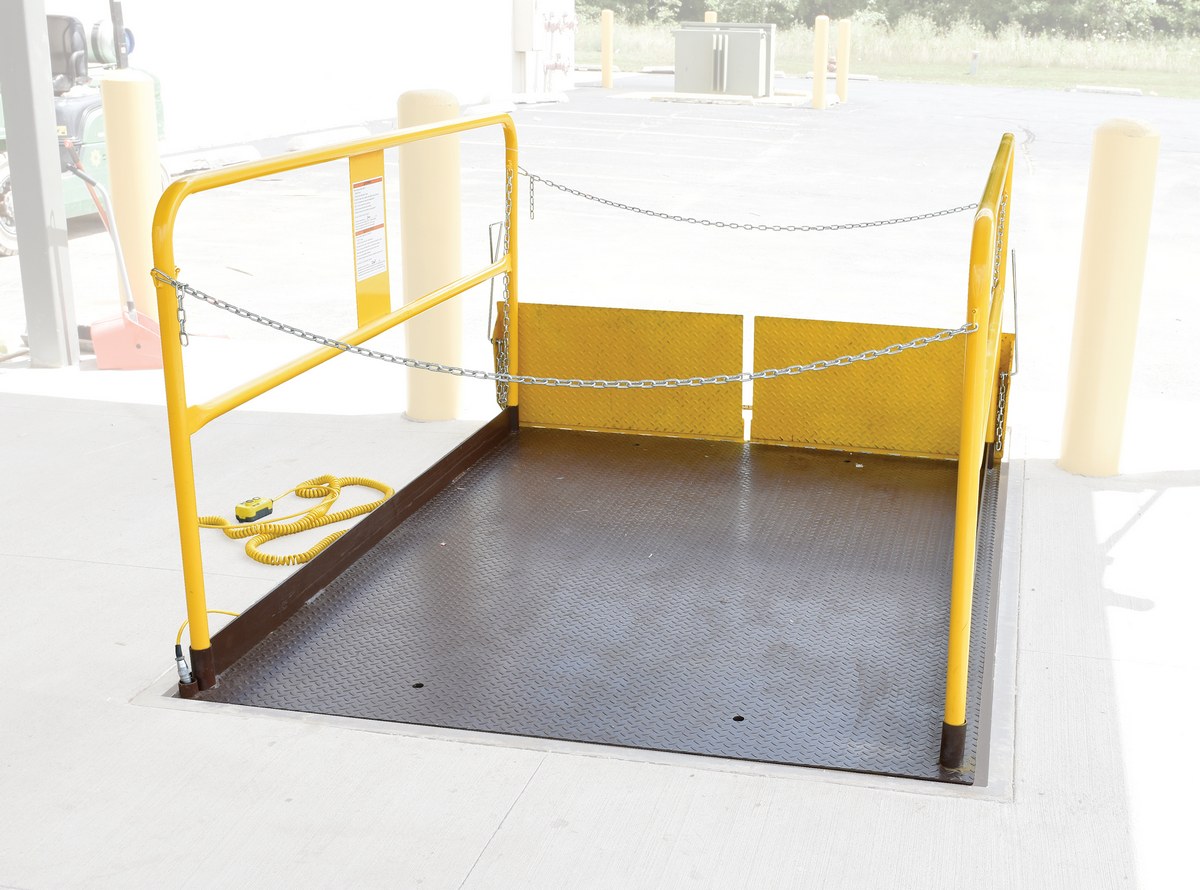

WL-100-5-68

model WL-100-5-68

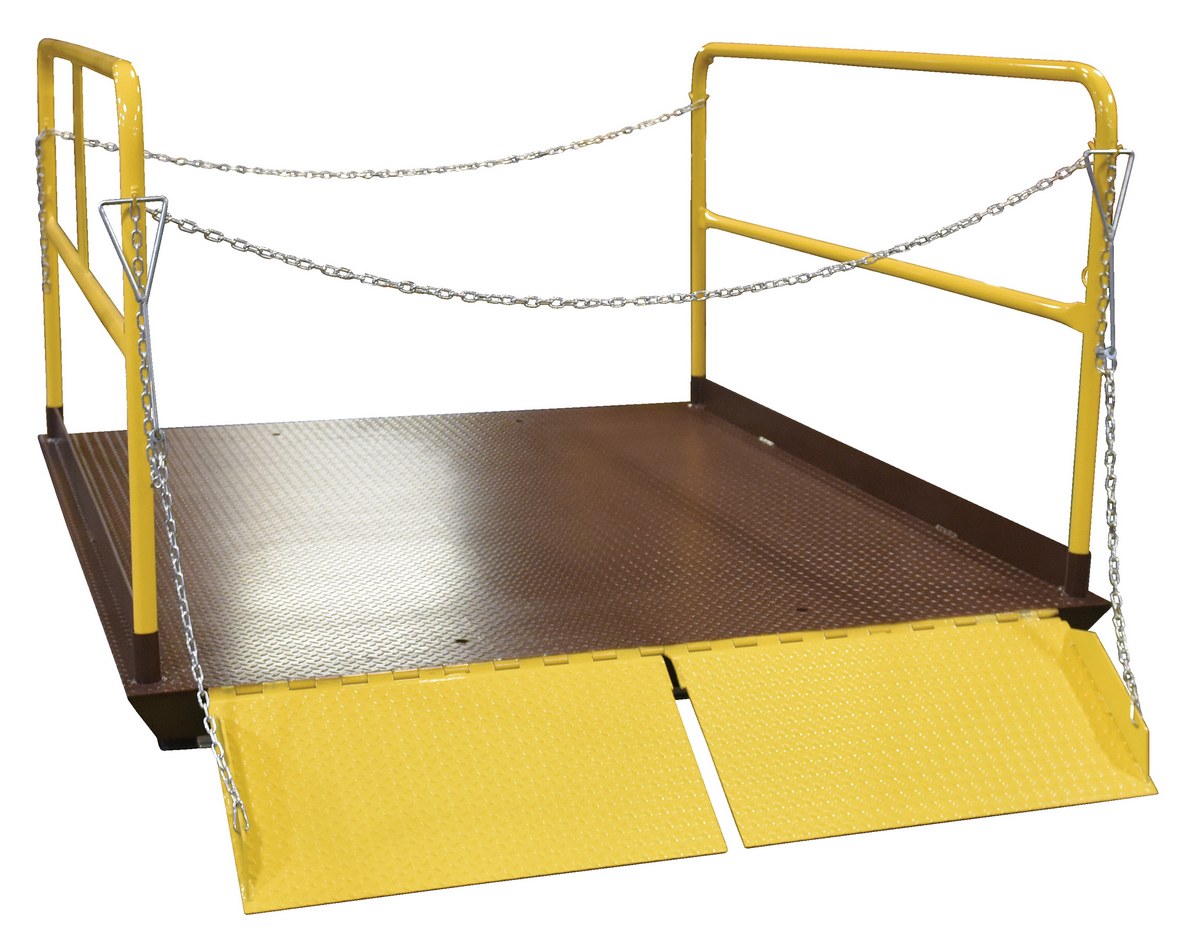

WL-100-5-78

model WL-100-5-78

WL-100-5-48

model WL-100-5-48

Applications



Construction Projects

Warehouses

Trucking Companies

Farming and Agriculture

Postal Services

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
WL-100-10-610
WL-100-10-6101 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 6 Ft x 10 Ft 10,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 10000
Overall Frame Width (in.): 62
26081
WL-100-10-612
WL-100-10-6121 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 6 Ft x 12 Ft 10,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 10000
Overall Frame Width (in.): 62
26548
WL-100-10-68
WL-100-10-681 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 6 Ft x 8 Ft 10,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 10000
Overall Frame Width (in.): 62
25848
WL-100-10-710
WL-100-10-7101 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 7 Ft x 10 Ft 10,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 10000
Overall Frame Width (in.): 62
26268
WL-100-10-712
WL-100-10-7121 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 7 Ft x 12 Ft 10,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 10000
Overall Frame Width (in.): 62
26734
WL-100-10-78
WL-100-10-781 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 7 Ft x 8 Ft 10,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 10000
Overall Frame Width (in.): 62
4030
WL-100-10-810
WL-100-10-8101 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 8 Ft x 10 Ft 10,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 10000
Overall Frame Width (in.): 86
26454
WL-100-10-812
WL-100-10-8121 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 8 Ft x 12 Ft 10,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 10000
Overall Frame Width (in.): 86
26920
WL-100-10-88
WL-100-10-881 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 8 Ft x 8 Ft 10,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 10000
Overall Frame Width (in.): 86
6180
WL-100-12-610
WL-100-12-6101 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 6 Ft x 10 Ft 12,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 12000
Overall Frame Width (in.): 62
26664
WL-100-12-612
WL-100-12-6121 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 6 Ft x 12 Ft 12,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 12000
Overall Frame Width (in.): 62
27142
WL-100-12-68
WL-100-12-681 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 6 Ft x 8 Ft 12,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 12000
Overall Frame Width (in.): 62
26431
WL-100-12-710
WL-100-12-7101 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 7 Ft x 10 Ft 12,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 12000
Overall Frame Width (in.): 62
26851
WL-100-12-712
WL-100-12-7121 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 7 Ft x 12 Ft 12,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 12000
Overall Frame Width (in.): 62
27269
WL-100-12-78
WL-100-12-781 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 7 Ft x 8 Ft 12,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 12000
Overall Frame Width (in.): 62
26617
WL-100-12-810
WL-100-12-8101 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 8 Ft x 10 Ft 12,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 12000
Overall Frame Width (in.): 86
27037
WL-100-12-812
WL-100-12-8121 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 8 Ft x 12 Ft 12,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 12000
Overall Frame Width (in.): 86
27480
WL-100-12-88
WL-100-12-881 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 8 Ft x 8 Ft 12,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 12000
Overall Frame Width (in.): 86
26775
WL-100-5-48
WL-100-5-481 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 4 Ft x 8 Ft 5,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 5000
Overall Frame Width (in.): 41
2850
WL-100-5-610
WL-100-5-6101 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 6 Ft x 10 Ft 5,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 5000
Overall Frame Width (in.): 62
4166
WL-100-5-68
WL-100-5-681 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 6 Ft x 8 Ft 5,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 5000
Overall Frame Width (in.): 62
3539
WL-100-5-710
WL-100-5-7101 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 7 Ft x 10 Ft 5,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 5000
Overall Frame Width (in.): 62
24071
WL-100-5-78
WL-100-5-781 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 7 Ft x 8 Ft 5,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 5000
Overall Frame Width (in.): 62
3549
WL-100-5-810
WL-100-5-8101 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 8 Ft x 10 Ft 5,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 5000
Overall Frame Width (in.): 86
4155
WL-100-5-88
WL-100-5-881 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 8 Ft x 8 Ft 5,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 5000
Overall Frame Width (in.): 86
3869
WL-100-6-610
WL-100-6-6101 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 6 Ft x 10 Ft 6,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 6,000
Overall Frame Width (in.): 62
23983
WL-100-6-68
WL-100-6-681 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 6 Ft x 8 Ft 6,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 6,000
Overall Frame Width (in.): 62
3574
WL-100-6-710
WL-100-6-7101 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 7 Ft x 10 Ft 6,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 6,000
Overall Frame Width (in.): 62
24082
WL-100-6-78
WL-100-6-781 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 7 Ft x 8 Ft 6,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 6,000
Overall Frame Width (in.): 62
3598

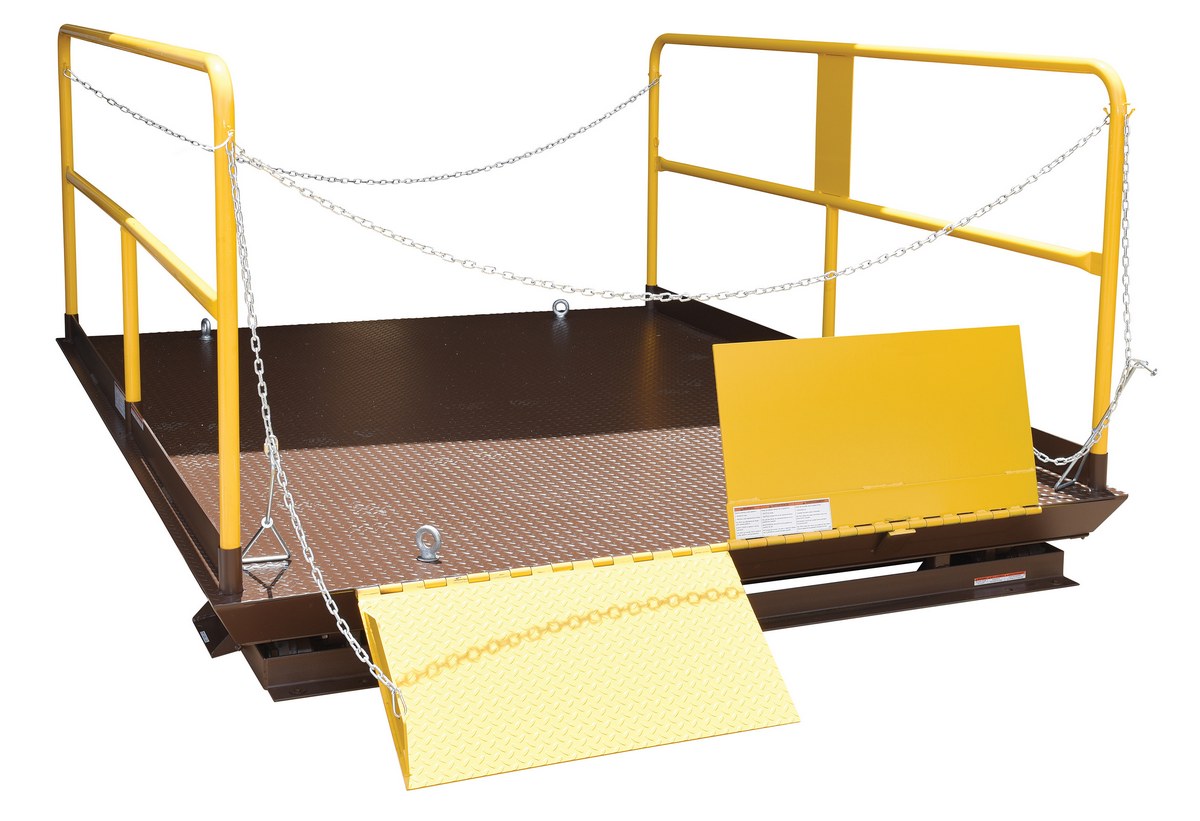

WL-100-6-810
WL-100-6-8101 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 8 Ft x 10 Ft 6,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 6,000
Overall Frame Width (in.): 86
24345
WL-100-6-88
WL-100-6-881 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 8 Ft x 8 Ft 6,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 6,000
Overall Frame Width (in.): 86
24211
WL-100-8-610
WL-100-8-6101 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 6 Ft x 10 Ft 8,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 8000
Overall Frame Width (in.): 62
24851
WL-100-8-68
WL-100-8-681 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 6 Ft x 8 Ft 8,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 8000
Overall Frame Width (in.): 62
3634
WL-100-8-710
WL-100-8-7101 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 7 Ft x 10 Ft 8,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 8000
Overall Frame Width (in.): 62
24957
WL-100-8-78
WL-100-8-781 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 7 Ft x 8 Ft 8,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 8000
Overall Frame Width (in.): 62
24636
WL-100-8-810
WL-100-8-8101 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 8 Ft x 10 Ft 8,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 8000
Overall Frame Width (in.): 86
25201
WL-100-8-88
WL-100-8-881 Year Limited WarrantySteel Premium Truck Scissor Dock Lift 8 Ft x 8 Ft 8,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 8000
Overall Frame Width (in.): 86
24742

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

WL-100-10-610
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 10000
Overall Frame Width (in.): 62

WL-100-10-612
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 10000
Overall Frame Width (in.): 62

WL-100-10-68
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 10000
Overall Frame Width (in.): 62

WL-100-10-710
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 10000
Overall Frame Width (in.): 62

WL-100-10-712
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 10000
Overall Frame Width (in.): 62

WL-100-10-78
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 10000
Overall Frame Width (in.): 62

WL-100-10-810
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Overall Frame Width (in.): 86
Uniform Capacity (lb.): 10000
Overall Frame Width (in.): 86

WL-100-10-812
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Overall Frame Width (in.): 86
Uniform Capacity (lb.): 10000
Overall Frame Width (in.): 86

WL-100-10-88
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Overall Frame Width (in.): 86
Uniform Capacity (lb.): 10000
Overall Frame Width (in.): 86

WL-100-12-610
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 12000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 12000
Overall Frame Width (in.): 62

WL-100-12-612
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 12000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 12000
Overall Frame Width (in.): 62

WL-100-12-68
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 12000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 12000
Overall Frame Width (in.): 62

WL-100-12-710
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 12000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 12000
Overall Frame Width (in.): 62

WL-100-12-712
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 12000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 12000
Overall Frame Width (in.): 62

WL-100-12-78
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 12000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 12000
Overall Frame Width (in.): 62

WL-100-12-810
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 12000
Overall Frame Width (in.): 86
Uniform Capacity (lb.): 12000
Overall Frame Width (in.): 86

WL-100-12-812
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 12000
Overall Frame Width (in.): 86
Uniform Capacity (lb.): 12000
Overall Frame Width (in.): 86

WL-100-12-88
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 12000
Overall Frame Width (in.): 86
Uniform Capacity (lb.): 12000
Overall Frame Width (in.): 86

WL-100-5-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Overall Frame Width (in.): 41
Uniform Capacity (lb.): 5000
Overall Frame Width (in.): 41

WL-100-5-610
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 5000
Overall Frame Width (in.): 62

WL-100-5-68
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 5000
Overall Frame Width (in.): 62

WL-100-5-710
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 5000
Overall Frame Width (in.): 62

WL-100-5-78
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 5000
Overall Frame Width (in.): 62

WL-100-5-810
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Overall Frame Width (in.): 86
Uniform Capacity (lb.): 5000
Overall Frame Width (in.): 86

WL-100-5-88
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Overall Frame Width (in.): 86
Uniform Capacity (lb.): 5000
Overall Frame Width (in.): 86

WL-100-6-610
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 6,000
Overall Frame Width (in.): 62

WL-100-6-68
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 6,000
Overall Frame Width (in.): 62

WL-100-6-710
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 6,000
Overall Frame Width (in.): 62

WL-100-6-78
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 6,000
Overall Frame Width (in.): 62

WL-100-6-810
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Overall Frame Width (in.): 86
Uniform Capacity (lb.): 6,000
Overall Frame Width (in.): 86

WL-100-6-88
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Overall Frame Width (in.): 86
Uniform Capacity (lb.): 6,000
Overall Frame Width (in.): 86

WL-100-8-610
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 8000
Overall Frame Width (in.): 62

WL-100-8-68
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 8000
Overall Frame Width (in.): 62

WL-100-8-710
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 8000
Overall Frame Width (in.): 62

WL-100-8-78
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8000
Overall Frame Width (in.): 62
Uniform Capacity (lb.): 8000
Overall Frame Width (in.): 62

WL-100-8-810
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8000
Overall Frame Width (in.): 86
Uniform Capacity (lb.): 8000
Overall Frame Width (in.): 86

WL-100-8-88
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8000
Overall Frame Width (in.): 86
Uniform Capacity (lb.): 8000
Overall Frame Width (in.): 86
For More Details of the Option Click the Red Model Button
ADDL-HH-50-10 ADDL-HH-50-1030 Days Limited WarrantySynthetic Rubber 1/2 In. 10 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables BlackHose Inside Diameter (in): .5
Hose Outside Diameter (in): .5
5
ADDL-HH-50-20 ADDL-HH-50-2030 Days Limited WarrantySynthetic Rubber 1/2 In. 20 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables BlackHose Inside Diameter (in): .5
Hose Outside Diameter (in): .5
10
IOH-230V 30 Days Limited WarrantyFactory Installed Immersion Oil Heater 230 Volt 250 Watts For Cold Weather ApplicationHeater Type: Immersion Oil
Accommodates HP Units: 3 & 6.5
1
IOH-460V IOH-460V30 Days Limited WarrantyFactory Installed Immersion Oil Heater 460 Volt 500 Watts For Cold Weather ApplicationHeater Type: Immersion Oil
Accommodates HP Units: 6.5
1
VCC-208/230-3 30 Days Limited WarrantyFactory Installed Voltage Change AC Power 208-230 Volt Three Phase For Powered UnitsVoltage: 208-230
Phase: 3
WL-10HP 90 Days Limited WarrantyFactory Installed External 10 Horse Power Unit For Three Phase 208-230/460 Volt Power Dock LiftsExternal Motor Horsepower: 10
External Motor Voltage - Phase: 208-230/460V -Phase 3
WL-3HP 90 Days Limited WarrantyFactory Installed External 3 Horse Power Unit For Single Phase Motor For 208/230 Volt Single Phase Dock Lift UnitExternal Motor Horsepower: 3
External Motor Voltage - Phase: 208/230V - Phase 1
WL-50 90 Days Limited WarrantyFactory Installed Additional 50,000 Lb. Capacity Fabricated to Fit Truck Scissor Dock Lift UnitsAdditional Capacity per Axle (lb.): 25000
Sizes: Fabricated to Fit Unit
WL-7HP 90 Days Limited WarrantyFactory Installed External 7-1/2 Horse Power Unit For 208/230 Volt Three Phase Dock Lift UnitExternal Motor Horsepower: 7-1/2
External Motor Voltage - Phase: 208-230/460V - Phase 3
WL-ADDSATB 90 Days Limited WarrantyFactory Installed Additional Split Aluminum Truck Bridge Silver For Scissor Dock Lift UnitsApplication: Factory Installed For Scissor Dock Lifts
133
WL-AR10 90 Days Limited WarrantySteel Approach Ramp For Lowered Height Truck Scissor Dock Lift 10 In. x 60 In. BrownRamp Angle (degree): 7
Usable Length (in.): 82
517
WL-AR14 90 Days Limited WarrantySteel Approach Ramp For Lowered Height Truck Scissor Dock Lift 14 In. x 60 In. BrownRamp Angle (degree): 7
Usable Length (in.): 116
788
WL-AR8 WL-AR890 Days Limited WarrantySteel Approach Ramp For Lowered Height Truck Scissor Dock Lift 8 In. x 60 In. BrownRamp Angle (degree): 7
Usable Length (in.): 65
435
WL-AR8-48 WL-AR8-4890 Days Limited WarrantySteel Approach Ramp For Lowered Height Truck Scissor Dock Lift 8 In. x 48 In. BrownRamp Angle (degree): 7
Usable Length (in.): 65
386
WL-AR8-RS-48 WL-AR8-RS-4890 Days Limited WarrantySteel Approach Ramp Spacer 8 In. Height 4000 Lb. Capacity BrownUniform Capacity (lb.): 4,000
Usable Width (in.): 48
369
WL-HH 90 Days Limited WarrantyFactory Installed Additional Hydraulic Hose Fabricated To Fit Truck Scissor Dock Lift UnitsSize: Fabricated to Fit Order
Maximum hose (ft.): 50
WL-KL 90 Days Limited WarrantyFactory Installed Key Switch Lockout For Truck Scissor Dock Lift UnitsApplication: Factory Installed For Scissor Dock Lifts
Electrical Accessory Type: Lock-Out
WL-RHT WL-RHT90 Days Limited WarrantyFactory Installed Handrail With Toe Board Fabricated To Fit Truck Scissor Dock Lift UnitsSize: Fabricated to Fit Unit
WL-RMB WL-RMB90 Days Limited WarrantyFactory Installed Reservoir Mount Bracket For Truck Scissor Dock Lift UnitsHardware Category: Brackets
Size: 16.375 In. x 34 In. x 11.6875 In.
WL-SATB WL-SATB90 Days Limited WarrantyFactory Installed Split Aluminum Bridge For Truck Scissor Dock Lift UnitsApplication: Factory Installed For Scissor Dock Lifts
30
WL-SSS WL-SSS90 Days Limited WarrantyFactory Installed Stop Sign Signal For Truck Scissor Dock Lift UnitsOption reduces usable deck width (in.): 3
19
WL-SSTB WL-SSTB90 Days Limited WarrantyFactory Installed Split Steel Bridge For Truck Scissor Dock Lift UnitsApplication: Factory Installed For Scissor Dock Lifts
180
WL-TSP 90 Days Limited WarrantyFactory Installed Two Speed Pump For Truck Scissor Dock Lift UnitsIncrease Lifting (percentage): 55
Foot Pump Type: 2-Speed
10
WL-WB WL-WB90 Days Limited WarrantyFactory Installed Beeper and Strobe Light For Truck Scissor Dock Lift UnitsSiren Decibels: 80
8
WL-WBO 90 Days Limited WarrantyFactory Installed Warning Beeper For Truck Scissor Dock Lift UnitsSiren Decibels: 80
1
WL-WK WL-WK90 Days Limited WarrantyFactory Installed Mobile Wheel Kit & Detachable Handle For Truck Scissor Dock Lift UnitsUniform Capacity (lb.): 6000
Size: Fabricated to Fit Unit
32
WL-WLO 90 Days Limited WarrantyFactory Installed Warning Light For Truck Scissor Dock Lift UnitsColor: Amber
Connector / Terminal Configuration: Factory Installed
Model Image Description
Accordion Skirt Keep people and debris from getting under lift. Contact Factory.
ADDL-HH-25-10 ADDITIONAL HYDRAULIC LINE Allows you to locate power unit further away from the lift - 1/4" - 10ft.
ADDL-HH-25-20 ADDITIONAL HYDRAULIC LINE Allows you to locate power unit further away from the lift - 1/4" - 20ft.
ADDL-HH-50-10 ADDITIONAL HYDRAULIC LINE Allows you to locate power unit further away from the lift - 1/2" - 10ft.
ADDL-HH-50-20 ADDITIONAL HYDRAULIC LINE Allows you to locate power unit further away from the lift - 1/2" - 20ft.
IOH-230V For cold weather applications with a built in metal reservoir & thermostat for automatic heat control. 208-230V single/three phase power. 250 watts.
IOH-460V For cold weather applications with a built in metal reservoir & thermostat for automatic heat control. To be used with 460V three phase power unit, 500 watts.
SPO-WL-LS-ZRC wl-1005.jpg Cold GALVANIZED Liquid COATING: For application usage visit www.zrcworldwide.com
SPO-WL-LS-SSC wl-1005.jpg STEEL-IT COATING: Visit www.steel-it.com for application use
VCC-208/230-3 Voltage change to 208-230 Volt 3 phase
WL-10HP Power unit is wired for three phase 208-230/460V 60Hz, unit will pump 8 gallons per minute
WL-3HP Replace standard three phase power unit with 208/230V, 1 phase, 60Hz power unit (1-1/2 gallons per minute pump speed)
WL-50 50,000 lbs. ROLLOVER CAPACITY (25,000 lbs. per axle): Add'l structural channel and supports for deck. Increases lowered height 2"
WL-7HP Power unit is wired for three phase 208-230/460V 60Hz, unit will pump 6 gallons per minute
WL-ADDSATB Additional split aluminum bridge
WL-AR10 icon_approvaldrawings.jpg APPROACH RAMP FOR 10" LOWERED HEIGHT: 60" wide x 82" long. 7 degree ramp angle
WL-AR14 icon_approvaldrawings.jpg APPROACH RAMP FOR 14" LOWERED HEIGHT: 60" wide x 116" long. 7 degree ramp angle
WL-AR8 icon_approvaldrawings.jpg APPROACH RAMP FOR 8" LOWERED HEIGHT LIFTS: 60" wide x 65" long. 7 degree ramp angle
WL-AR8-48 APPROACH RAMP FOR WL-100-5-48 ONLY: 48" wide x 65" long. 7 degree ramp angle. 386 lbs
WL-AR8-RS-48 An approach ramp spacer makes transitions that much easier. The robust construction fits in well with the existing ramps creating an even better user experience. This ramp spacer decreases and minimizes the chance of uneven surfaces when traversing ramps to a new surface. A simple installation allows for immediate use
WL-HH Factory Installed Additional Hydraulic Hose Fabricated To Fit Truck Scissor Dock Lift Units
WL-KL To avoid unauthorized use of the lift, this option will lock out the controls
WL-RHT When mounting this lift in a pit, this option allows platform to be flush with the floor for fork truck cross traffic. Deduct 7-1/2" from overall width for usable width
WL-RMB icon_approvaldrawings.jpg SPECIAL RESERVOIR MOUNTING available in a wall mount or a handrail mount (non-removable.)
WL-SATB wl-1002.jpg Standard steel bridge can be replaced with an aluminum bridge 72" wide x 18" long. For 5K& 6K units. (110 lb. additional bridge) Ideal for government applications
WL-SSS wl-1004.jpg Optional Stop Sign Signal that raises up to let the driver know when to stop for safe loading/unloading.This is only available on surface mount units with fixed toe boards. (reduces usable width by 3")
WL-SSTB An additional split steel bridge can be added to opposite side of unit. 72" wide x 18" long. (180 lb. additional bridge)
WL-TSP Increase lifting speed by 55% when lift is unloaded. Ideal for unloading applications
WL-WB Sounds and flashes during lifting and lowering operations. 80 decibels
WL-WBO Factory Installed Warning Beeper For Truck Scissor Dock Lift Units
WL-WK Wheel kit may be used on the 5,000 and 6,000 lbs. capacity units only. System includes casters and detachable handle *Factory Install Only
WL-WLO Factory Installed Warning Light For Truck Scissor Dock Lift Units
**APPROACH RAMPS MUST BE ANCHORED TO THE FLOOR**
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Premium Truck Scissor Dock Lifts PDF's will open in a new window when clicked.

Manuals


Survey Sheets


Approval Drawings

Testing Certificates


IOH-230V

IOH-460V

SPO-WL-LS-SSC

SPO-WL-LS-ZRC

WL-100-10-610

WL-100-10-612

WL-100-10-68

WL-100-10-710

WL-100-10-712

WL-100-10-78

WL-100-10-810

WL-100-10-812

WL-100-10-88

WL-100-12-610

WL-100-12-612

WL-100-12-68

WL-100-12-710

WL-100-12-712

WL-100-12-78

WL-100-12-810

WL-100-12-812

WL-100-12-88

WL-100-5-48

WL-100-5-610

WL-100-5-68

WL-100-5-710

WL-100-5-78

WL-100-5-810

WL-100-5-88

WL-100-6-610

WL-100-6-68

WL-100-6-710

WL-100-6-78

WL-100-6-810

WL-100-6-88

WL-100-8-610

WL-100-8-68

WL-100-8-710

WL-100-8-78

WL-100-8-810

WL-100-8-88

WL-10HP

WL-3HP

WL-50

WL-7HP

WL-ADDSATB

WL-AR10

WL-AR14

WL-AR8

WL-AR8-48

WL-AR8-RS-48

WL-HH

WL-KL

WL-RHT

WL-RMB

WL-SATB

WL-SSS

WL-SSTB

WL-TSP

WL-WB

WL-WBO

WL-WK

WL-WLO

SDS Sheets

Hydraulic Oil SDS Sheet for: WL-100-10-610
Hydraulic Oil SDS Sheet for: WL-100-10-612
Hydraulic Oil SDS Sheet for: WL-100-10-68
Hydraulic Oil SDS Sheet for: WL-100-10-710
Hydraulic Oil SDS Sheet for: WL-100-10-712
Hydraulic Oil SDS Sheet for: WL-100-10-78
Hydraulic Oil SDS Sheet for: WL-100-10-810
Hydraulic Oil SDS Sheet for: WL-100-10-812
Hydraulic Oil SDS Sheet for: WL-100-10-88
Hydraulic Oil SDS Sheet for: WL-100-12-610
Hydraulic Oil SDS Sheet for: WL-100-12-612
Hydraulic Oil SDS Sheet for: WL-100-12-68
Hydraulic Oil SDS Sheet for: WL-100-12-710
Hydraulic Oil SDS Sheet for: WL-100-12-712
Hydraulic Oil SDS Sheet for: WL-100-12-78
Hydraulic Oil SDS Sheet for: WL-100-12-810
Hydraulic Oil SDS Sheet for: WL-100-12-812
Hydraulic Oil SDS Sheet for: WL-100-12-88
Hydraulic Oil SDS Sheet for: WL-100-5-48
Hydraulic Oil SDS Sheet for: WL-100-5-610
Hydraulic Oil SDS Sheet for: WL-100-5-68
Hydraulic Oil SDS Sheet for: WL-100-5-710
Hydraulic Oil SDS Sheet for: WL-100-5-78
Hydraulic Oil SDS Sheet for: WL-100-5-810
Hydraulic Oil SDS Sheet for: WL-100-5-88
Hydraulic Oil SDS Sheet for: WL-100-6-610
Hydraulic Oil SDS Sheet for: WL-100-6-78
Hydraulic Oil SDS Sheet for: WL-100-6-810
Hydraulic Oil SDS Sheet for: WL-100-6-88
Hydraulic Oil SDS Sheet for: WL-100-8-610
Hydraulic Oil SDS Sheet for: WL-100-8-68
Hydraulic Oil SDS Sheet for: WL-100-8-710
Hydraulic Oil SDS Sheet for: WL-100-8-78
Hydraulic Oil SDS Sheet for: WL-100-8-810
Hydraulic Oil SDS Sheet for: WL-100-8-88
Hydraulic Oil SDS Sheet for: WL-HH

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What is the usable width of the scissor dock lift?

A: The usable width on WL-100's can be calculated like this. For those with a removable handrail and FIXED toe board subtract 6" from overall width. For those lifts with a removable handrail and REMOVABLE toe board subtract 7-1/2" from overall width.


Q: What wiring is required to install the scissor dock lift?

A: Five minimum 18 AWG wires (or an appropriate hard service cable) are required between the power unit's control enclosure and the lift's frame. These wires, the power unit's disconnect, and the branch circuit overcurrent and short-circuit protection are the responsibility of the installer or building owner. Please see the owner's manual in the PDF section.


Q: For the WL-100 Pit Depth with the Roll-Over option, does it impact the lowered height?

A: The WL-100 PIT DEPTH with ROLL-OVER OPTION increases the lowered height 2"


Q: Can the WL series be used outside?

A: Yes, the WL-100 lifts can be used outside.


Q: In the options the WL-TSP can it be used with the voltage change WL-3HP?

A: No the WL-TSP needs to be coupled the the standard 6.5 hp motor. It cannot be used with the WL-3 hp.


Q: Is the power unit external or internal?

A: All power units on WL-100 units are external.


Q: What size is the external power unit?

A: The overall dimensions of the hydraulic unit are: 14"W x 33" L x 31" H, and comes with an 8 Ft. hose






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Premium Truck Scissor Dock Lifts




Save time and reduce man-hours where there are no docks with a Truck Scissor Dock Lift. Engineered and designed for maximum safety and efficiency. The diamond plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature safety velocity fuse if line breaks. It comes complete with upper travel limit switch and overload relief valve. The push-button control is on a 20 foot long coil cord. Pre-wired control box includes magnetic starter and overload relay. High visibility safety yellow removable handrails with fixed toe boards are standard. Includes beveled toe-guards and electric toe-guards around perimeter of platform. Standard external 6.5 HP 460V, 3-phase, 60 Hz motor can be located up to 8 feet away from lift (weighs 300 pounds)

Safety Features

The electric toe-guard is a patented feature essential to the safety of personnel. The guard is made from L-shaped aluminum extrusion and hangs below the entire perimeter of the deck. If the Scissor Dock is being lowered while an object such as a person’s hand or foot is in its path, the guard will be triggered and electrically stop the table from lowering. Once the object is removed, the table will once again be operable; there is no need to reset the unit. Without toe-guard provisions, scissor tables do not meet OSHA or ANSI standards and are extremely dangerous to operate.

Try Our Low-Profile Ground Scissor Lift
To Unload Semi Trailers Using A Pallet Jack

  • Unique design services semi-trailers when loading dock is unavailable
  • Tread plate surface provides a safe non-slip grip
  • Safety velocity fuses protect the hydraulic cylinders
  • Upper travel limit switch cuts power to unit when max raised height is reached


Model # Description Attributes Net Wt.
(lbs)
WL-100-10-610 WL-100-10-610Steel Premium Truck Scissor Dock Lift 6 Ft x 10 Ft 10,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 10000
Overall Frame Width (in.): 62
5587
WL-100-10-612 WL-100-10-612Steel Premium Truck Scissor Dock Lift 6 Ft x 12 Ft 10,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 10000
Overall Frame Width (in.): 62
6054
WL-100-10-68 WL-100-10-68Steel Premium Truck Scissor Dock Lift 6 Ft x 8 Ft 10,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 10000
Overall Frame Width (in.): 62
5354
WL-100-10-710 WL-100-10-710Steel Premium Truck Scissor Dock Lift 7 Ft x 10 Ft 10,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 10000
Overall Frame Width (in.): 62
5774
WL-100-10-712 WL-100-10-712Steel Premium Truck Scissor Dock Lift 7 Ft x 12 Ft 10,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 10000
Overall Frame Width (in.): 62
6240
WL-100-10-78 WL-100-10-78Steel Premium Truck Scissor Dock Lift 7 Ft x 8 Ft 10,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 10000
Overall Frame Width (in.): 62
4030
WL-100-10-810 WL-100-10-810Steel Premium Truck Scissor Dock Lift 8 Ft x 10 Ft 10,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 10000
Overall Frame Width (in.): 86
5960
WL-100-10-812 WL-100-10-812Steel Premium Truck Scissor Dock Lift 8 Ft x 12 Ft 10,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 10000
Overall Frame Width (in.): 86
6426
WL-100-10-88 WL-100-10-88Steel Premium Truck Scissor Dock Lift 8 Ft x 8 Ft 10,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 10000
Overall Frame Width (in.): 86
6180
WL-100-12-610 WL-100-12-610Steel Premium Truck Scissor Dock Lift 6 Ft x 10 Ft 12,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 12000
Overall Frame Width (in.): 62
6170
WL-100-12-612 WL-100-12-612Steel Premium Truck Scissor Dock Lift 6 Ft x 12 Ft 12,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 12000
Overall Frame Width (in.): 62
6648
WL-100-12-68 WL-100-12-68Steel Premium Truck Scissor Dock Lift 6 Ft x 8 Ft 12,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 12000
Overall Frame Width (in.): 62
5937
WL-100-12-710 WL-100-12-710Steel Premium Truck Scissor Dock Lift 7 Ft x 10 Ft 12,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 12000
Overall Frame Width (in.): 62
6357
WL-100-12-712 WL-100-12-712Steel Premium Truck Scissor Dock Lift 7 Ft x 12 Ft 12,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 12000
Overall Frame Width (in.): 62
6775
WL-100-12-78 WL-100-12-78Steel Premium Truck Scissor Dock Lift 7 Ft x 8 Ft 12,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 12000
Overall Frame Width (in.): 62
6123
WL-100-12-810 WL-100-12-810Steel Premium Truck Scissor Dock Lift 8 Ft x 10 Ft 12,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 12000
Overall Frame Width (in.): 86
6543
WL-100-12-812 WL-100-12-812Steel Premium Truck Scissor Dock Lift 8 Ft x 12 Ft 12,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 12000
Overall Frame Width (in.): 86
6986
WL-100-12-88 WL-100-12-88Steel Premium Truck Scissor Dock Lift 8 Ft x 8 Ft 12,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 12000
Overall Frame Width (in.): 86
6281
WL-100-5-48 WL-100-5-48Steel Premium Truck Scissor Dock Lift 4 Ft x 8 Ft 5,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 5000
Overall Frame Width (in.): 41
2850
WL-100-5-610 WL-100-5-610Steel Premium Truck Scissor Dock Lift 6 Ft x 10 Ft 5,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 5000
Overall Frame Width (in.): 62
4166
WL-100-5-68 WL-100-5-68Steel Premium Truck Scissor Dock Lift 6 Ft x 8 Ft 5,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 5000
Overall Frame Width (in.): 62
3539
WL-100-5-710 WL-100-5-710Steel Premium Truck Scissor Dock Lift 7 Ft x 10 Ft 5,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 5000
Overall Frame Width (in.): 62
3577
WL-100-5-78 WL-100-5-78Steel Premium Truck Scissor Dock Lift 7 Ft x 8 Ft 5,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 5000
Overall Frame Width (in.): 62
3549
WL-100-5-810 WL-100-5-810Steel Premium Truck Scissor Dock Lift 8 Ft x 10 Ft 5,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 5000
Overall Frame Width (in.): 86
4155
WL-100-5-88 WL-100-5-88Steel Premium Truck Scissor Dock Lift 8 Ft x 8 Ft 5,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 5000
Overall Frame Width (in.): 86
3869
WL-100-6-610 WL-100-6-610Steel Premium Truck Scissor Dock Lift 6 Ft x 10 Ft 6,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 6,000
Overall Frame Width (in.): 62
3489
WL-100-6-68 WL-100-6-68Steel Premium Truck Scissor Dock Lift 6 Ft x 8 Ft 6,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 6,000
Overall Frame Width (in.): 62
3574
WL-100-6-710 WL-100-6-710Steel Premium Truck Scissor Dock Lift 7 Ft x 10 Ft 6,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 6,000
Overall Frame Width (in.): 62
3588
WL-100-6-78 WL-100-6-78Steel Premium Truck Scissor Dock Lift 7 Ft x 8 Ft 6,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 6,000
Overall Frame Width (in.): 62
3598
WL-100-6-810 WL-100-6-810Steel Premium Truck Scissor Dock Lift 8 Ft x 10 Ft 6,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 6,000
Overall Frame Width (in.): 86
3851
WL-100-6-88 WL-100-6-88Steel Premium Truck Scissor Dock Lift 8 Ft x 8 Ft 6,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 6,000
Overall Frame Width (in.): 86
3717
WL-100-8-610 WL-100-8-610Steel Premium Truck Scissor Dock Lift 6 Ft x 10 Ft 8,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 8000
Overall Frame Width (in.): 62
4357
WL-100-8-68 WL-100-8-68Steel Premium Truck Scissor Dock Lift 6 Ft x 8 Ft 8,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 8000
Overall Frame Width (in.): 62
3634
WL-100-8-710 WL-100-8-710Steel Premium Truck Scissor Dock Lift 7 Ft x 10 Ft 8,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 8000
Overall Frame Width (in.): 62
4463
WL-100-8-78 WL-100-8-78Steel Premium Truck Scissor Dock Lift 7 Ft x 8 Ft 8,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 8000
Overall Frame Width (in.): 62
4142
WL-100-8-810 WL-100-8-810Steel Premium Truck Scissor Dock Lift 8 Ft x 10 Ft 8,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 8000
Overall Frame Width (in.): 86
4707
WL-100-8-88 WL-100-8-88Steel Premium Truck Scissor Dock Lift 8 Ft x 8 Ft 8,000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 8000
Overall Frame Width (in.): 86
4248

Options


Model Image Description
Accordion Skirt Keep people and debris from getting under lift. Contact Factory.
ADDL-HH-25-10 ADDITIONAL HYDRAULIC LINE Allows you to locate power unit further away from the lift - 1/4" - 10ft.
ADDL-HH-25-20 ADDITIONAL HYDRAULIC LINE Allows you to locate power unit further away from the lift - 1/4" - 20ft.
ADDL-HH-50-10 ADDITIONAL HYDRAULIC LINE Allows you to locate power unit further away from the lift - 1/2" - 10ft.
ADDL-HH-50-20 ADDITIONAL HYDRAULIC LINE Allows you to locate power unit further away from the lift - 1/2" - 20ft.
IOH-230V For cold weather applications with a built in metal reservoir & thermostat for automatic heat control. 208-230V single/three phase power. 250 watts.
IOH-460V For cold weather applications with a built in metal reservoir & thermostat for automatic heat control. To be used with 460V three phase power unit, 500 watts.
SPO-WL-LS-ZRC wl-1005.jpg Cold GALVANIZED Liquid COATING: For application usage visit www.zrcworldwide.com
SPO-WL-LS-SSC wl-1005.jpg STEEL-IT COATING: Visit www.steel-it.com for application use
VCC-208/230-3 Voltage change to 208-230 Volt 3 phase
WL-10HP Power unit is wired for three phase 208-230/460V 60Hz, unit will pump 8 gallons per minute
WL-3HP Replace standard three phase power unit with 208/230V, 1 phase, 60Hz power unit (1-1/2 gallons per minute pump speed)
WL-50 50,000 lbs. ROLLOVER CAPACITY (25,000 lbs. per axle): Add'l structural channel and supports for deck. Increases lowered height 2"
WL-7HP Power unit is wired for three phase 208-230/460V 60Hz, unit will pump 6 gallons per minute
WL-ADDSATB Additional split aluminum bridge
WL-AR10 icon_approvaldrawings.jpg APPROACH RAMP FOR 10" LOWERED HEIGHT: 60" wide x 82" long. 7 degree ramp angle
WL-AR14 icon_approvaldrawings.jpg APPROACH RAMP FOR 14" LOWERED HEIGHT: 60" wide x 116" long. 7 degree ramp angle
WL-AR8 icon_approvaldrawings.jpg APPROACH RAMP FOR 8" LOWERED HEIGHT LIFTS: 60" wide x 65" long. 7 degree ramp angle
WL-AR8-48 APPROACH RAMP FOR WL-100-5-48 ONLY: 48" wide x 65" long. 7 degree ramp angle. 386 lbs
WL-AR8-RS-48 An approach ramp spacer makes transitions that much easier. The robust construction fits in well with the existing ramps creating an even better user experience. This ramp spacer decreases and minimizes the chance of uneven surfaces when traversing ramps to a new surface. A simple installation allows for immediate use
WL-HH Factory Installed Additional Hydraulic Hose Fabricated To Fit Truck Scissor Dock Lift Units
WL-KL To avoid unauthorized use of the lift, this option will lock out the controls
WL-RHT When mounting this lift in a pit, this option allows platform to be flush with the floor for fork truck cross traffic. Deduct 7-1/2" from overall width for usable width
WL-RMB icon_approvaldrawings.jpg SPECIAL RESERVOIR MOUNTING available in a wall mount or a handrail mount (non-removable.)
WL-SATB wl-1002.jpg Standard steel bridge can be replaced with an aluminum bridge 72" wide x 18" long. For 5K& 6K units. (110 lb. additional bridge) Ideal for government applications
WL-SSS wl-1004.jpg Optional Stop Sign Signal that raises up to let the driver know when to stop for safe loading/unloading.This is only available on surface mount units with fixed toe boards. (reduces usable width by 3")
WL-SSTB An additional split steel bridge can be added to opposite side of unit. 72" wide x 18" long. (180 lb. additional bridge)
WL-TSP Increase lifting speed by 55% when lift is unloaded. Ideal for unloading applications
WL-WB Sounds and flashes during lifting and lowering operations. 80 decibels
WL-WBO Factory Installed Warning Beeper For Truck Scissor Dock Lift Units
WL-WK Wheel kit may be used on the 5,000 and 6,000 lbs. capacity units only. System includes casters and detachable handle *Factory Install Only
WL-WLO Factory Installed Warning Light For Truck Scissor Dock Lift Units
**APPROACH RAMPS MUST BE ANCHORED TO THE FLOOR**

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
