Product Family Overview


Pallet Pullers
SERIES: PAL

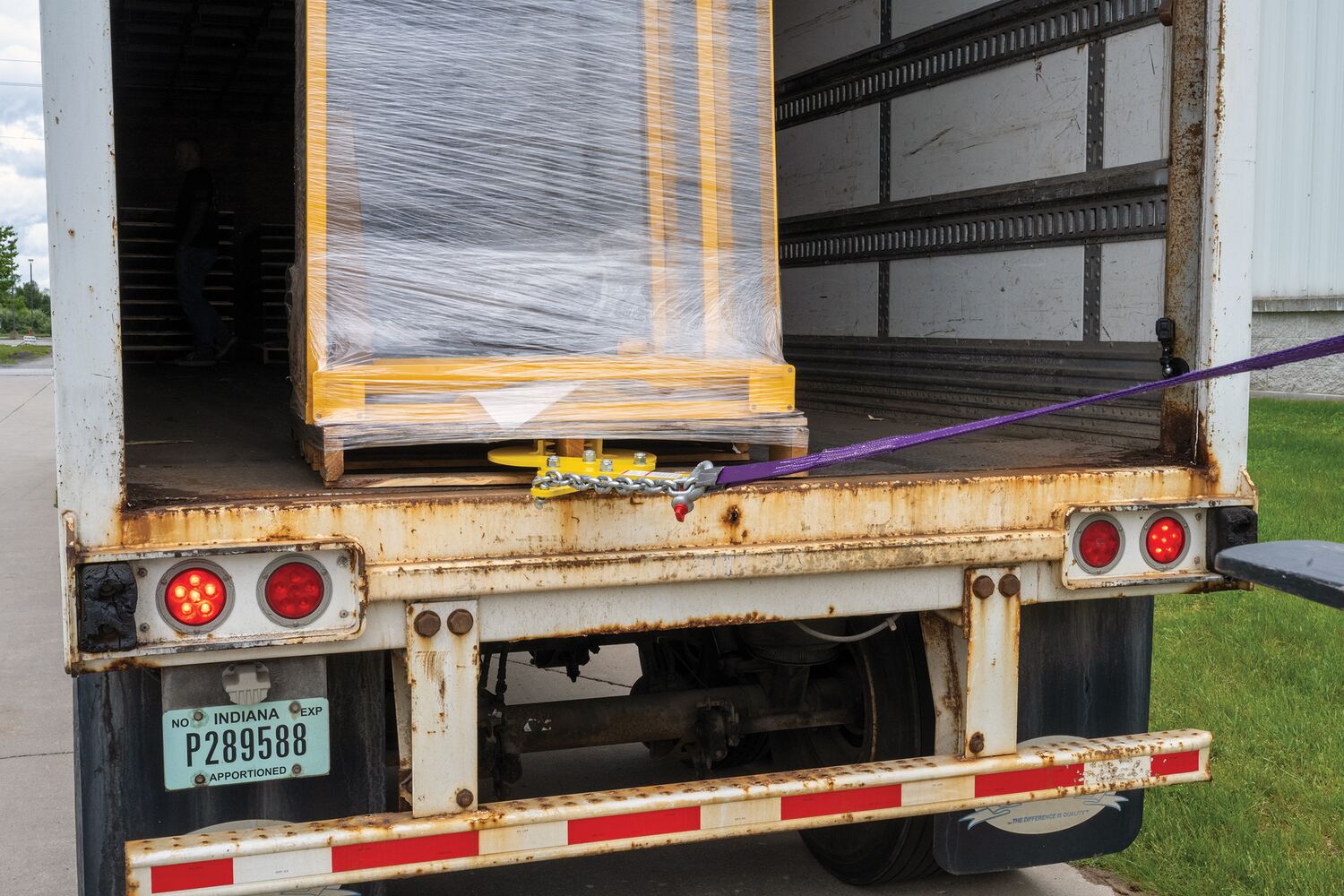

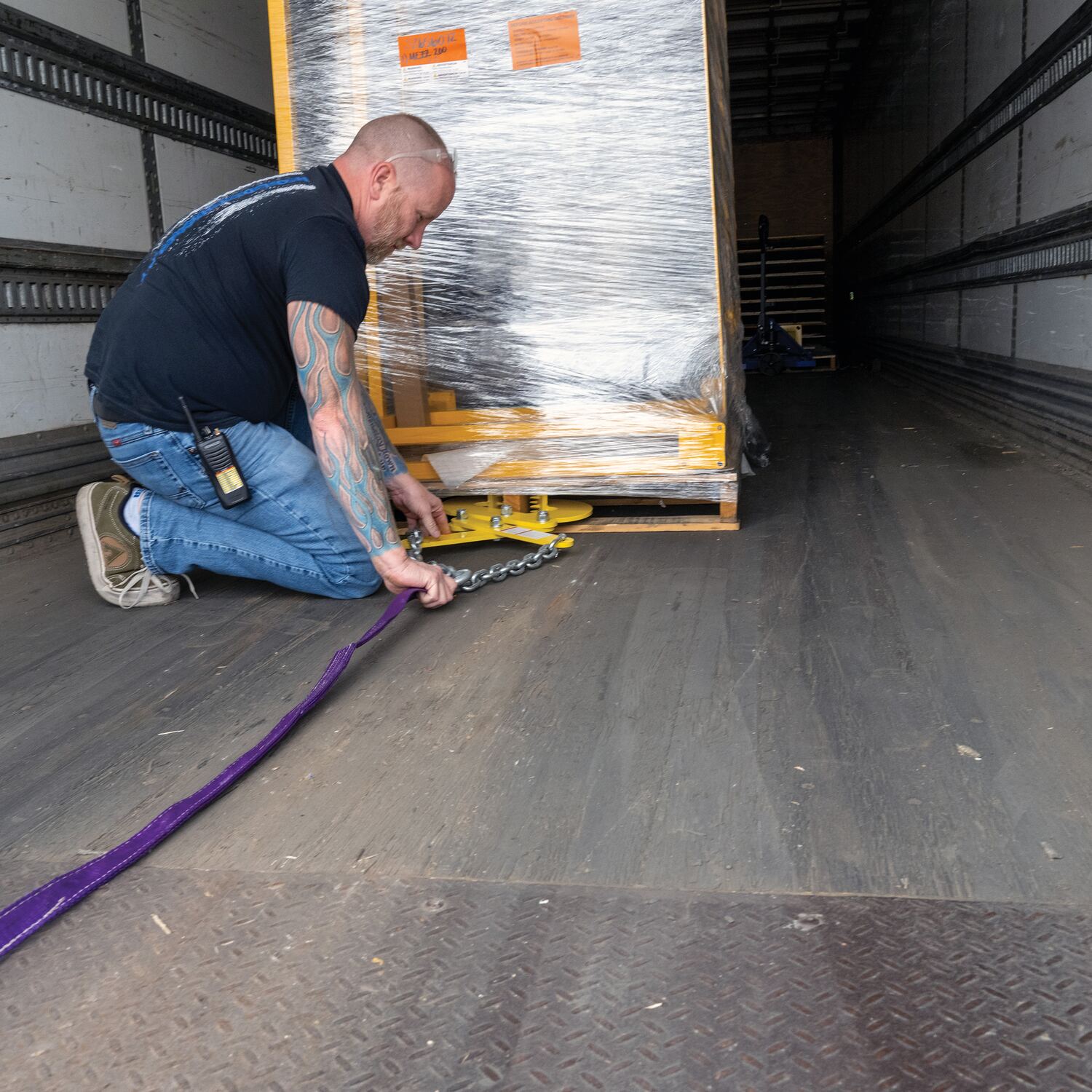

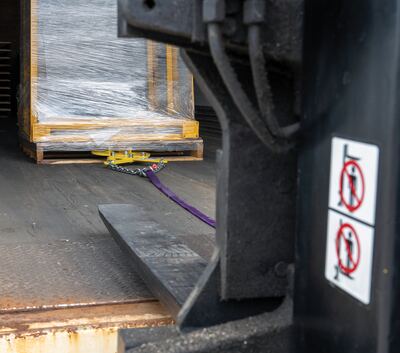

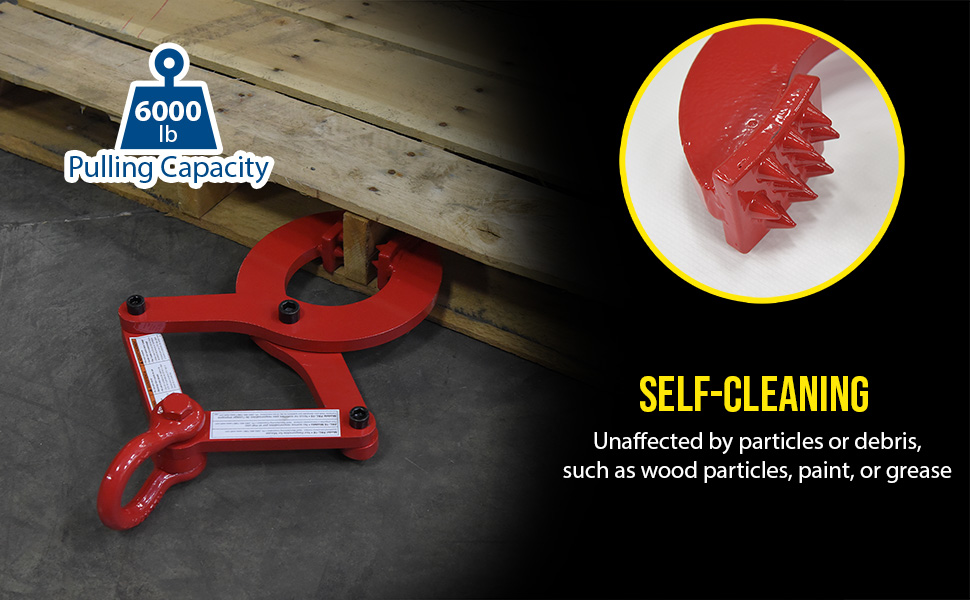

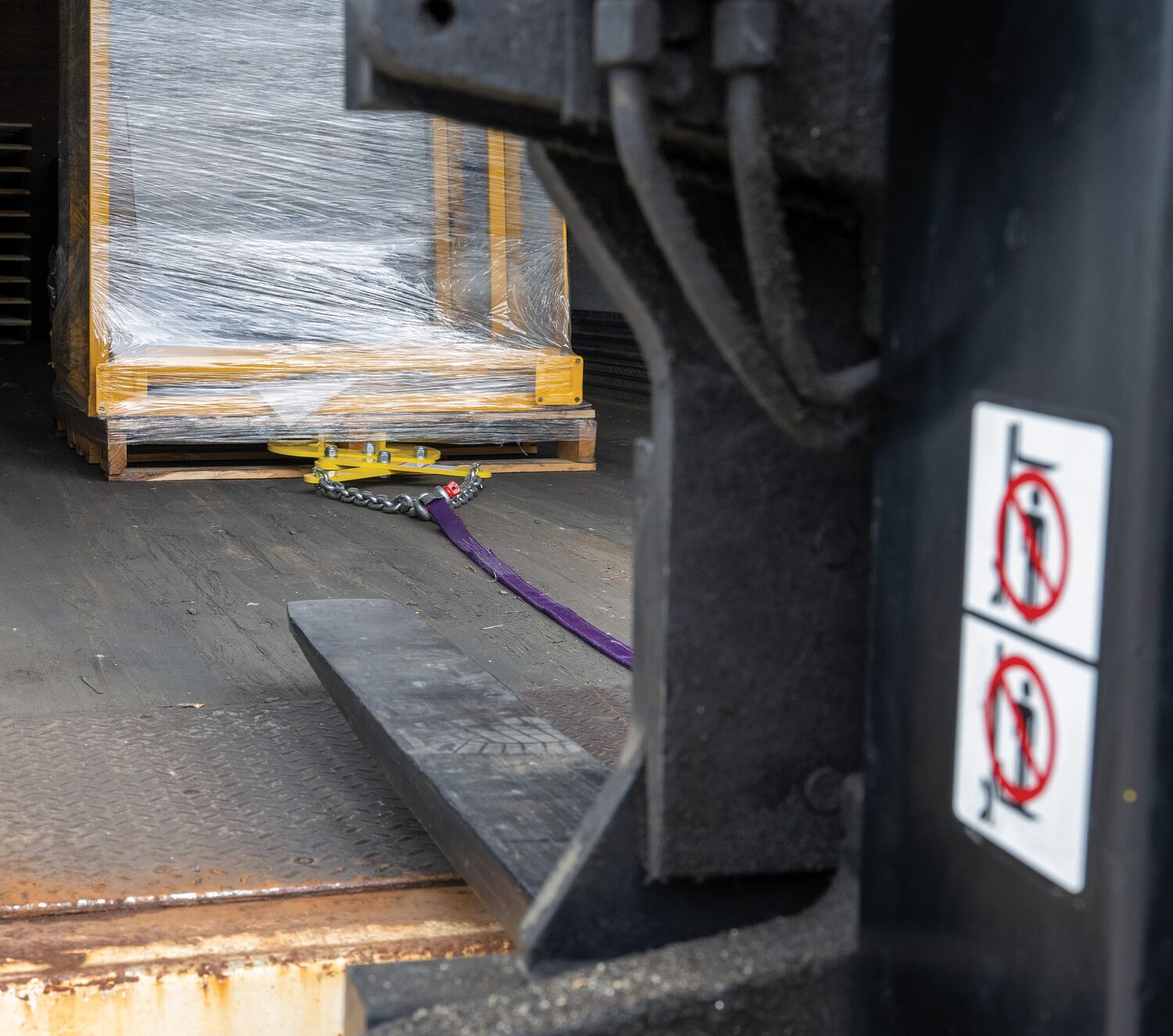

Pallet pullers are used to pull pallets from the rear of trailers, to the front, for easy fork truck access. Rugged steel construction. Heads are self-cleaning and unaffected by wood particles, paint or grease. Pallet pullers and chains are NOT designed for lifting.

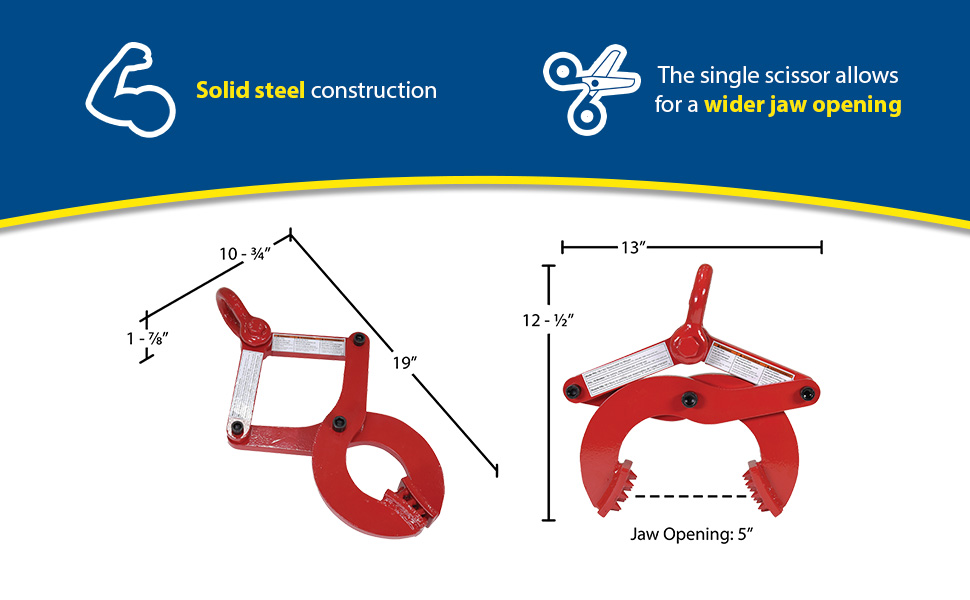

PAL-12 and PAL-16 - Single scissor action allows for wider jaw opening.

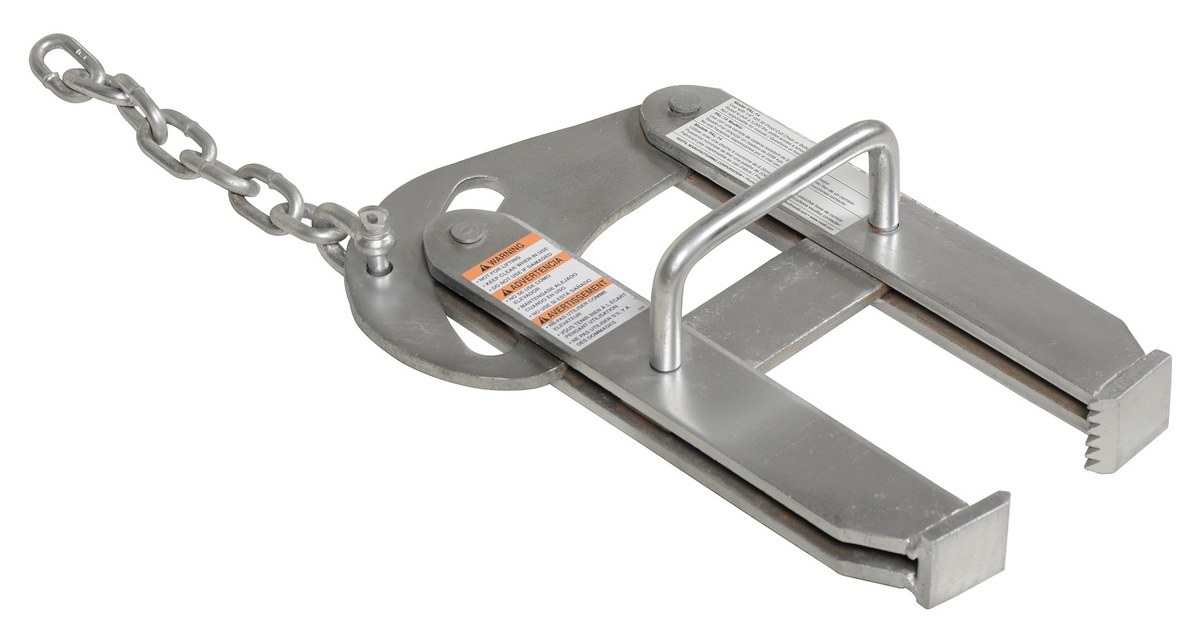

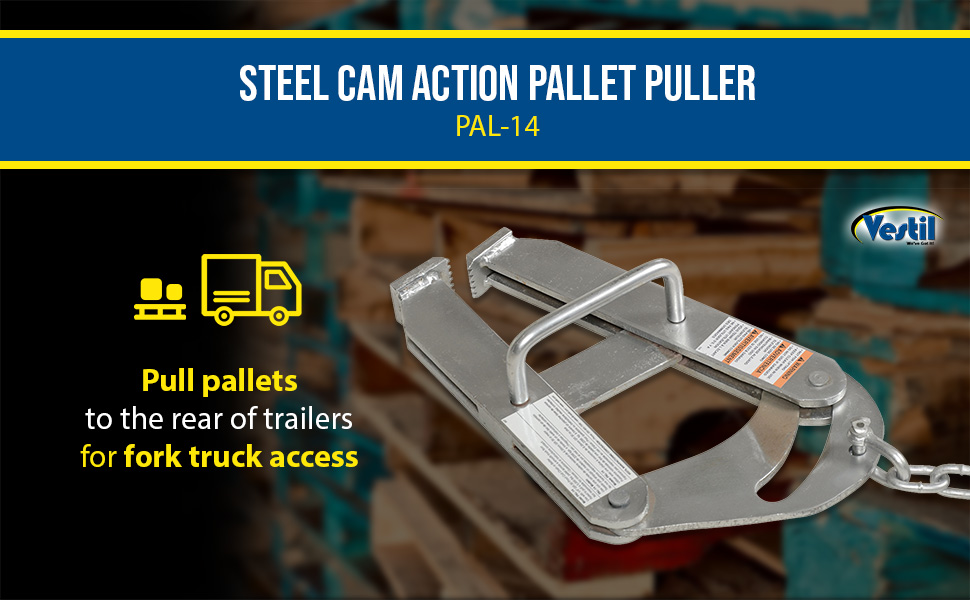

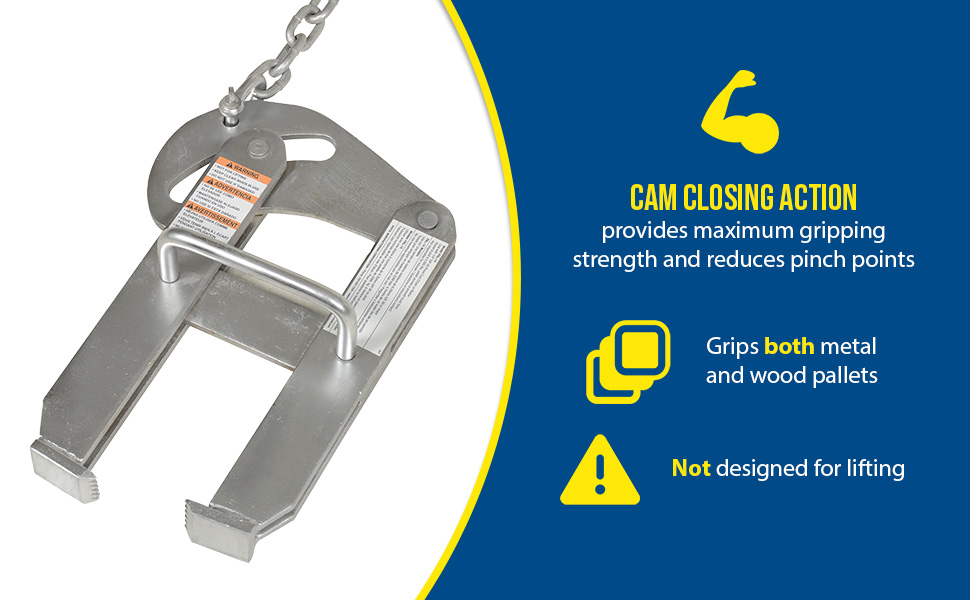

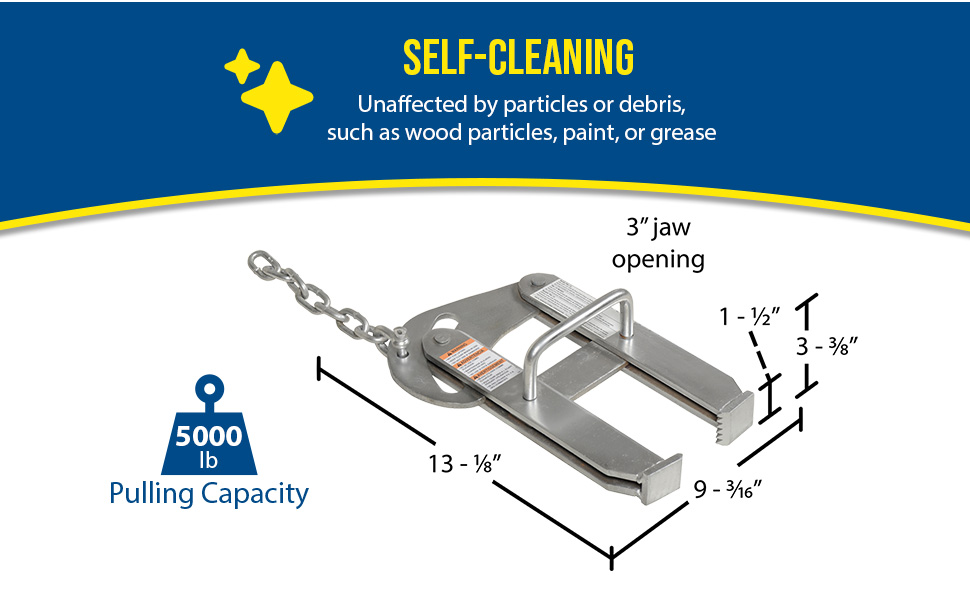

PAL-14 - Cam closing action provides maximum gripping strength and reduces pinch points. Safety handle enables easier positioning and removal. Grips both metal and wood pallets with biting action.

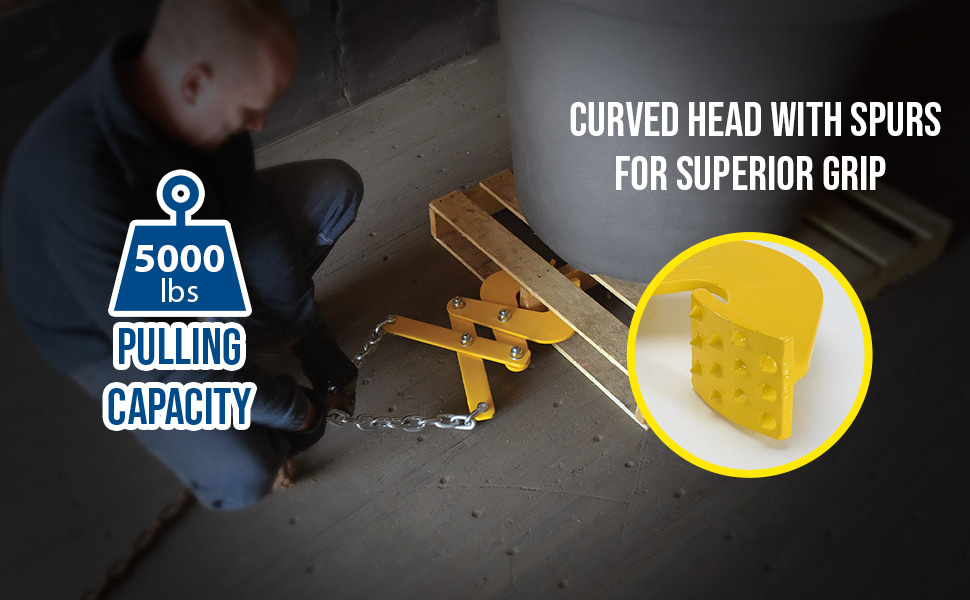

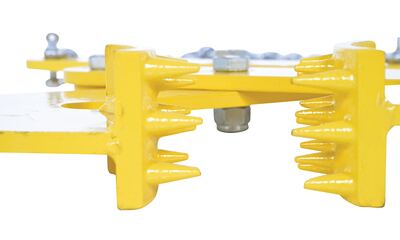

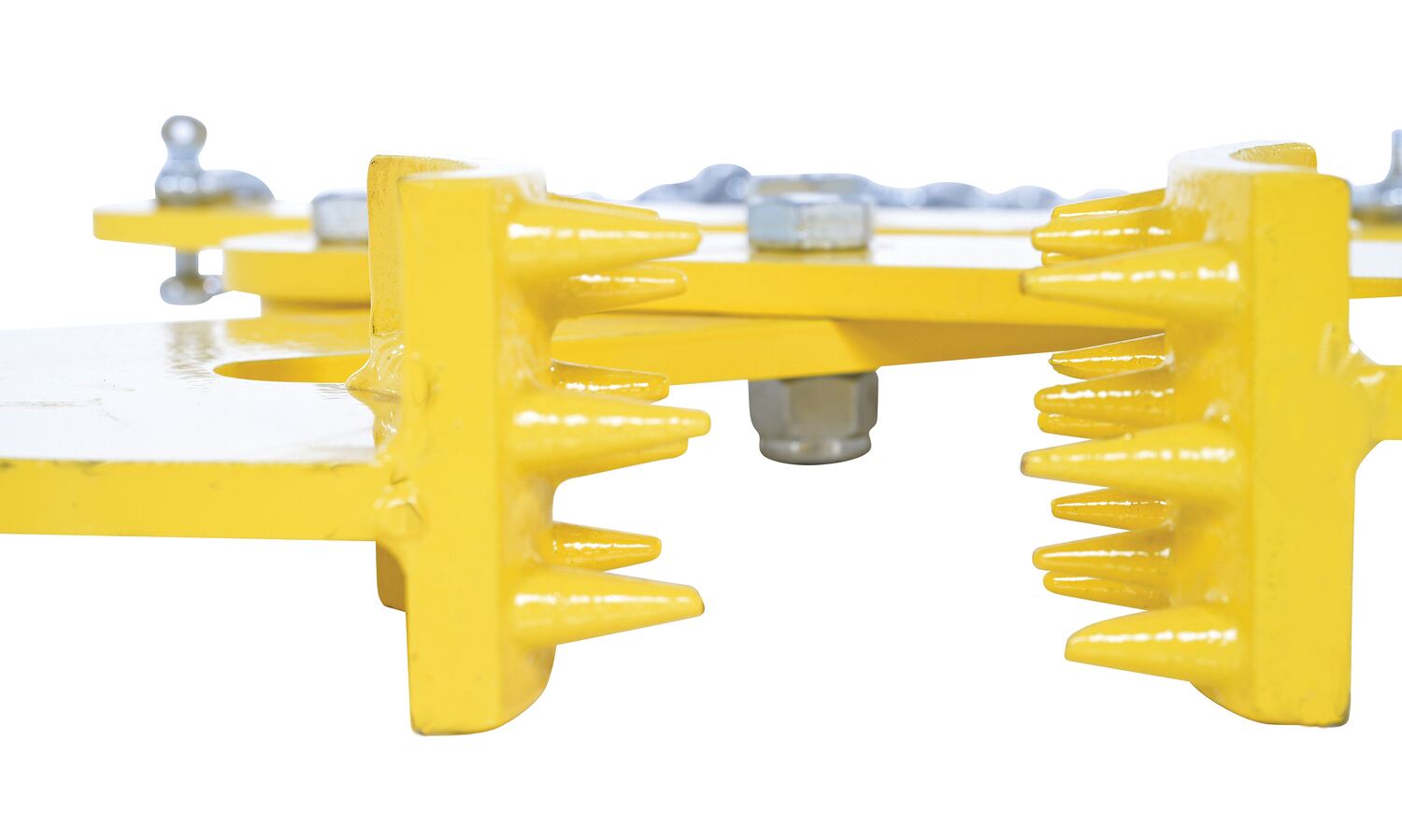

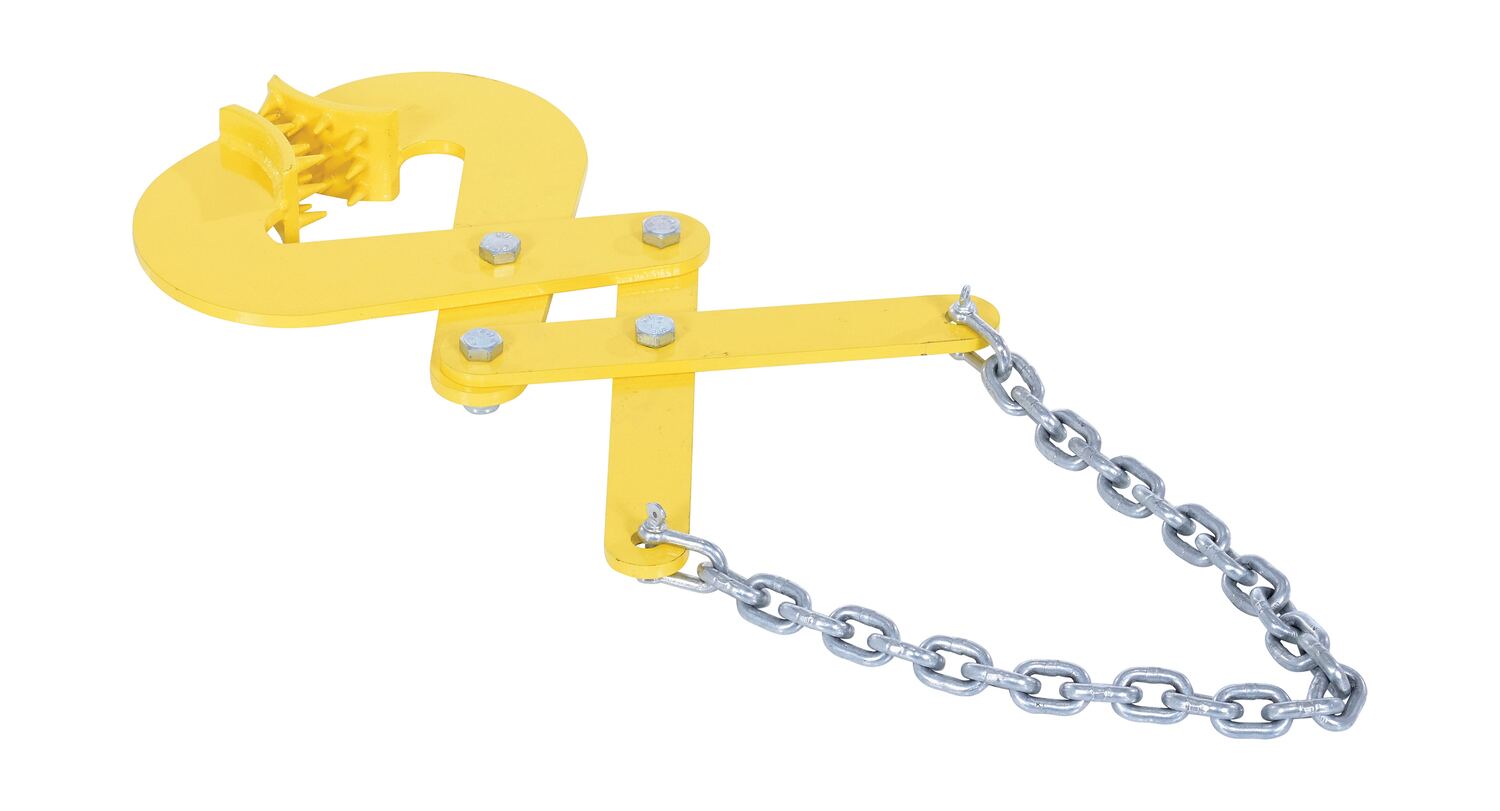

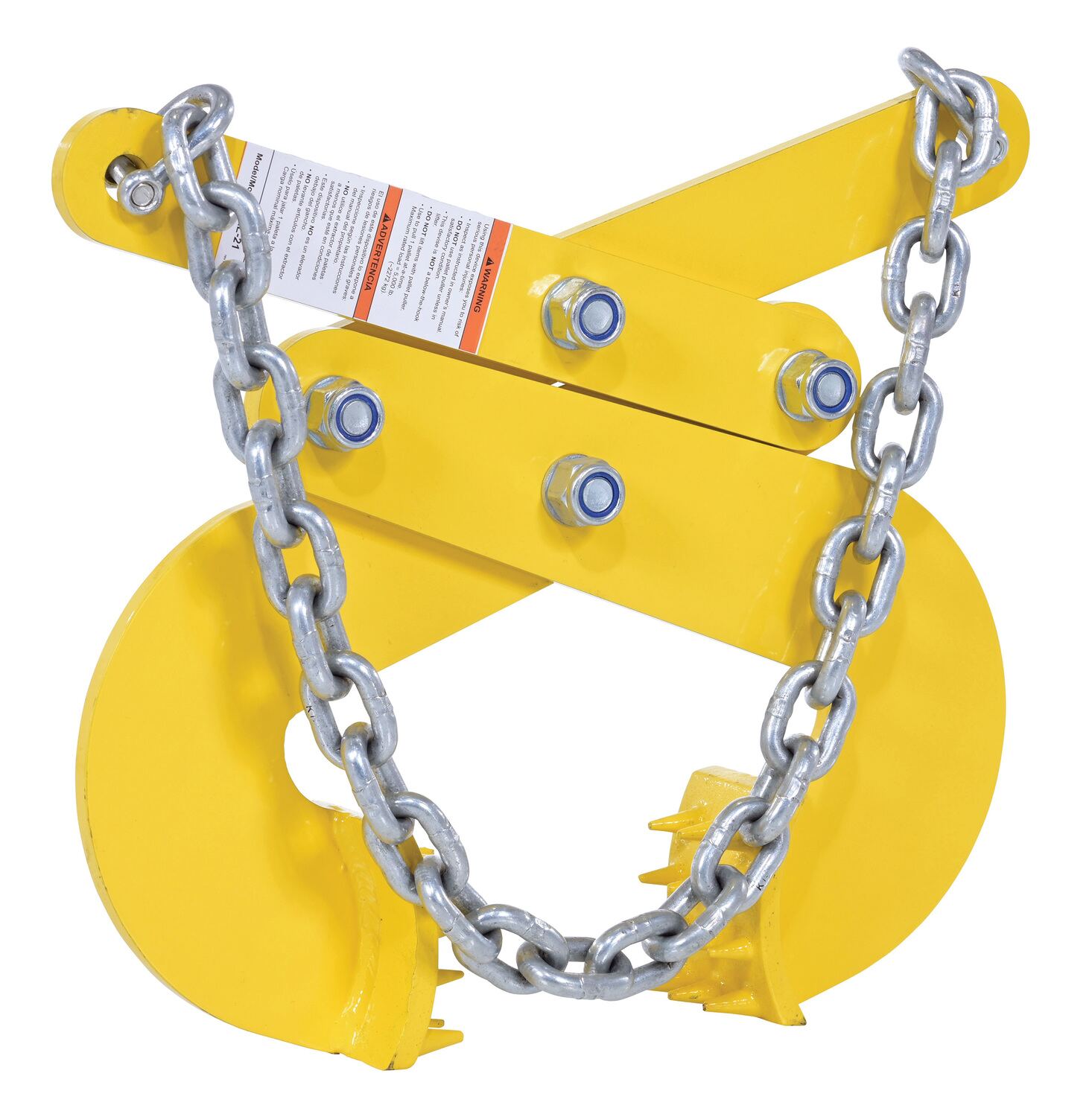

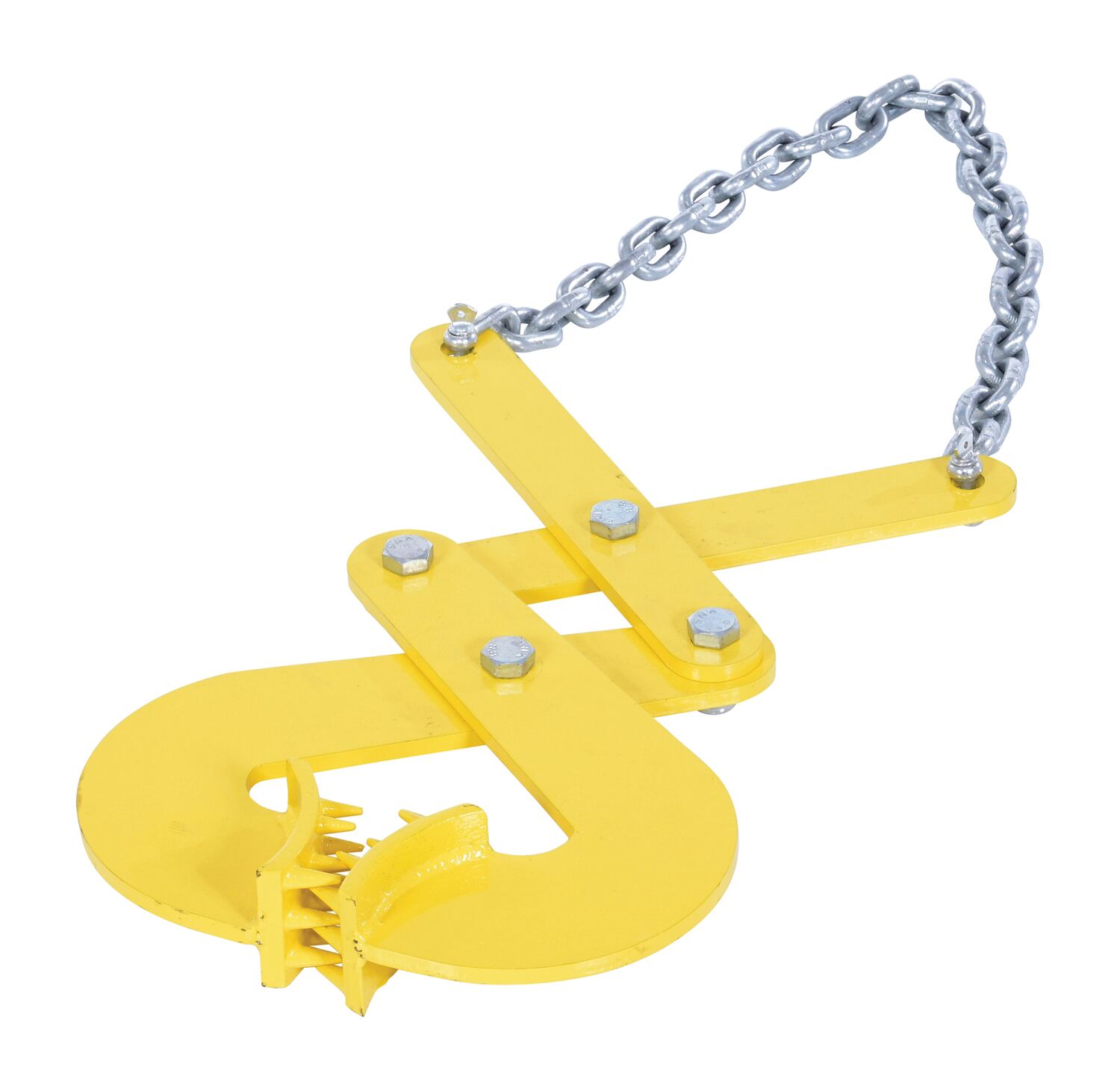

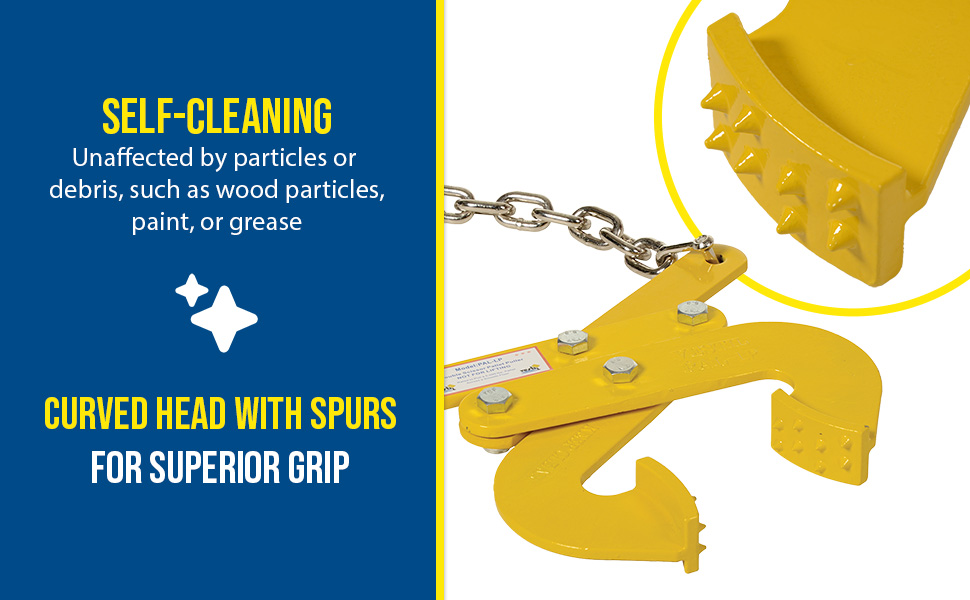

PAL-21 and PAL-LP - One piece curved heads have integral spurs for gripping pallet stringers.

Pallet pullers are used to pull pallets from the rear of trailers, to the front, for easy fork truck access. Rugged steel construction. Heads are self-cleaning and unaffected by wood particles, paint or grease. Pallet pullers and chains are NOT designed for lifting.

PAL-12 and PAL-16 - Single scissor action allows for wider jaw opening.

PAL-14 - Cam closing action provides maximum gripping strength and reduces pinch points. Safety handle enables easier positioning and removal. Grips both metal and wood pallets with biting action.

PAL-21 and PAL-LP - One piece curved heads have integral spurs for gripping pallet stringers.

Additional Models In This Family

Applications



Aerospace

Trucking Companies

Breweries

Construction Projects

Farming and Agriculture

Hospitals

Laboratories

Warehouses

Military

Moving Companies

Postal Services

Restaurants

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

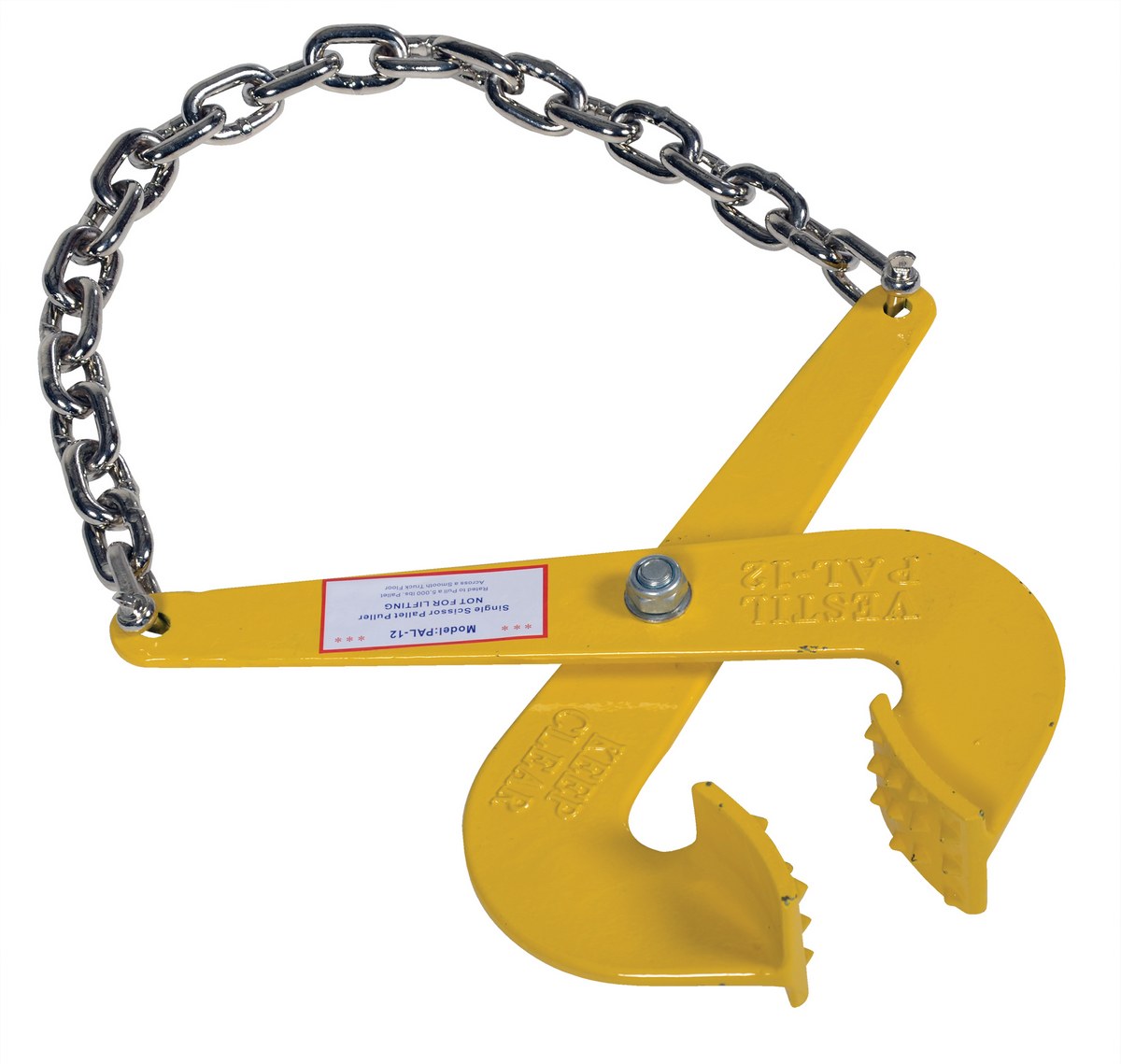

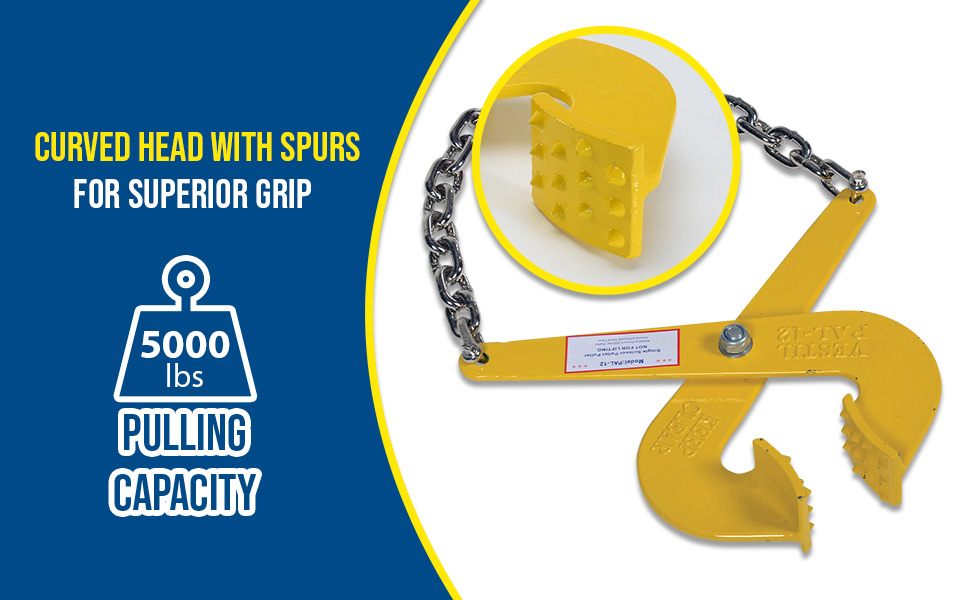

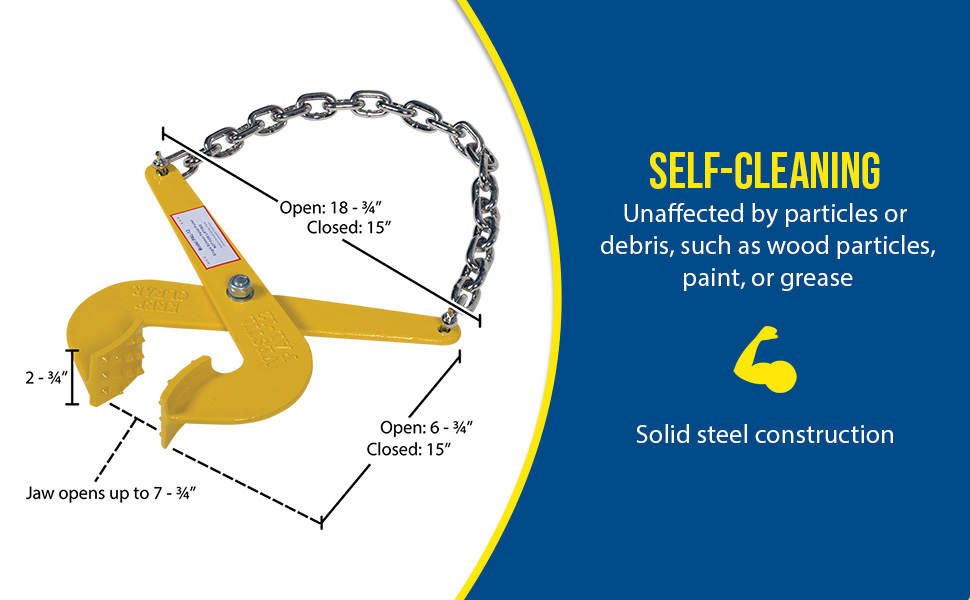

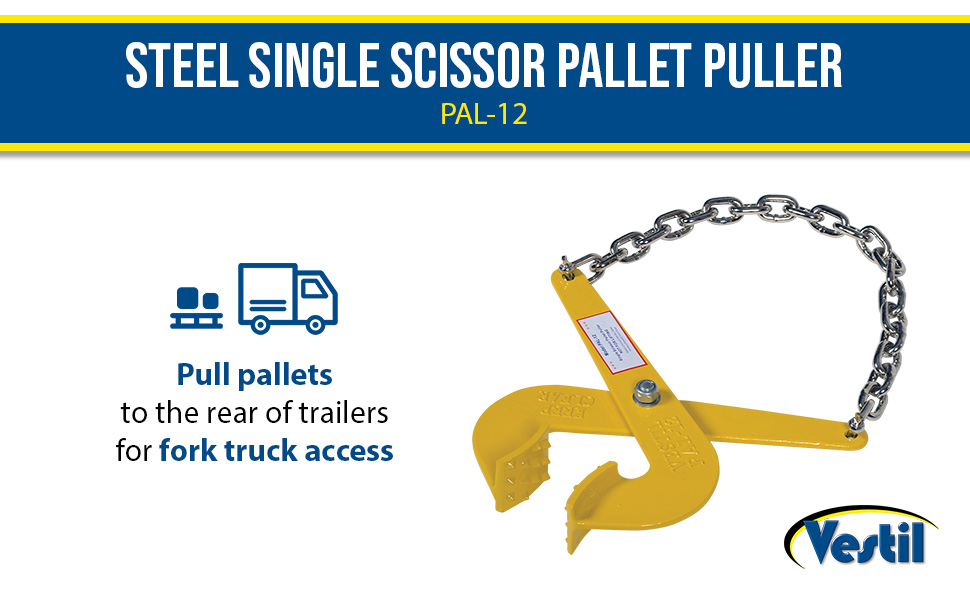

PAL-12 PAL-1230 Days Limited WarrantySteel Single Scissor Pallet Puller 7 In. Jaw Opening 5000 Lb. Pulling Capacity YellowUniform Pulling Capacity (lb.): 5000
Teeth Pad Height (in.): 2-3/4
14
PAL-14 PAL-1430 Days Limited WarrantySteel Cam Action Pallet Puller 3 In. Jaw Opening 5000 Lb. Pulling Capacity SilverUniform Pulling Capacity (lb.): 5000
Teeth Pad Height (in.): 1-1/2
17

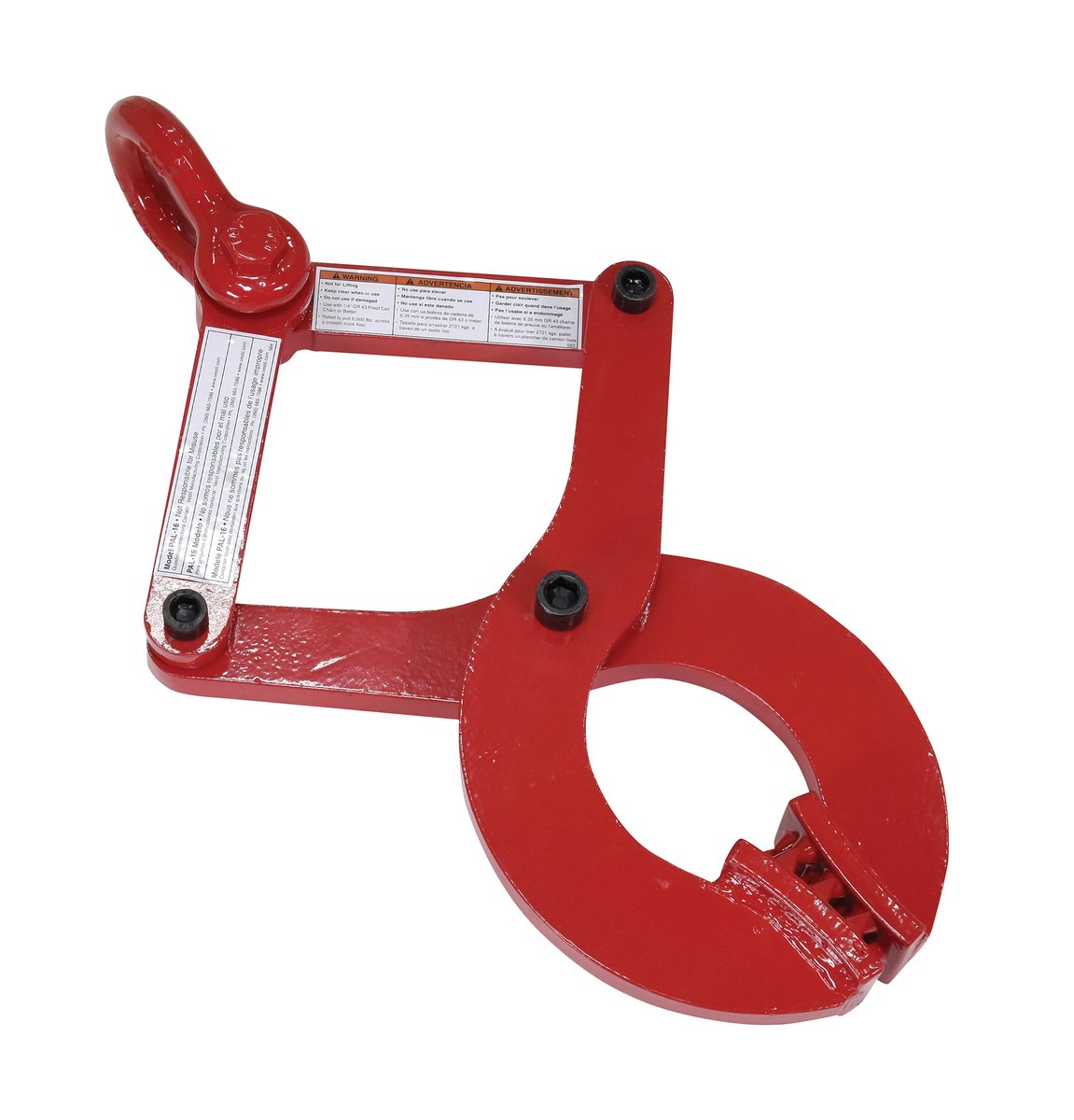

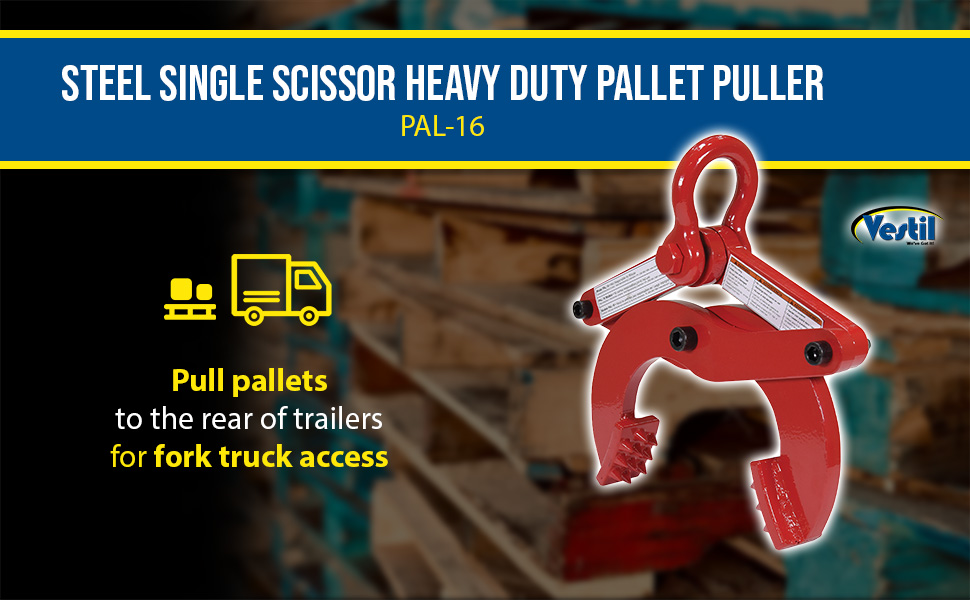

PAL-16 PAL-1630 Days Limited WarrantySteel Single Scissor Pallet Puller 5 In. Jaw Opening 6000 Lb. Pulling Capacity RedUniform Pulling Capacity (lb.): 6000
Teeth Pad Height (in.): 2
21

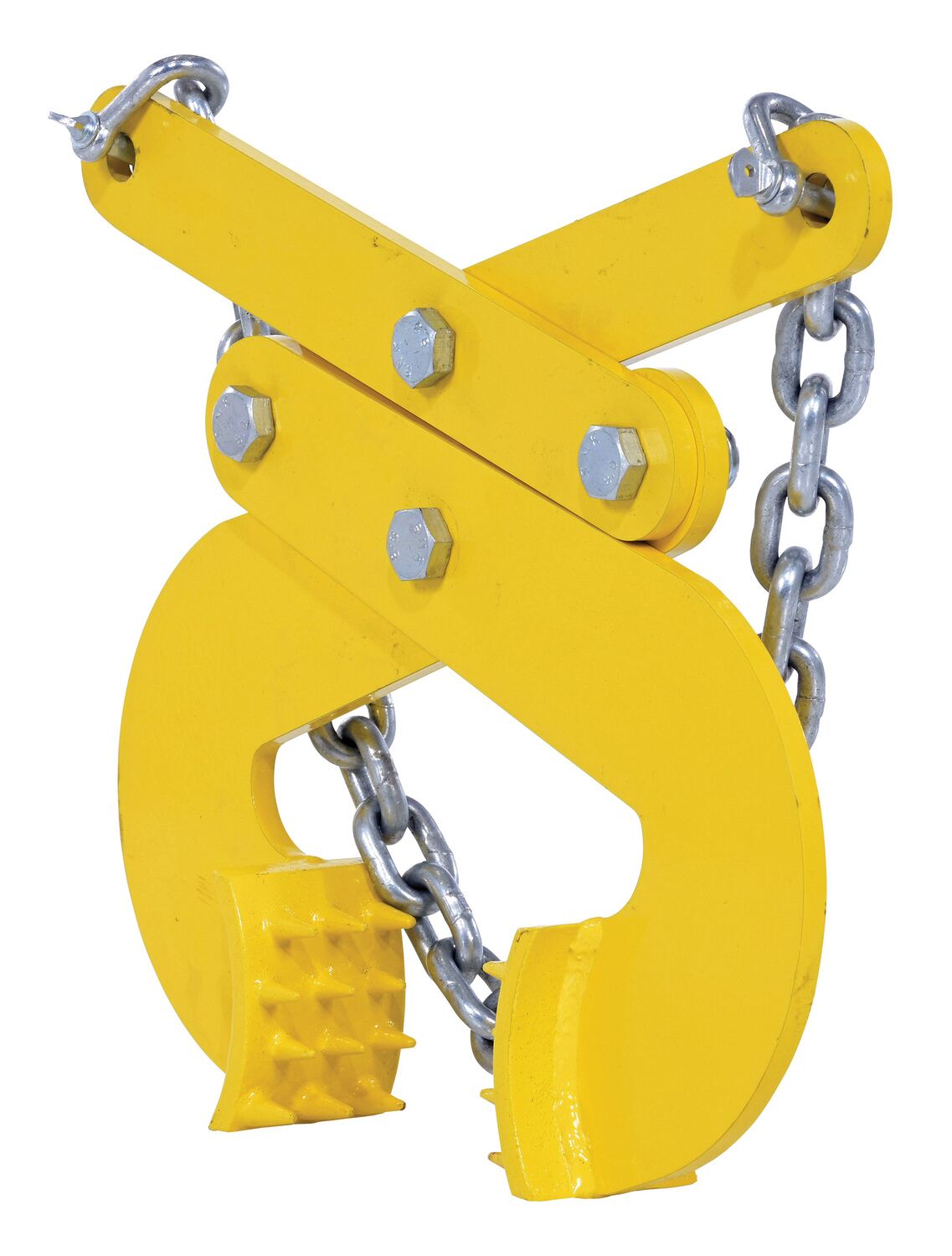

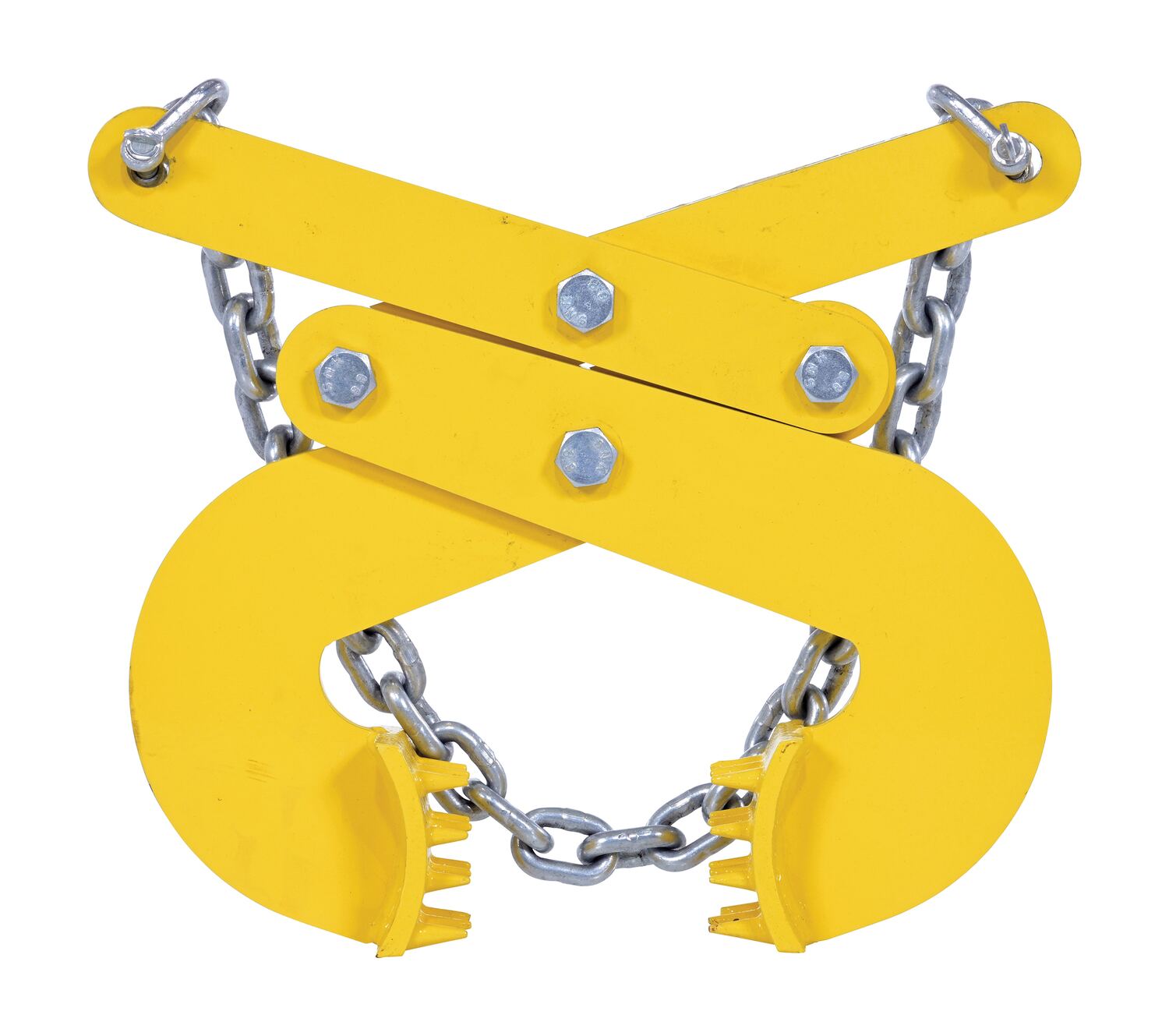

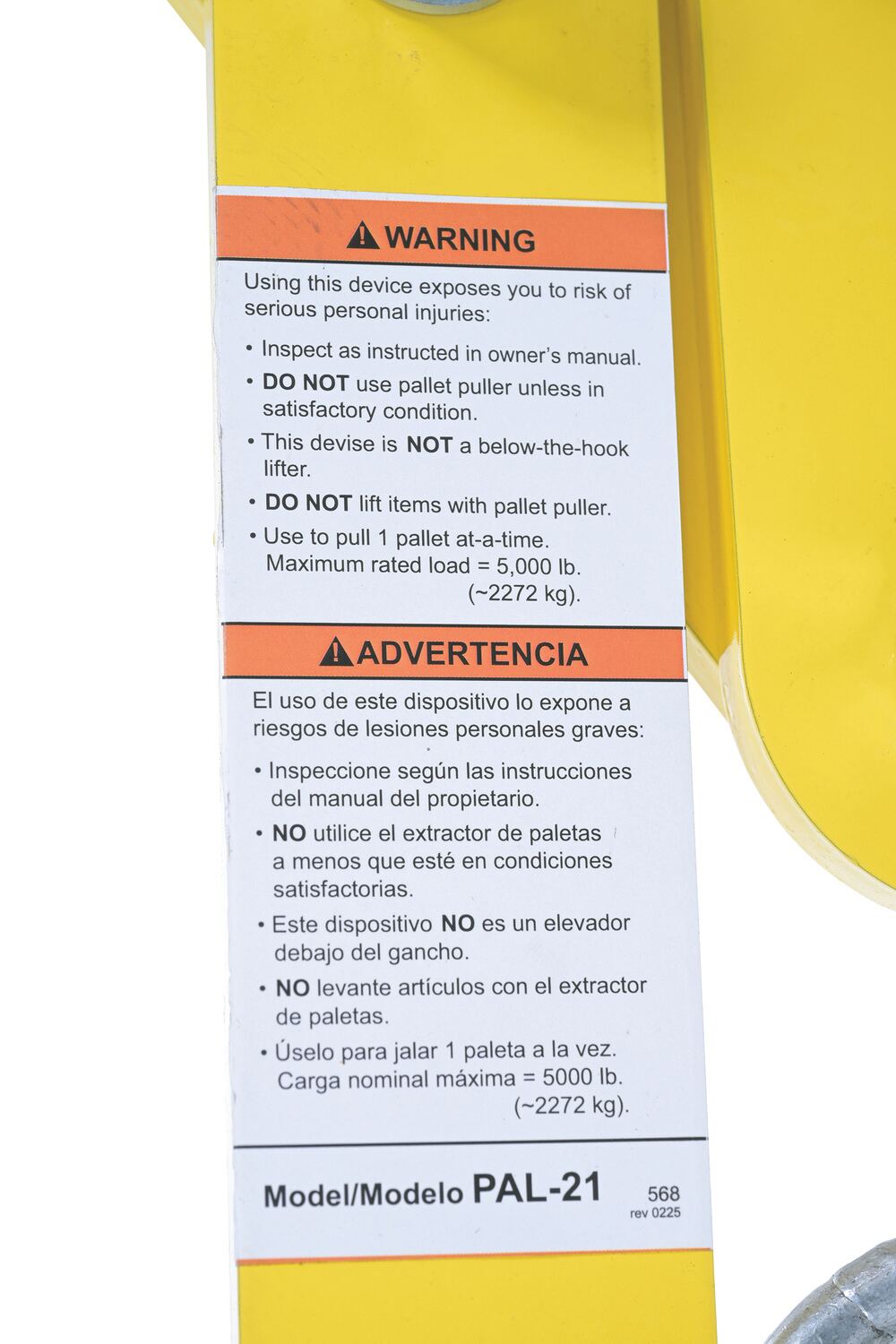

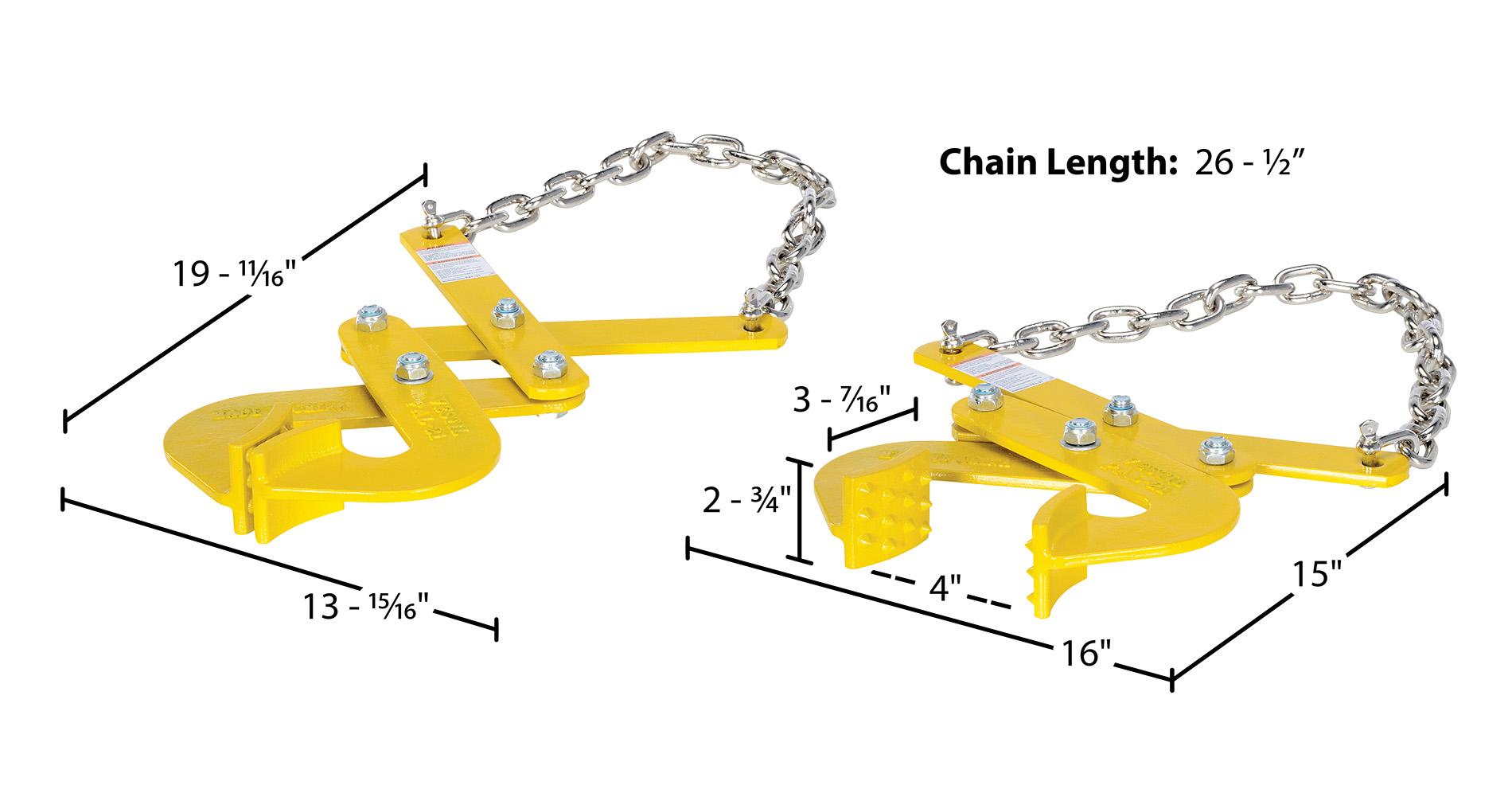

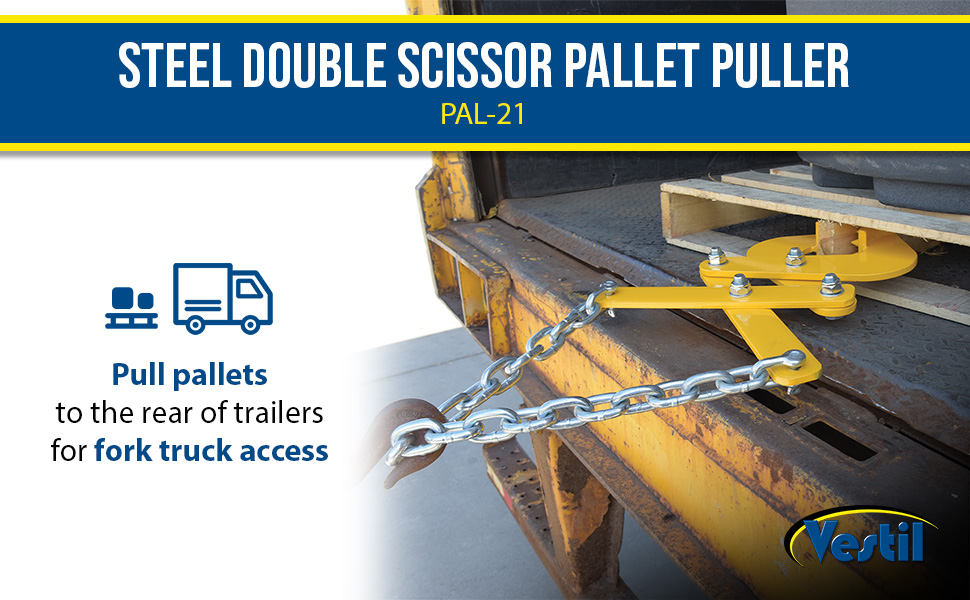

PAL-21 PAL-2130 Days Limited WarrantySteel Double Scissor Pallet Puller 4 In. Jaw Opening 5000 Lb. Pulling Capacity YellowUniform Pulling Capacity (lb.): 5000
Teeth Pad Height (in.): 2-3/4
25

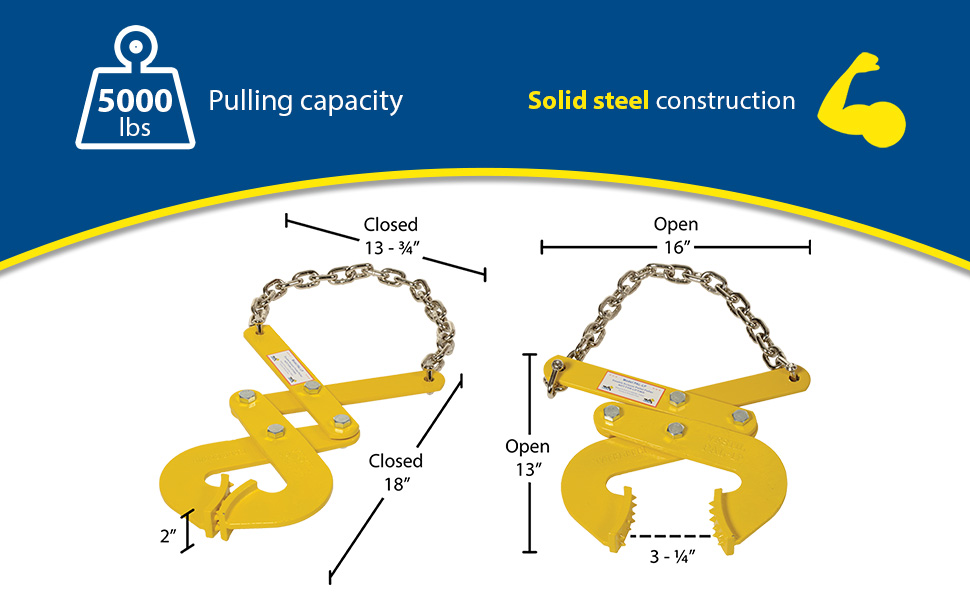

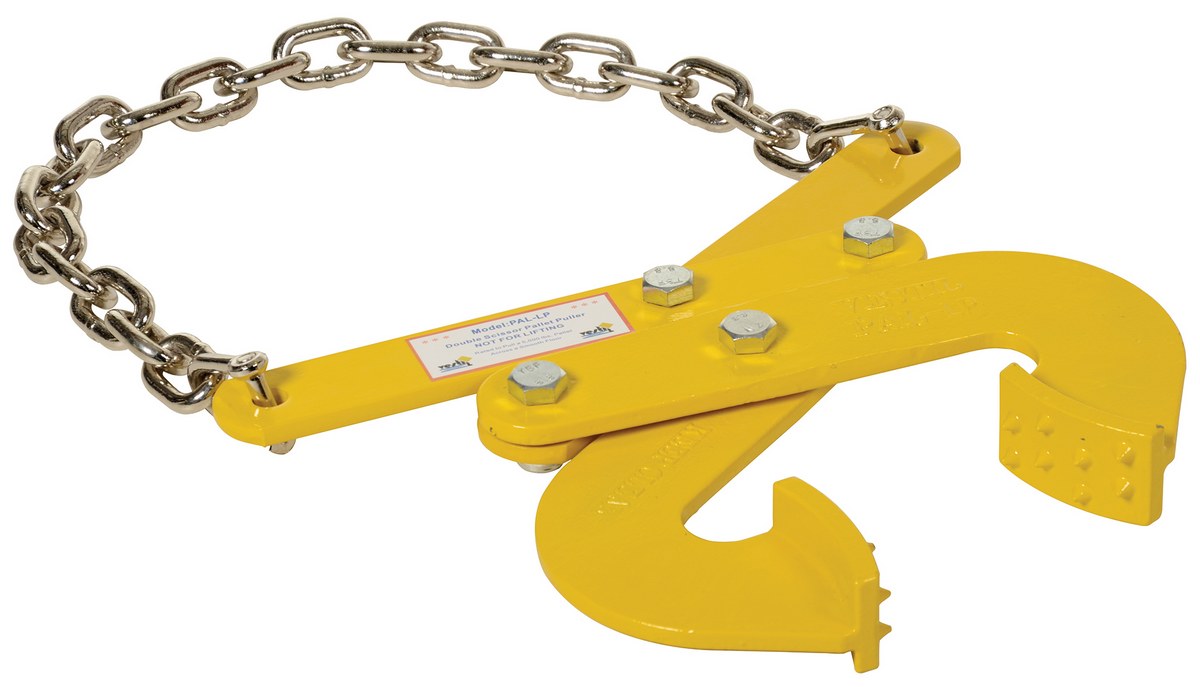

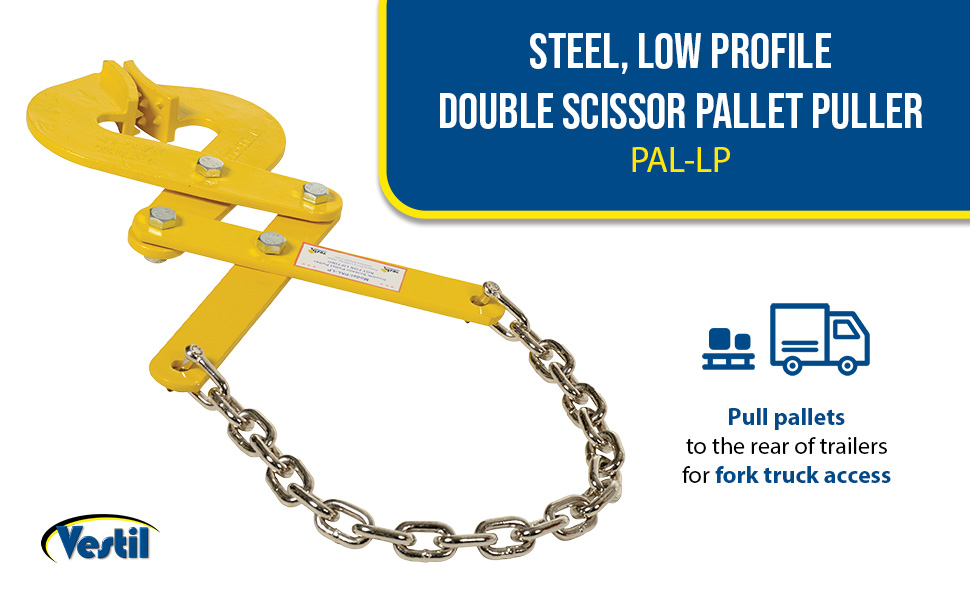

PAL-LP PAL-LP30 Days Limited WarrantySteel Low Profile Double Scissor Pallet Puller 2 In. x 16-3/4 In. x 13-3/4 In. 5000 Lb. Capacity YellowUniform Pulling Capacity (lb.): 5000
Jaw Height (in.): 2
24

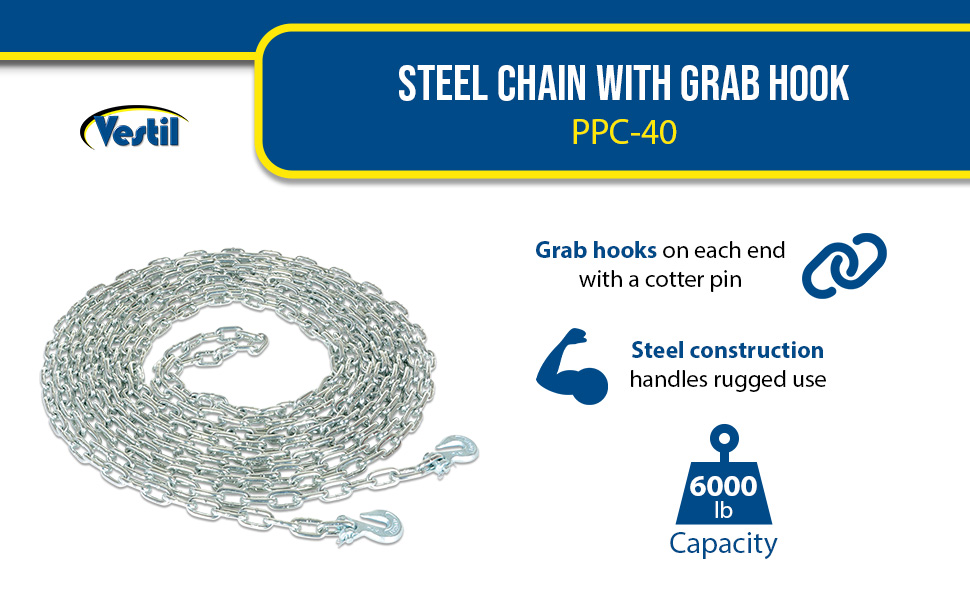

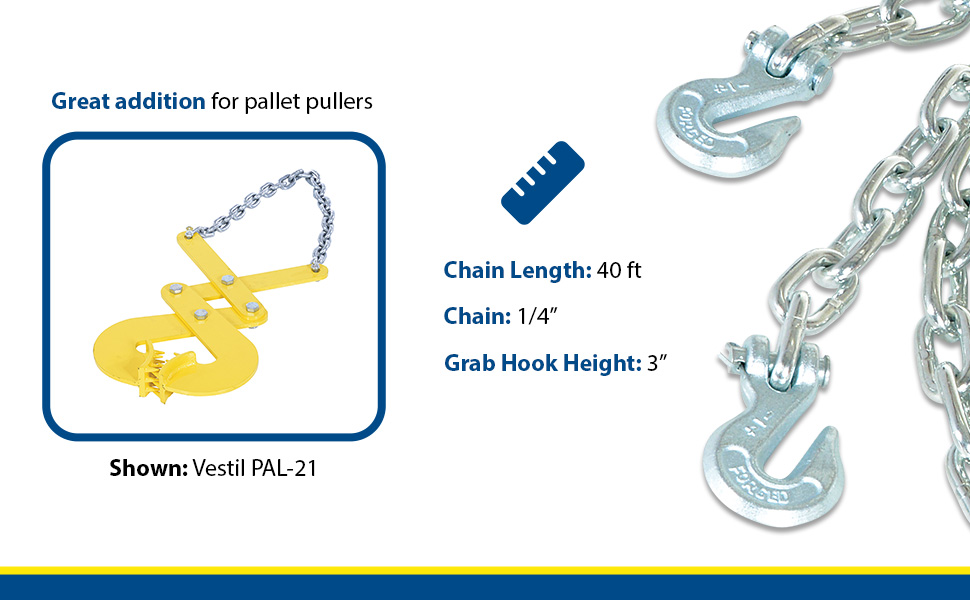

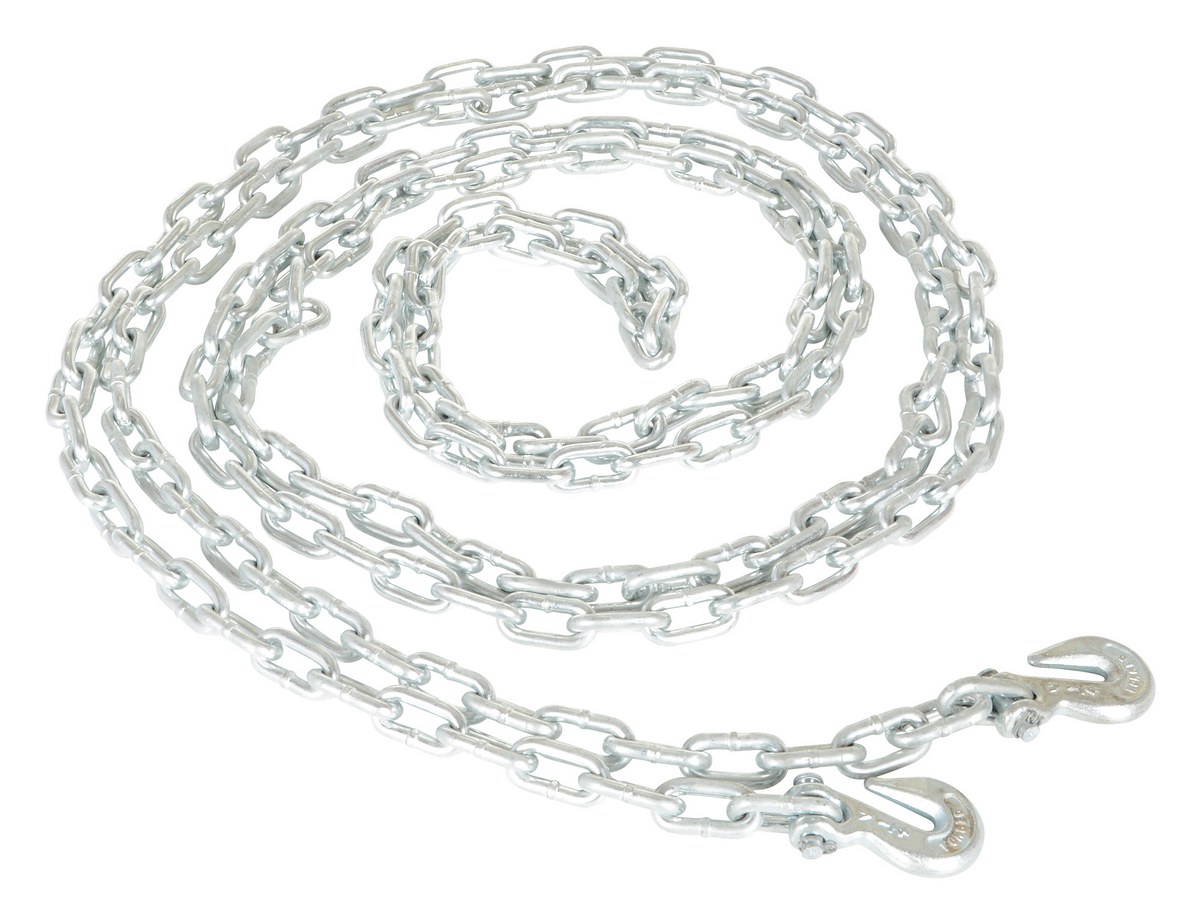

PPC-20 PPC-2030 Days Limited WarrantySteel Chain with Grab Hook 20 Ft. Length 1/4 In. Chain 6000 Lb. Pulling Capacity SilverUniform Pulling Capacity (lb.): 6000
Chain (in.): 1/4
14

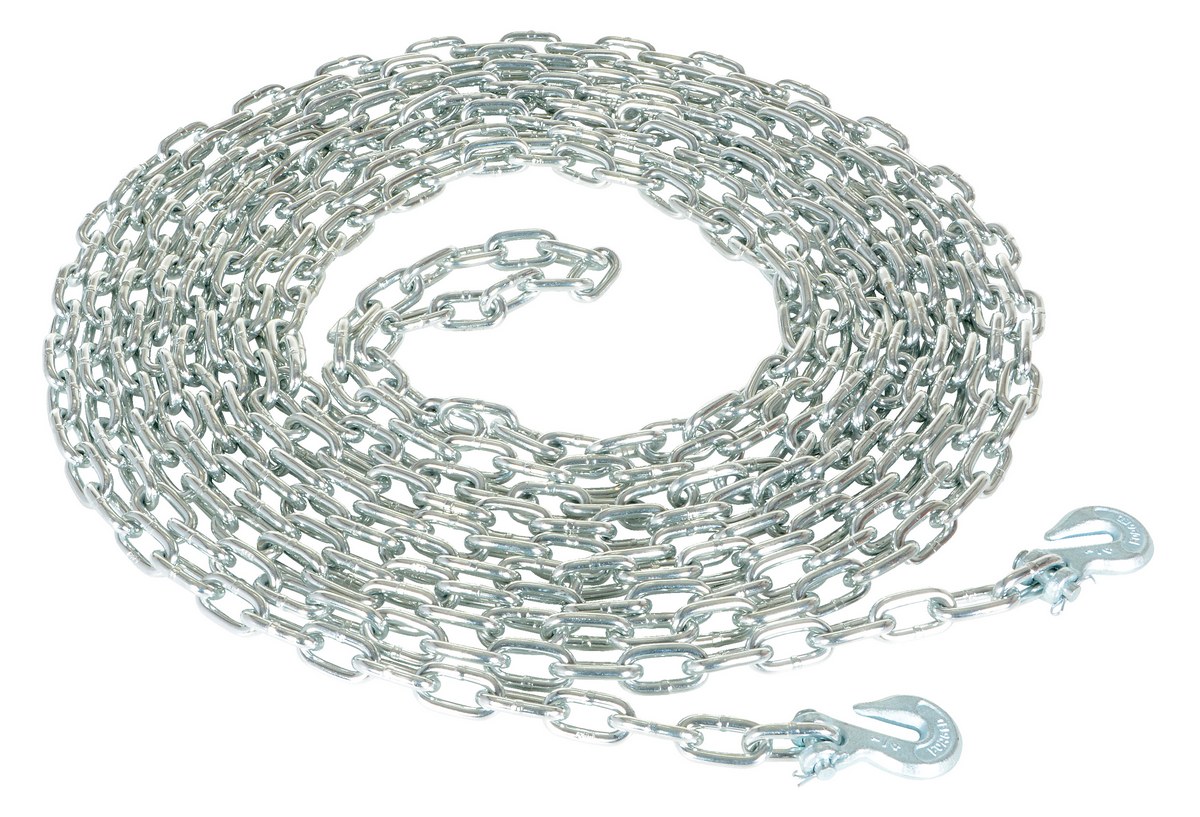

PPC-40 PPC-4030 Days Limited WarrantySteel Chain with Grab Hook 40 Ft. Length 1/4 In. Chain 6000 Lb. Pulling Capacity SilverUniform Pulling Capacity (lb.): 6000
Chain (in.): 1/4
28

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

PAL-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Pulling Capacity (lb.): 5000
Teeth Pad Height (in.): 2-3/4
Uniform Pulling Capacity (lb.): 5000
Teeth Pad Height (in.): 2-3/4

PAL-14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Pulling Capacity (lb.): 5000
Teeth Pad Height (in.): 1-1/2
Uniform Pulling Capacity (lb.): 5000
Teeth Pad Height (in.): 1-1/2

PAL-16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Pulling Capacity (lb.): 6000
Teeth Pad Height (in.): 2
Uniform Pulling Capacity (lb.): 6000
Teeth Pad Height (in.): 2

PAL-21
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Pulling Capacity (lb.): 5000
Teeth Pad Height (in.): 2-3/4
Uniform Pulling Capacity (lb.): 5000
Teeth Pad Height (in.): 2-3/4

PAL-LP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Pulling Capacity (lb.): 5000
Jaw Height (in.): 2
Uniform Pulling Capacity (lb.): 5000
Jaw Height (in.): 2

PPC-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Pulling Capacity (lb.): 6000
Chain (in.): 1/4
Uniform Pulling Capacity (lb.): 6000
Chain (in.): 1/4

PPC-40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Pulling Capacity (lb.): 6000
Chain (in.): 1/4
Uniform Pulling Capacity (lb.): 6000
Chain (in.): 1/4

Pallet Pullers PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


PAL-12

PAL-14

PAL-16

PAL-21

PAL-LP

PPC-20

PPC-40

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: How wide does mouth open on the PAL-16?

A: 5" jaw opening.

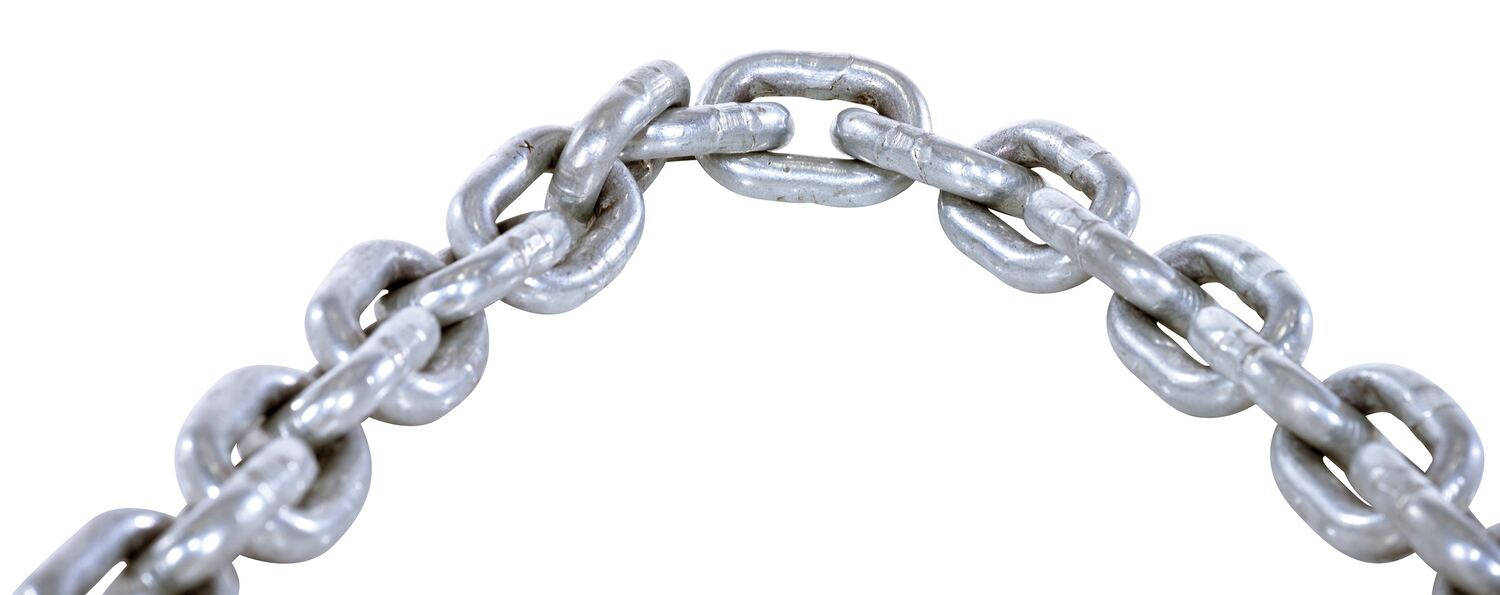

Q: What is the anti-corrosion treatment on the PPC chains?

A: The PPC chains are galvanized






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Pallet Pullers




Pallet pullers are used to pull pallets from the rear of trailers, to the front, for easy fork truck access. Rugged steel construction. Heads are self-cleaning and unaffected by wood particles, paint or grease. Pallet pullers and chains are NOT designed for lifting.

PAL-12 and PAL-16 - Single scissor action allows for wider jaw opening.

PAL-14 - Cam closing action provides maximum gripping strength and reduces pinch points. Safety handle enables easier positioning and removal. Grips both metal and wood pallets with biting action.

PAL-21 and PAL-LP - One piece curved heads have integral spurs for gripping pallet stringers.



Model # Description Attributes Net Wt.
(lbs)
PAL-12 PAL-12Steel Single Scissor Pallet Puller 7 In. Jaw Opening 5000 Lb. Pulling Capacity YellowUniform Pulling Capacity (lb.): 5000
Teeth Pad Height (in.): 2-3/4
14
PAL-14 PAL-14Steel Cam Action Pallet Puller 3 In. Jaw Opening 5000 Lb. Pulling Capacity SilverUniform Pulling Capacity (lb.): 5000
Teeth Pad Height (in.): 1-1/2
17
PAL-16 PAL-16Steel Single Scissor Pallet Puller 5 In. Jaw Opening 6000 Lb. Pulling Capacity RedUniform Pulling Capacity (lb.): 6000
Teeth Pad Height (in.): 2
21
PAL-21 PAL-21Steel Double Scissor Pallet Puller 4 In. Jaw Opening 5000 Lb. Pulling Capacity YellowUniform Pulling Capacity (lb.): 5000
Teeth Pad Height (in.): 2-3/4
25
PAL-LP PAL-LPSteel Low Profile Double Scissor Pallet Puller 2 In. x 16-3/4 In. x 13-3/4 In. 5000 Lb. Capacity YellowUniform Pulling Capacity (lb.): 5000
Jaw Height (in.): 2
24
PPC-20 PPC-20Steel Chain with Grab Hook 20 Ft. Length 1/4 In. Chain 6000 Lb. Pulling Capacity SilverUniform Pulling Capacity (lb.): 6000
Chain (in.): 1/4
14
PPC-40 PPC-40Steel Chain with Grab Hook 40 Ft. Length 1/4 In. Chain 6000 Lb. Pulling Capacity SilverUniform Pulling Capacity (lb.): 6000
Chain (in.): 1/4
28
