Product Family Overview

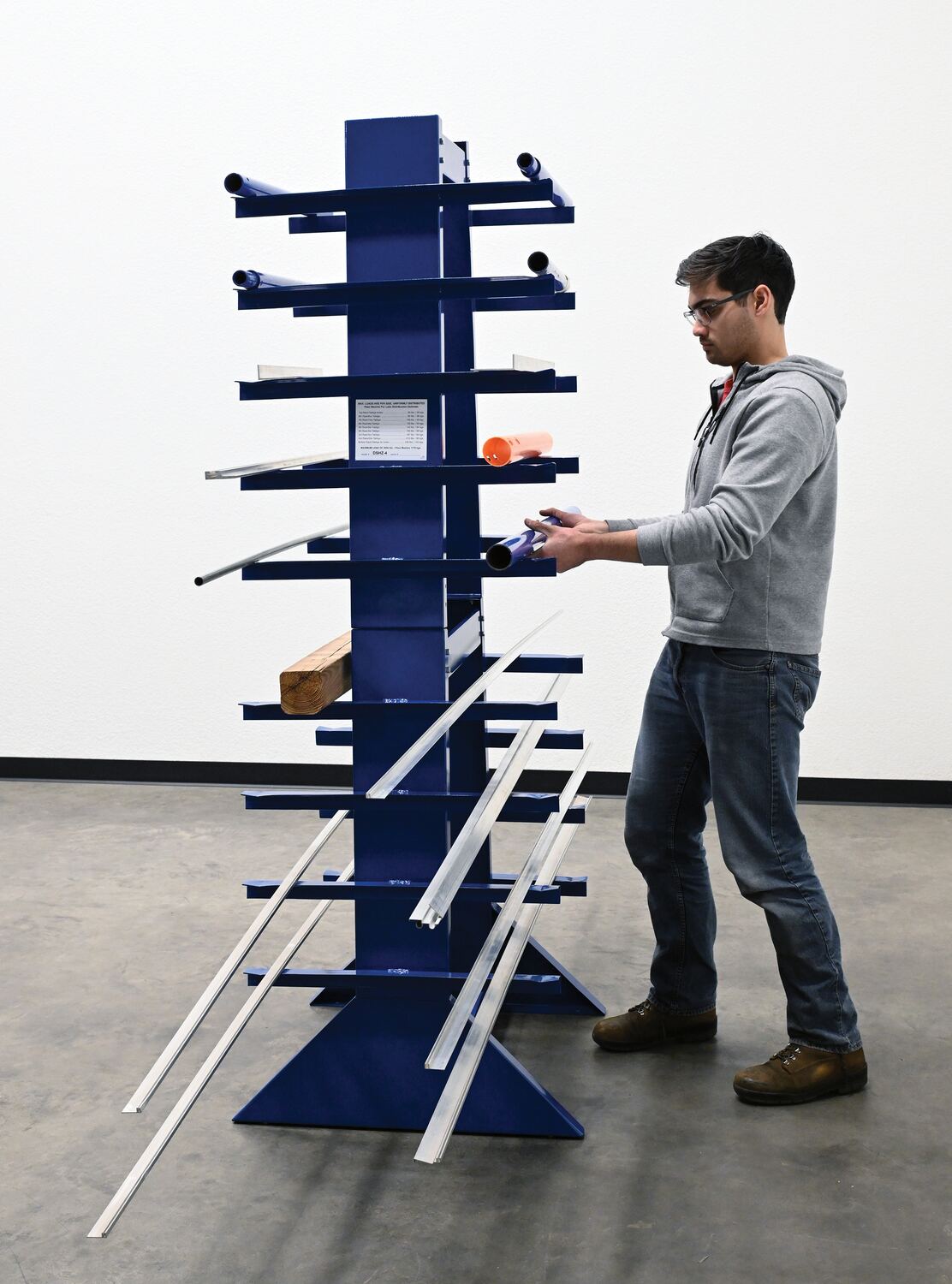

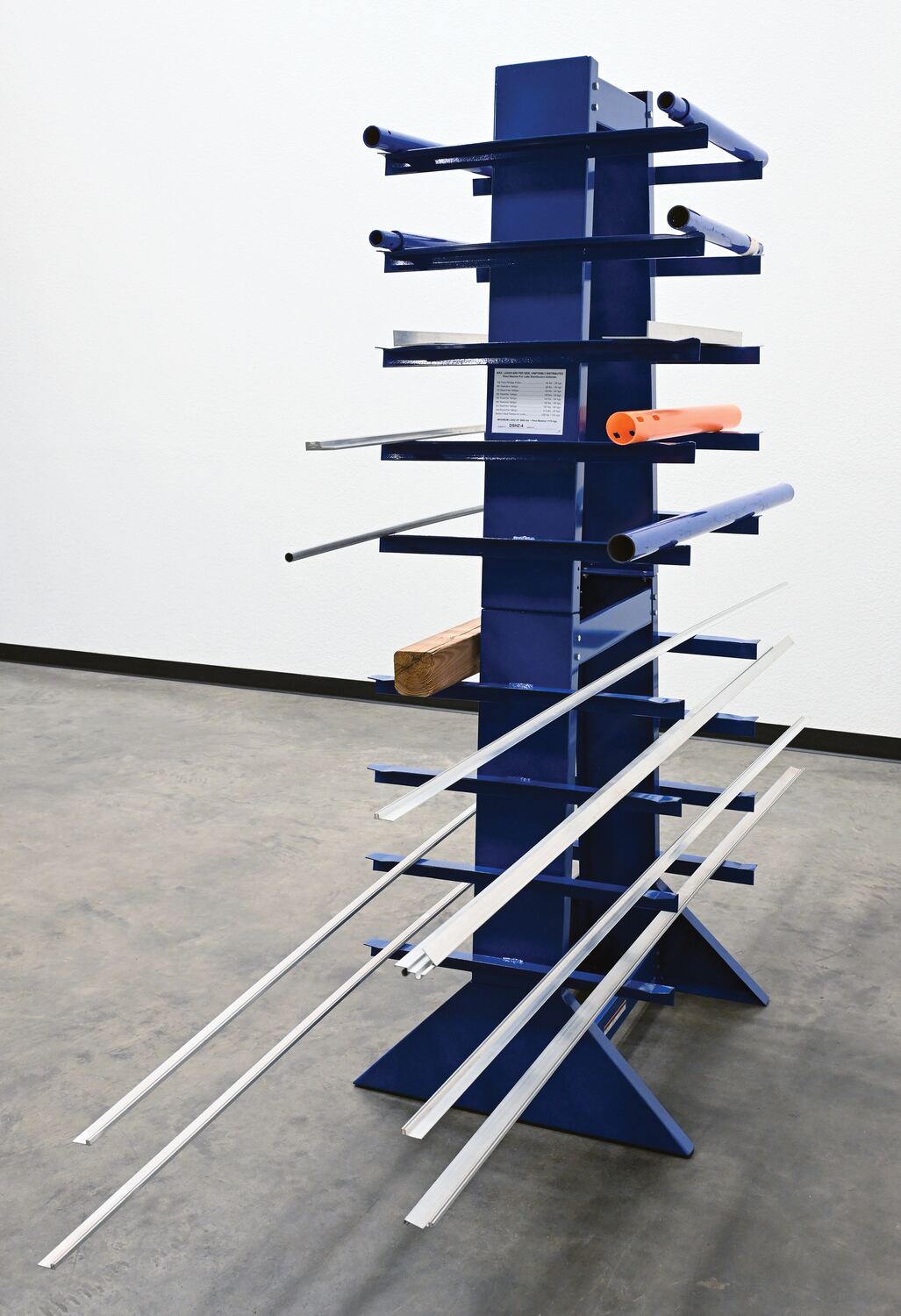

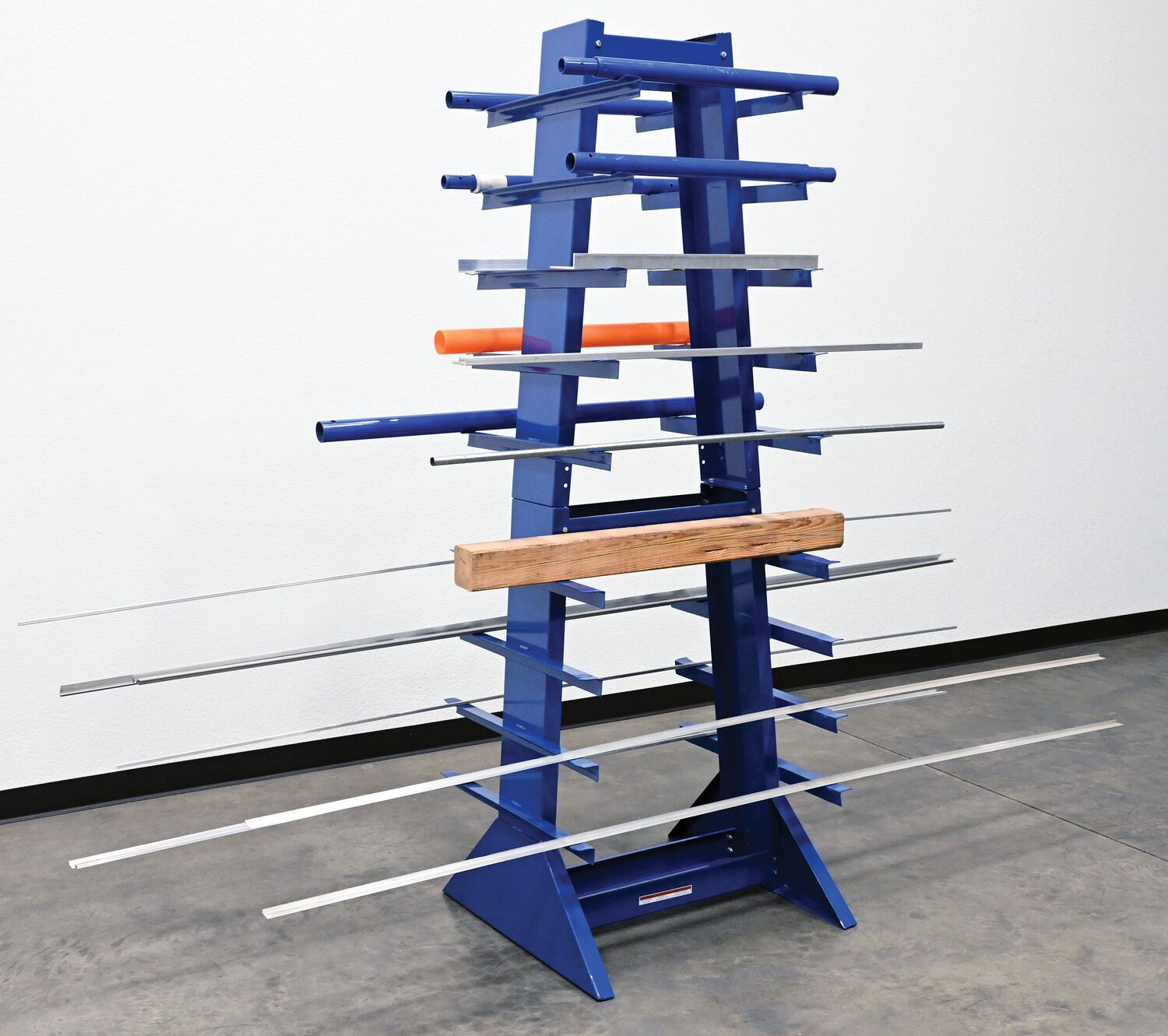

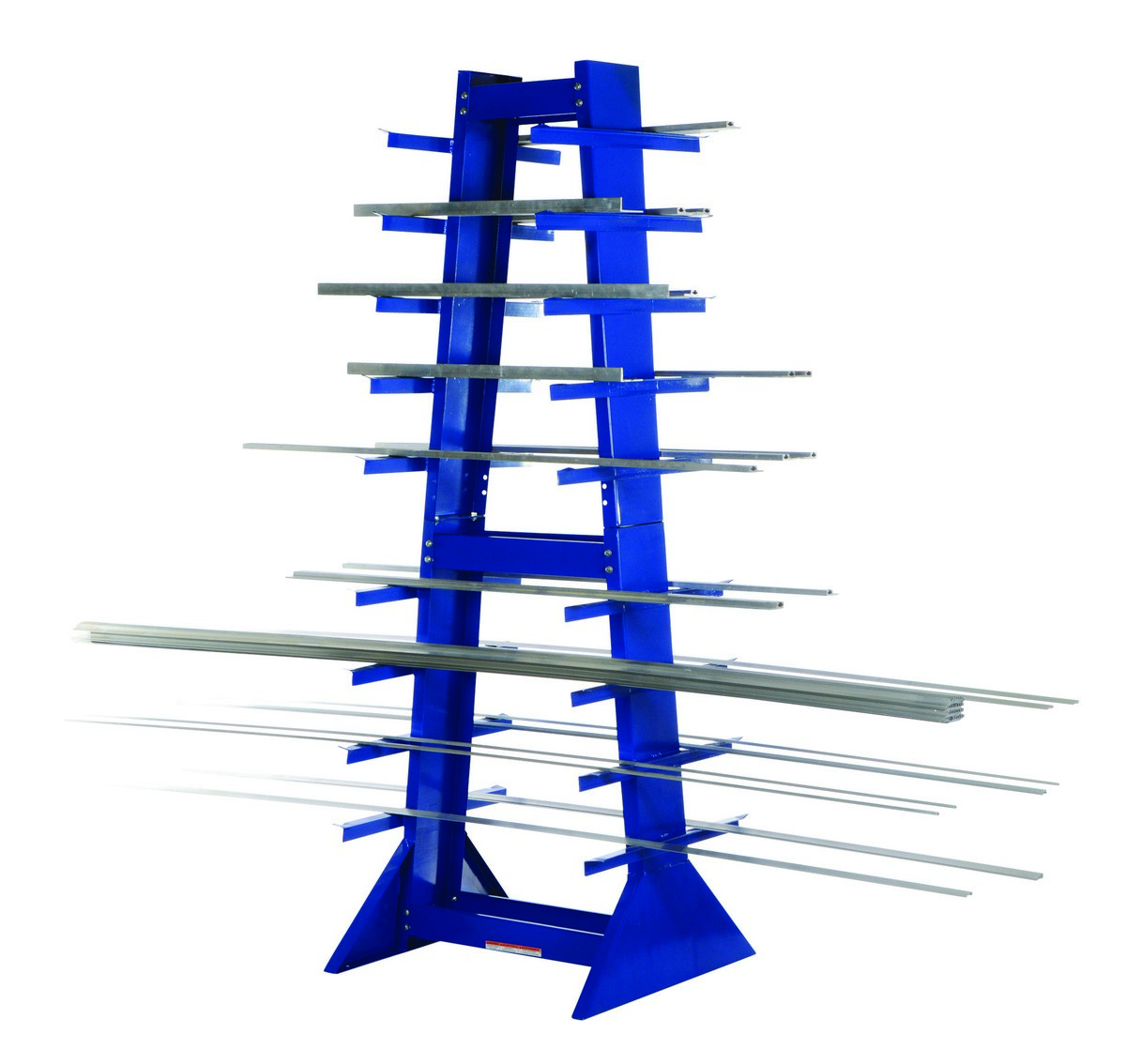

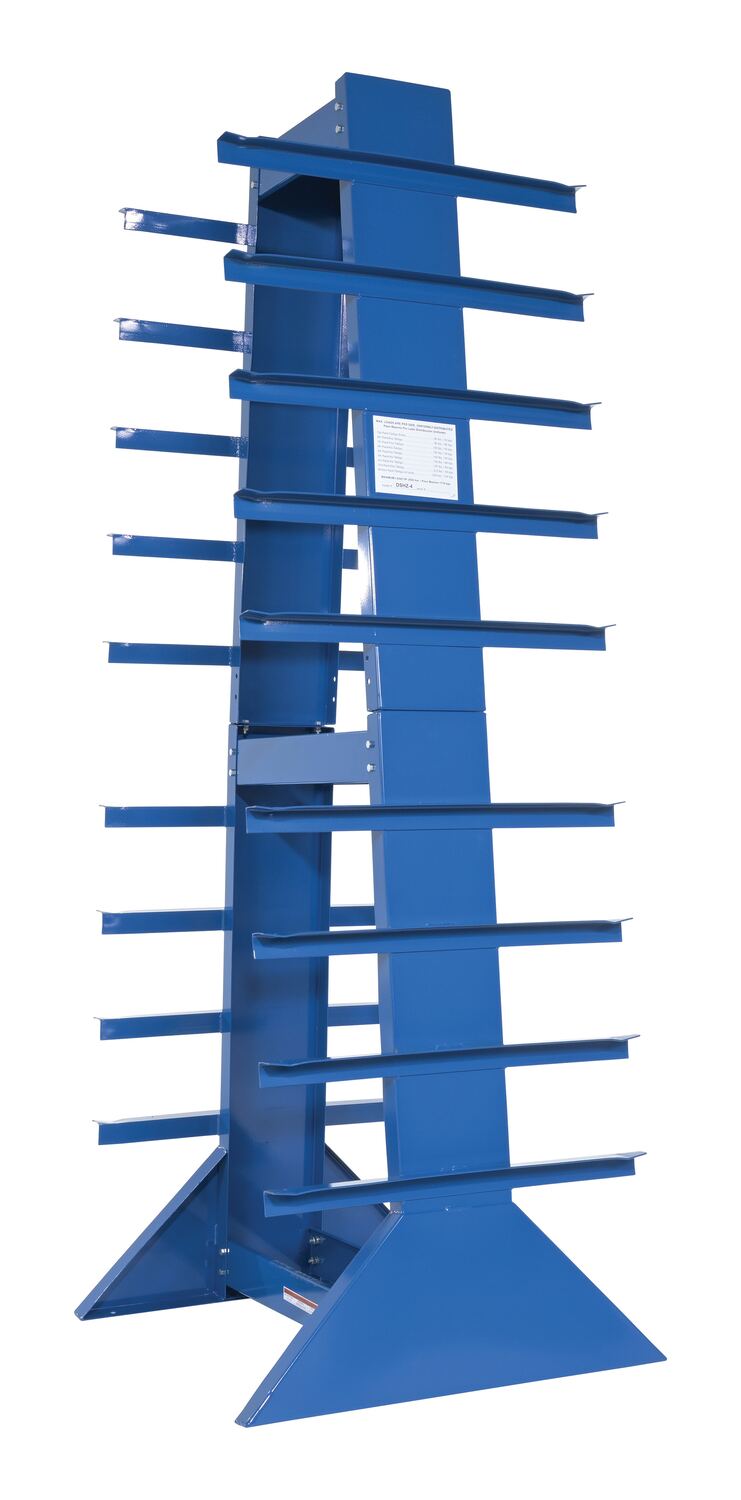

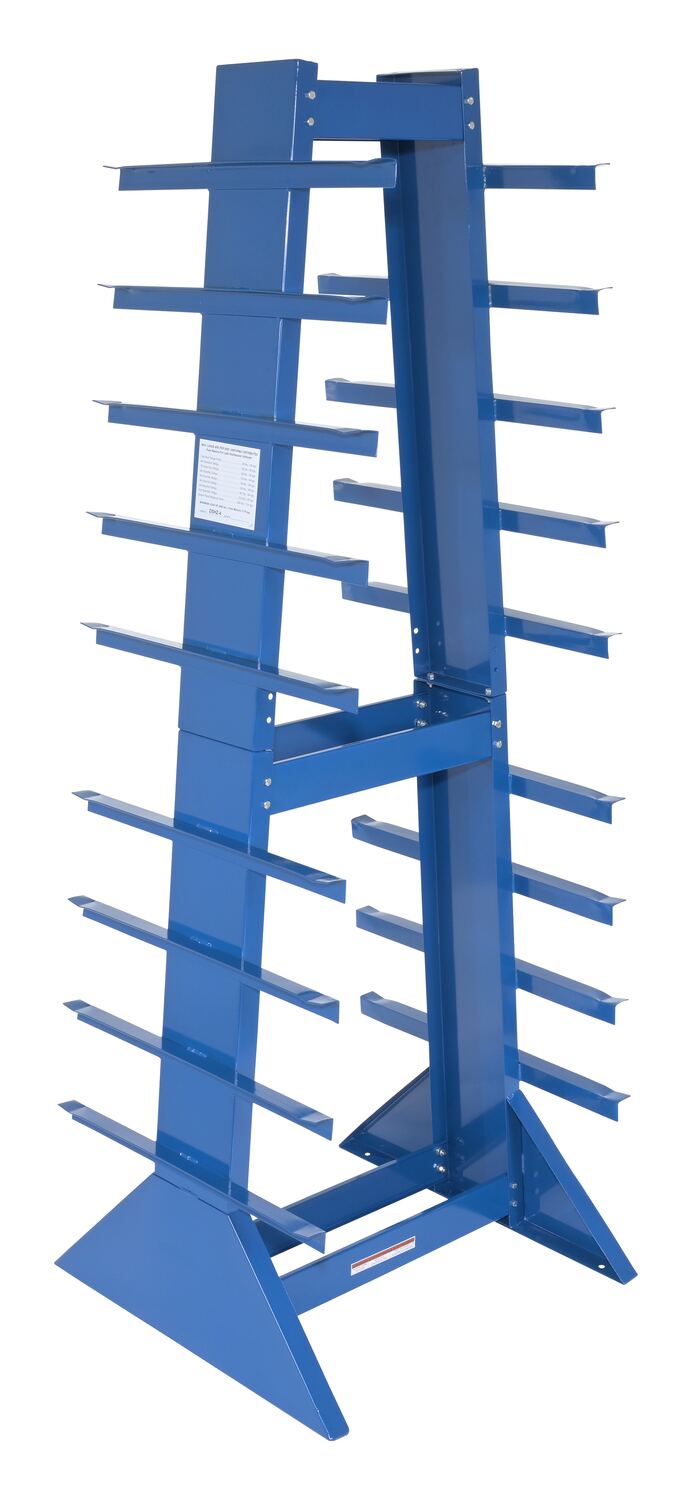

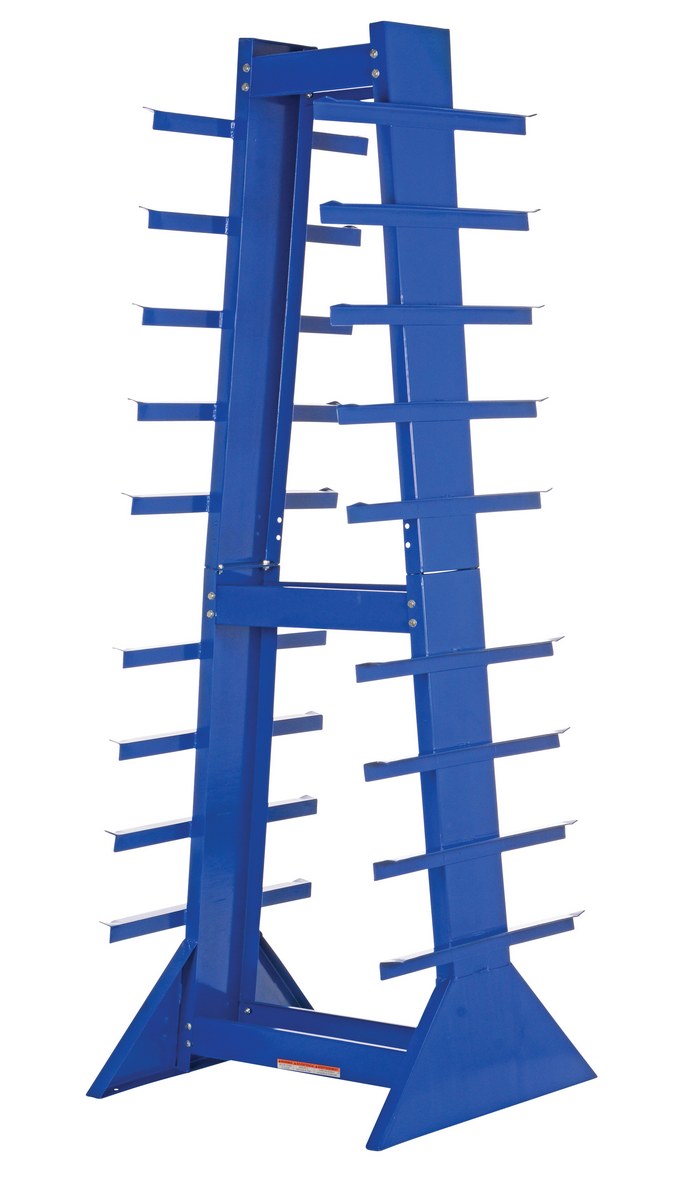

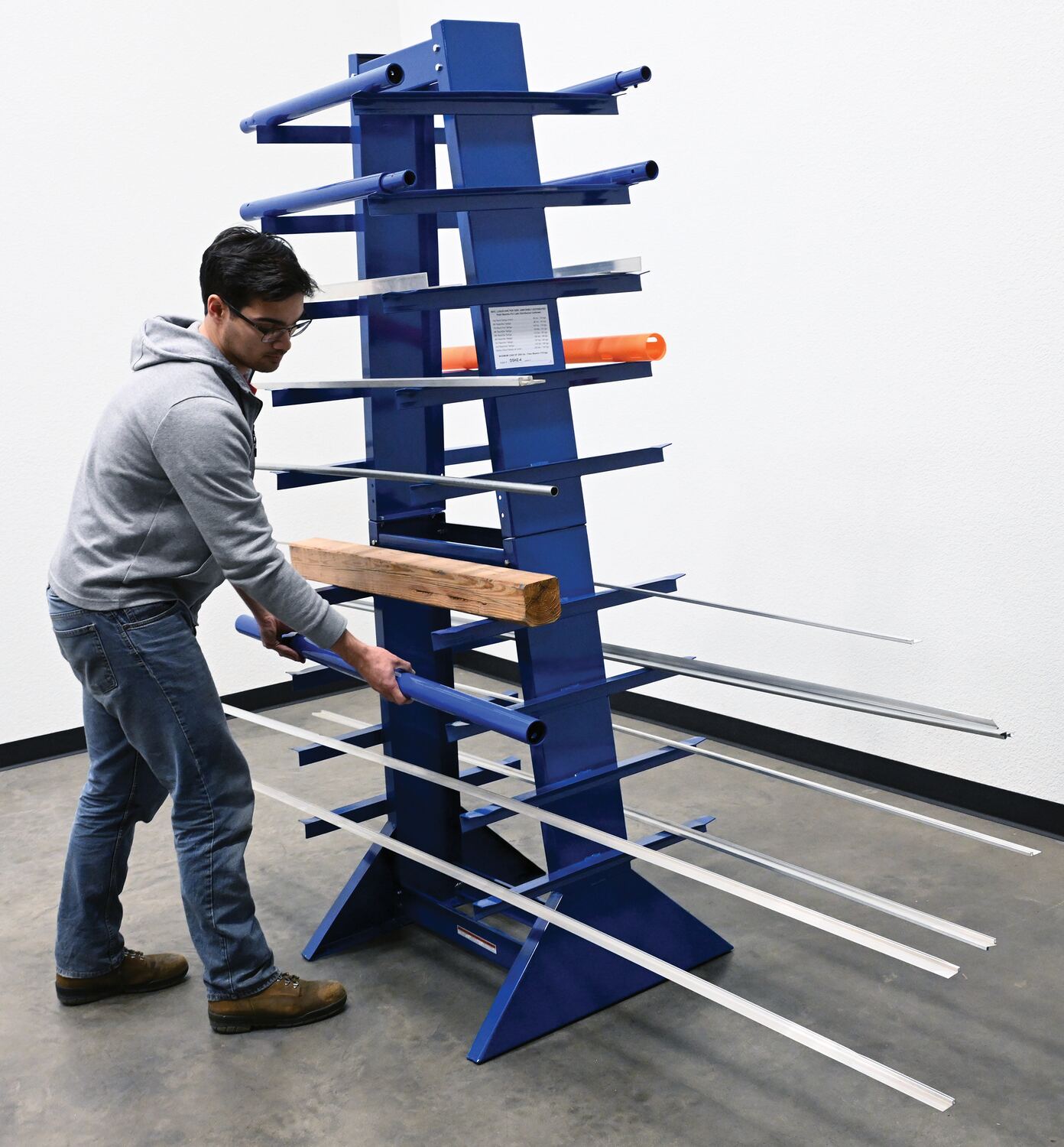

Double Sided Horizontal Bar Rack
SERIES: DSHZ

Ideal for use in maintenance departments, tool rooms, machine shops, and storage areas. Arms extend and act as dividers creating bays of storage. Nine arm levels can store material up to 10 feet long. Aligning two units next to each other will allow for the storage of longer material. Arm edges are sloped upward to prevent roll off's. Arms are welded at 6" increments with 6" between levels. Total uniform rack capacity is 2,600 pounds evenly distributed. Unit has predrilled lag down points and ships knocked down. Steel construction with baked-in powder-coated toughness.

  • Two sided arms provide additional storage capacity
  • Slightly bent up arms prevent material roll off
  • Pre-drilled lag down points make installation quick and easy
  • Solid steel construction provides long lasting rugged use
Rack Level (From Bottom) Uniform Capacity Per Side (lbs.)
1st 230
2nd 210
3rd 187
4th 150
5th 142
6th 120
7th 100
8th 80
9th 65
**Capacities listed above are per level and per side**

Ideal for use in maintenance departments, tool rooms, machine shops, and storage areas. Arms extend and act as dividers creating bays of storage. Nine arm levels can store material up to 10 feet long. Aligning two units next to each other will allow for the storage of longer material. Arm edges are sloped upward to prevent roll off's. Arms are welded at 6" increments with 6" between levels. Total uniform rack capacity is 2,600 pounds evenly distributed. Unit has predrilled lag down points and ships knocked down. Steel construction with baked-in powder-coated toughness.

  • Two sided arms provide additional storage capacity
  • Slightly bent up arms prevent material roll off
  • Pre-drilled lag down points make installation quick and easy
  • Solid steel construction provides long lasting rugged use
Rack Level (From Bottom) Uniform Capacity Per Side (lbs.)
1st 230
2nd 210
3rd 187
4th 150
5th 142
6th 120
7th 100
8th 80
9th 65
**Capacities listed above are per level and per side**

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
DSHZ-4 DSHZ-490 Days Limited WarrantySteel Double Sided Horizontal Bar Rack 30-1/4 In. x 30 In. x 83-7/8 In. 2600 Lb. Capacity BlueUniform Capacity (lb.): 2,600
Distance Between Levels (in.): 6
145

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

DSHZ-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,600
Distance Between Levels (in.): 6
Uniform Capacity (lb.): 2,600
Distance Between Levels (in.): 6

Double Sided Horizontal Bar Rack PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


DSHZ-4

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Double Sided Horizontal Bar Rack




Ideal for use in maintenance departments, tool rooms, machine shops, and storage areas. Arms extend and act as dividers creating bays of storage. Nine arm levels can store material up to 10 feet long. Aligning two units next to each other will allow for the storage of longer material. Arm edges are sloped upward to prevent roll off's. Arms are welded at 6" increments with 6" between levels. Total uniform rack capacity is 2,600 pounds evenly distributed. Unit has predrilled lag down points and ships knocked down. Steel construction with baked-in powder-coated toughness.

  • Two sided arms provide additional storage capacity
  • Slightly bent up arms prevent material roll off
  • Pre-drilled lag down points make installation quick and easy
  • Solid steel construction provides long lasting rugged use
Rack Level (From Bottom) Uniform Capacity Per Side (lbs.)
1st 230
2nd 210
3rd 187
4th 150
5th 142
6th 120
7th 100
8th 80
9th 65
**Capacities listed above are per level and per side**


Model # Description Attributes Net Wt.
(lbs)
DSHZ-4 DSHZ-4Steel Double Sided Horizontal Bar Rack 30-1/4 In. x 30 In. x 83-7/8 In. 2600 Lb. Capacity BlueUniform Capacity (lb.): 2,600
Distance Between Levels (in.): 6
145
