Product Family Overview


Storage Buildings
SERIES: STOR

Modular storage building are ideal for keeping valuable items secure. Constructed of maintenance free galvanized corrugated paneling. The door measures 45"W x 74"H usable and features a right-side hinged lock (padlock not included). Modular design is easy to assemble. Once assembled unit can be moved with a fork lift. Each unit features a wooden floor 5-3/4" high to help keep products dry. Built-in rain gutters for water drainage is standard.

Modular storage building are ideal for keeping valuable items secure. Constructed of maintenance free galvanized corrugated paneling. The door measures 45"W x 74"H usable and features a right-side hinged lock (padlock not included). Modular design is easy to assemble. Once assembled unit can be moved with a fork lift. Each unit features a wooden floor 5-3/4" high to help keep products dry. Built-in rain gutters for water drainage is standard.

Additional Models In This Family

STOR-912-G-W-1RH

model STOR-912-G-W-1RH

STOR-44-G-W-1RH

model STOR-44-G-W-1RH

STOR-66-G-W-1RH-WD

model STOR-66-G-W-1RH-WD

STOR-612-G-W-1RH-WD

model STOR-612-G-W-1RH-WD

Applications



Construction Projects

Municipalities

Hospitals

Do It Yourself

Military

Gas Stations

Moving Companies

Universities

Maintenance Yards

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

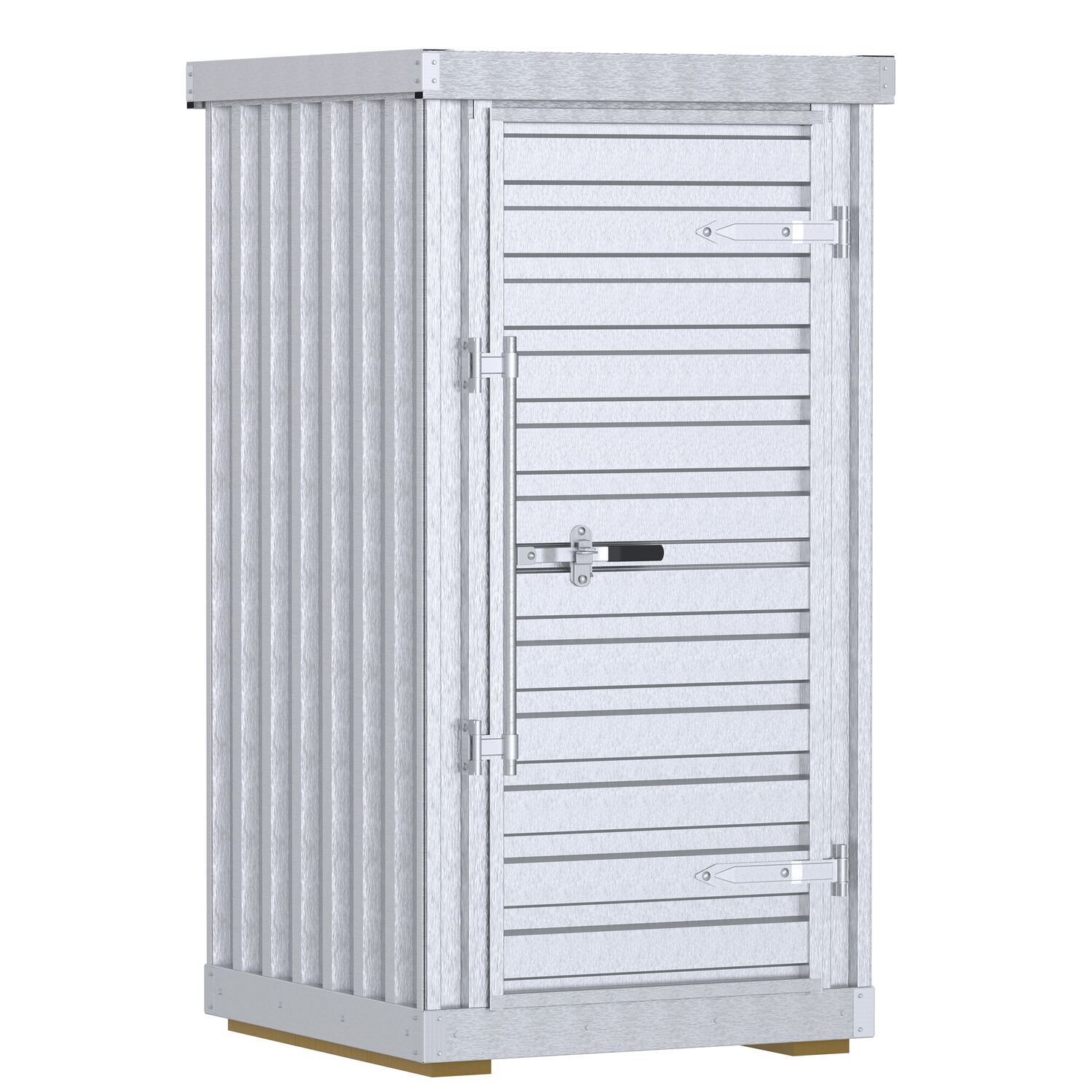

STOR-44-G-W-1RH STOR-44-G-W-1RH90 Days Limited WarrantyGalvanized Steel Storage Building 4 Ft. x 4 Ft. Wide Door 1,200 Lb. Capacity GrayUniform Capacity (lb.): 1200
Hardware Included: Yes
476

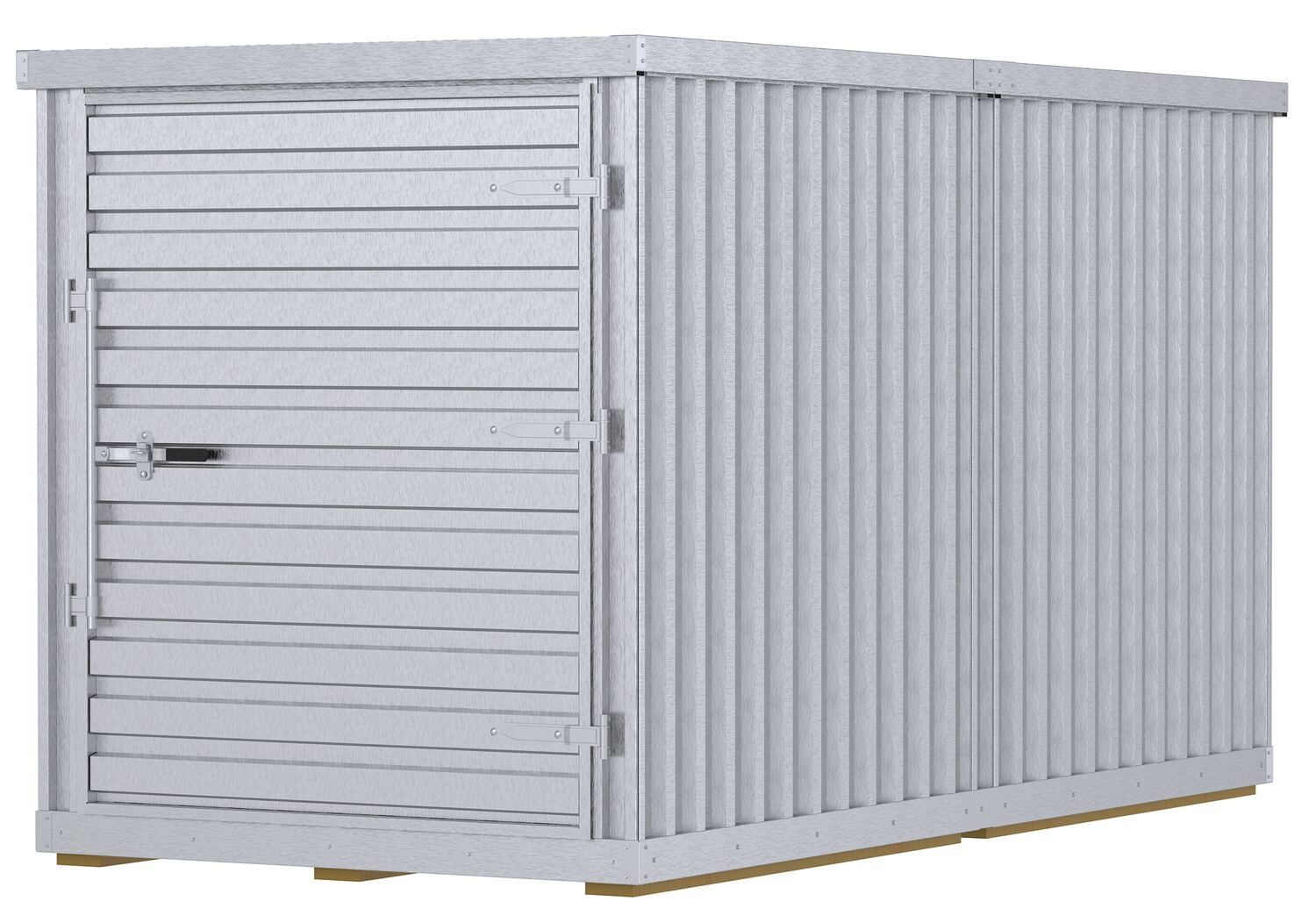

STOR-612-G-W-1RH-WD STOR-612-G-W-1RH-WD90 Days Limited WarrantyGalvanized Steel Storage Building 6 Ft. x 12 Ft. SilverUniform Capacity (lb.): 3600
Hardware Included: Yes
21345

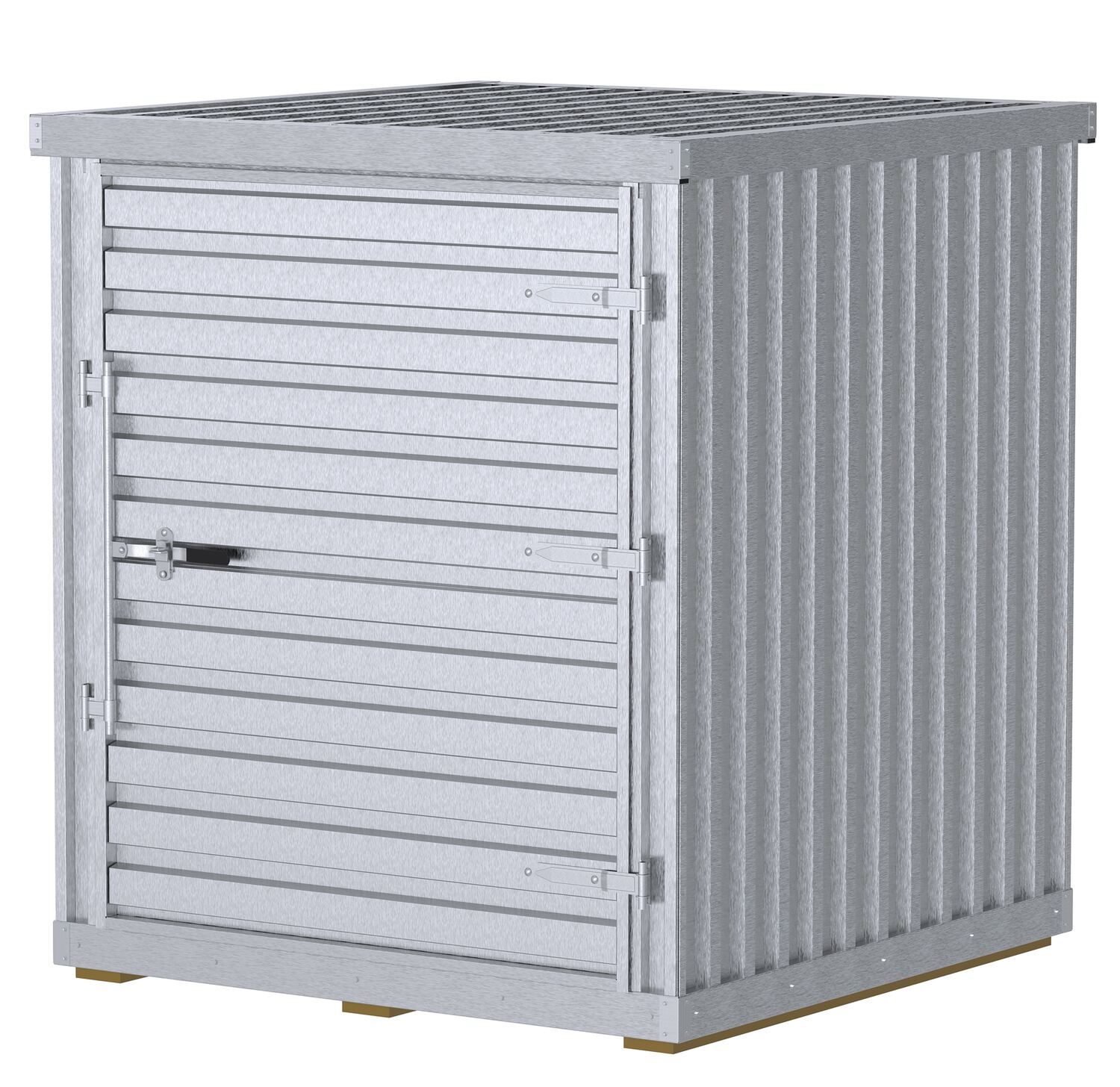

STOR-66-G-W-1RH-WD STOR-66-G-W-1RH-WD90 Days Limited WarrantyGalvanized Steel Storage Building 6 Ft. x 6 Ft. SilverUniform Capacity (lb.): 1800
Hardware Included: Yes
798

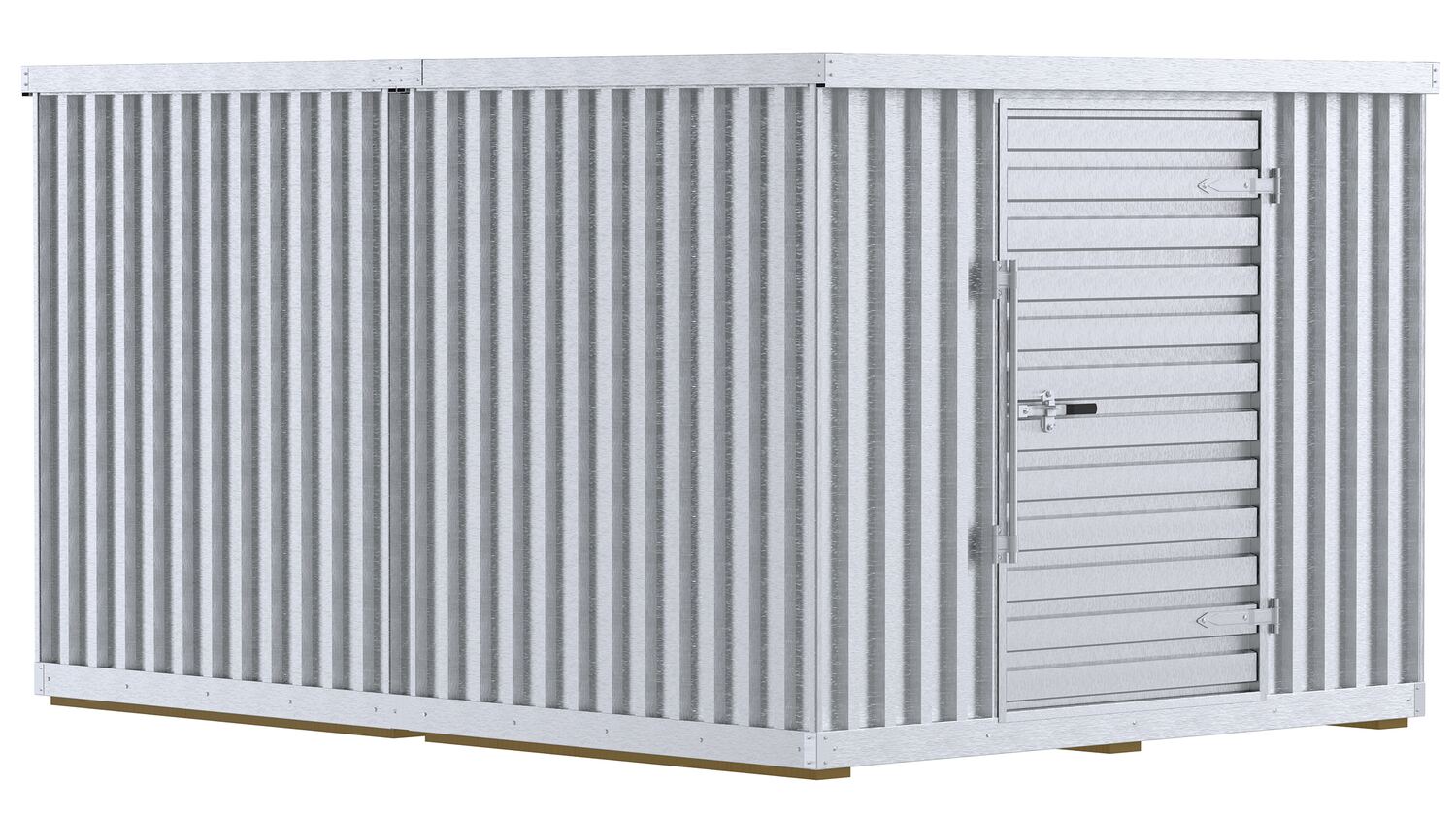

STOR-912-G-W-1RH STOR-912-G-W-1RH90 Days Limited WarrantyGalvanized Steel Double Storage Building 5,500 Lb. Floor Capacity GrayUniform Capacity of Floor (lb.): 5500
Holds Snow Per Square Foot (lb.): 45
21758

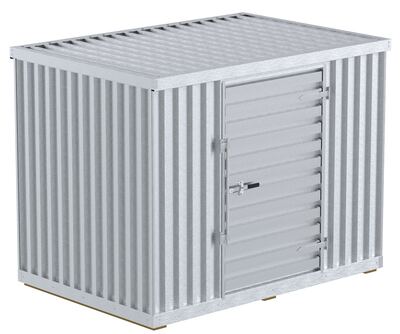

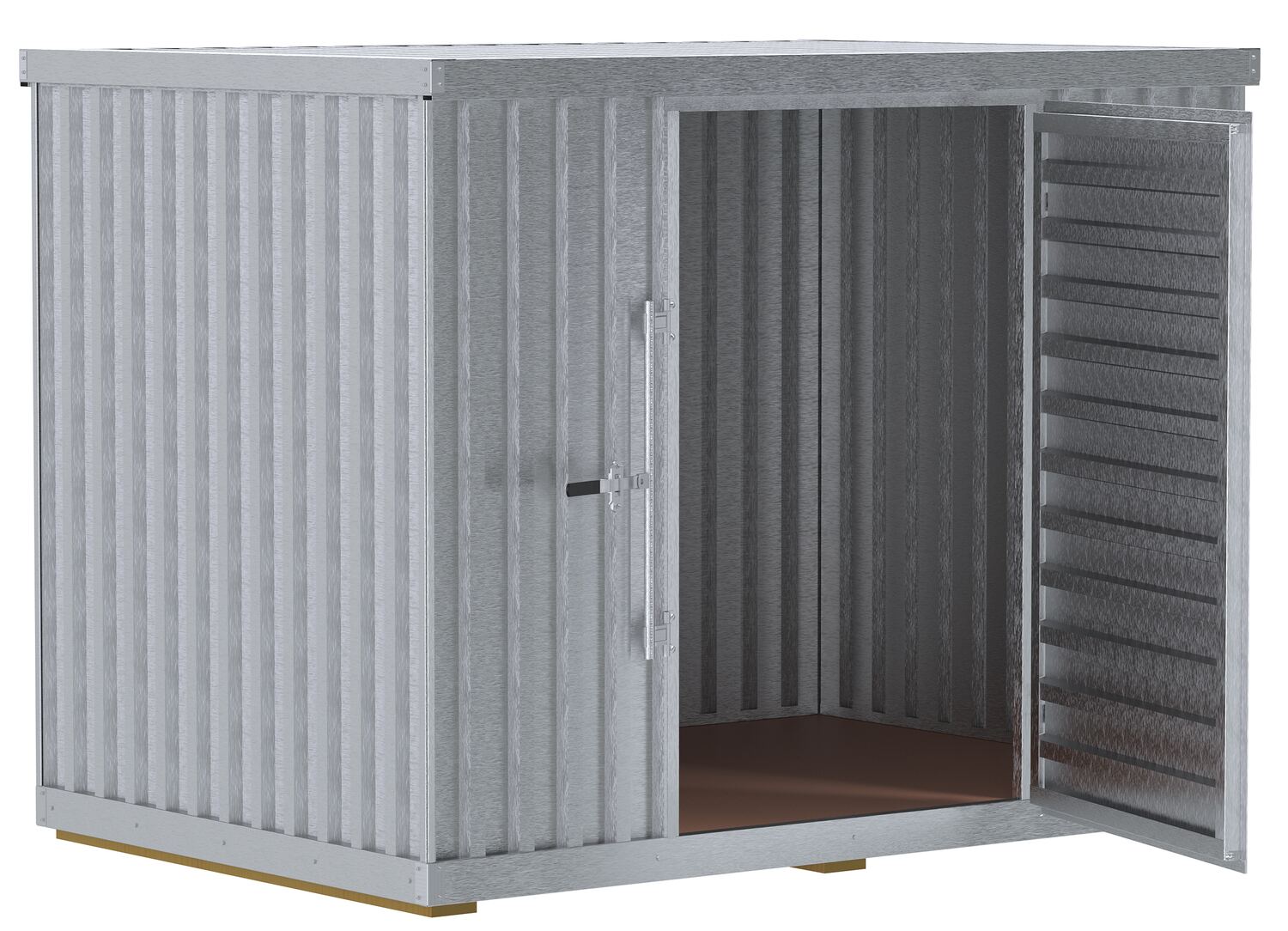

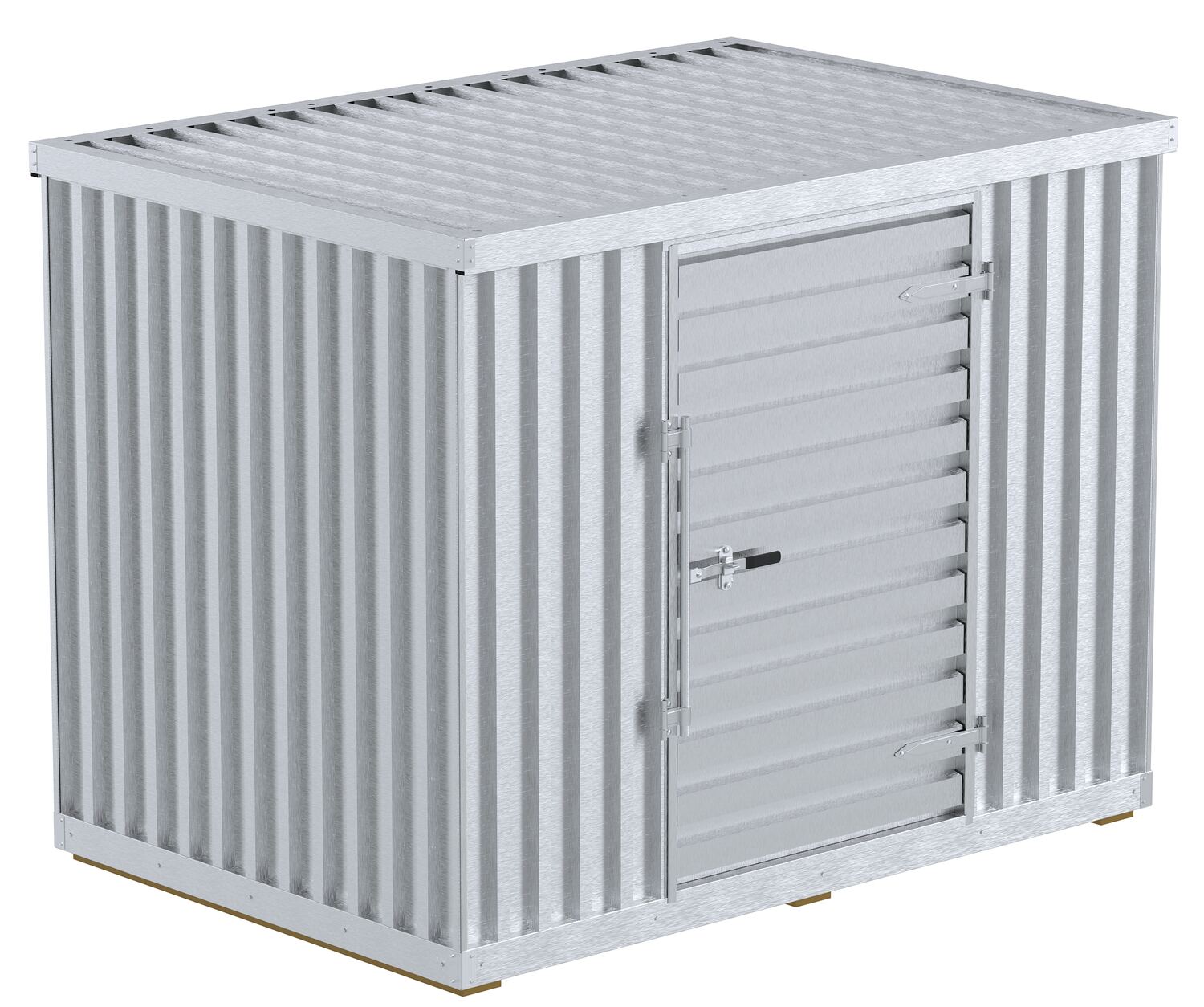

STOR-96-G-W-1RH STOR-96-G-W-1RH90 Days Limited WarrantyGalvanized Steel Single Storage Building 2,750 Lb. Floor Capacity GrayUniform Capacity of Floor (lb.): 2750
Holds Snow Per Square Foot (lb.): 45
946

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

STOR-44-G-W-1RH
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1200
Hardware Included: Yes
Uniform Capacity (lb.): 1200
Hardware Included: Yes

STOR-612-G-W-1RH-WD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3600
Hardware Included: Yes
Uniform Capacity (lb.): 3600
Hardware Included: Yes

STOR-66-G-W-1RH-WD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1800
Hardware Included: Yes
Uniform Capacity (lb.): 1800
Hardware Included: Yes

STOR-912-G-W-1RH
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity of Floor (lb.): 5500
Holds Snow Per Square Foot (lb.): 45
Uniform Capacity of Floor (lb.): 5500
Holds Snow Per Square Foot (lb.): 45

STOR-96-G-W-1RH
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity of Floor (lb.): 2750
Holds Snow Per Square Foot (lb.): 45
Uniform Capacity of Floor (lb.): 2750
Holds Snow Per Square Foot (lb.): 45

Storage Buildings PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


STOR-44-G-W-1RH

STOR-612-G-W-1RH-WD

STOR-66-G-W-1RH-WD

STOR-912-G-W-1RH

STOR-96-G-W-1RH

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products


Q: What gauge steel is the storage building?

A: The STOR-96-G-1RH and STOR-912-G-W-1RH are constructed of 22 gauge corrugated steel siding.


Q: How long does it take to assemble the storage unit?

A: Estimated assembly time for the Storage Building is 2.5 hours per unit with two people using simple hand tools.


Q: How many square feet is the storage building?

A: The STOR-96-G-W-1RH shed is 6' x 9' = 54 square feet.


Q: For model STOR-96-G-W-1RH is the roof slanted? What is the snow load capacity?

A: Roof is not slanted. Roof can support snow weight up to 45 lbs per square foot.






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Storage Buildings




Modular storage building are ideal for keeping valuable items secure. Constructed of maintenance free galvanized corrugated paneling. The door measures 45"W x 74"H usable and features a right-side hinged lock (padlock not included). Modular design is easy to assemble. Once assembled unit can be moved with a fork lift. Each unit features a wooden floor 5-3/4" high to help keep products dry. Built-in rain gutters for water drainage is standard.



Model # Description Attributes Net Wt.
(lbs)
STOR-44-G-W-1RH STOR-44-G-W-1RHGalvanized Steel Storage Building 4 Ft. x 4 Ft. Wide Door 1,200 Lb. Capacity GrayUniform Capacity (lb.): 1200
Hardware Included: Yes
476
STOR-612-G-W-1RH-WD STOR-612-G-W-1RH-WDGalvanized Steel Storage Building 6 Ft. x 12 Ft. SilverUniform Capacity (lb.): 3600
Hardware Included: Yes
680
STOR-66-G-W-1RH-WD STOR-66-G-W-1RH-WDGalvanized Steel Storage Building 6 Ft. x 6 Ft. SilverUniform Capacity (lb.): 1800
Hardware Included: Yes
798
STOR-912-G-W-1RH STOR-912-G-W-1RHGalvanized Steel Double Storage Building 5,500 Lb. Floor Capacity GrayUniform Capacity of Floor (lb.): 5500
Holds Snow Per Square Foot (lb.): 45
1000
STOR-96-G-W-1RH STOR-96-G-W-1RHGalvanized Steel Single Storage Building 2,750 Lb. Floor Capacity GrayUniform Capacity of Floor (lb.): 2750
Holds Snow Per Square Foot (lb.): 45
946
