Product Family Overview


Air Bag Scissor Lift Tables
SERIES: ABLT

Improve ergonomics and productivity with our Air Bag Scissor lift tables. The Air Bag Technology helps raise pallets, bins and other materials to your desired working height. These units have Pressure relief valves to prevent over inflation of the air bag, as well as a captured scissor track to provide stability and safety while raising and lowering. Air requirements are 80-100 psi at15 CFM's. Hand pendent control included.

  • Air bag technology improves ergonomics and productivity
  • Raise pallets, bins, and other to a desired working height
  • Pressure relief valve prevents over-inflation of air bag
  • Scissor track provides stability and safety while raising and lowering

Improve ergonomics and productivity with our Air Bag Scissor lift tables. The Air Bag Technology helps raise pallets, bins and other materials to your desired working height. These units have Pressure relief valves to prevent over inflation of the air bag, as well as a captured scissor track to provide stability and safety while raising and lowering. Air requirements are 80-100 psi at15 CFM's. Hand pendent control included.

  • Air bag technology improves ergonomics and productivity
  • Raise pallets, bins, and other to a desired working height
  • Pressure relief valve prevents over-inflation of air bag
  • Scissor track provides stability and safety while raising and lowering

Additional Models In This Family

ABLT-H-RP-ND

model ABLT-H-RP-ND

ABLT-H-FC

model ABLT-H-FC

ABLT-H-FP

model ABLT-H-FP

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
ABLT-H-1-32
ABLT-H-1-321 Year Limited WarrantySteel Air Bag Scissor Lift Table 43-3/4 In. x 35-1/50 In. 1,000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
Raised Height (in.): 32
385

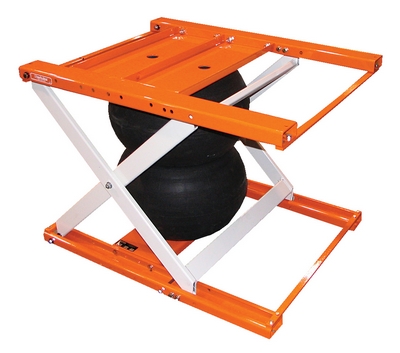

ABLT-H-2-32
ABLT-H-2-321 Year Limited WarrantySteel Air Bag Scissor Lift Table 43-3/4 In. x 35-1/50 In. 2,000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Raised Height (in.): 32
385
ABLT-H-3-32
ABLT-H-3-321 Year Limited WarrantySteel Air Bag Scissor Lift Table 43-3/4 In. x 35-1/50 In. 3,000 Lb. Capacity OrangeUniform Capacity (lb.): 3,000
Raised Height (in.): 32
385

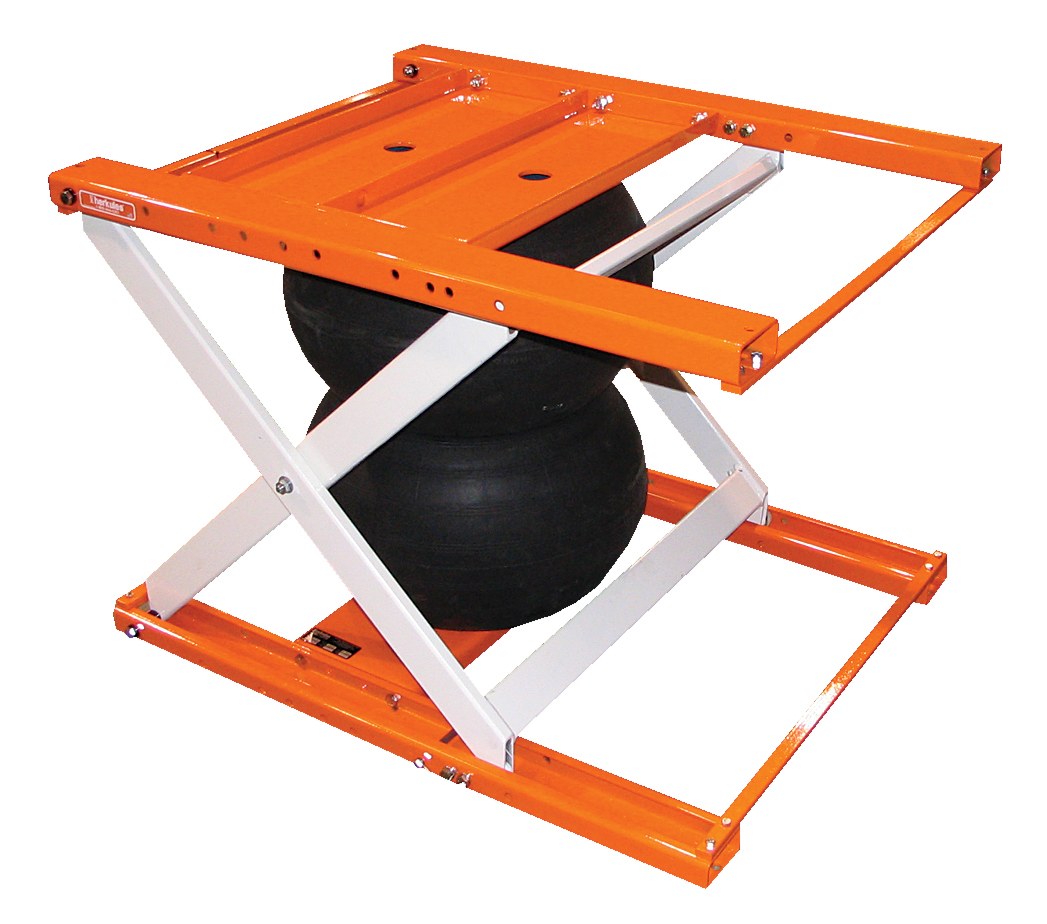

ABLT-H-4-32
ABLT-H-4-321 Year Limited WarrantySteel Air Bag Scissor Lift Table 43-3/4 In. x 35-1/50 In. 4,000 Lb. Capacity OrangeUniform Capacity (lb.): 4,000
Raised Height (in.): 32
385

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

ABLT-H-1-32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Raised Height (in.): 32
Uniform Capacity (lb.): 1,000
Raised Height (in.): 32

ABLT-H-2-32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Raised Height (in.): 32
Uniform Capacity (lb.): 2,000
Raised Height (in.): 32

ABLT-H-3-32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Raised Height (in.): 32
Uniform Capacity (lb.): 3,000
Raised Height (in.): 32

ABLT-H-4-32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Raised Height (in.): 32
Uniform Capacity (lb.): 4,000
Raised Height (in.): 32
For More Details of the Option Click the Red Model Button

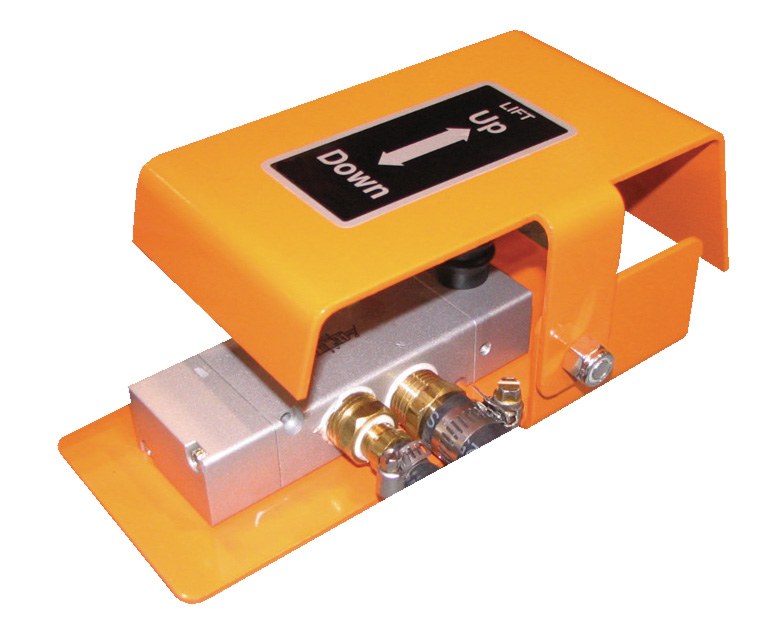

ABLT-H-FC ABLT-H-FC90 Days Limited WarrantyFactory Installed Steel Foot Pedal Control For Air Bag Scissor Lift Tables YellowNumber of Floor Mounts: 4
Mounting Hole Diameter (in.): 3/8
25

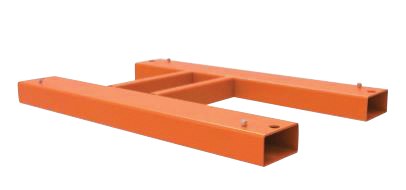

ABLT-H-FP ABLT-H-FP90 Days Limited WarrantyFactory Installed Steel Fork Pockets For Air Bag Scissor Lift Tables Bolt On Orange-
80
ABLT-H-P-3648 ABLT-H-P-36481 Year Limited WarrantyFactory Installed Steel 48 In. x 36 In. Solid Platform For Air Bag Scissor Lift Tables Orange-
135

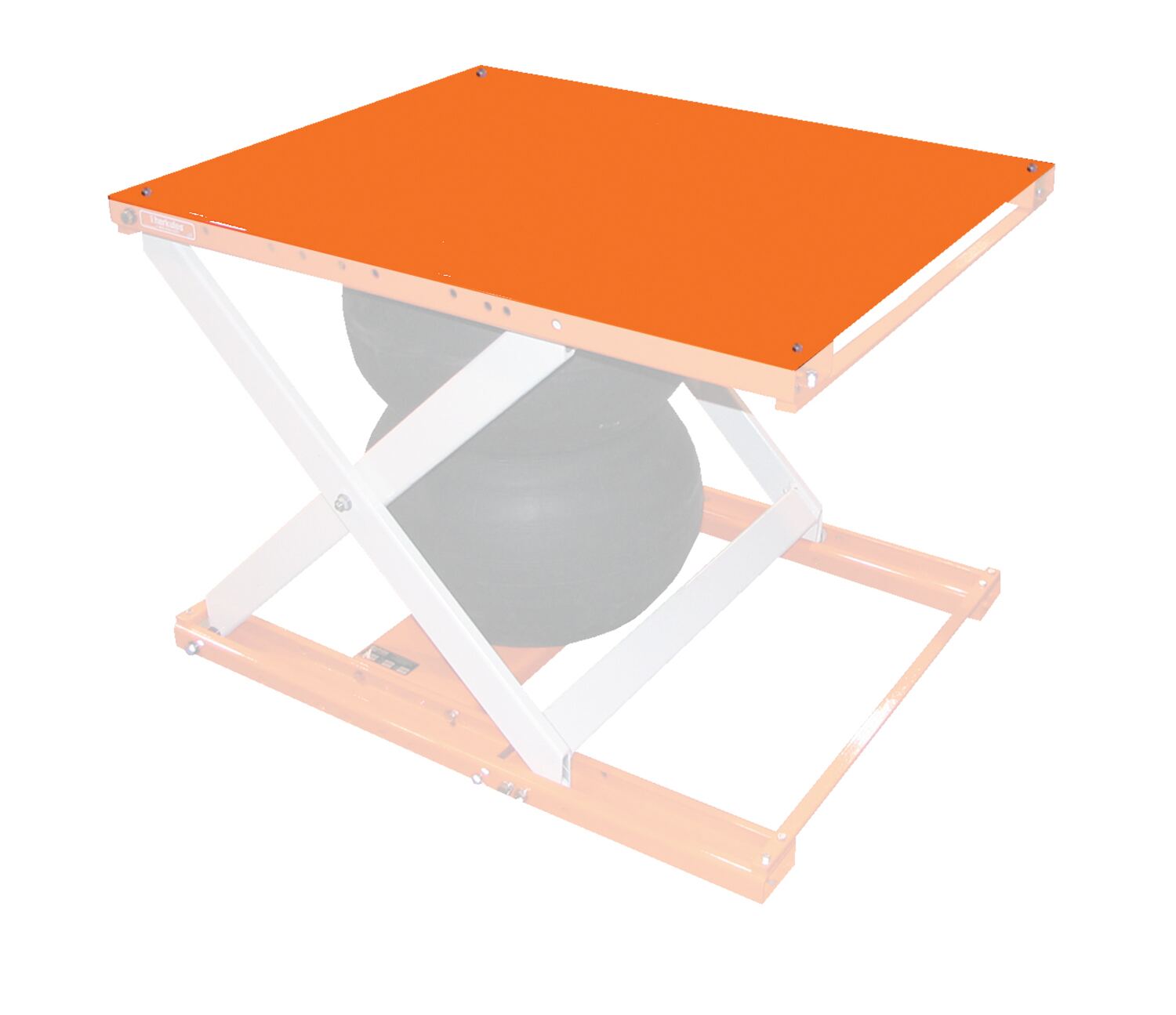

ABLT-H-P-4848 ABLT-H-P-48481 Year Limited WarrantyFactory Installed Steel 48 In. x 48 In. Solid Platform For Air Bag Scissor Lift Tables Orange-
175
ABLT-H-P-4848-4K ABLT-H-P-4848-4K1 Year Limited WarrantyFactory Installed Steel 48 In. x 48 In. Solid Platform For Air Bag Scissor Lift Tables 4,000 Lb. Capacity Orange-
335

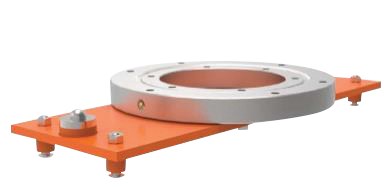

ABLT-H-RP-ND ABLT-H-RP-ND90 Days Limited WarrantySteel Manual Rotation Carousel Addition No Detent For Air Bag Scissor Lift Tables-
50
ABLT-H-RP-SD ABLT-H-RP-SD90 Days Limited WarrantySteel Manual Rotation Carousel Addition With Detent For Air Bag Scissor Lift Tables-
50


Safety Accordion Skirt

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Air Bag Scissor Lift Tables PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


ABLT-H-2-32

ABLT-H-4-32

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Air Bag Scissor Lift Tables




Improve ergonomics and productivity with our Air Bag Scissor lift tables. The Air Bag Technology helps raise pallets, bins and other materials to your desired working height. These units have Pressure relief valves to prevent over inflation of the air bag, as well as a captured scissor track to provide stability and safety while raising and lowering. Air requirements are 80-100 psi at15 CFM's. Hand pendent control included.

  • Air bag technology improves ergonomics and productivity
  • Raise pallets, bins, and other to a desired working height
  • Pressure relief valve prevents over-inflation of air bag
  • Scissor track provides stability and safety while raising and lowering


Model # Description Attributes Net Wt.
(lbs)
ABLT-H-1-32 ABLT-H-1-32Steel Air Bag Scissor Lift Table 43-3/4 In. x 35-1/50 In. 1,000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
Raised Height (in.): 32
385
ABLT-H-2-32 ABLT-H-2-32Steel Air Bag Scissor Lift Table 43-3/4 In. x 35-1/50 In. 2,000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Raised Height (in.): 32
385
ABLT-H-3-32 ABLT-H-3-32Steel Air Bag Scissor Lift Table 43-3/4 In. x 35-1/50 In. 3,000 Lb. Capacity OrangeUniform Capacity (lb.): 3,000
Raised Height (in.): 32
385
ABLT-H-4-32 ABLT-H-4-32Steel Air Bag Scissor Lift Table 43-3/4 In. x 35-1/50 In. 4,000 Lb. Capacity OrangeUniform Capacity (lb.): 4,000
Raised Height (in.): 32
385

Options



Safety Accordion Skirt
