Product Family Overview

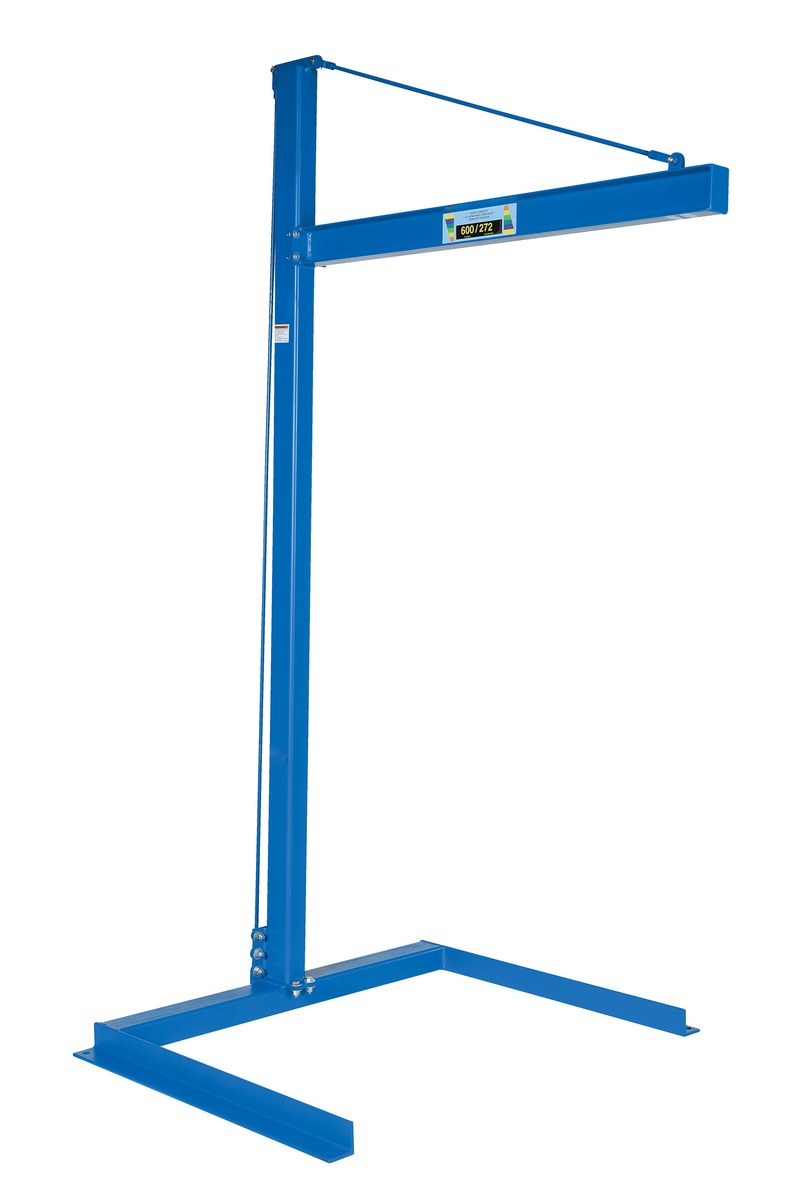

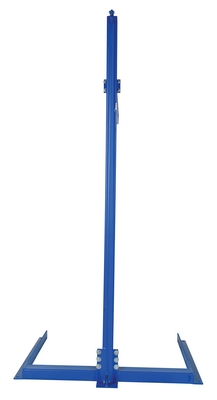

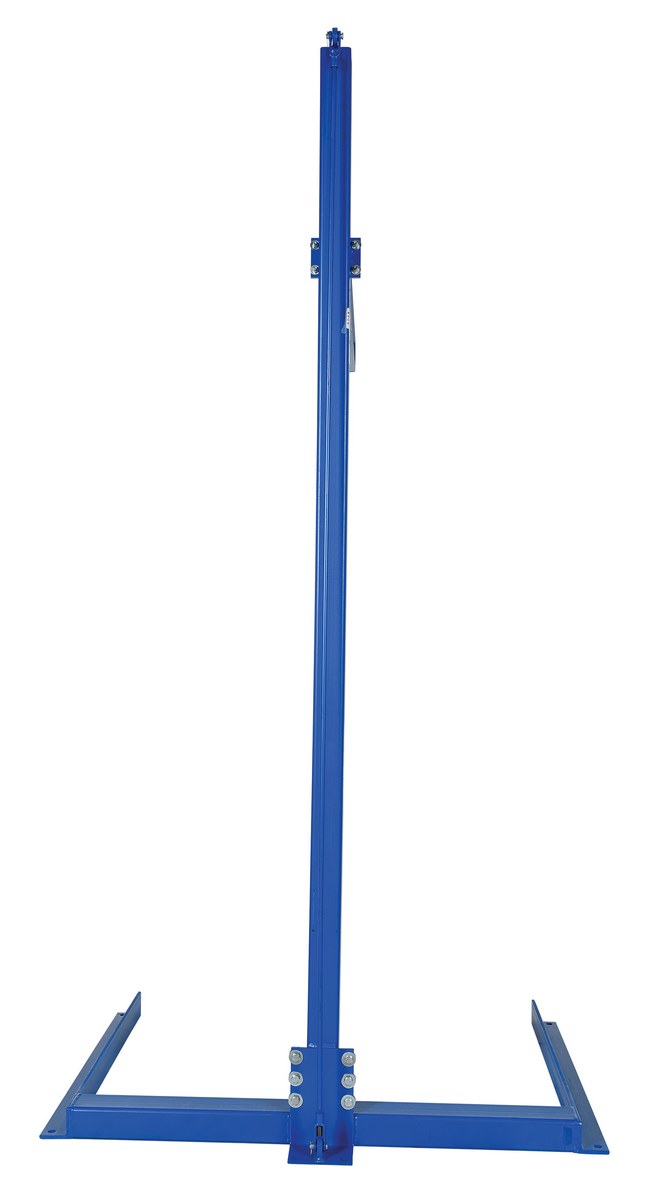

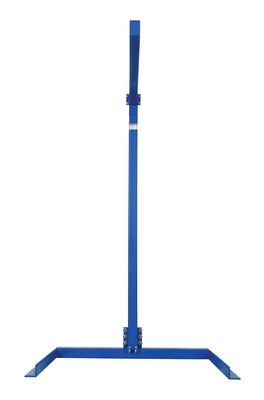

Mini Overhead Cantilever Jibs
SERIES: CJIB

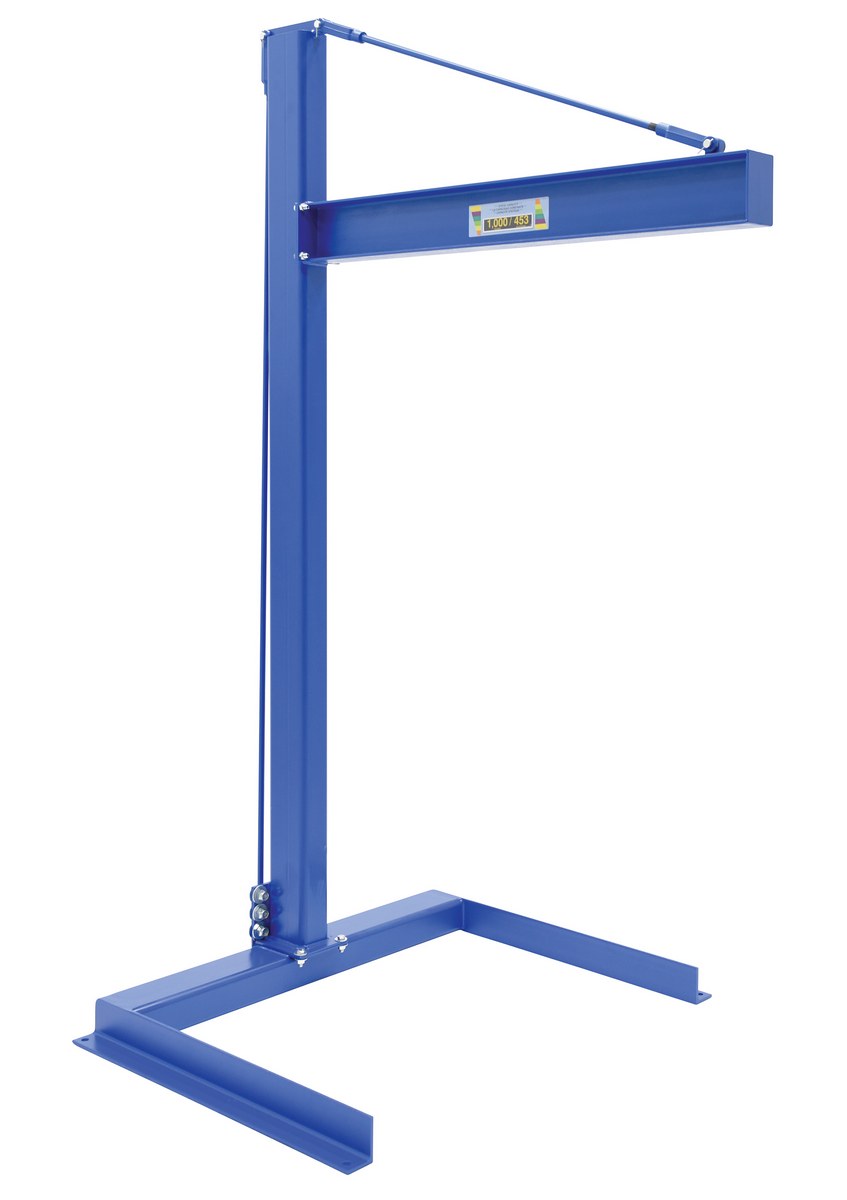

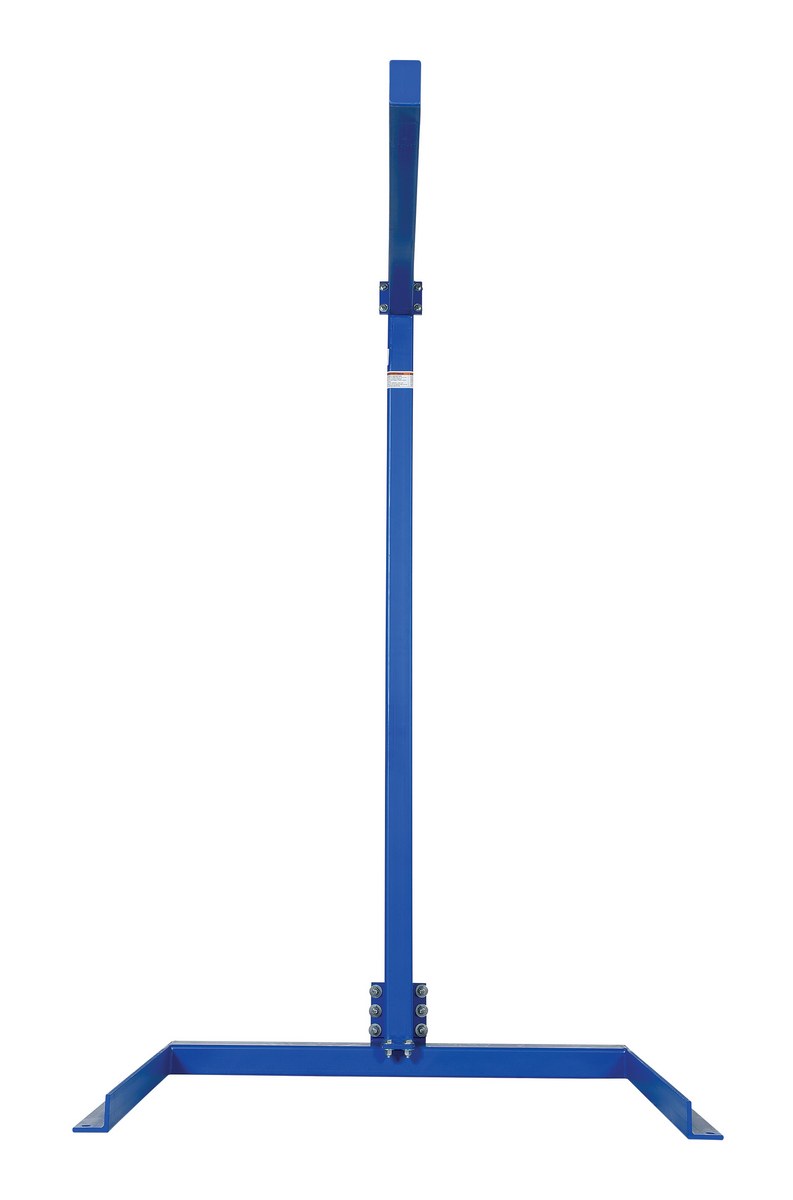

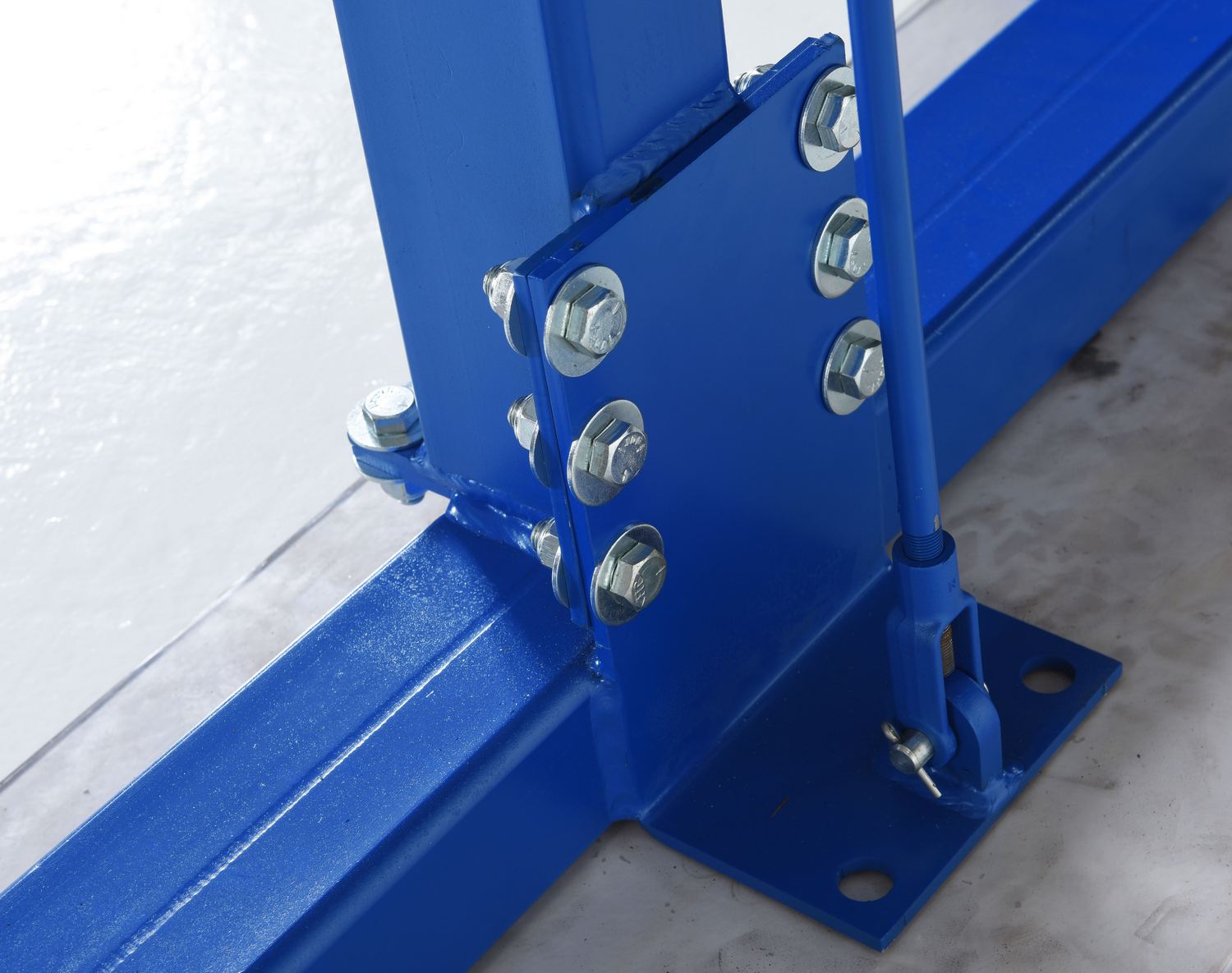

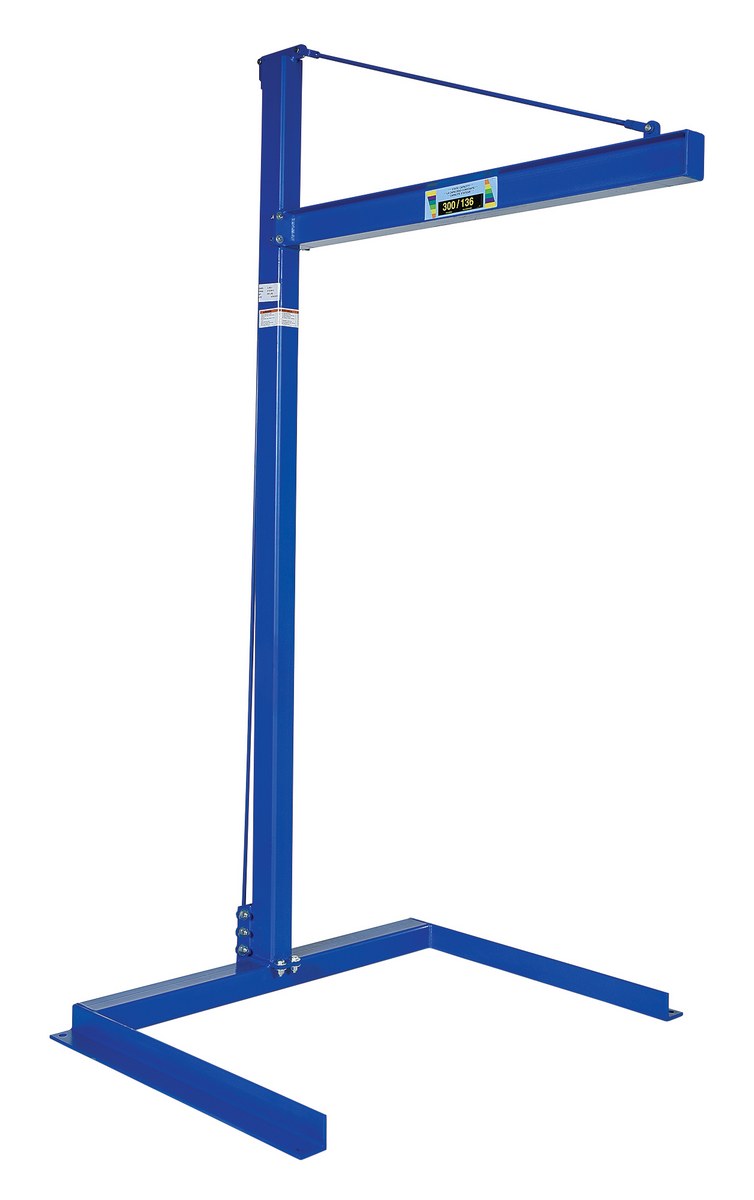

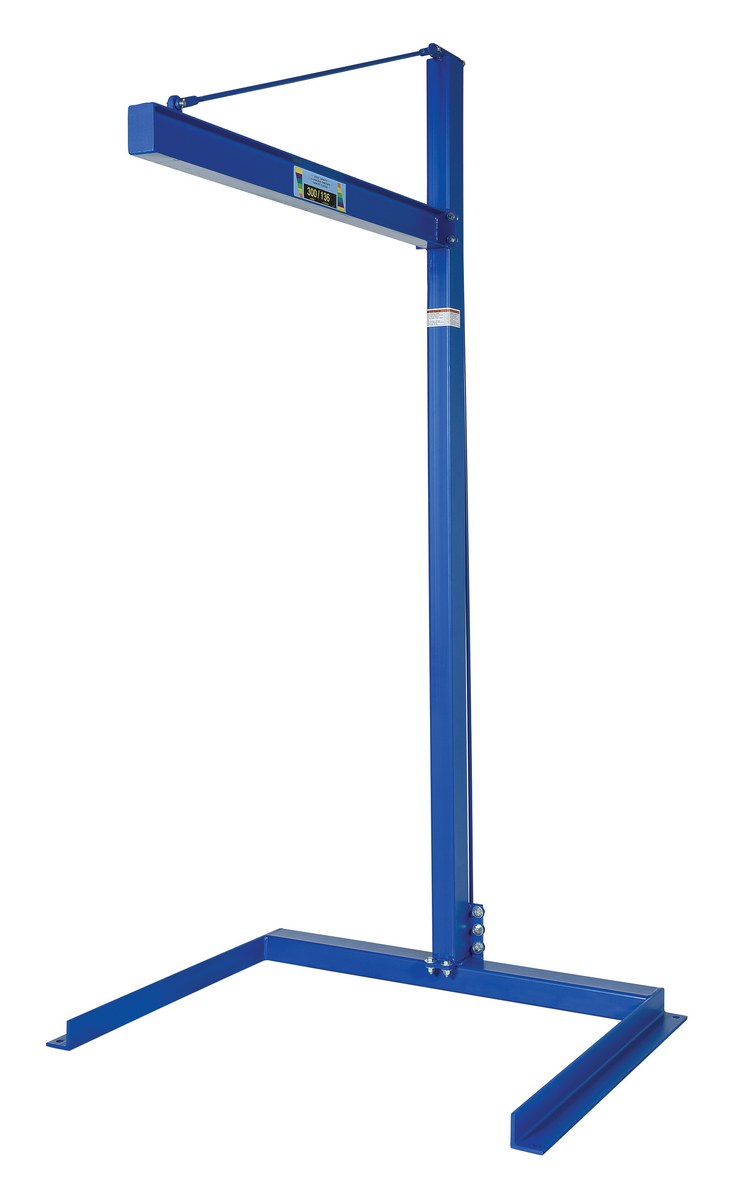

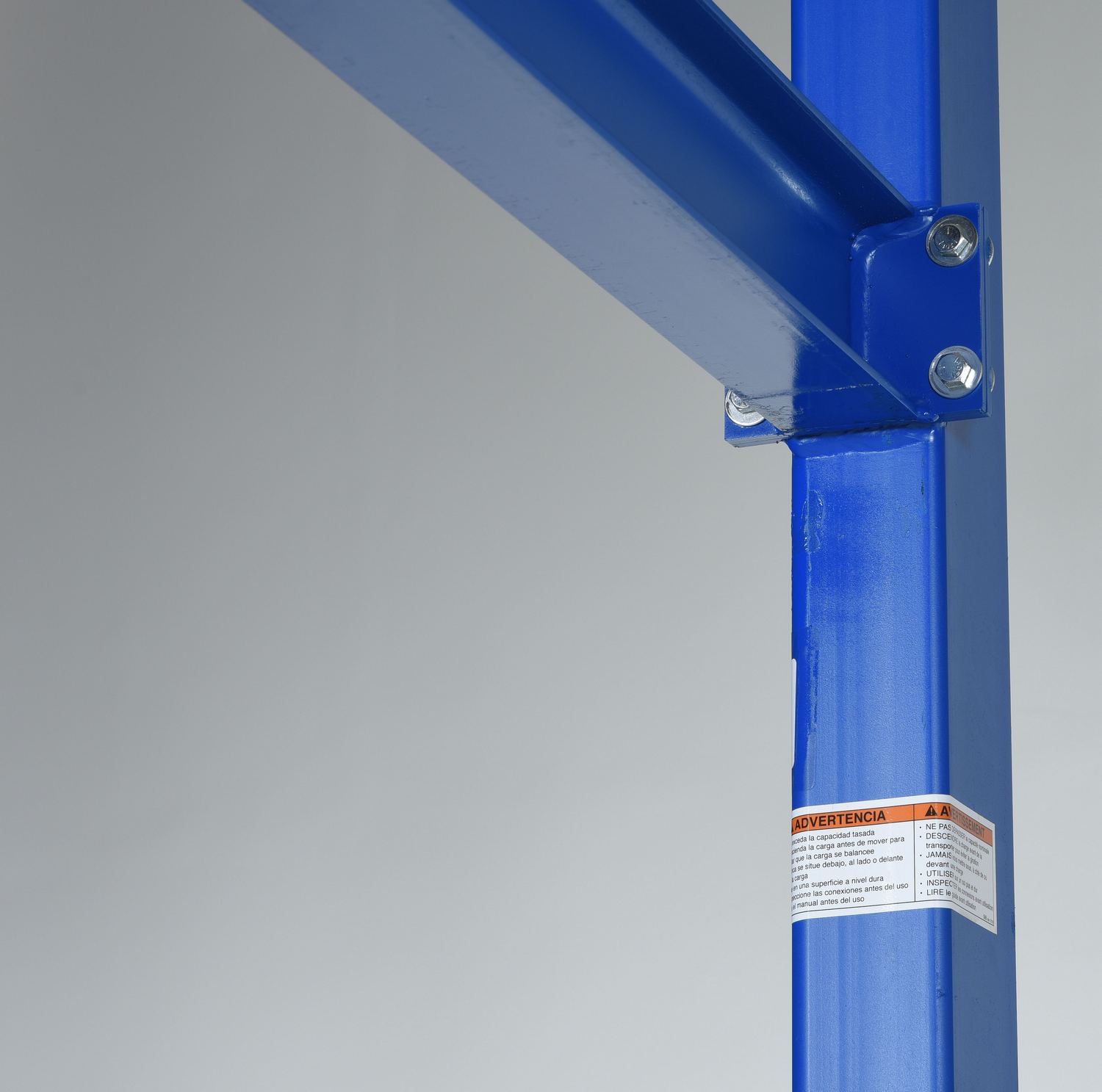

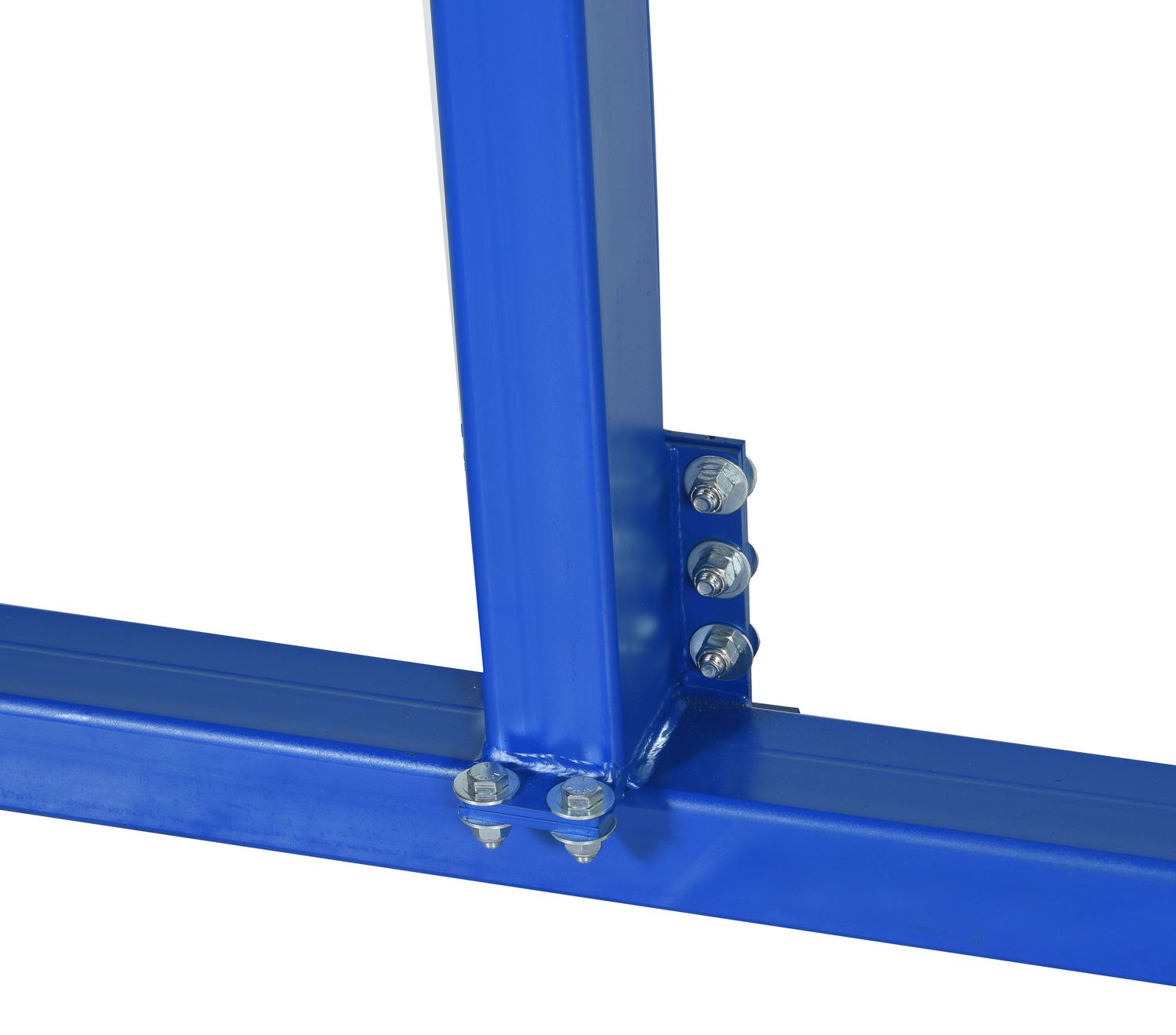

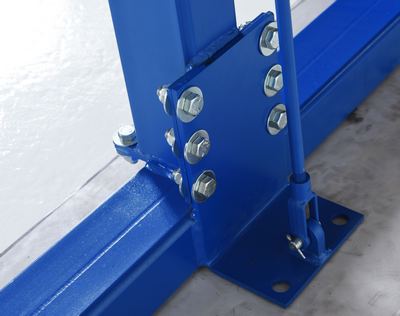

Utilize this unique jib in work cells and work areas. Unique fixed-height design allows for the 39-3/4" long outriggers to be mounted underneath a work bench. Easily lift product from cart to workbench. Straddle width is 47-3/4" (ID). Hoist, trolley and cart not included. Steel construction. Durable blue powder coat finish. Hoists & Trollies sold seperately.

  • Works well in cells and work areas
  • Design allows to be mounted underneath a work bench
  • Easily lift product from cart to workbench
  • Steel construction with a painted blue finish

Utilize this unique jib in work cells and work areas. Unique fixed-height design allows for the 39-3/4" long outriggers to be mounted underneath a work bench. Easily lift product from cart to workbench. Straddle width is 47-3/4" (ID). Hoist, trolley and cart not included. Steel construction. Durable blue powder coat finish. Hoists & Trollies sold seperately.

  • Works well in cells and work areas
  • Design allows to be mounted underneath a work bench
  • Easily lift product from cart to workbench
  • Steel construction with a painted blue finish

Additional Models In This Family

CJIB-6

model CJIB-6

CJIB-10

model CJIB-10

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
CJIB-10 CJIB-101 Year Limited WarrantySteel Mini Overhead Cantilever Jib 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Under I-Beam to Ground Length (in.): 78-1/2
496
CJIB-20 CJIB-201 Year Limited WarrantySteel Mini Overhead Cantilever Jib 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Under I-Beam to Ground Length (in.): 78-1/2
512

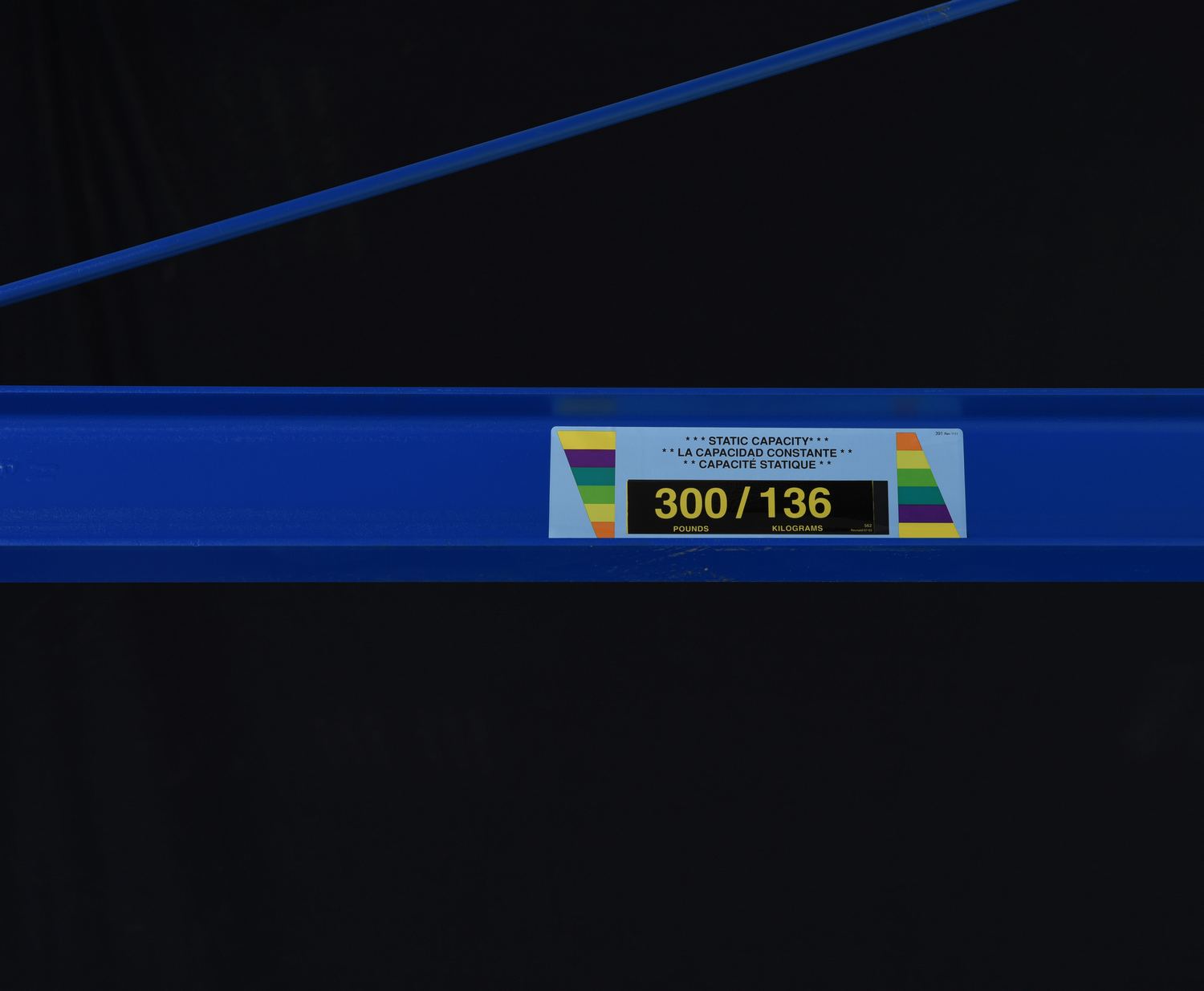

CJIB-3 CJIB-31 Year Limited WarrantySteel Mini Overhead Cantilever Jib 300 Lb. Capacity BlueUniform Capacity (lb.): 300
Under I-Beam to Ground Length (in.): 84
318
CJIB-6 CJIB-61 Year Limited WarrantySteel Mini Overhead Cantilever Jib 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Under I-Beam to Ground Length (in.): 84
327

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

CJIB-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Under I-Beam to Ground Length (in.): 78-1/2
Uniform Capacity (lb.): 1,000
Under I-Beam to Ground Length (in.): 78-1/2

CJIB-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Under I-Beam to Ground Length (in.): 78-1/2
Uniform Capacity (lb.): 2,000
Under I-Beam to Ground Length (in.): 78-1/2

CJIB-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 300
Under I-Beam to Ground Length (in.): 84
Uniform Capacity (lb.): 300
Under I-Beam to Ground Length (in.): 84

CJIB-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Under I-Beam to Ground Length (in.): 84
Uniform Capacity (lb.): 600
Under I-Beam to Ground Length (in.): 84

Mini Overhead Cantilever Jibs PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


CJIB-10

CJIB-20

CJIB-3

CJIB-6

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Mini Overhead Cantilever Jibs




Utilize this unique jib in work cells and work areas. Unique fixed-height design allows for the 39-3/4" long outriggers to be mounted underneath a work bench. Easily lift product from cart to workbench. Straddle width is 47-3/4" (ID). Hoist, trolley and cart not included. Steel construction. Durable blue powder coat finish. Hoists & Trollies sold seperately.

  • Works well in cells and work areas
  • Design allows to be mounted underneath a work bench
  • Easily lift product from cart to workbench
  • Steel construction with a painted blue finish


Model # Description Attributes Net Wt.
(lbs)
CJIB-10 CJIB-10Steel Mini Overhead Cantilever Jib 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Under I-Beam to Ground Length (in.): 78-1/2
496
CJIB-20 CJIB-20Steel Mini Overhead Cantilever Jib 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Under I-Beam to Ground Length (in.): 78-1/2
512
CJIB-3 CJIB-3Steel Mini Overhead Cantilever Jib 300 Lb. Capacity BlueUniform Capacity (lb.): 300
Under I-Beam to Ground Length (in.): 84
318
CJIB-6 CJIB-6Steel Mini Overhead Cantilever Jib 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Under I-Beam to Ground Length (in.): 84
327
