Product Family Overview

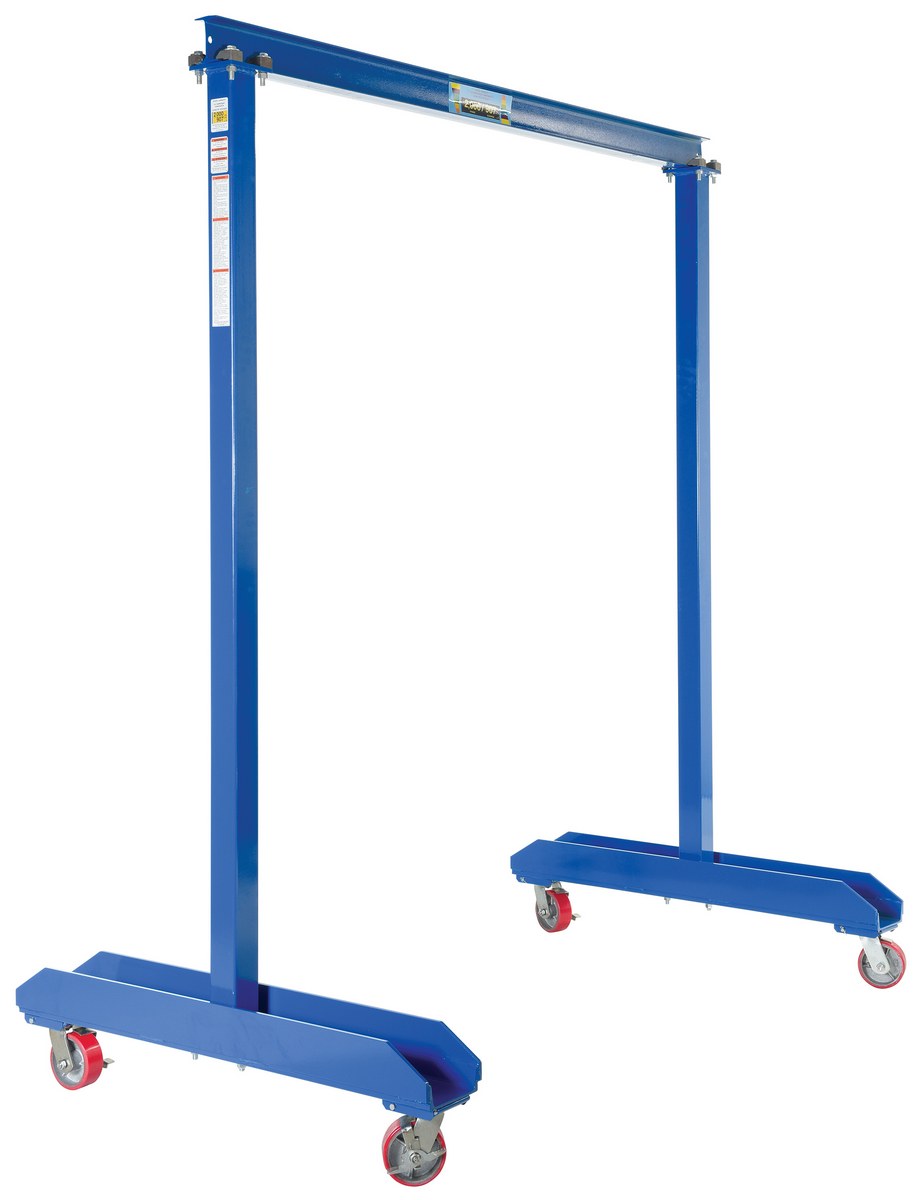

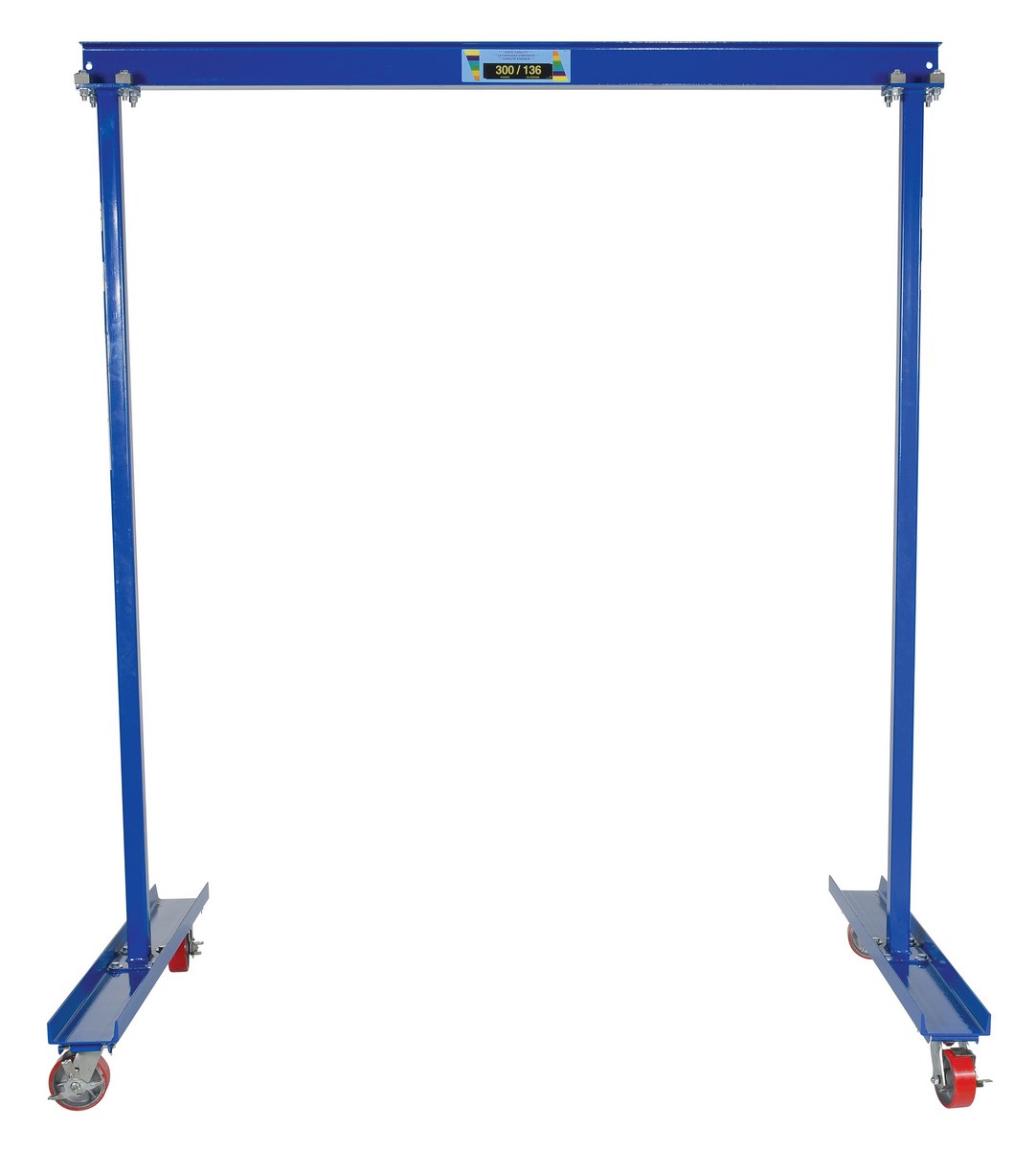

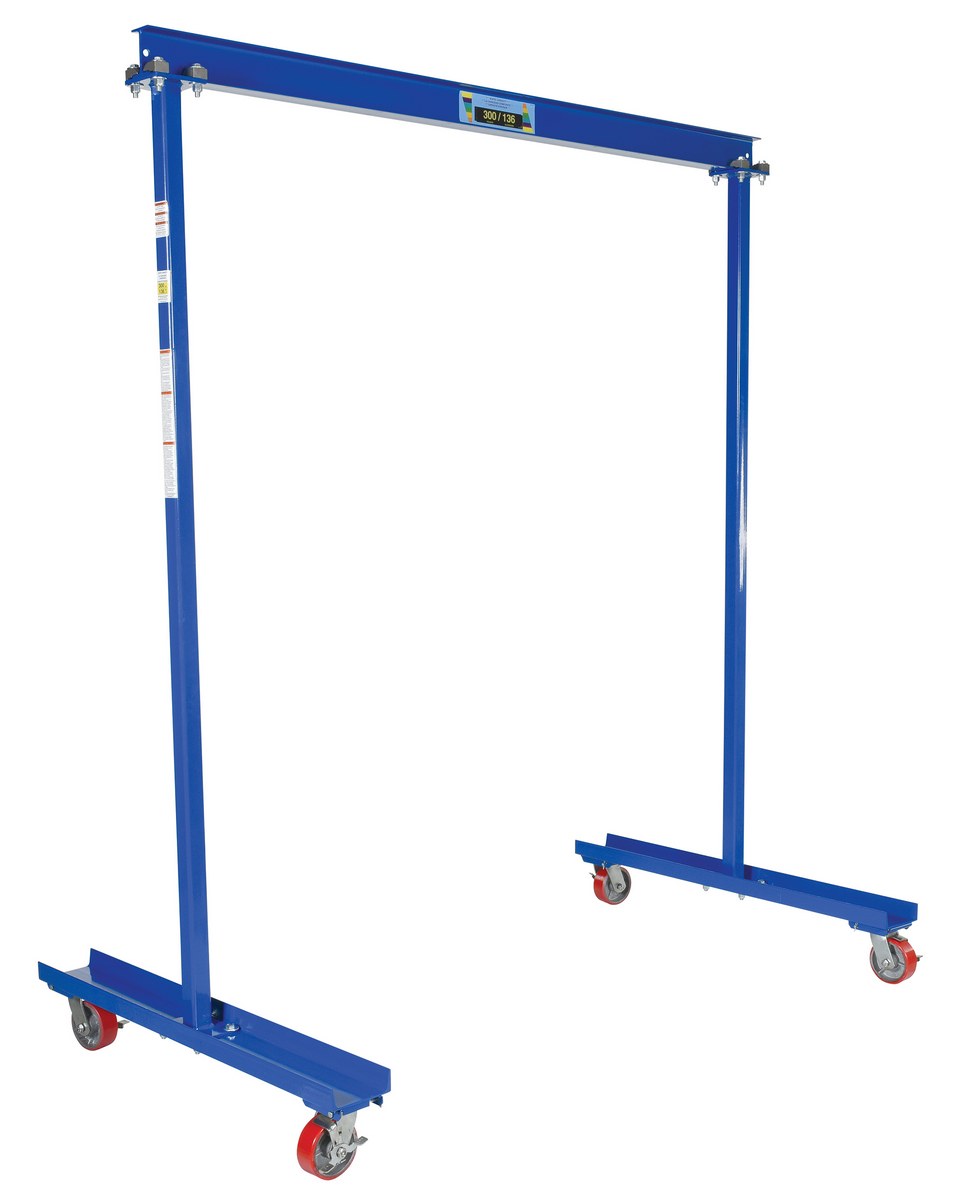

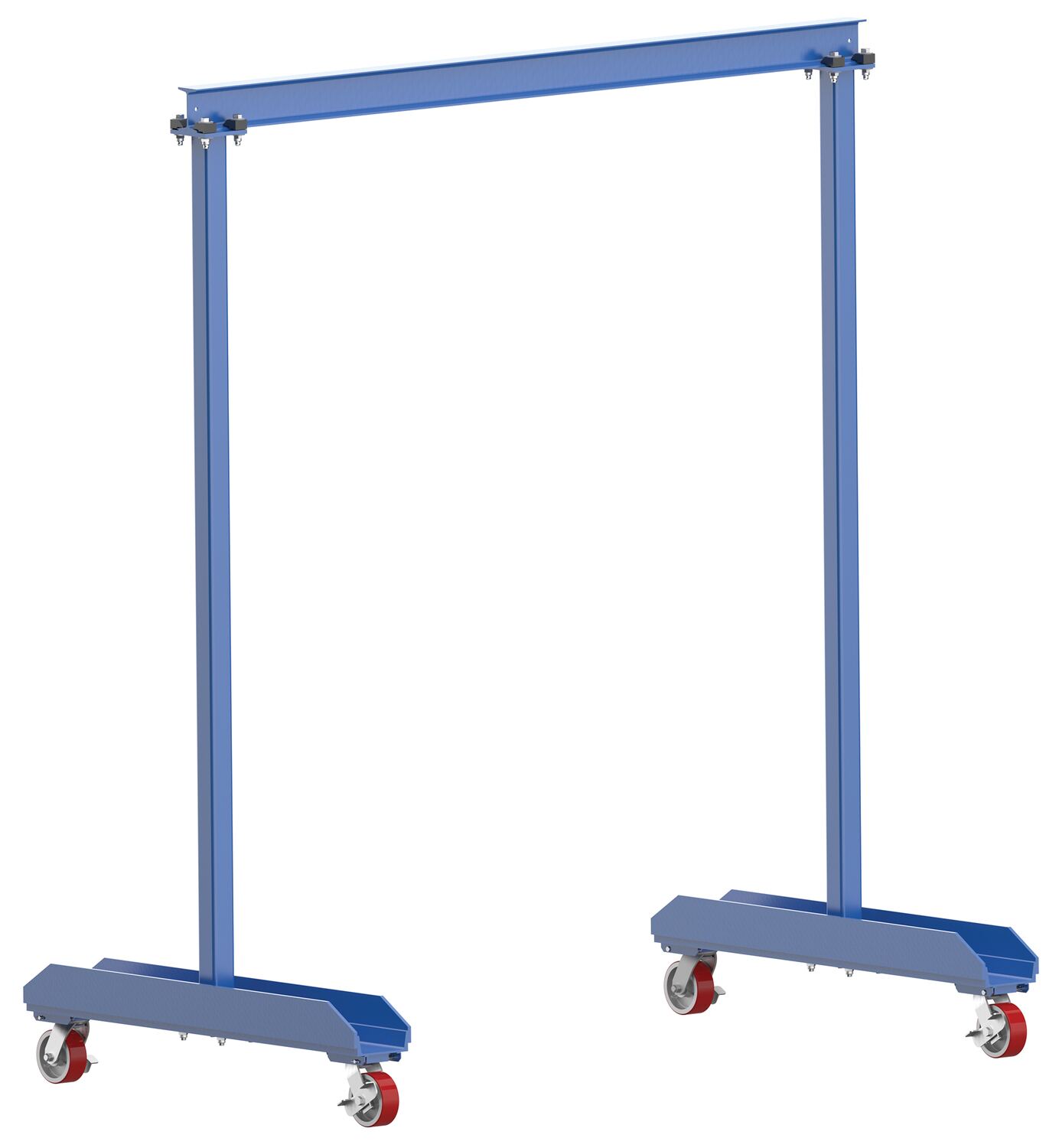

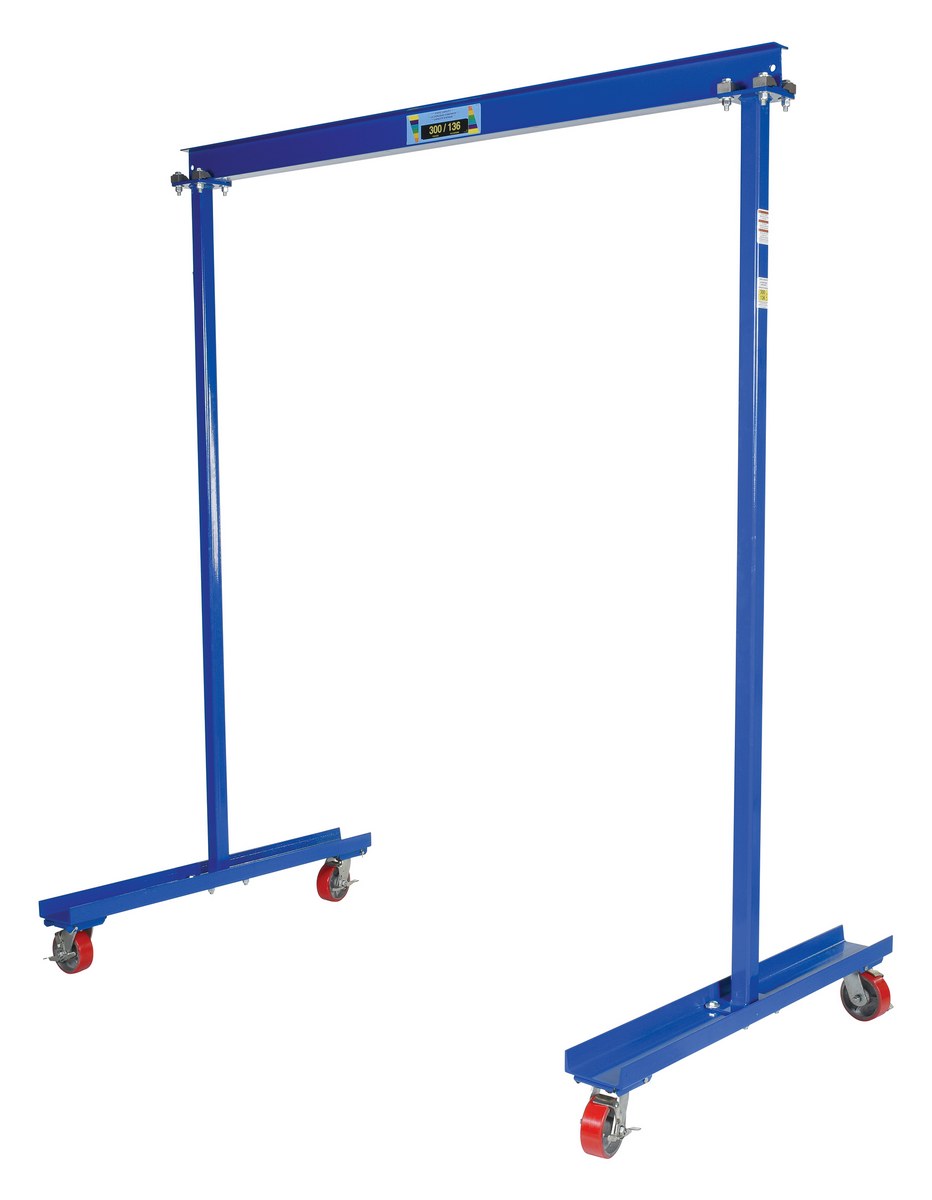

Work Area Portable Steel Gantry Cranes
SERIES: FPG

Designed to maximize material handling requirements in light-duty lifting applications. Lightweight fixed height design allows for easy mobility. Includes (4) 5" x 2" poly-on-steel swivel casters with brake. Overall I-beam length is 79-3/4". Do not move units while loaded. Steel construction with a blue baked in powder coat finish for added toughness. Bolt together installation. Hoists & Trollies sold seperately.

  • Maximizes material handling in light-duty lifting
  • Lightweight design allows for easy mobility
  • Bolt together installation makes for an easy assembly
  • Steel with powder coat finish for strength & durability

Check out our Aluminum version Work Area Portable Gantry Cranes!

Designed to maximize material handling requirements in light-duty lifting applications. Lightweight fixed height design allows for easy mobility. Includes (4) 5" x 2" poly-on-steel swivel casters with brake. Overall I-beam length is 79-3/4". Do not move units while loaded. Steel construction with a blue baked in powder coat finish for added toughness. Bolt together installation. Hoists & Trollies sold seperately.

  • Maximizes material handling in light-duty lifting
  • Lightweight design allows for easy mobility
  • Bolt together installation makes for an easy assembly
  • Steel with powder coat finish for strength & durability

Check out our Aluminum version Work Area Portable Gantry Cranes!

Additional Models In This Family

FPG-20

model FPG-20

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
FPG-10 FPG-101 Year Limited WarrantySteel Portable Work Area Gantry Crane 81-1/2 In. x 47-3/4 In. x 94 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Under I-Beam to Ground Length (in.): 90
376
FPG-20 FPG-201 Year Limited WarrantySteel Portable Work Area Gantry Crane 80-1/2 In. x 47-3/4 In. x 94 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Under I-Beam to Ground Length (in.): 90
376
FPG-3 FPG-31 Year Limited WarrantySteel Portable Work Area Gantry Crane 80-3/4 In. x 47-3/4 In. x 94 In. 300 Lb. Capacity BlueUniform Capacity (lb.): 300
Under I-Beam to Ground Length (in.): 90
295
FPG-6 FPG-61 Year Limited WarrantySteel Portable Work Area Gantry Crane 80-3/4 In. x 47-3/4 In. x 94 In. 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Under I-Beam to Ground Length (in.): 90
276

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

FPG-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Under I-Beam to Ground Length (in.): 90
Uniform Capacity (lb.): 1,000
Under I-Beam to Ground Length (in.): 90

FPG-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Under I-Beam to Ground Length (in.): 90
Uniform Capacity (lb.): 2,000
Under I-Beam to Ground Length (in.): 90

FPG-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 300
Under I-Beam to Ground Length (in.): 90
Uniform Capacity (lb.): 300
Under I-Beam to Ground Length (in.): 90

FPG-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Under I-Beam to Ground Length (in.): 90
Uniform Capacity (lb.): 600
Under I-Beam to Ground Length (in.): 90

Work Area Portable Steel Gantry Cranes PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


FPG-10

FPG-20

FPG-3

FPG-6

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Work Area Portable Steel Gantr...




Designed to maximize material handling requirements in light-duty lifting applications. Lightweight fixed height design allows for easy mobility. Includes (4) 5" x 2" poly-on-steel swivel casters with brake. Overall I-beam length is 79-3/4". Do not move units while loaded. Steel construction with a blue baked in powder coat finish for added toughness. Bolt together installation. Hoists & Trollies sold seperately.

  • Maximizes material handling in light-duty lifting
  • Lightweight design allows for easy mobility
  • Bolt together installation makes for an easy assembly
  • Steel with powder coat finish for strength & durability

Check out our Aluminum version Work Area Portable Gantry Cranes!



Model # Description Attributes Net Wt.
(lbs)
FPG-10 FPG-10Steel Portable Work Area Gantry Crane 81-1/2 In. x 47-3/4 In. x 94 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Under I-Beam to Ground Length (in.): 90
376
FPG-20 FPG-20Steel Portable Work Area Gantry Crane 80-1/2 In. x 47-3/4 In. x 94 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Under I-Beam to Ground Length (in.): 90
376
FPG-3 FPG-3Steel Portable Work Area Gantry Crane 80-3/4 In. x 47-3/4 In. x 94 In. 300 Lb. Capacity BlueUniform Capacity (lb.): 300
Under I-Beam to Ground Length (in.): 90
295
FPG-6 FPG-6Steel Portable Work Area Gantry Crane 80-3/4 In. x 47-3/4 In. x 94 In. 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Under I-Beam to Ground Length (in.): 90
276
