Product Family Overview


Portable Hydraulic Drum Carrier/Rotator/Booms
SERIES: HDC-305

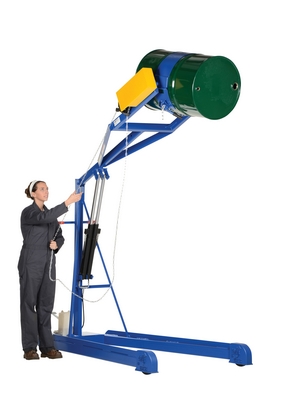

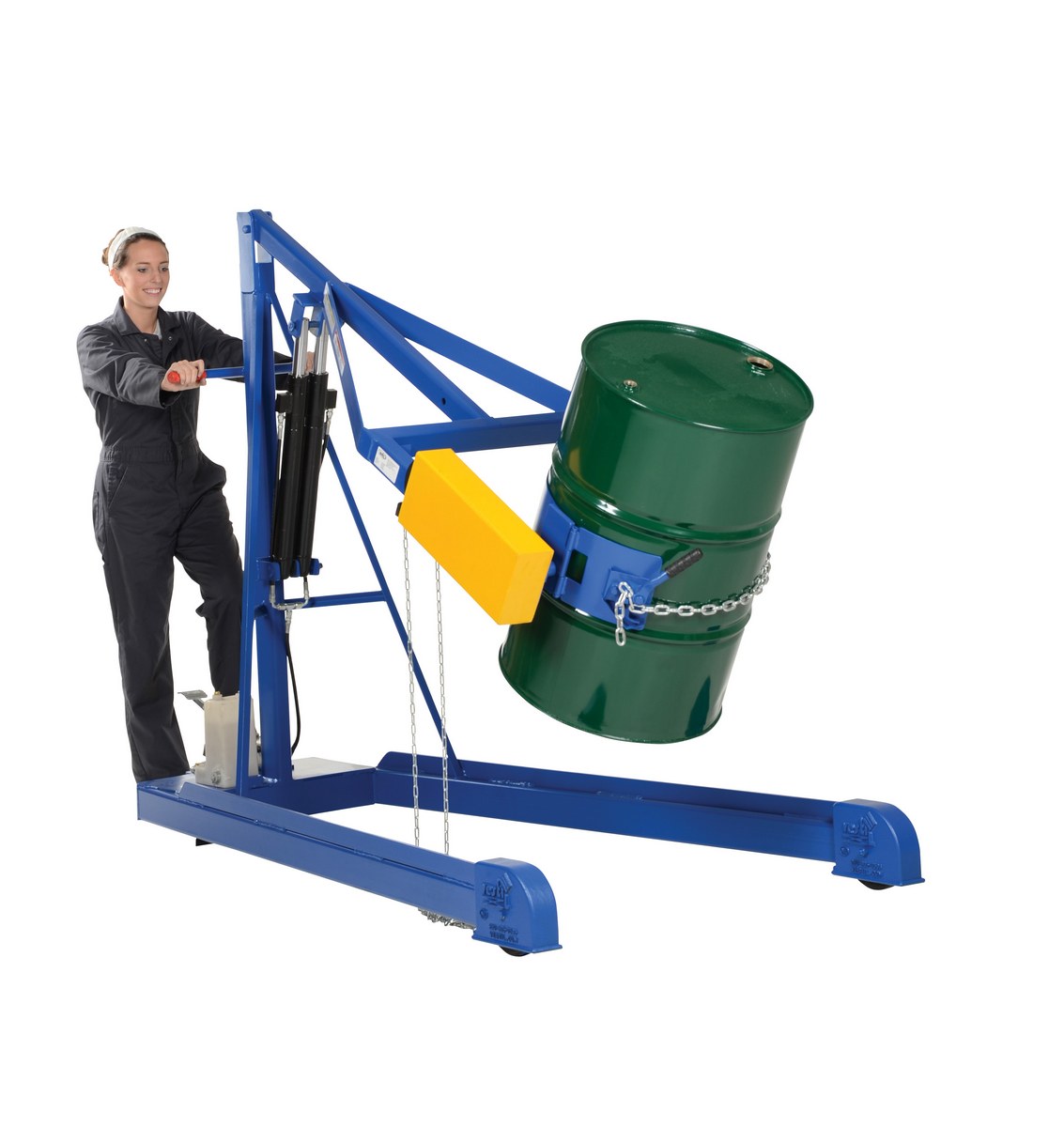

This product allows one person to lift, transport and dispense fully loaded 55 gallon steel drums with ease. It features a manual foot pump hydraulic lift and rolls on 5" rear swivel casters and 8" front rigid wheels. There is a hand crank on the 60" model and chain rotation on the other models to rotate the drum 360 degrees. All models feature a boom attachment which mounts on the outriggers. Optional power units available. Additional Plastic and Fiber Drum adapters and upgrades are available.

  • Unique design lifts & rotates drums up to 360 degrees

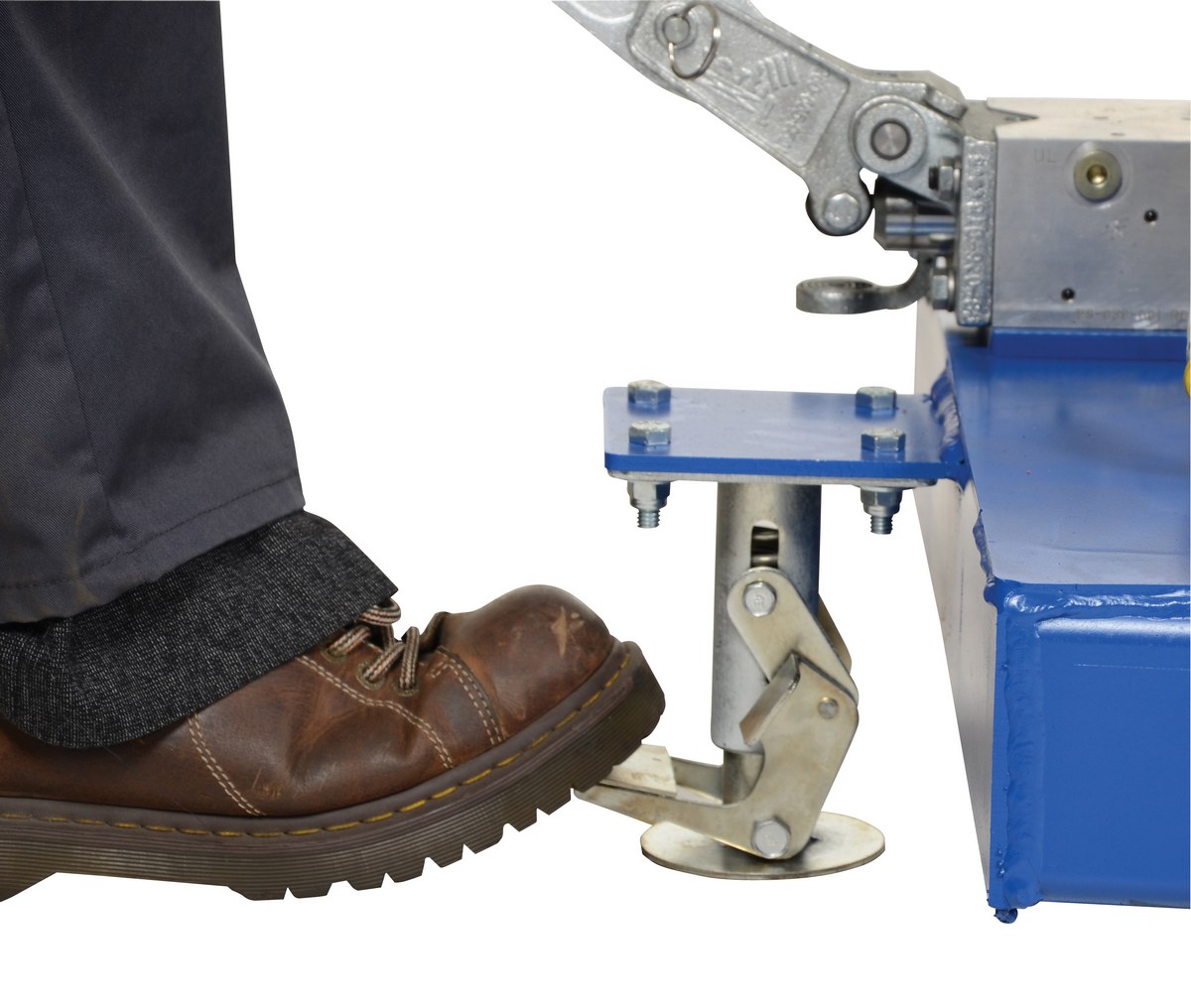

  • Rigid & swivel casters allow unit to roll smoothly
  • Standard design is for use with 55-gallon steel drums only
  • Heavy-duty welded steel construction provides long lasting rugged use

This product allows one person to lift, transport and dispense fully loaded 55 gallon steel drums with ease. It features a manual foot pump hydraulic lift and rolls on 5" rear swivel casters and 8" front rigid wheels. There is a hand crank on the 60" model and chain rotation on the other models to rotate the drum 360 degrees. All models feature a boom attachment which mounts on the outriggers. Optional power units available. Additional Plastic and Fiber Drum adapters and upgrades are available.

  • Unique design lifts & rotates drums up to 360 degrees
  • Rigid & swivel casters allow unit to roll smoothly
  • Standard design is for use with 55-gallon steel drums only
  • Heavy-duty welded steel construction provides long lasting rugged use

Additional Models In This Family

HDC-305-60

model HDC-305-60

HDC-305-72

model HDC-305-72

HDC-305-72-DC

model HDC-305-72-DC

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

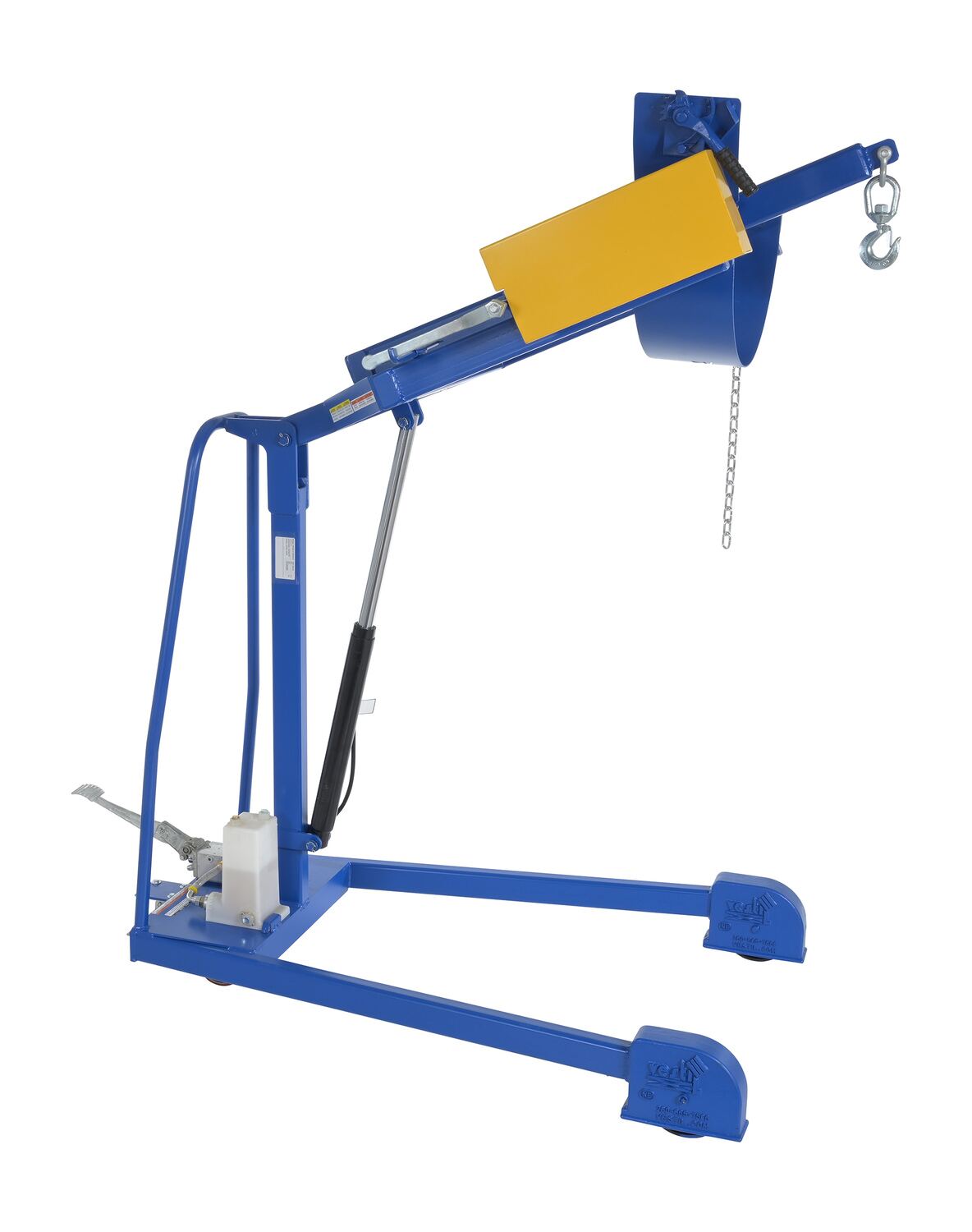

HDC-305-60 HDC-305-601 Year Limited WarrantySteel Portable Hydraulic Drum Carrier, Rotator and Boom 59-11/16 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 59-11/16
485
HDC-305-60-AC
HDC-305-60-AC1 Year Limited WarrantySteel Portable AC Powered Hydraulic Drum Carrier, Rotator and Boom 59-11/16 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 59-11/16
521

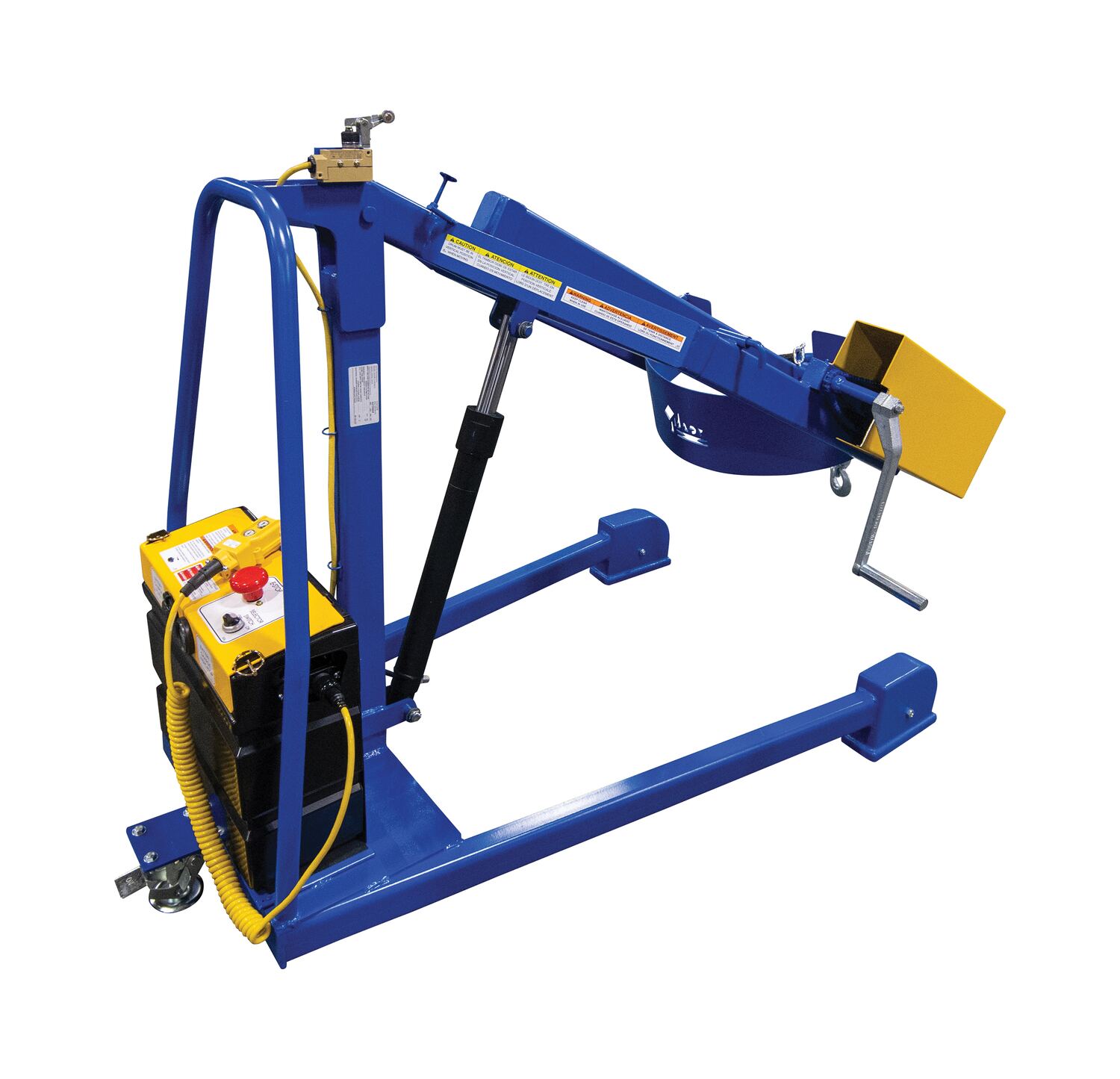

HDC-305-60-DC HDC-305-60-DC1 Year Limited WarrantySteel Portable DC Powered Hydraulic Drum Carrier, Rotator and Boom 59-11/16 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 59-11/16
494

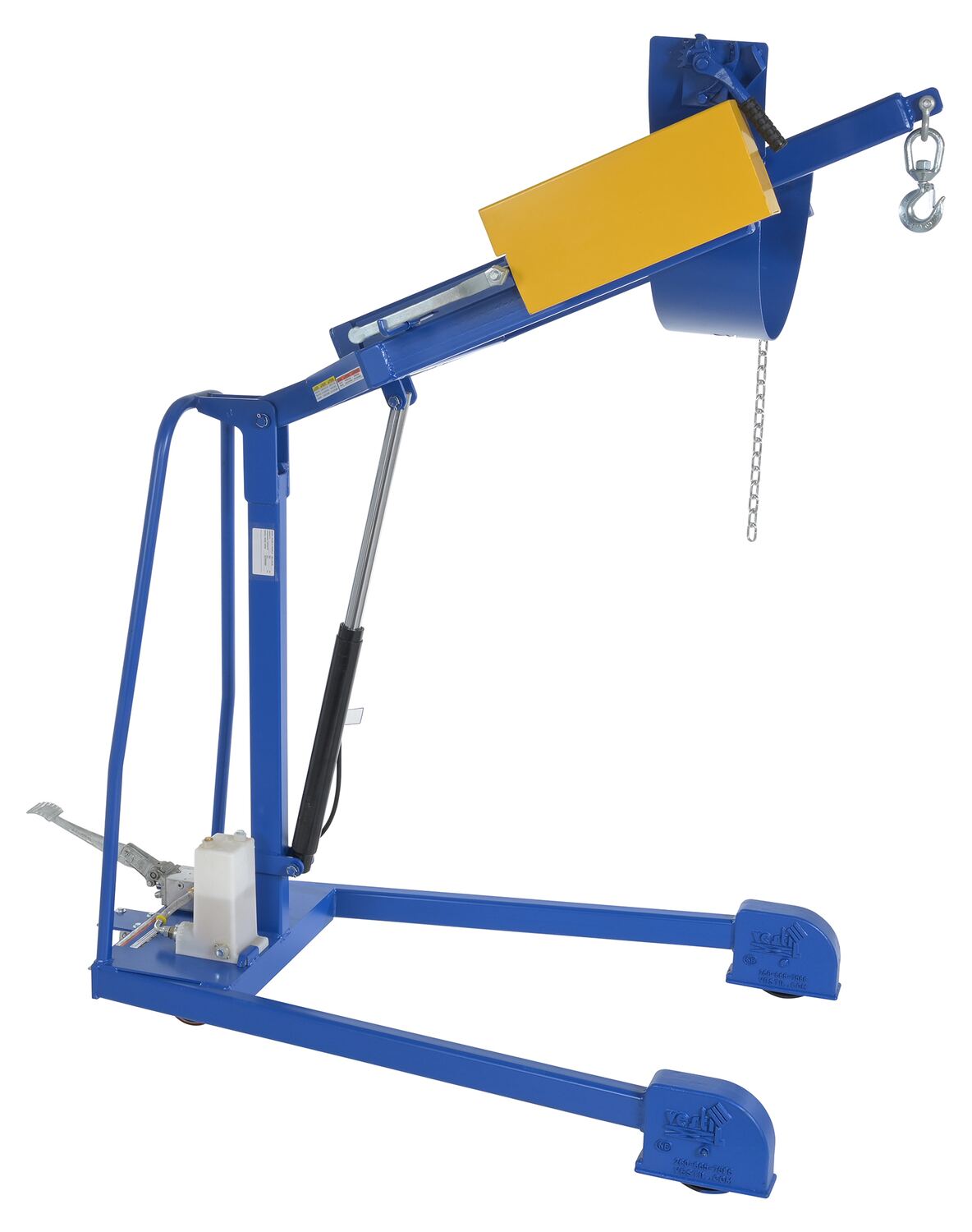

HDC-305-72 HDC-305-721 Year Limited WarrantySteel Portable Hydraulic Drum Carrier, Rotator and Boom 71-1/4 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 71-1/4
487
HDC-305-72-AC
HDC-305-72-AC1 Year Limited WarrantySteel Portable AC Powered Hydraulic Drum Carrier, Rotator and Boom 71-1/4 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 71-1/4
523

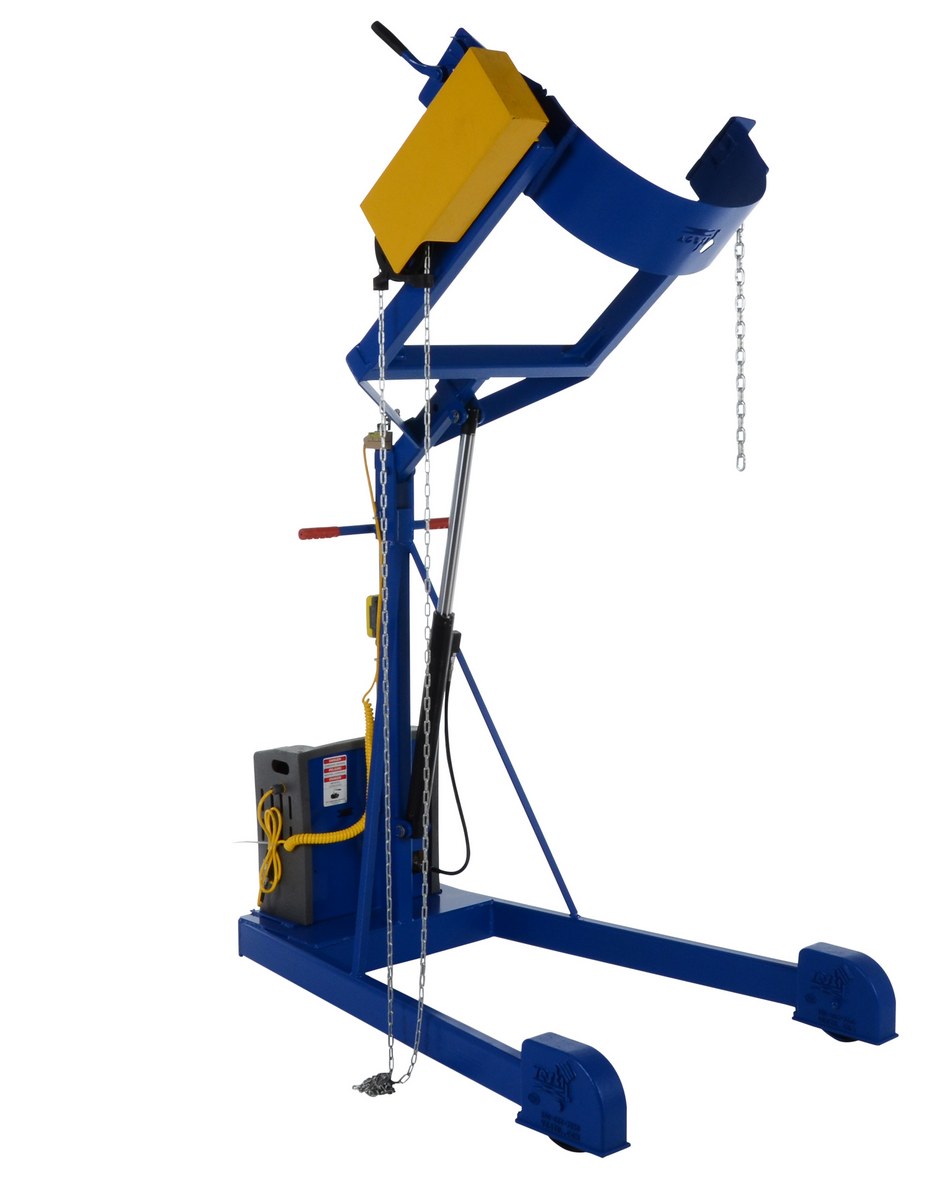

HDC-305-72-DC HDC-305-72-DC1 Year Limited WarrantySteel Portable DC Powered Hydraulic Drum Carrier, Rotator and Boom 71-1/4 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 71-1/4
514

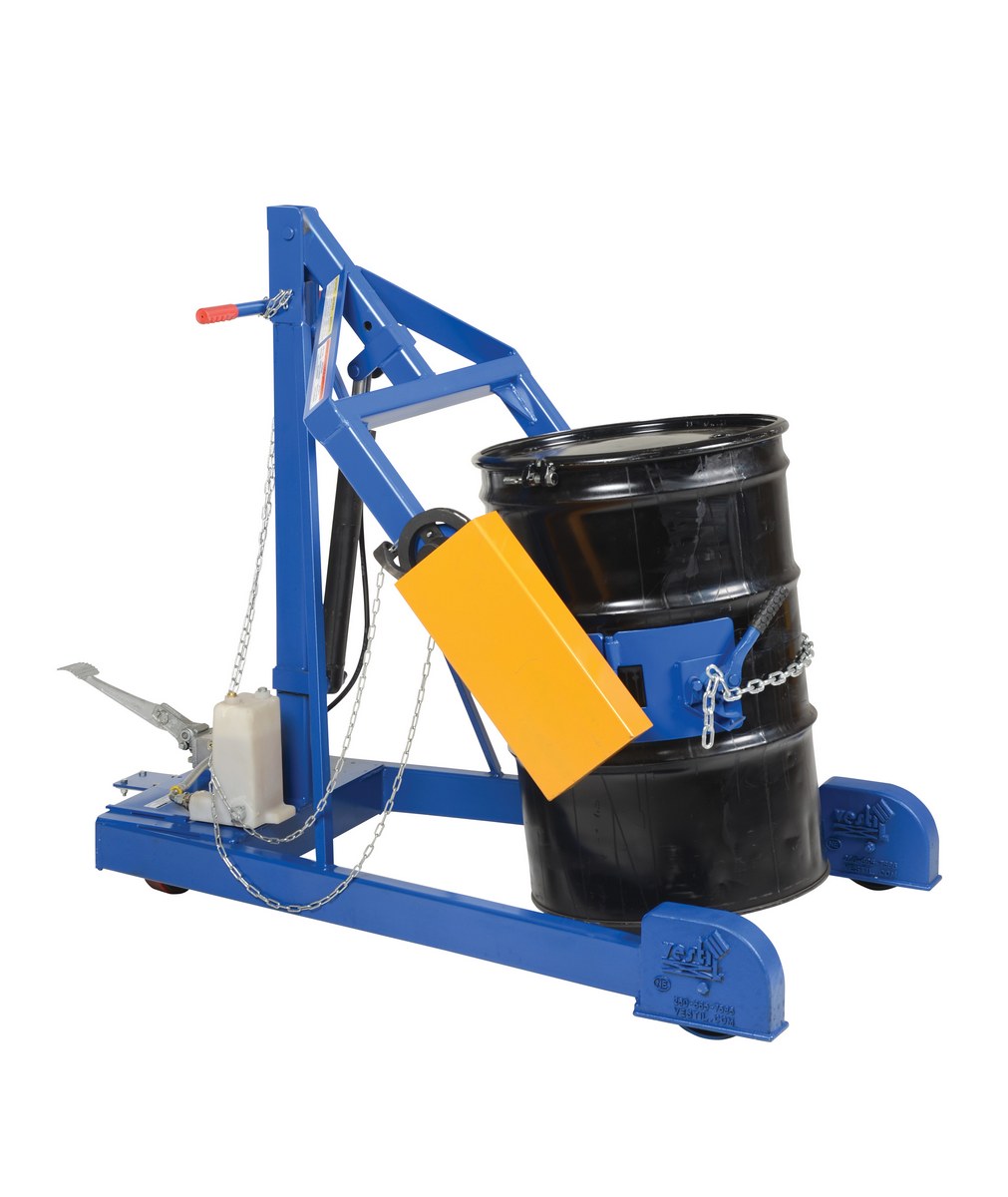

HDC-305-84
HDC-305-841 Year Limited WarrantySteel Portable Hydraulic Drum Carrier, Rotator and Boom 80-5/8 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 80-5/8
698

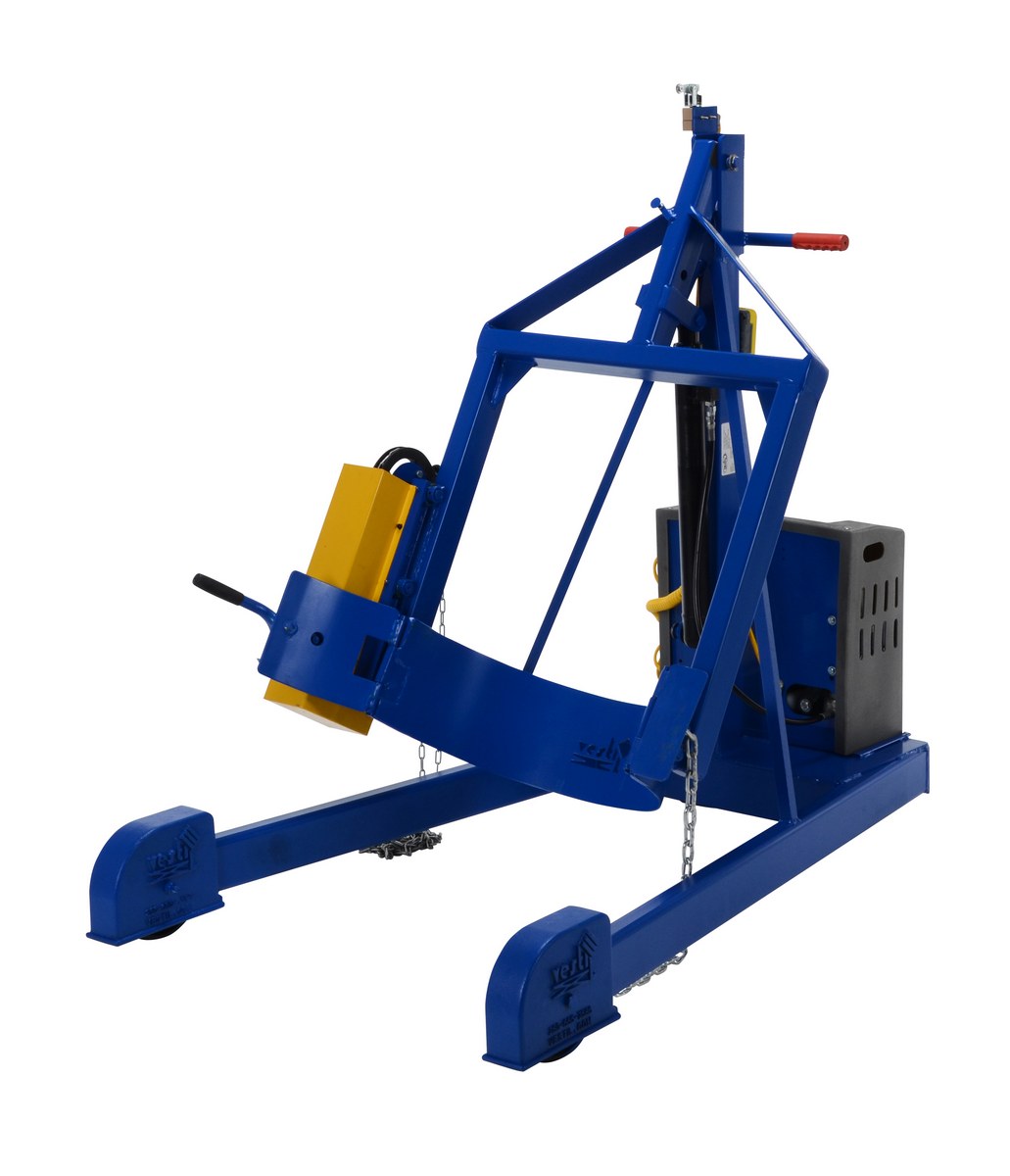

HDC-305-84-AC
HDC-305-84-AC1 Year Limited WarrantySteel Portable AC Powered Hydraulic Drum Carrier, Rotator and Boom 80-5/8 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 80-5/8
723
HDC-305-84-DC
HDC-305-84-DC1 Year Limited WarrantySteel Portable DC Powered Hydraulic Drum Carrier, Rotator and Boom 80-5/8 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 80-5/8
681

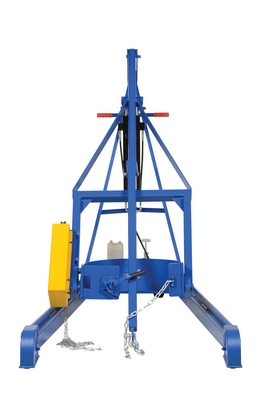

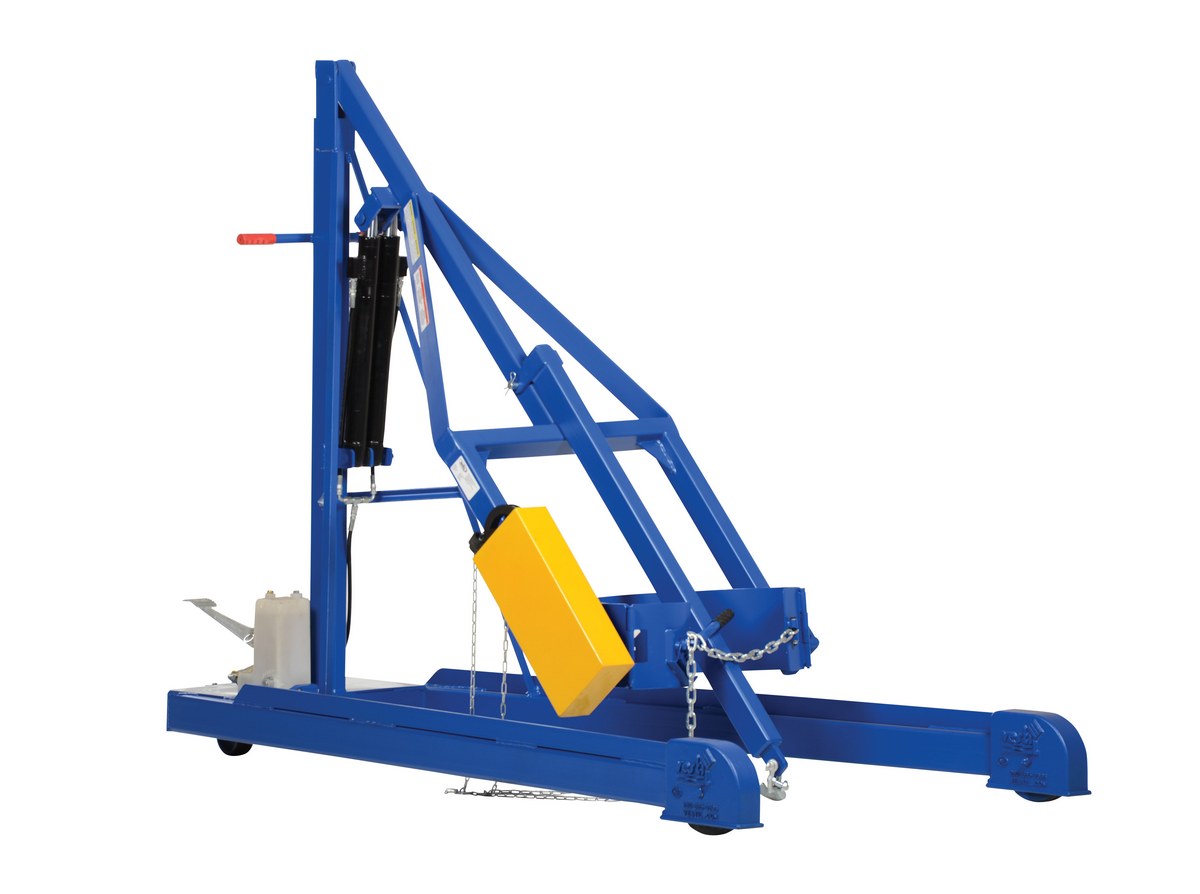

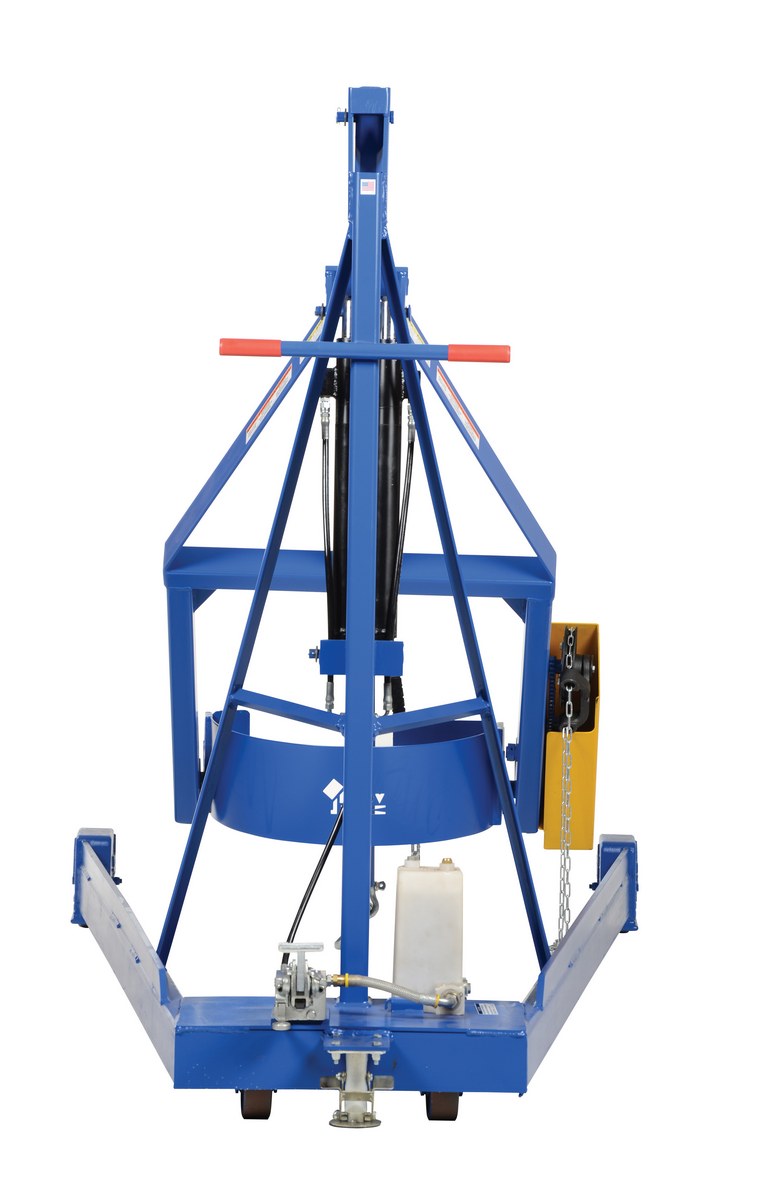

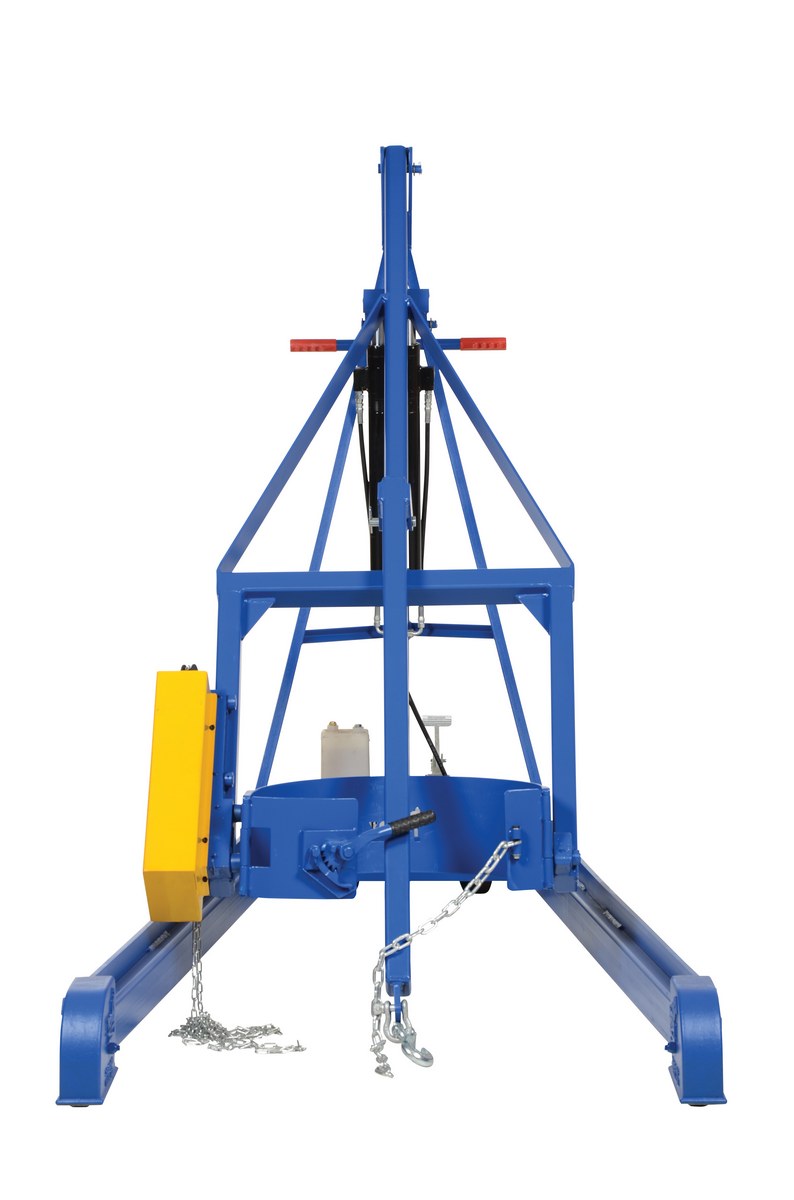

HDC-305-96
HDC-305-961 Year Limited WarrantySteel Portable Hydraulic Drum Carrier, Rotator and Boom 97-9/16 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 97-9/16
708
HDC-305-96-AC
HDC-305-96-AC1 Year Limited WarrantySteel Portable AC Powered Hydraulic Drum Carrier, Rotator and Boom 97-9/16 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 97-9/16
744
HDC-305-96-DC
HDC-305-96-DC1 Year Limited WarrantySteel Portable DC Powered Hydraulic Drum Carrier, Rotator and Boom 97-9/16 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 97-9/16
745

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

HDC-305-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 59-11/16
Uniform Capacity (lb.): 800
Lift Height (in.): 59-11/16

HDC-305-60-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 59-11/16
Uniform Capacity (lb.): 800
Lift Height (in.): 59-11/16

HDC-305-60-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 59-11/16
Uniform Capacity (lb.): 800
Lift Height (in.): 59-11/16

HDC-305-72
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 71-1/4
Uniform Capacity (lb.): 800
Lift Height (in.): 71-1/4

HDC-305-72-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 71-1/4
Uniform Capacity (lb.): 800
Lift Height (in.): 71-1/4

HDC-305-72-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 71-1/4
Uniform Capacity (lb.): 800
Lift Height (in.): 71-1/4

HDC-305-84
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 80-5/8
Uniform Capacity (lb.): 800
Lift Height (in.): 80-5/8

HDC-305-84-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 80-5/8
Uniform Capacity (lb.): 800
Lift Height (in.): 80-5/8

HDC-305-84-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 80-5/8
Uniform Capacity (lb.): 800
Lift Height (in.): 80-5/8

HDC-305-96
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 97-9/16
Uniform Capacity (lb.): 800
Lift Height (in.): 97-9/16

HDC-305-96-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 97-9/16
Uniform Capacity (lb.): 800
Lift Height (in.): 97-9/16

HDC-305-96-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 97-9/16
Uniform Capacity (lb.): 800
Lift Height (in.): 97-9/16
For More Details of the Option Click the Red Model Button
HDC-AC 90 Days Limited WarrantyFactory Installed 115 Volt AC Power Unit For Hydraulic Drum CrusherPower Unit (volts): 115
36
HDC-AIR 90 Days Limited WarrantyFactory Installed Air/Oil Operated Power Unit For Hydraulic Drum CrusherBrand / Model Compatibility: HDC-305-60, HDC-305-72, HDC-305-84, HDC-305-96, HDC-450-60, HDC-450-72, HDC-450-84, HDC-450-96
Additional Contents: Factory Installed Power Unit
36
HDC-DC 90 Days Limited WarrantyFactory Installed 12 Volt DC Power Unit For Hydraulic Drum CrusherPower Unit (volts): 12
54
HDC-R-DC 90 Days Limited WarrantyFactory Installed 24V DC Power Rotation For Hydraulic Drum CrusherPower Unit (volts): 24
232
HDC-R-HC 90 Days Limited WarrantyFactory Installed Manual Rotation For Hydraulic Drum CrusherBrand / Model Compatibility: HDC-305-60, HDC-305-72, HDC-305-84, HDC-305-96, HDC-450-60, HDC-450-72, HDC-450-84, HDC-450-96
Additional Contents: Factory Installed Power Unit

Drums Must Be Full To Rotate At Rated Capacity

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Portable Hydraulic Drum Carrier/Rotator/Booms PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


HDC-305-60

HDC-305-60-AC

HDC-305-60-DC

HDC-305-72

HDC-305-72-AC

HDC-305-72-DC

HDC-305-84

HDC-305-84-AC

HDC-305-84-DC

HDC-305-96

HDC-305-96-AC

HDC-305-96-DC

HDC-AC

HDC-AIR

HDC-DC

HDC-R-DC

HDC-R-HC

SDS Sheets

Hydraulic Oil SDS Sheet for: HDC-305-60
Hydraulic Oil SDS Sheet for: HDC-305-60-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: HDC-305-60-DC
Hydraulic Oil SDS Sheet for: HDC-305-60-DC
Hydraulic Oil SDS Sheet for: HDC-305-72
Hydraulic Oil SDS Sheet for: HDC-305-72-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: HDC-305-72-DC
Hydraulic Oil SDS Sheet for: HDC-305-72-DC
Hydraulic Oil SDS Sheet for: HDC-305-84
Hydraulic Oil SDS Sheet for: HDC-305-84-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: HDC-305-84-DC
Hydraulic Oil SDS Sheet for: HDC-305-84-DC
Hydraulic Oil SDS Sheet for: HDC-305-96
Hydraulic Oil SDS Sheet for: HDC-305-96-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: HDC-305-96-DC
Hydraulic Oil SDS Sheet for: HDC-305-96-DC
Hydraulic Oil SDS Sheet for: HDC-AIR
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: HDC-DC
Hydraulic Oil SDS Sheet for: HDC-DC

Valve Regulated Lead-Acid Battery SDS Sheet for: HDC-R-DC
Hydraulic Oil SDS Sheet for: HDC-R-DC

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: How many drums this can lift per hour?

A: Maximum 12 drums per hour is recommended. It takes approximately 30 seconds to raise and approximately 18 seconds to lower.






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Portable Hydraulic Drum Carrie...




This product allows one person to lift, transport and dispense fully loaded 55 gallon steel drums with ease. It features a manual foot pump hydraulic lift and rolls on 5" rear swivel casters and 8" front rigid wheels. There is a hand crank on the 60" model and chain rotation on the other models to rotate the drum 360 degrees. All models feature a boom attachment which mounts on the outriggers. Optional power units available. Additional Plastic and Fiber Drum adapters and upgrades are available.

  • Unique design lifts & rotates drums up to 360 degrees
  • Rigid & swivel casters allow unit to roll smoothly
  • Standard design is for use with 55-gallon steel drums only
  • Heavy-duty welded steel construction provides long lasting rugged use


Model # Description Attributes Net Wt.
(lbs)
HDC-305-60 HDC-305-60Steel Portable Hydraulic Drum Carrier, Rotator and Boom 59-11/16 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 59-11/16
485
HDC-305-60-AC HDC-305-60-ACSteel Portable AC Powered Hydraulic Drum Carrier, Rotator and Boom 59-11/16 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 59-11/16
521
HDC-305-60-DC HDC-305-60-DCSteel Portable DC Powered Hydraulic Drum Carrier, Rotator and Boom 59-11/16 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 59-11/16
494
HDC-305-72 HDC-305-72Steel Portable Hydraulic Drum Carrier, Rotator and Boom 71-1/4 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 71-1/4
487
HDC-305-72-AC HDC-305-72-ACSteel Portable AC Powered Hydraulic Drum Carrier, Rotator and Boom 71-1/4 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 71-1/4
523
HDC-305-72-DC HDC-305-72-DCSteel Portable DC Powered Hydraulic Drum Carrier, Rotator and Boom 71-1/4 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 71-1/4
514
HDC-305-84 HDC-305-84Steel Portable Hydraulic Drum Carrier, Rotator and Boom 80-5/8 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 80-5/8
698
HDC-305-84-AC HDC-305-84-ACSteel Portable AC Powered Hydraulic Drum Carrier, Rotator and Boom 80-5/8 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 80-5/8
723
HDC-305-84-DC HDC-305-84-DCSteel Portable DC Powered Hydraulic Drum Carrier, Rotator and Boom 80-5/8 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 80-5/8
681
HDC-305-96 HDC-305-96Steel Portable Hydraulic Drum Carrier, Rotator and Boom 97-9/16 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 97-9/16
708
HDC-305-96-AC HDC-305-96-ACSteel Portable AC Powered Hydraulic Drum Carrier, Rotator and Boom 97-9/16 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 97-9/16
744
HDC-305-96-DC HDC-305-96-DCSteel Portable DC Powered Hydraulic Drum Carrier, Rotator and Boom 97-9/16 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 97-9/16
745

Options


Drums Must Be Full To Rotate At Rated Capacity


Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
