Product Family Overview


Steel Self-Dumping Hoppers
SERIES: HOP

Must be attached to fork truck when dumping.

All welded steel self-dumping Hopper handles bulk materials and scrap easily. Must transport and dump with a forklift or make the unit mobile with the optional casters. Self dumping hoppers are engineered to dump when the safety latch is tripped and to return to an upright locked position when empty. This Hopper comes with a trip rope assembly and has a formed stackable base. The included safety restraint should be properly secured to a fork truck before dumping. The 1/4 to 2-1/2 cubic yard hoppers have a formed stackable base (stackable when empty). The 3 to 5 cubic yard hoppers have structural bases with stackable re-enforced rockers for heavy use. Options include: casters, lids (1 to 2-1/2 cubic yard), lifting lugs, and paint colors. Standard paint finish is vista green. Leak proof and drain plug options available - contact factory for quote.

  • High capacity hopper handles bulk materials and scrap easily
  • Unique design returns to upright & locked position when empty
  • Safety retaining chain secures unit to forklift
  • Vista green paint provides an attractive appearance

Must be attached to fork truck when dumping.

All welded steel self-dumping Hopper handles bulk materials and scrap easily. Must transport and dump with a forklift or make the unit mobile with the optional casters. Self dumping hoppers are engineered to dump when the safety latch is tripped and to return to an upright locked position when empty. This Hopper comes with a trip rope assembly and has a formed stackable base. The included safety restraint should be properly secured to a fork truck before dumping. The 1/4 to 2-1/2 cubic yard hoppers have a formed stackable base (stackable when empty). The 3 to 5 cubic yard hoppers have structural bases with stackable re-enforced rockers for heavy use. Options include: casters, lids (1 to 2-1/2 cubic yard), lifting lugs, and paint colors. Standard paint finish is vista green. Leak proof and drain plug options available - contact factory for quote.

  • High capacity hopper handles bulk materials and scrap easily
  • Unique design returns to upright & locked position when empty
  • Safety retaining chain secures unit to forklift
  • Vista green paint provides an attractive appearance

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
HOP-100-HD HOP-100-HD90 Days Limited WarrantySteel Self Dumping Hopper 1 Cubic Yard 6000 Lb. Capacity GreenUniform Capacity (lb.): 6,000
Volume (cu. yrd.): 1
625
HOP-100-LD HOP-100-LD90 Days Limited WarrantySteel Self Dumping Hopper 1 Cubic Yard 2000 Lb. Capacity GreenUniform Capacity (lb.): 2000
Volume (cu. yrd.): 1
445
HOP-100-MD HOP-100-MD90 Days Limited WarrantySteel Self Dumping Hopper 1 Cubic Yard 4000 Lb. Capacity GreenUniform Capacity (lb.): 4,000
Volume (cu. yrd.): 1
495

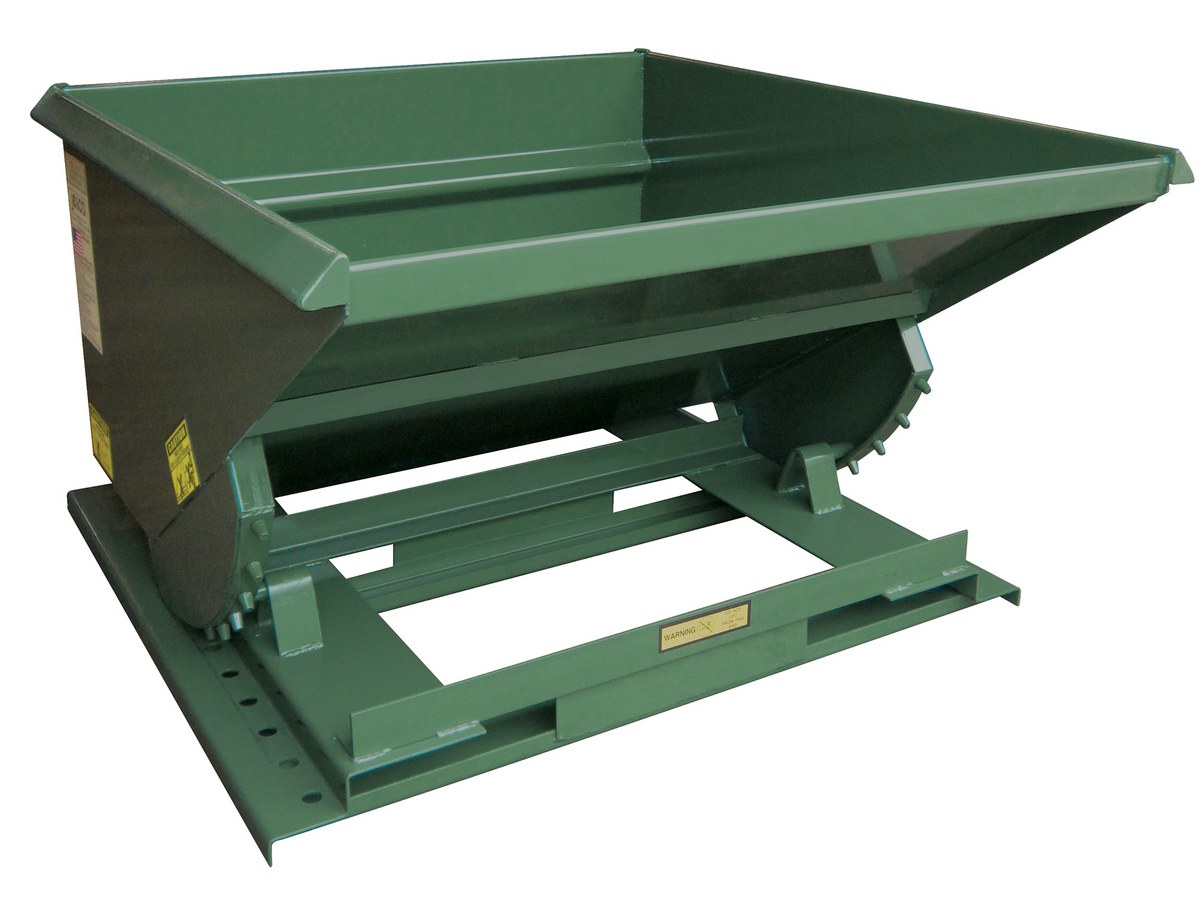

HOP-150-HD HOP-150-HD90 Days Limited WarrantySteel Self Dumping Hopper 1-1/2 Cubic Yard 6000 Lb. Capacity GreenUniform Capacity (lb.): 6,000
Volume (cu. yrd.): 1-1/2
785
HOP-150-LD HOP-150-LD90 Days Limited WarrantySteel Self Dumping Hopper 1-1/2 Cubic Yard 2000 Lb. Capacity GreenUniform Capacity (lb.): 2,000
Volume (cu. yrd.): 1-1/2
540

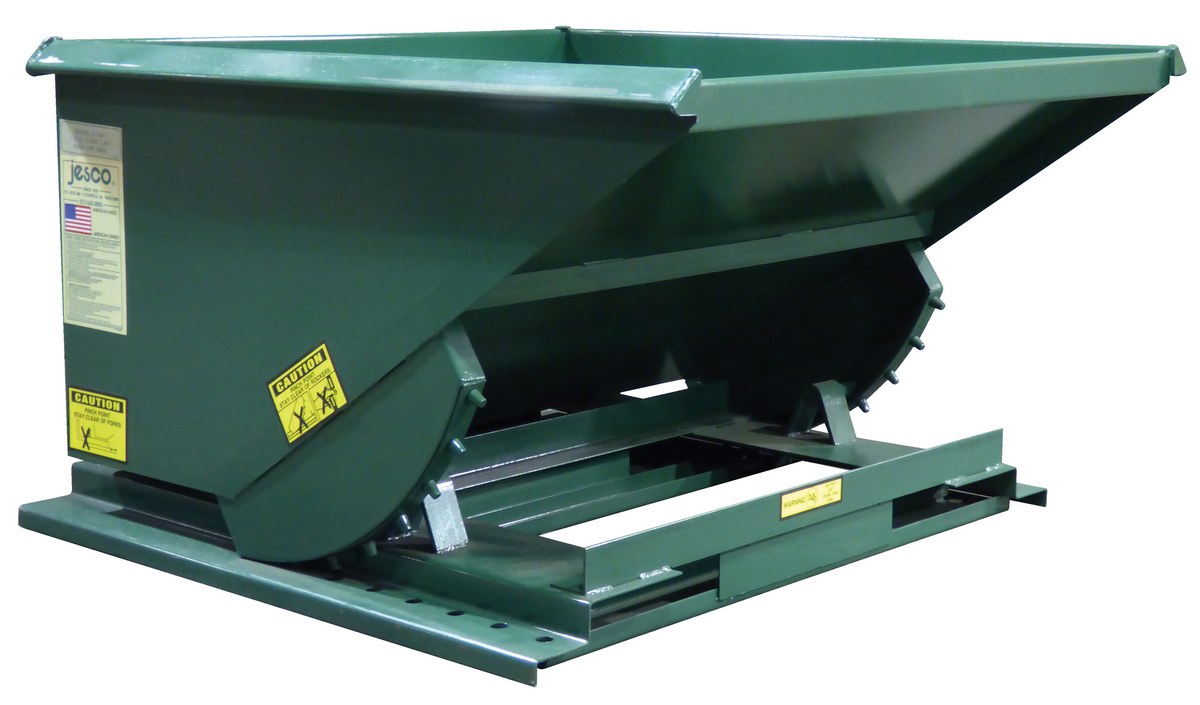

HOP-150-MD HOP-150-MD90 Days Limited WarrantySteel Self Dumping Hopper 1-1/2 Cubic Yard 4000 Lb. Capacity GreenUniform Capacity (lb.): 4,000
Volume (cu. yrd.): 1-1/2
630
HOP-200-HD HOP-200-HD90 Days Limited WarrantySteel Self Dumping Hopper 2 Cubic Yard 6000 Lb. Capacity GreenUniform Capacity (lb.): 6,000
Volume (cu. yrd.): 2
880
HOP-200-LD HOP-200-LD90 Days Limited WarrantySteel Self Dumping Hopper 2 Cubic Yard 2000 Lb. Capacity GreenUniform Capacity (lb.): 2,000
Volume (cu. yrd.): 2
600

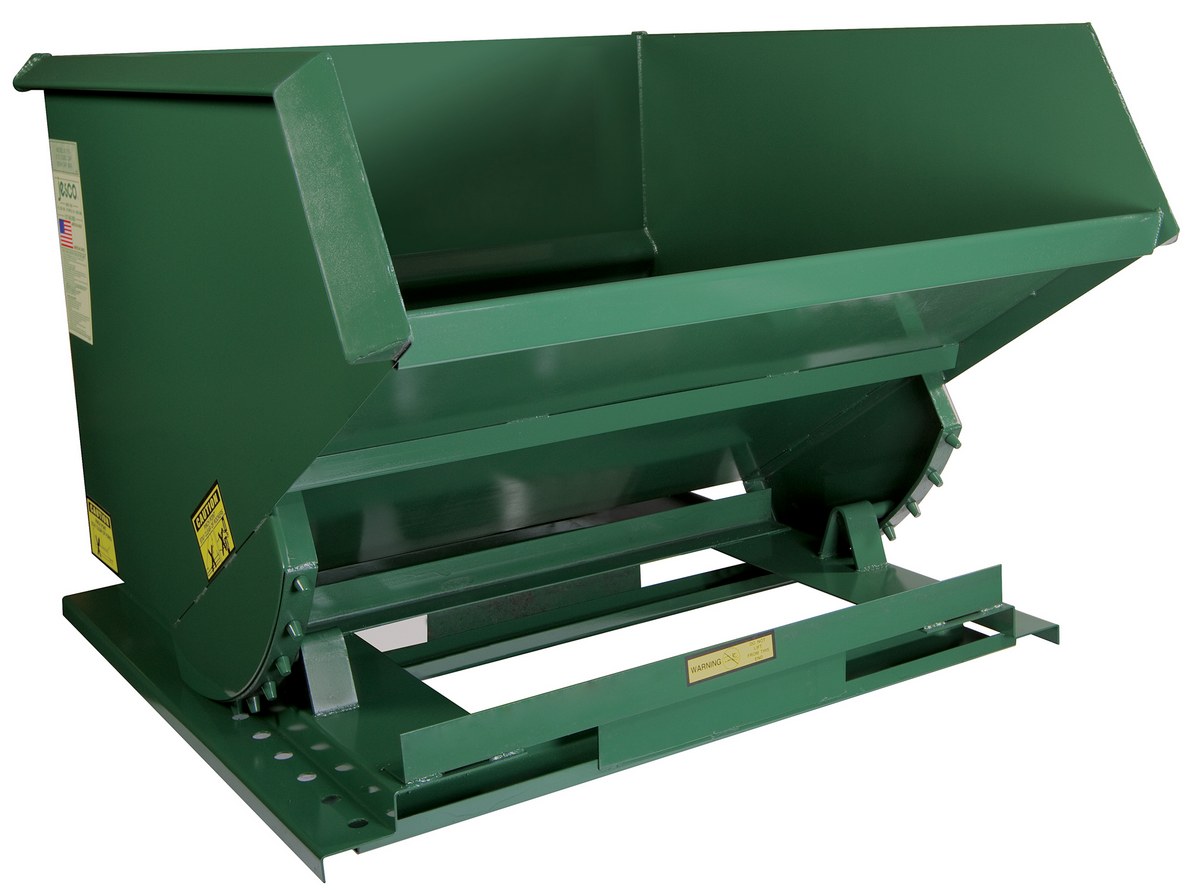

HOP-200-MD HOP-200-MD90 Days Limited WarrantySteel Self Dumping Hopper 2 Cubic Yard 4000 Lb. Capacity GreenUniform Capacity (lb.): 4,000
Volume (cu. yrd.): 2
705

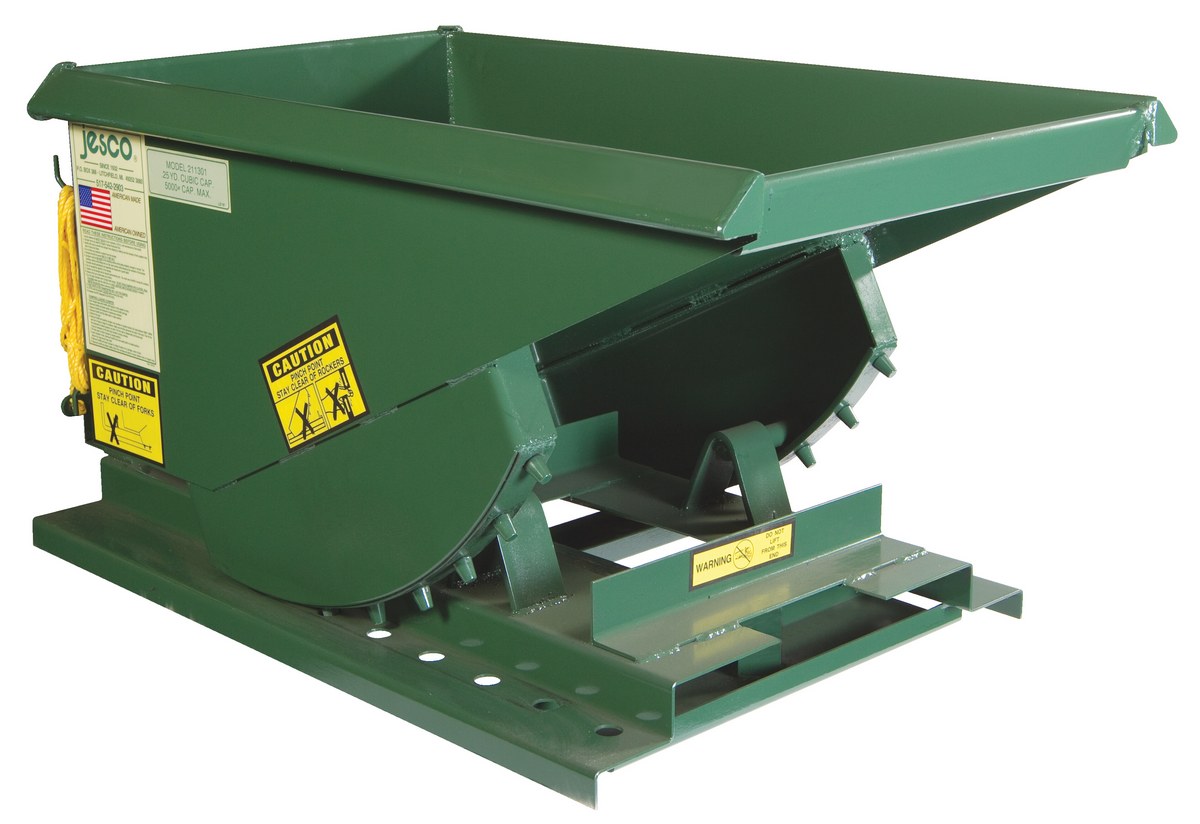

HOP-25-HD HOP-25-HD90 Days Limited WarrantySteel Self Dumping Hopper 1/4 Cubic Yard 4000 Lb. Capacity GreenUniform Capacity (lb.): 4,000
Volume (cu. yrd.): 1/4
375

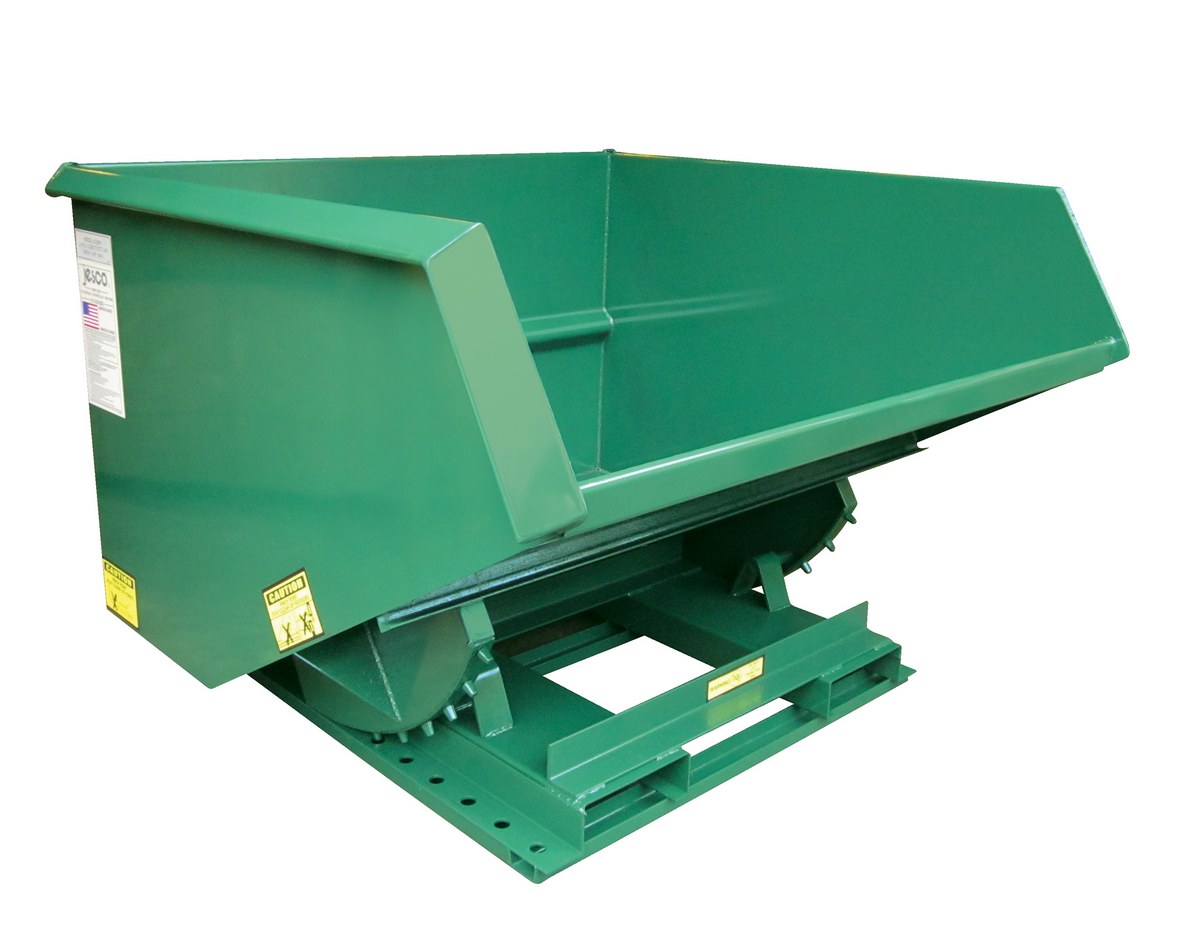

HOP-250-HD HOP-250-HD90 Days Limited WarrantySteel Self Dumping Hopper 2-1/2 Cubic Yard 6000 Lb. Capacity GreenUniform Capacity (lb.): 6,000
Volume (cu. yrd.): 2-1/2
905
HOP-250-LD HOP-250-LD90 Days Limited WarrantySteel Self Dumping Hopper 2-1/2 Cubic Yard 2000 Lb. Capacity GreenUniform Capacity (lb.): 2,000
Volume (cu. yrd.): 2-1/2
620

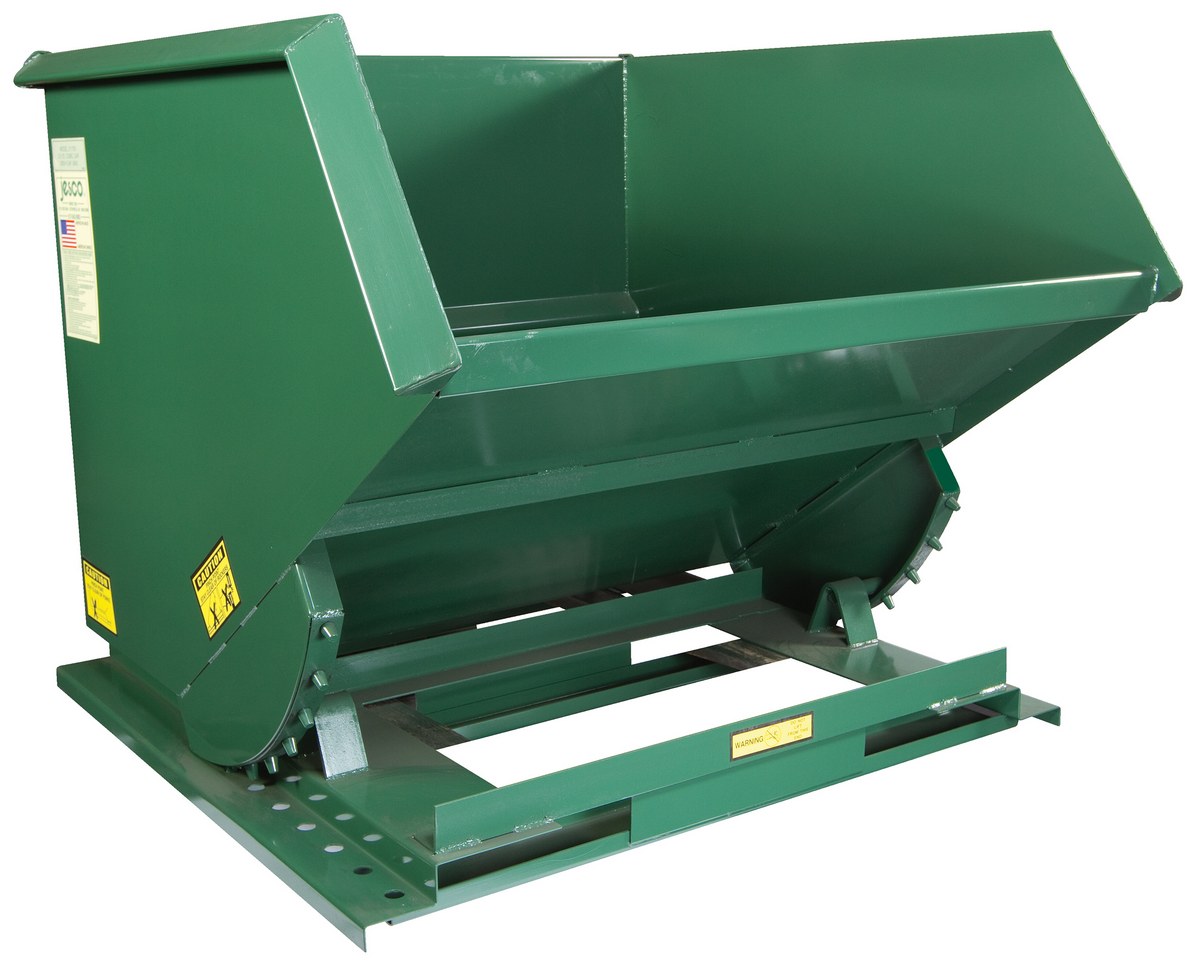

HOP-250-MD HOP-250-MD90 Days Limited WarrantySteel Self Dumping Hopper 2-1/2 Cubic Yard 4000 Lb. Capacity GreenUniform Capacity (lb.): 4,000
Volume (cu. yrd.): 2-1/2
730
HOP-300-HD HOP-300-HD90 Days Limited WarrantySteel Self Dumping Hopper 3 Cubic Yard 6000 Lb. Capacity GreenUniform Capacity (lb.): 6,000
Volume (cu. yrd.): 3
1250

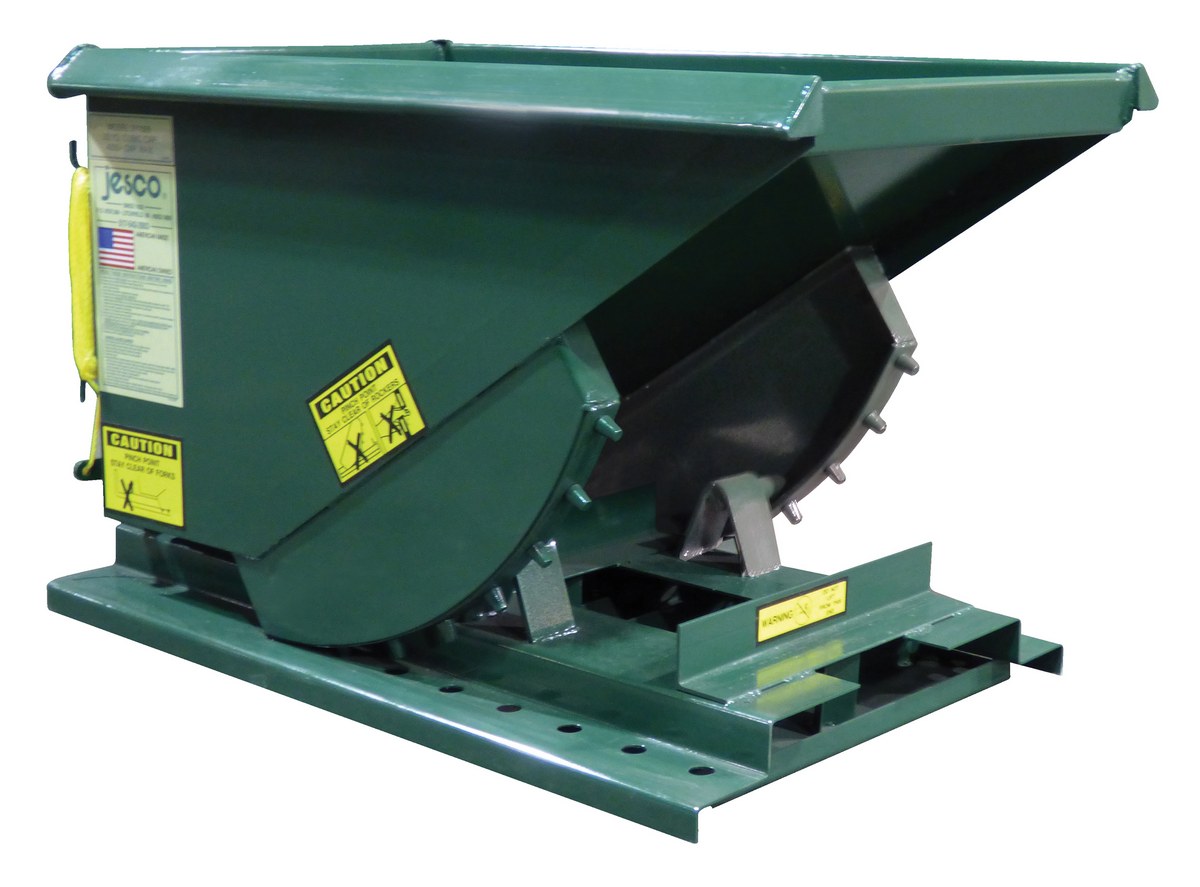

HOP-33-HD HOP-33-HD90 Days Limited WarrantySteel Self Dumping Hopper 1/3 Cubic Yard 6000 Lb Capacity GreenUniform Capacity (lb.): 4,000
Volume (cu. yrd.): 1/3
405

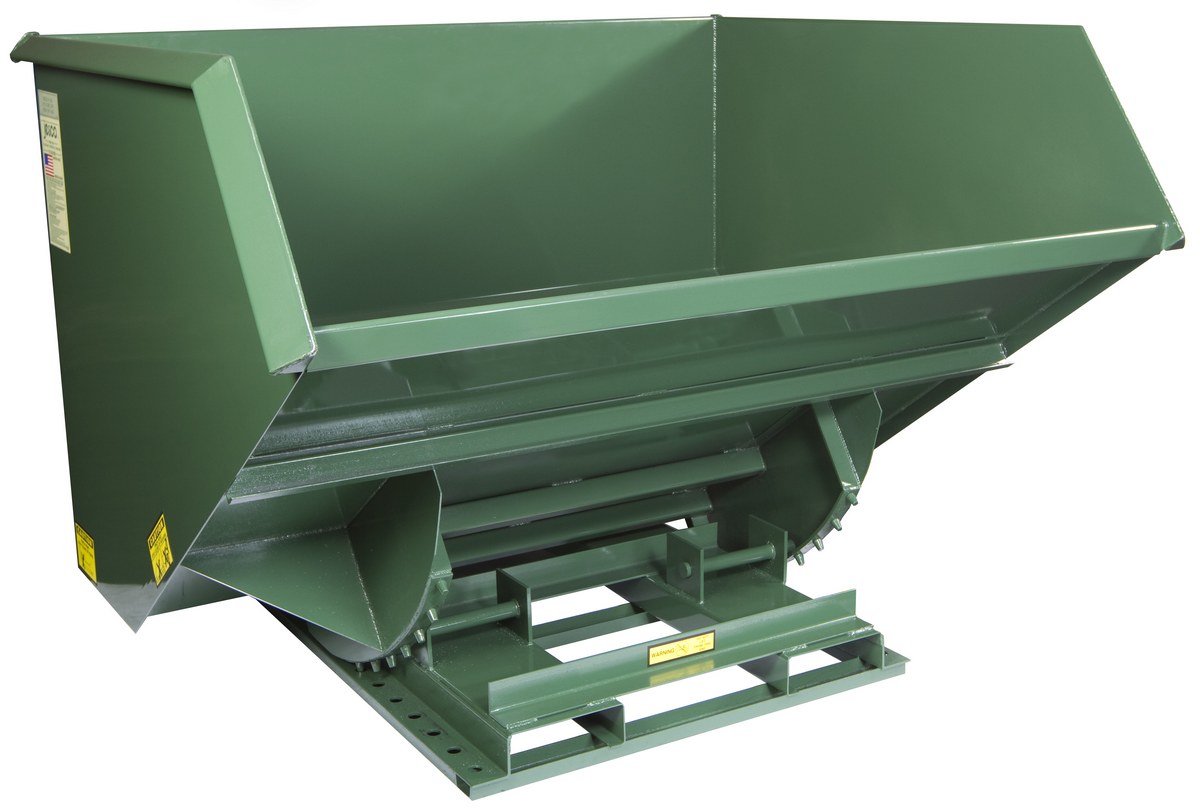

HOP-400-HD HOP-400-HD90 Days Limited WarrantySteel Self Dumping Hopper 4 Cubic Yard 6000 Lb. Capacity GreenUniform Capacity (lb.): 6,000
Volume (cu. yrd.): 4
1385

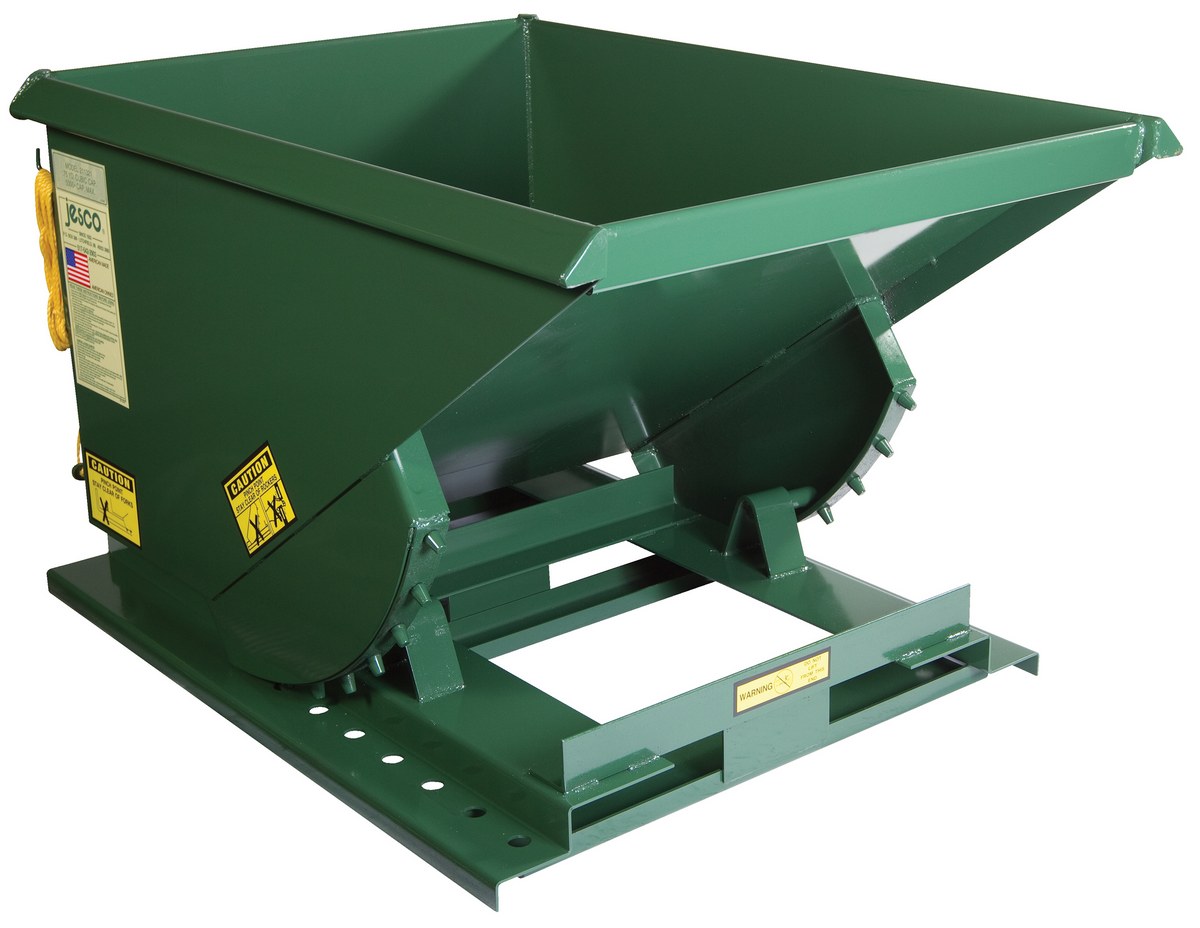

HOP-50-HD HOP-50-HD90 Days Limited WarrantySteel Self Dumping Hopper 1/2 Cubic Yard 4000 Lb. Capacity GreenUniform Capacity (lb.): 4,000
Volume (cu. yrd.): 1/2
470

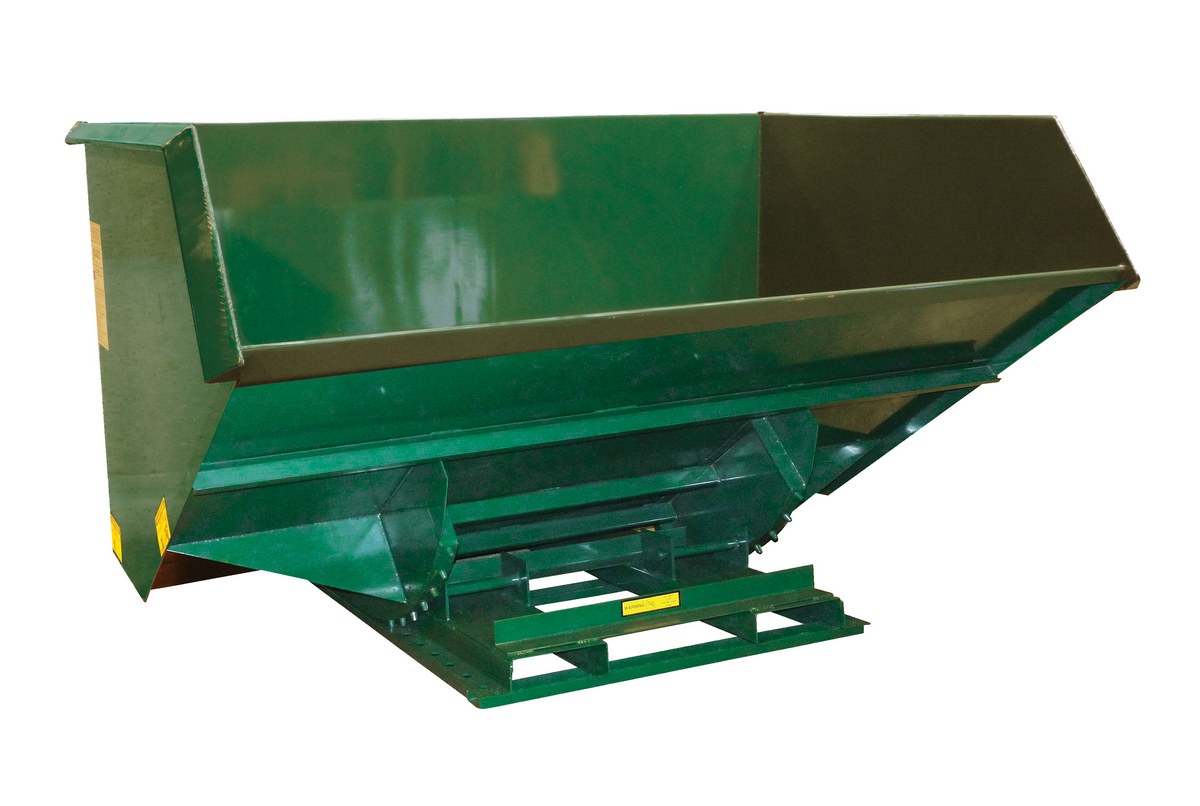

HOP-500-HD HOP-500-HD90 Days Limited WarrantySteel Self Dumping Hopper 5 Cubic Yard 6000 Lb. Capacity GreenUniform Capacity (lb.): 6000
Volume (cu. yrd.): 5
1560
HOP-75-HD HOP-75-HD90 Days Limited WarrantySteel Self Dumping Hopper 3/4 Cubic Yard 5000 Lb. Capacity GreenUniform Capacity (lb.): 5,000
Volume (cu. yrd.): 3/4
575

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

HOP-100-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Volume (cu. yrd.): 1
Uniform Capacity (lb.): 6,000
Volume (cu. yrd.): 1

HOP-100-LD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Volume (cu. yrd.): 1
Uniform Capacity (lb.): 2000
Volume (cu. yrd.): 1

HOP-100-MD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Volume (cu. yrd.): 1
Uniform Capacity (lb.): 4,000
Volume (cu. yrd.): 1

HOP-150-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Volume (cu. yrd.): 1-1/2
Uniform Capacity (lb.): 6,000
Volume (cu. yrd.): 1-1/2

HOP-150-LD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Volume (cu. yrd.): 1-1/2
Uniform Capacity (lb.): 2,000
Volume (cu. yrd.): 1-1/2

HOP-150-MD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Volume (cu. yrd.): 1-1/2
Uniform Capacity (lb.): 4,000
Volume (cu. yrd.): 1-1/2

HOP-200-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Volume (cu. yrd.): 2
Uniform Capacity (lb.): 6,000
Volume (cu. yrd.): 2

HOP-200-LD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Volume (cu. yrd.): 2
Uniform Capacity (lb.): 2,000
Volume (cu. yrd.): 2

HOP-200-MD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Volume (cu. yrd.): 2
Uniform Capacity (lb.): 4,000
Volume (cu. yrd.): 2

HOP-25-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Volume (cu. yrd.): 1/4
Uniform Capacity (lb.): 4,000
Volume (cu. yrd.): 1/4

HOP-250-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Volume (cu. yrd.): 2-1/2
Uniform Capacity (lb.): 6,000
Volume (cu. yrd.): 2-1/2

HOP-250-LD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Volume (cu. yrd.): 2-1/2
Uniform Capacity (lb.): 2,000
Volume (cu. yrd.): 2-1/2

HOP-250-MD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Volume (cu. yrd.): 2-1/2
Uniform Capacity (lb.): 4,000
Volume (cu. yrd.): 2-1/2

HOP-300-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Volume (cu. yrd.): 3
Uniform Capacity (lb.): 6,000
Volume (cu. yrd.): 3

HOP-33-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Volume (cu. yrd.): 1/3
Uniform Capacity (lb.): 4,000
Volume (cu. yrd.): 1/3

HOP-400-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Volume (cu. yrd.): 4
Uniform Capacity (lb.): 6,000
Volume (cu. yrd.): 4

HOP-50-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Volume (cu. yrd.): 1/2
Uniform Capacity (lb.): 4,000
Volume (cu. yrd.): 1/2

HOP-500-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Volume (cu. yrd.): 5
Uniform Capacity (lb.): 6000
Volume (cu. yrd.): 5

HOP-75-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Volume (cu. yrd.): 3/4
Uniform Capacity (lb.): 5,000
Volume (cu. yrd.): 3/4
For More Details of the Option Click the Red Model Button
HOP-CASTER-BASE 90 Days Limited WarrantyFactory Installed Steel Caster Base For Self Dumping HoppersAdds to Hopper Overall Height (in.): 11
195

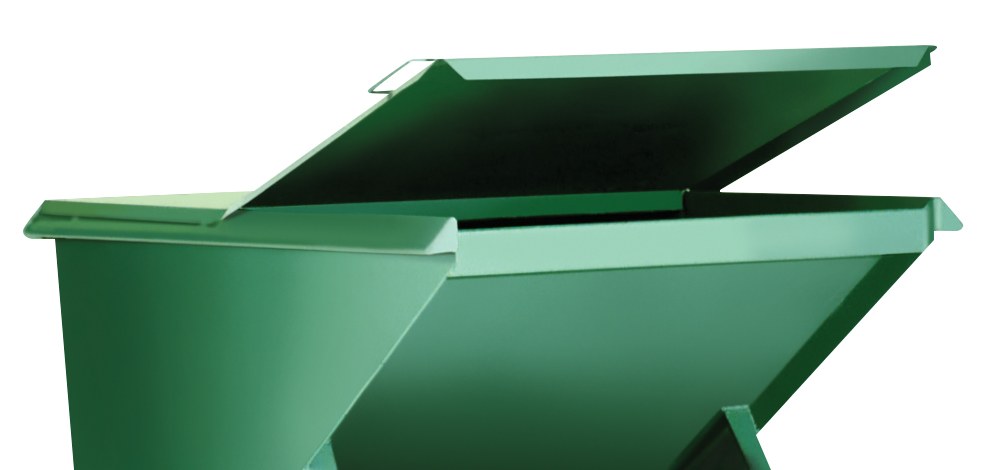

LID-100-A LID-100-A90 Days Limited WarrantySteel 1 Cubic Yard Hopper Front Lid GreenFits Hopper (cu. yrd.): 1
Material (gauge): 14
65
LID-100-C LID-100-C90 Days Limited WarrantySteel 1 Cubic Yard Hopper Front and Back Lid GreenFits Hopper (cu. yrd.): 1
Material (gauge): 14
65
LID-150-A LID-150-A90 Days Limited WarrantySteel 1.5 Cubic Yard Hopper Front Lid GreenFits Hopper (cu. yrd.): 1-1/2
Material (gauge): 14
92
LID-150-C LID-150-C90 Days Limited WarrantySteel 1.5 Cubic Yard Hopper Front and Back Lid GreenFits Hopper (cu. yrd.): 1-1/2
Material (gauge): 14
92
LID-200-A LID-200-A90 Days Limited WarrantySteel 2 Cubic Yard Hopper Front Lid GreenFits Hopper (cu. yrd.): 2
Material (gauge): 14
106
LID-200-C LID-200-C90 Days Limited WarrantySteel 2 Cubic Yard Hopper Front and Back Lid GreenFits Hopper (cu. yrd.): 2
Material (gauge): 14
106

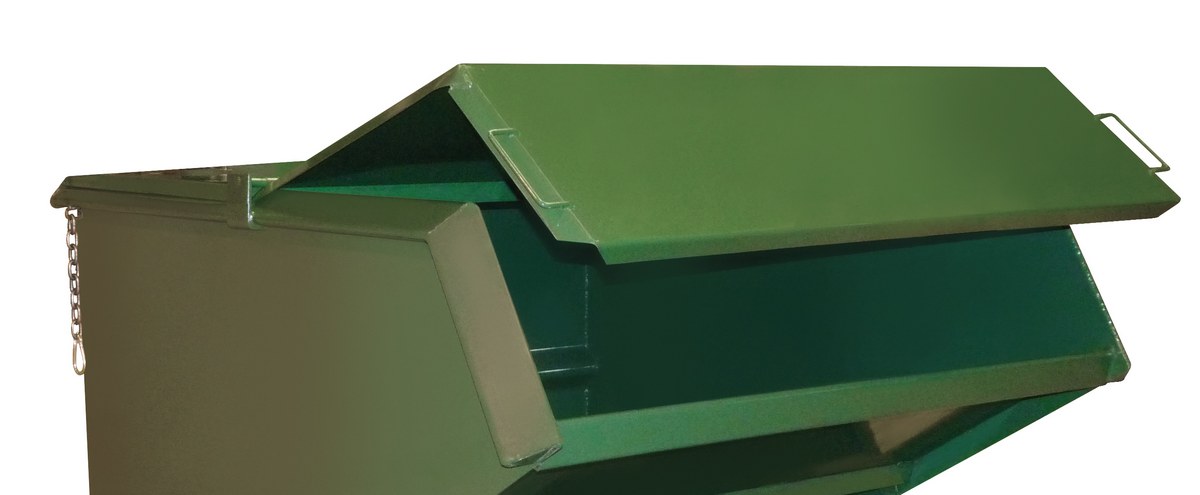

LID-250-A LID-250-A90 Days Limited WarrantySteel 2-1/2 Cubic Yard Hopper Front Lid GreenFits Hopper (cu. yrd.): 2-1/2
Material (gauge): 14
106
Leak proof and drain plug options available - contact factory for quote.
Steel Lid Style A

model LID-150-A

Single hinge in the center of the hopper with the back half welded closed

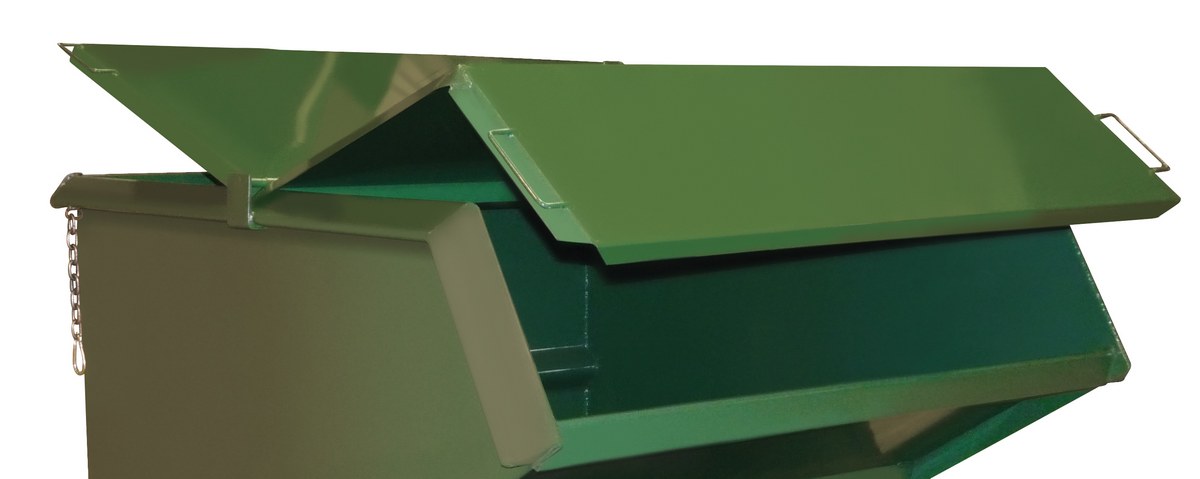

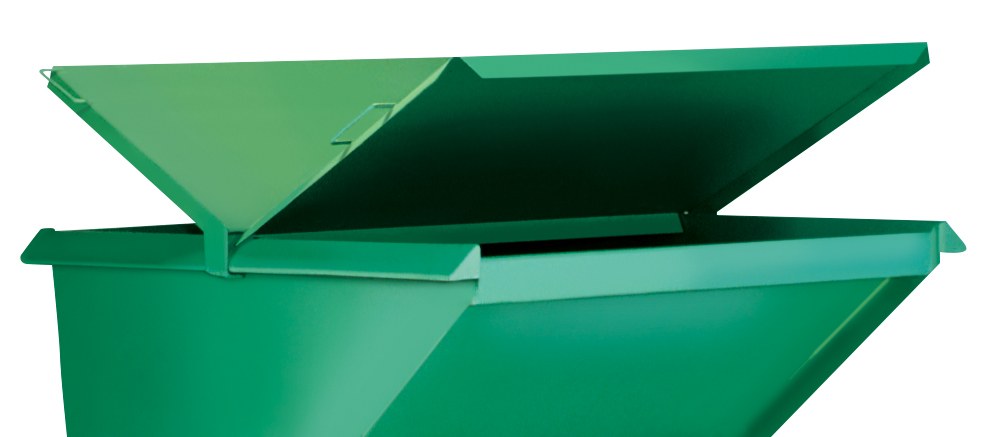

Steel Lid Style C

model LID-150-C

Single hinge in the center, but both front and back lids can be opened.
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Steel Self-Dumping Hoppers PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


HOP-200-MD

HOP-300-HD

HOP-50-HD

LID-150-A

LID-150-C

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What is the fork pocket size of this hopper?

A: The fork openings are: 2.5" high x 14" wide x 48" length under the base.






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Steel Self-Dumping Hoppers




Must be attached to fork truck when dumping.

All welded steel self-dumping Hopper handles bulk materials and scrap easily. Must transport and dump with a forklift or make the unit mobile with the optional casters. Self dumping hoppers are engineered to dump when the safety latch is tripped and to return to an upright locked position when empty. This Hopper comes with a trip rope assembly and has a formed stackable base. The included safety restraint should be properly secured to a fork truck before dumping. The 1/4 to 2-1/2 cubic yard hoppers have a formed stackable base (stackable when empty). The 3 to 5 cubic yard hoppers have structural bases with stackable re-enforced rockers for heavy use. Options include: casters, lids (1 to 2-1/2 cubic yard), lifting lugs, and paint colors. Standard paint finish is vista green. Leak proof and drain plug options available - contact factory for quote.

  • High capacity hopper handles bulk materials and scrap easily
  • Unique design returns to upright & locked position when empty
  • Safety retaining chain secures unit to forklift
  • Vista green paint provides an attractive appearance


Model # Description Attributes Net Wt.
(lbs)
HOP-100-HD HOP-100-HDSteel Self Dumping Hopper 1 Cubic Yard 6000 Lb. Capacity GreenUniform Capacity (lb.): 6,000
Volume (cu. yrd.): 1
625
HOP-100-LD HOP-100-LDSteel Self Dumping Hopper 1 Cubic Yard 2000 Lb. Capacity GreenUniform Capacity (lb.): 2000
Volume (cu. yrd.): 1
445
HOP-100-MD HOP-100-MDSteel Self Dumping Hopper 1 Cubic Yard 4000 Lb. Capacity GreenUniform Capacity (lb.): 4,000
Volume (cu. yrd.): 1
495
HOP-150-HD HOP-150-HDSteel Self Dumping Hopper 1-1/2 Cubic Yard 6000 Lb. Capacity GreenUniform Capacity (lb.): 6,000
Volume (cu. yrd.): 1-1/2
785
HOP-150-LD HOP-150-LDSteel Self Dumping Hopper 1-1/2 Cubic Yard 2000 Lb. Capacity GreenUniform Capacity (lb.): 2,000
Volume (cu. yrd.): 1-1/2
540
HOP-150-MD HOP-150-MDSteel Self Dumping Hopper 1-1/2 Cubic Yard 4000 Lb. Capacity GreenUniform Capacity (lb.): 4,000
Volume (cu. yrd.): 1-1/2
630
HOP-200-HD HOP-200-HDSteel Self Dumping Hopper 2 Cubic Yard 6000 Lb. Capacity GreenUniform Capacity (lb.): 6,000
Volume (cu. yrd.): 2
880
HOP-200-LD HOP-200-LDSteel Self Dumping Hopper 2 Cubic Yard 2000 Lb. Capacity GreenUniform Capacity (lb.): 2,000
Volume (cu. yrd.): 2
600
HOP-200-MD HOP-200-MDSteel Self Dumping Hopper 2 Cubic Yard 4000 Lb. Capacity GreenUniform Capacity (lb.): 4,000
Volume (cu. yrd.): 2
705
HOP-25-HD HOP-25-HDSteel Self Dumping Hopper 1/4 Cubic Yard 4000 Lb. Capacity GreenUniform Capacity (lb.): 4,000
Volume (cu. yrd.): 1/4
375
HOP-250-HD HOP-250-HDSteel Self Dumping Hopper 2-1/2 Cubic Yard 6000 Lb. Capacity GreenUniform Capacity (lb.): 6,000
Volume (cu. yrd.): 2-1/2
905
HOP-250-LD HOP-250-LDSteel Self Dumping Hopper 2-1/2 Cubic Yard 2000 Lb. Capacity GreenUniform Capacity (lb.): 2,000
Volume (cu. yrd.): 2-1/2
620
HOP-250-MD HOP-250-MDSteel Self Dumping Hopper 2-1/2 Cubic Yard 4000 Lb. Capacity GreenUniform Capacity (lb.): 4,000
Volume (cu. yrd.): 2-1/2
730
HOP-300-HD HOP-300-HDSteel Self Dumping Hopper 3 Cubic Yard 6000 Lb. Capacity GreenUniform Capacity (lb.): 6,000
Volume (cu. yrd.): 3
1250
HOP-33-HD HOP-33-HDSteel Self Dumping Hopper 1/3 Cubic Yard 6000 Lb Capacity GreenUniform Capacity (lb.): 4,000
Volume (cu. yrd.): 1/3
405
HOP-400-HD HOP-400-HDSteel Self Dumping Hopper 4 Cubic Yard 6000 Lb. Capacity GreenUniform Capacity (lb.): 6,000
Volume (cu. yrd.): 4
1385
HOP-50-HD HOP-50-HDSteel Self Dumping Hopper 1/2 Cubic Yard 4000 Lb. Capacity GreenUniform Capacity (lb.): 4,000
Volume (cu. yrd.): 1/2
470
HOP-500-HD HOP-500-HDSteel Self Dumping Hopper 5 Cubic Yard 6000 Lb. Capacity GreenUniform Capacity (lb.): 6000
Volume (cu. yrd.): 5
1560
HOP-75-HD HOP-75-HDSteel Self Dumping Hopper 3/4 Cubic Yard 5000 Lb. Capacity GreenUniform Capacity (lb.): 5,000
Volume (cu. yrd.): 3/4
575

Options


Leak proof and drain plug options available - contact factory for quote.
Steel Lid Style A

model LID-150-A

Single hinge in the center of the hopper with the back half welded closed
Steel Lid Style C

model LID-150-C

Single hinge in the center, but both front and back lids can be opened.

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
