Product Family Overview


Hoisting Hooks
SERIES: D-FORK,S-FORK

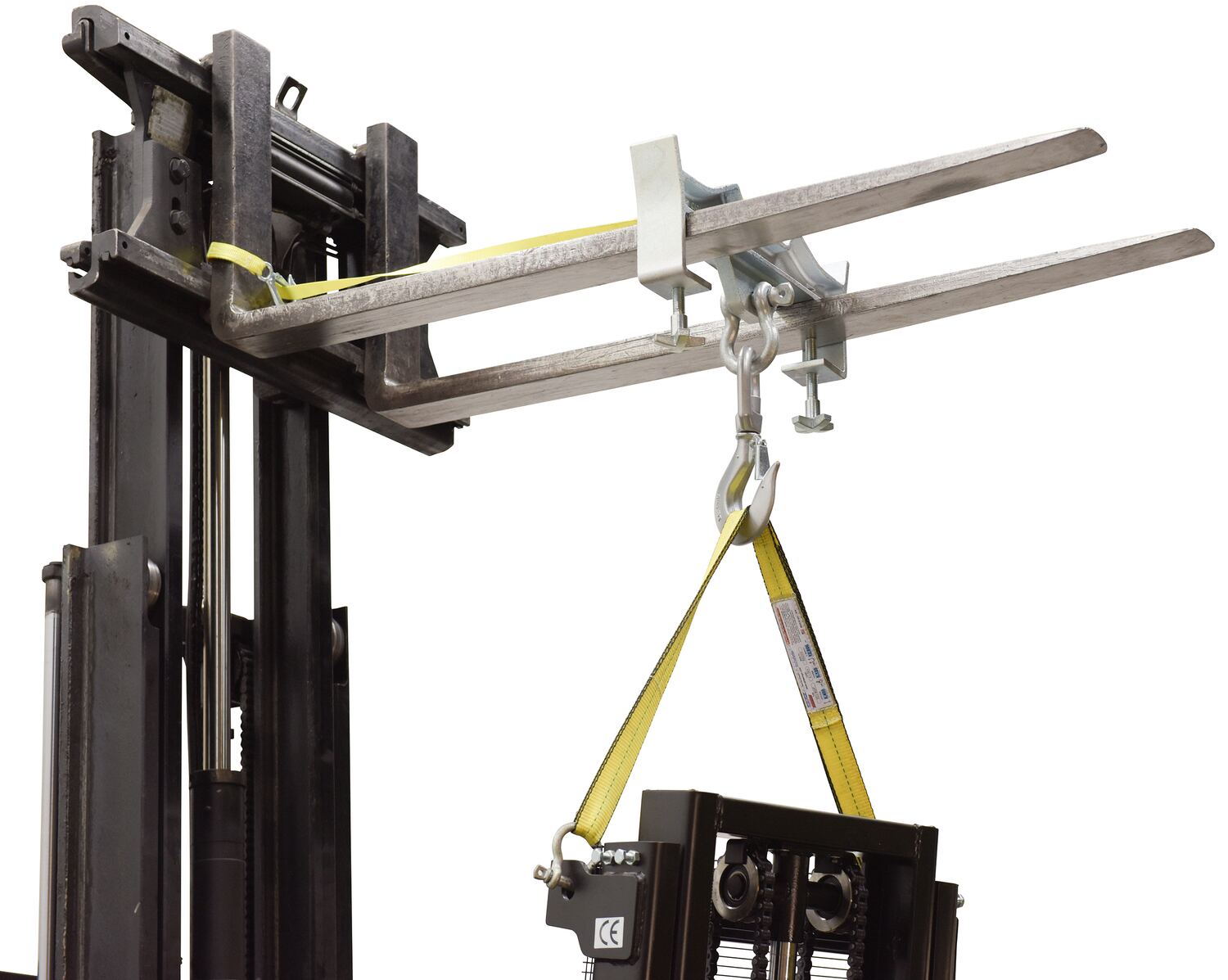

Convert your fork truck into a hook with anchor in a matter of seconds. The easy to attach Hoisting Hook does not require the assistance of special tools. Secured to the fork truck by means of a 48" long safety restraint and screw clamps. Available in single or double fork design. Units are zinc plated. Hook with shackle included. Model S-FORK-4-AT, Auto-Tension Hoisting Hook, offers a unique design and adds tension as weight is added, this unit has a yellow baked-in powder-coated toughness.

Convert your fork truck into a hook with anchor in a matter of seconds. The easy to attach Hoisting Hook does not require the assistance of special tools. Secured to the fork truck by means of a 48" long safety restraint and screw clamps. Available in single or double fork design. Units are zinc plated. Hook with shackle included. Model S-FORK-4-AT, Auto-Tension Hoisting Hook, offers a unique design and adds tension as weight is added, this unit has a yellow baked-in powder-coated toughness.

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

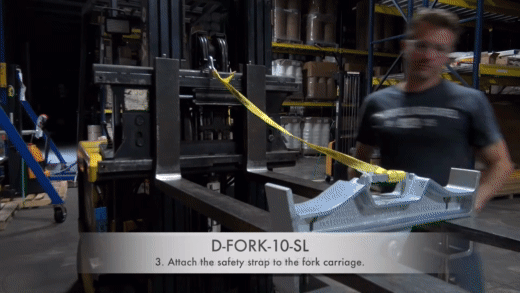

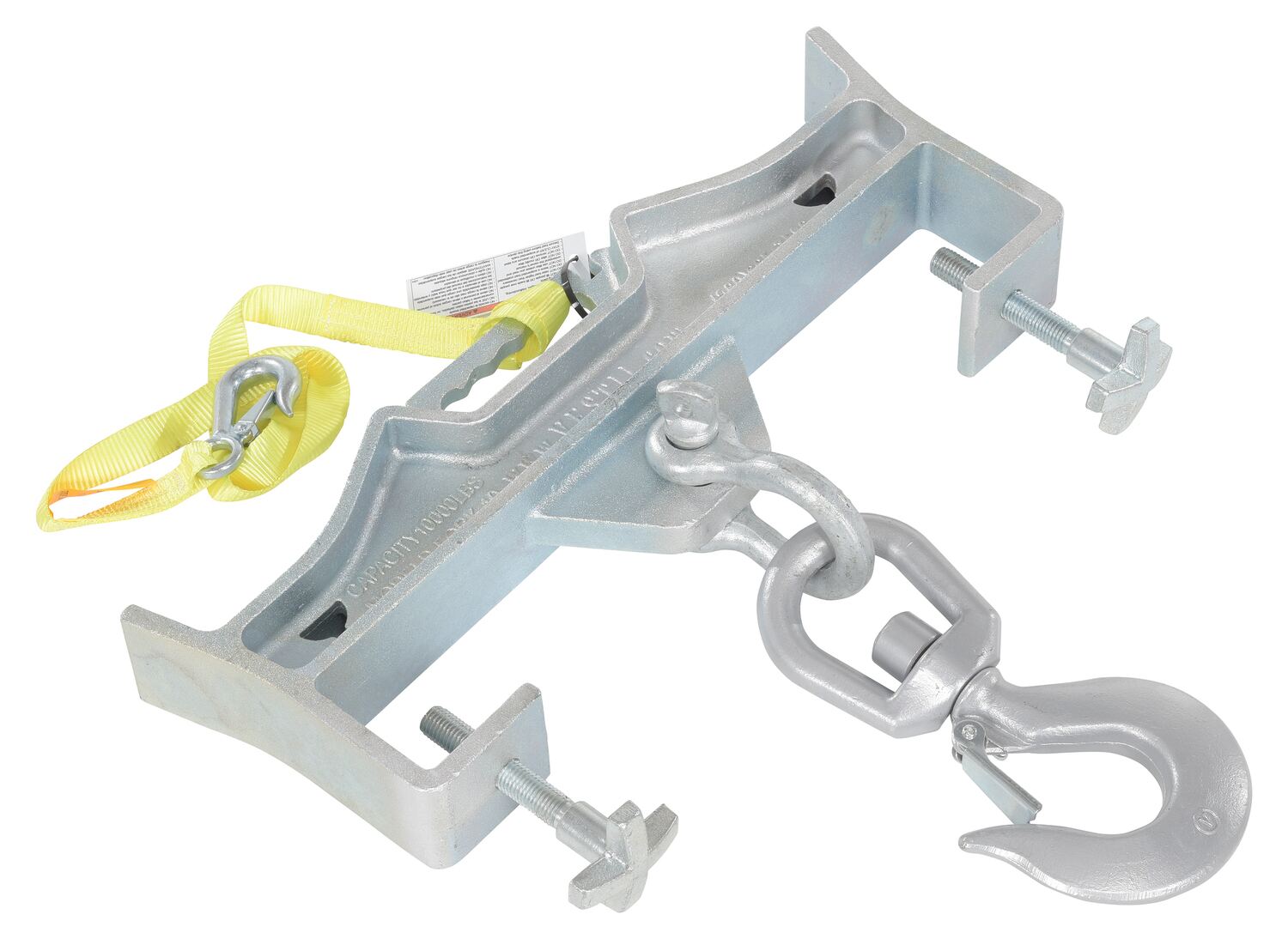

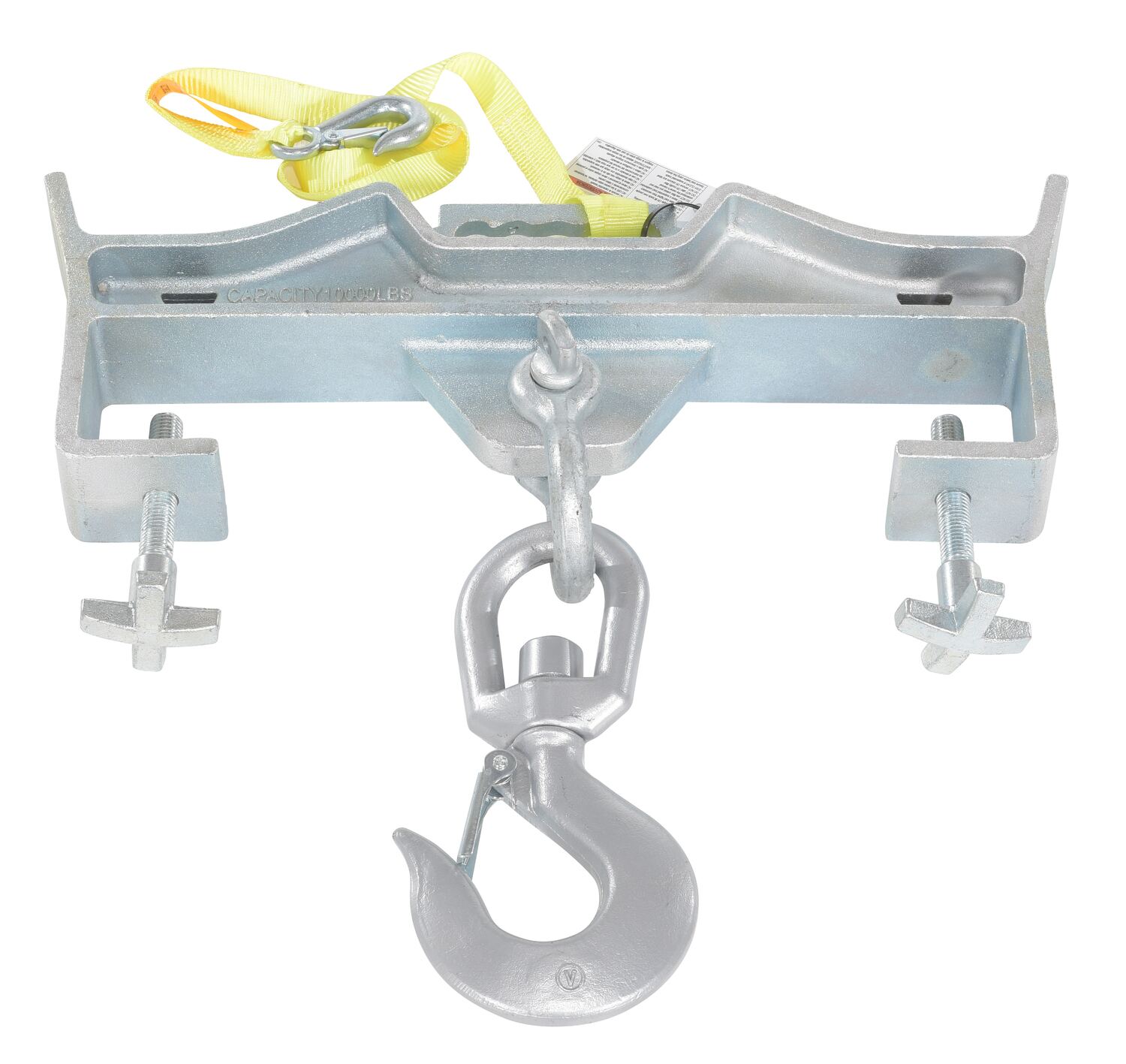

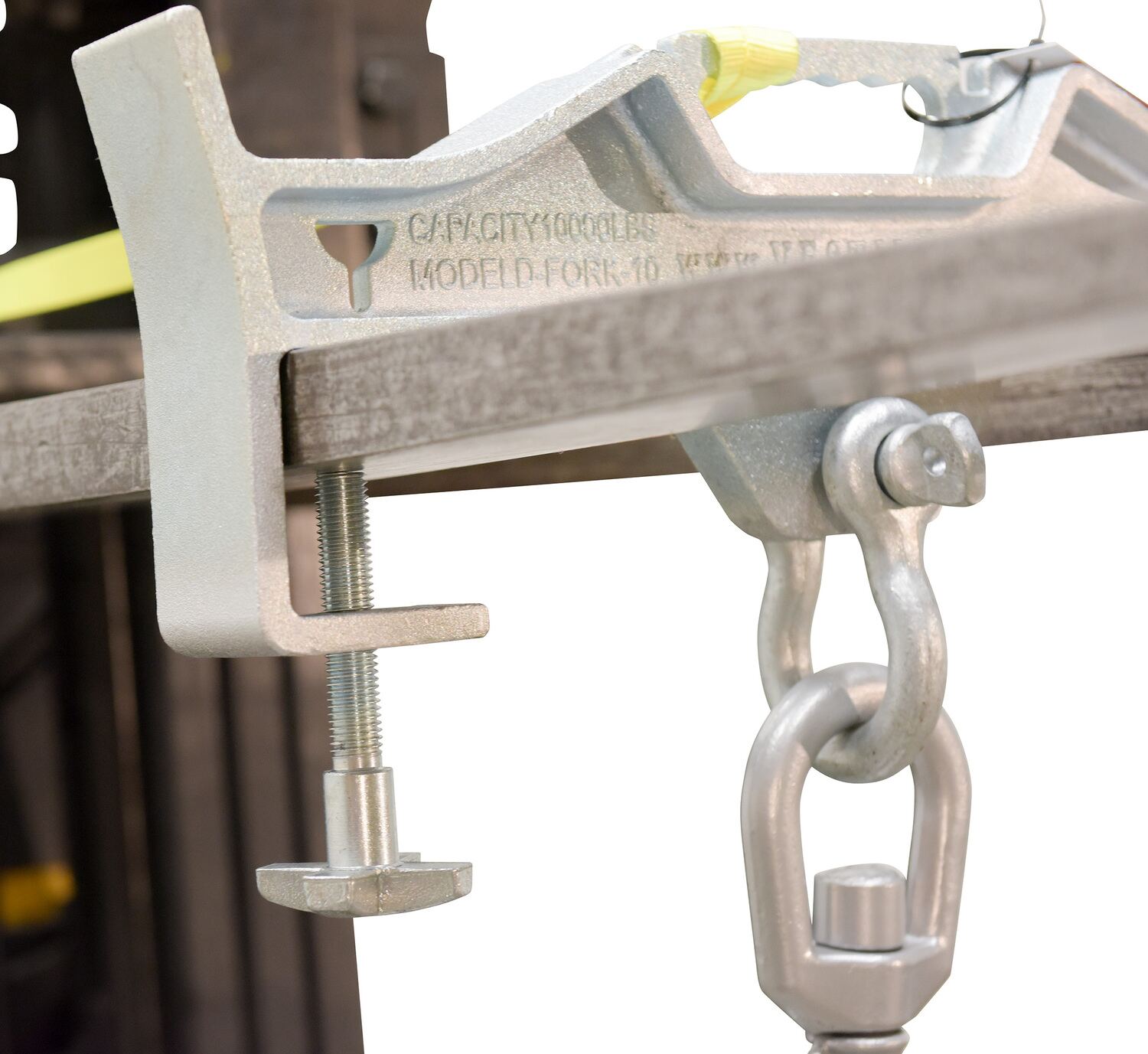

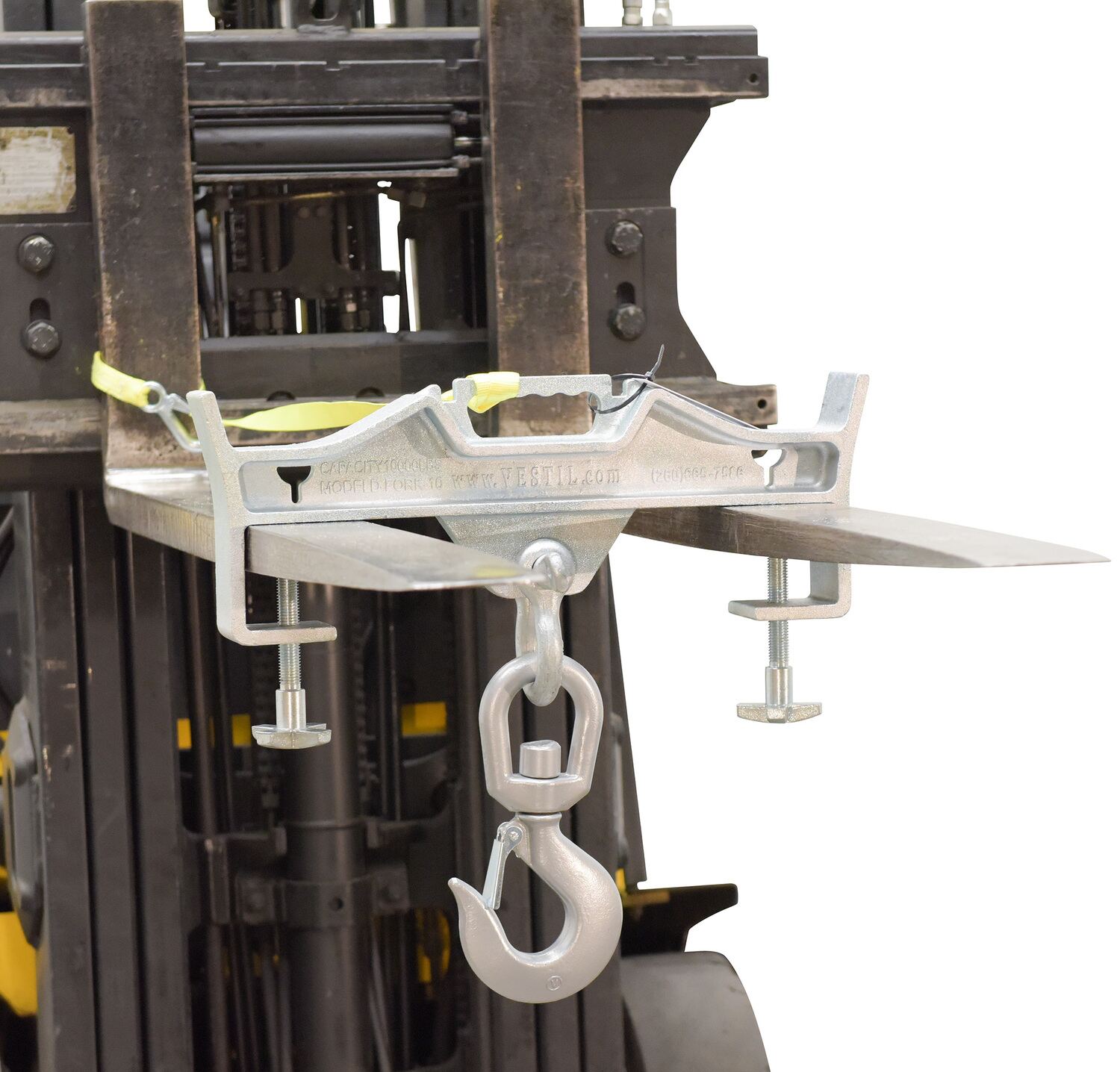

D-FORK-10-SL D-FORK-10-SL90 Days Limited WarrantySteel Double Swivel Hoist Optioning Hook 3 In x 23 In x 21-5/8 In 10000 Lb. Capacity SilverUniform Capacity (lb.): 10,000
Safety Restraint Length (in.): 48
55

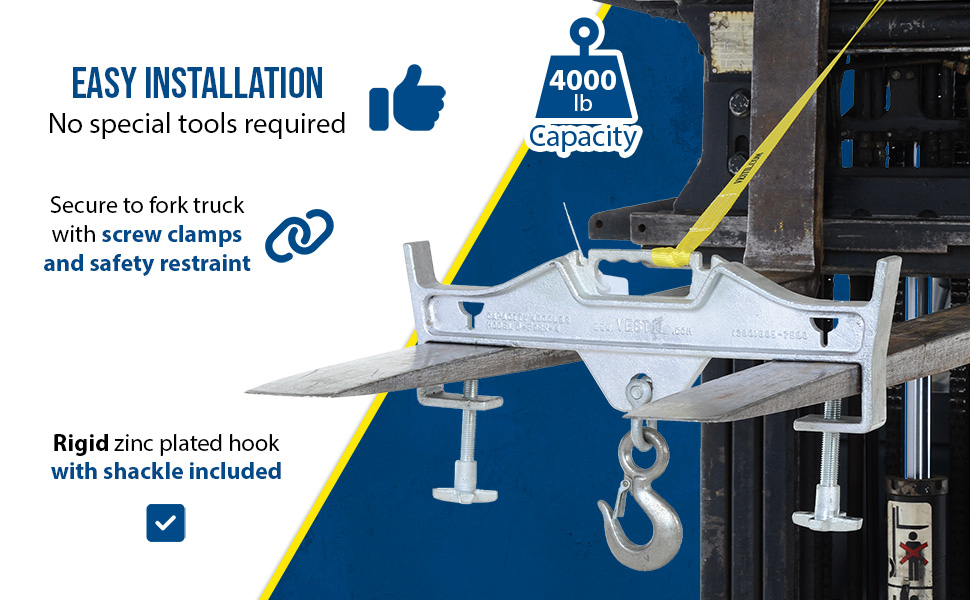

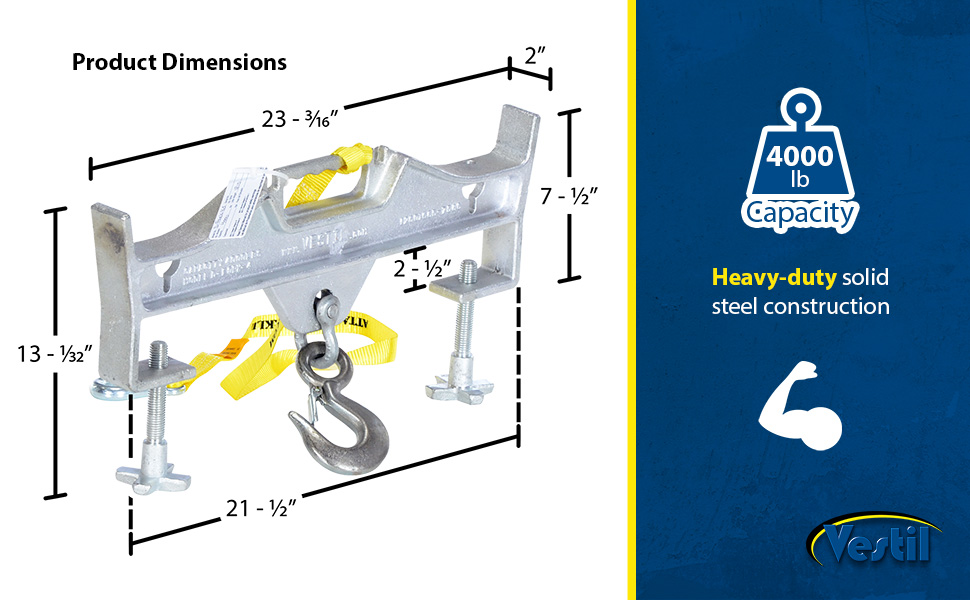

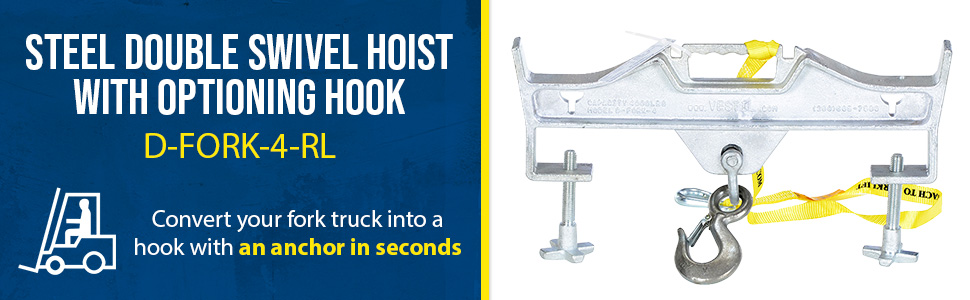

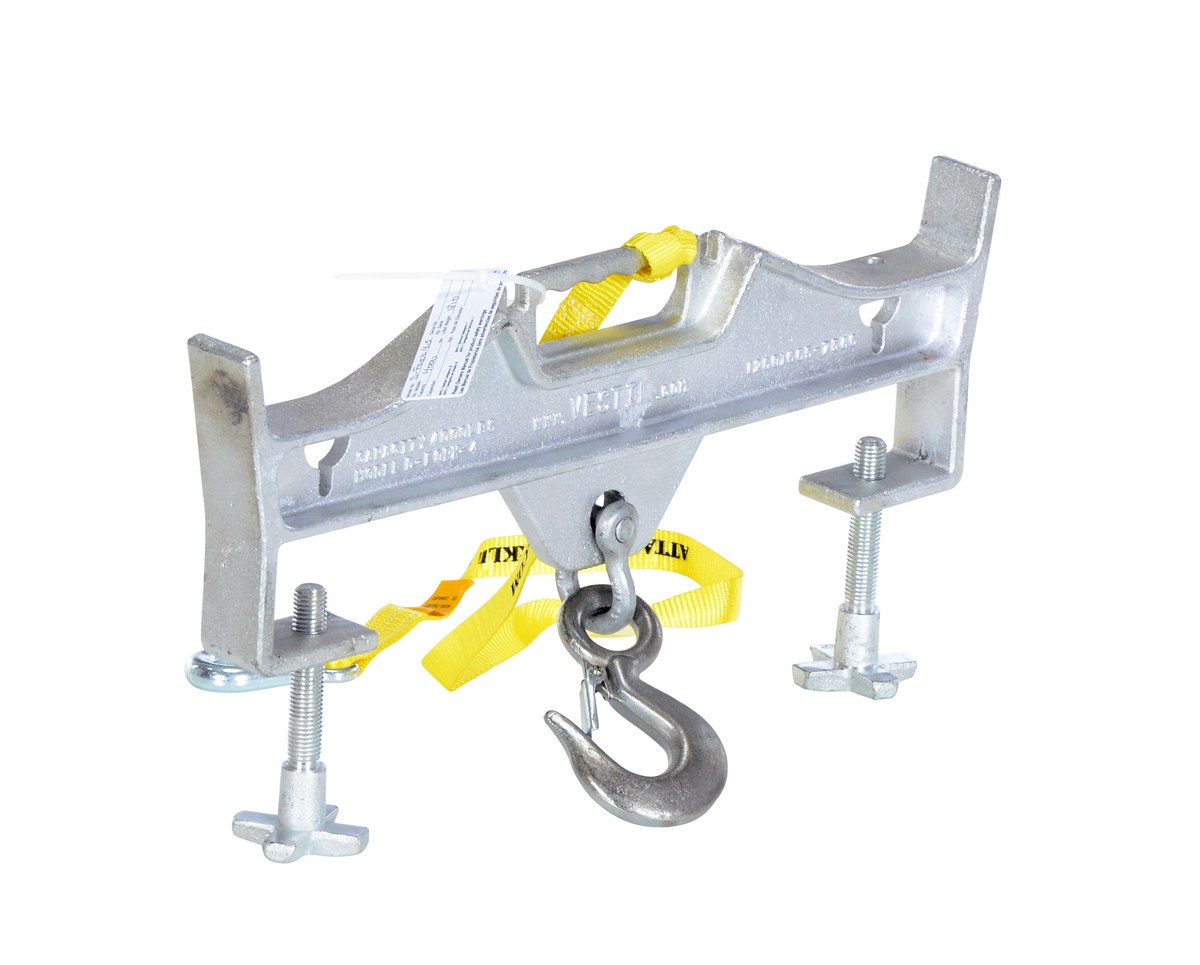

D-FORK-4-RL D-FORK-4-RL90 Days Limited WarrantySteel Double Rigid Hoist Optioning Hook 2 In x 23-3/16 In x 13-1/32 In 4000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48
31

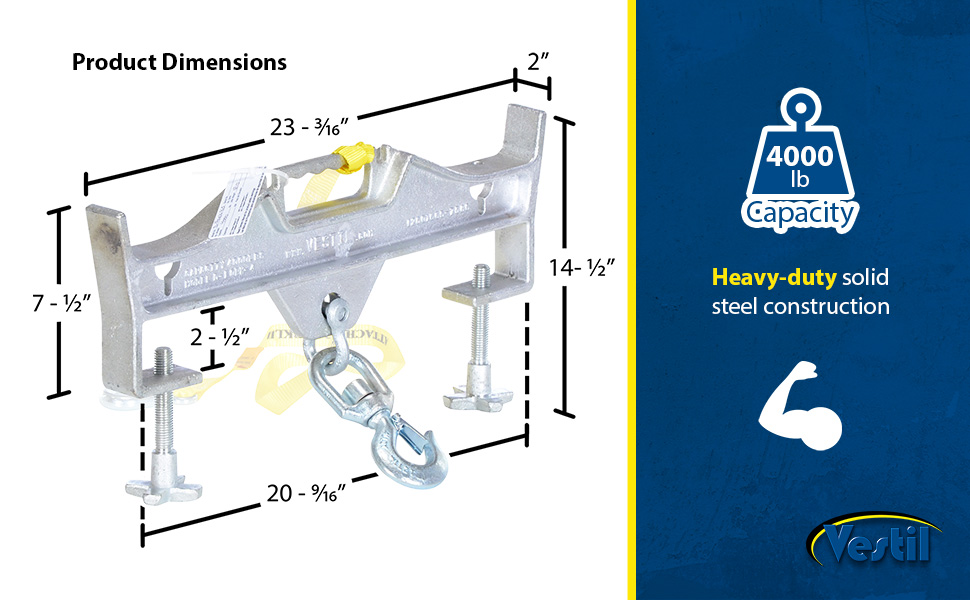

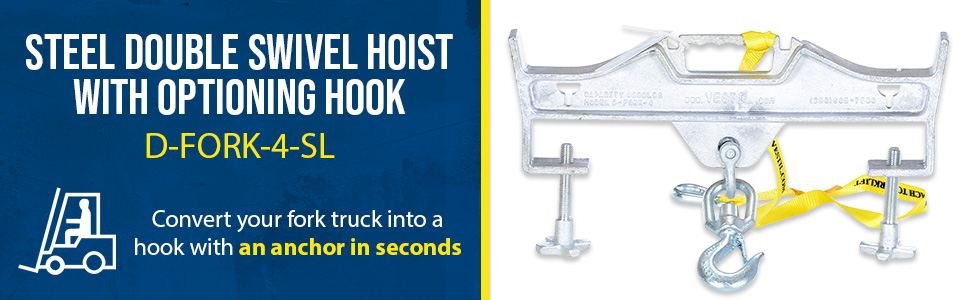

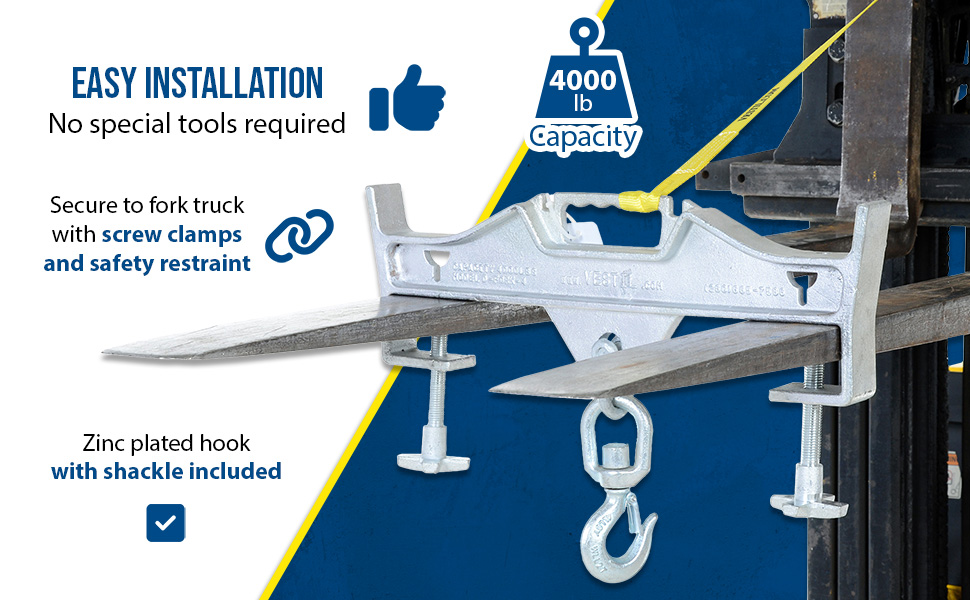

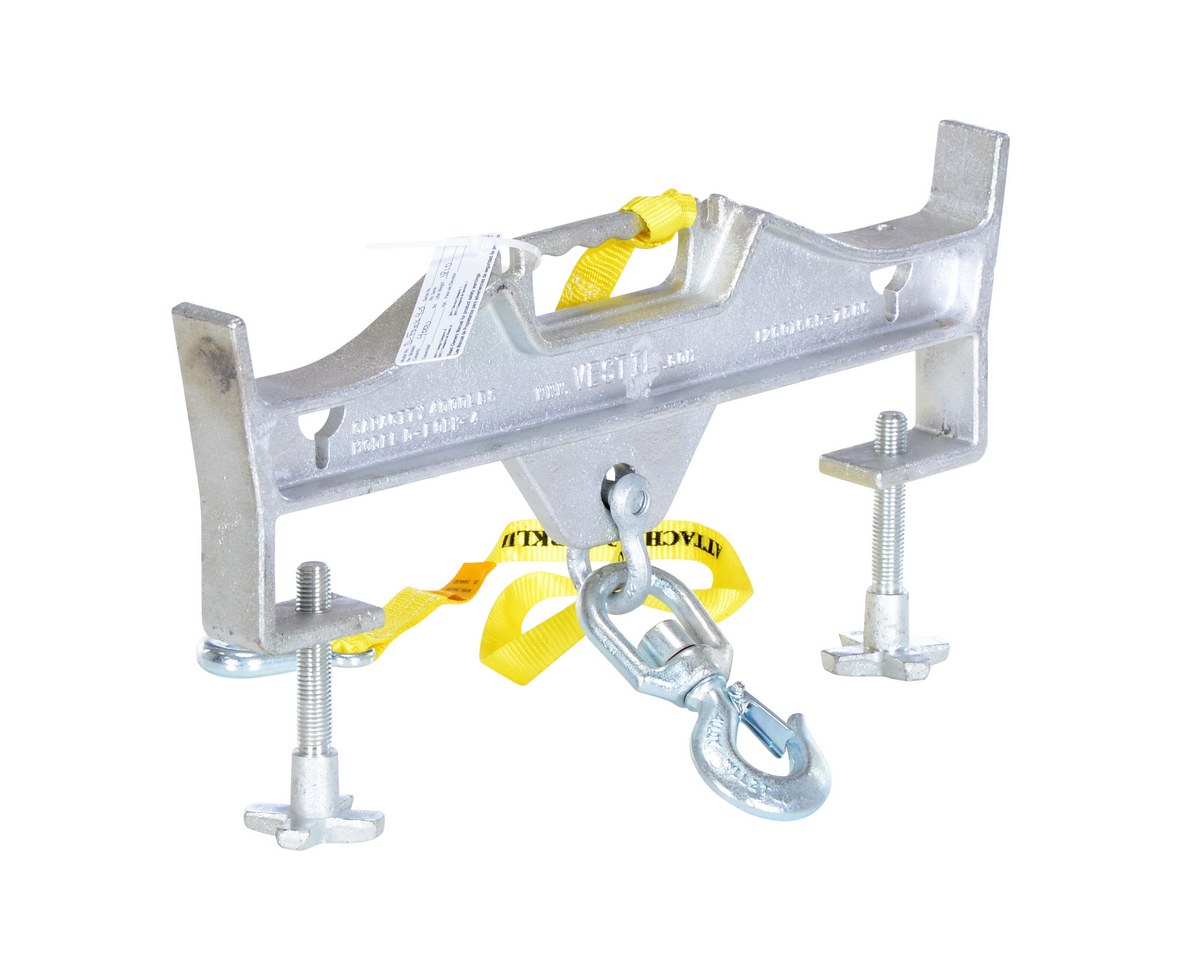

D-FORK-4-SL D-FORK-4-SL90 Days Limited WarrantySteel Double Swivel Hoist Optioning Hook 2 In x 23-3/16 In x 14-1/2 In 4000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48
33

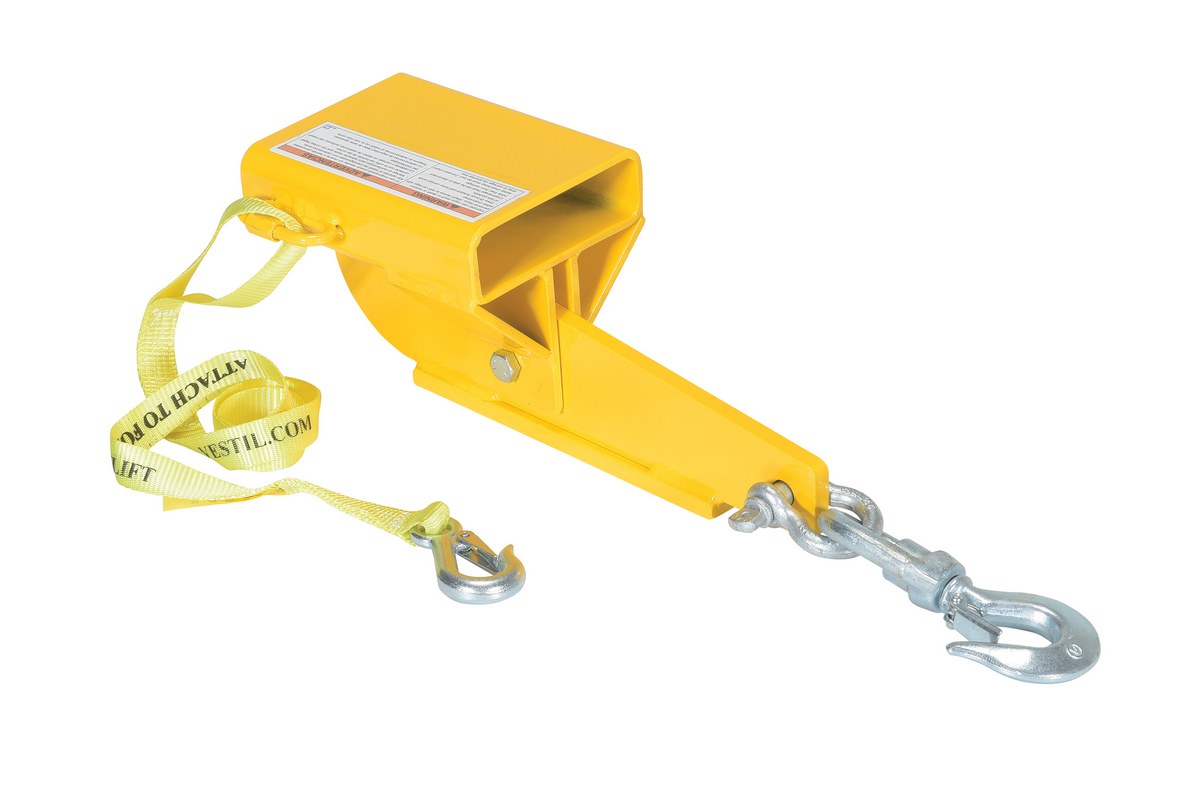

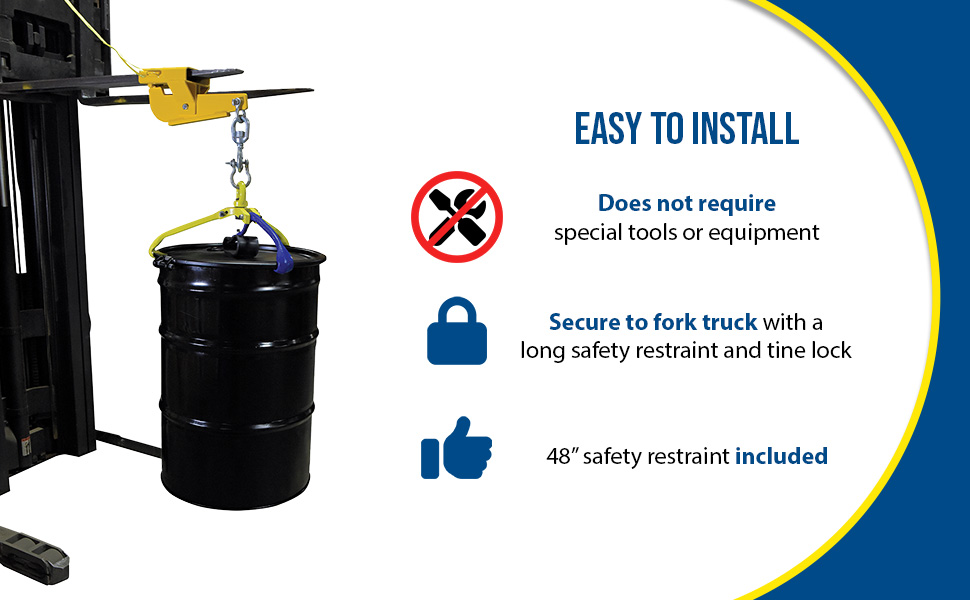

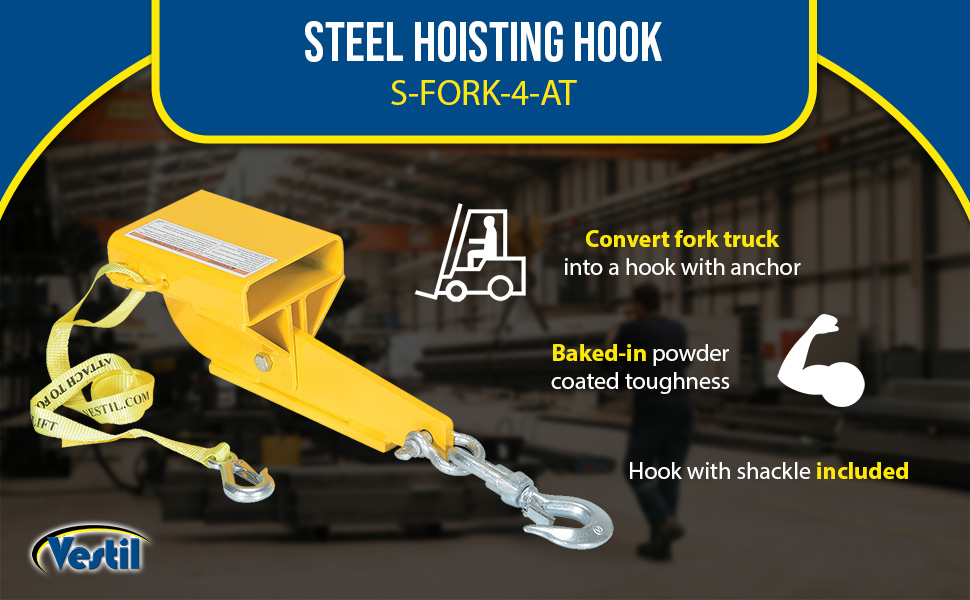

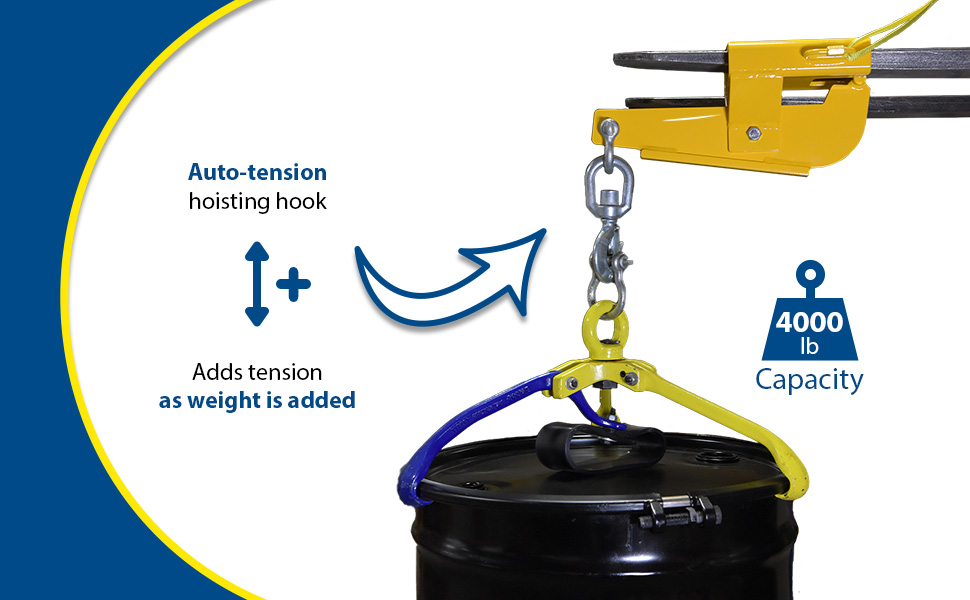

S-FORK-4-AT S-FORK-4-AT90 Days Limited WarrantySteel Hoist Single Auto Tension Swivel Hook 16 In x 6 In x 14-5/16 In 4,000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48
24

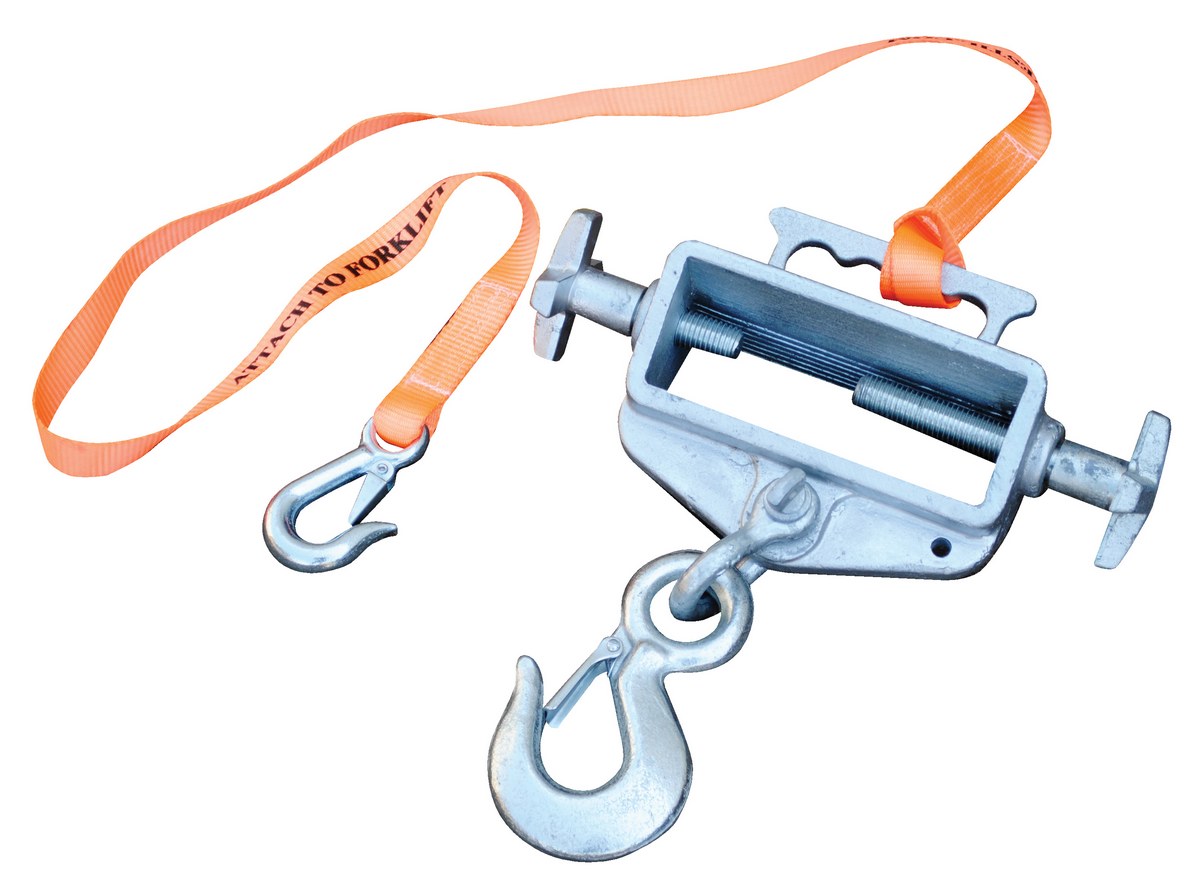

S-FORK-4/6-RL S-FORK-4/6-RL90 Days Limited WarrantySteel Hoist Single Hook Rigid Latch 3-7/8 In x 13-1/2 In x 13-13/32 In 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48
15

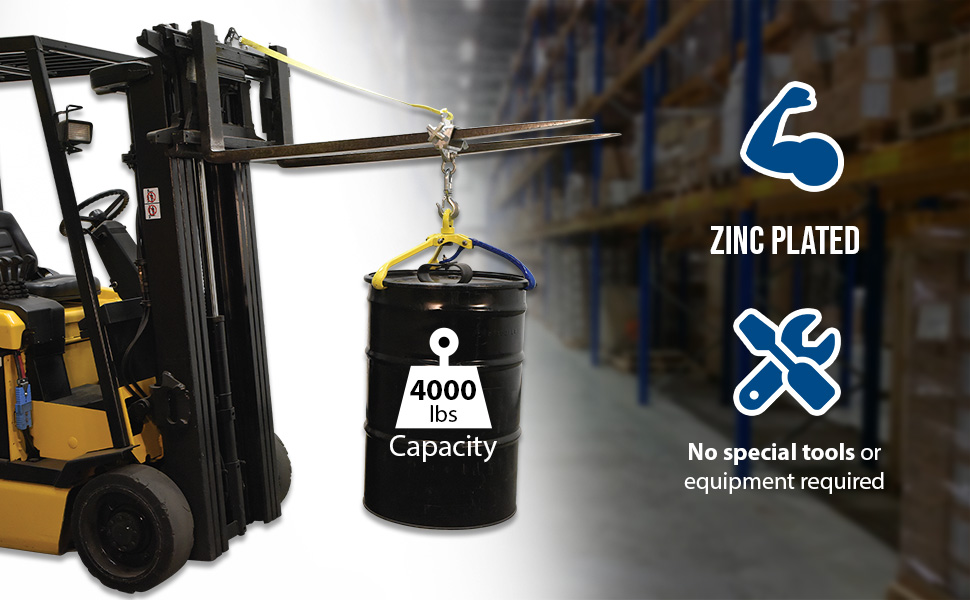

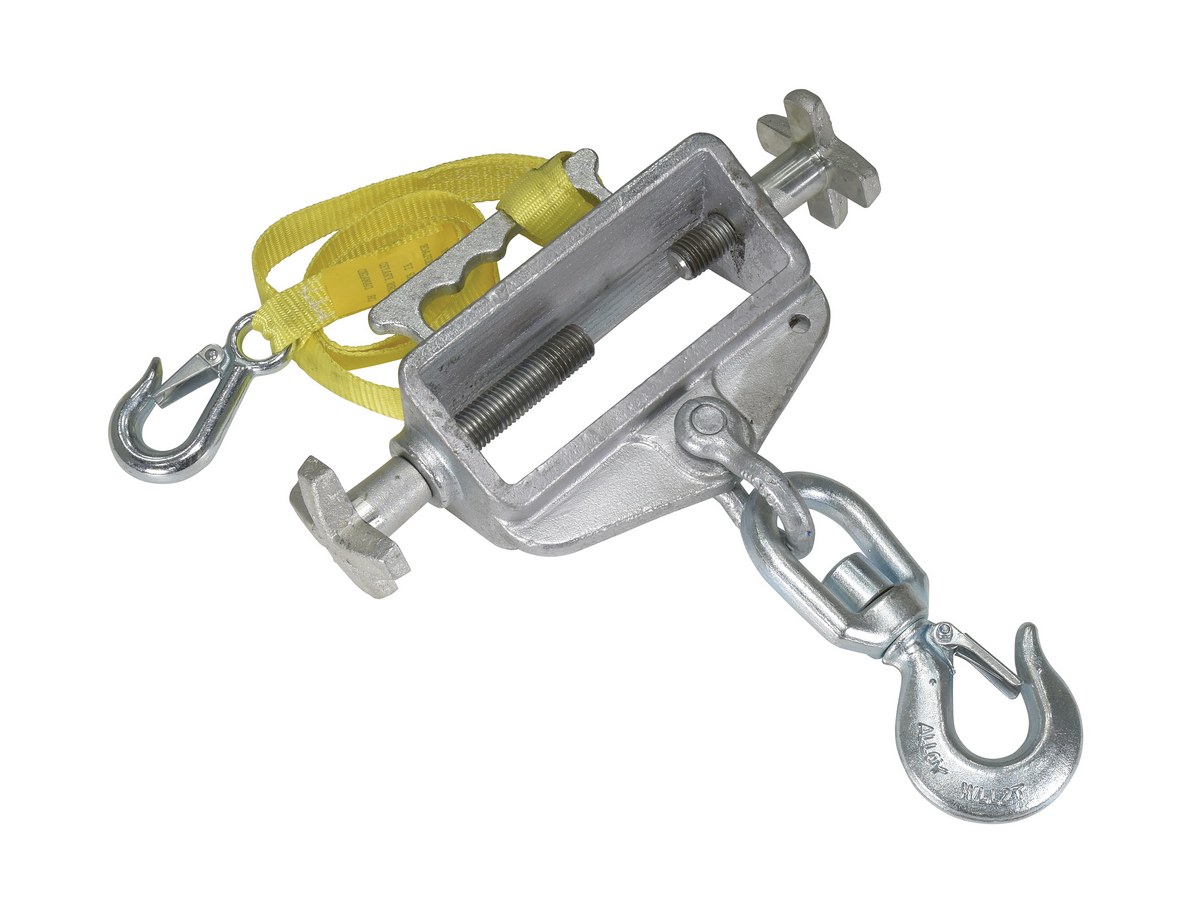

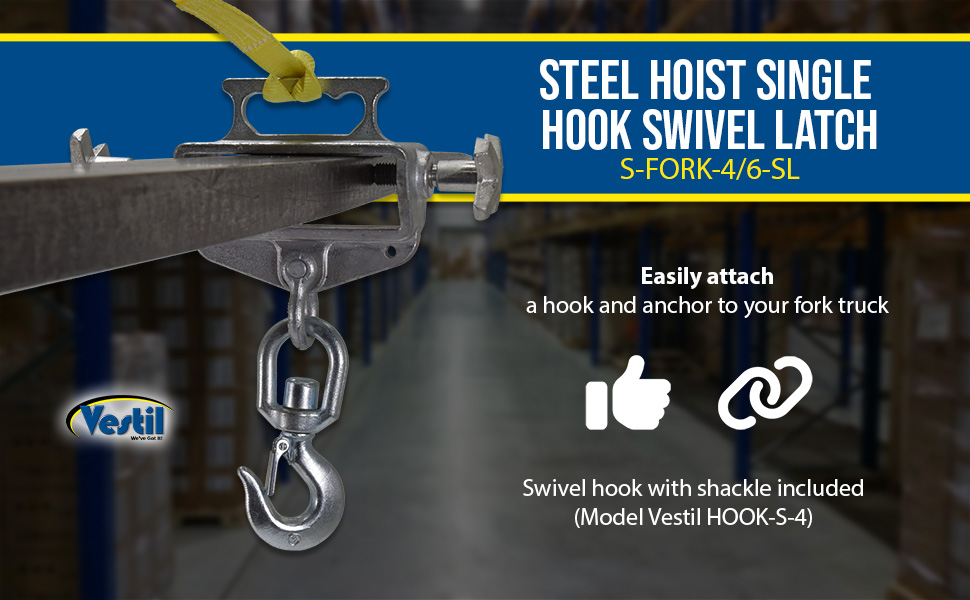

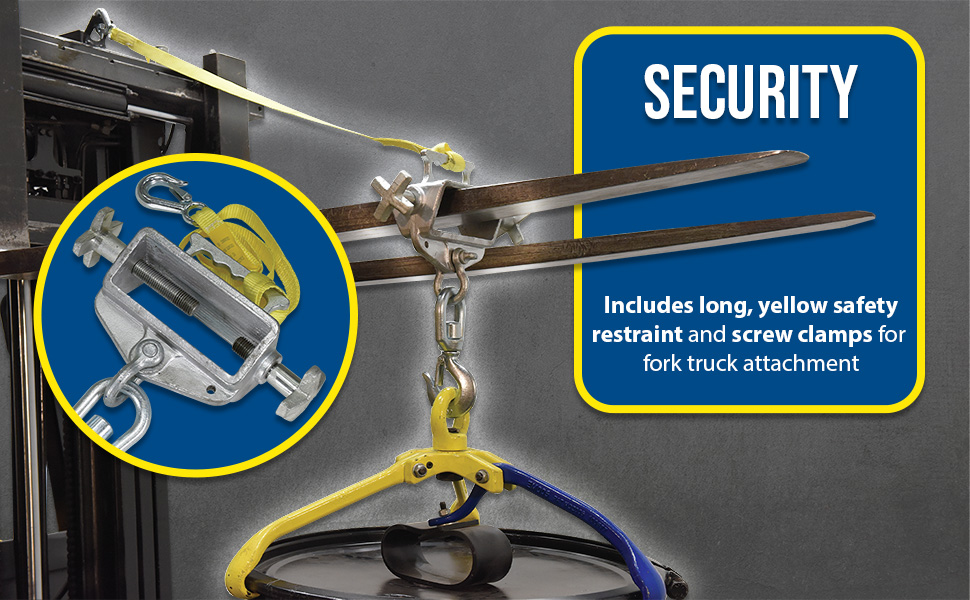

S-FORK-4/6-SL S-FORK-4/6-SL90 Days Limited WarrantySteel Hoist Single Hook Swivel Latch 3-7/8 In x 13-1/2 In x 14-13/16 In 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48
15

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

D-FORK-10-SL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Safety Restraint Length (in.): 48
Uniform Capacity (lb.): 10,000
Safety Restraint Length (in.): 48

D-FORK-4-RL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48
Uniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48

D-FORK-4-SL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48
Uniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48

S-FORK-4-AT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48
Uniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48

S-FORK-4/6-RL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48
Uniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48

S-FORK-4/6-SL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48
Uniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48

Hoisting Hooks PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


D-FORK-10-SL

D-FORK-4-RL

D-FORK-4-SL

S-FORK-4-AT

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What is the width of the actual hook on the D-FORK-10-SL at it's widest point?

A: The width is 5"
