Product Family Overview


Fold Down Work Platforms
SERIES: WP-FD

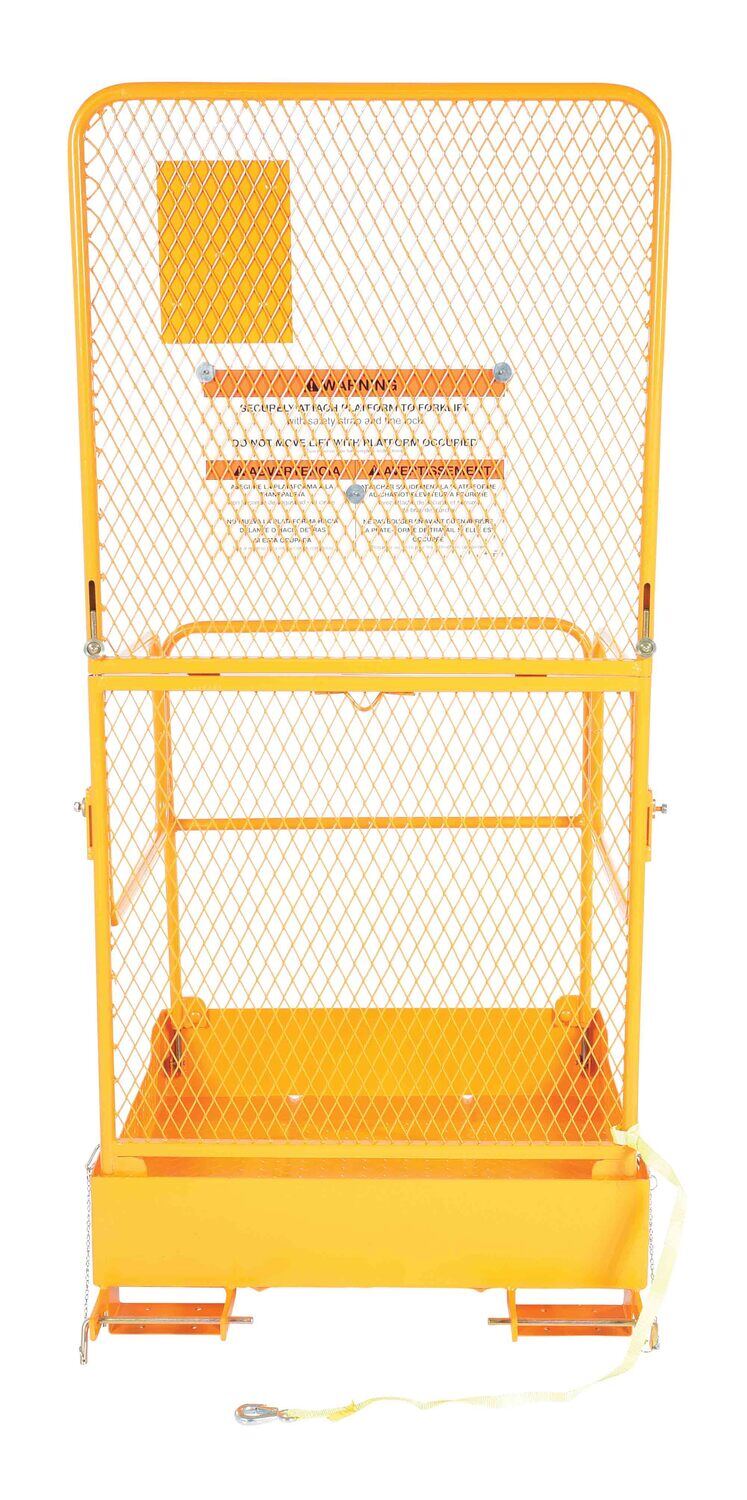

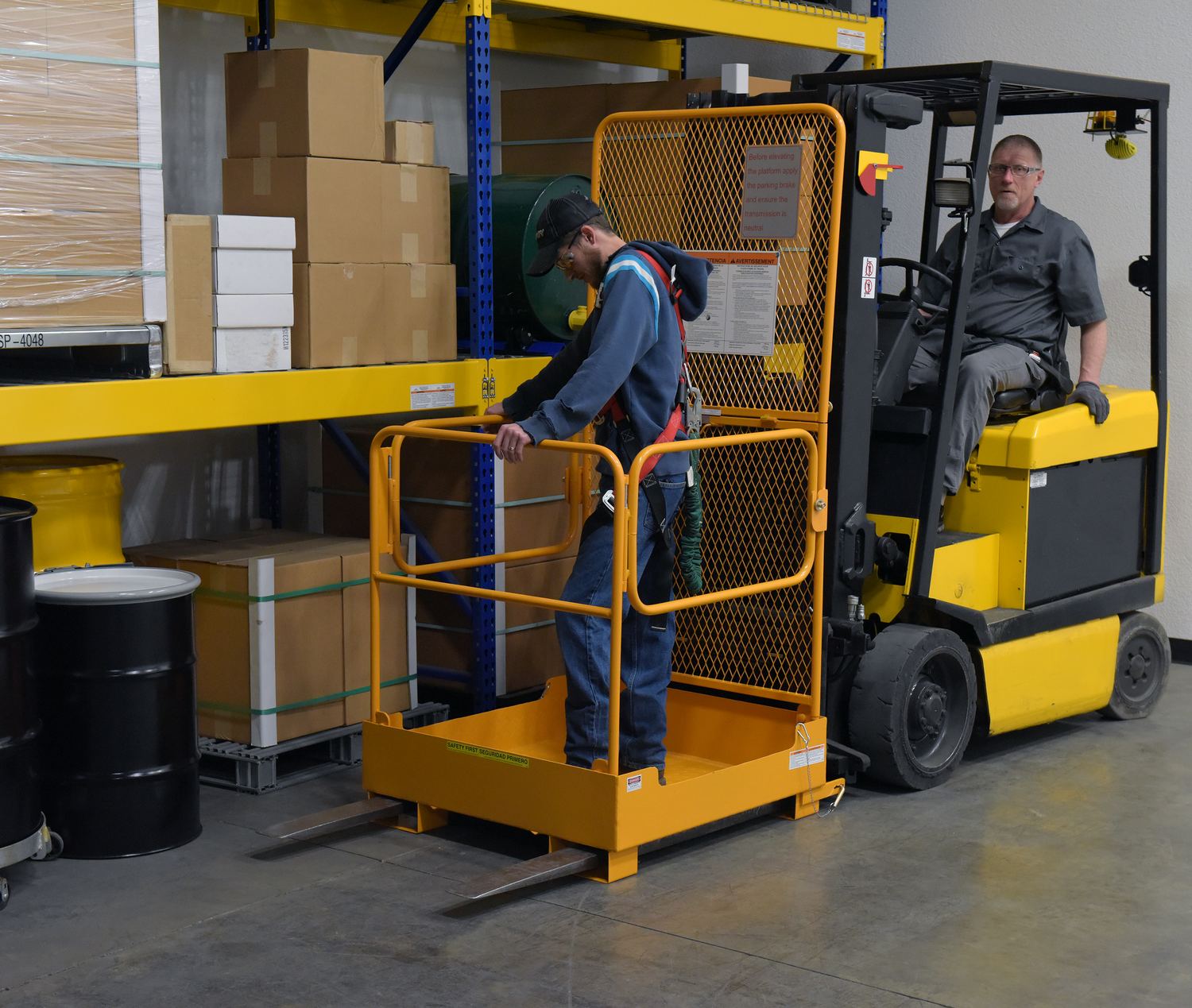

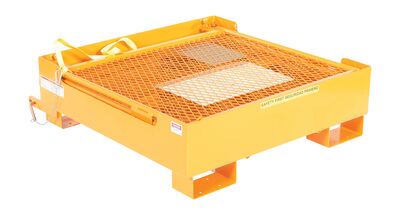

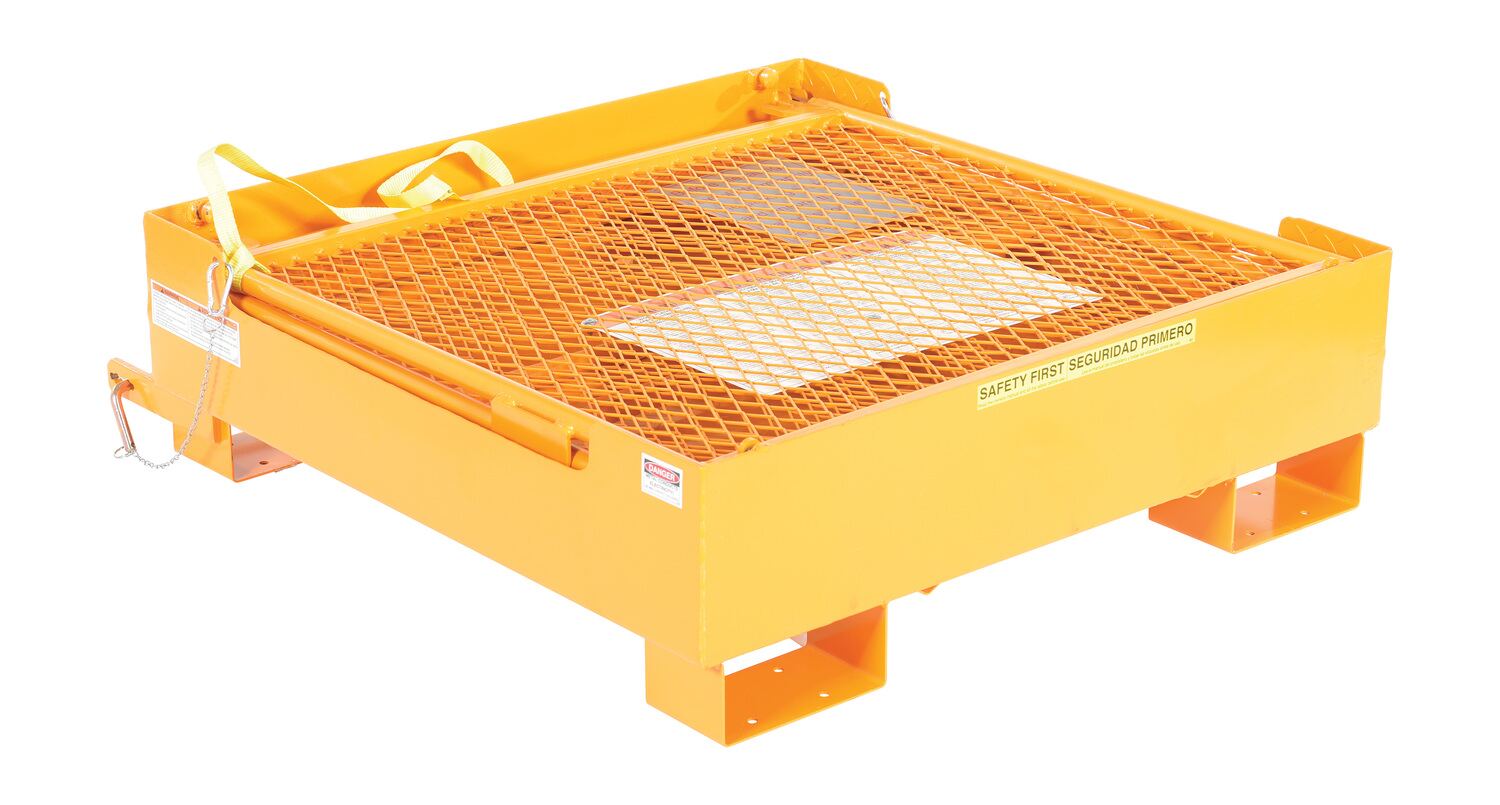

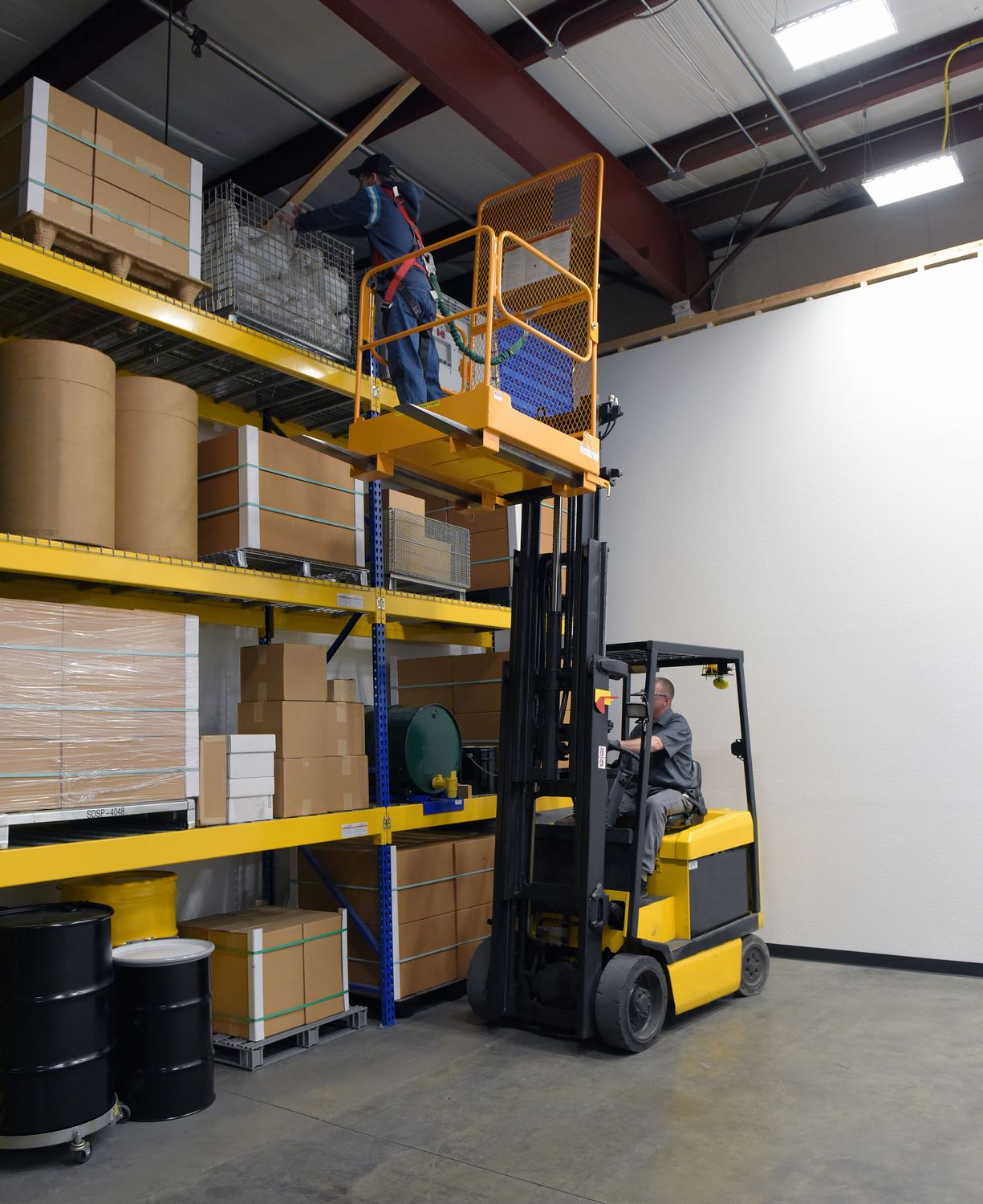

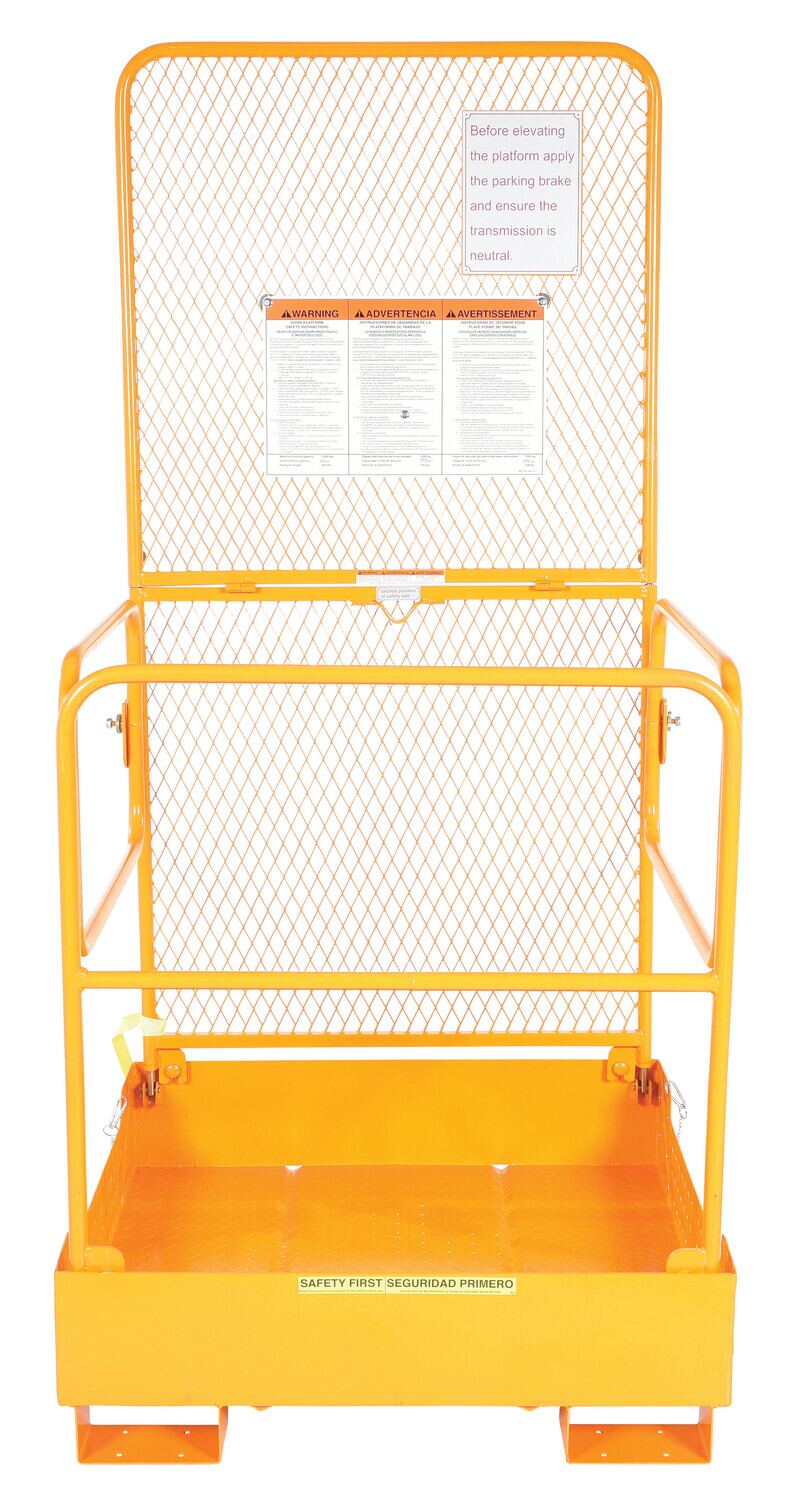

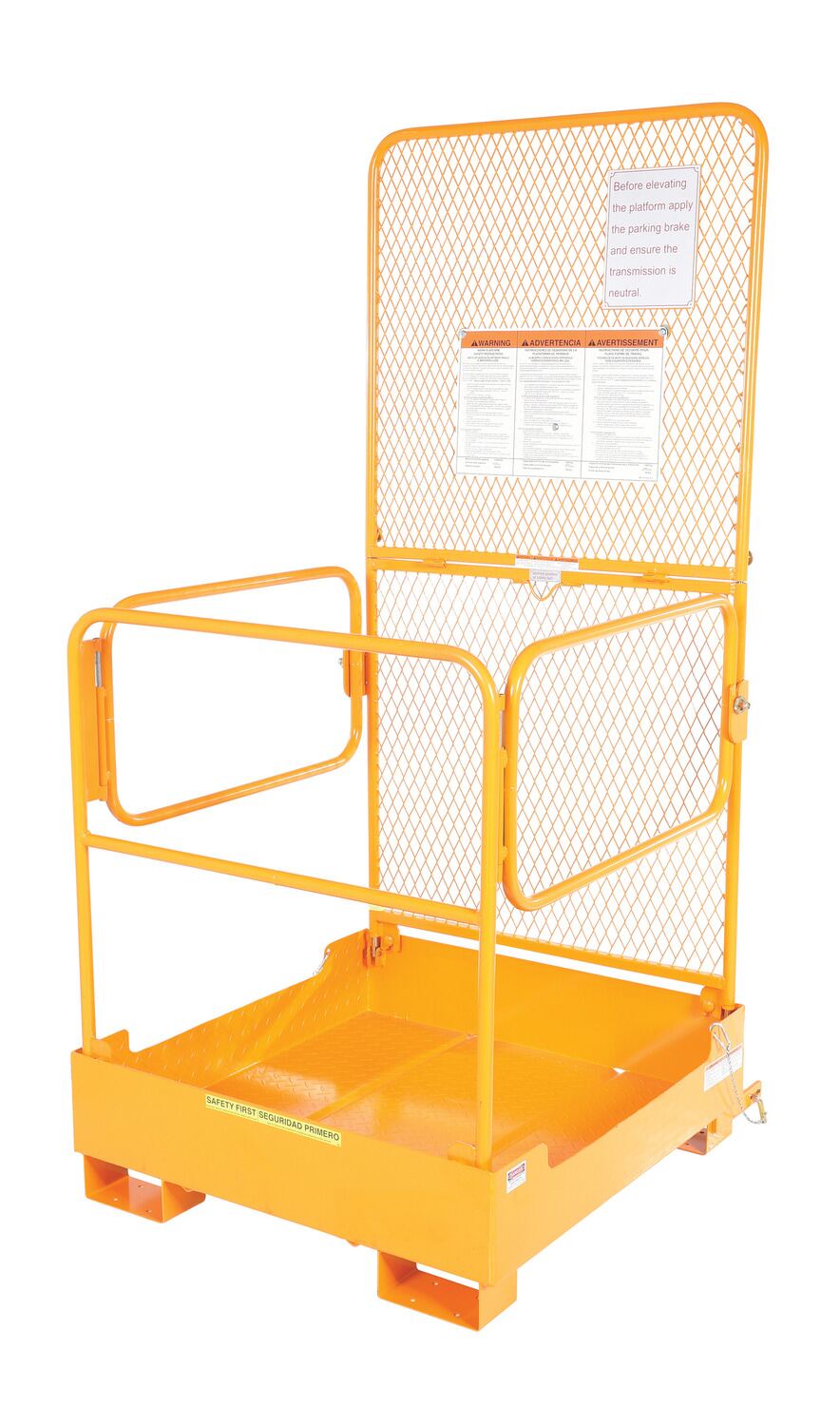

WP-3737-FD.gifElevate personnel to overhead racks and shelving for safe and convenient access. When not in use, unit can be folded down and moved out of the way by just one person. Unit stores conveniently in a 4" deep bottom base, with a folded height of 11-5/8". Handrail is 38" high with 23-1/2" high mid-rail on three sides. 70" high expanded metal backing on fourth side (84" high backing to meet California OSHA specifications on models with suffix -84B). Includes diamond plate platform, tine lock, and a safety restraint to attach platform to fork truck. Usable fork pockets measure 7-7/8"W x 3-3/8"H on 27-3/4" centers. The overall size of the unit is 38"W x 38"L x 81-1/2"H (89-1/2"H model WP-3737-FD-84B). Folded size is 38"W x 38"L x 11-5/8"H. Baked-in powder-coated toughness. Steel construction.

  • Two gate platform allows access on each side
  • Fork truck safety restraint secures work platform to fork truck
  • Tread plate floor provides a safe non-slip grip
  • Unique folds-down design takes up little storage space when not in use

WP-3737-FD.gifElevate personnel to overhead racks and shelving for safe and convenient access. When not in use, unit can be folded down and moved out of the way by just one person. Unit stores conveniently in a 4" deep bottom base, with a folded height of 11-5/8". Handrail is 38" high with 23-1/2" high mid-rail on three sides. 70" high expanded metal backing on fourth side (84" high backing to meet California OSHA specifications on models with suffix -84B). Includes diamond plate platform, tine lock, and a safety restraint to attach platform to fork truck. Usable fork pockets measure 7-7/8"W x 3-3/8"H on 27-3/4" centers. The overall size of the unit is 38"W x 38"L x 81-1/2"H (89-1/2"H model WP-3737-FD-84B). Folded size is 38"W x 38"L x 11-5/8"H. Baked-in powder-coated toughness. Steel construction.

  • Two gate platform allows access on each side
  • Fork truck safety restraint secures work platform to fork truck
  • Tread plate floor provides a safe non-slip grip
  • Unique folds-down design takes up little storage space when not in use

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
WP-3737-FD WP-3737-FD1 Year Limited WarrantySteel Fold Down Steel Work Platform 37 In. x 37 In. 600 Lb. Capacity YellowUniform Capacity (lb.): 600
Base Depth for Storage (in.): 4
227

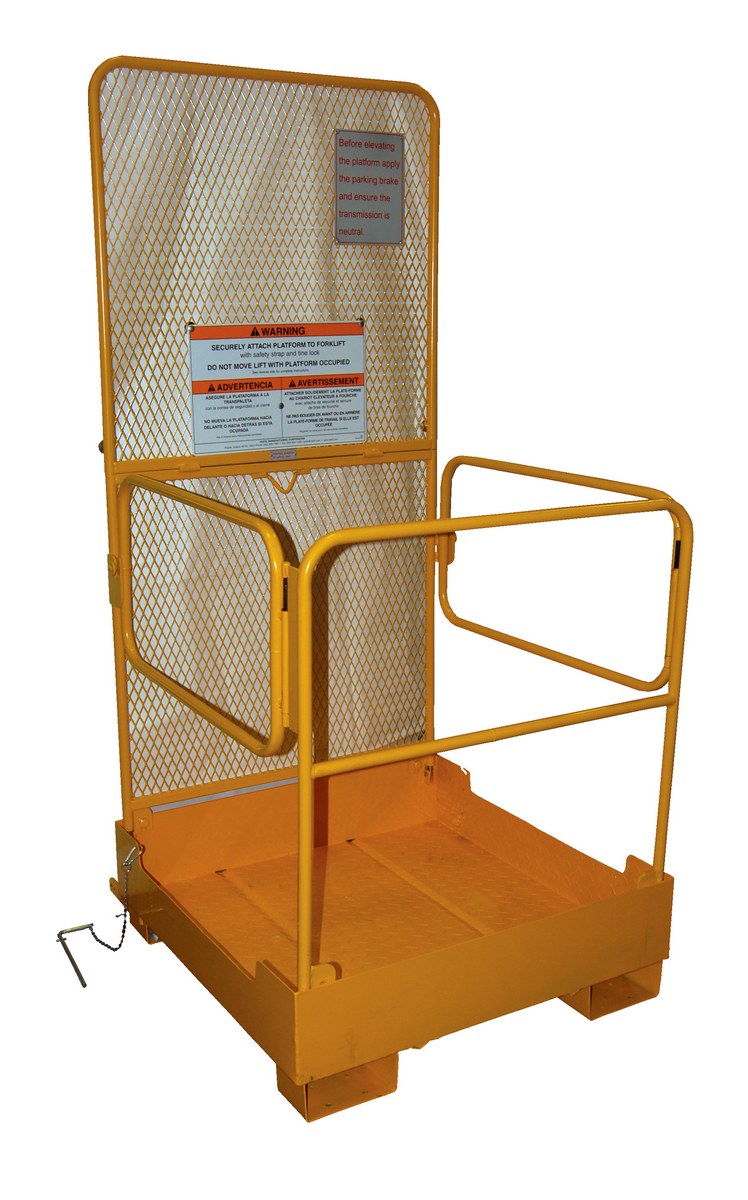

WP-3737-FD-84B WP-3737-FD-84B1 Year Limited WarrantySteel Fold Down Steel Work Platform With 84 In. Expanded Back 37 In. x 37 In. 600 Lb. Capacity YellowUniform Capacity (lb.): 600
Base Depth for Storage (in.): 4
245

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

WP-3737-FD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Base Depth for Storage (in.): 4
Uniform Capacity (lb.): 600
Base Depth for Storage (in.): 4

WP-3737-FD-84B
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Base Depth for Storage (in.): 4
Uniform Capacity (lb.): 600
Base Depth for Storage (in.): 4
For More Details of the Option Click the Red Model Button

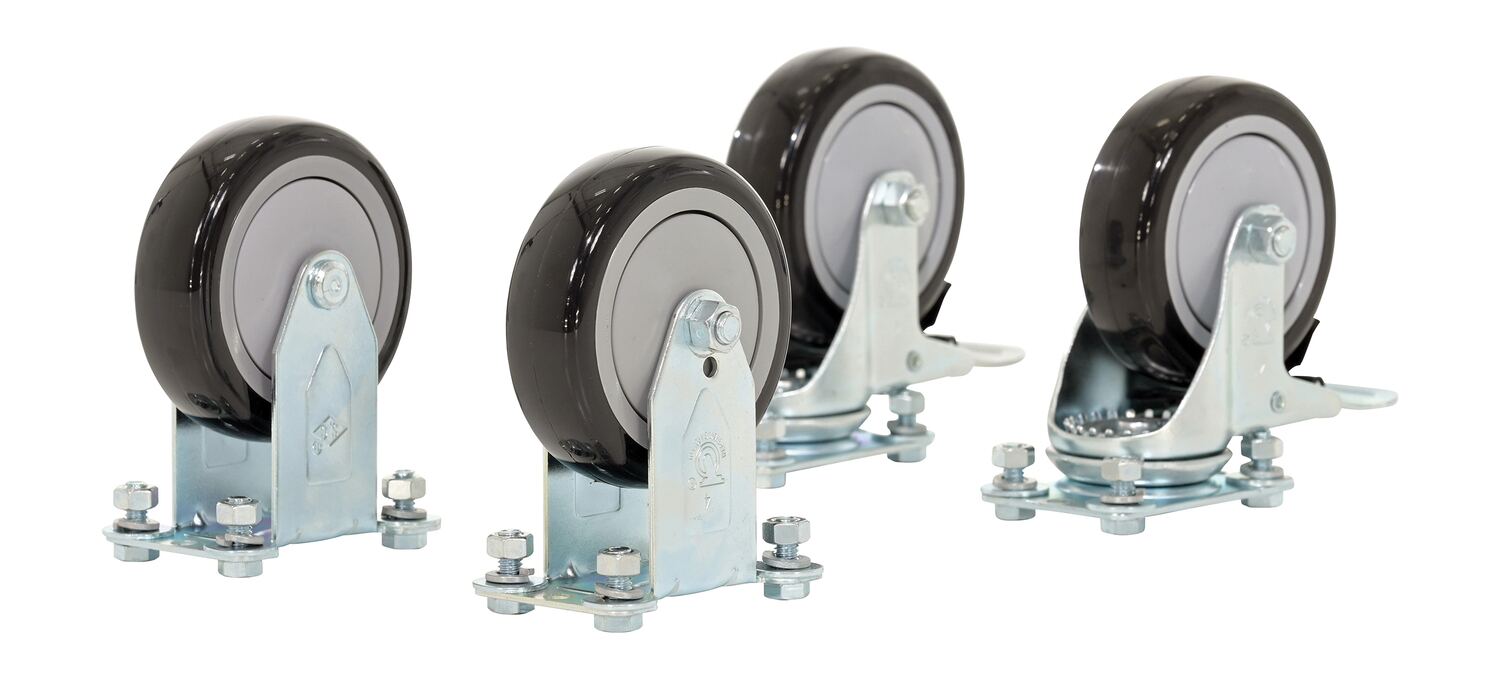

WP-CAFD WP-CAFD30 Days Limited WarrantyPolyurethane Fold Down Casters 4 In. x 2 In. 260 Lb. Capacity For Work Platform ModelsRigid Caster (qty.): 2
Swivel Caster (qty.): 2
21
WP-FD-TT WP-FD-TT30 Days Limited WarrantySteel Tool Tray 6 In. x 36-1/8 In. For Work Platform Models YellowUsable Width (in.): 36-1/8
Usable Length (in.): 6
21
Lanyard with Safety Harness or Safety Belt
Model Image PDF Waist Size Length of Lanyard Weight (lbs) Capacity
WP-LH-S Warranty PDF See Below 6ft. 5 350
WP-LH-M Warranty PDF See Below 6ft. 5 350
WP-LH-L Warranty PDF See Below 6ft. 5 350
WP-LH-XL Warranty PDF See Below 6ft. 5 350
WP-LH-XXL Warranty PDF See Below 6ft. 5 350
WP-LH-XXXL Warranty PDF See Below 6ft. 5 350
Harness Sizing Chart
Height Image 34"-36" 38"-40" 42"-44" 50"-54" 56"-60"
Small (5'4"-5'7") - Small Small Medium X-Large XX-Large
Medium (5'8"-5'11") - Small Medium Large XX-Large XXX-Large
Tall (6'0"-6'3") - Medium Medium Large XX-Large XXX-Large
X-Tall (6'3"-Plus) - Large Large X-Large XX-Large XXX-Large
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Fold Down Work Platforms PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


WP-3737-FD

WP-3737-FD-84B

WP-CAFD

WP-FD-TT

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Fold Down Work Platforms




WP-3737-FD.gifElevate personnel to overhead racks and shelving for safe and convenient access. When not in use, unit can be folded down and moved out of the way by just one person. Unit stores conveniently in a 4" deep bottom base, with a folded height of 11-5/8". Handrail is 38" high with 23-1/2" high mid-rail on three sides. 70" high expanded metal backing on fourth side (84" high backing to meet California OSHA specifications on models with suffix -84B). Includes diamond plate platform, tine lock, and a safety restraint to attach platform to fork truck. Usable fork pockets measure 7-7/8"W x 3-3/8"H on 27-3/4" centers. The overall size of the unit is 38"W x 38"L x 81-1/2"H (89-1/2"H model WP-3737-FD-84B). Folded size is 38"W x 38"L x 11-5/8"H. Baked-in powder-coated toughness. Steel construction.

  • Two gate platform allows access on each side
  • Fork truck safety restraint secures work platform to fork truck
  • Tread plate floor provides a safe non-slip grip
  • Unique folds-down design takes up little storage space when not in use


Model # Description Attributes Net Wt.
(lbs)
WP-3737-FD WP-3737-FDSteel Fold Down Steel Work Platform 37 In. x 37 In. 600 Lb. Capacity YellowUniform Capacity (lb.): 600
Base Depth for Storage (in.): 4
227
WP-3737-FD-84B WP-3737-FD-84BSteel Fold Down Steel Work Platform With 84 In. Expanded Back 37 In. x 37 In. 600 Lb. Capacity YellowUniform Capacity (lb.): 600
Base Depth for Storage (in.): 4
245

Options


Lanyard with Safety Harness or Safety Belt
Model Image PDF Waist Size Length of Lanyard Weight (lbs) Capacity
WP-LH-S Warranty PDF See Below 6ft. 5 350
WP-LH-M Warranty PDF See Below 6ft. 5 350
WP-LH-L Warranty PDF See Below 6ft. 5 350
WP-LH-XL Warranty PDF See Below 6ft. 5 350
WP-LH-XXL Warranty PDF See Below 6ft. 5 350
WP-LH-XXXL Warranty PDF See Below 6ft. 5 350
Harness Sizing Chart
Height Image 34"-36" 38"-40" 42"-44" 50"-54" 56"-60"
Small (5'4"-5'7") - Small Small Medium X-Large XX-Large
Medium (5'8"-5'11") - Small Medium Large XX-Large XXX-Large
Tall (6'0"-6'3") - Medium Medium Large XX-Large XXX-Large
X-Tall (6'3"-Plus) - Large Large X-Large XX-Large XXX-Large
