Product Family Overview

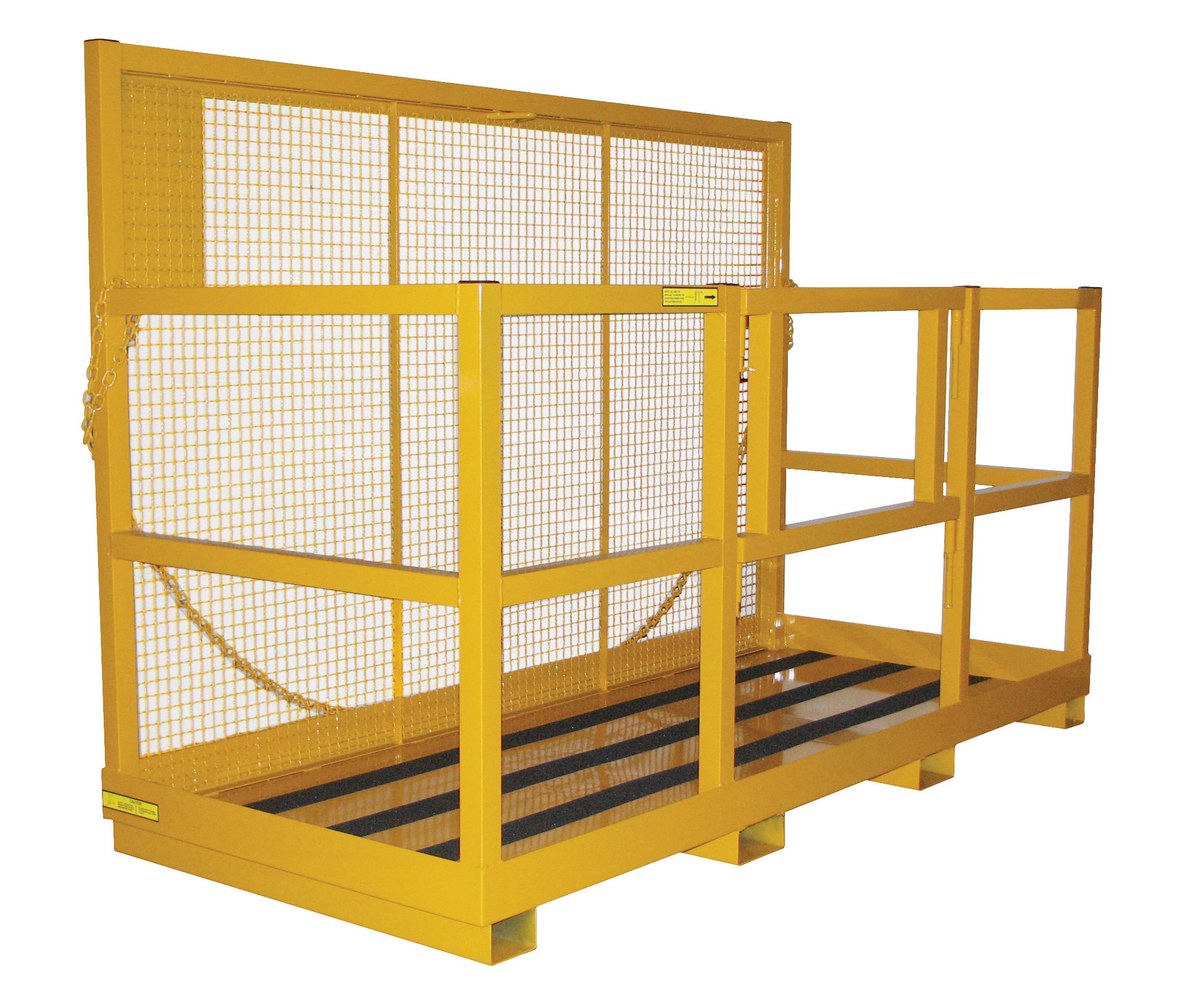

Multi-Person Work Platforms
SERIES: WP

Multi-Person Work Platforms quickly and safely raise maintenance personal where they are needed giving you a larger size platform to accommodate your application. The work platform attaches to fork truck by inserting forks into fork pockets and securing platform to fork truck. Unit is made of 2" square tube construction, and base and 4" side curbs are formed from one piece of heavy gauge sheet for extra strength. Deck has slip resistant surface, and fork pocket openings of 7" x 2-3/4". Safety pins behind each fork and heavy duty chains welded to back frame of platform which secure around the fork carriage. Hinged gate on the front of the unit, with pin safety lock built in. Painted safety yellow.

  • Multi-person work platforms larger size can accommodate many applications
  • Attaches to fork truck is made of square tube construction for extra strength
  • Deck has slip resistant surface and safety pins behind each fork for added security
  • Hinged gate on the front of the unit for easy accessibility

Disclaimer:

Per ANSI B56-1-2005 section 7.37.3, the floor dimensions of the platform attachment can not exceed 2X the load center distance listed on the truck data plate nor have a width greater than the overall width of the truck (measured across the load bearing wheels) plus 250mm on either side. The backs on all work platforms backs have 1/2"-13 FEM to meet CAOSHA standards for the industrial trucks.

As long as the customers truck meets these requirements, they should meet the requirements set forth by OSHA to have a new data plate created for their fork truck. Vestil makes no guarantees as to the fork truck manufacturer generating a new date plate as required by OSHA.

Multi-Person Work Platforms quickly and safely raise maintenance personal where they are needed giving you a larger size platform to accommodate your application. The work platform attaches to fork truck by inserting forks into fork pockets and securing platform to fork truck. Unit is made of 2" square tube construction, and base and 4" side curbs are formed from one piece of heavy gauge sheet for extra strength. Deck has slip resistant surface, and fork pocket openings of 7" x 2-3/4". Safety pins behind each fork and heavy duty chains welded to back frame of platform which secure around the fork carriage. Hinged gate on the front of the unit, with pin safety lock built in. Painted safety yellow.

  • Multi-person work platforms larger size can accommodate many applications
  • Attaches to fork truck is made of square tube construction for extra strength
  • Deck has slip resistant surface and safety pins behind each fork for added security
  • Hinged gate on the front of the unit for easy accessibility

Disclaimer:

Per ANSI B56-1-2005 section 7.37.3, the floor dimensions of the platform attachment can not exceed 2X the load center distance listed on the truck data plate nor have a width greater than the overall width of the truck (measured across the load bearing wheels) plus 250mm on either side. The backs on all work platforms backs have 1/2"-13 FEM to meet CAOSHA standards for the industrial trucks.

As long as the customers truck meets these requirements, they should meet the requirements set forth by OSHA to have a new data plate created for their fork truck. Vestil makes no guarantees as to the fork truck manufacturer generating a new date plate as required by OSHA.

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
WP-40120
WP-4012090 Days Limited WarrantySteel Multiple Person Work Platform 40 In x 120 In 1,800 Lb. Capacity YellowUniform Capacity (lb.): 1800
Square Tube (in.): 2
610
WP-4072
WP-407290 Days Limited WarrantySteel Multiple Person Work Platform 40 In. x 72 In. 1,200 Lb. Capacity YellowUniform Capacity (lb.): 1200
Square Tube (in.): 2
406
WP-4096
WP-409690 Days Limited WarrantySteel Multiple Person Work Platform 40 In x 96 In 1,500 Lb. Capacity YellowUniform Capacity (lb.): 1500
Square Tube (in.): 2
470

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

WP-40120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1800
Square Tube (in.): 2
Uniform Capacity (lb.): 1800
Square Tube (in.): 2

WP-4072
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1200
Square Tube (in.): 2
Uniform Capacity (lb.): 1200
Square Tube (in.): 2

WP-4096
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Square Tube (in.): 2
Uniform Capacity (lb.): 1500
Square Tube (in.): 2

Multi-Person Work Platforms PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Multi-Person Work Platforms




Multi-Person Work Platforms quickly and safely raise maintenance personal where they are needed giving you a larger size platform to accommodate your application. The work platform attaches to fork truck by inserting forks into fork pockets and securing platform to fork truck. Unit is made of 2" square tube construction, and base and 4" side curbs are formed from one piece of heavy gauge sheet for extra strength. Deck has slip resistant surface, and fork pocket openings of 7" x 2-3/4". Safety pins behind each fork and heavy duty chains welded to back frame of platform which secure around the fork carriage. Hinged gate on the front of the unit, with pin safety lock built in. Painted safety yellow.

  • Multi-person work platforms larger size can accommodate many applications
  • Attaches to fork truck is made of square tube construction for extra strength
  • Deck has slip resistant surface and safety pins behind each fork for added security
  • Hinged gate on the front of the unit for easy accessibility

Disclaimer:

Per ANSI B56-1-2005 section 7.37.3, the floor dimensions of the platform attachment can not exceed 2X the load center distance listed on the truck data plate nor have a width greater than the overall width of the truck (measured across the load bearing wheels) plus 250mm on either side. The backs on all work platforms backs have 1/2"-13 FEM to meet CAOSHA standards for the industrial trucks.

As long as the customers truck meets these requirements, they should meet the requirements set forth by OSHA to have a new data plate created for their fork truck. Vestil makes no guarantees as to the fork truck manufacturer generating a new date plate as required by OSHA.



Model # Description Attributes Net Wt.
(lbs)
WP-40120 WP-40120Steel Multiple Person Work Platform 40 In x 120 In 1,800 Lb. Capacity YellowUniform Capacity (lb.): 1800
Square Tube (in.): 2
610
WP-4072 WP-4072Steel Multiple Person Work Platform 40 In. x 72 In. 1,200 Lb. Capacity YellowUniform Capacity (lb.): 1200
Square Tube (in.): 2
406
WP-4096 WP-4096Steel Multiple Person Work Platform 40 In x 96 In 1,500 Lb. Capacity YellowUniform Capacity (lb.): 1500
Square Tube (in.): 2
470
