Product Family Overview


Beam Clamps
SERIES: BC

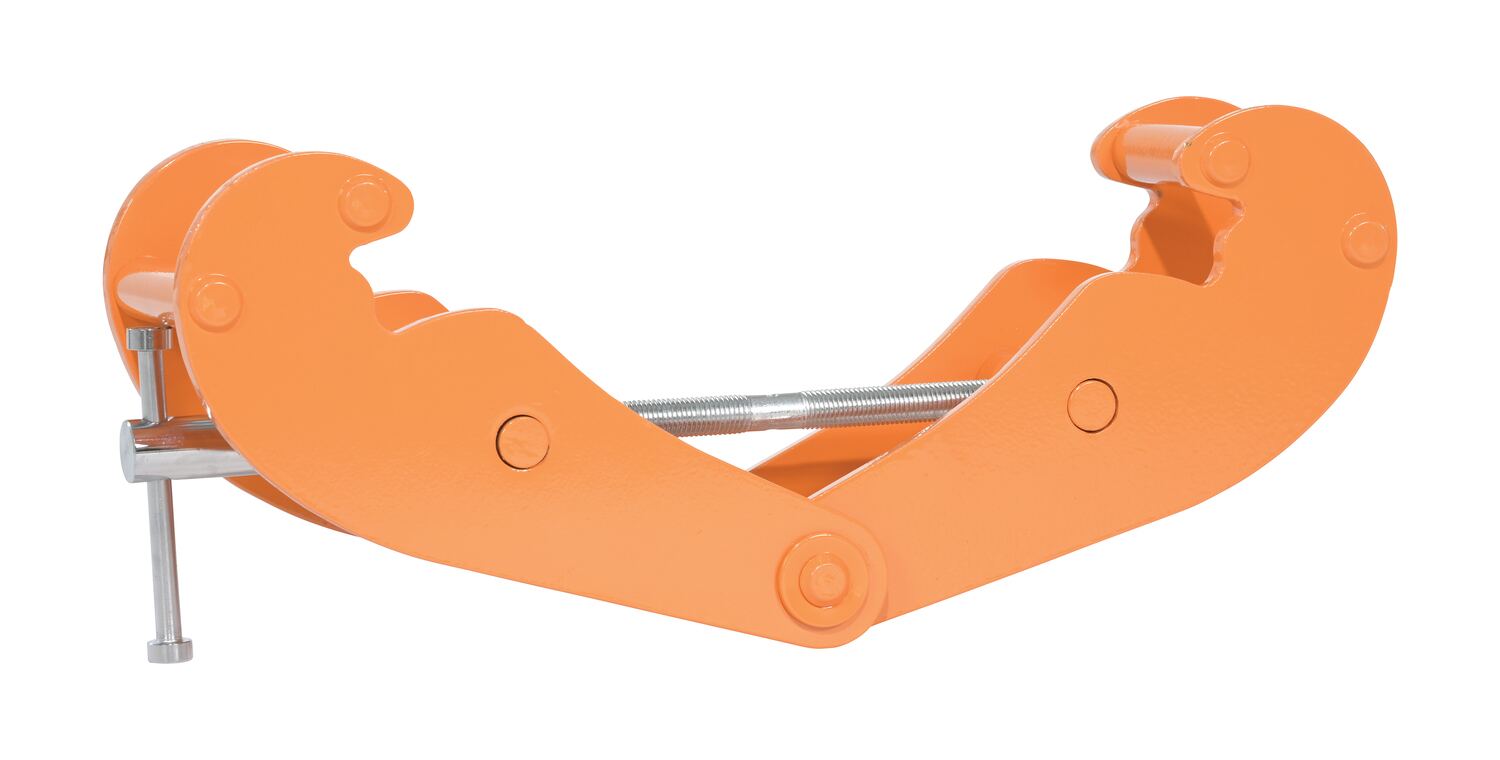

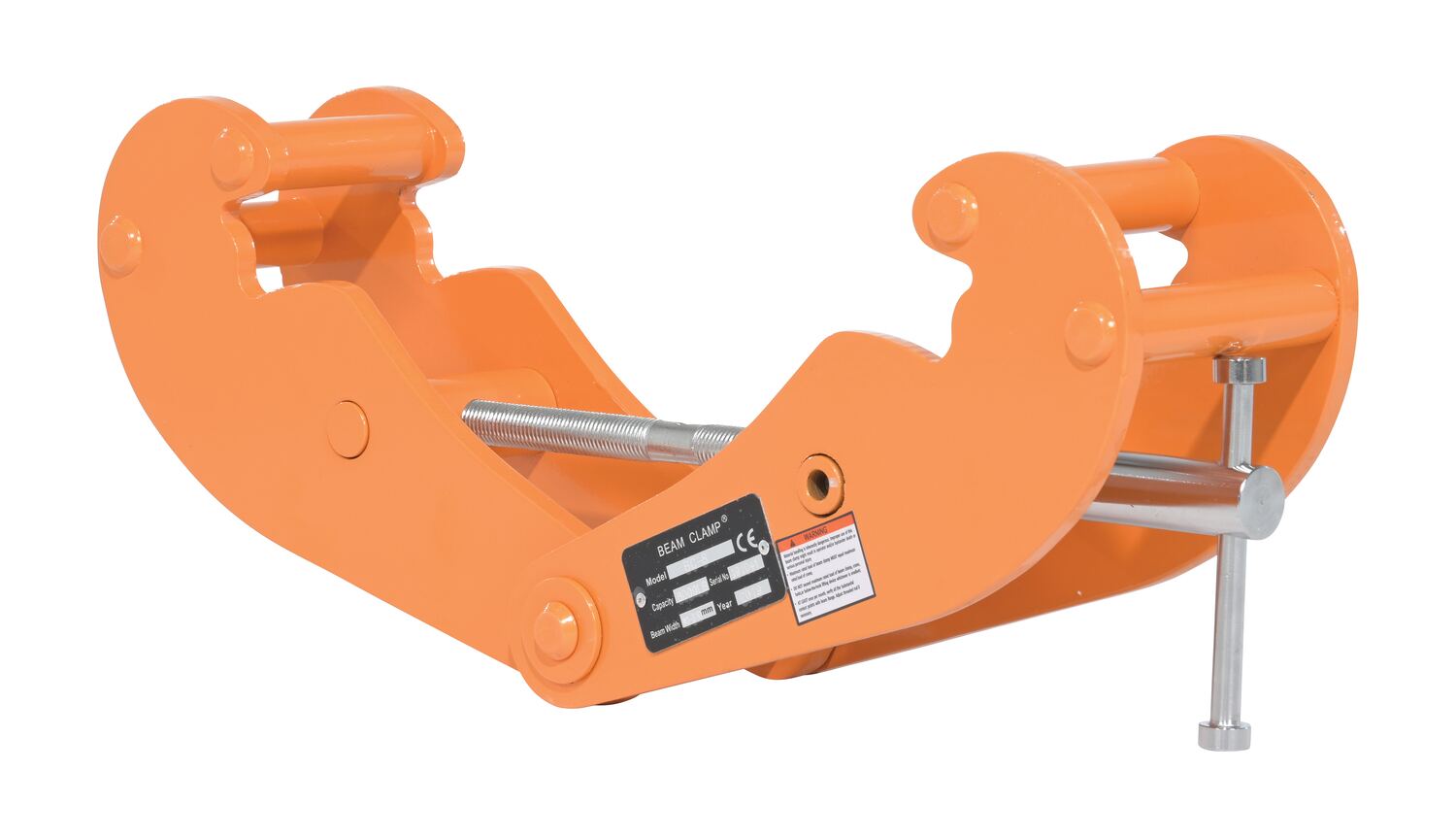

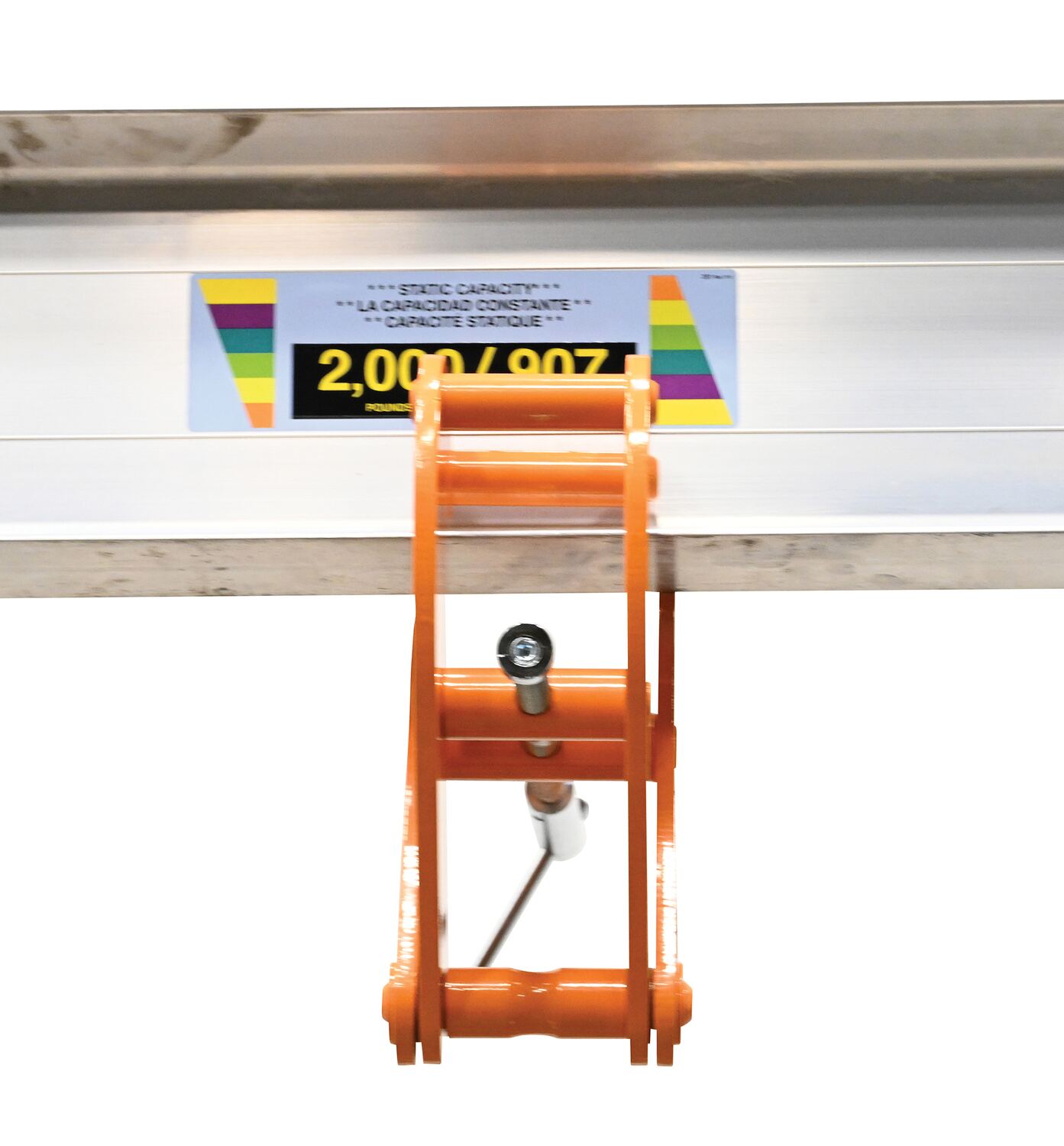

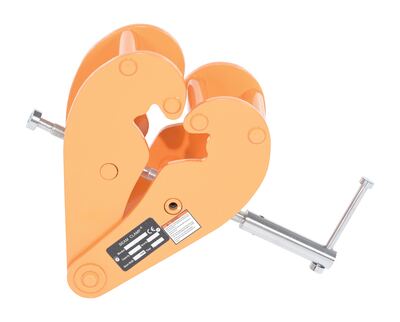

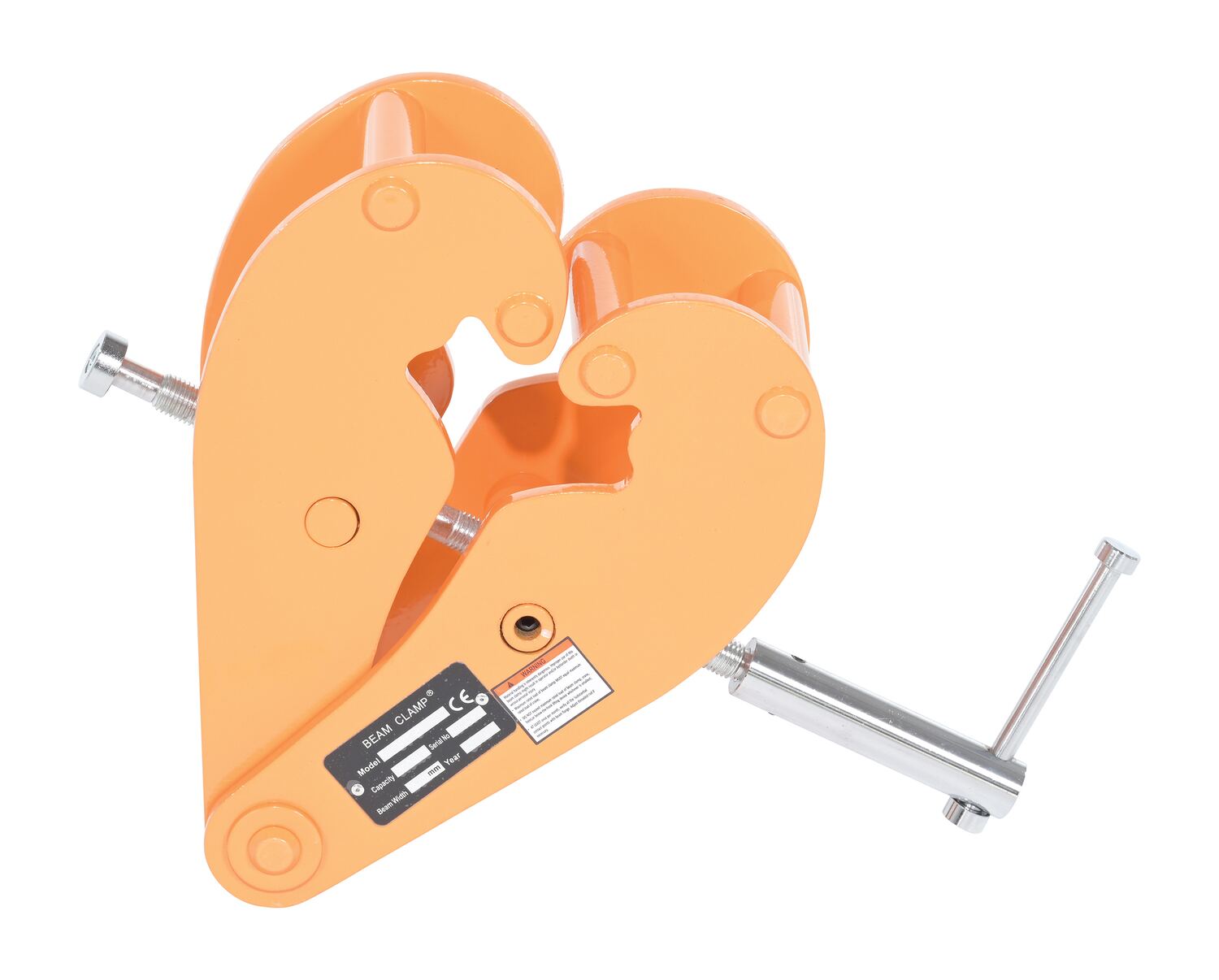

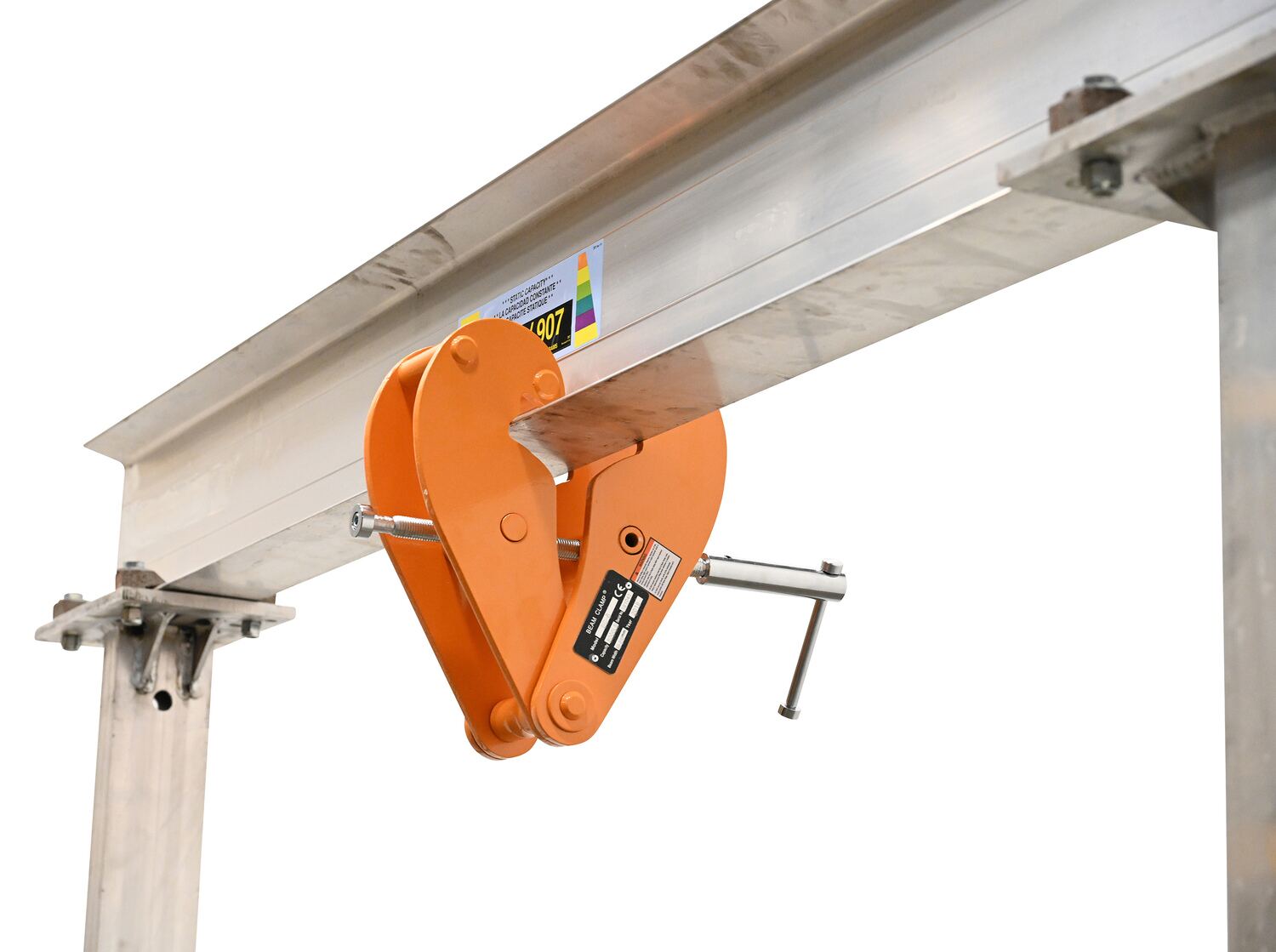

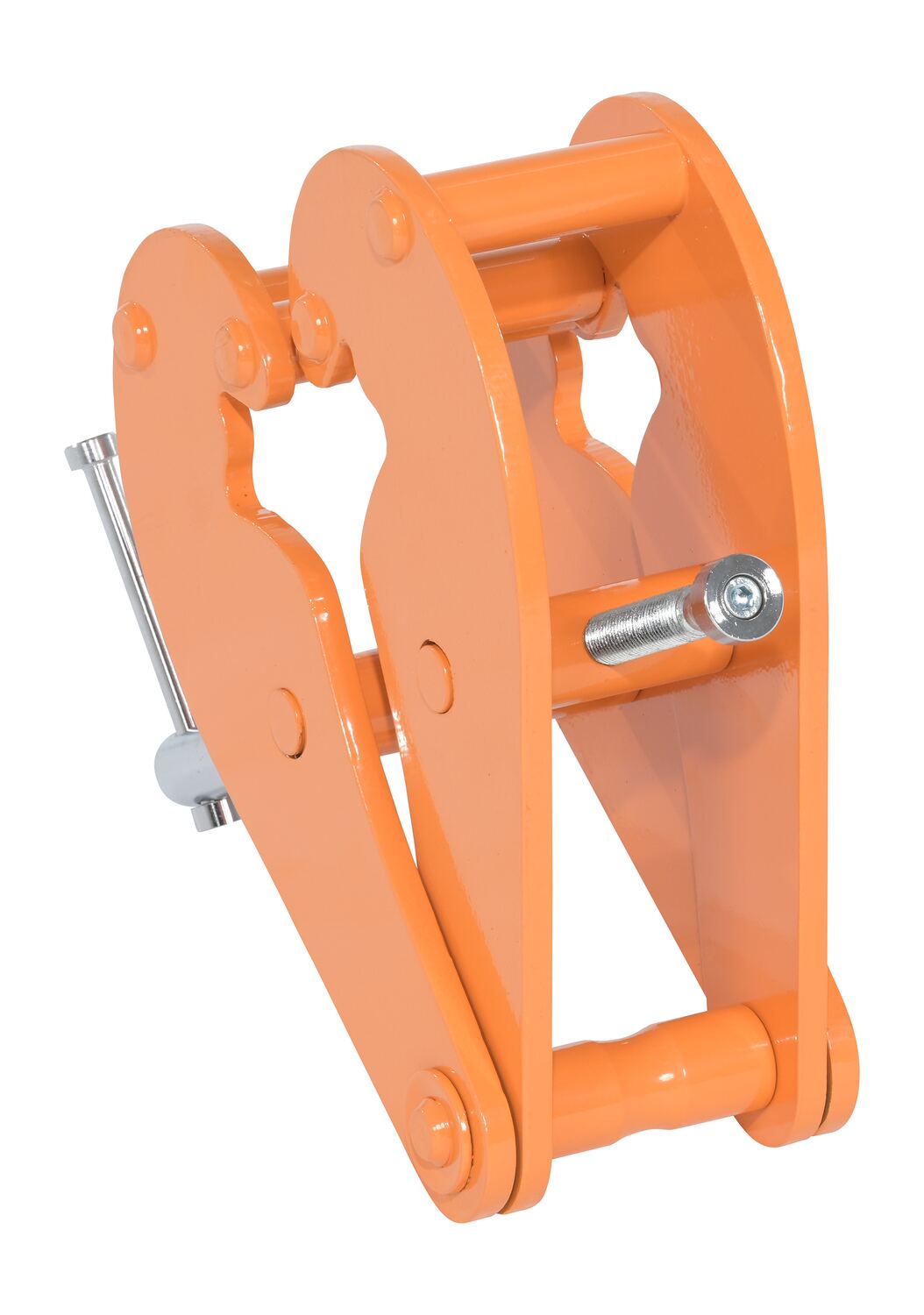

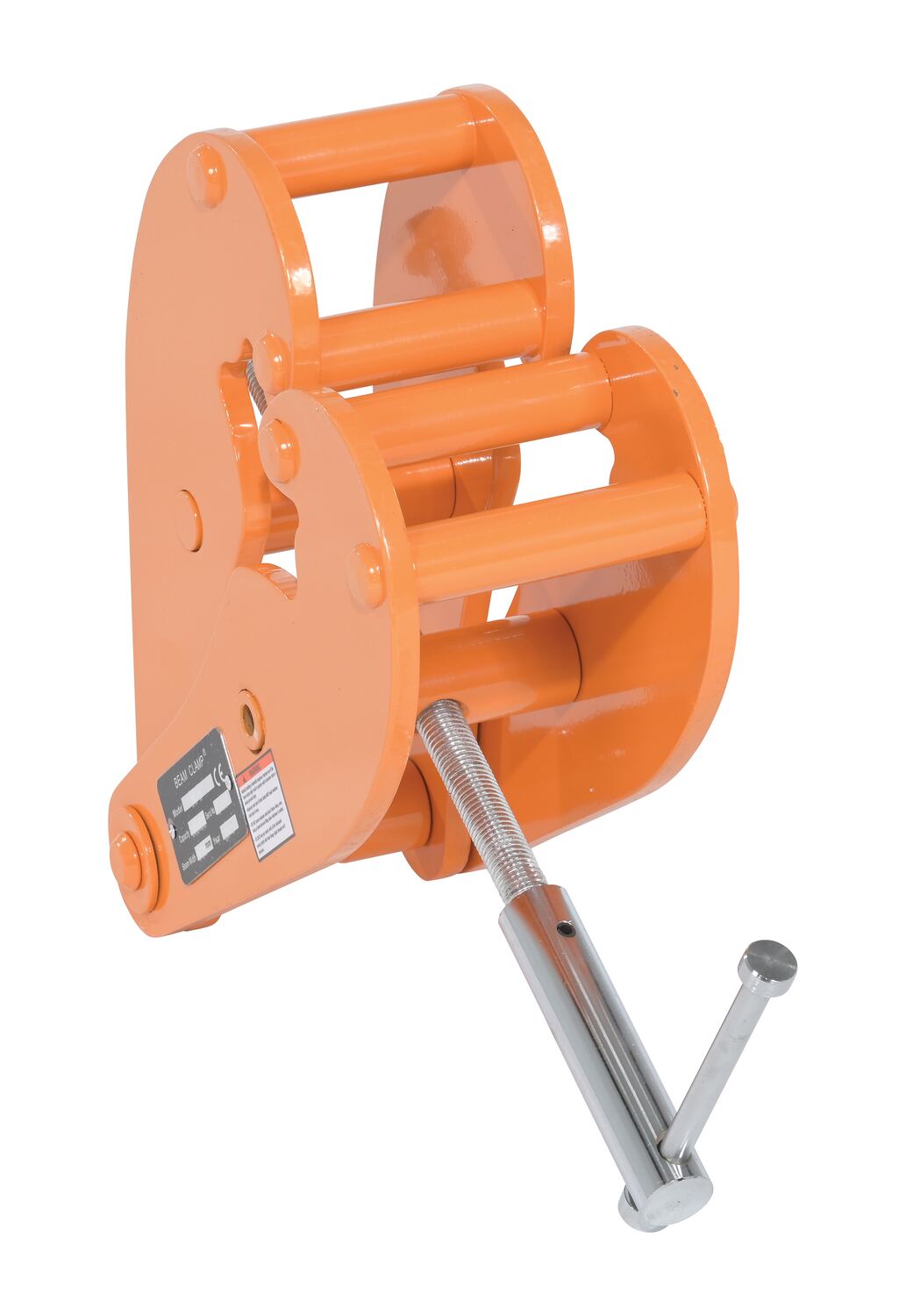

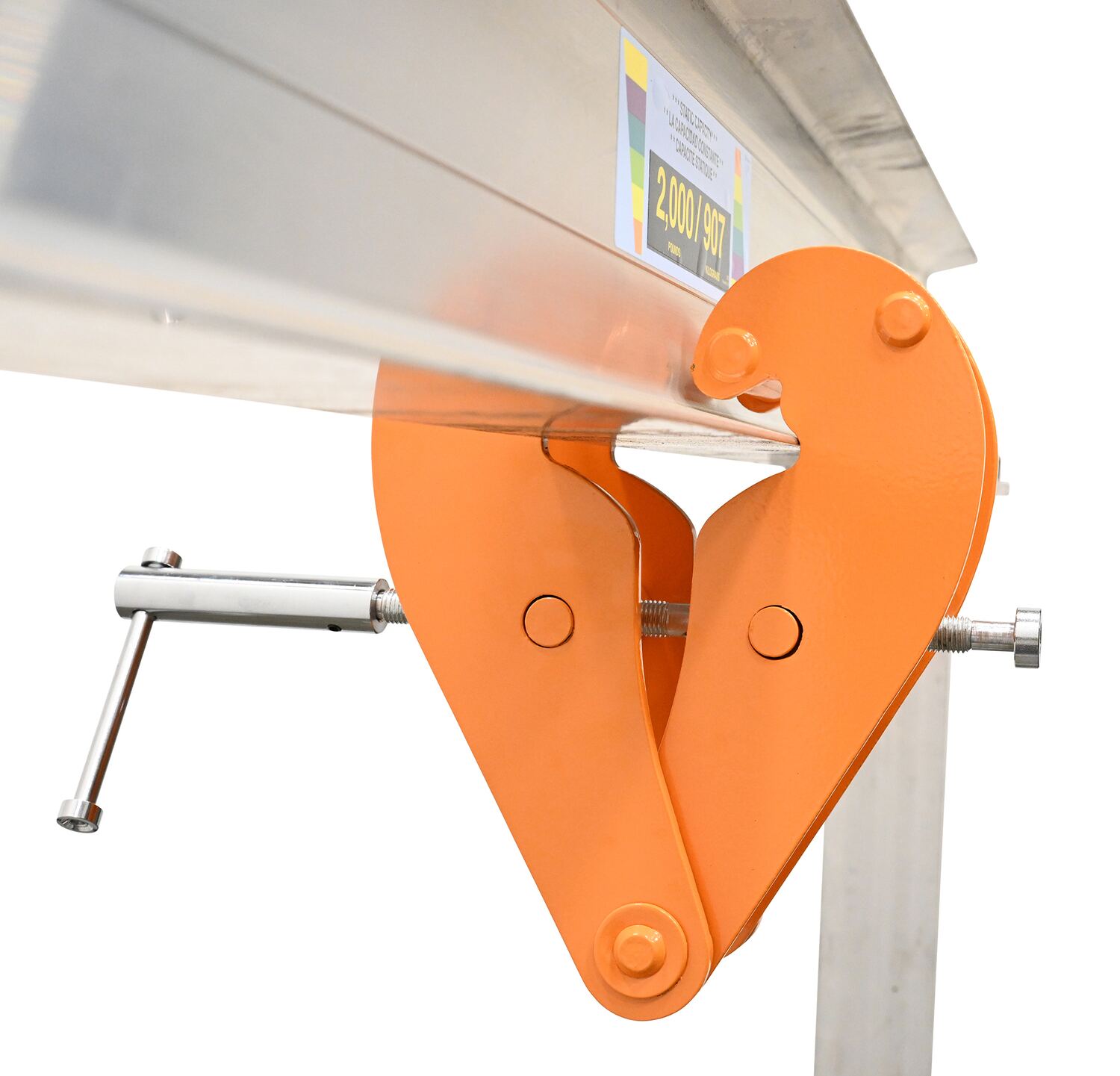

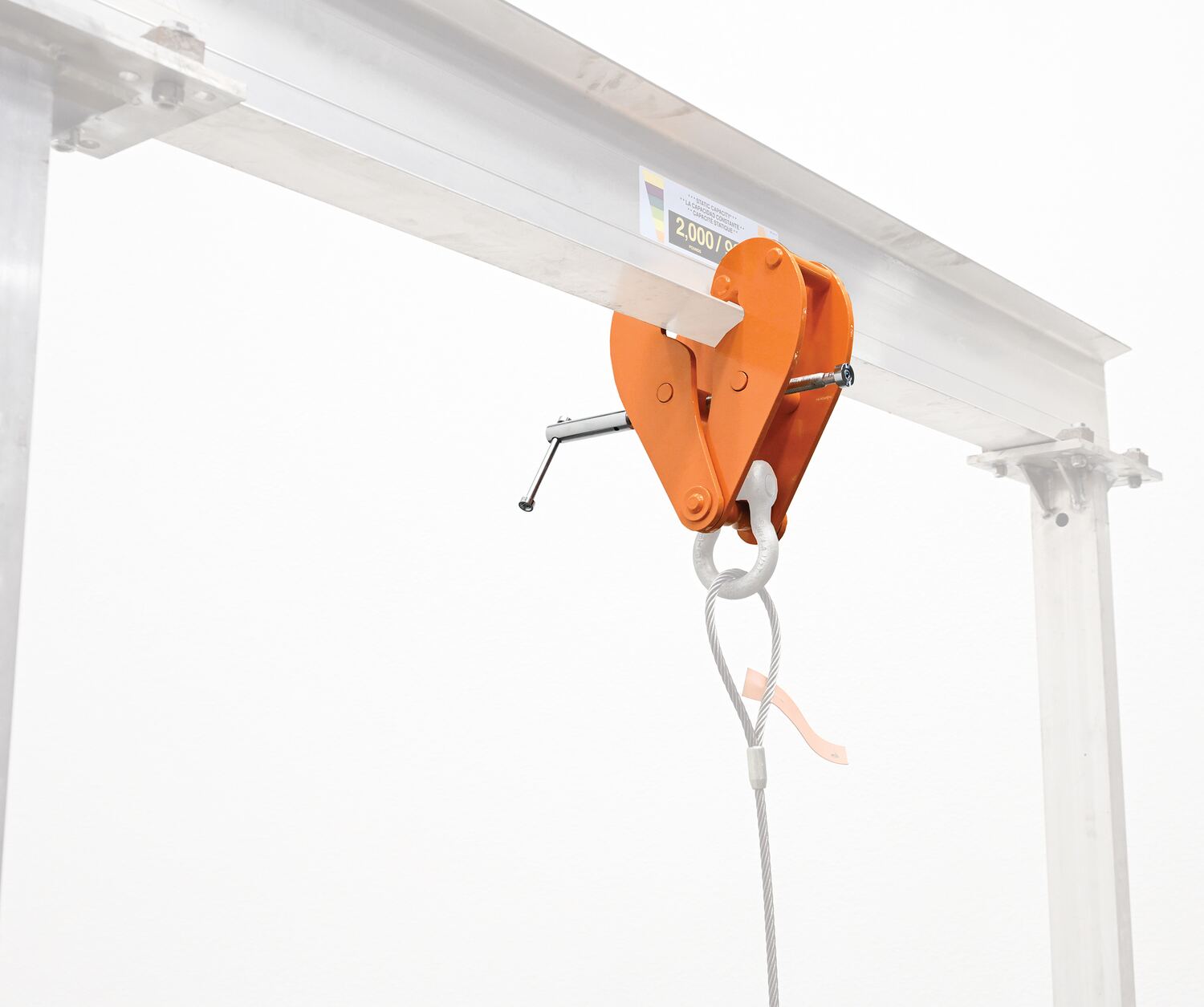

BC-8Designed to reduce the I-beam flange stress by distributing loads away from the flange edges during overhead lifting applications. These versatile units can be interchanged from one gantry to another in a matter of seconds with its easy mechanical adjustment mechanism. A bar is located at the bottom of the beam clamp for attaching a hoist (sold separately). Steel construction and painted finish.

  • Manual locking screw mechanism easily adjusts width
  • Unique design provides a fixed-position lifting point
  • Mechanical adjustment allows interchanging between gantry cranes
  • Solid steel construction provides long lasting rugged use

BC-8Designed to reduce the I-beam flange stress by distributing loads away from the flange edges during overhead lifting applications. These versatile units can be interchanged from one gantry to another in a matter of seconds with its easy mechanical adjustment mechanism. A bar is located at the bottom of the beam clamp for attaching a hoist (sold separately). Steel construction and painted finish.

  • Manual locking screw mechanism easily adjusts width
  • Unique design provides a fixed-position lifting point
  • Mechanical adjustment allows interchanging between gantry cranes
  • Solid steel construction provides long lasting rugged use

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

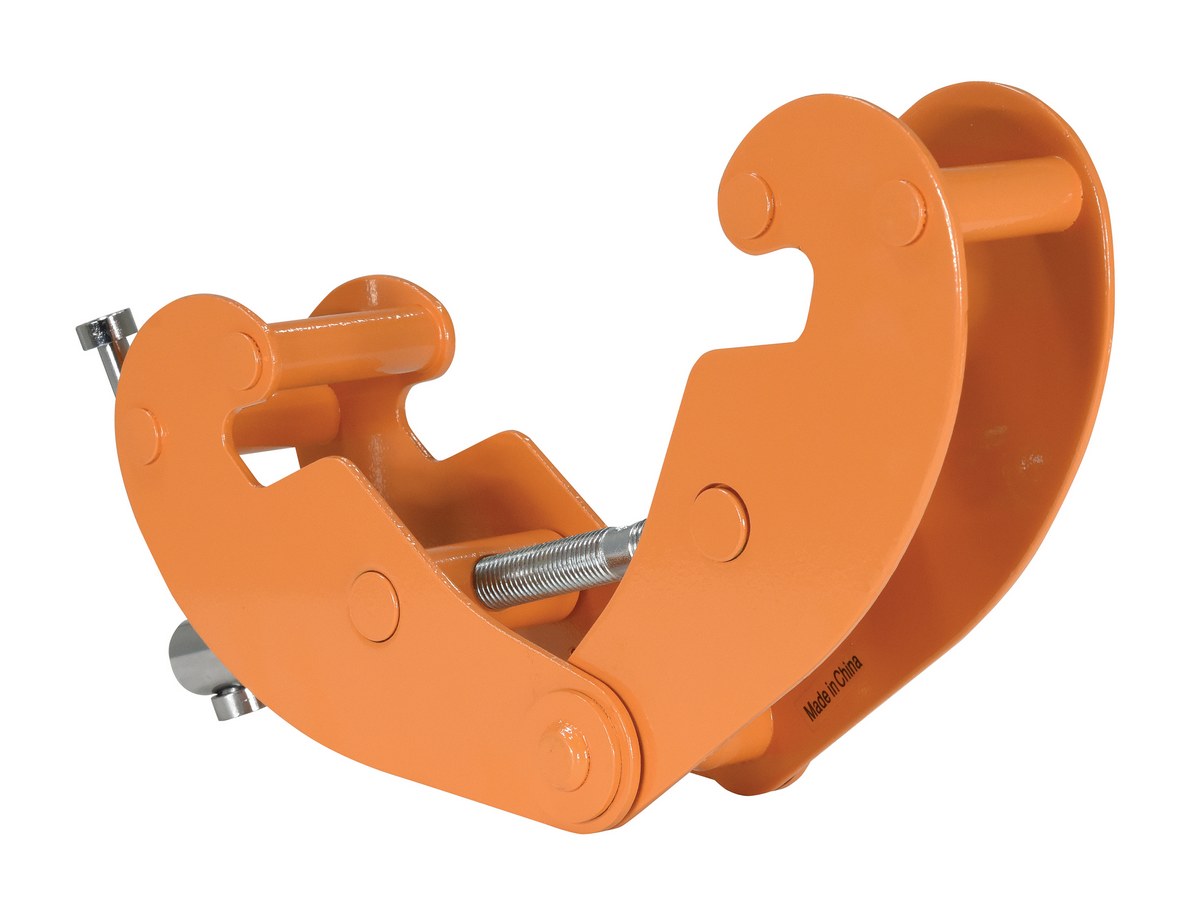

BC-1 BC-190 Days Limited WarrantySteel Beam Clamp Horizontal Lift Style 16-1/2 In. x 3-1/2 In. x 6-1/4 In. 1000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 3-1/8 to 9-5/8
10

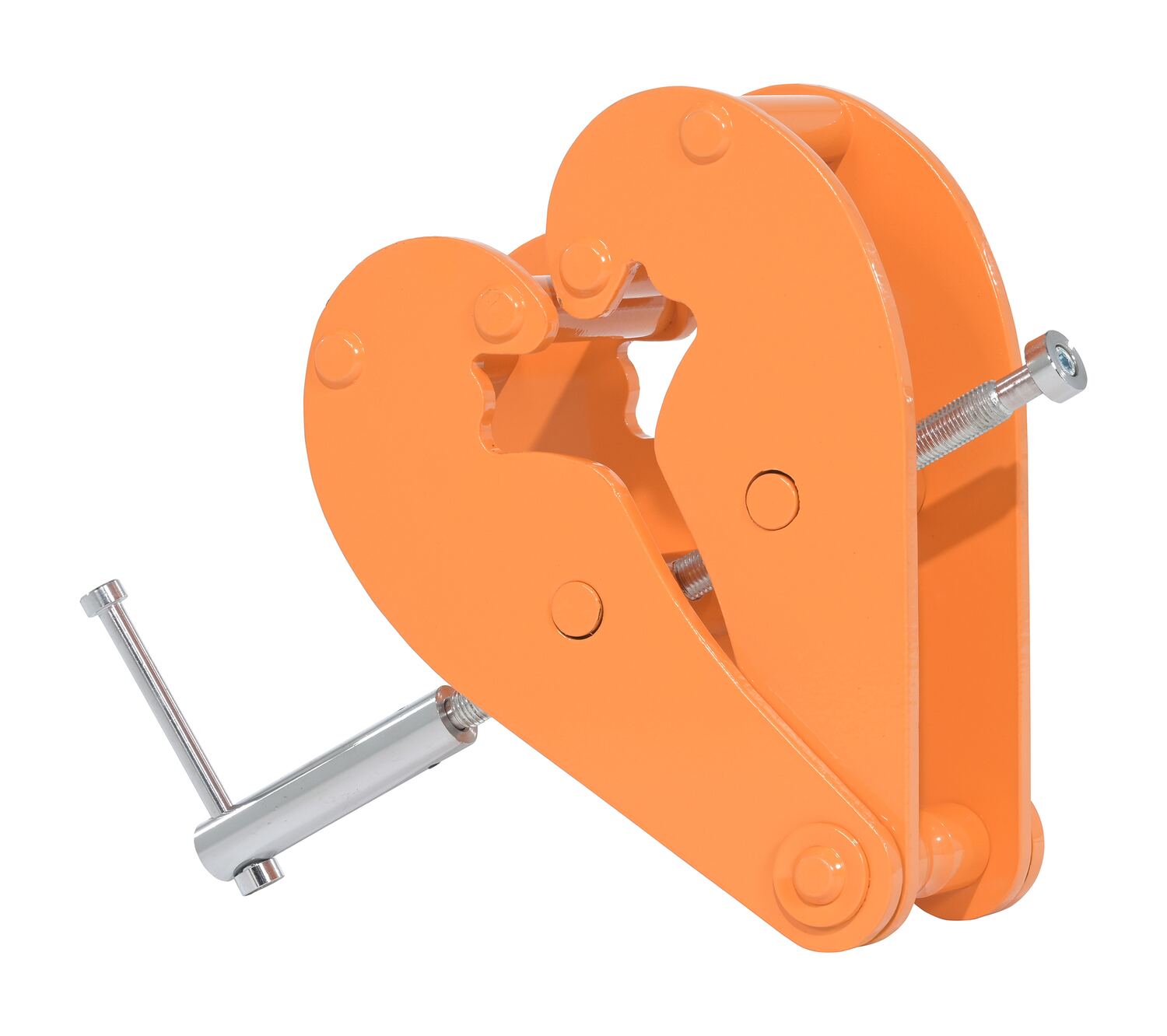

BC-10 BC-1090 Days Limited WarrantySteel Beam Clamp Horizontal Lift Style 21-1/4 In. x 5-1/4 In. x 7-3/4 In. 10000 Lb. Capacity OrangeUniform Capacity (lb.): 10000
Fits Beam Flange Width (in.): 3-1/2 to 12-1/4
38
BC-2 BC-290 Days Limited WarrantySteel Beam Clamp Horizontal Lift Style 16-1/2 In. x 3-1/2 In. x 6-1/4 In. 2000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 3-1/8 to 9-5/8
10

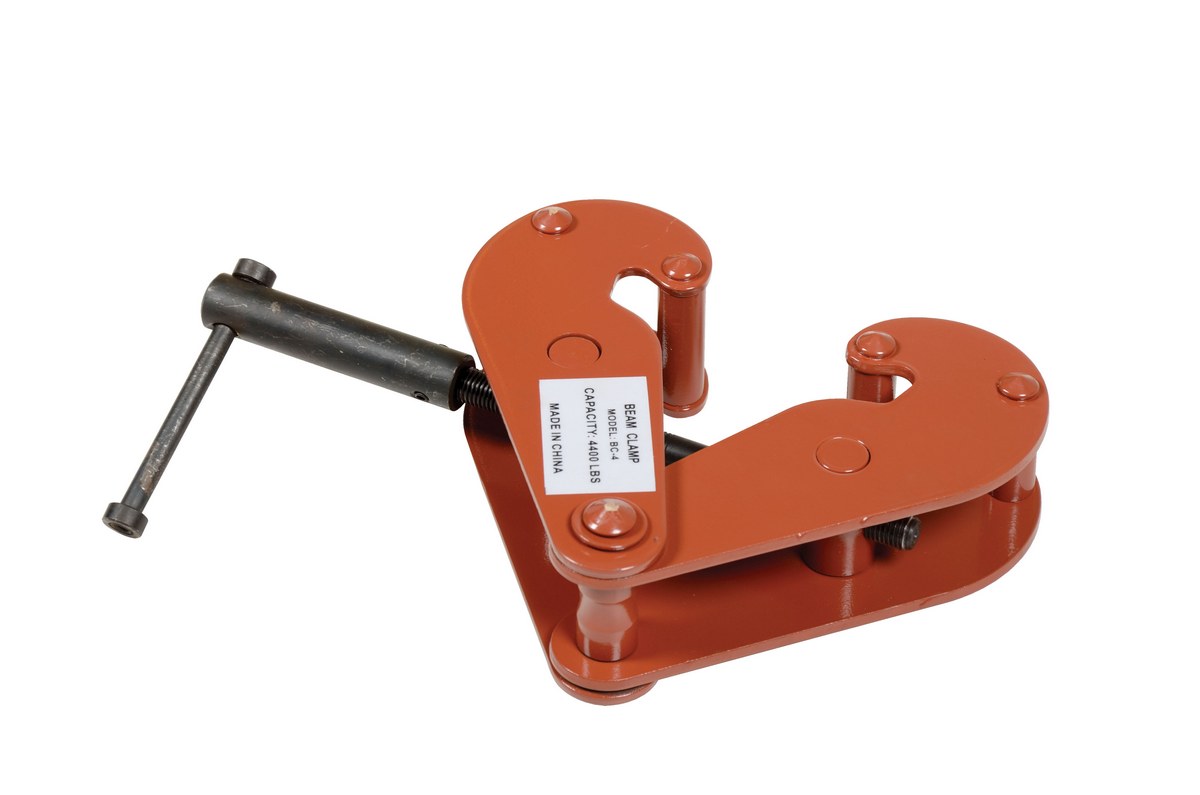

BC-4 BC-490 Days Limited WarrantySteel Beam Clamp Horizontal Lift Style 16 In. x 4 In. x 6-1/2 In. 4000 Lb. Capacity OrangeUniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3-1/8 to 9-5/8
12

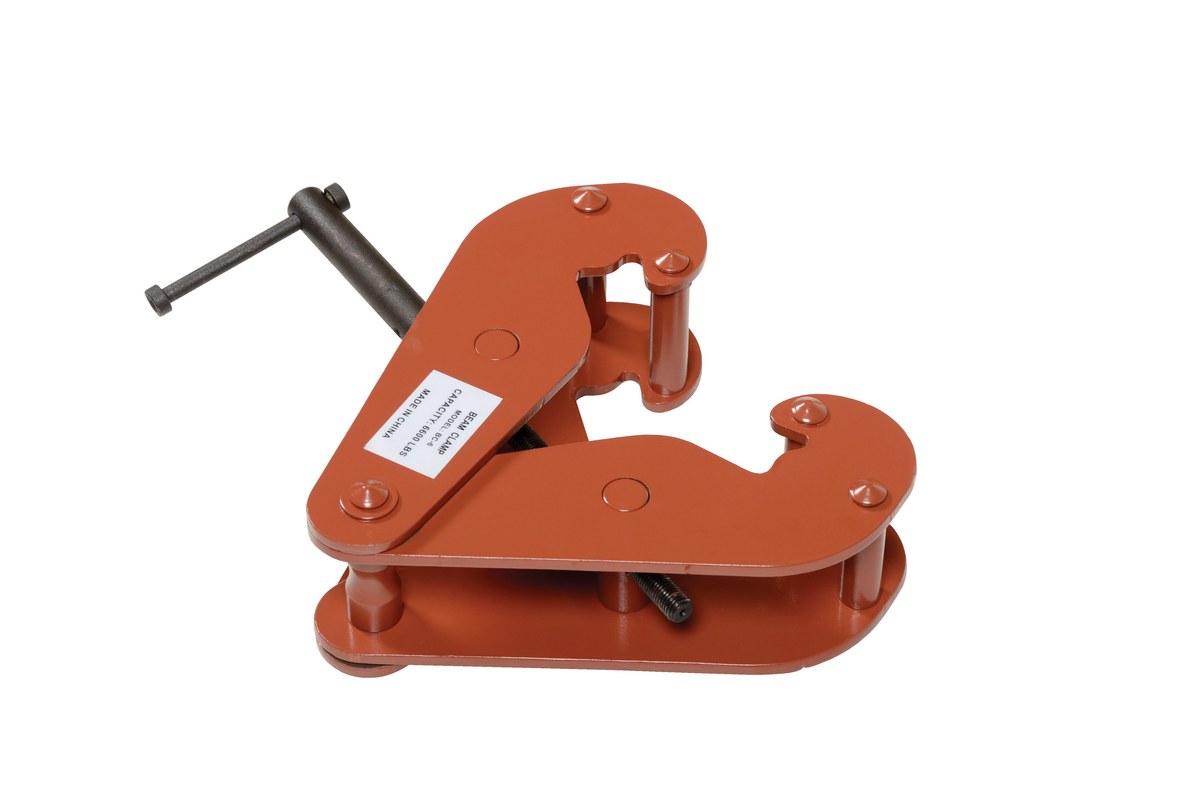

BC-6 BC-690 Days Limited WarrantySteel Beam Clamp Horizontal Lift Style 20-1/4 In. x 5-1/4 In. x 7-3/4 In. 6000 Lb. Capacity OrangeUniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3-1/2 to 12-1/4
28
BC-8 BC-890 Days Limited WarrantySteel Beam Clamp Horizontal Lift Style 21-1/4 In. x 5-1/4 In. x 7-3/4 In. 8000 Lb. Capacity OrangeUniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 3-1/2 to 12-1/4
38

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

BC-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 3-1/8 to 9-5/8
Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 3-1/8 to 9-5/8

BC-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Fits Beam Flange Width (in.): 3-1/2 to 12-1/4
Uniform Capacity (lb.): 10000
Fits Beam Flange Width (in.): 3-1/2 to 12-1/4

BC-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 3-1/8 to 9-5/8
Uniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 3-1/8 to 9-5/8

BC-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3-1/8 to 9-5/8
Uniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3-1/8 to 9-5/8

BC-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3-1/2 to 12-1/4
Uniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3-1/2 to 12-1/4

BC-8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 3-1/2 to 12-1/4
Uniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 3-1/2 to 12-1/4

Beam Clamps PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


BC-1

BC-10

BC-2

BC-4

BC-6

BC-8

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What is the length dimension of a BC-1 from the I-beam clamping point to the bottom of the clamp?

A: The dimension is dependent on the width of beam that it is installed on. Here are some measurements as reference. Closed end of range 6". In the middle of its range 5". Open end of range 4".
