Product Family Overview


Quick Install Manual Trollies
SERIES: QIT

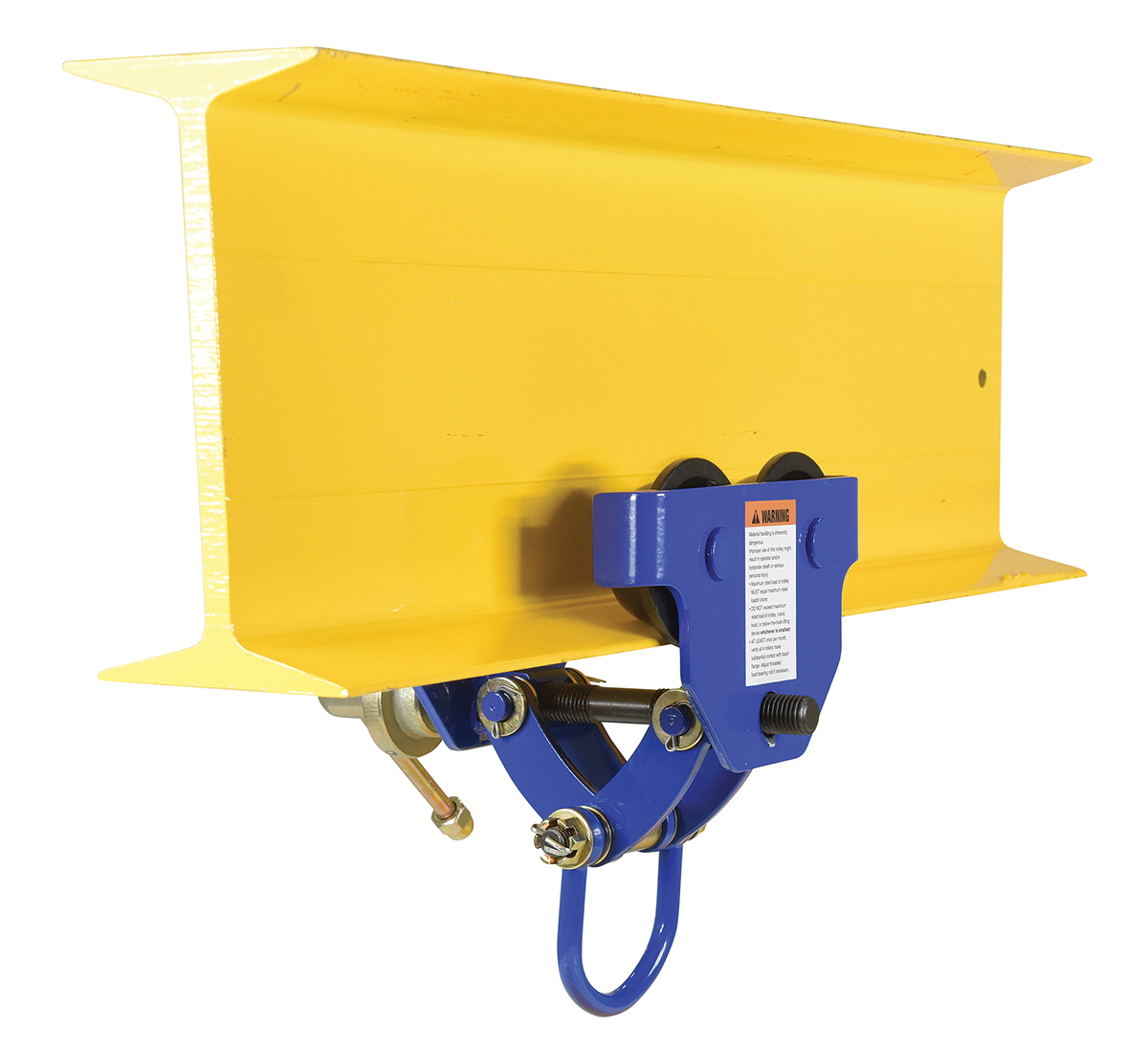

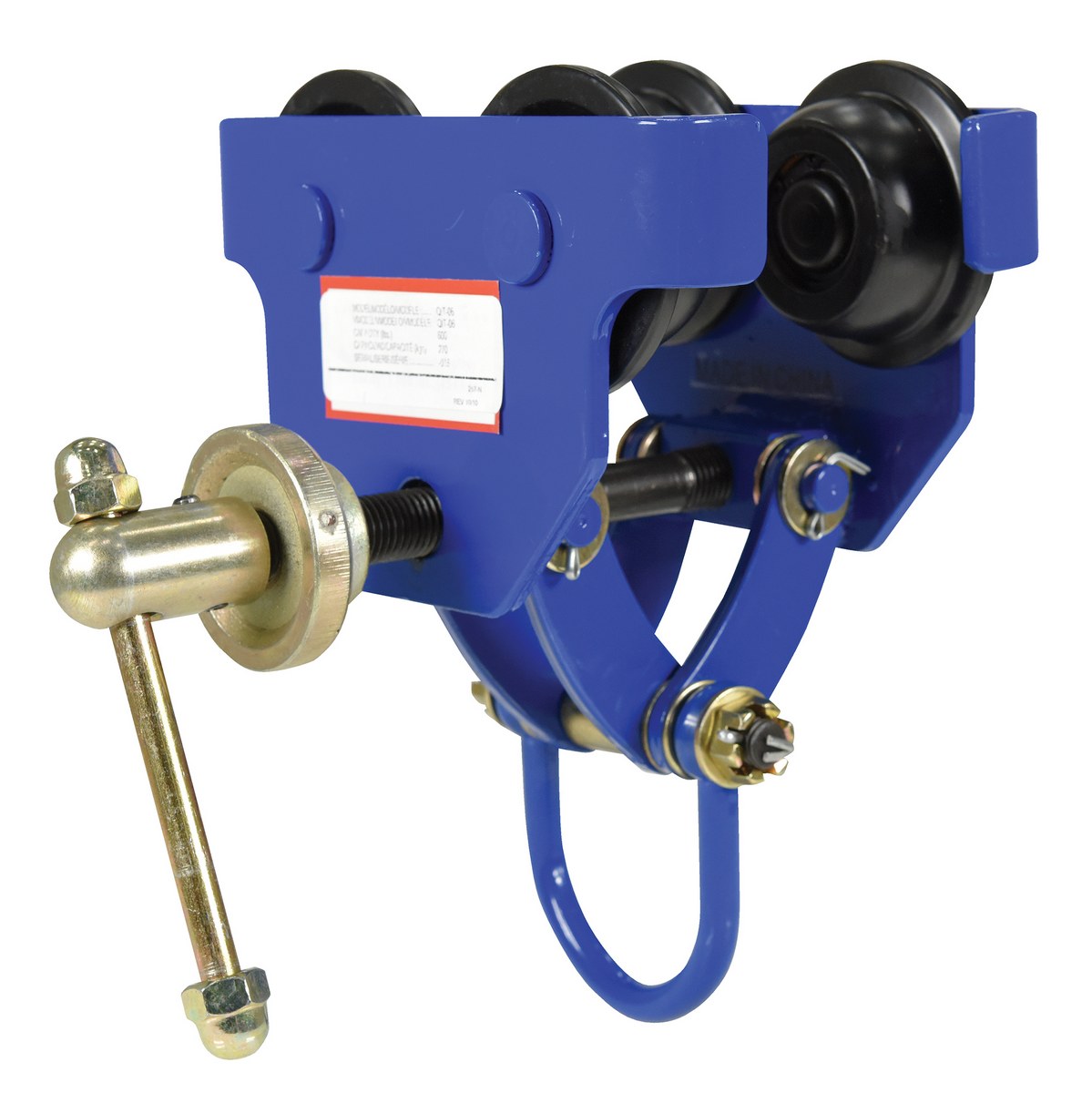

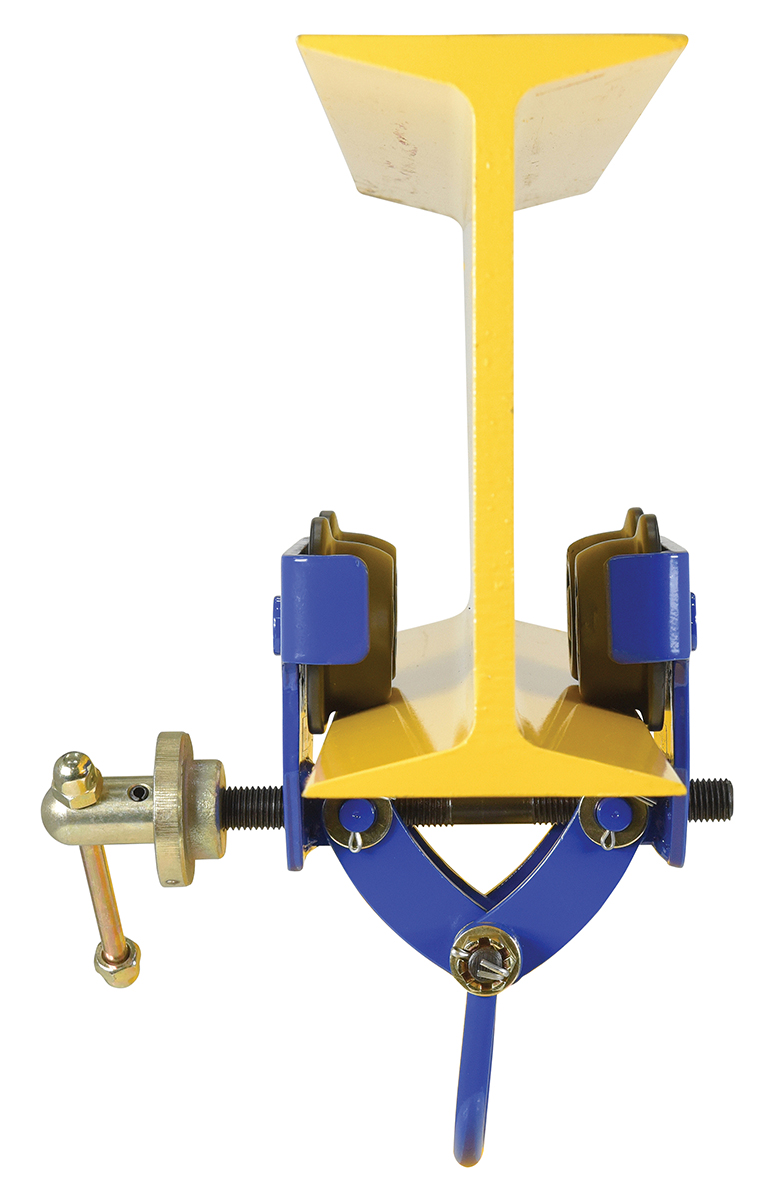

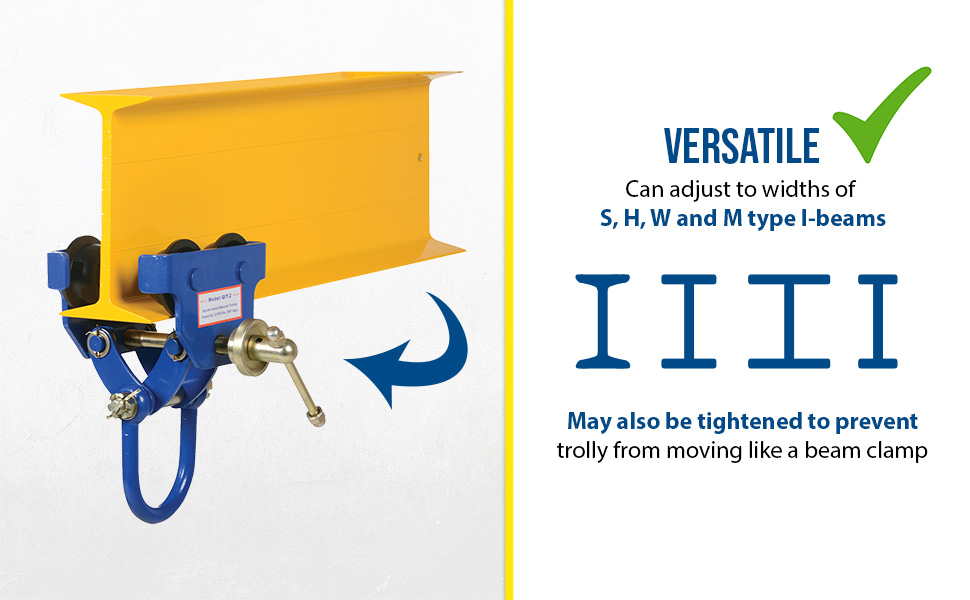

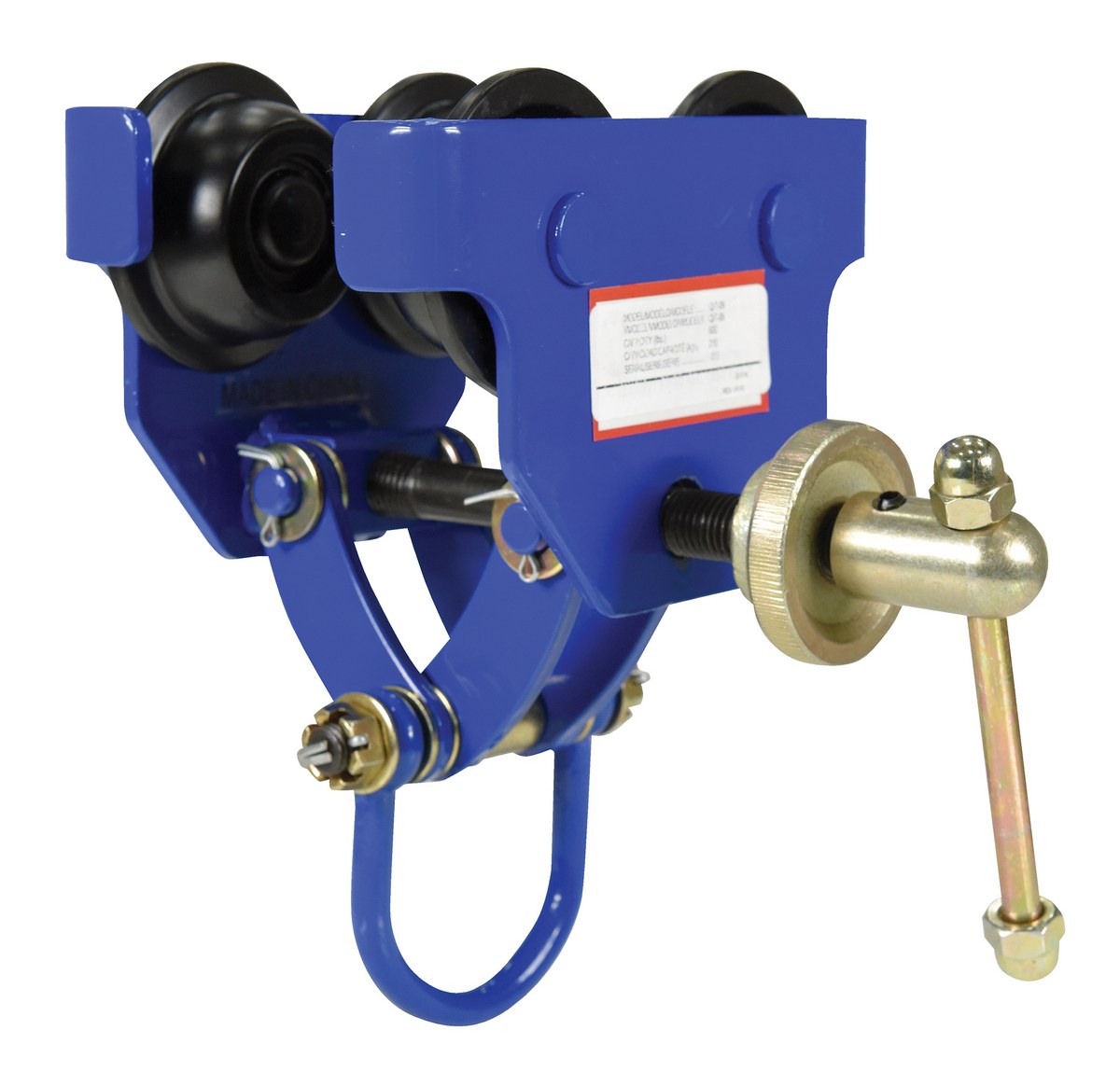

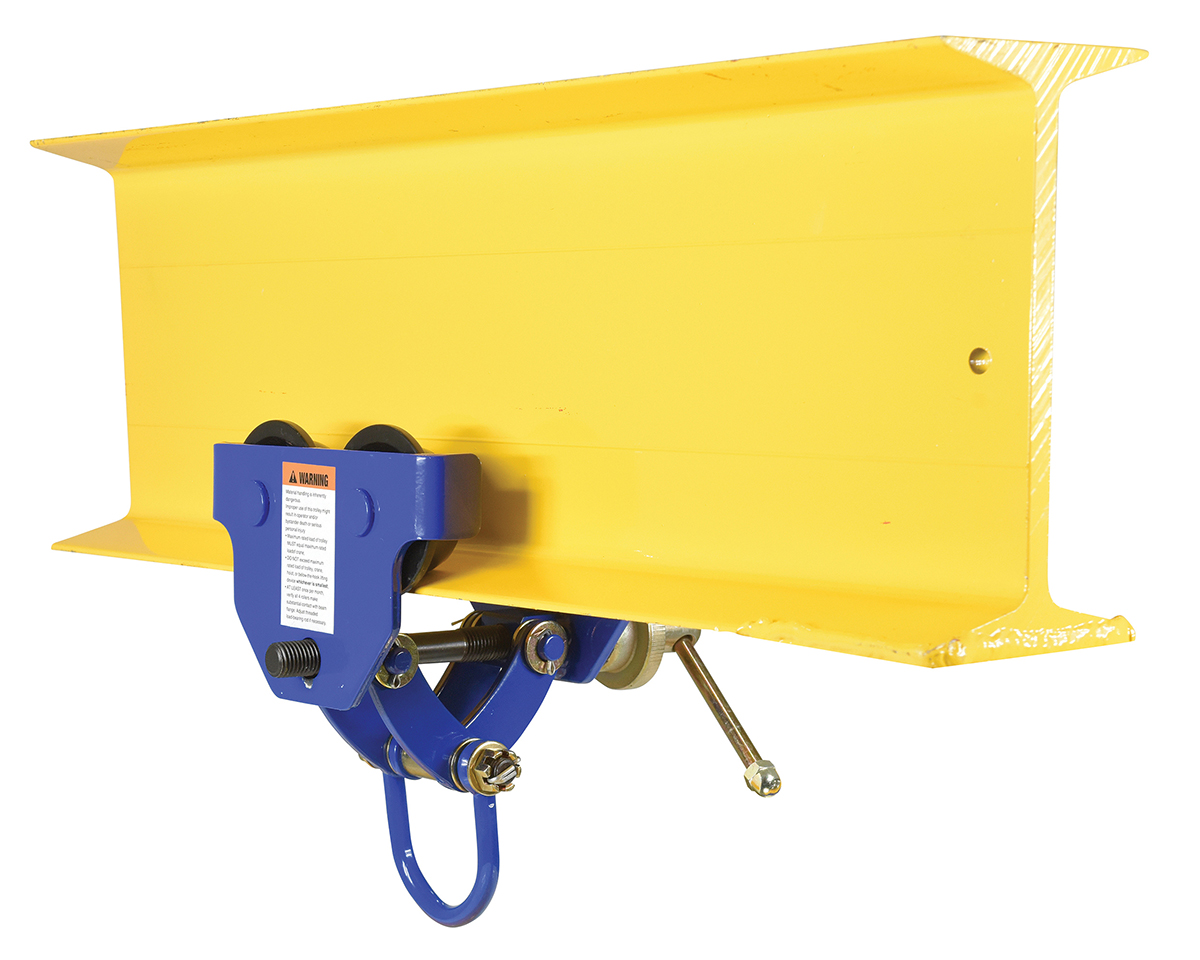

QIT-06These trollies are dependable, easy and safe to use. Designed to easily adjust to the width of virtually any S, H, W and M type I-beam. Width is adjusted with manual screw mechanism. Includes locking ring to prevent trolley width from changing accidentally. Manual screw mechanism may also be tightened to prevent trolley from moving (similar to a Beam Clamp). Each trolley includes four rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching to a hoist (hoist sold separately). Steel construction and painted finish.

  • Manual adjusting screw with locking collar for quick and easy width adjustment
  • Locking ring prevents trolley width from changing accidentally
  • Sealed bearing rollers provide long life
  • Lifting eye is located at the bottom of the trolley for safe hoist attachment

QIT-06These trollies are dependable, easy and safe to use. Designed to easily adjust to the width of virtually any S, H, W and M type I-beam. Width is adjusted with manual screw mechanism. Includes locking ring to prevent trolley width from changing accidentally. Manual screw mechanism may also be tightened to prevent trolley from moving (similar to a Beam Clamp). Each trolley includes four rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching to a hoist (hoist sold separately). Steel construction and painted finish.

  • Manual adjusting screw with locking collar for quick and easy width adjustment
  • Locking ring prevents trolley width from changing accidentally
  • Sealed bearing rollers provide long life
  • Lifting eye is located at the bottom of the trolley for safe hoist attachment

Additional Models In This Family

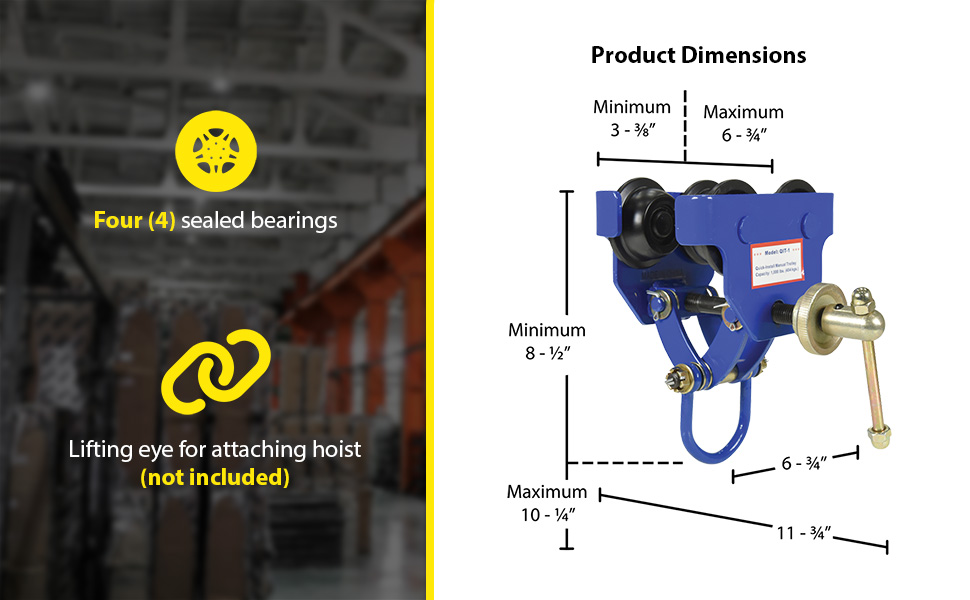

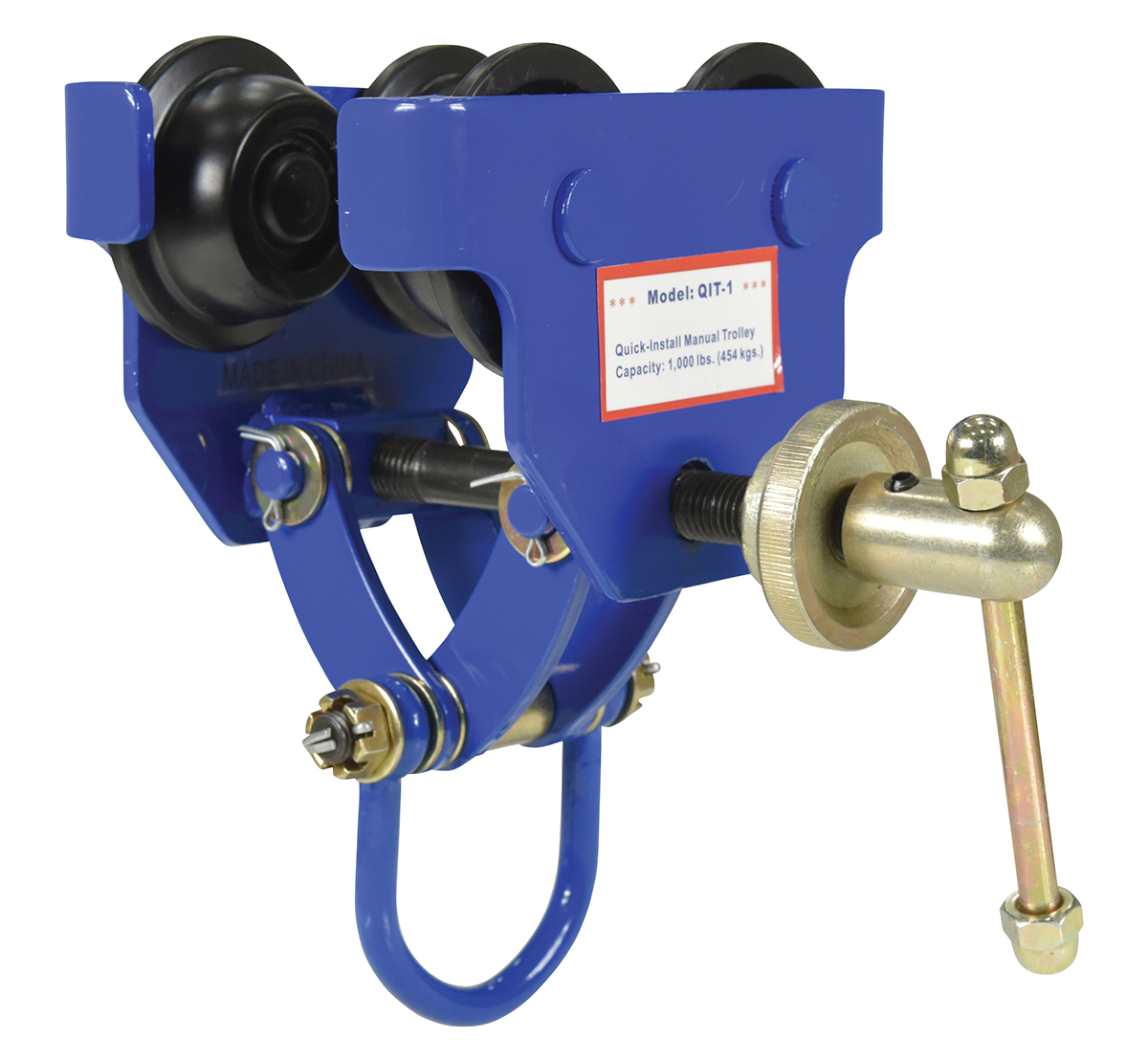

QIT-1

model QIT-1

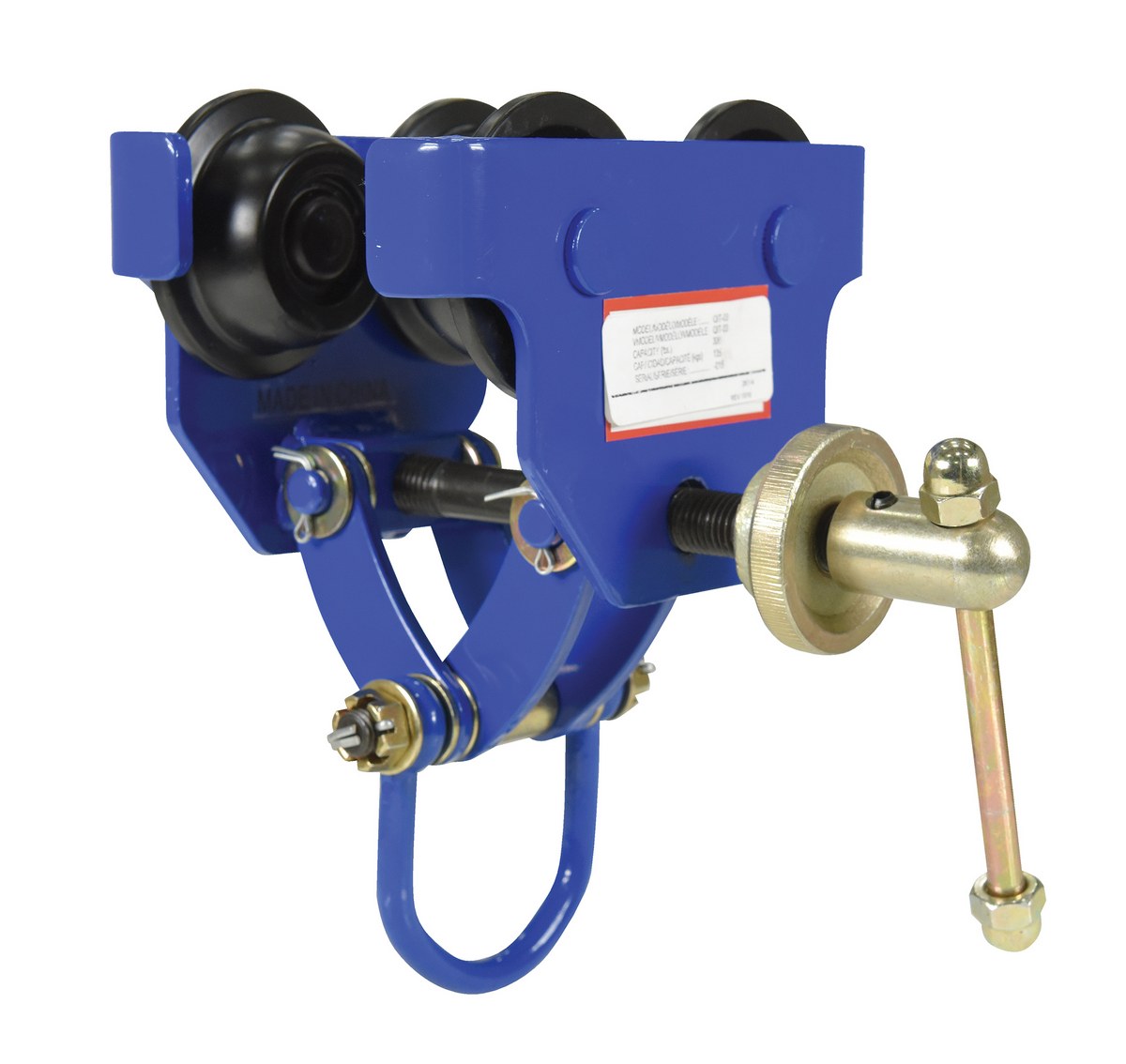

QIT-03

model QIT-03

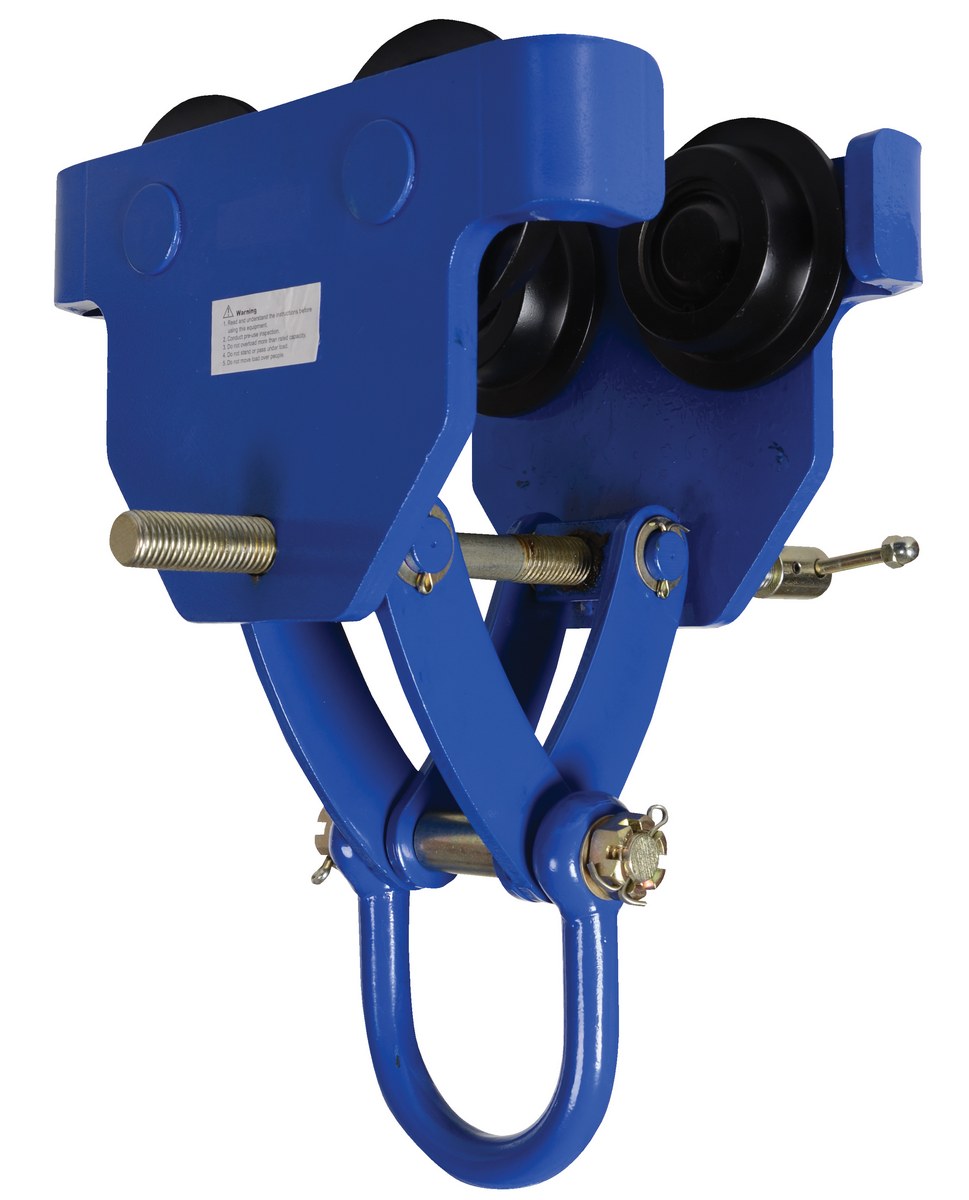

QIT-8

model QIT-8

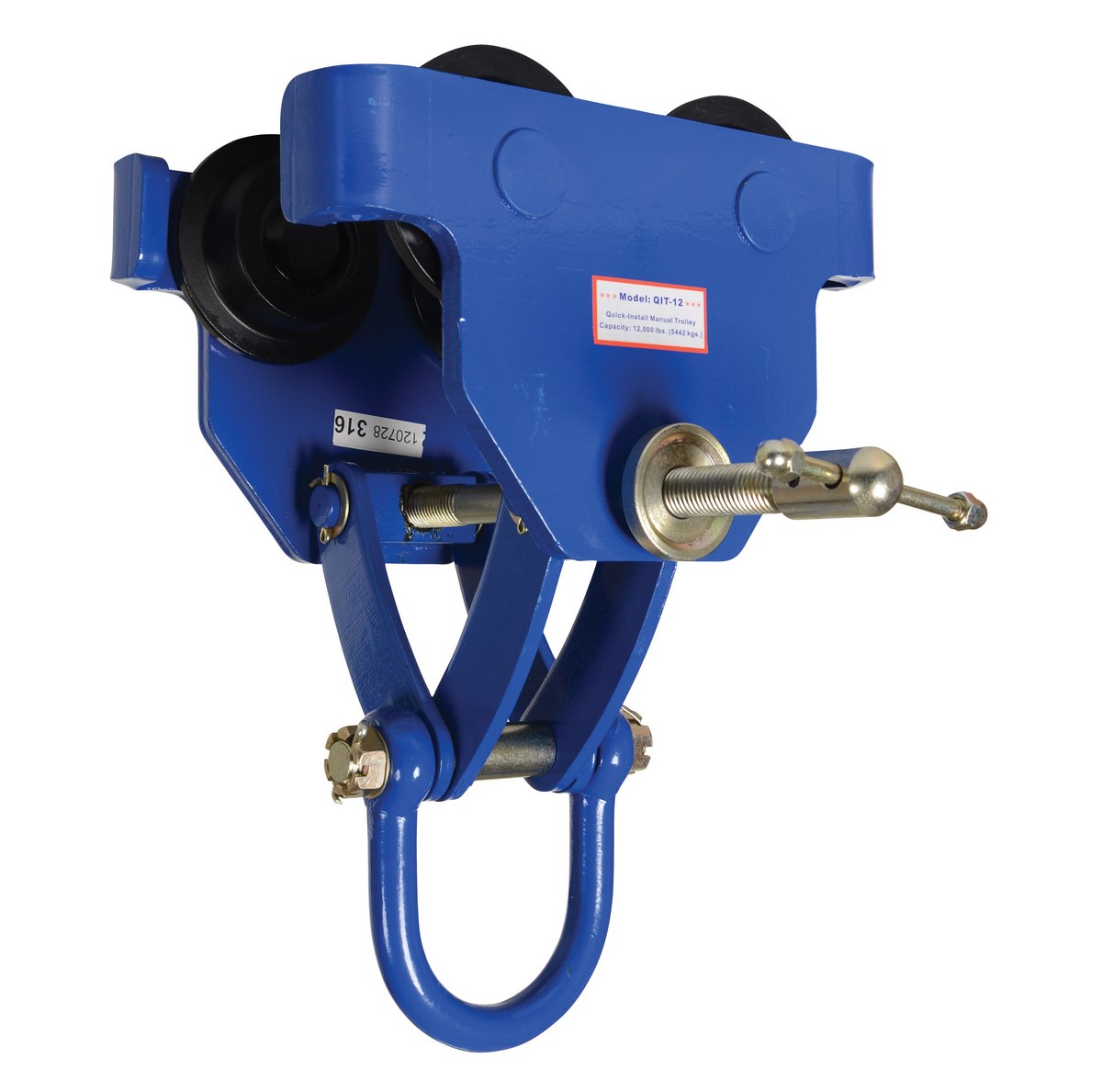

QIT-12

model QIT-12

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

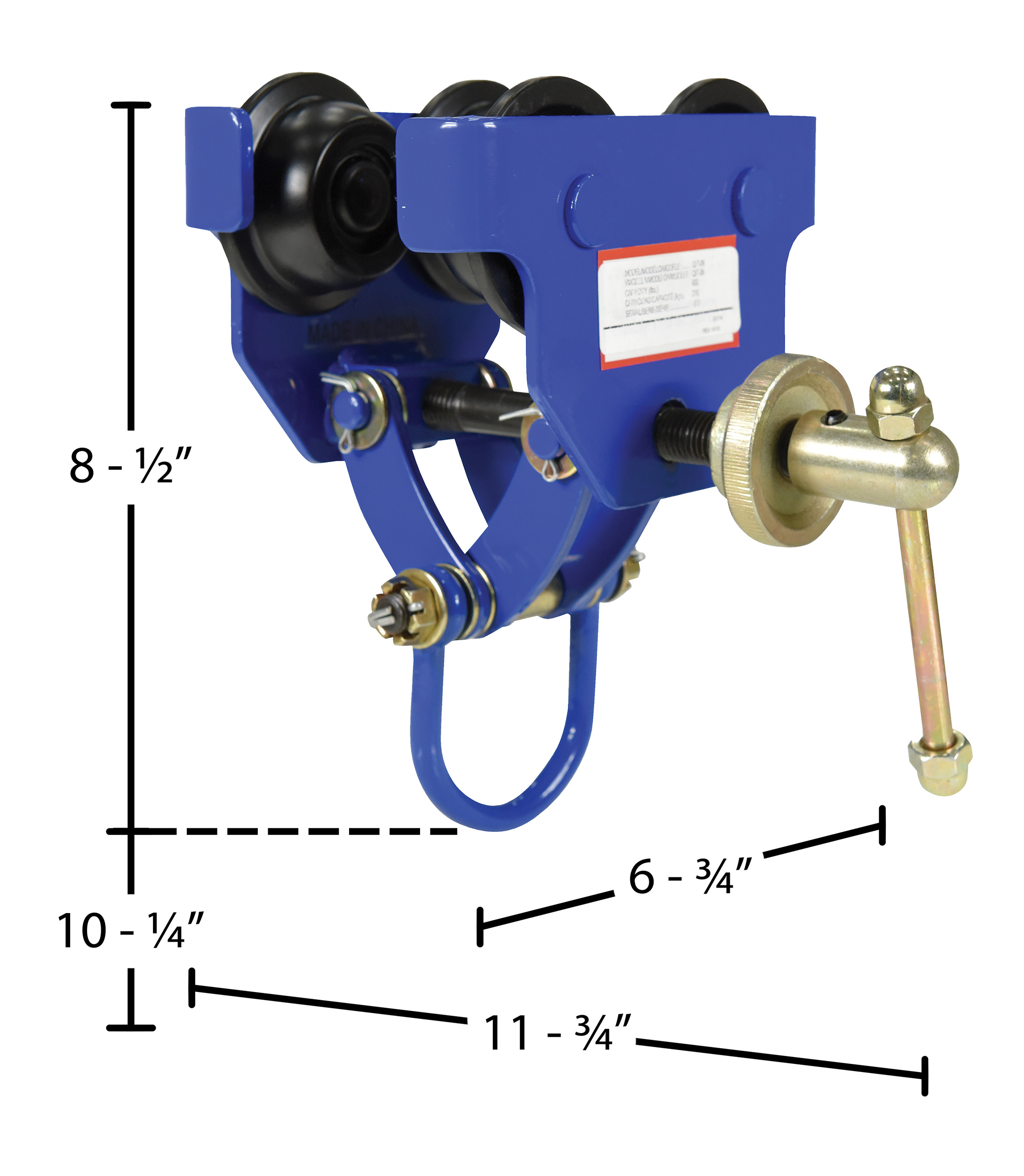

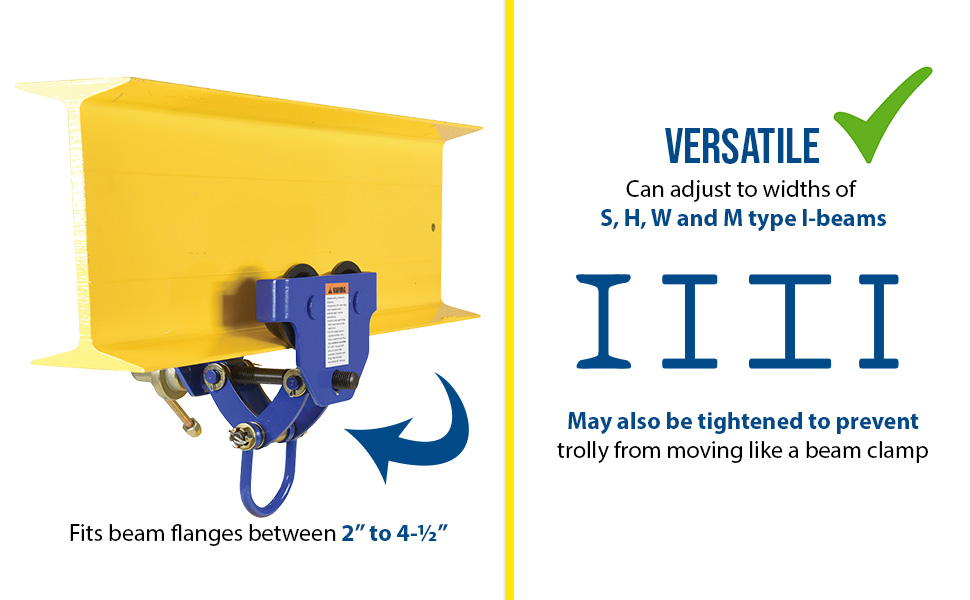

QIT-03 QIT-0390 Days Limited WarrantySteel Quick Install Manual Trolley 6-3/4 In. x 11-3/4 In. x 10-1/4 In. 300 Lb. Capacity BlueUniform Capacity (lb.): 300
Fits Beam Flange Width (in.): 3 to 5
13

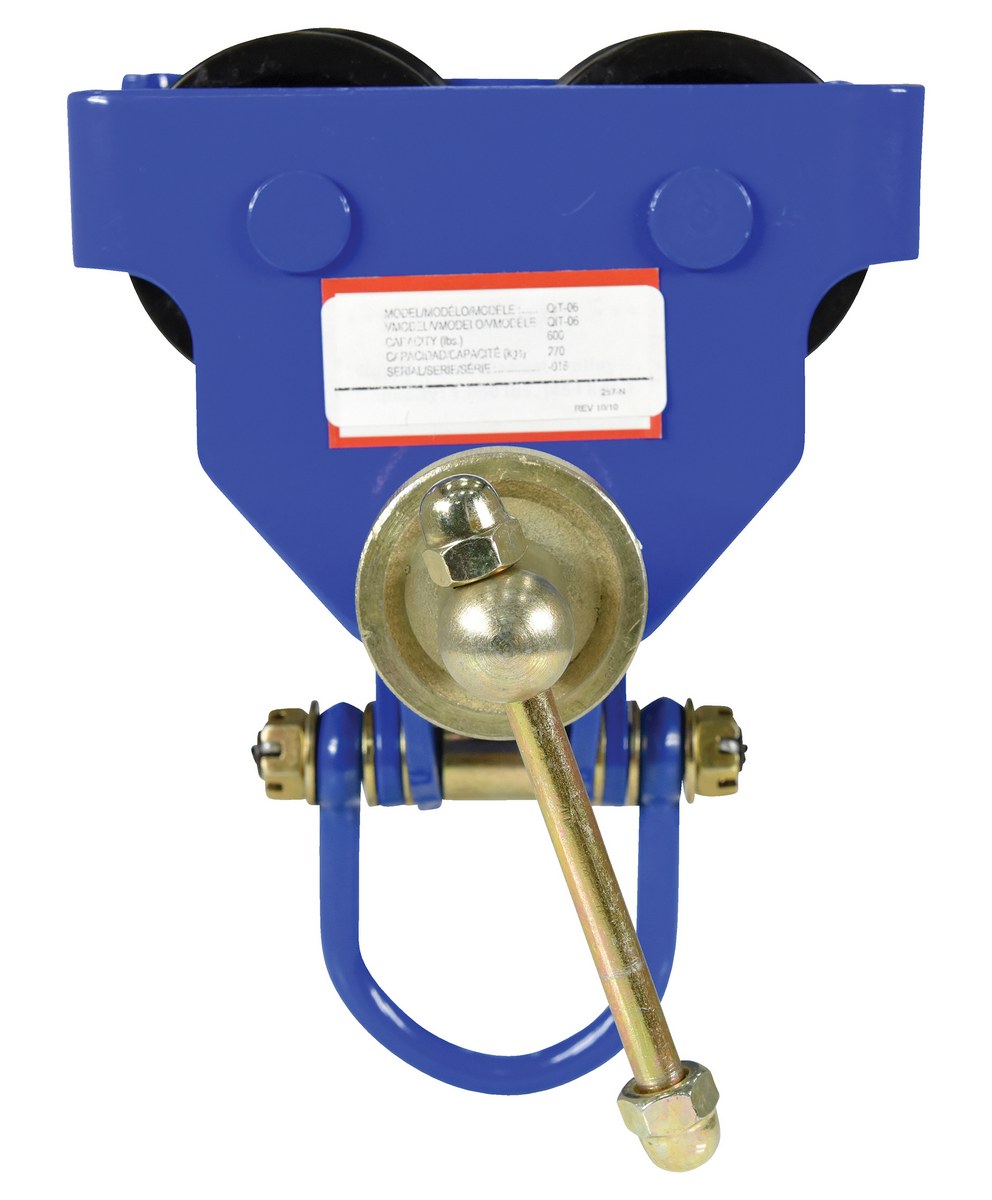

QIT-06 QIT-0690 Days Limited WarrantySteel Quick Install Manual Trolley 6-3/4 In. x 11-3/4 In. x 10-1/4 In. 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Fits Beam Flange Width (in.): 3 to 5
13

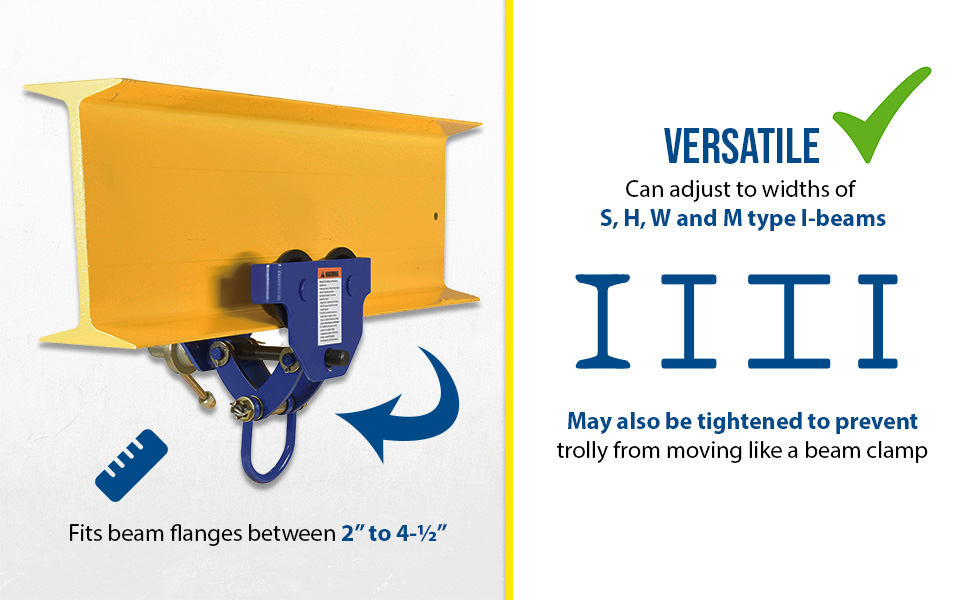

QIT-1 QIT-190 Days Limited WarrantySteel Quick Install Manual Trolley 6-3/4 In. x 11-3/4 In. x 10-1/4 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 3 to 5
13
QIT-10 QIT-1090 Days Limited WarrantySteel Quick Install Manual Trolley 13-5/8 In. x 20-3/16 In. x 20-3/8 In. 10000 Lb. Capacity BlueUniform Capacity (lb.): 10,000
Fits Beam Flange Width (in.): 4 to 11-3/4
68
QIT-12 QIT-1290 Days Limited WarrantySteel Quick Install Manual Trolley 13-5/8 In. x 20-3/16 In. x 20-3/8 In. 12000 Lb. Capacity BlueUniform Capacity (lb.): 12,000
Fits Beam Flange Width (in.): 4 to 11-3/4
70

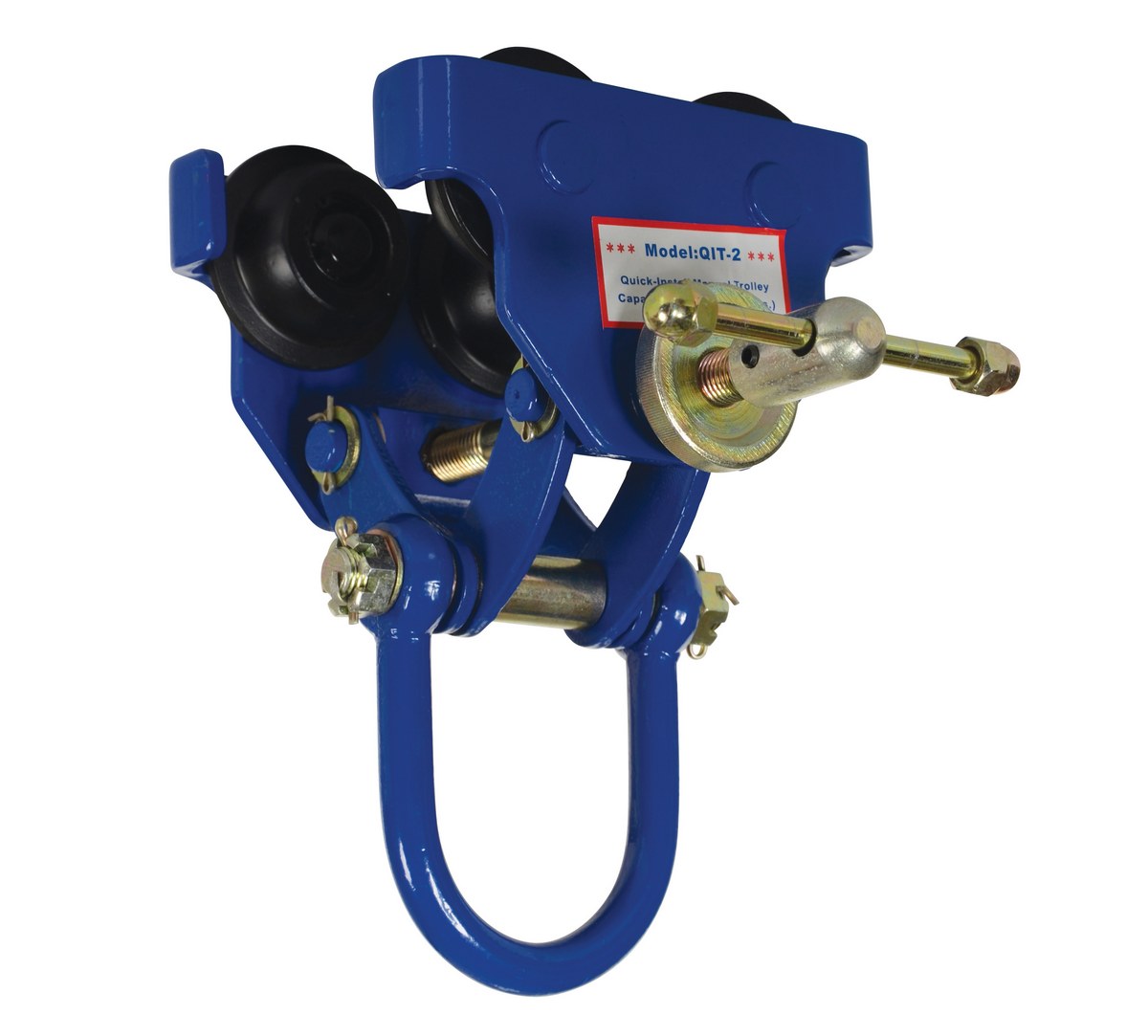

QIT-2 QIT-290 Days Limited WarrantySteel Quick Install Manual Trolley 7 In. x 11-5/8 In. x 12 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 3 to 5
14

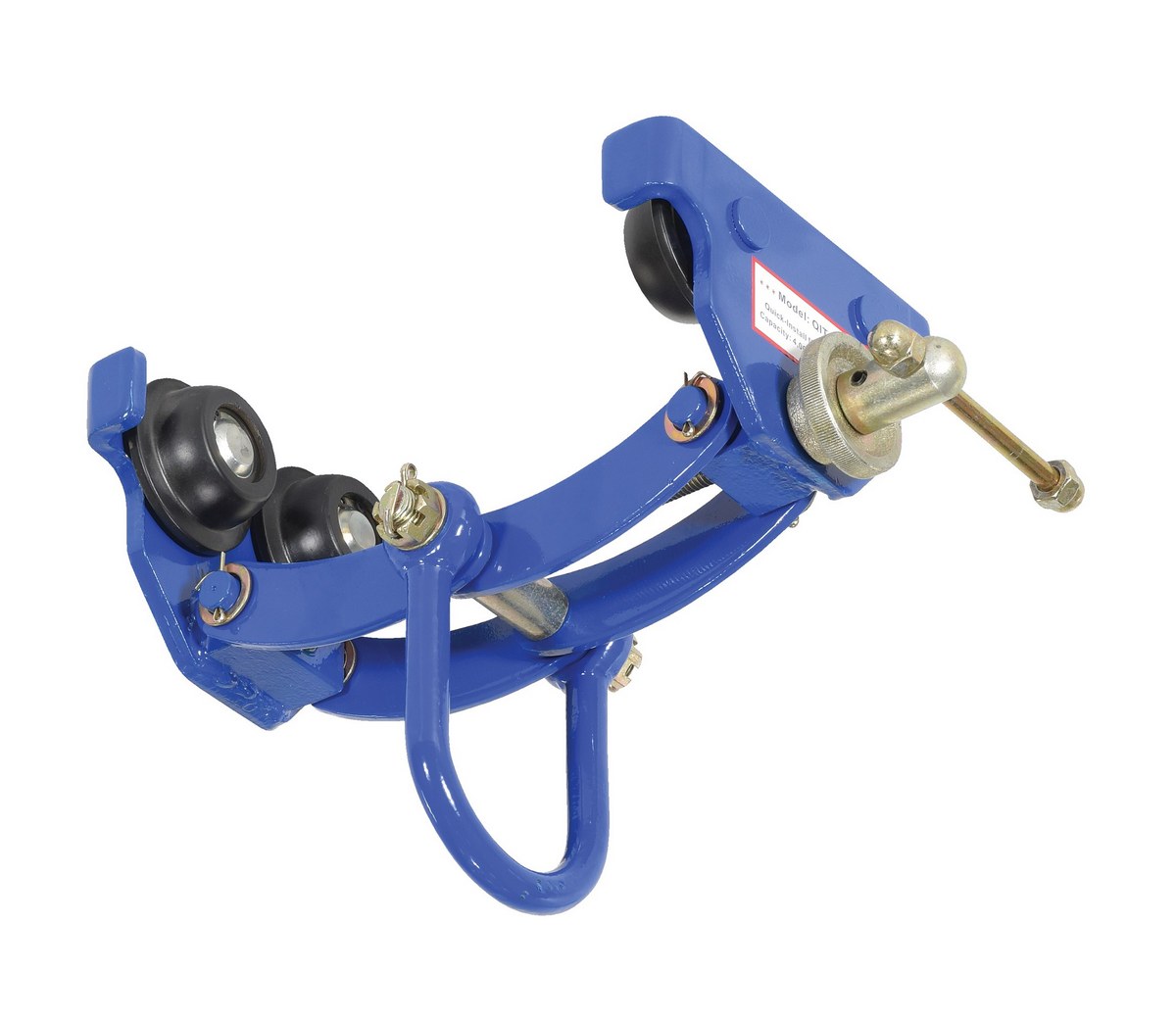

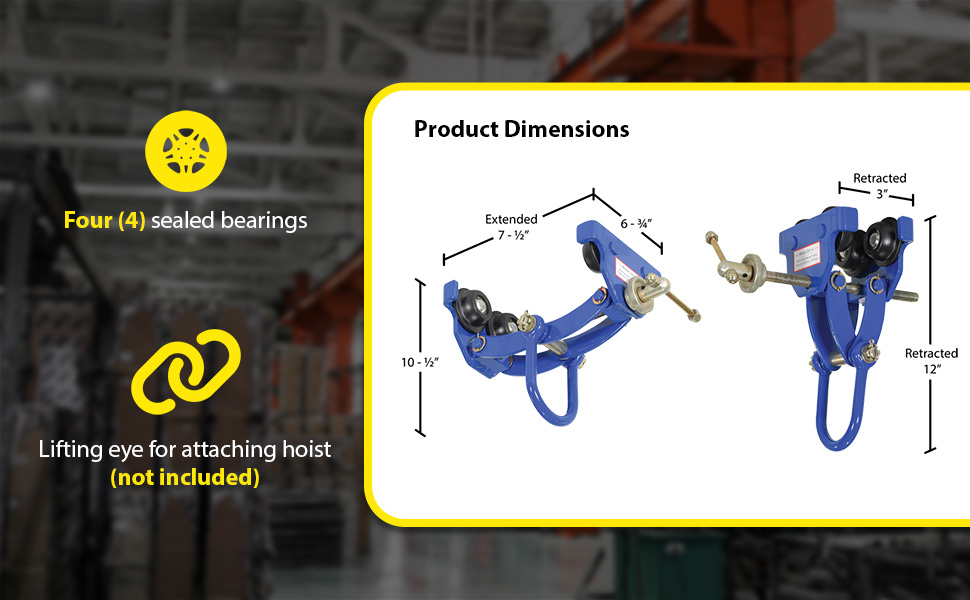

QIT-4 QIT-490 Days Limited WarrantySteel Quick Install Manual Trolley 6-3/4 In. x 14-1/8 In. x 12 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3 to 7-1/2
17

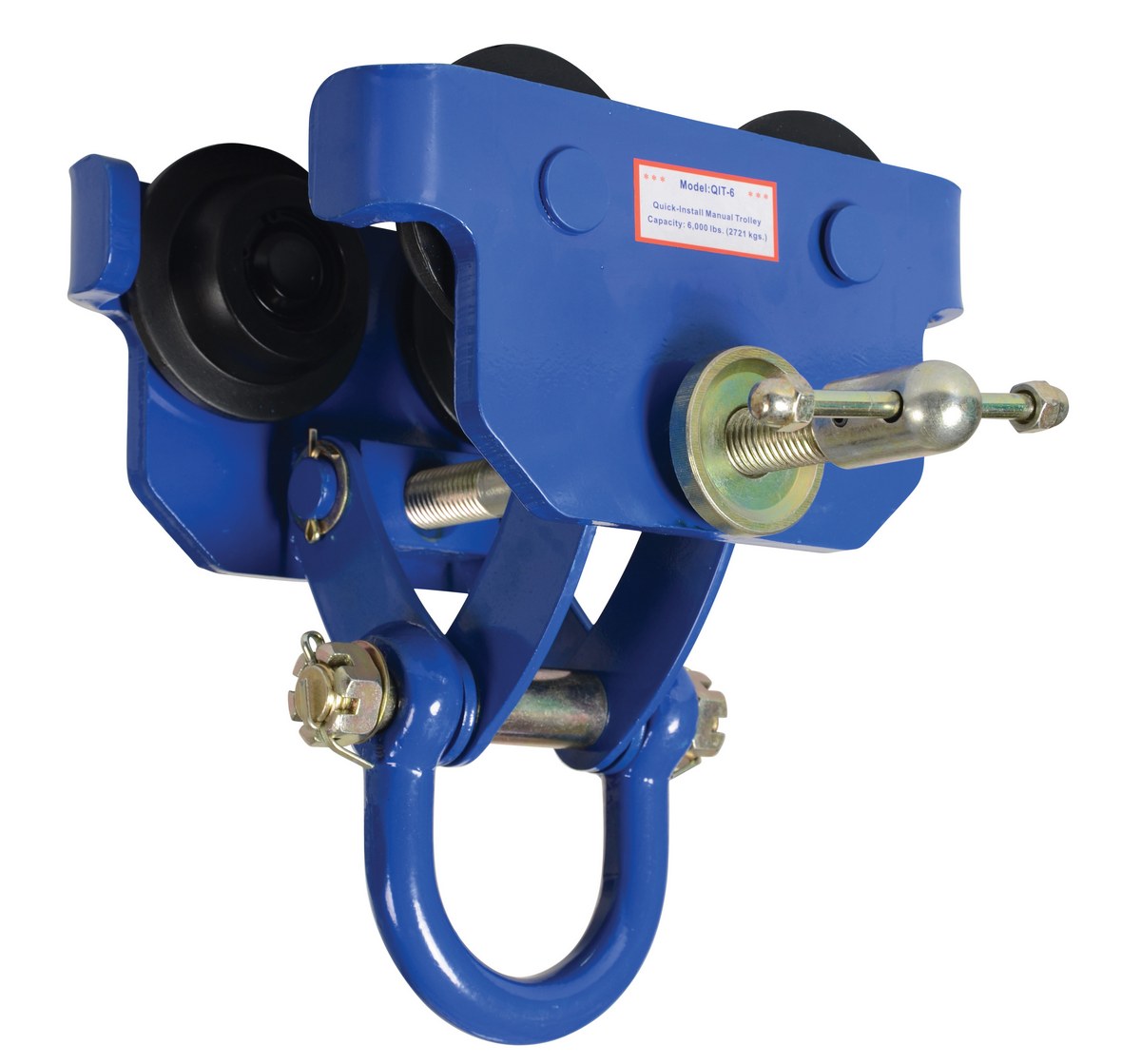

QIT-6 QIT-690 Days Limited WarrantySteel Quick Install Manual Trolley 11 In. x 16-7/8 In. x 14-9/16 In. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3 to 7-1/2
43
QIT-8 QIT-890 Days Limited WarrantySteel Quick Install Manual Trolley 13-5/8 In. x 20-3/16 In. x 20-3/8 In. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 4 to 11-3/4
68

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

QIT-03
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 300
Fits Beam Flange Width (in.): 3 to 5
Uniform Capacity (lb.): 300
Fits Beam Flange Width (in.): 3 to 5

QIT-06
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Fits Beam Flange Width (in.): 3 to 5
Uniform Capacity (lb.): 600
Fits Beam Flange Width (in.): 3 to 5

QIT-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 3 to 5
Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 3 to 5

QIT-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Fits Beam Flange Width (in.): 4 to 11-3/4
Uniform Capacity (lb.): 10,000
Fits Beam Flange Width (in.): 4 to 11-3/4

QIT-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 12,000
Fits Beam Flange Width (in.): 4 to 11-3/4
Uniform Capacity (lb.): 12,000
Fits Beam Flange Width (in.): 4 to 11-3/4

QIT-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 3 to 5
Uniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 3 to 5

QIT-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3 to 7-1/2
Uniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3 to 7-1/2

QIT-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3 to 7-1/2
Uniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3 to 7-1/2

QIT-8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 4 to 11-3/4
Uniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 4 to 11-3/4

Quick Install Manual Trollies PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


QIT-03

QIT-06

QIT-1

QIT-10

QIT-12

QIT-2

QIT-4

QIT-6

QIT-8

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Quick Install Manual Trollies




QIT-06These trollies are dependable, easy and safe to use. Designed to easily adjust to the width of virtually any S, H, W and M type I-beam. Width is adjusted with manual screw mechanism. Includes locking ring to prevent trolley width from changing accidentally. Manual screw mechanism may also be tightened to prevent trolley from moving (similar to a Beam Clamp). Each trolley includes four rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching to a hoist (hoist sold separately). Steel construction and painted finish.

  • Manual adjusting screw with locking collar for quick and easy width adjustment
  • Locking ring prevents trolley width from changing accidentally
  • Sealed bearing rollers provide long life
  • Lifting eye is located at the bottom of the trolley for safe hoist attachment


Model # Description Attributes Net Wt.
(lbs)
QIT-03 QIT-03Steel Quick Install Manual Trolley 6-3/4 In. x 11-3/4 In. x 10-1/4 In. 300 Lb. Capacity BlueUniform Capacity (lb.): 300
Fits Beam Flange Width (in.): 3 to 5
13
QIT-06 QIT-06Steel Quick Install Manual Trolley 6-3/4 In. x 11-3/4 In. x 10-1/4 In. 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Fits Beam Flange Width (in.): 3 to 5
13
QIT-1 QIT-1Steel Quick Install Manual Trolley 6-3/4 In. x 11-3/4 In. x 10-1/4 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 3 to 5
13
QIT-10 QIT-10Steel Quick Install Manual Trolley 13-5/8 In. x 20-3/16 In. x 20-3/8 In. 10000 Lb. Capacity BlueUniform Capacity (lb.): 10,000
Fits Beam Flange Width (in.): 4 to 11-3/4
68
QIT-12 QIT-12Steel Quick Install Manual Trolley 13-5/8 In. x 20-3/16 In. x 20-3/8 In. 12000 Lb. Capacity BlueUniform Capacity (lb.): 12,000
Fits Beam Flange Width (in.): 4 to 11-3/4
70
QIT-2 QIT-2Steel Quick Install Manual Trolley 7 In. x 11-5/8 In. x 12 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 3 to 5
14
QIT-4 QIT-4Steel Quick Install Manual Trolley 6-3/4 In. x 14-1/8 In. x 12 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3 to 7-1/2
17
QIT-6 QIT-6Steel Quick Install Manual Trolley 11 In. x 16-7/8 In. x 14-9/16 In. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3 to 7-1/2
43
QIT-8 QIT-8Steel Quick Install Manual Trolley 13-5/8 In. x 20-3/16 In. x 20-3/8 In. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 4 to 11-3/4
68
