Product Family Overview

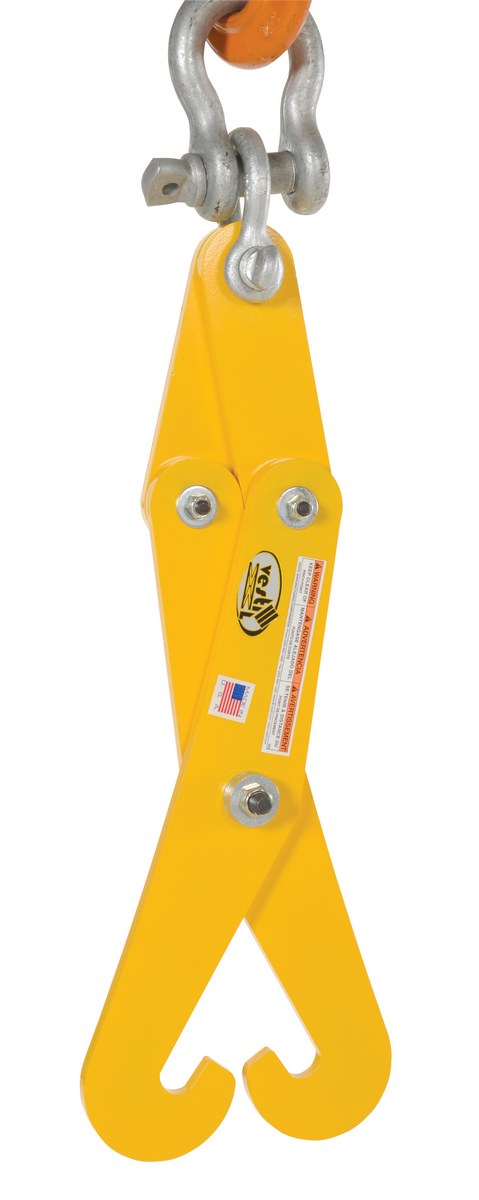

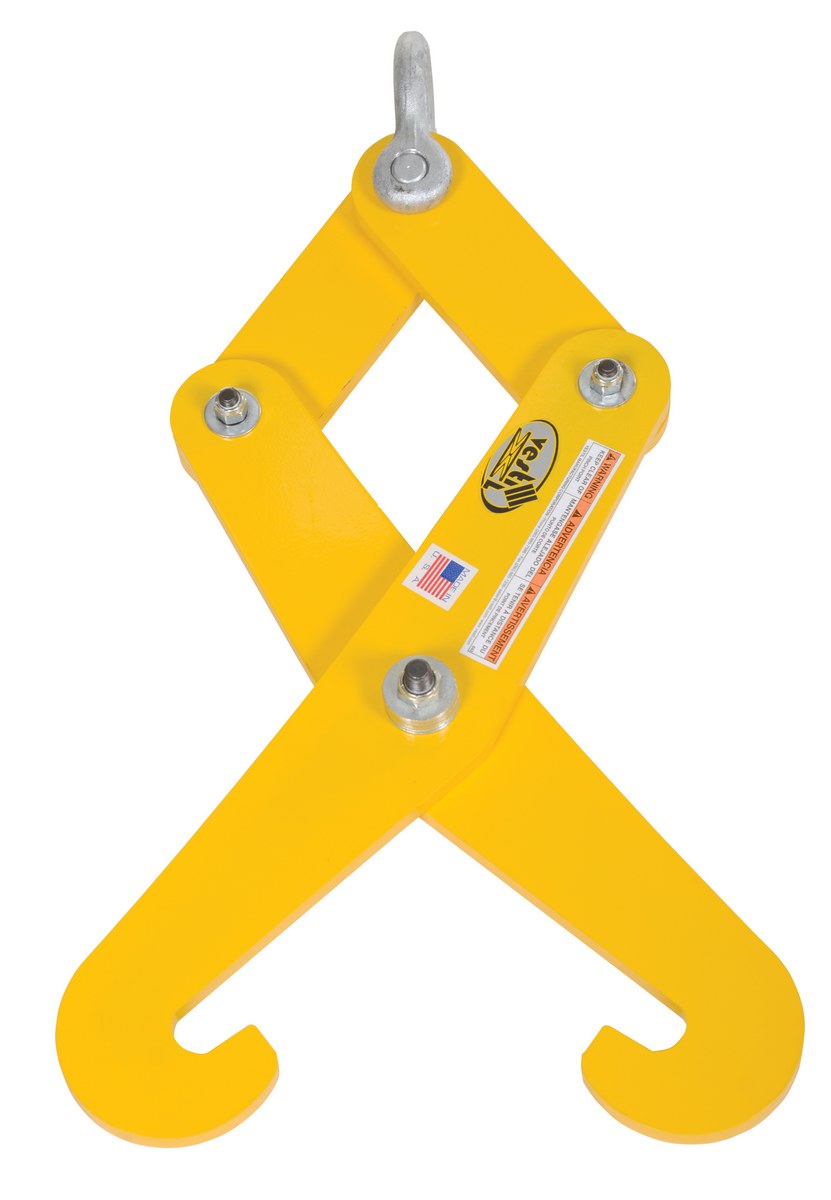

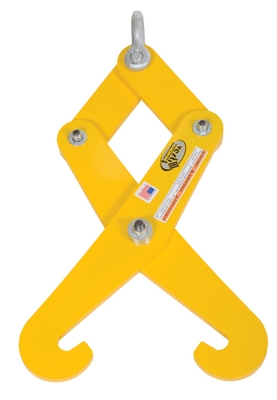

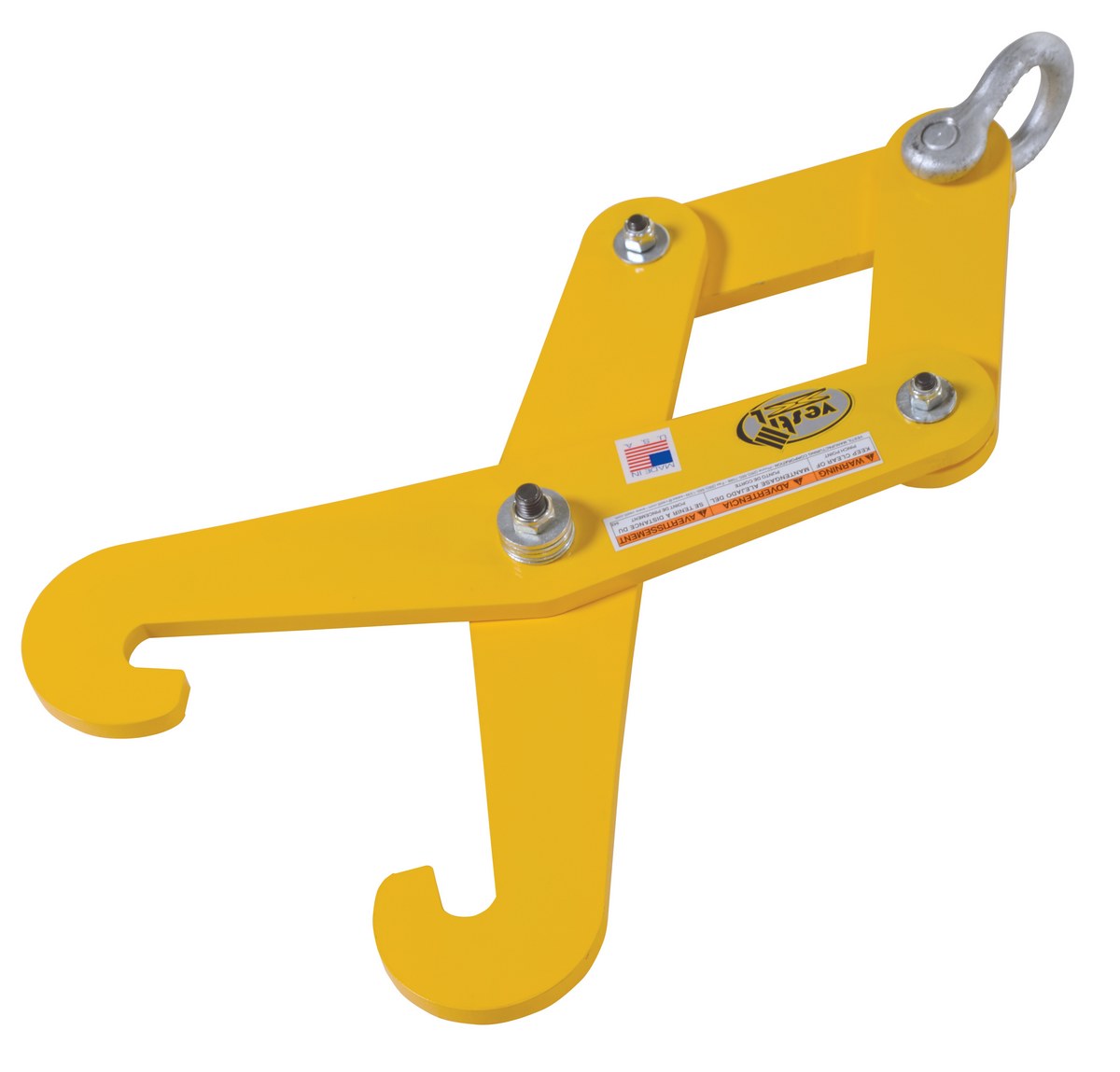

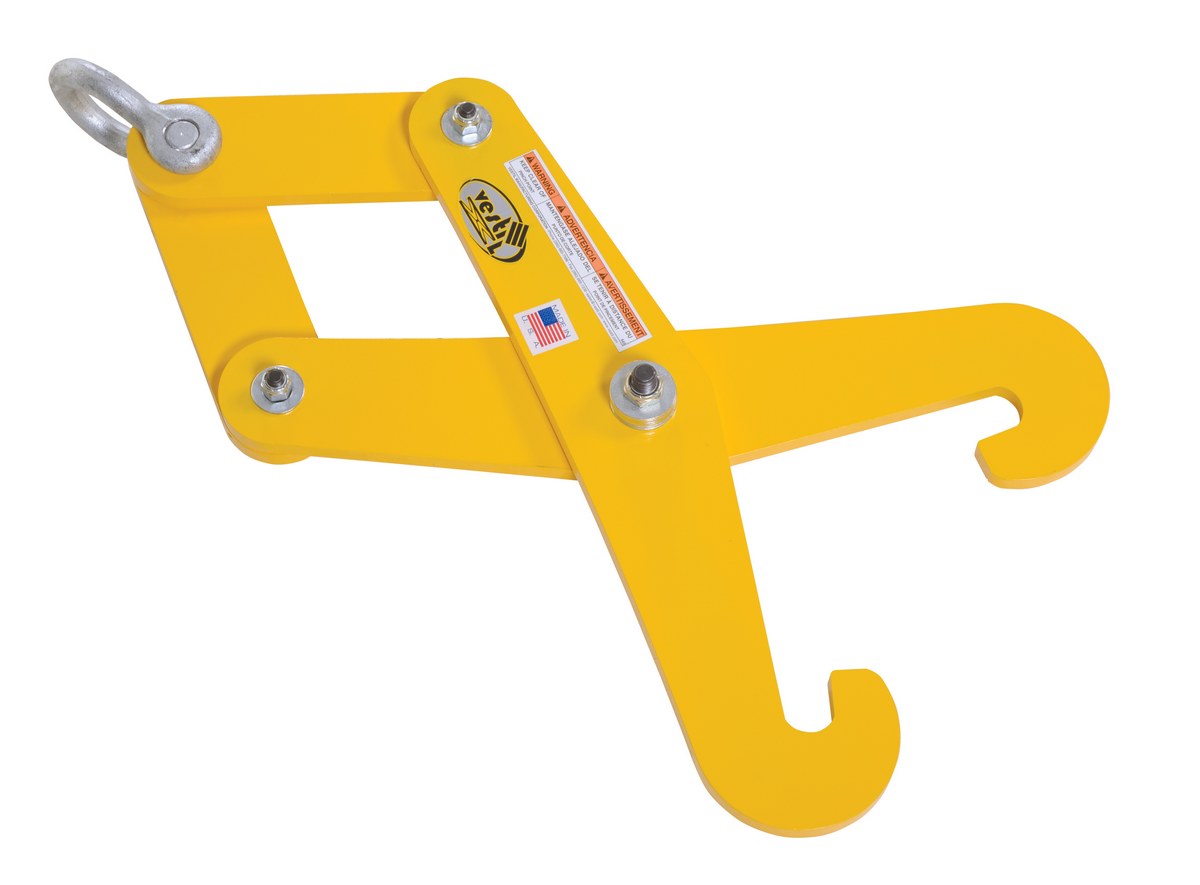

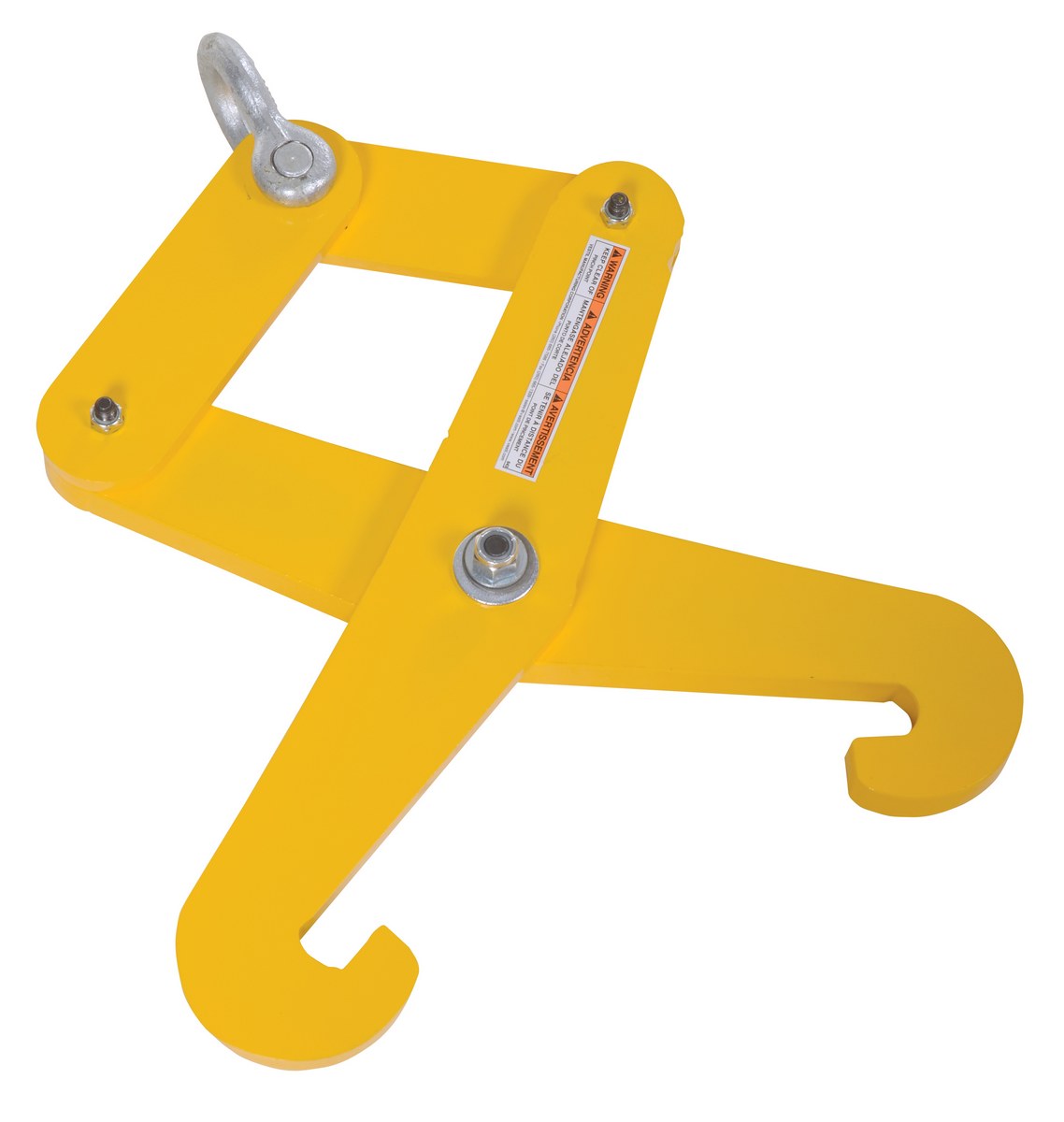

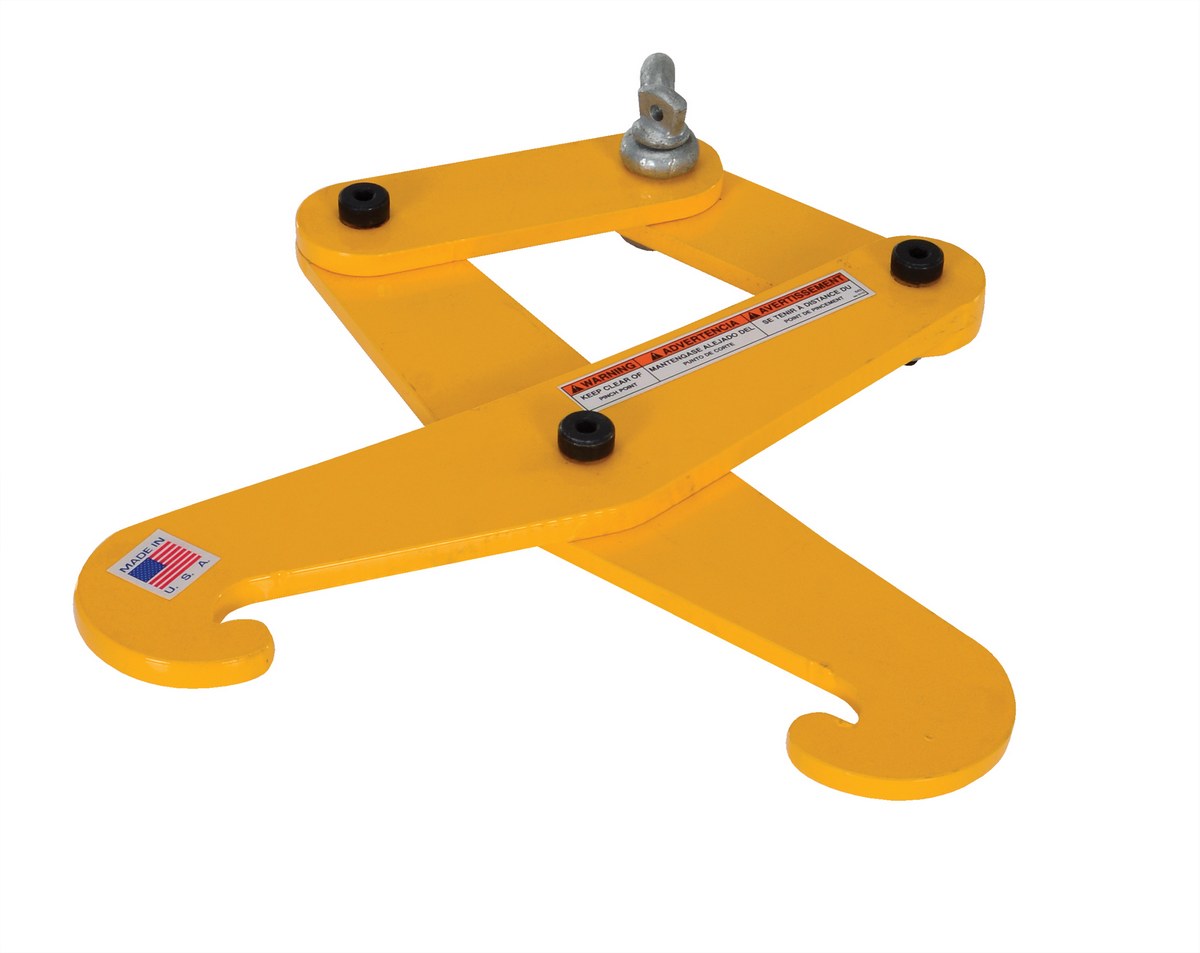

Heavy-Duty Beam Tongs
SERIES: BT

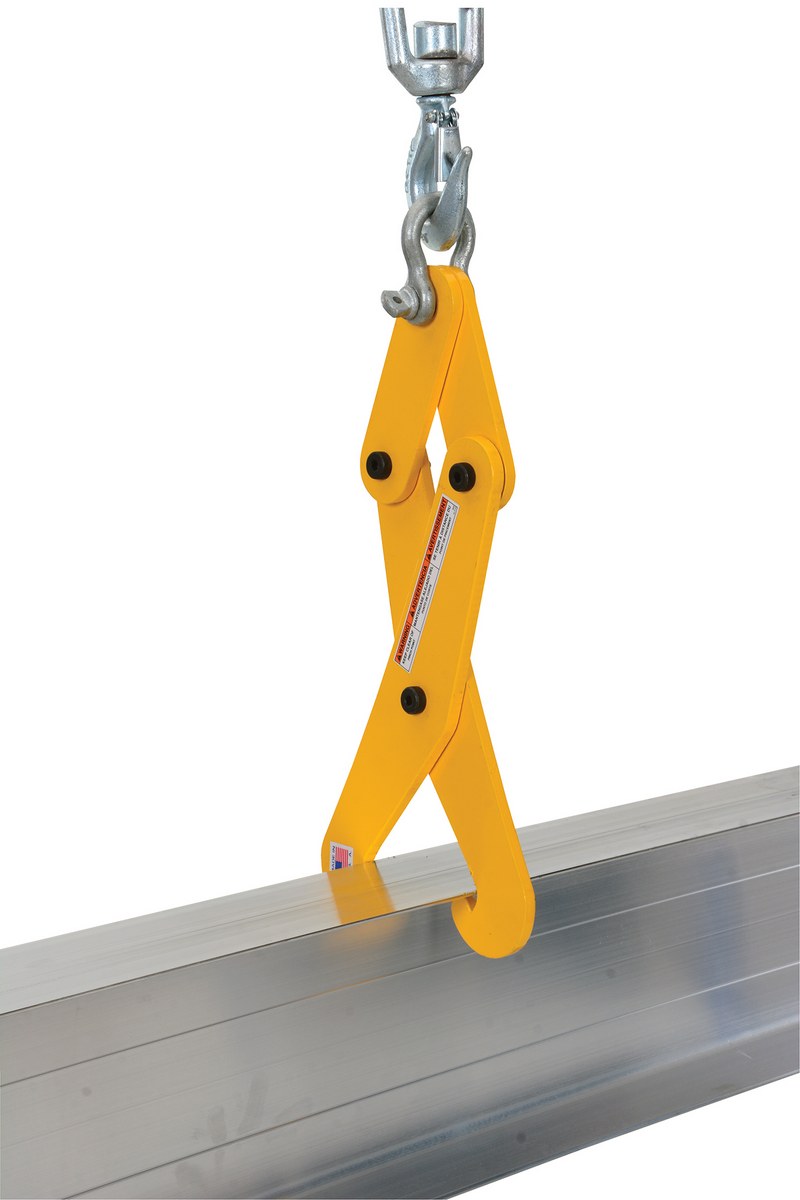

The heavy duty beam tong are designed to lift I-beams in conjunction with overhead lifting devices. The scissor style design, utilizes the weight of the products being lifted for a more stable grip. Loads need to be centered and guided during lifting operation.

  • Includes 2 ton clevis
  • Manufactured to ASME B30.20 standards
  • Variable open and closed widths
  • Powder coated yellow finish

The heavy duty beam tong are designed to lift I-beams in conjunction with overhead lifting devices. The scissor style design, utilizes the weight of the products being lifted for a more stable grip. Loads need to be centered and guided during lifting operation.

  • Includes 2 ton clevis
  • Manufactured to ASME B30.20 standards
  • Variable open and closed widths
  • Powder coated yellow finish

Additional Models In This Family

BT-40

model BT-40

BT-60

model BT-60

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
BT-20 BT-2090 Days Limited WarrantySteel Heavy Duty Beam Tongs 6 In. Max Beam Width 3/4 In. x 9-3/4 In. x 20-7/8 In. 2000 Lb. Capacity YellowUniform Capacity (lb.): 2,000
Maximum Beam Width (in.): 6
12
BT-40 BT-4090 Days Limited WarrantySteel Heavy Duty Beam Tongs 8 In. Max Beam Width 1 In. x 12-7/16 In. x 22-1/2 In. 4000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Maximum Beam Width (in.): 8
21
BT-60 BT-6090 Days Limited WarrantySteel Heavy Duty Beam Tongs 10 In. Max Beam Width 1-1/2 In. x 14-9/16 In. x 25-1/8 In. 6000 Lb. Capacity YellowUniform Capacity (lb.): 6,000
Maximum Beam Width (in.): 10
27

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

BT-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Maximum Beam Width (in.): 6
Uniform Capacity (lb.): 2,000
Maximum Beam Width (in.): 6

BT-40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Maximum Beam Width (in.): 8
Uniform Capacity (lb.): 4,000
Maximum Beam Width (in.): 8

BT-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Maximum Beam Width (in.): 10
Uniform Capacity (lb.): 6,000
Maximum Beam Width (in.): 10

Heavy-Duty Beam Tongs PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


BT-20

BT-40

BT-60

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What is the minimum beam width/inside width when closed for model BT-20?

A: Inside width when closed is 2-9/16".






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Heavy-Duty Beam Tongs




The heavy duty beam tong are designed to lift I-beams in conjunction with overhead lifting devices. The scissor style design, utilizes the weight of the products being lifted for a more stable grip. Loads need to be centered and guided during lifting operation.

  • Includes 2 ton clevis
  • Manufactured to ASME B30.20 standards
  • Variable open and closed widths
  • Powder coated yellow finish


Model # Description Attributes Net Wt.
(lbs)
BT-20 BT-20Steel Heavy Duty Beam Tongs 6 In. Max Beam Width 3/4 In. x 9-3/4 In. x 20-7/8 In. 2000 Lb. Capacity YellowUniform Capacity (lb.): 2,000
Maximum Beam Width (in.): 6
12
BT-40 BT-40Steel Heavy Duty Beam Tongs 8 In. Max Beam Width 1 In. x 12-7/16 In. x 22-1/2 In. 4000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Maximum Beam Width (in.): 8
21
BT-60 BT-60Steel Heavy Duty Beam Tongs 10 In. Max Beam Width 1-1/2 In. x 14-9/16 In. x 25-1/8 In. 6000 Lb. Capacity YellowUniform Capacity (lb.): 6,000
Maximum Beam Width (in.): 10
27
