Product Family Overview

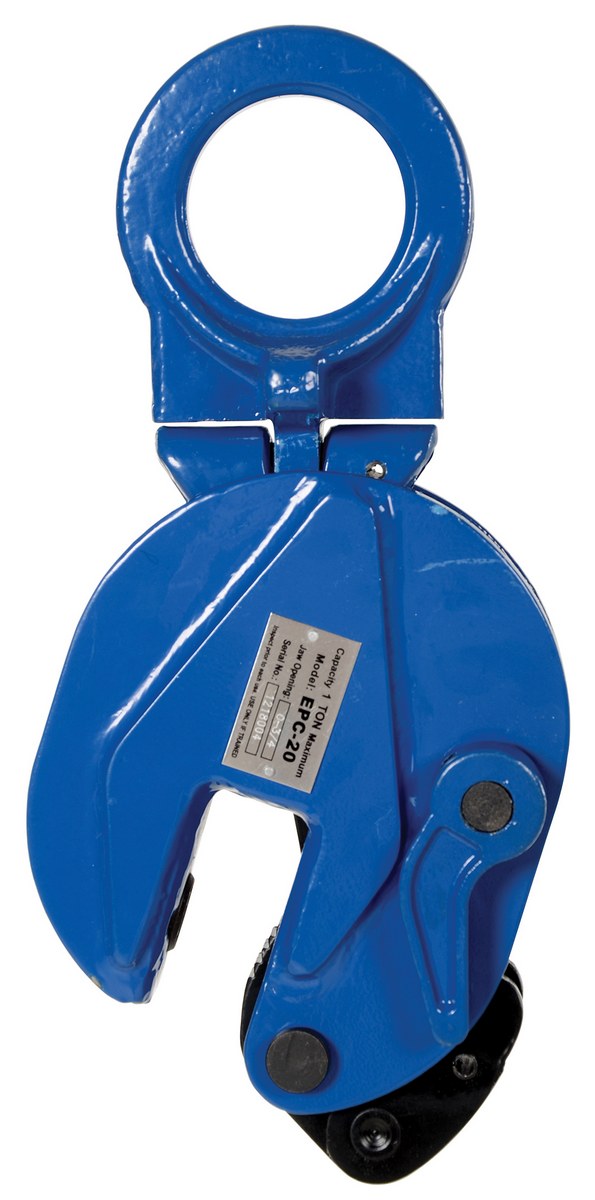

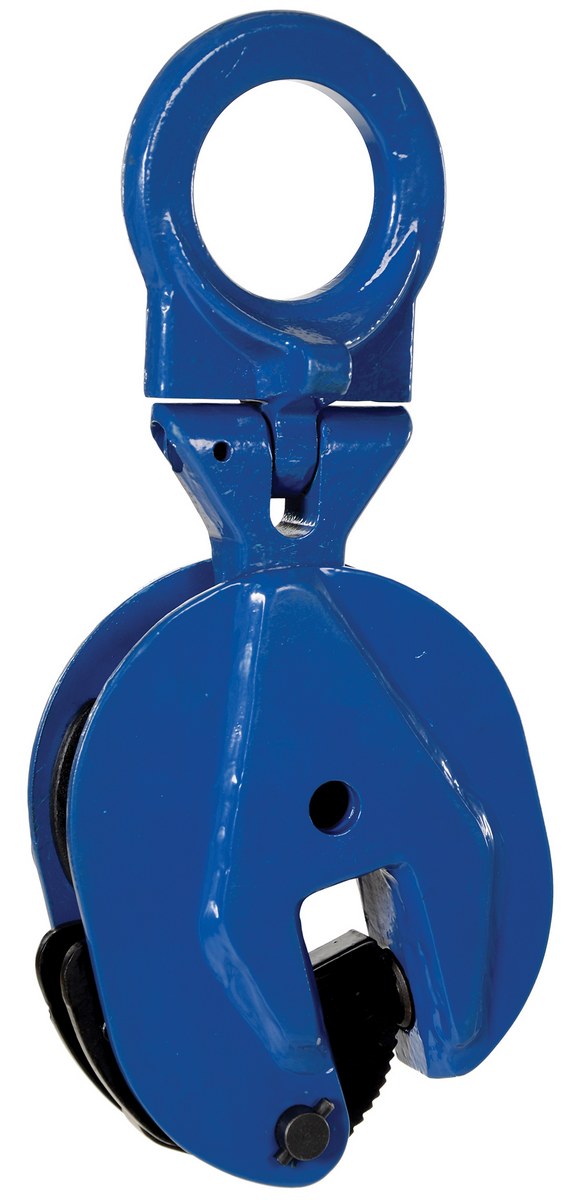

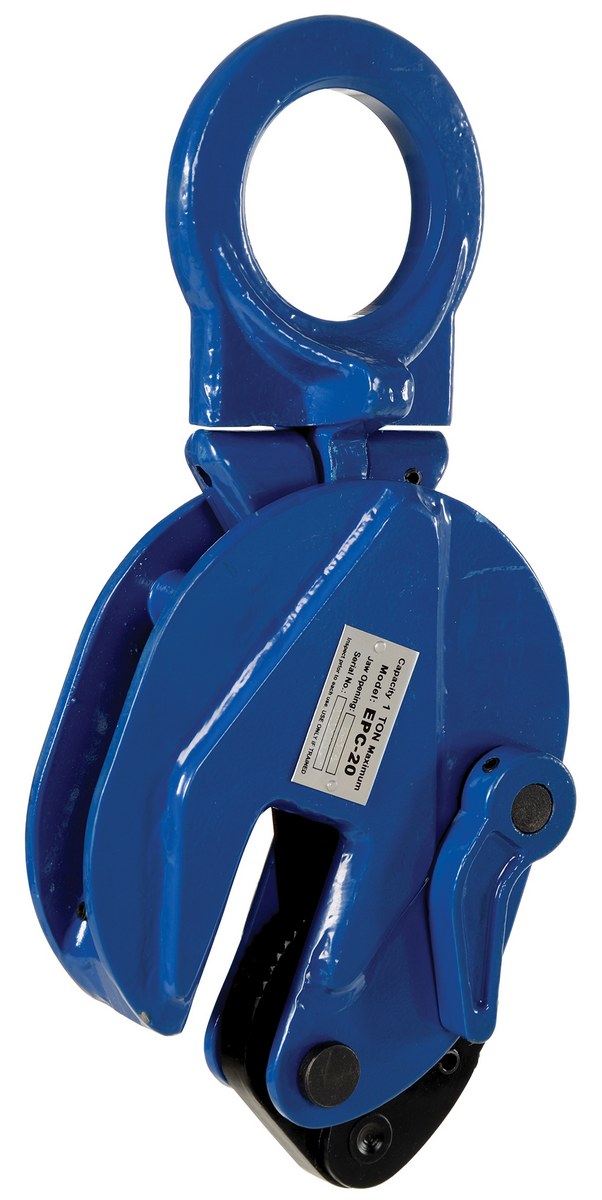

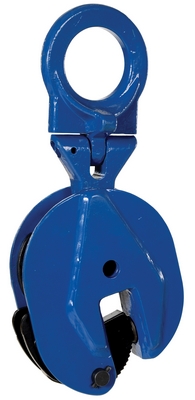

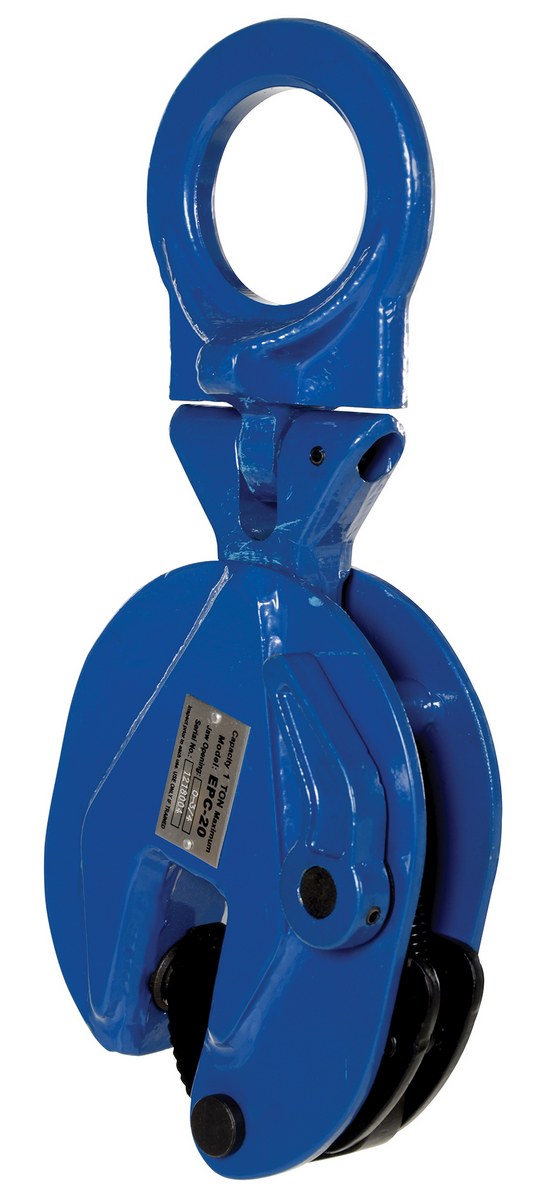

Vertical Plate Clamps
SERIES: EPC

Pivoting bail for easier and more versatile operation. Automatic serrated hardened steel cams and pads. Drop-forged steel case for maximum strength. Designed to meet ASME B30.20. Warning: Do not exceed the working load limit. Serious bodily injury or property damage may result. Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Pivoting bale provides more versatile operation
  • Drop-forged steel case provides maximum strength
  • Unique design lifts one clean and oil free plate at a time
  • Automatic serrated hardened steel cams and pads lock plate in place

Pivoting bail for easier and more versatile operation. Automatic serrated hardened steel cams and pads. Drop-forged steel case for maximum strength. Designed to meet ASME B30.20. Warning: Do not exceed the working load limit. Serious bodily injury or property damage may result. Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Pivoting bale provides more versatile operation
  • Drop-forged steel case provides maximum strength
  • Unique design lifts one clean and oil free plate at a time
  • Automatic serrated hardened steel cams and pads lock plate in place

Additional Models In This Family

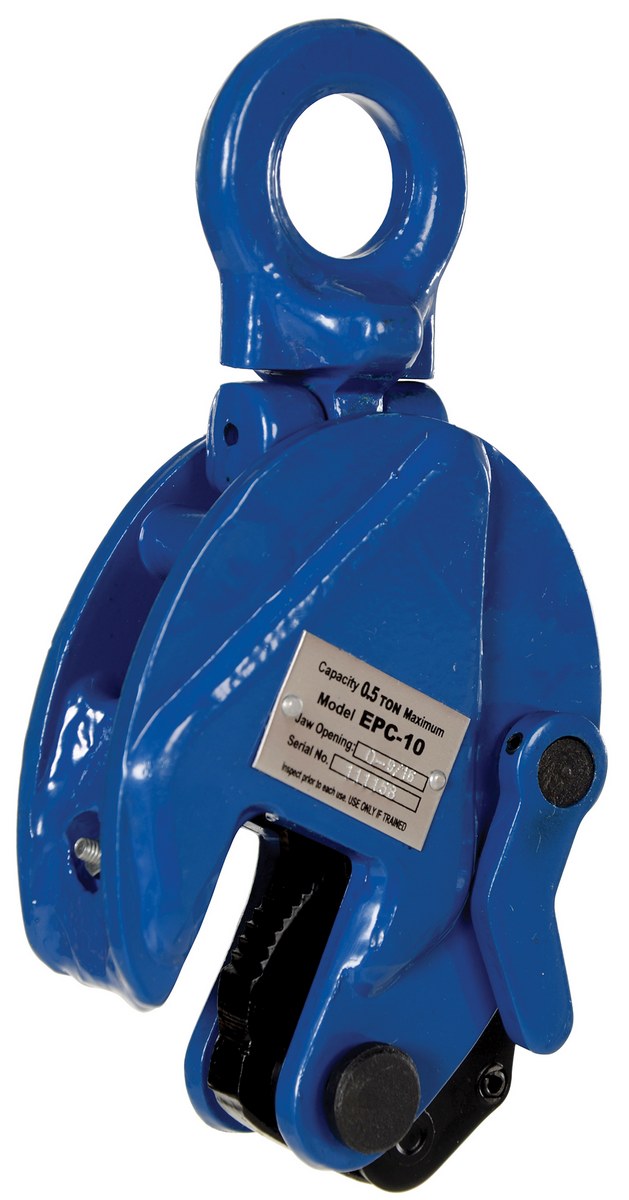

EPC-10

model EPC-10

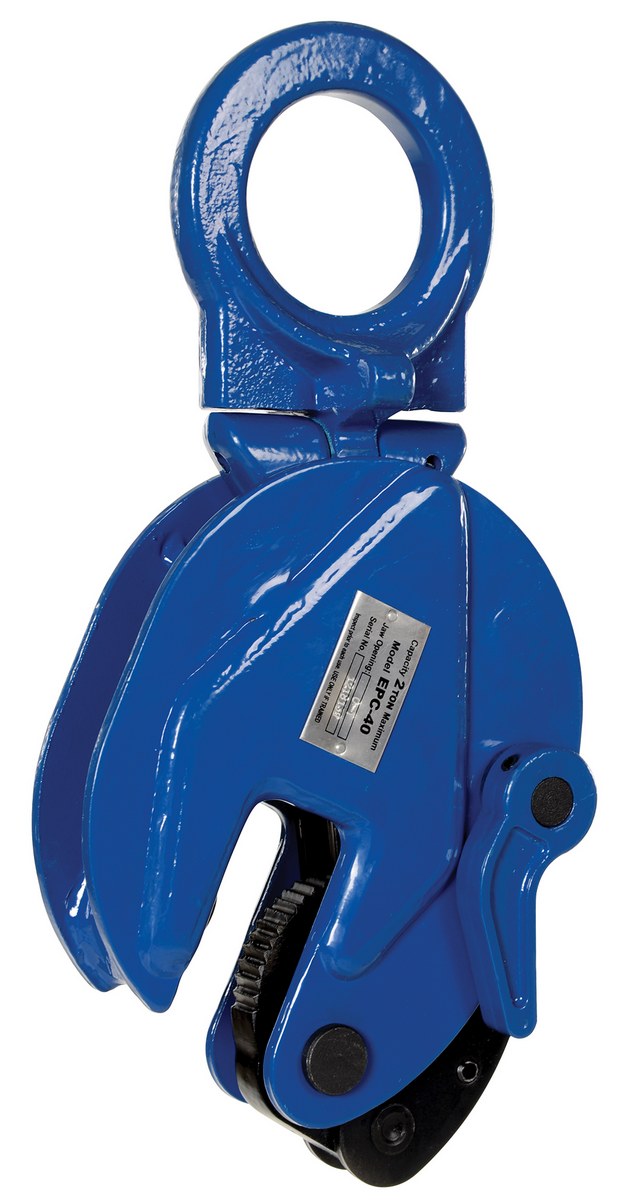

EPC-40

model EPC-40

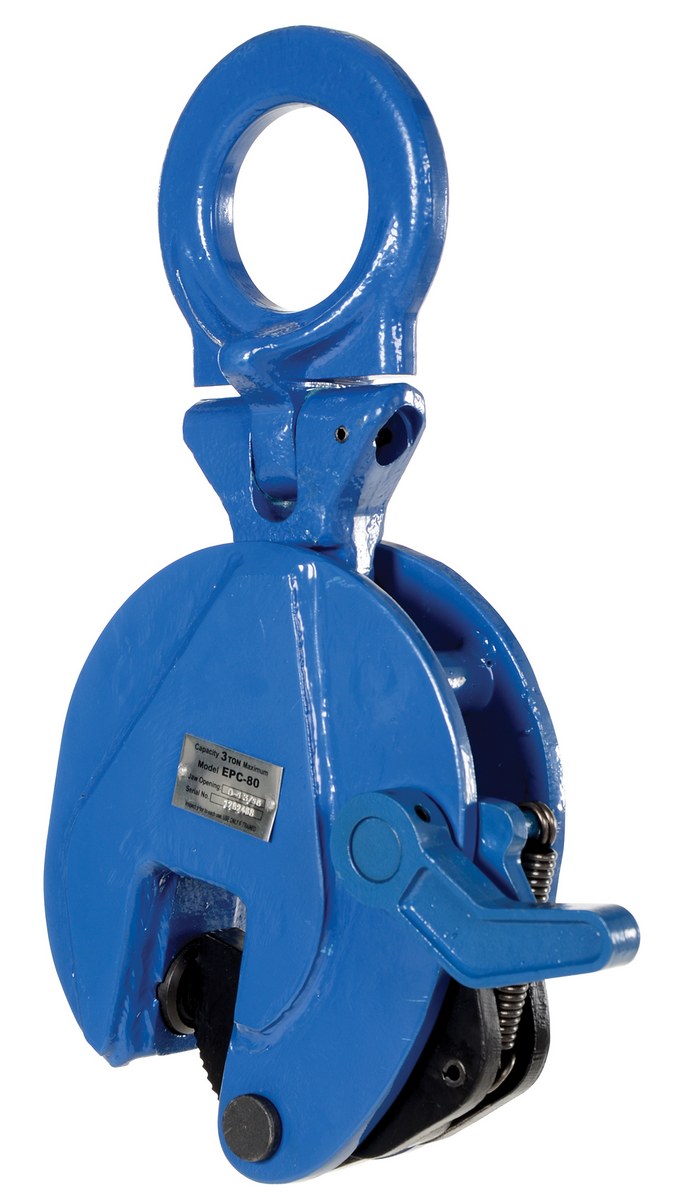

EPC-80

model EPC-80

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

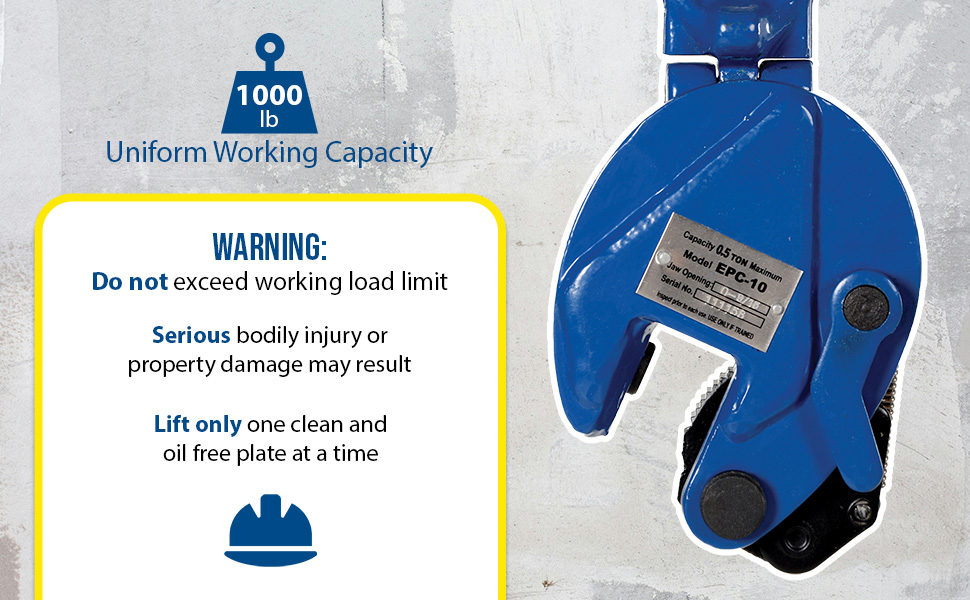

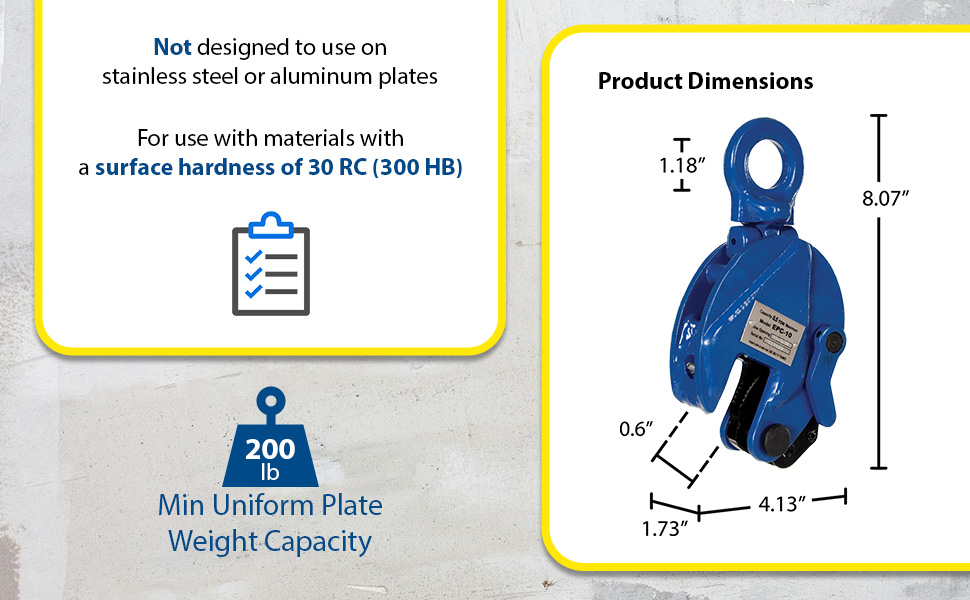

EPC-10 EPC-1090 Days Limited WarrantySteel Vertical Plate Clamp 1,000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 200
Uniform Working Load Limit (lb.): 1,000
5

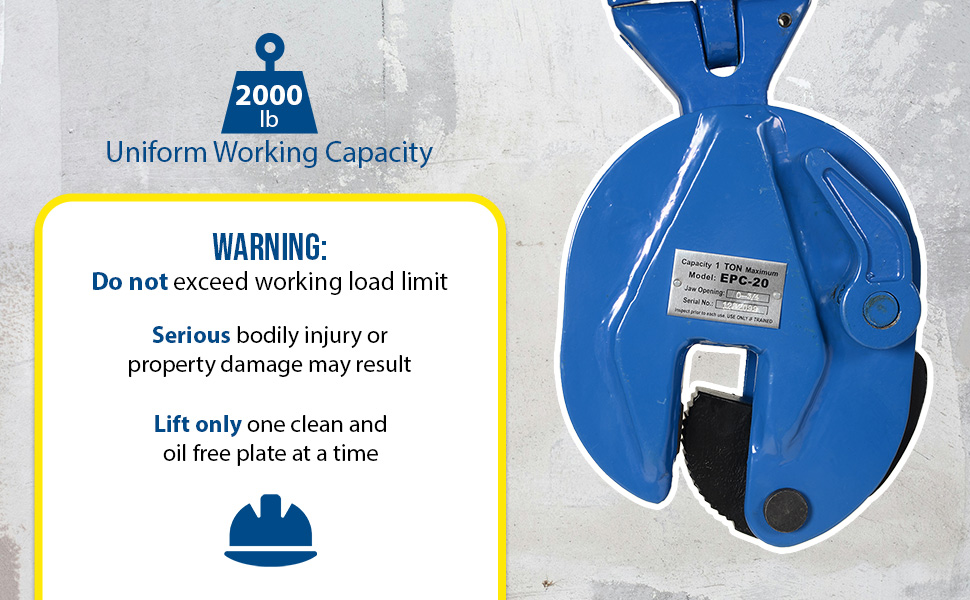

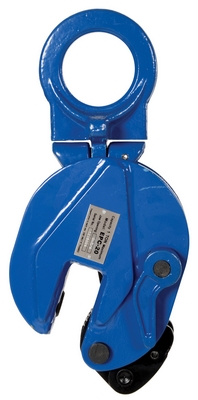

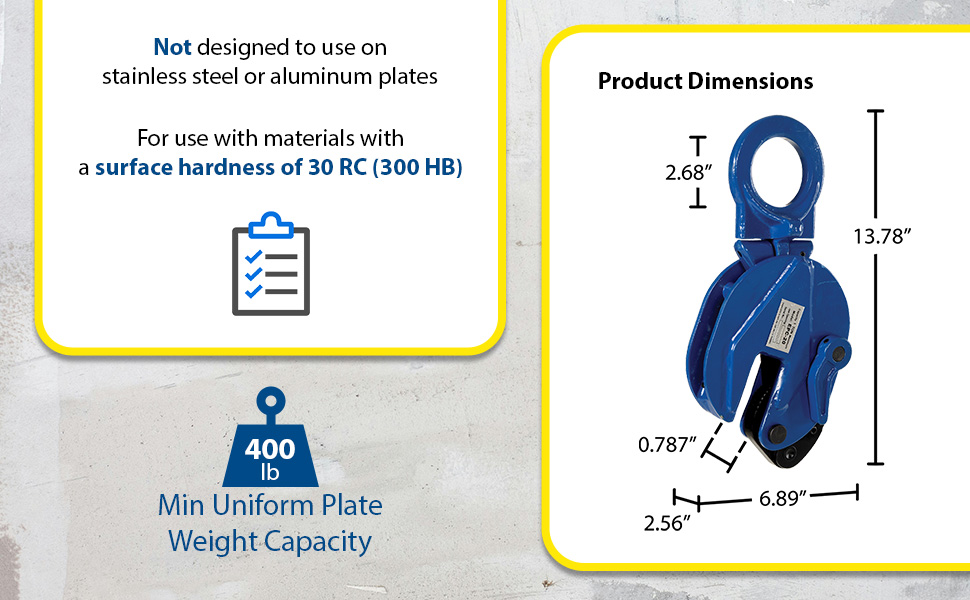

EPC-20 EPC-2090 Days Limited WarrantySteel Vertical Plate Clamp 2,000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 400
Uniform Working Load Limit (lb.): 2,000
16

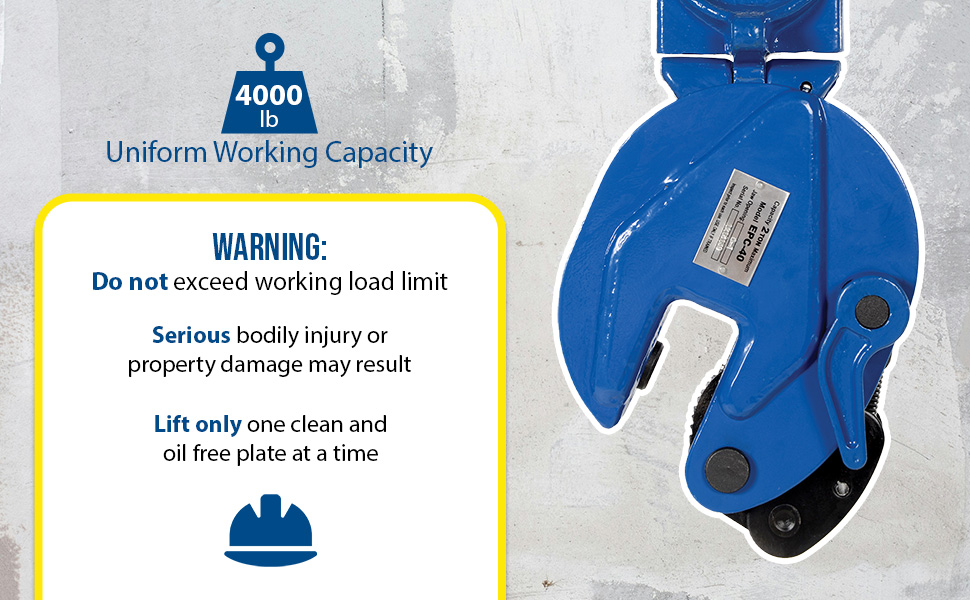

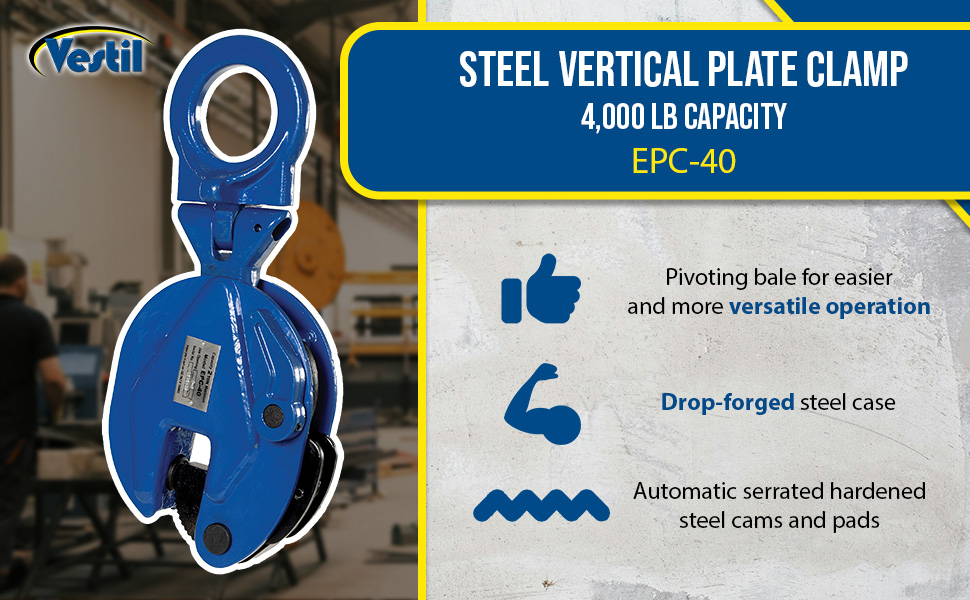

EPC-40 EPC-4090 Days Limited WarrantySteel Vertical Plate Clamp 4,000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 800
Uniform Working Load Limit (lb.): 4,000
17
EPC-80 EPC-8090 Days Limited WarrantySteel Vertical Plate Clamp 6,600 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 1,320
Uniform Working Load Limit (lb.): 6,600
32

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

EPC-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Min Uniform Plate Weight (lb.): 200
Uniform Working Load Limit (lb.): 1,000
Min Uniform Plate Weight (lb.): 200
Uniform Working Load Limit (lb.): 1,000

EPC-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Min Uniform Plate Weight (lb.): 400
Uniform Working Load Limit (lb.): 2,000
Min Uniform Plate Weight (lb.): 400
Uniform Working Load Limit (lb.): 2,000

EPC-40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Min Uniform Plate Weight (lb.): 800
Uniform Working Load Limit (lb.): 4,000
Min Uniform Plate Weight (lb.): 800
Uniform Working Load Limit (lb.): 4,000

EPC-80
Unit:
Size: W x L x H
Weight:
Limited Warranty
Min Uniform Plate Weight (lb.): 1,320
Uniform Working Load Limit (lb.): 6,600
Min Uniform Plate Weight (lb.): 1,320
Uniform Working Load Limit (lb.): 6,600

Vertical Plate Clamps PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


EPC-10

EPC-20

EPC-40

EPC-80

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Vertical Plate Clamps




Pivoting bail for easier and more versatile operation. Automatic serrated hardened steel cams and pads. Drop-forged steel case for maximum strength. Designed to meet ASME B30.20. Warning: Do not exceed the working load limit. Serious bodily injury or property damage may result. Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Pivoting bale provides more versatile operation
  • Drop-forged steel case provides maximum strength
  • Unique design lifts one clean and oil free plate at a time
  • Automatic serrated hardened steel cams and pads lock plate in place


Model # Description Attributes Net Wt.
(lbs)
EPC-10 EPC-10Steel Vertical Plate Clamp 1,000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 200
Uniform Working Load Limit (lb.): 1,000
5
EPC-20 EPC-20Steel Vertical Plate Clamp 2,000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 400
Uniform Working Load Limit (lb.): 2,000
16
EPC-40 EPC-40Steel Vertical Plate Clamp 4,000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 800
Uniform Working Load Limit (lb.): 4,000
17
EPC-80 EPC-80Steel Vertical Plate Clamp 6,600 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 1,320
Uniform Working Load Limit (lb.): 6,600
32
