Product Family Overview


Vertical Plate Clamps with Chain
SERIES: CPC

Designed for lifting plate material in a vertical position. Lifting eye includes chain for greater versatility. Heavy-duty steel construction for years of reliable use. Meets ASME B30.20 specifications. Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Ideal for pulling over long distances
  • Designed for in a vertical position
  • Lifting eye includes chain for greater versatility
  • Heavy-duty steel construction for years of reliable use

Designed for lifting plate material in a vertical position. Lifting eye includes chain for greater versatility. Heavy-duty steel construction for years of reliable use. Meets ASME B30.20 specifications. Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Ideal for pulling over long distances
  • Designed for in a vertical position
  • Lifting eye includes chain for greater versatility
  • Heavy-duty steel construction for years of reliable use

Additional Models In This Family

CPC-10

model CPC-10

CPC-20

model CPC-20

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

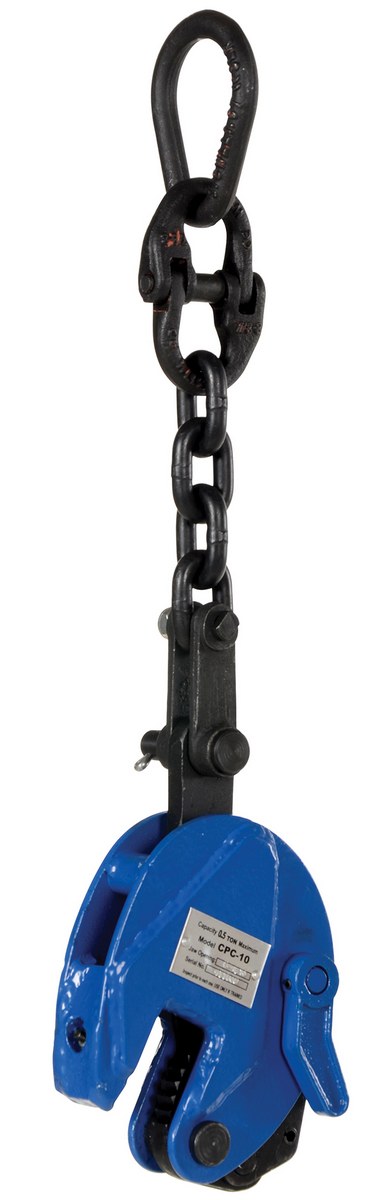

CPC-10 CPC-1090 Days Limited WarrantySteel Vertical Plate Clamp with Chain 4 In. x 1-31/32 In. x 16-7/8 In. 1000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 200
Uniform Working Load Limit (lb.): 1,000
6
CPC-20 CPC-2090 Days Limited WarrantySteel Vertical Plate Clamp with Chain 6-1/2 In. x 2-1/2 In. x 22 In. 2000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 400
Uniform Working Load Limit (lb.): 2,000
14

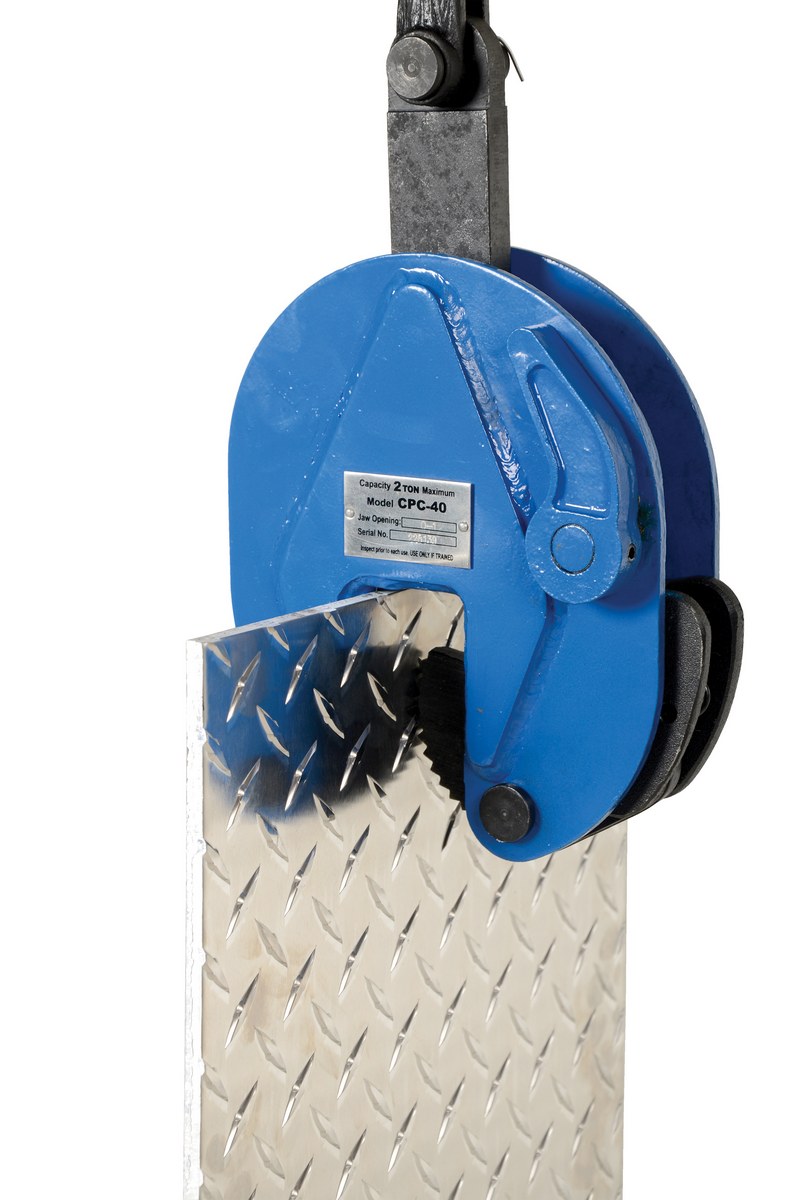

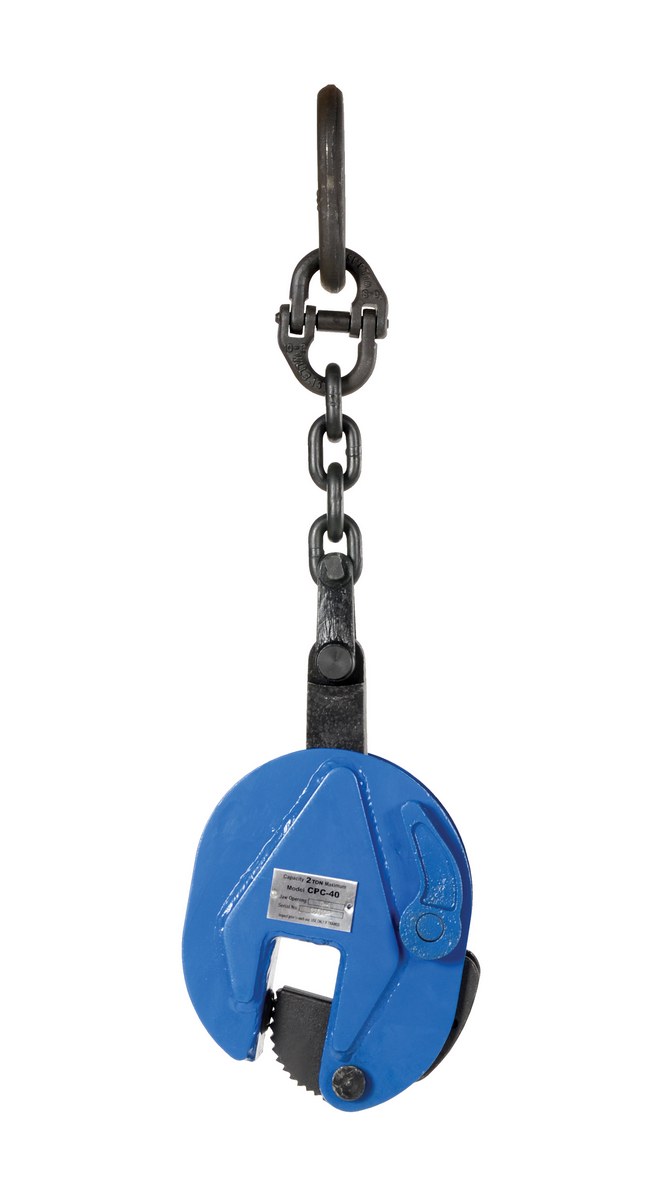

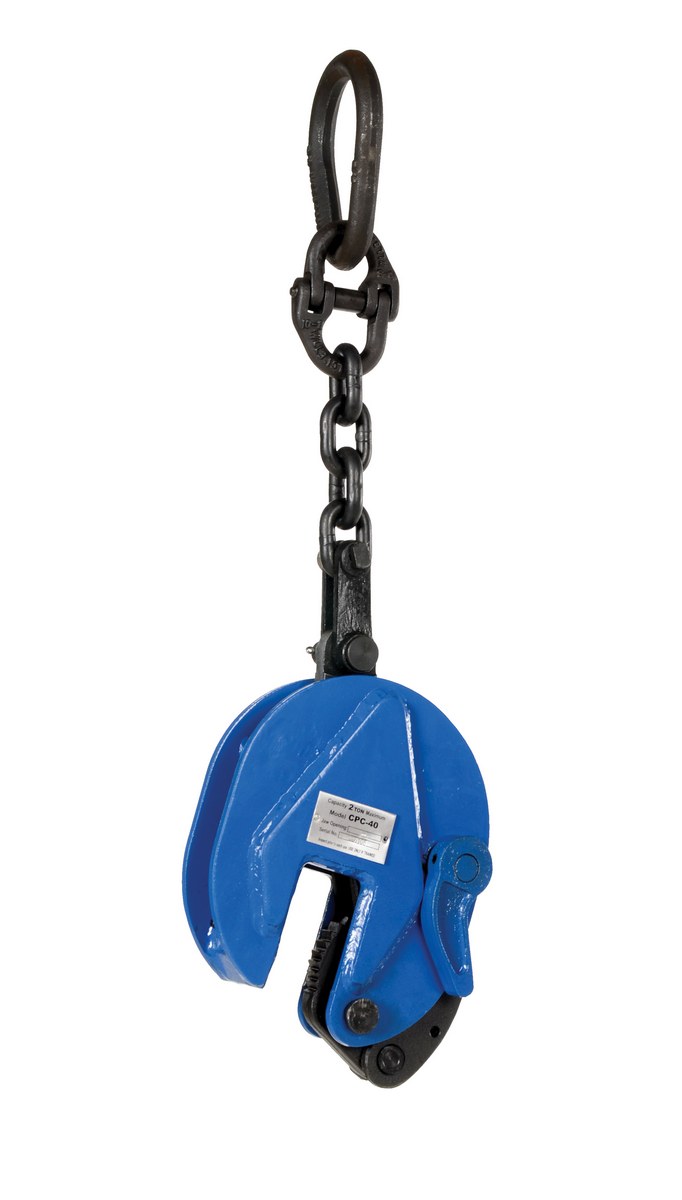

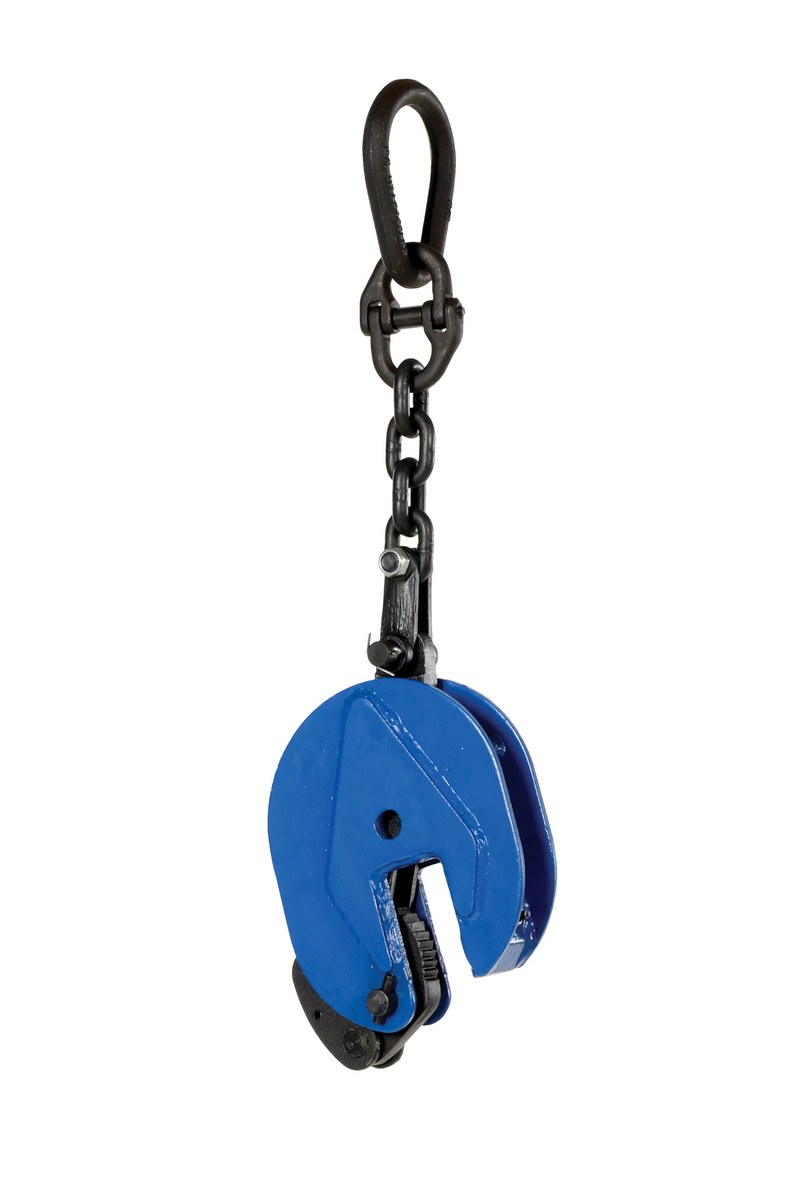

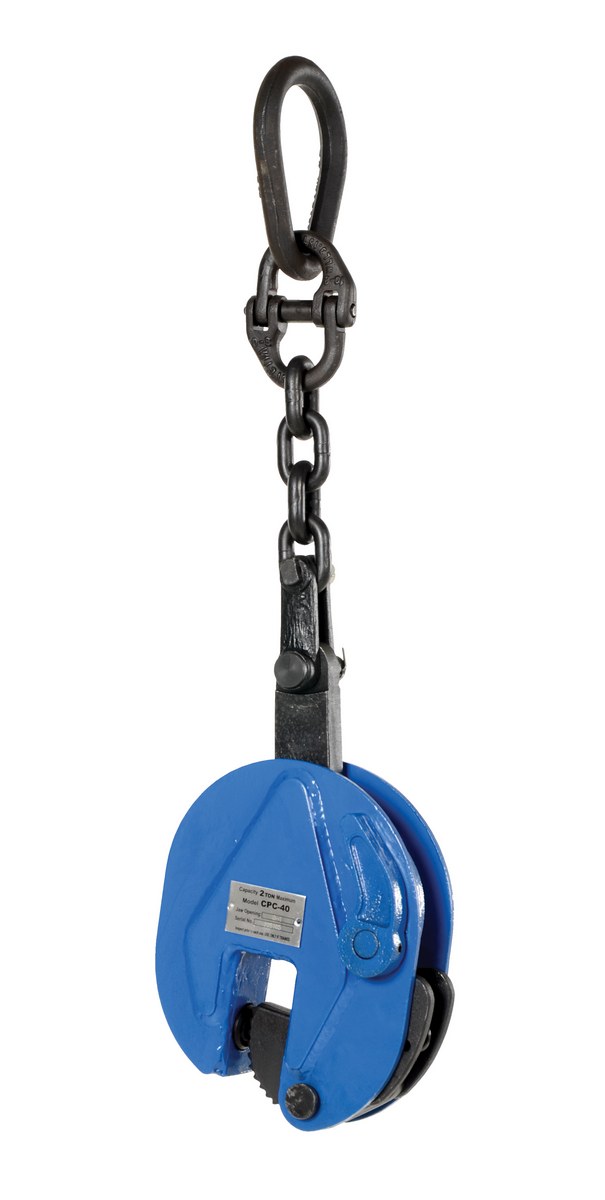

CPC-40 CPC-4090 Days Limited WarrantySteel Vertical Plate Clamp with Chain 7 In. x 2-3/4 In. x 23-1/2 In. 4000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 800
Uniform Working Load Limit (lb.): 4,000
17

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

CPC-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Min Uniform Plate Weight (lb.): 200
Uniform Working Load Limit (lb.): 1,000
Min Uniform Plate Weight (lb.): 200
Uniform Working Load Limit (lb.): 1,000

CPC-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Min Uniform Plate Weight (lb.): 400
Uniform Working Load Limit (lb.): 2,000
Min Uniform Plate Weight (lb.): 400
Uniform Working Load Limit (lb.): 2,000

CPC-40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Min Uniform Plate Weight (lb.): 800
Uniform Working Load Limit (lb.): 4,000
Min Uniform Plate Weight (lb.): 800
Uniform Working Load Limit (lb.): 4,000

Vertical Plate Clamps with Chain PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


CPC-10

CPC-20

CPC-40

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Vertical Plate Clamps with Chain




Designed for lifting plate material in a vertical position. Lifting eye includes chain for greater versatility. Heavy-duty steel construction for years of reliable use. Meets ASME B30.20 specifications. Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Ideal for pulling over long distances
  • Designed for in a vertical position
  • Lifting eye includes chain for greater versatility
  • Heavy-duty steel construction for years of reliable use


Model # Description Attributes Net Wt.
(lbs)
CPC-10 CPC-10Steel Vertical Plate Clamp with Chain 4 In. x 1-31/32 In. x 16-7/8 In. 1000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 200
Uniform Working Load Limit (lb.): 1,000
6
CPC-20 CPC-20Steel Vertical Plate Clamp with Chain 6-1/2 In. x 2-1/2 In. x 22 In. 2000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 400
Uniform Working Load Limit (lb.): 2,000
14
CPC-40 CPC-40Steel Vertical Plate Clamp with Chain 7 In. x 2-3/4 In. x 23-1/2 In. 4000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 800
Uniform Working Load Limit (lb.): 4,000
17
