Floor Mounted Jibs
SERIES: JIB-FM

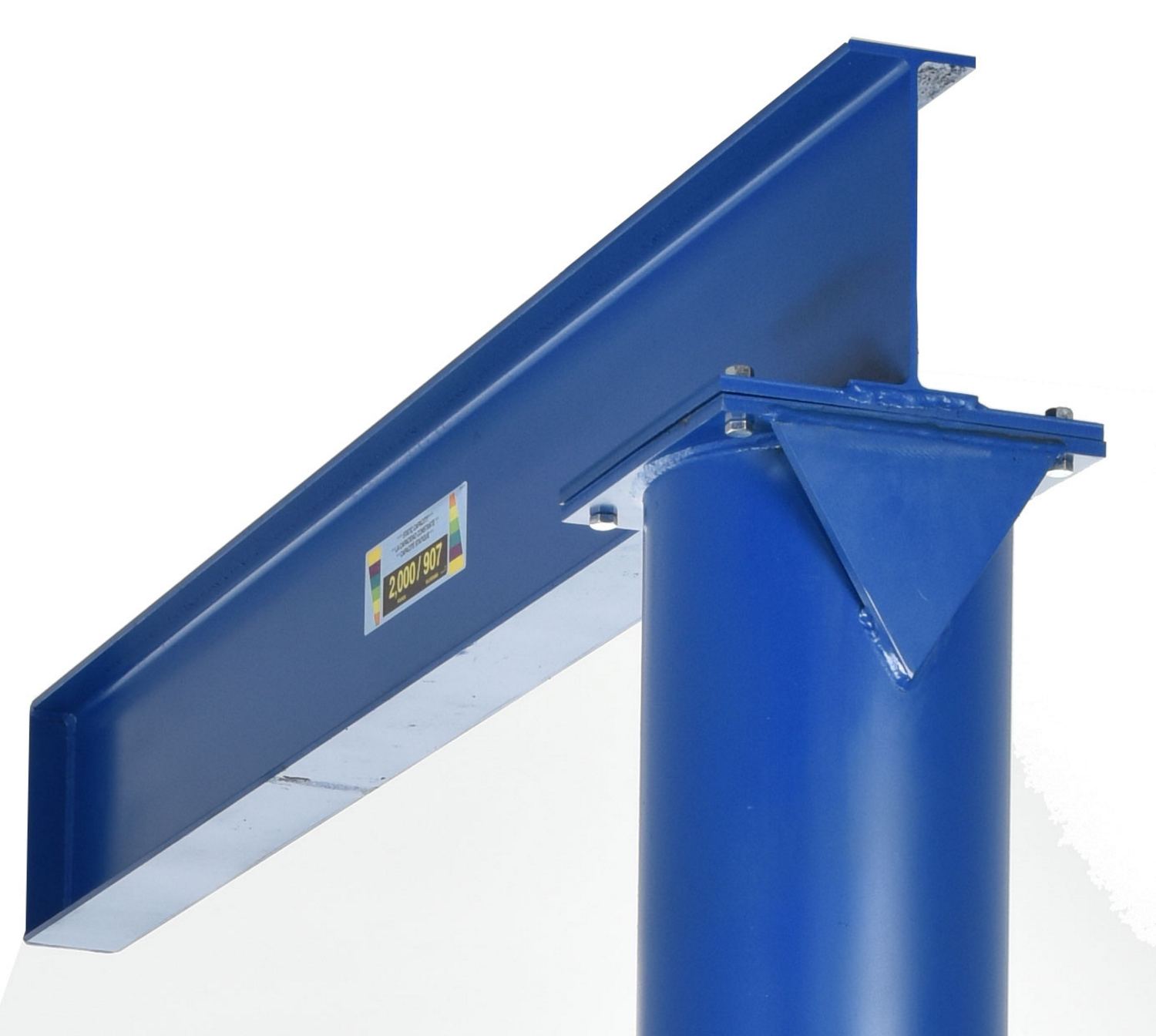

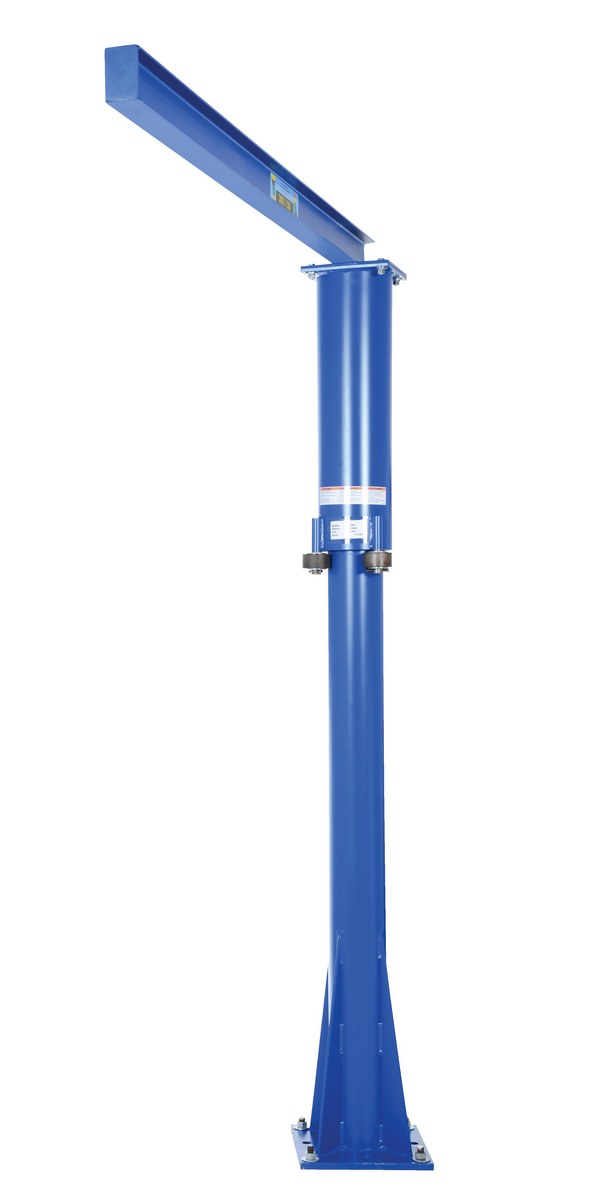

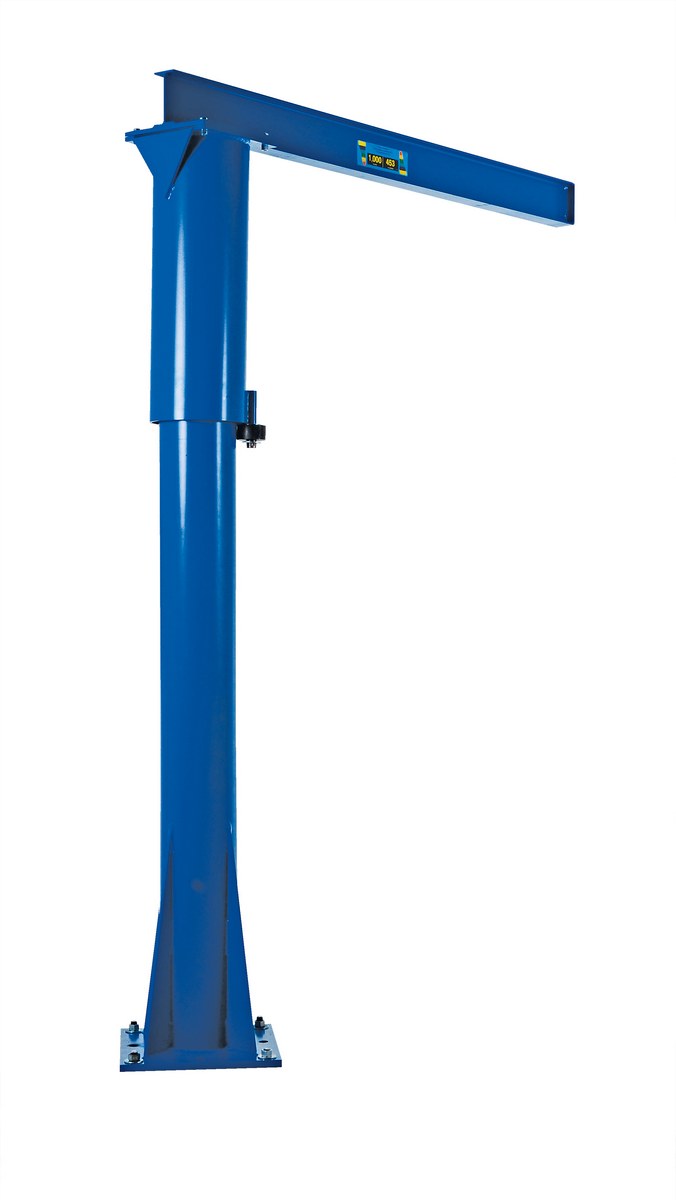

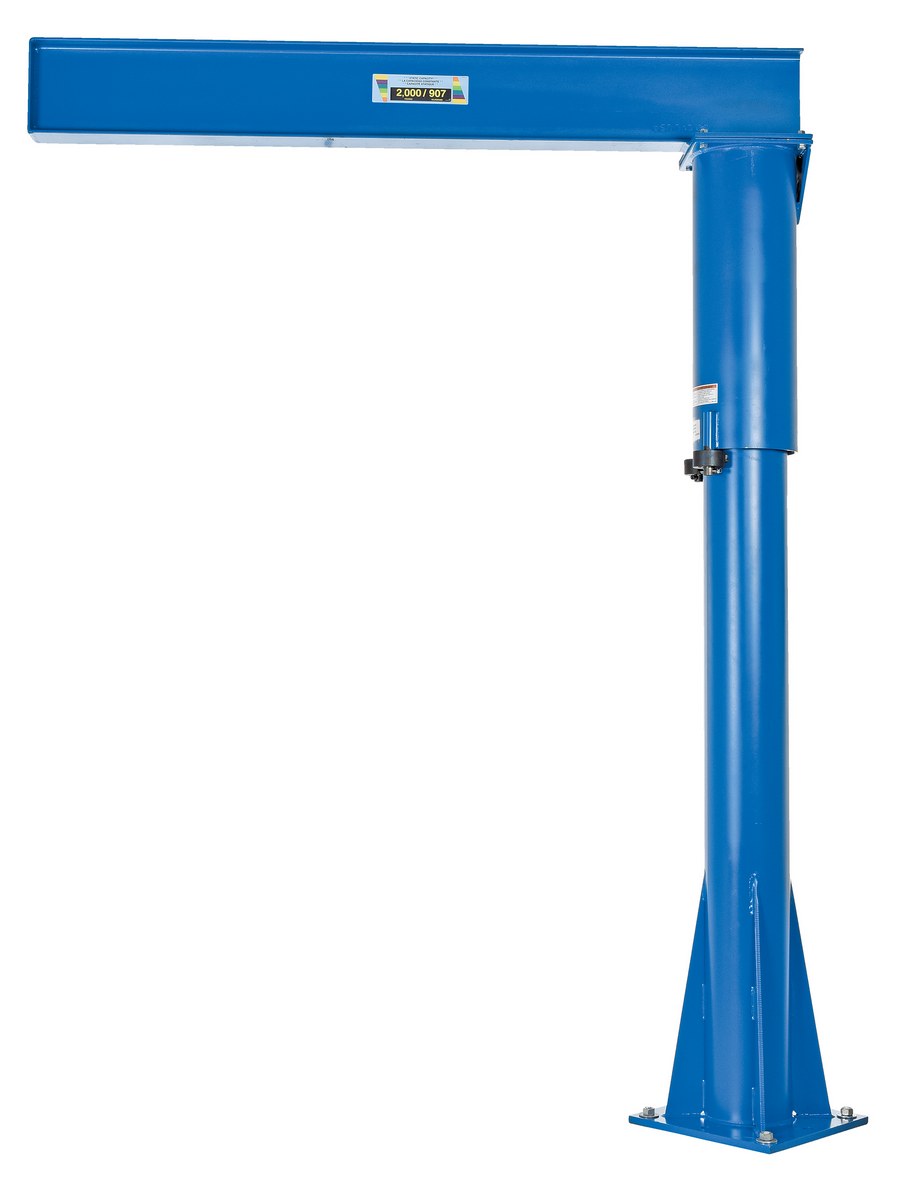

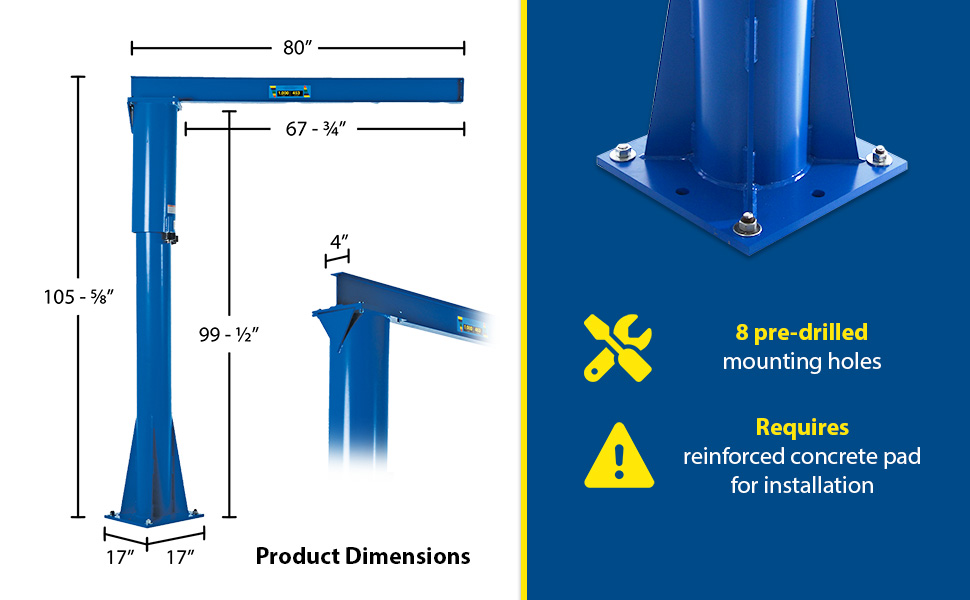

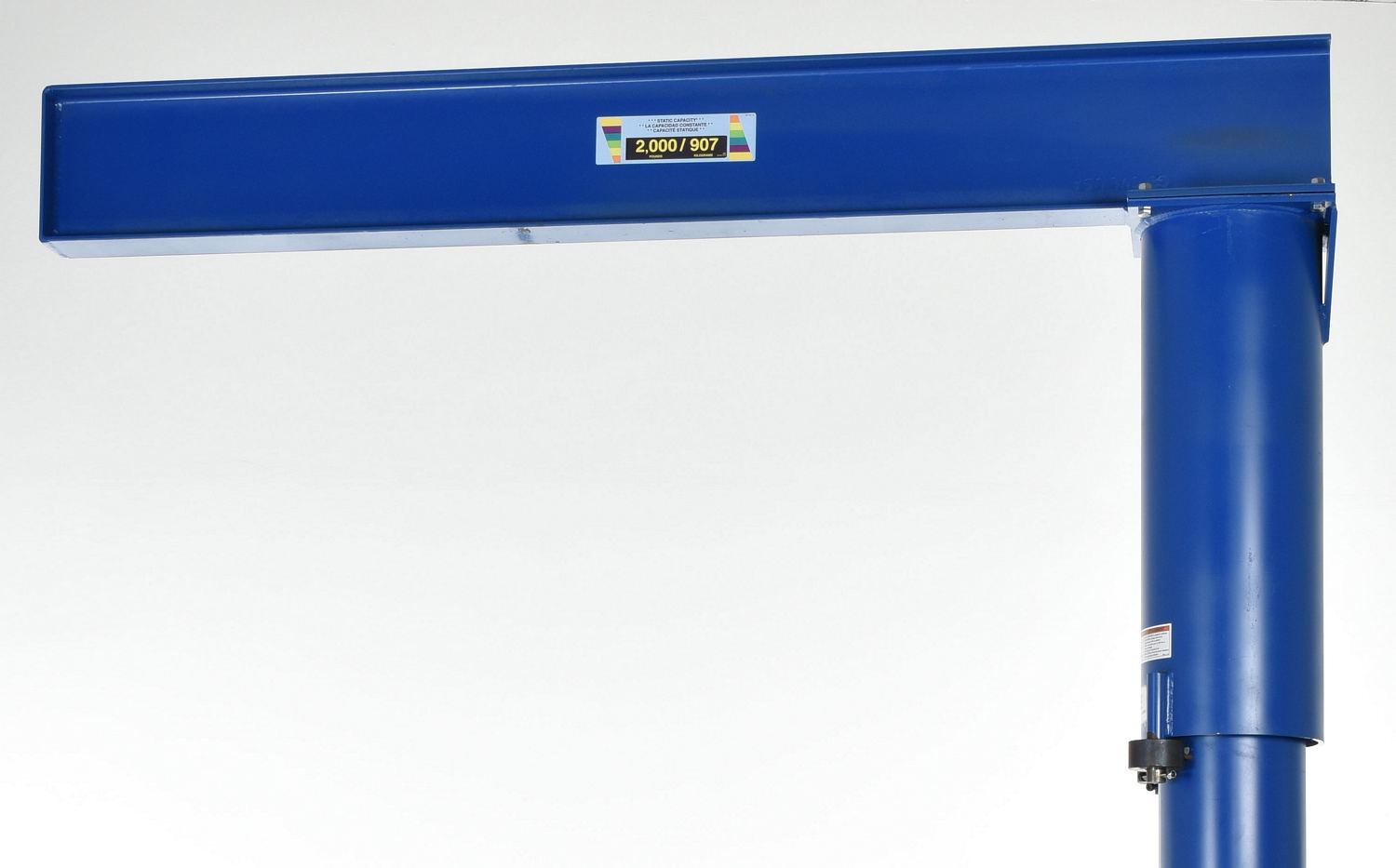

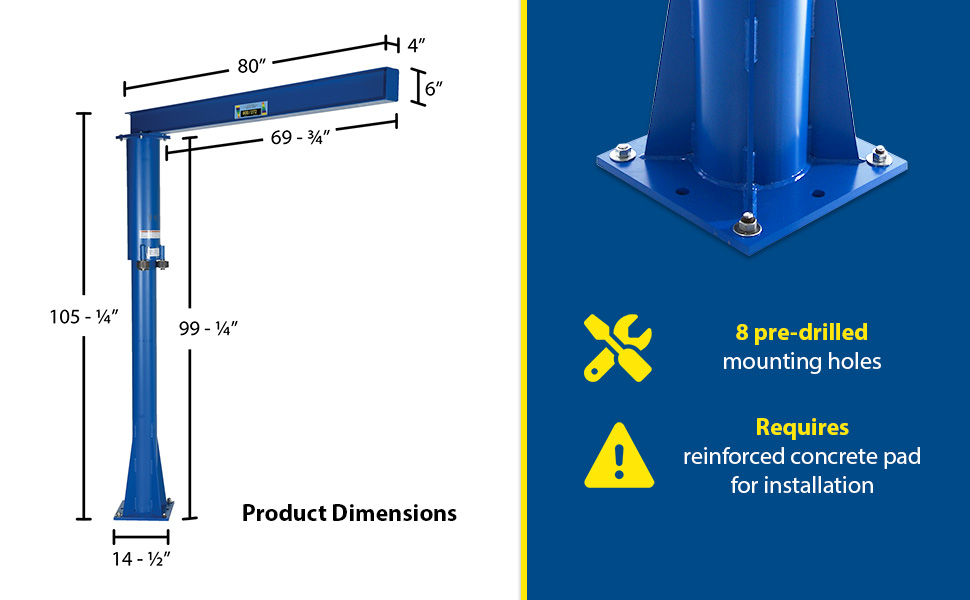

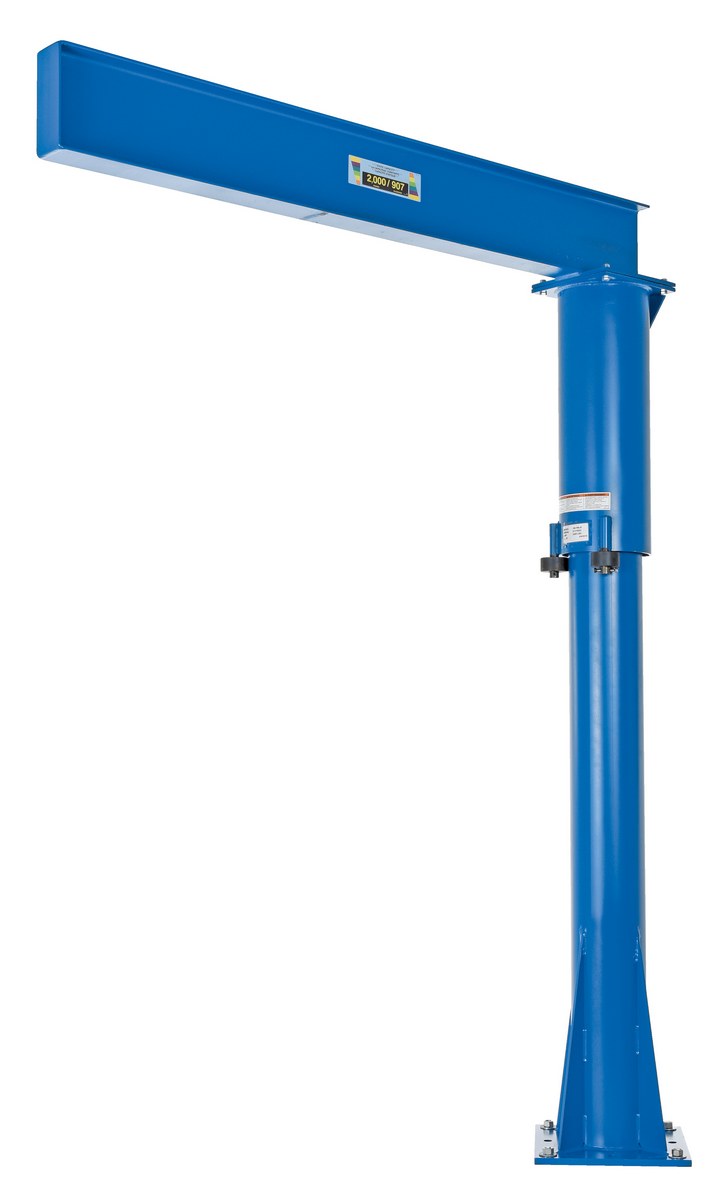

This floor mounted jib adapts well to a variety of applications. With the unique design, the job is functional in any direction or complete customization of the work station. Solid steel construction will assist workers in lifting awkward material. The overall I-beam length is 80", except for model JIB-FM-40 which has an I-beam length of 80-3/8". Hoists & Trollies can be ordered seperately.

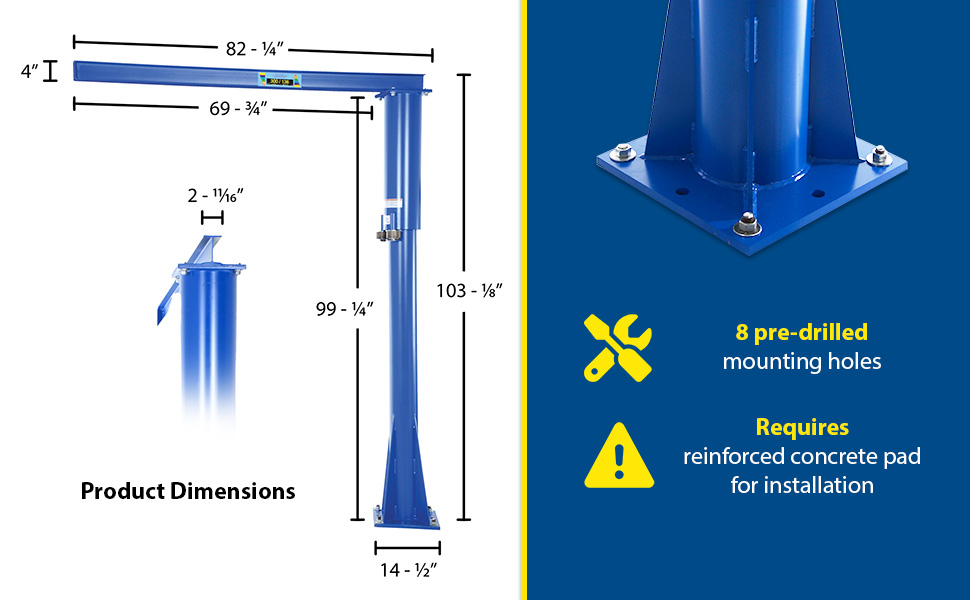

  • Eight (8) pre-drilled mounting holes
  • Full 360 degree rotation
  • Requires reinforced concrete pad for installation
  • Fixed height design provides workplace consistency

This floor mounted jib adapts well to a variety of applications. With the unique design, the job is functional in any direction or complete customization of the work station. Solid steel construction will assist workers in lifting awkward material. The overall I-beam length is 80", except for model JIB-FM-40 which has an I-beam length of 80-3/8". Hoists & Trollies can be ordered seperately.

  • Eight (8) pre-drilled mounting holes
  • Full 360 degree rotation
  • Requires reinforced concrete pad for installation
  • Fixed height design provides workplace consistency

Additional Models In This Family

JIB-FM-3

model JIB-FM-3

JIB-FM-6

model JIB-FM-6

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
JIB-FM-10 JIB-FM-101 Year Limited WarrantySteel Floor Mounted Jib 80 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Under I-Beam to Ground Length (in.): 99-1/2
610
JIB-FM-20 JIB-FM-201 Year Limited WarrantySteel Floor Mounted Jib 80 In. I-Beam 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Under I-Beam to Ground Length (in.): 99-1/2
651
JIB-FM-3 JIB-FM-31 Year Limited WarrantySteel Floor Mounted Jib 80 In. I-Beam 300 Lb. Capacity BlueUniform Capacity (lb.): 300
Under I-Beam to Ground Length (in.): 99-1/4
428

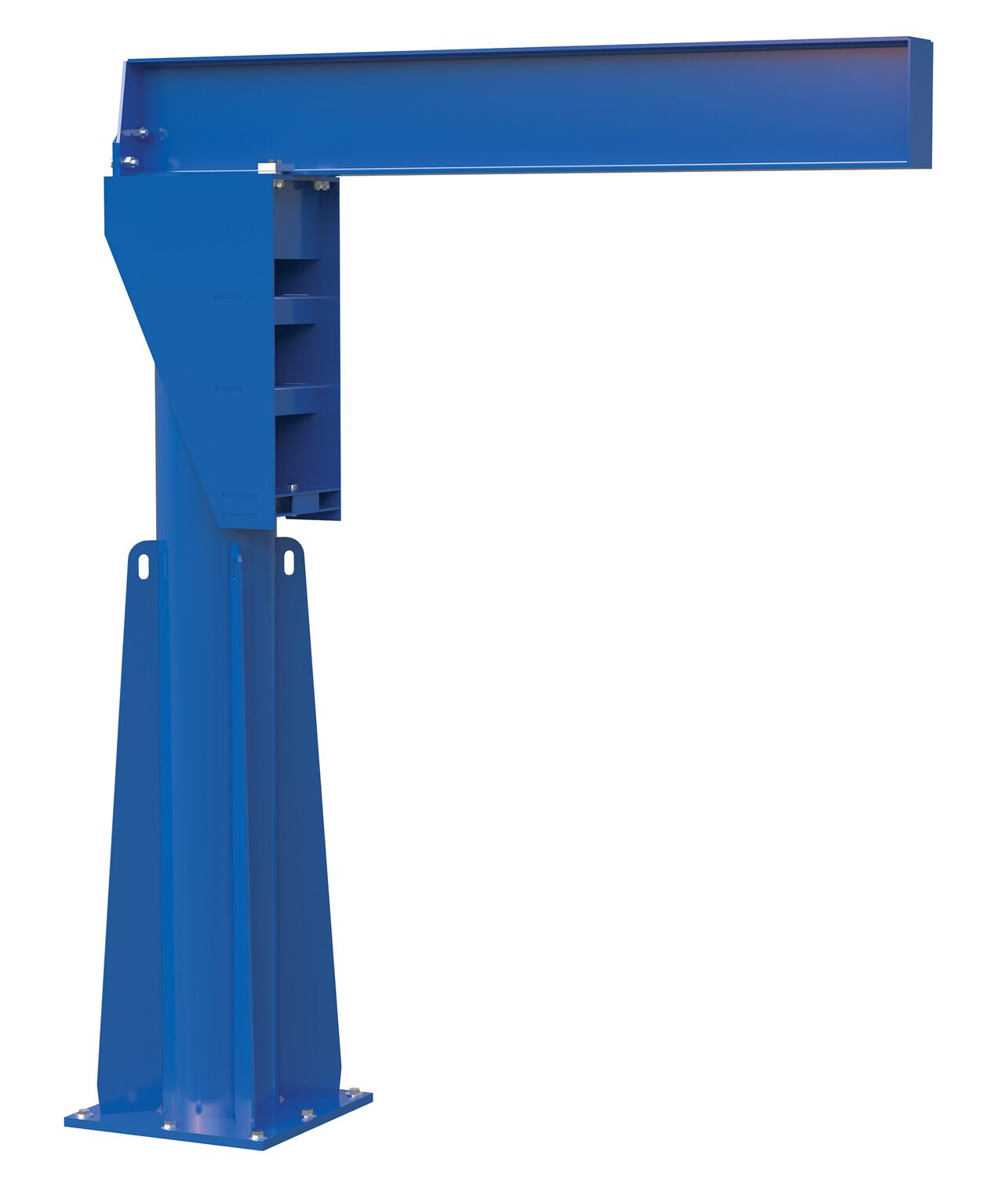

JIB-FM-40 JIB-FM-401 Year Limited WarrantySteel Floor Mounted Jib 80-3/8 In. I-Beam 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Under I-Beam to Ground Length (in.): 99-1/4
783
JIB-FM-6 JIB-FM-61 Year Limited WarrantySteel Floor Mounted Jib 80 In. I-Beam 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Under I-Beam to Ground Length (in.): 99-1/4
454

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

JIB-FM-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Under I-Beam to Ground Length (in.): 99-1/2
Uniform Capacity (lb.): 1000
Under I-Beam to Ground Length (in.): 99-1/2

JIB-FM-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Under I-Beam to Ground Length (in.): 99-1/2
Uniform Capacity (lb.): 2000
Under I-Beam to Ground Length (in.): 99-1/2

JIB-FM-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 300
Under I-Beam to Ground Length (in.): 99-1/4
Uniform Capacity (lb.): 300
Under I-Beam to Ground Length (in.): 99-1/4

JIB-FM-40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Under I-Beam to Ground Length (in.): 99-1/4
Uniform Capacity (lb.): 4000
Under I-Beam to Ground Length (in.): 99-1/4

JIB-FM-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Under I-Beam to Ground Length (in.): 99-1/4
Uniform Capacity (lb.): 600
Under I-Beam to Ground Length (in.): 99-1/4

Floor Mounted Jibs PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


JIB-FM-10

JIB-FM-20

JIB-FM-3

JIB-FM-40

JIB-FM-6

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products


Q: I am interested in the floor mounted JIB. I have concrete where I want to install it. Must we pour a new foundation?

A: Because we do not know the condition and strength of the users concrete, pouring a new foundation is the only way we can guarantee the unit will not fail. We can only recommend installing per the instructions in the owners manual. Normal use of the jib causes vibrations that could potentially loosen a wedge anchor. We spec out J-anchors for use in new concrete.

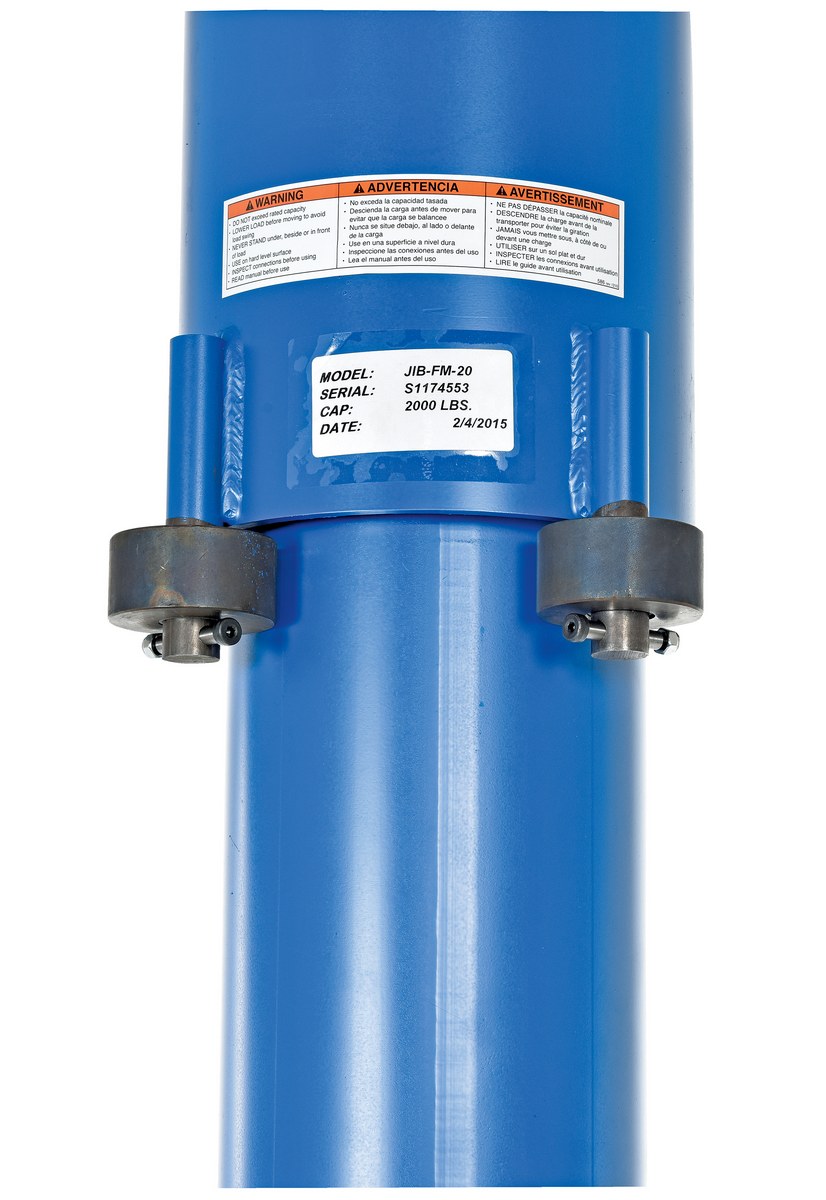

Q: Do you have any type of guard to protect from the pinchpoint of the lower guide wheel/rollers ?

A: Yes, we can add a guard to the floor mounted JIB. Please contact a sales associate for details to modify this unit.


Q: Do you have any type of stop to keep the JIB from rotating 360 degrees?

A: Yes, our engineering team can add a rotation stop. Please contact a sales associate for details.


Q: Do the j bolts that you anchor the base in the concrete come with the JIB?

A: No. The "J BOLTS" do not come with the floor mounted JIB.
